2024 Suzuki LT-A400FZM4 (2024) OEM Parts | Assembly Diagrams Lookup OEM Parts Finder and Diagram (Microfiche) Inspector

Suzuki Choose an assembly...

Assemblies List (71)

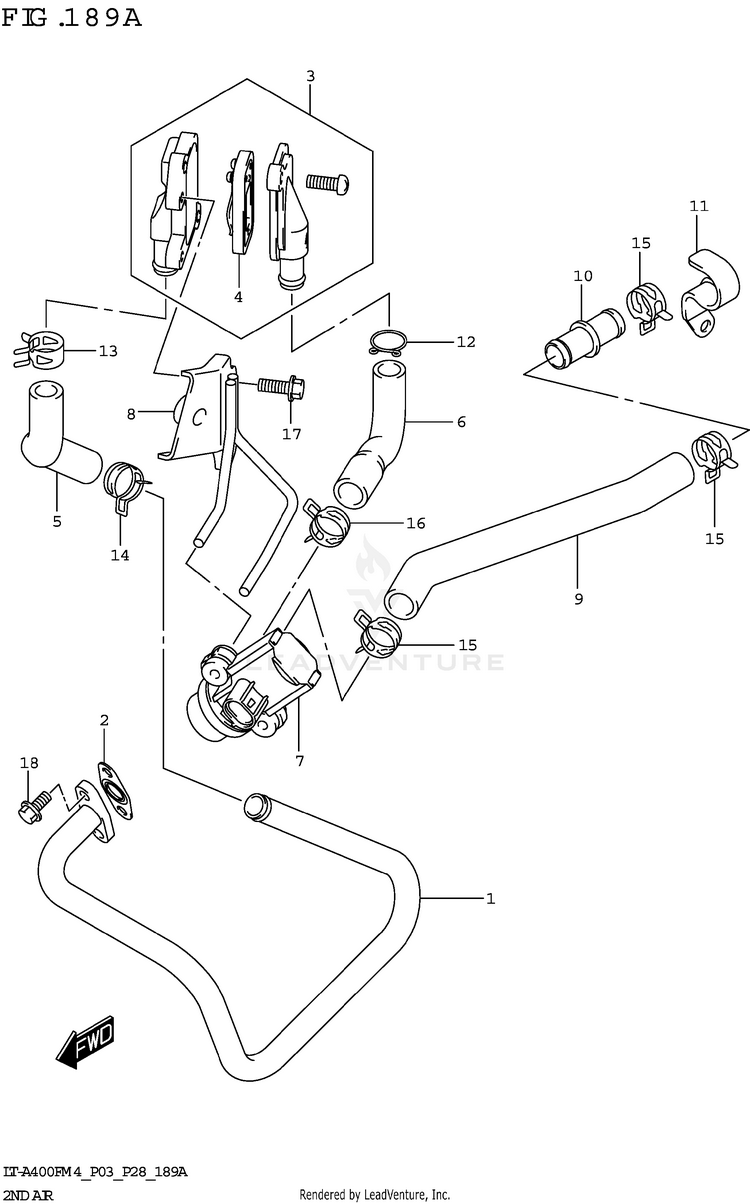

2ND AIR

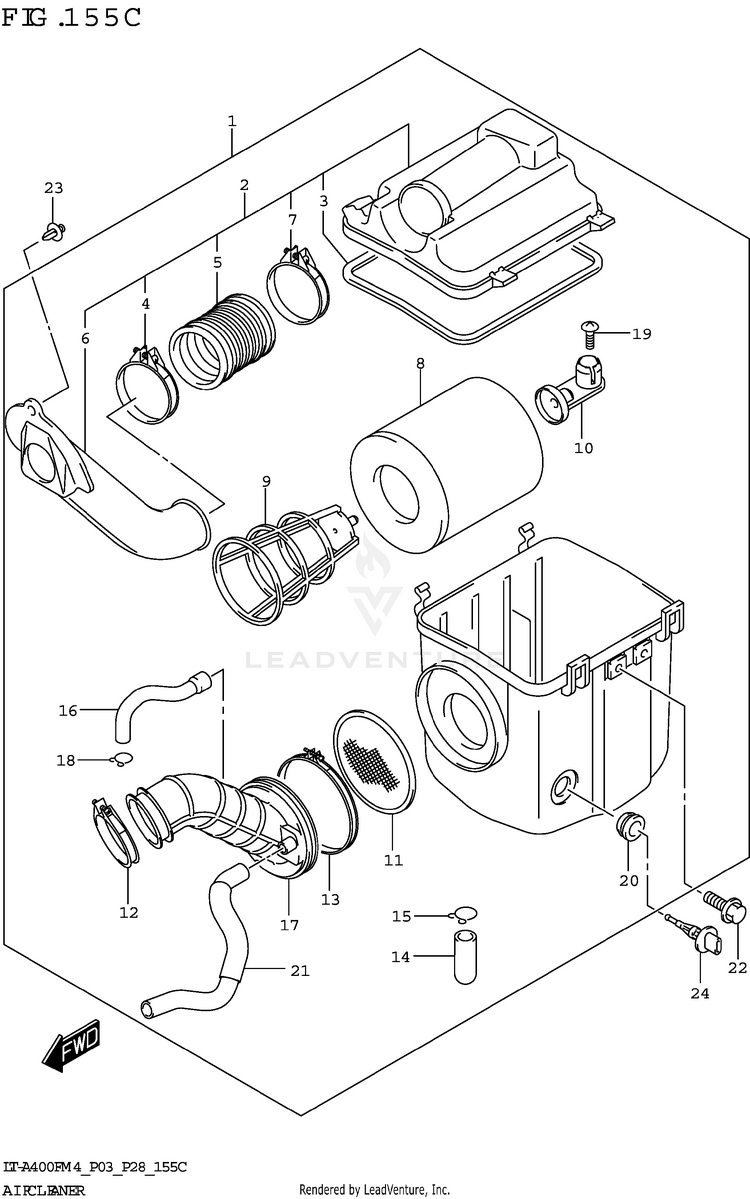

AIR CLEANER

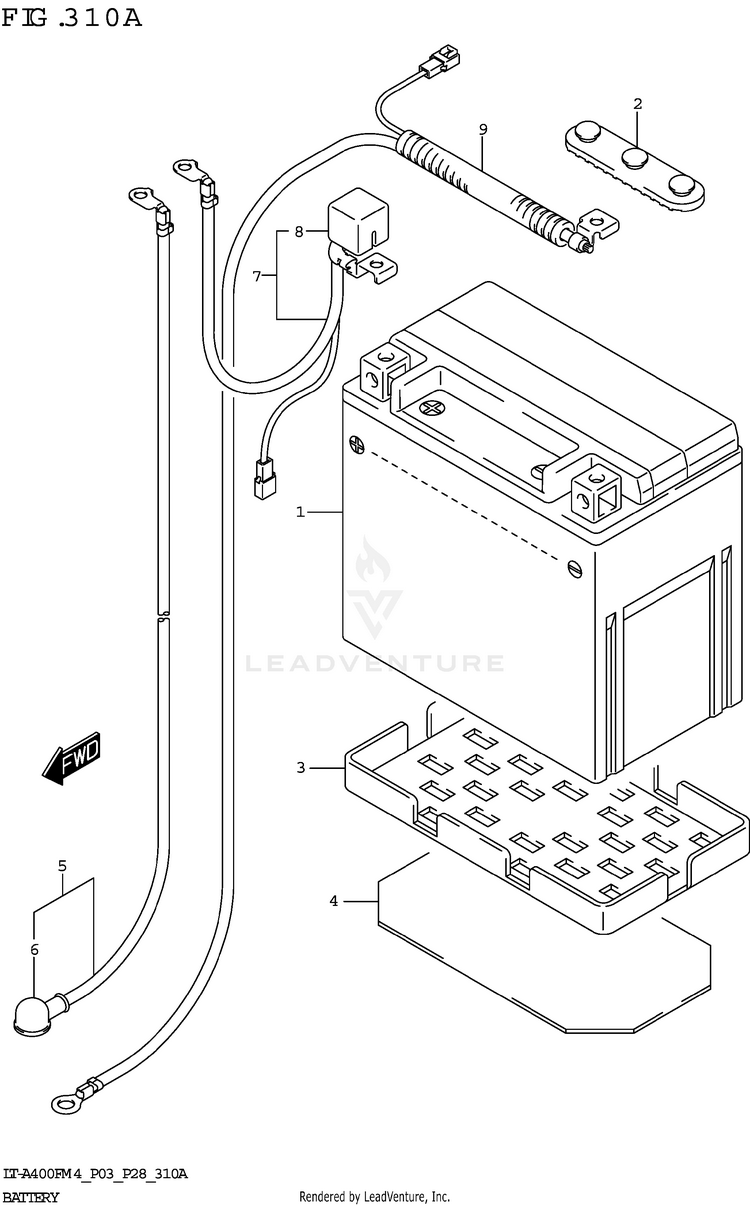

BATTERY

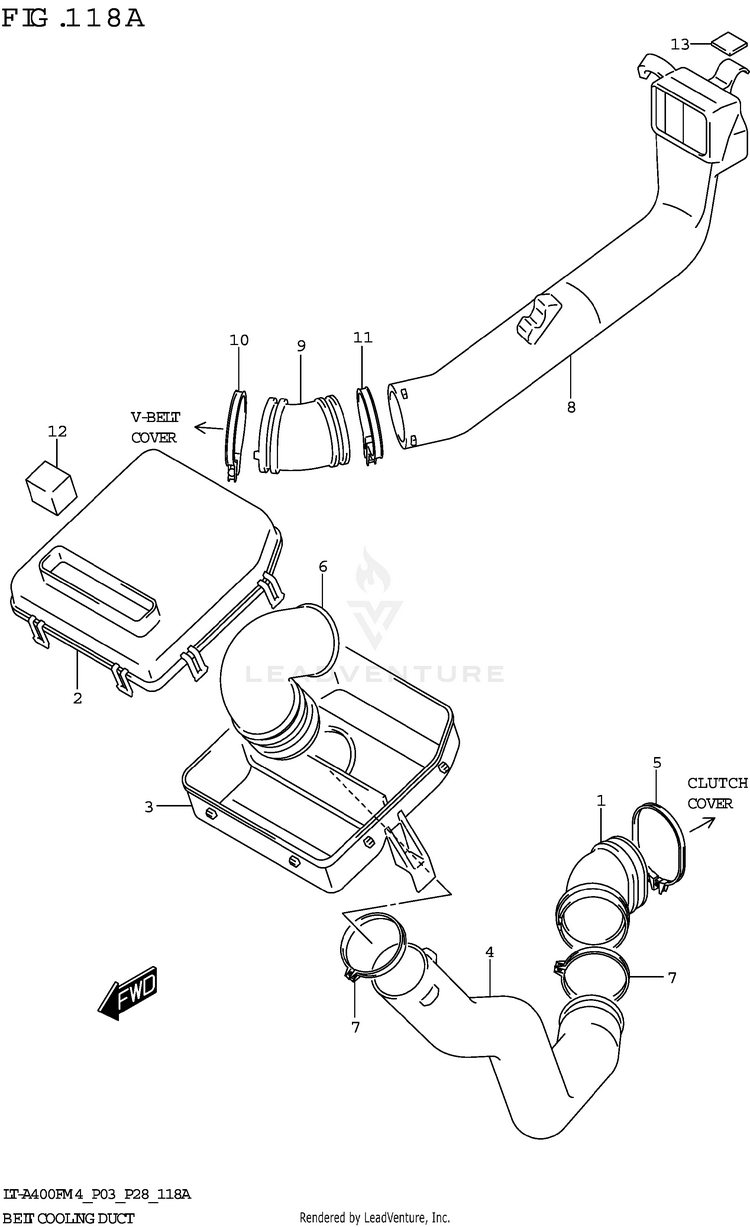

BELT COOLING DUCT

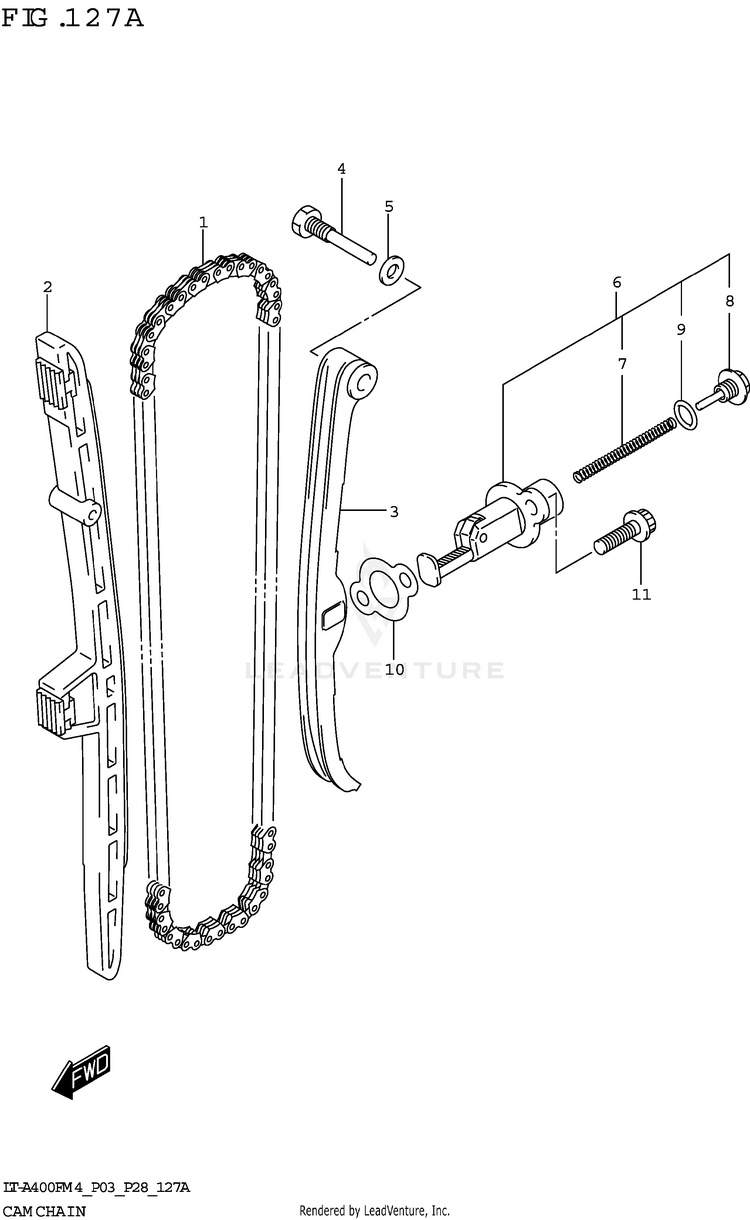

CAM CHAIN

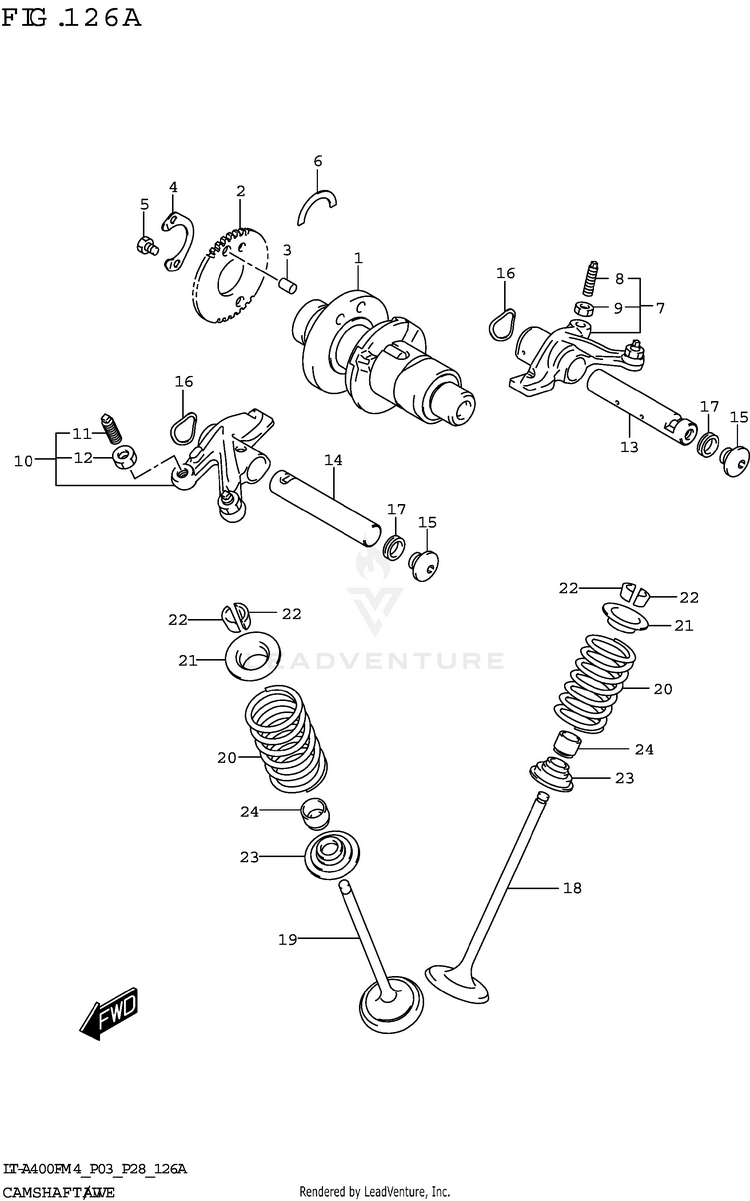

CAMSHAFT/VALVE

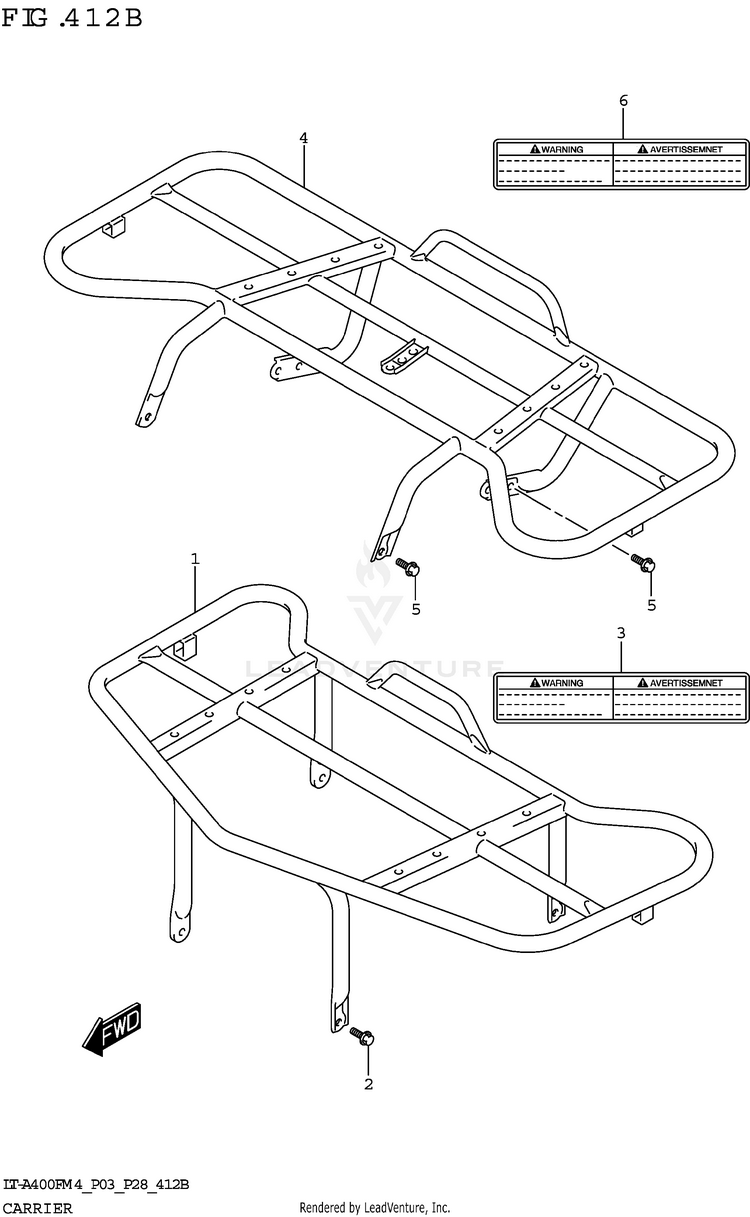

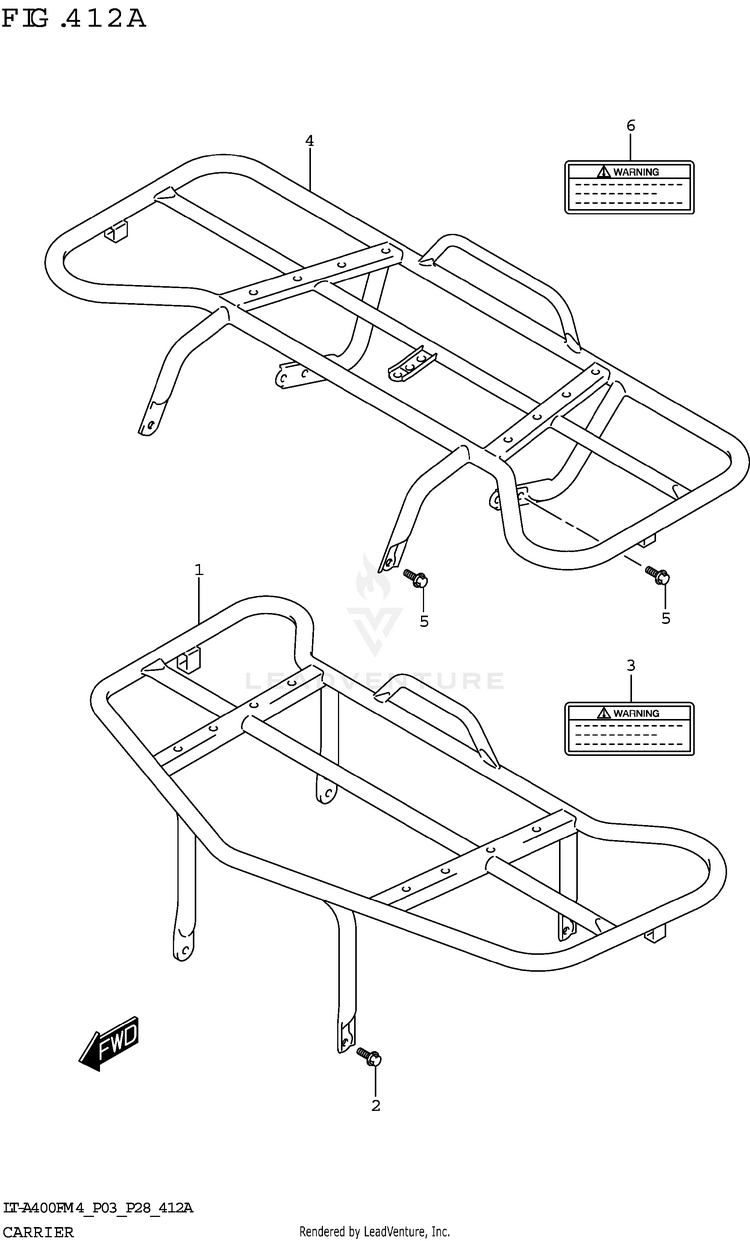

CARRIER (P03)
CARRIER (P28)
COOLING FAN

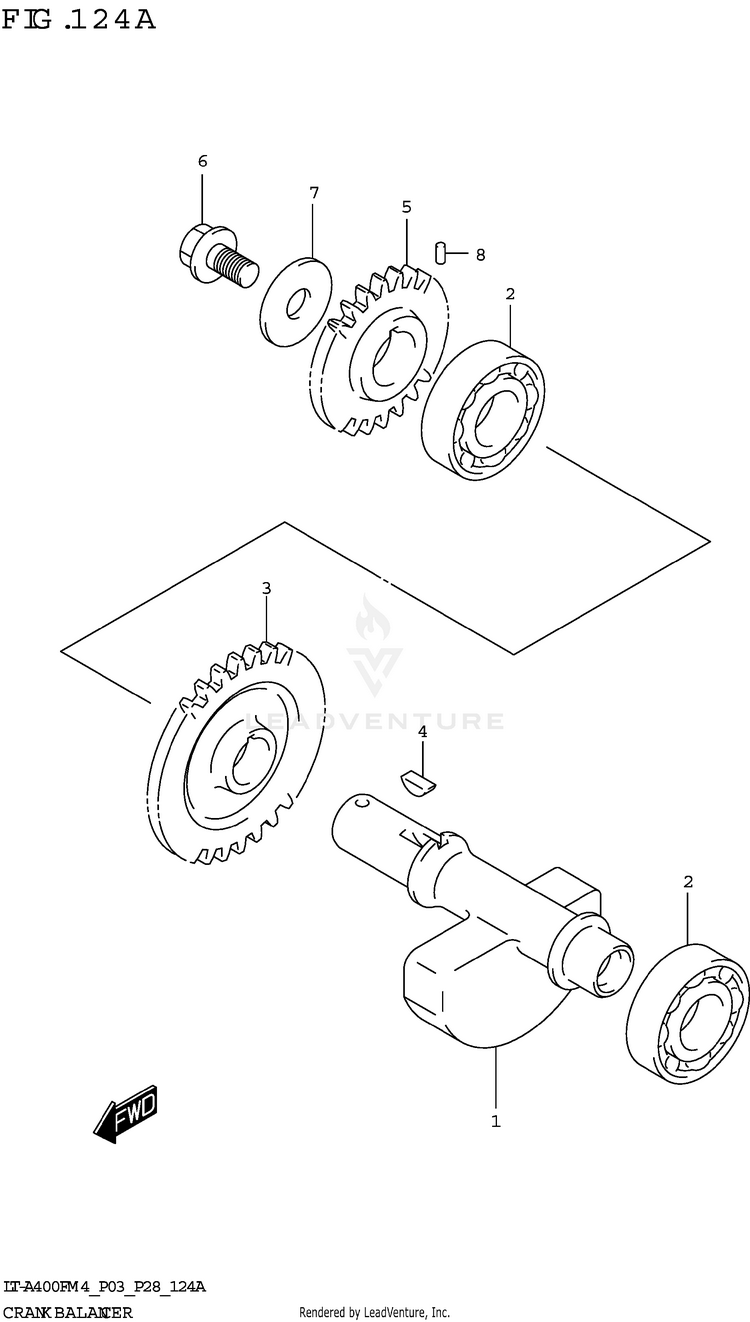

CRANK BALANCER
CRANKCASE
CRANKCASE COVER
CRANKSHAFT
CYLINDER

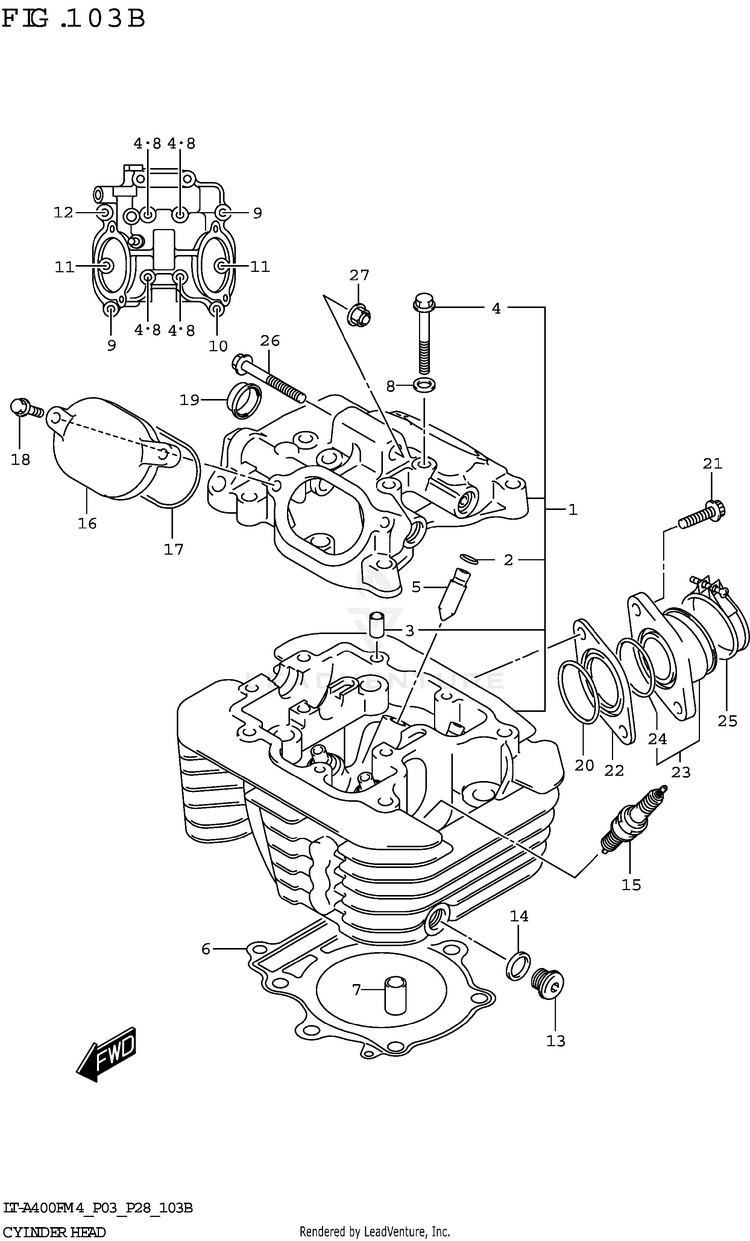

CYLINDER HEAD
ELECTRICAL

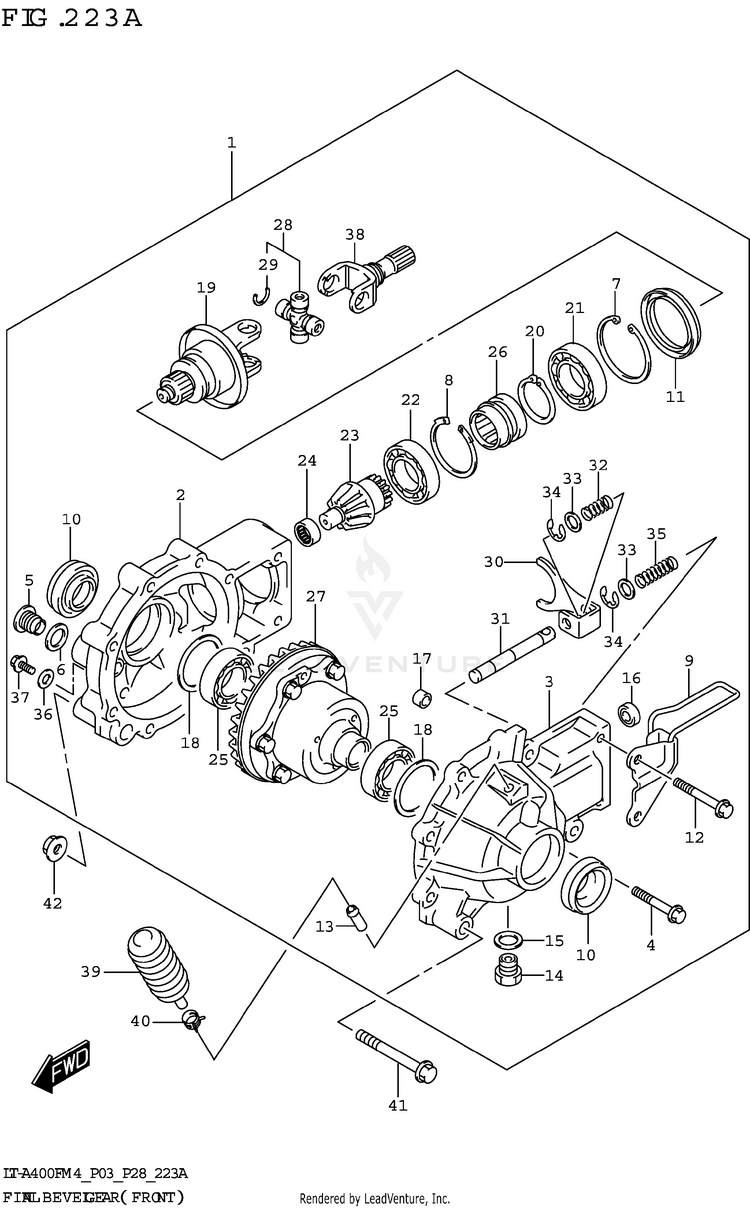

FINAL BEVEL GEAR (FRONT)

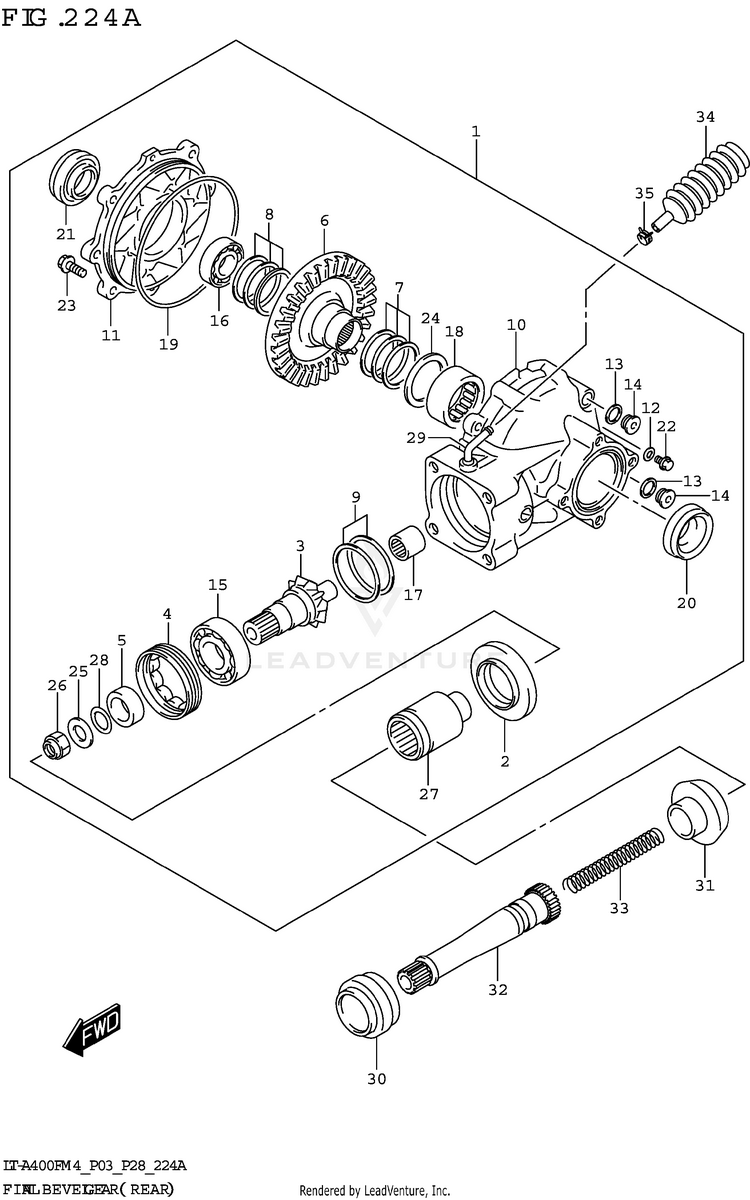

FINAL BEVEL GEAR (REAR)

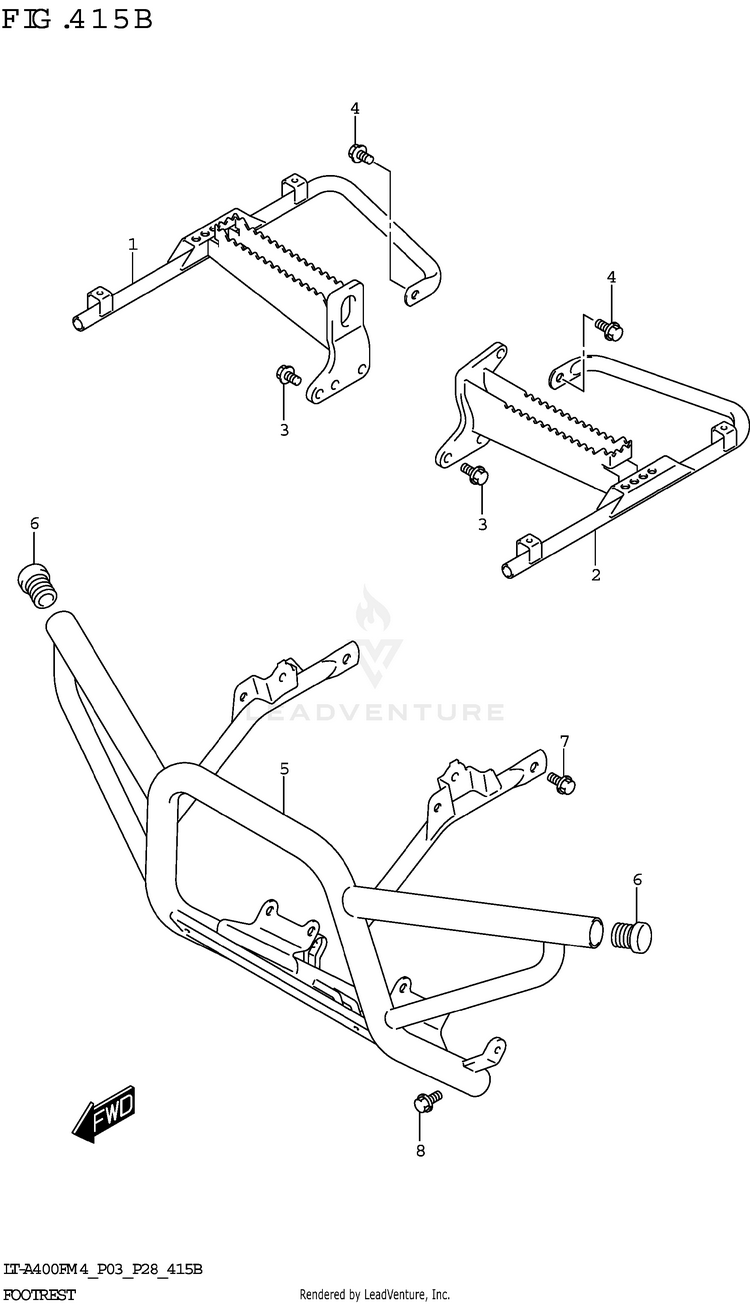

FOOTREST

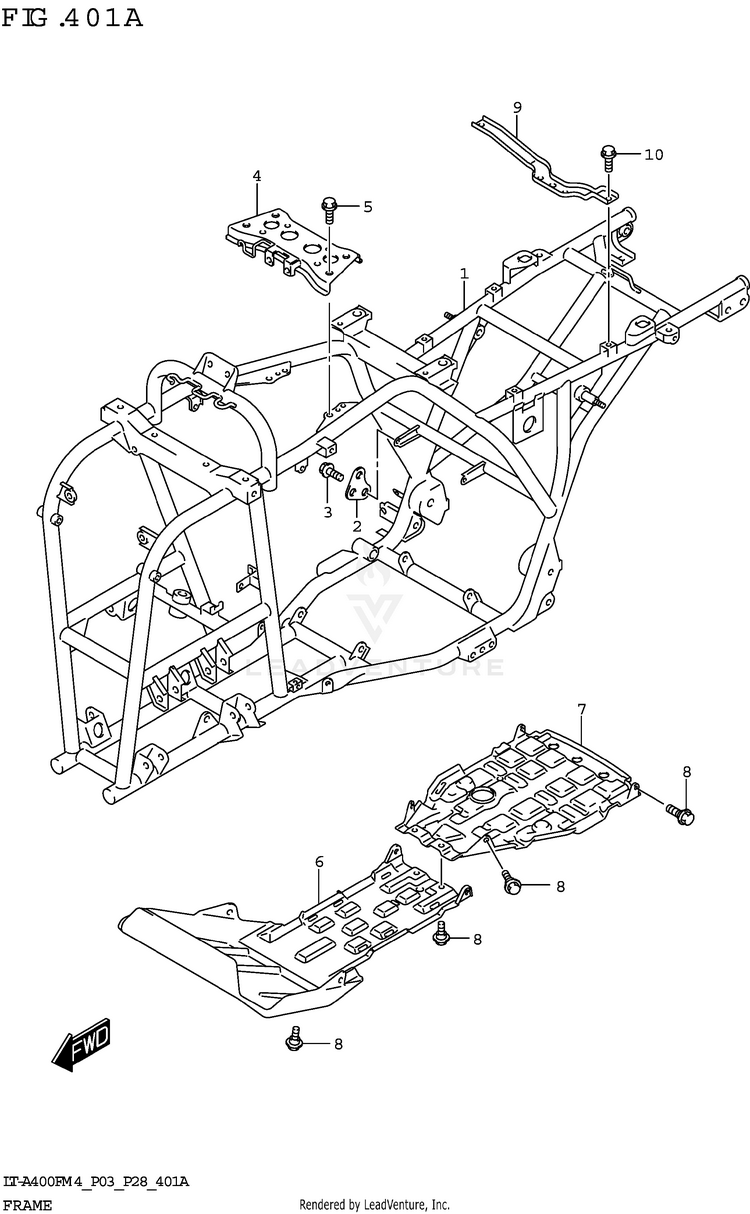

FRAME

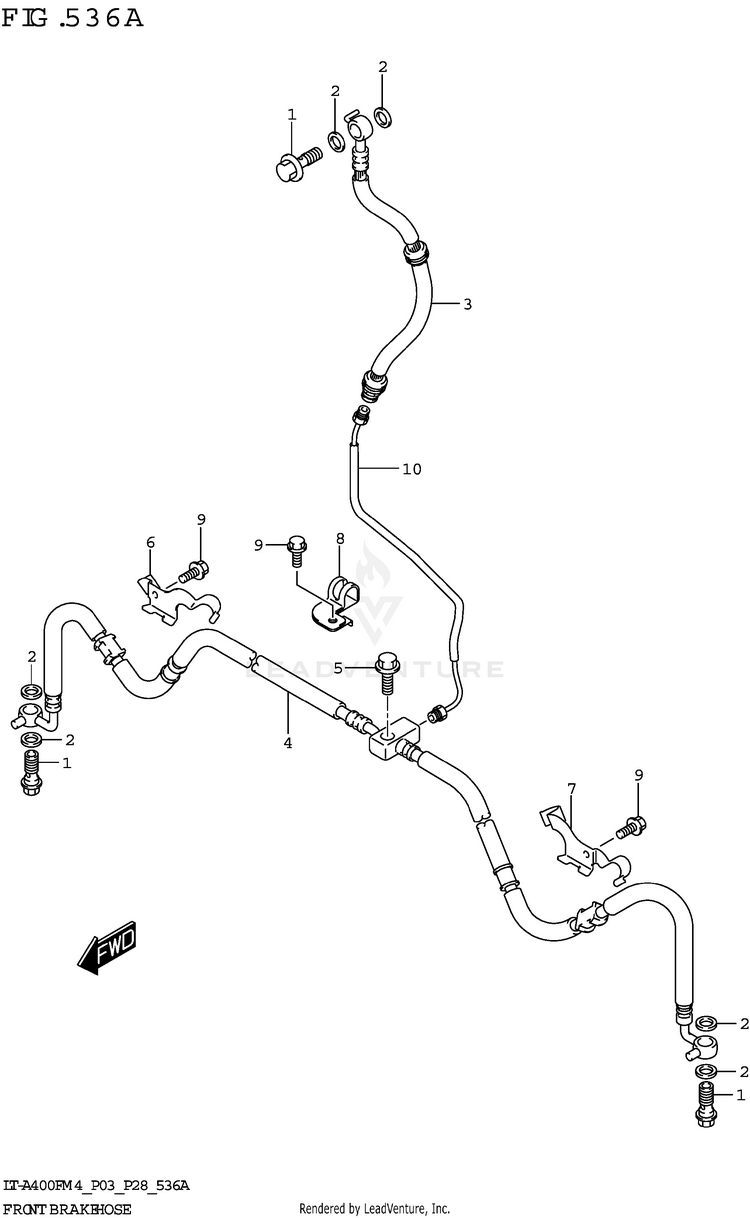

FRONT BRAKE HOSE

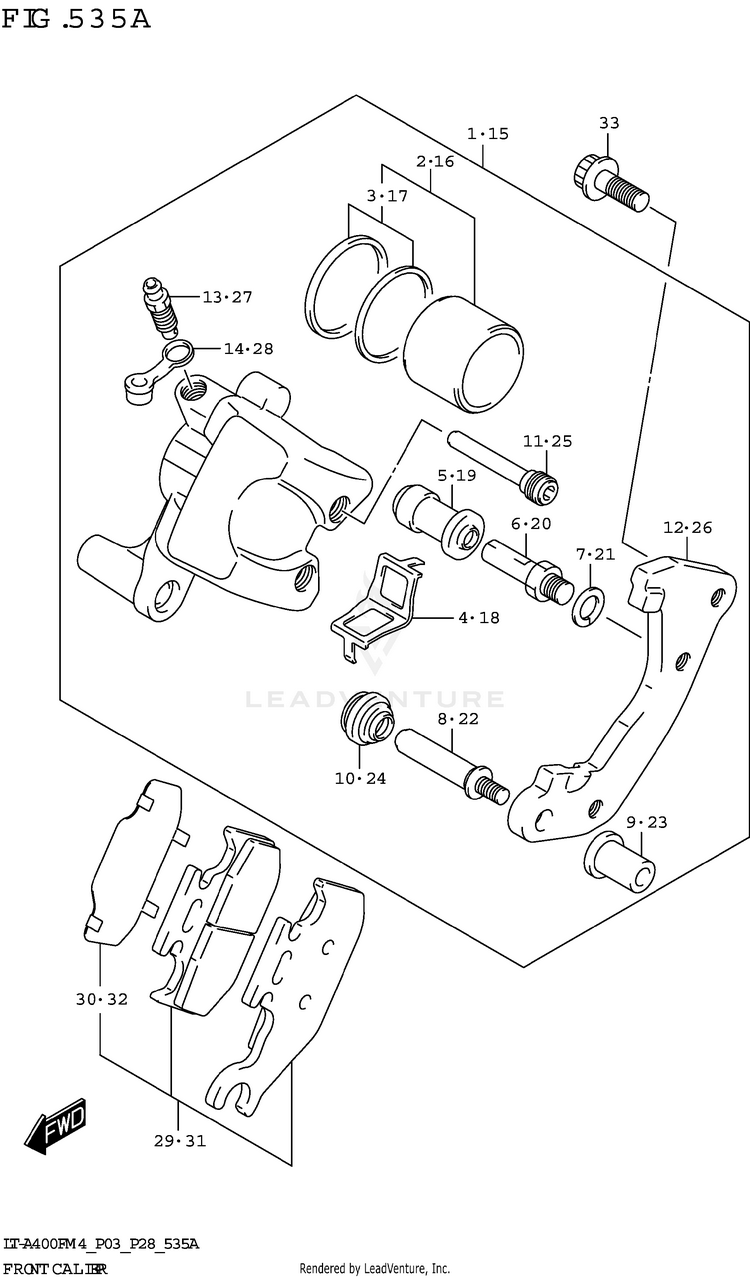

FRONT CALIPER

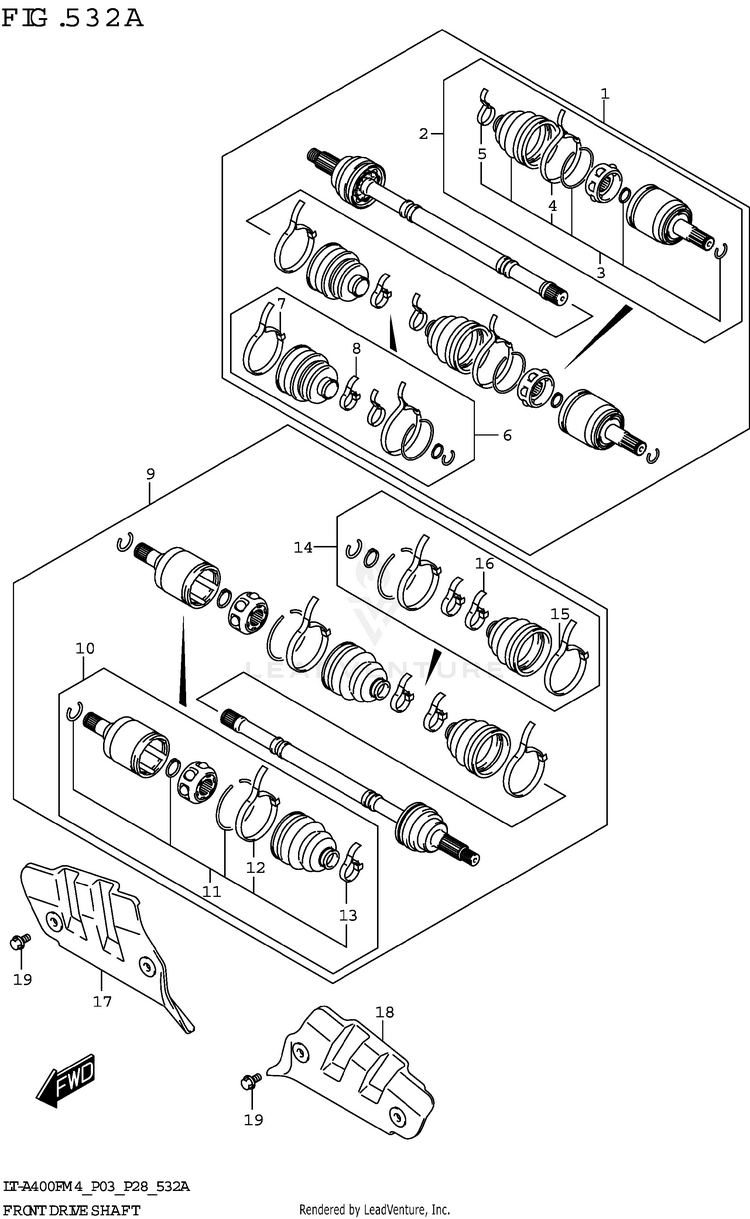

FRONT DRIVE SHAFT

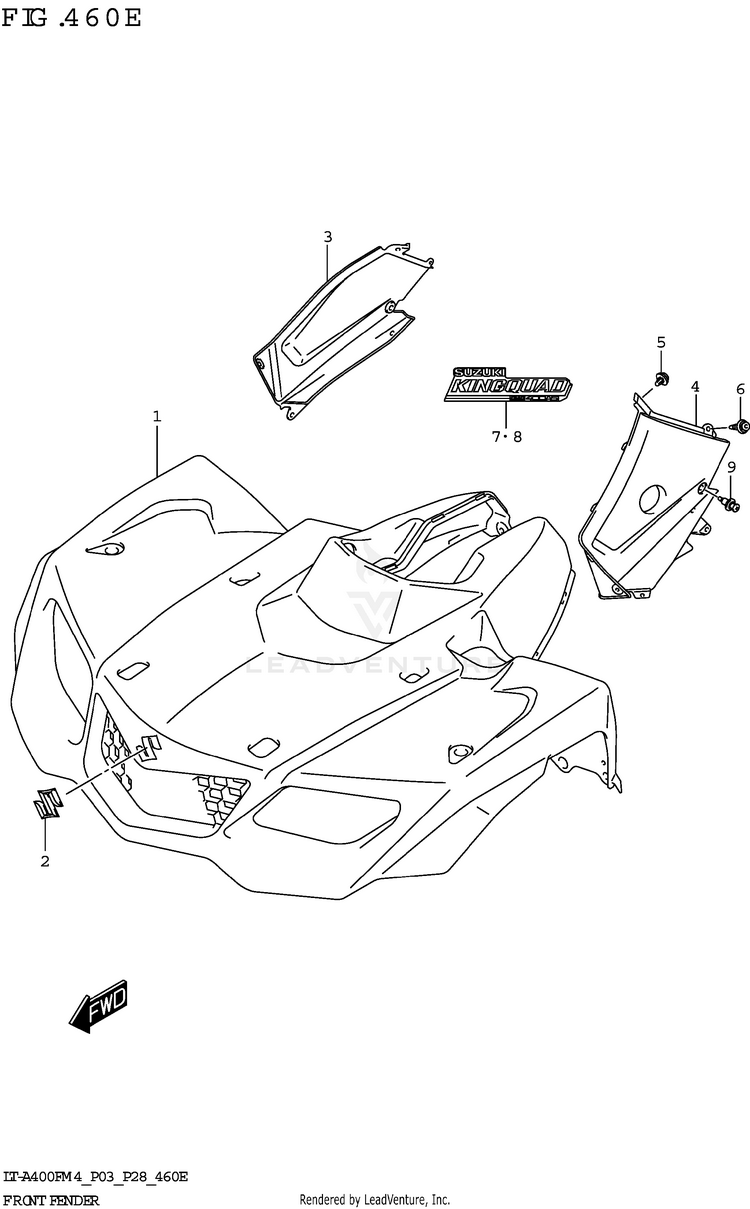

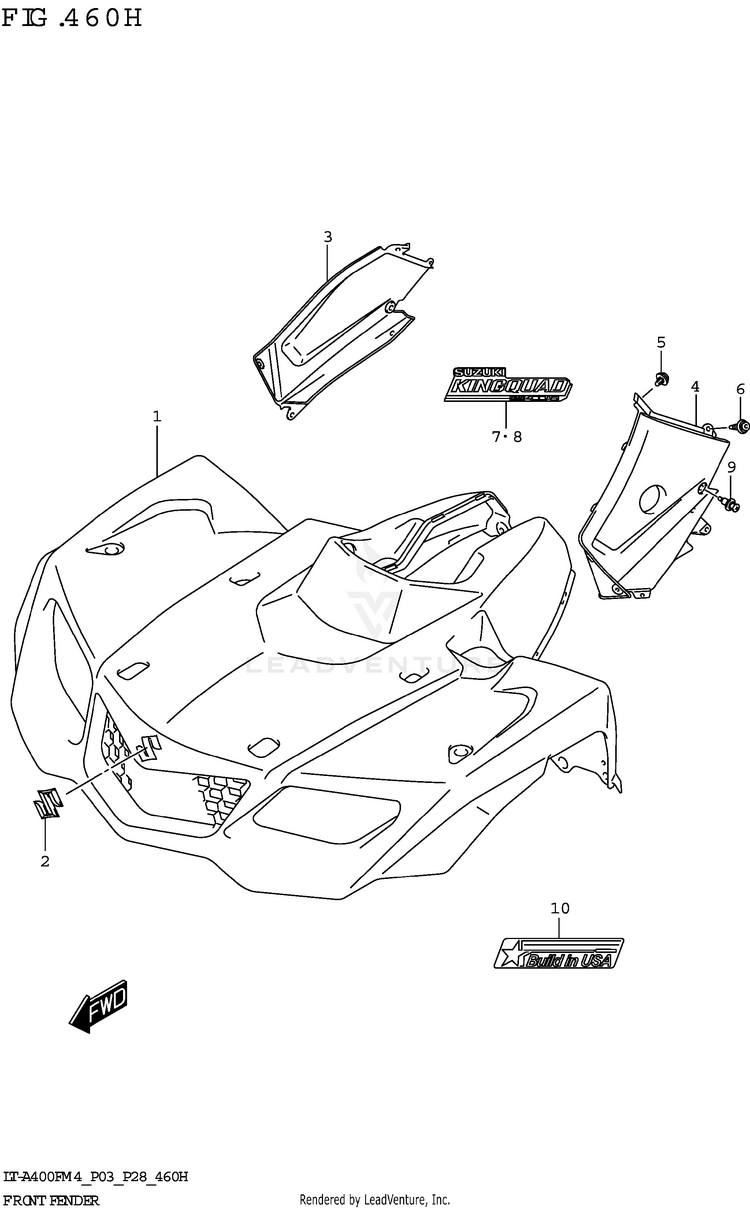

FRONT FENDER (LT-A400F:P03)
FRONT FENDER (LT-A400F:P28)
FRONT FENDER (LT-A400FZ:P03)

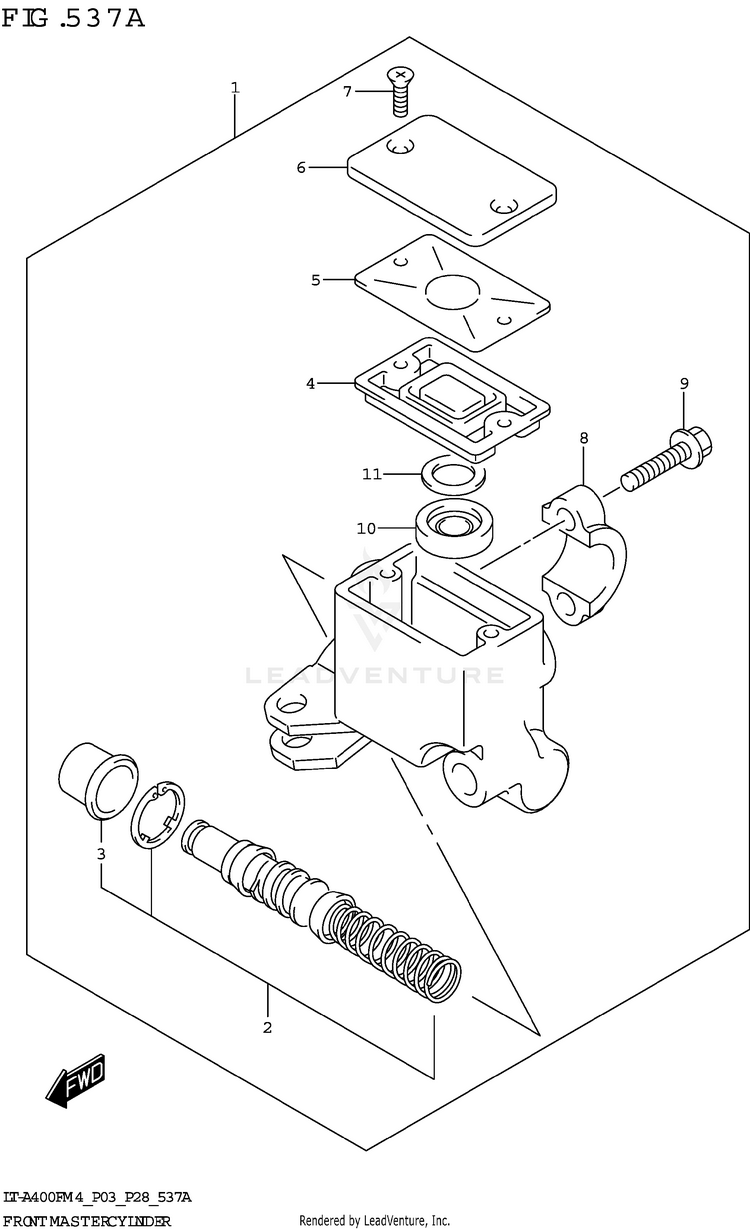

FRONT MASTER CYLINDER

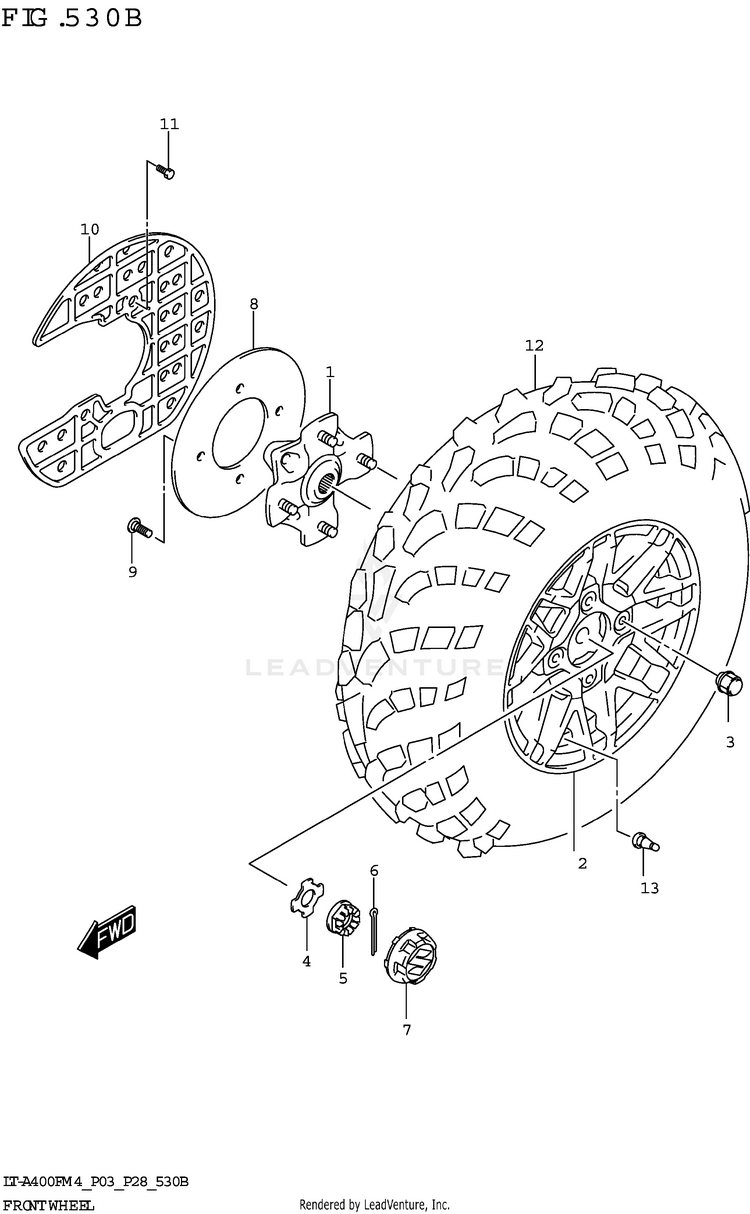

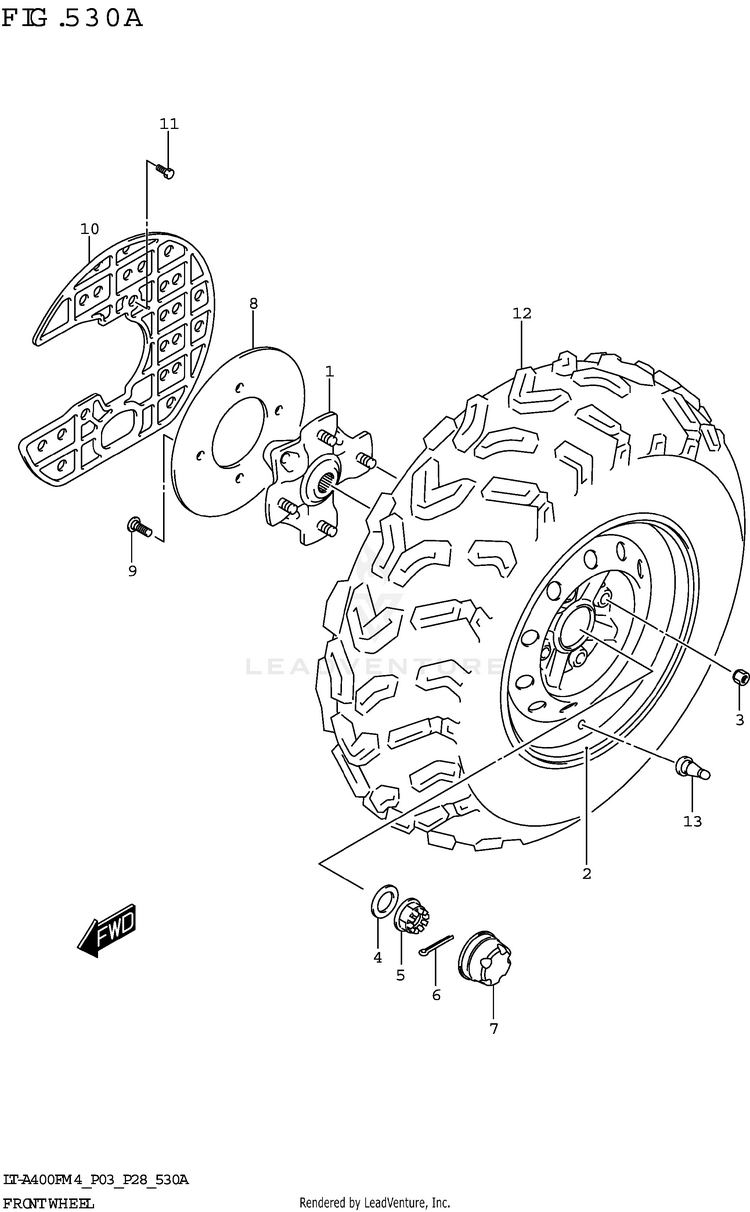

FRONT WHEEL (LT-A400F)
FRONT WHEEL (LT-A400FZ)

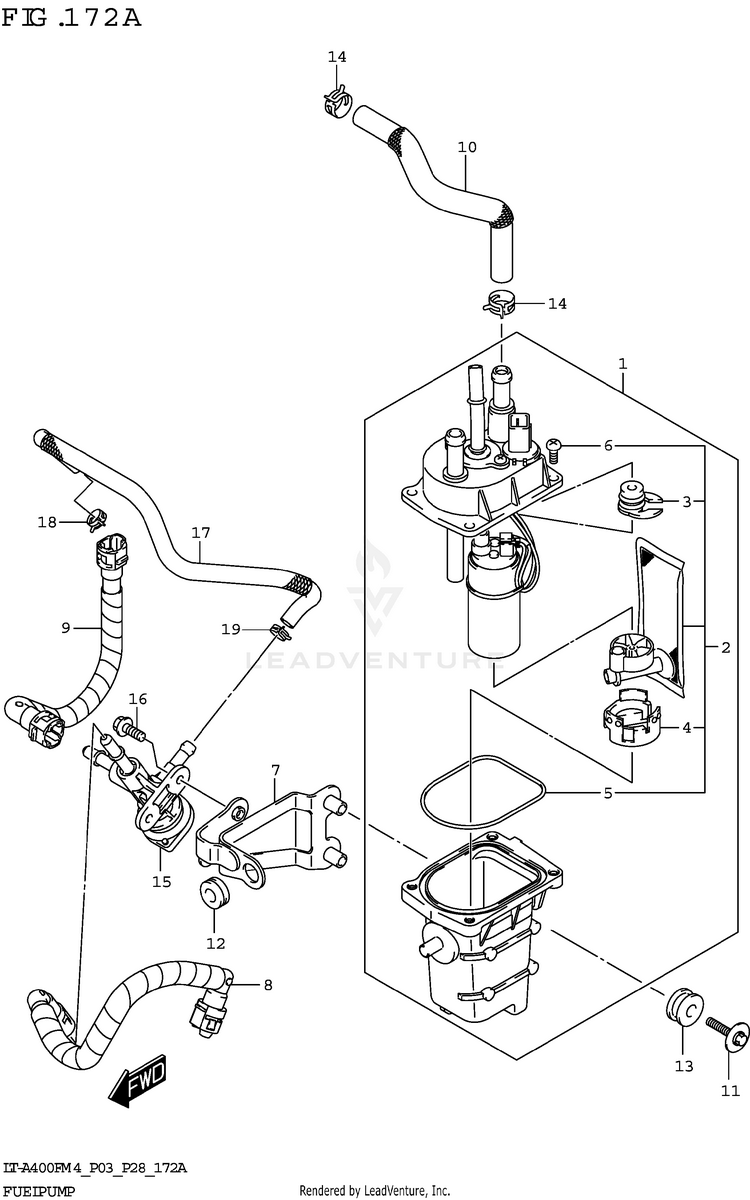

FUEL PUMP
FUEL TANK

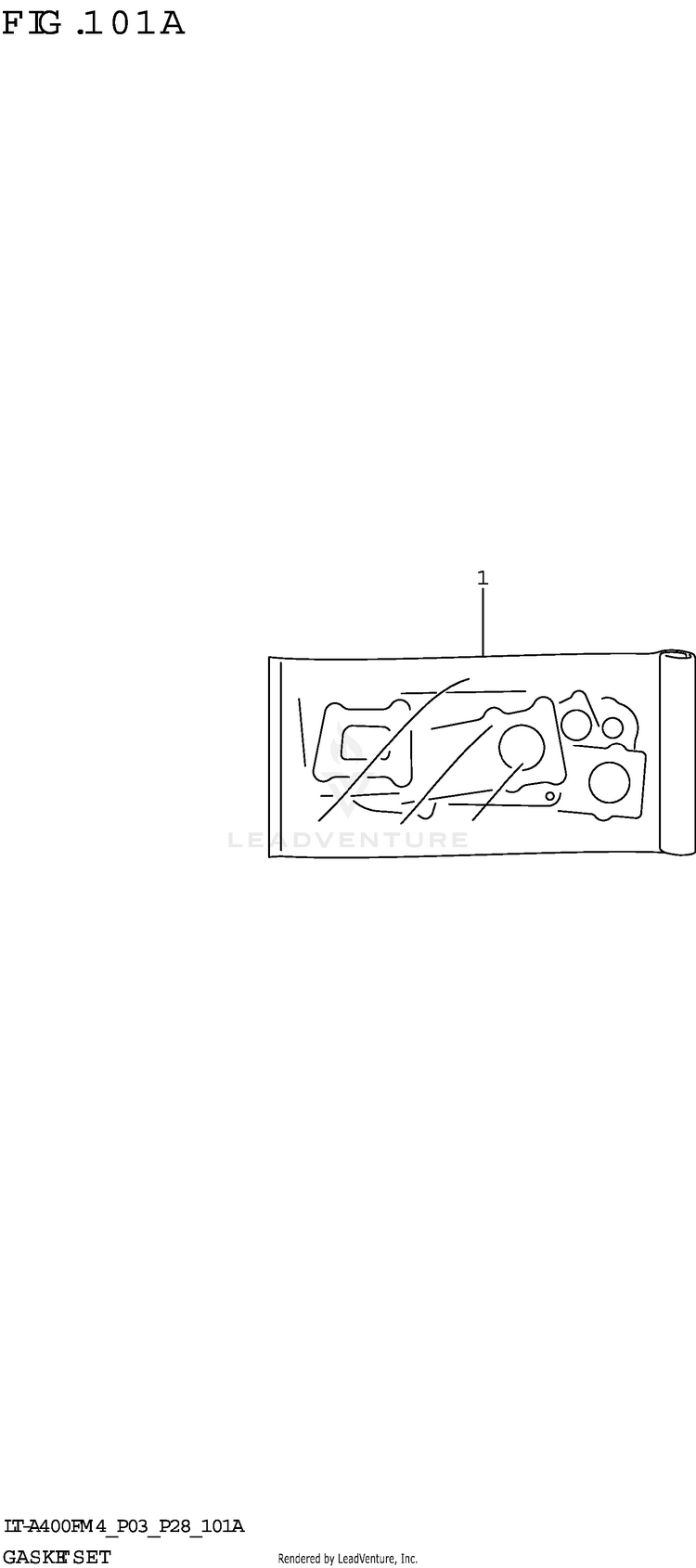

GASKET SET

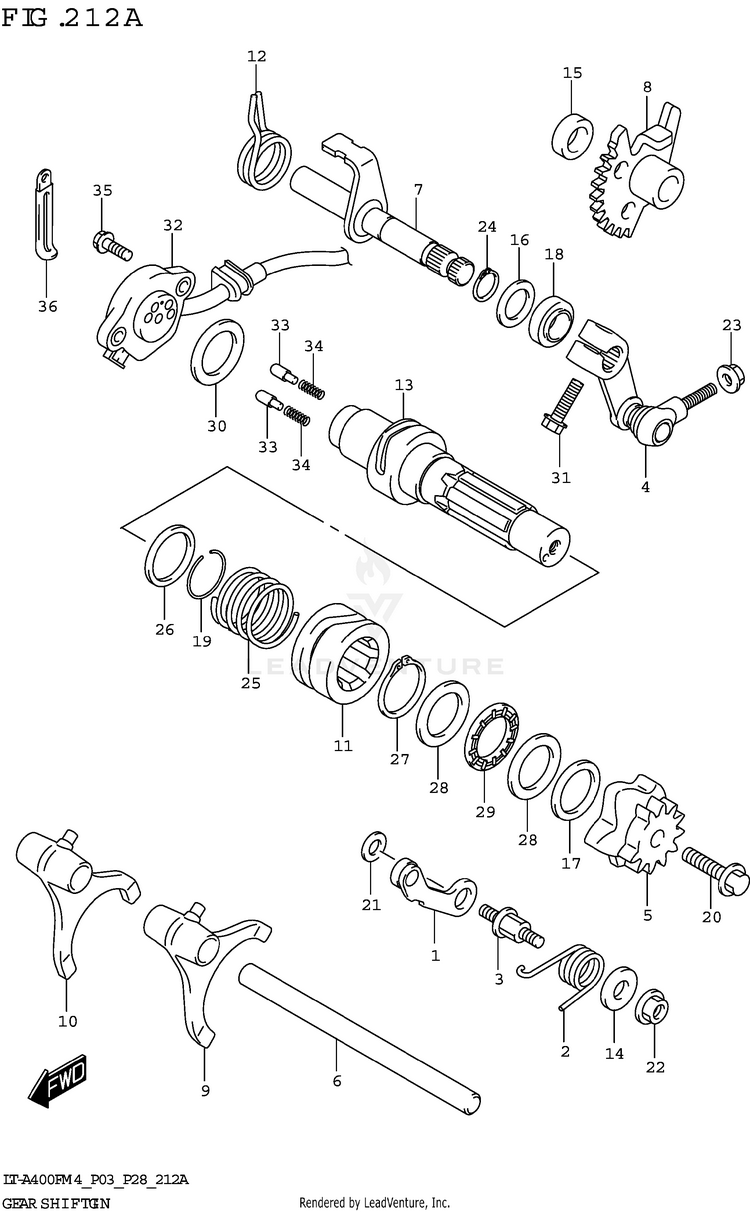

GEAR SHIFTING

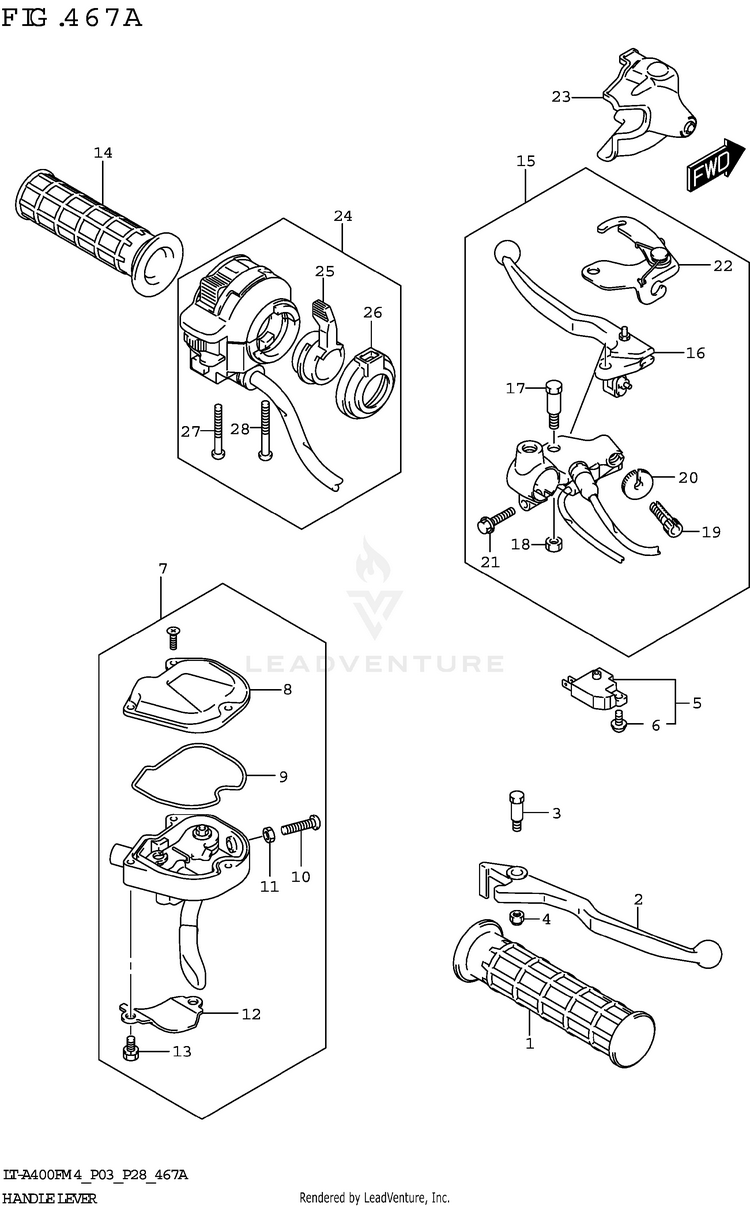

HANDLE LEVER

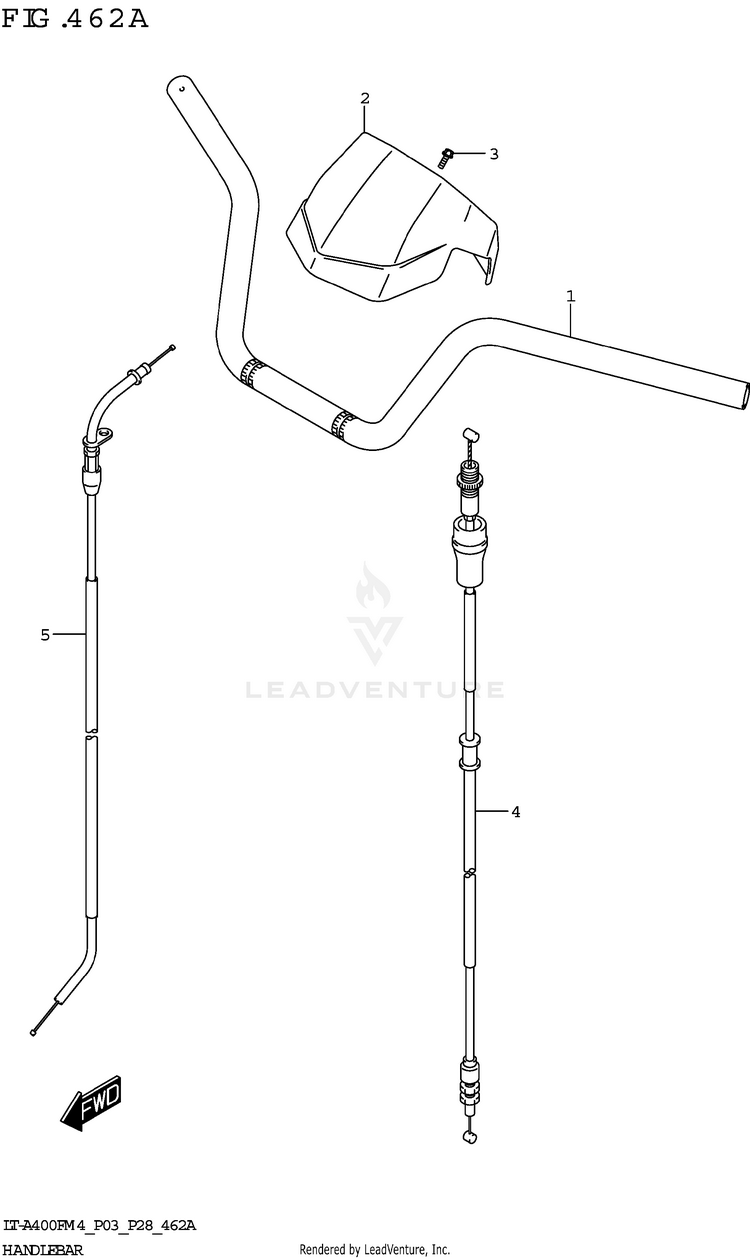

HANDLEBAR
HEADLAMP

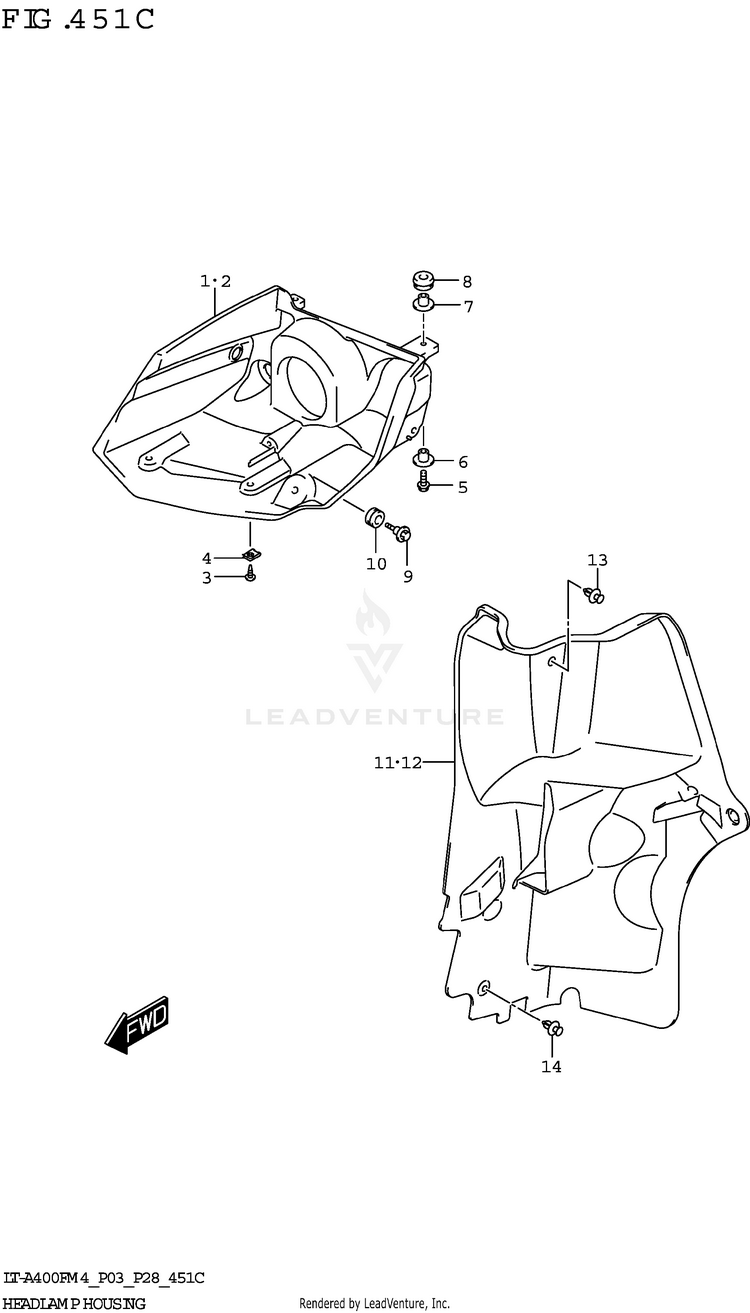

HEADLAMP HOUSING (P03)
HEADLAMP HOUSING (P28)

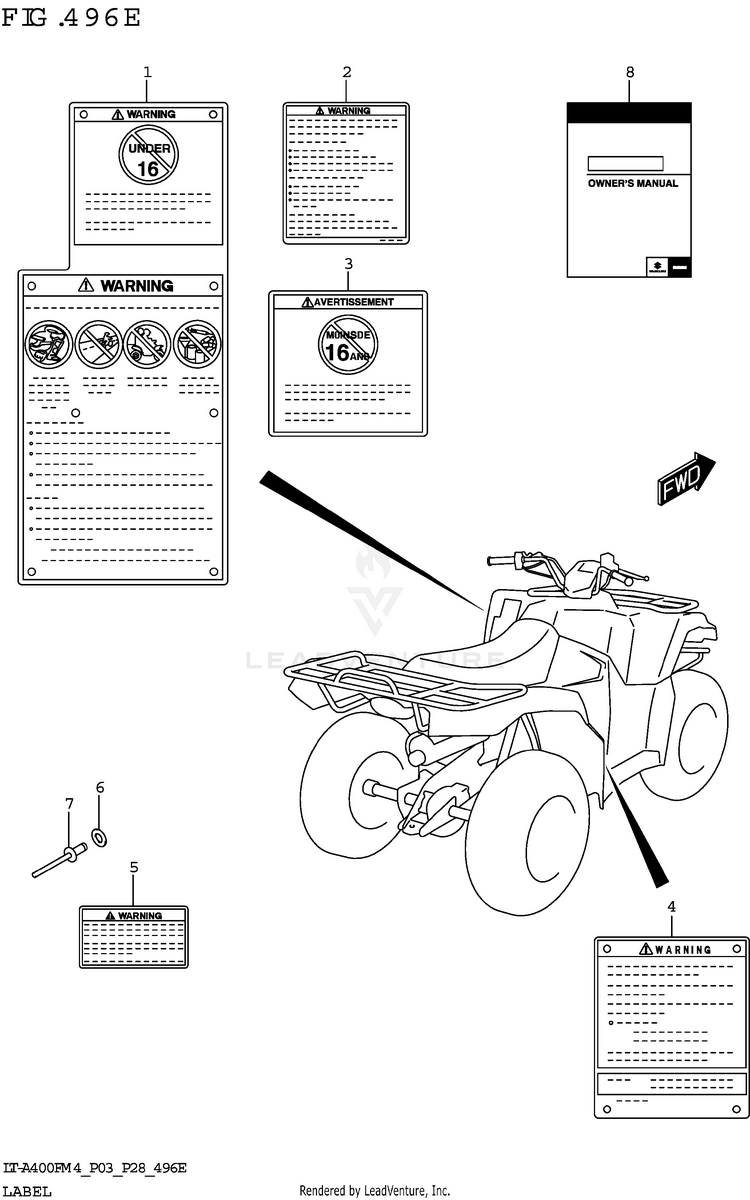

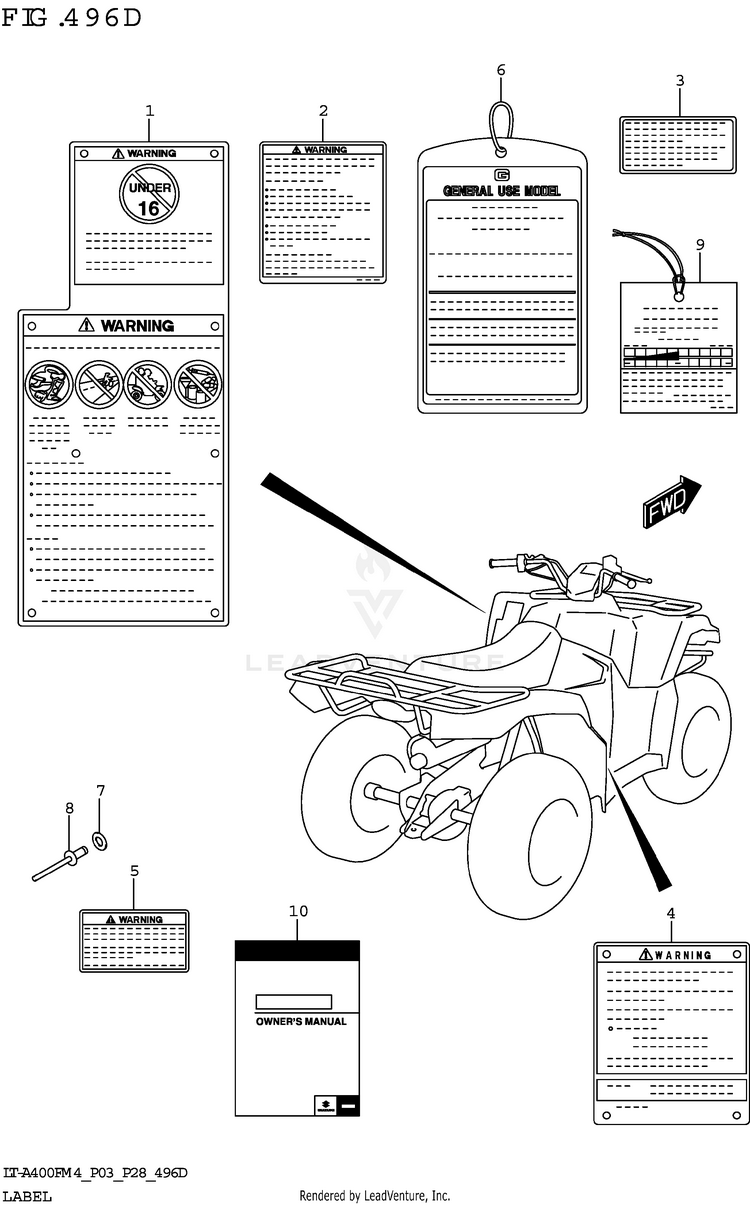

LABEL (P03)
LABEL (P28)

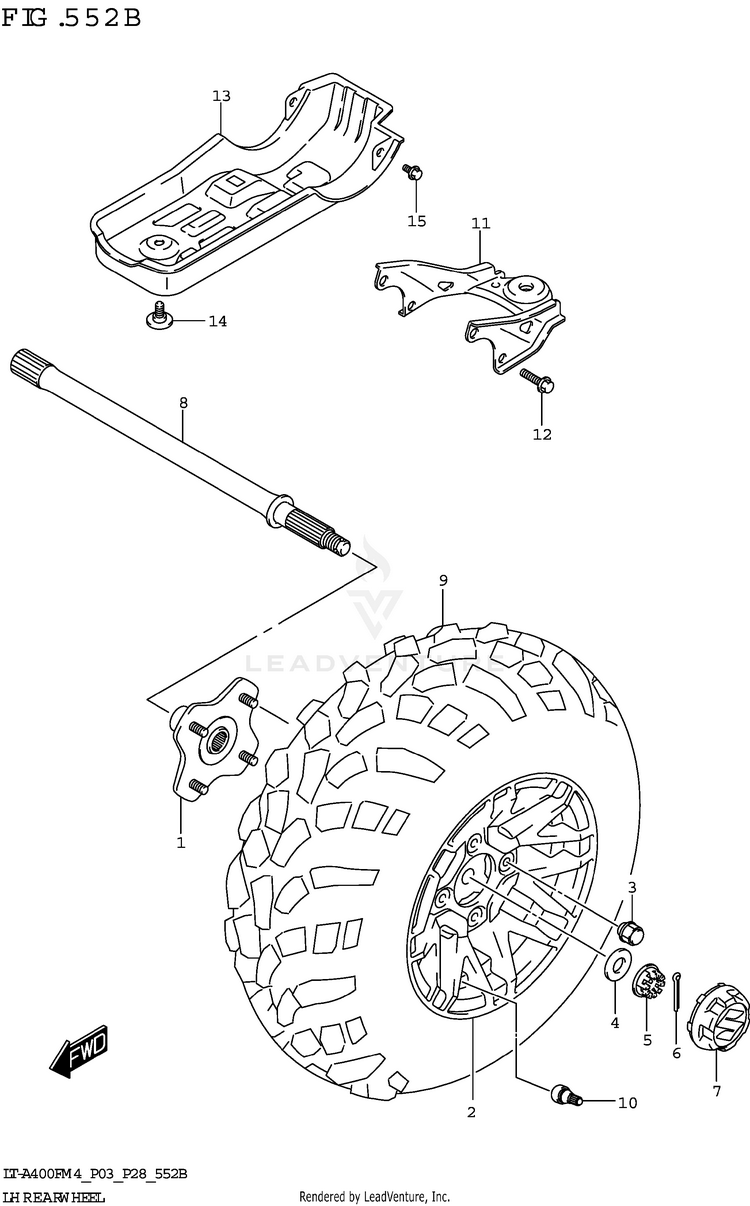

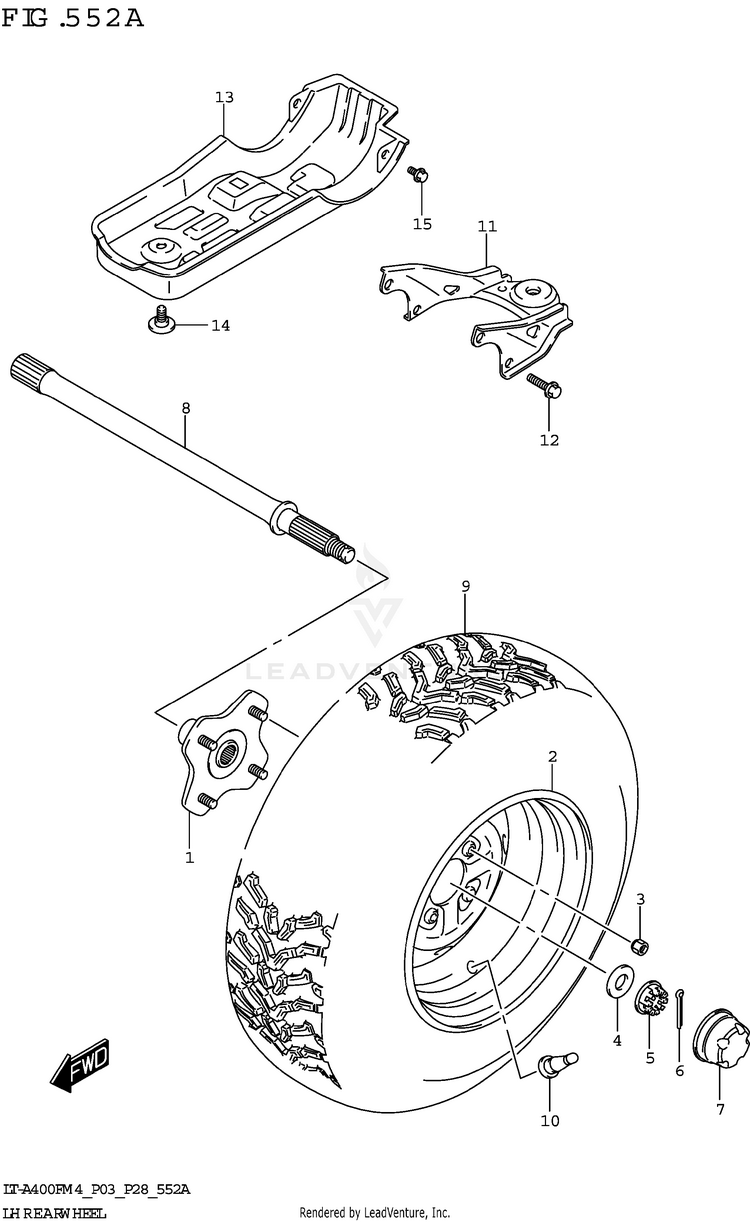

LH REAR WHEEL (LT-A400F)
LH REAR WHEEL (LT-A400FZ)

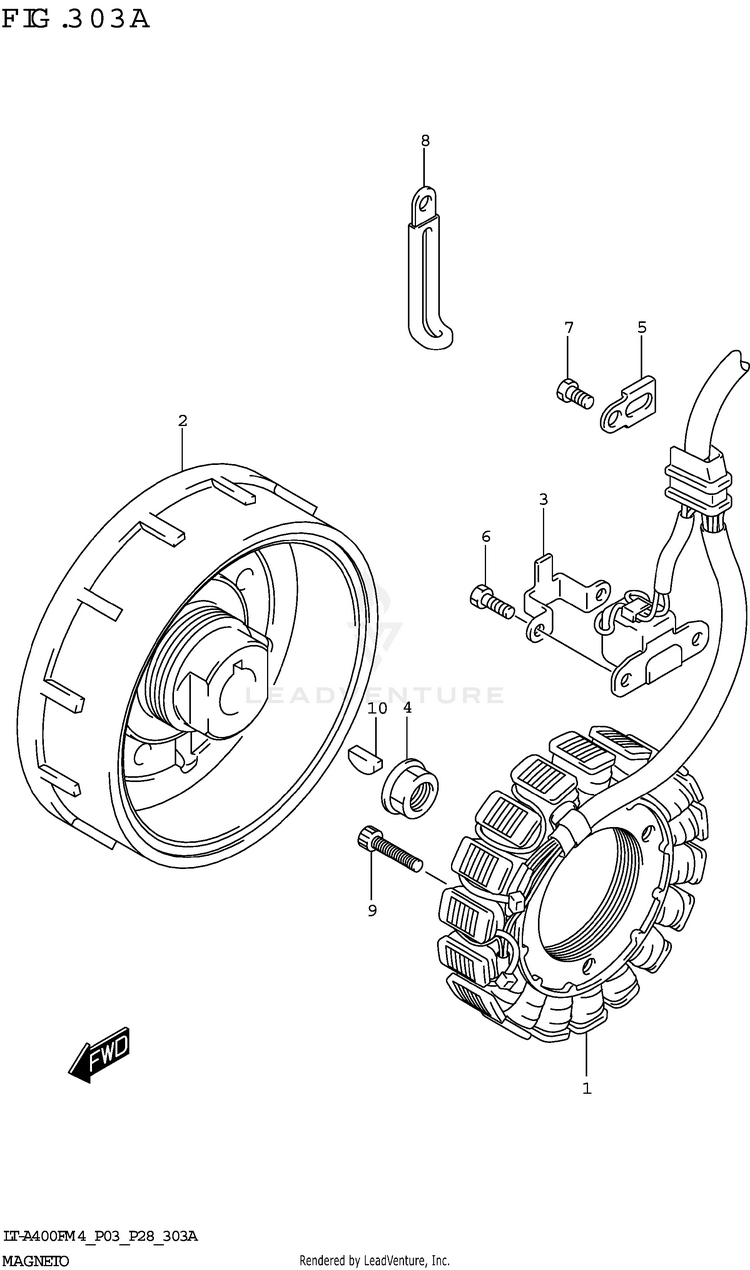

MAGNETO

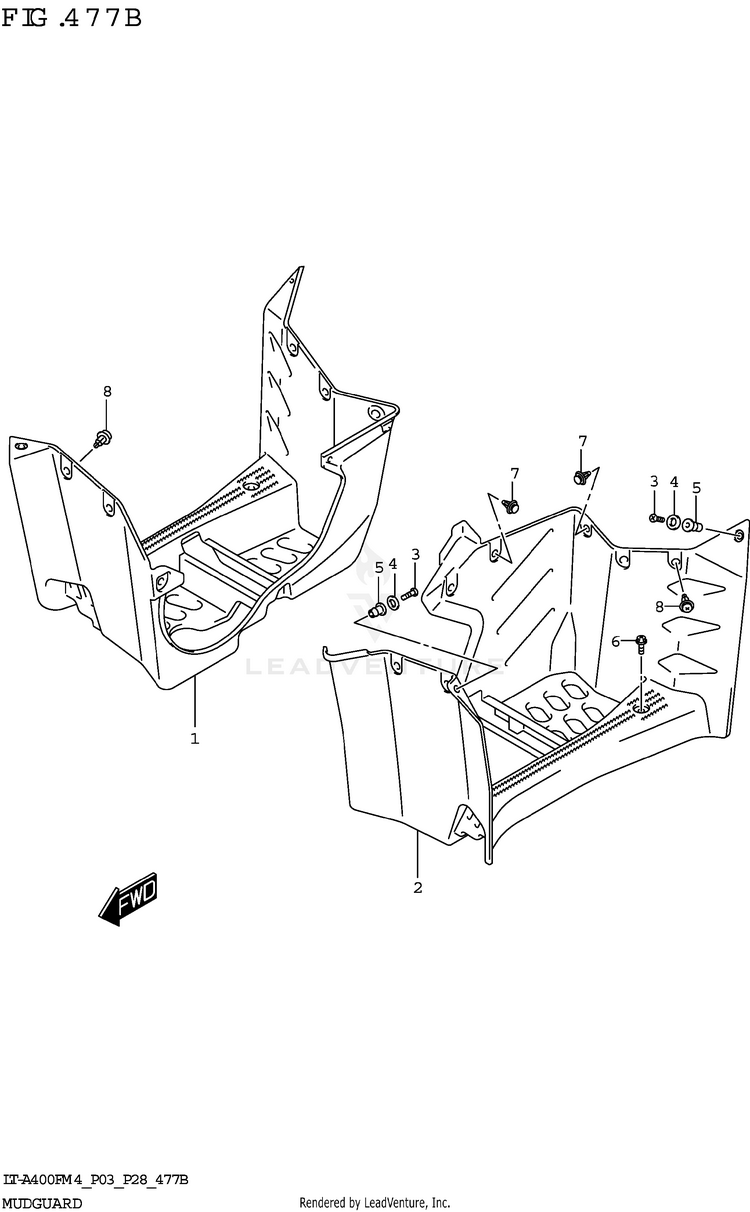

MUDGUARD

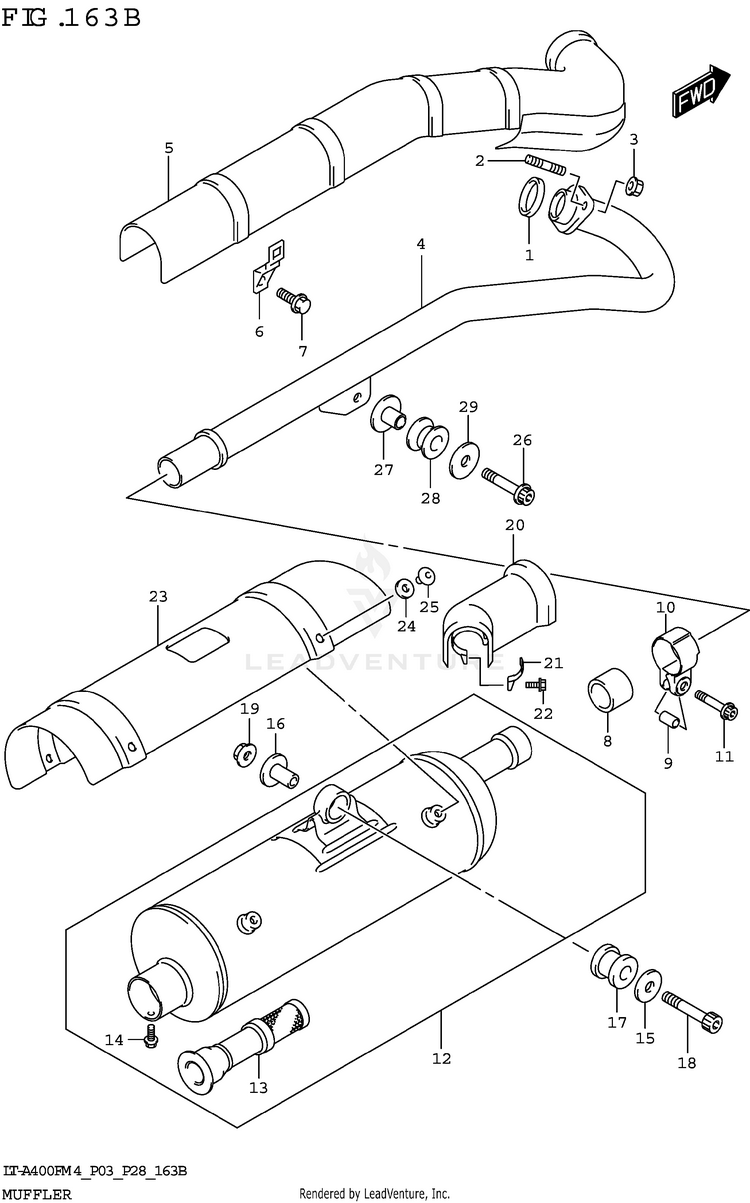

MUFFLER
OIL COOLER

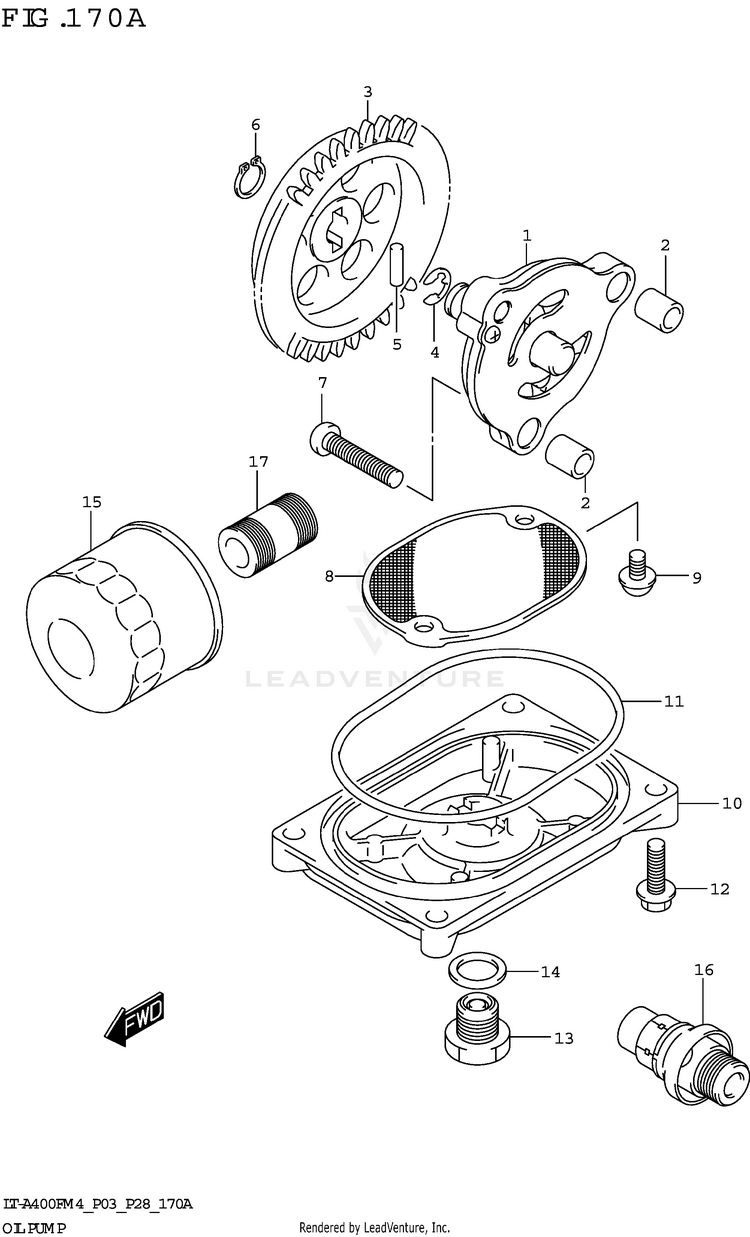

OIL PUMP

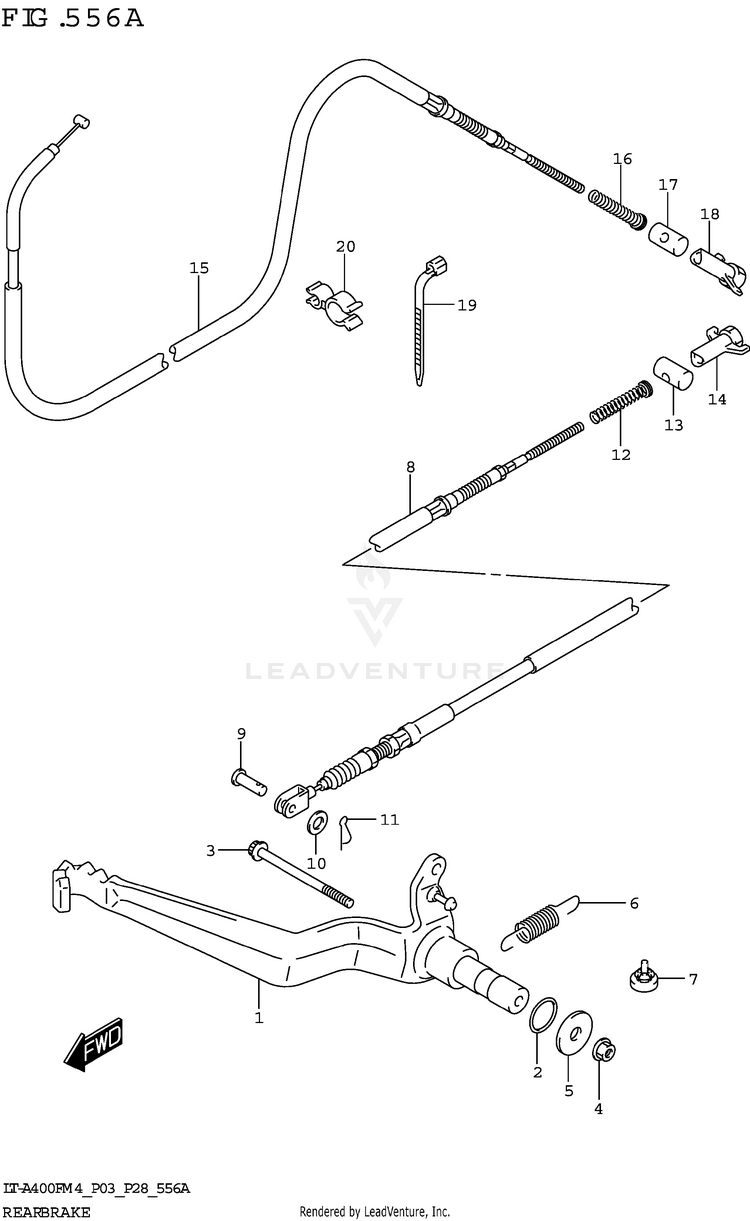

REAR BRAKE

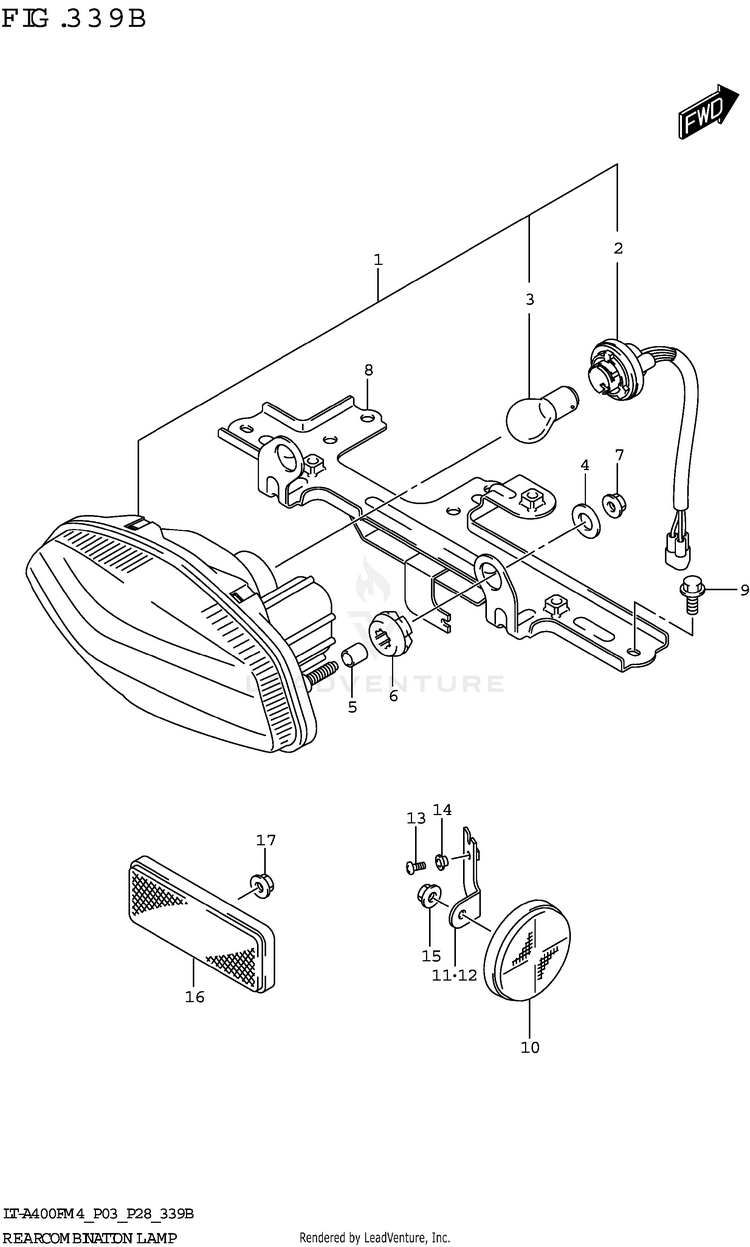

REAR COMBINATION LAMP

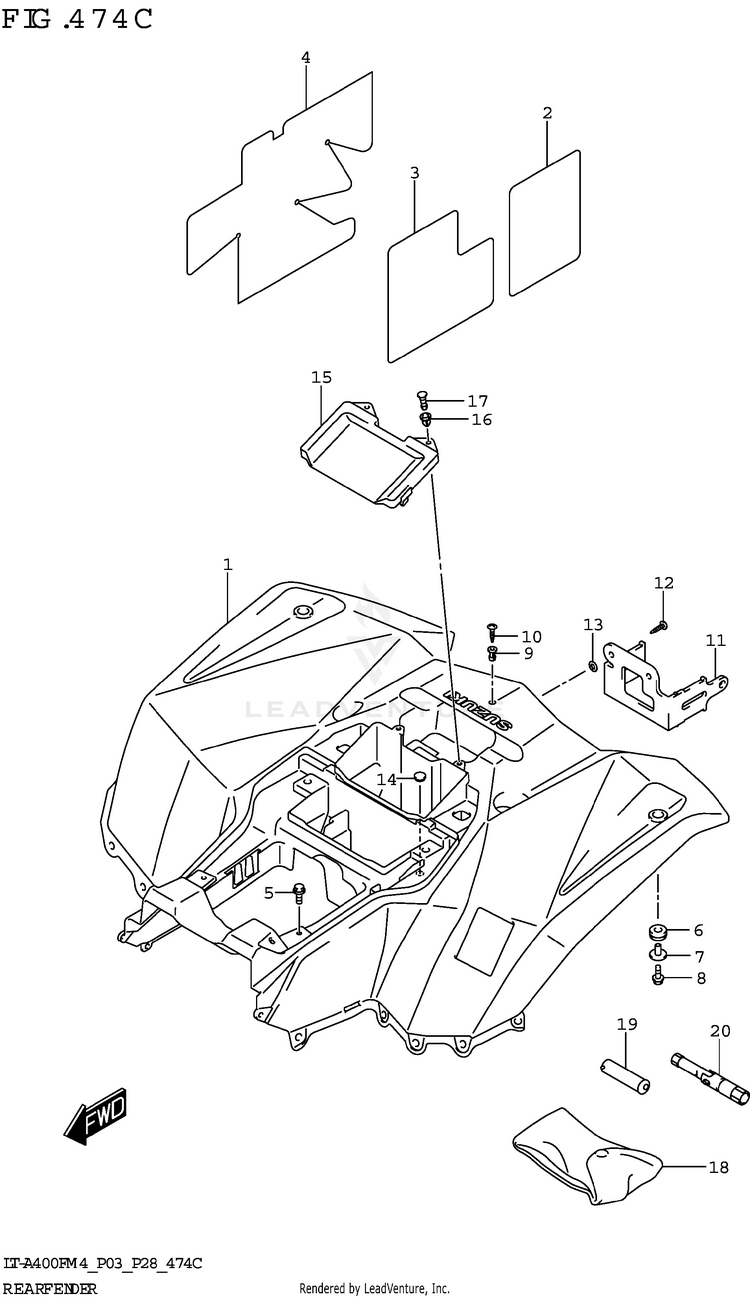

REAR FENDER (LT-A400F:P03)
REAR FENDER (LT-A400F:P28)
REAR FENDER (LT-A400FZ:P03)

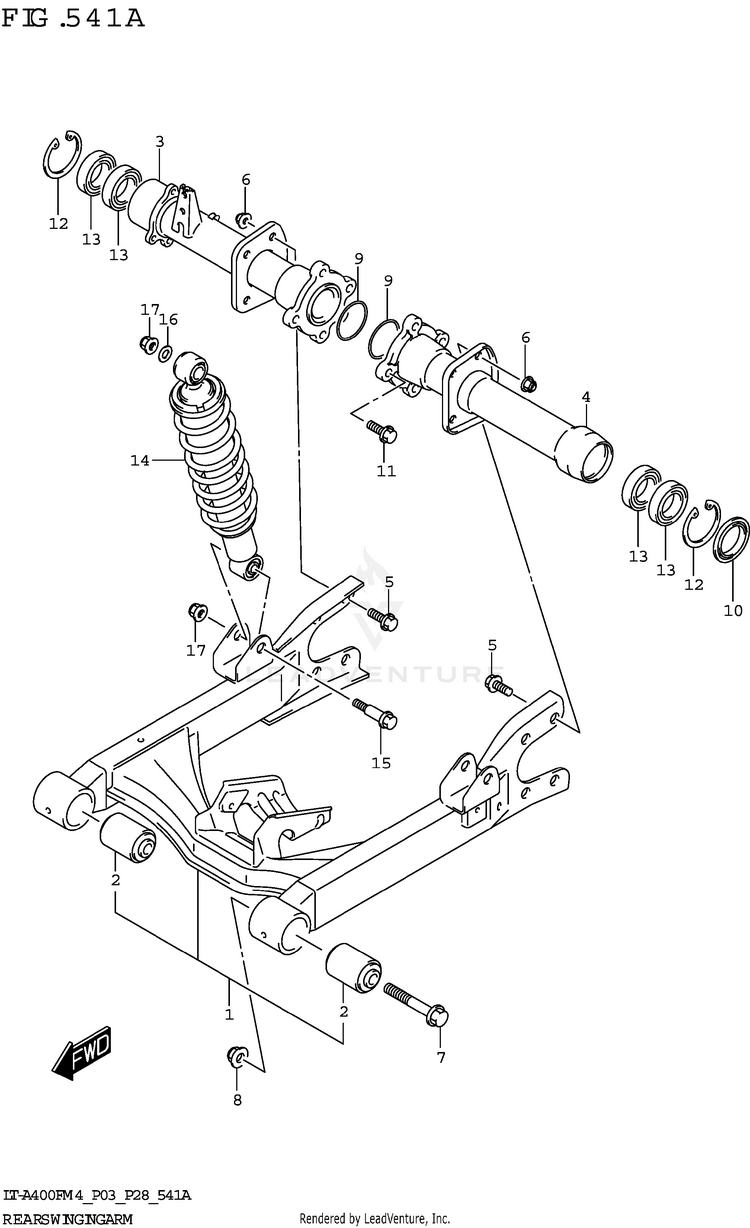

REAR SWINGINGARM
RECOIL COVER

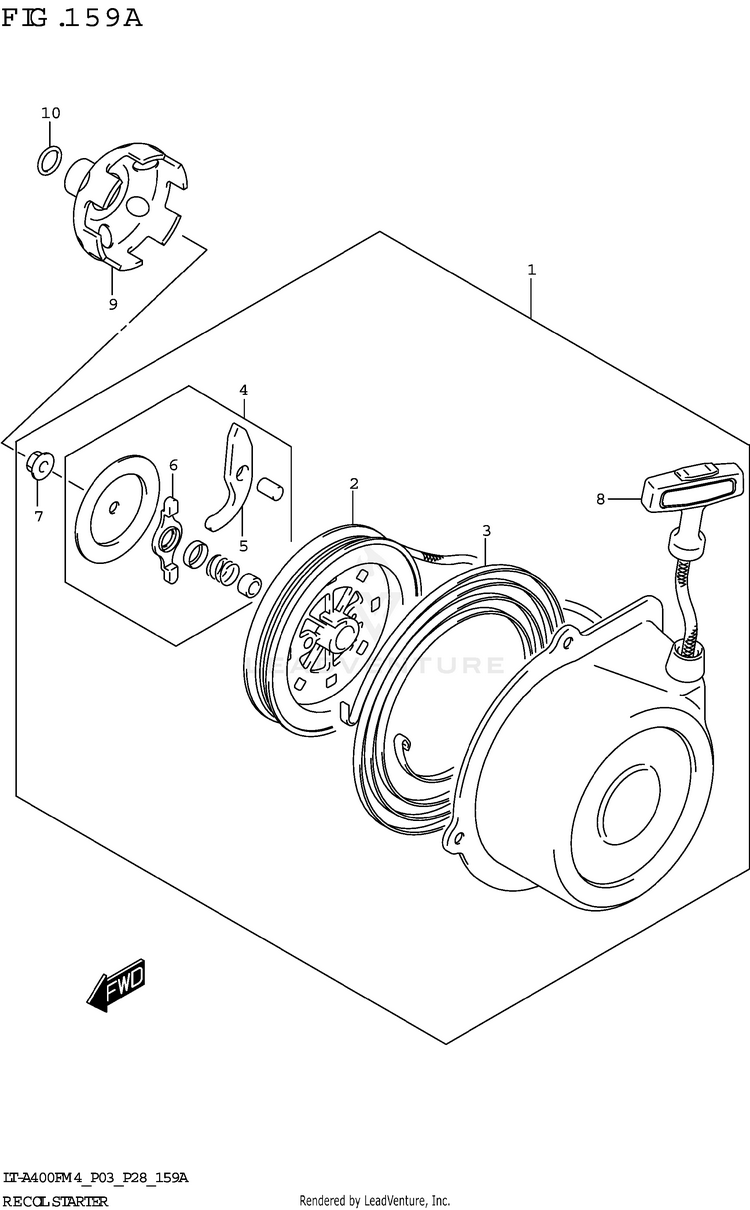

RECOIL STARTER

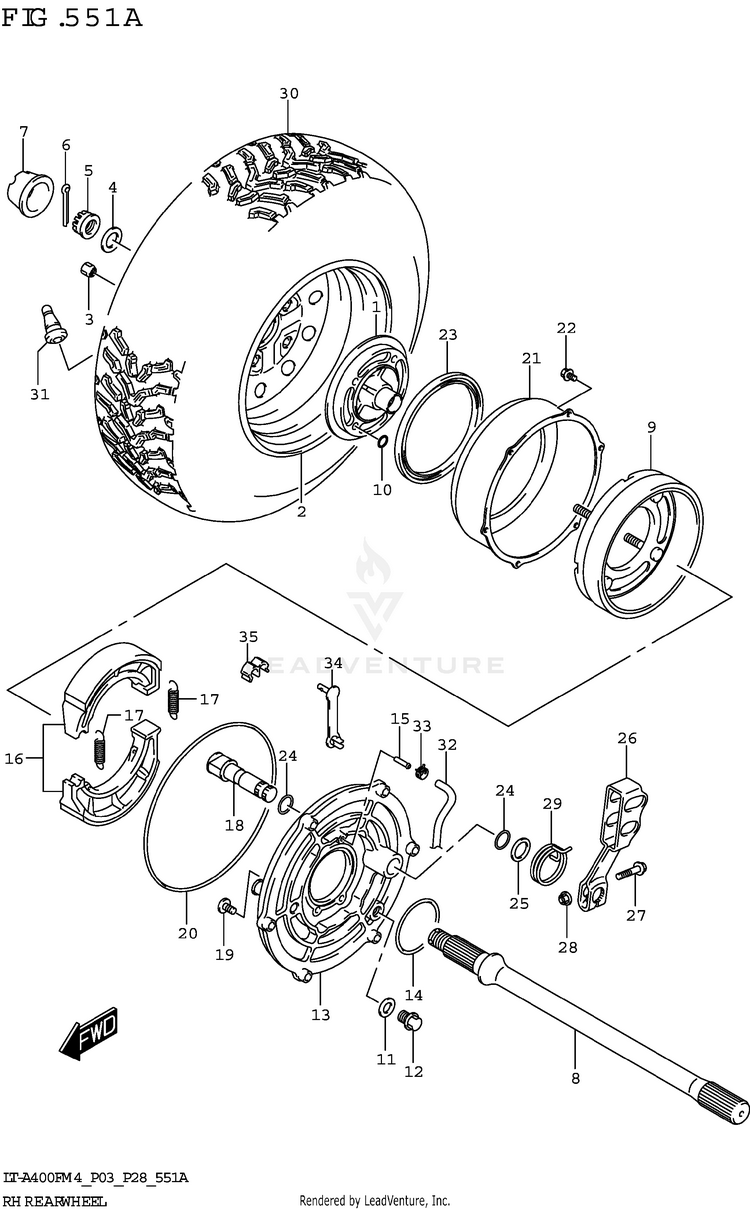

RH REAR WHEEL (LT-A400F)

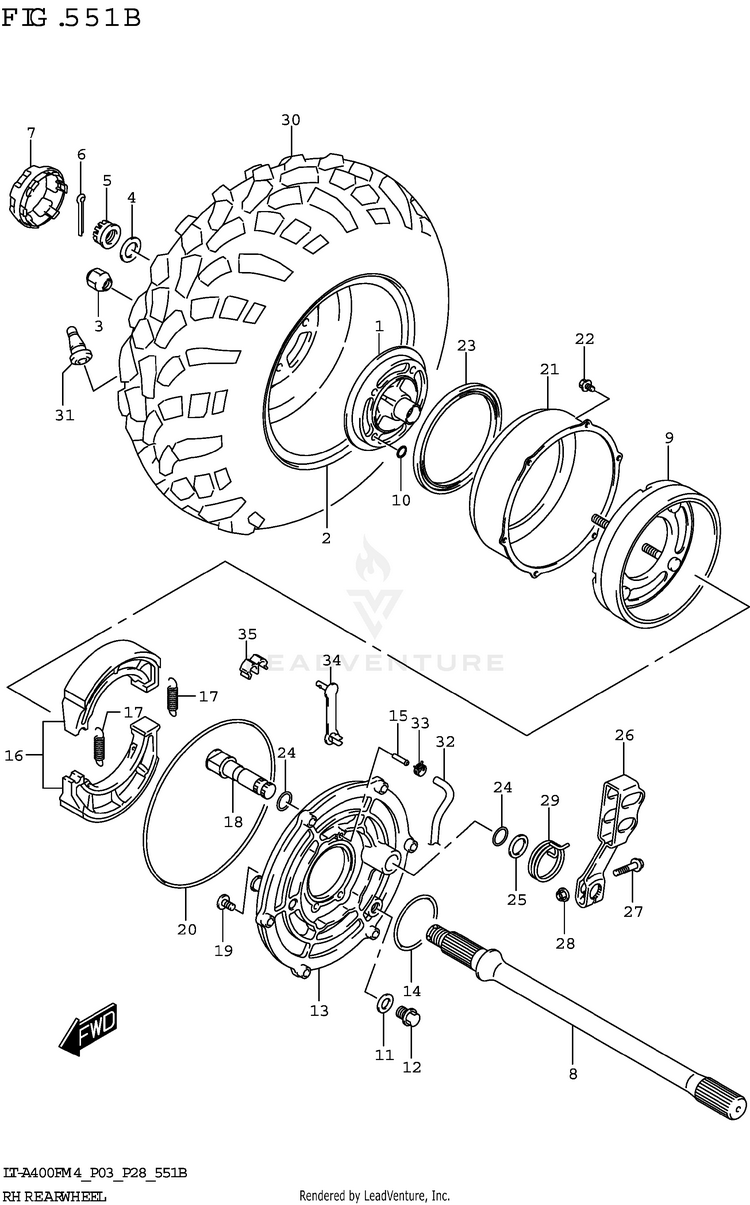

RH REAR WHEEL (LT-A400FZ)

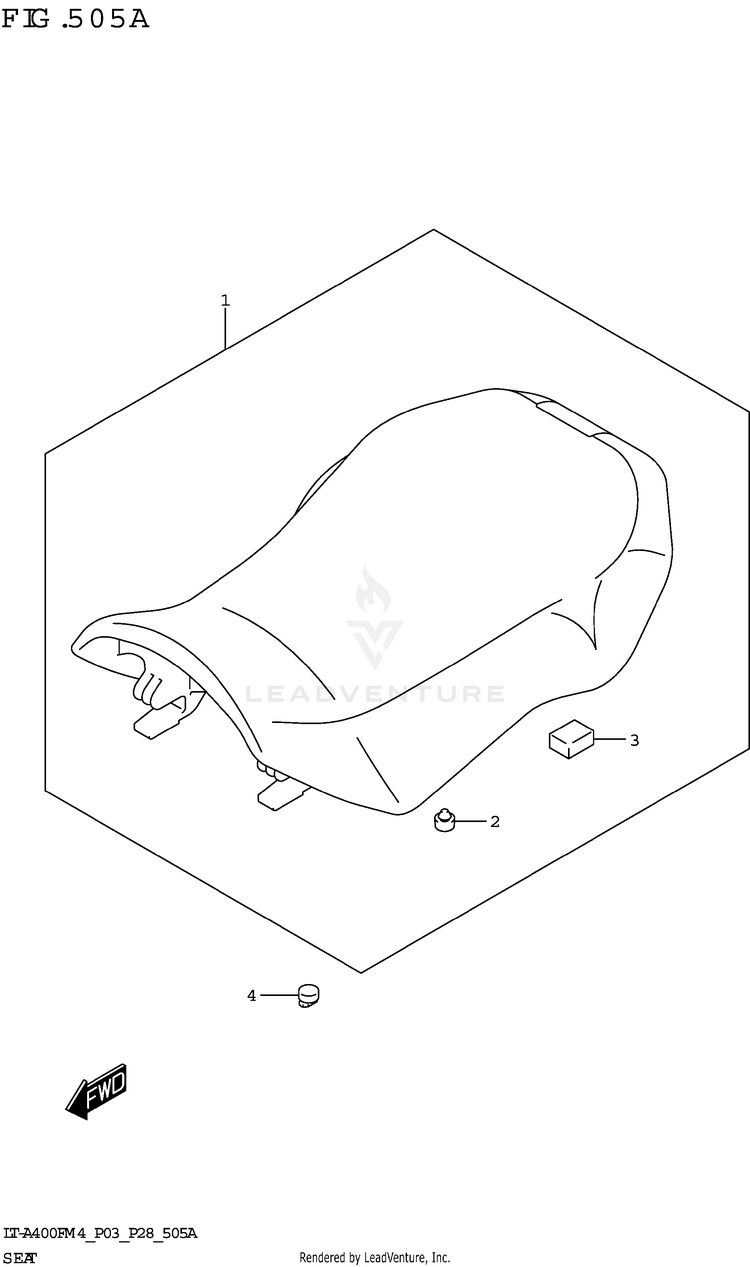

SEAT
SECONDARY DRIVE

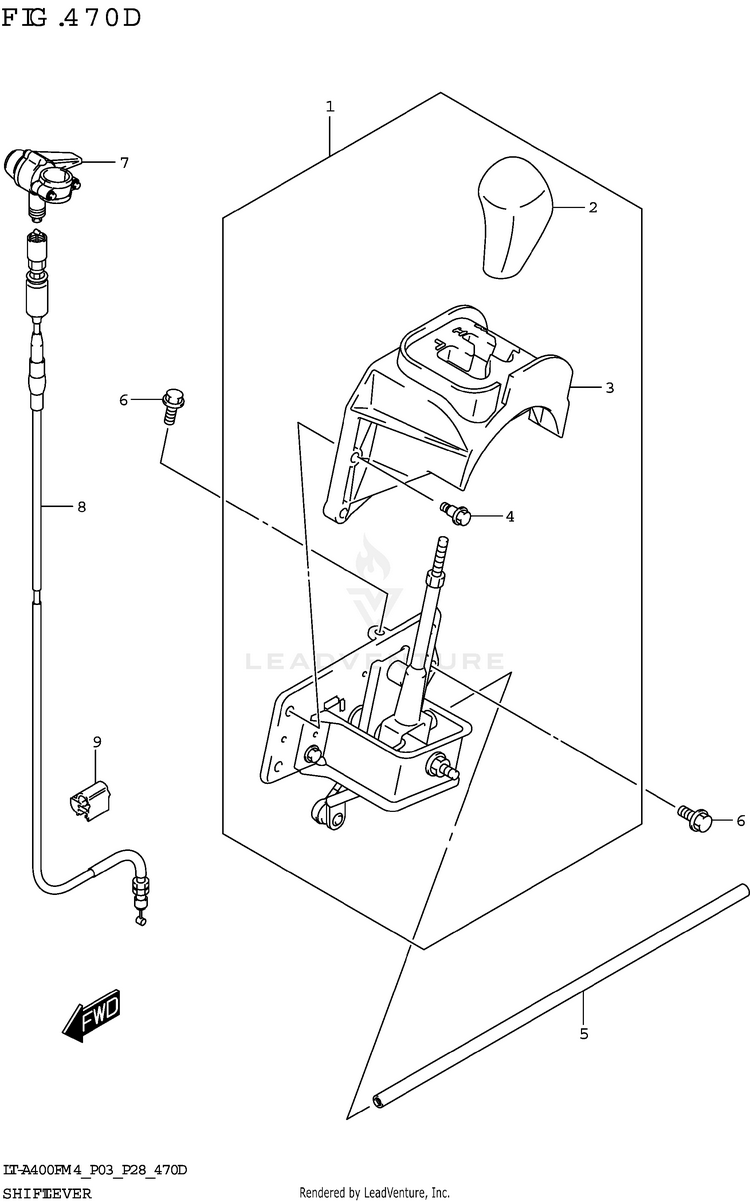

SHIFT LEVER

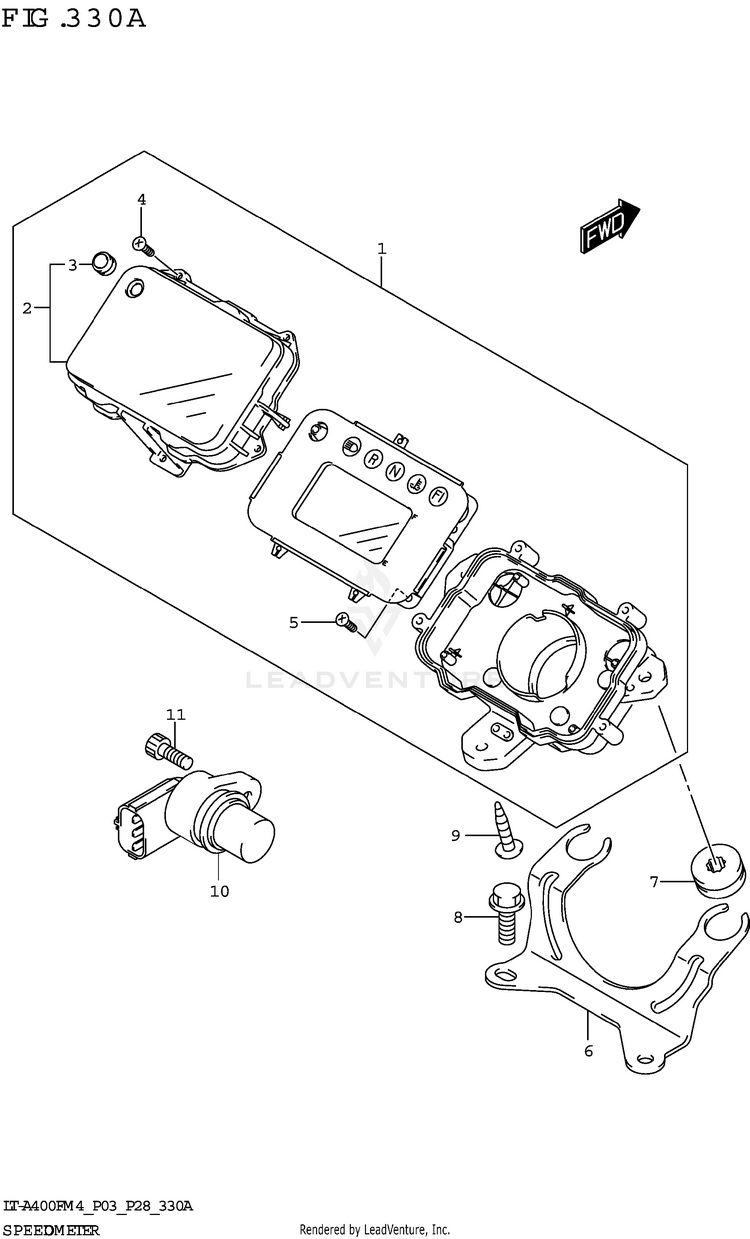

SPEEDOMETER (P03)
SPEEDOMETER (P28)

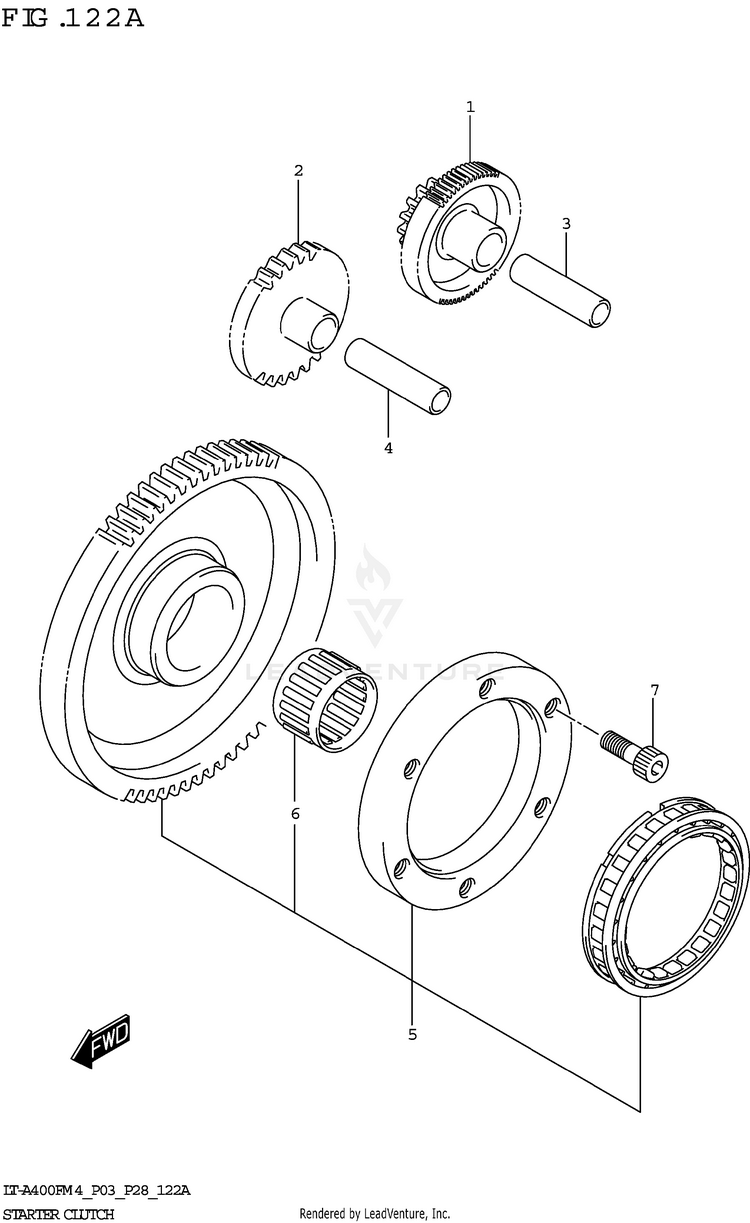

STARTER CLUTCH

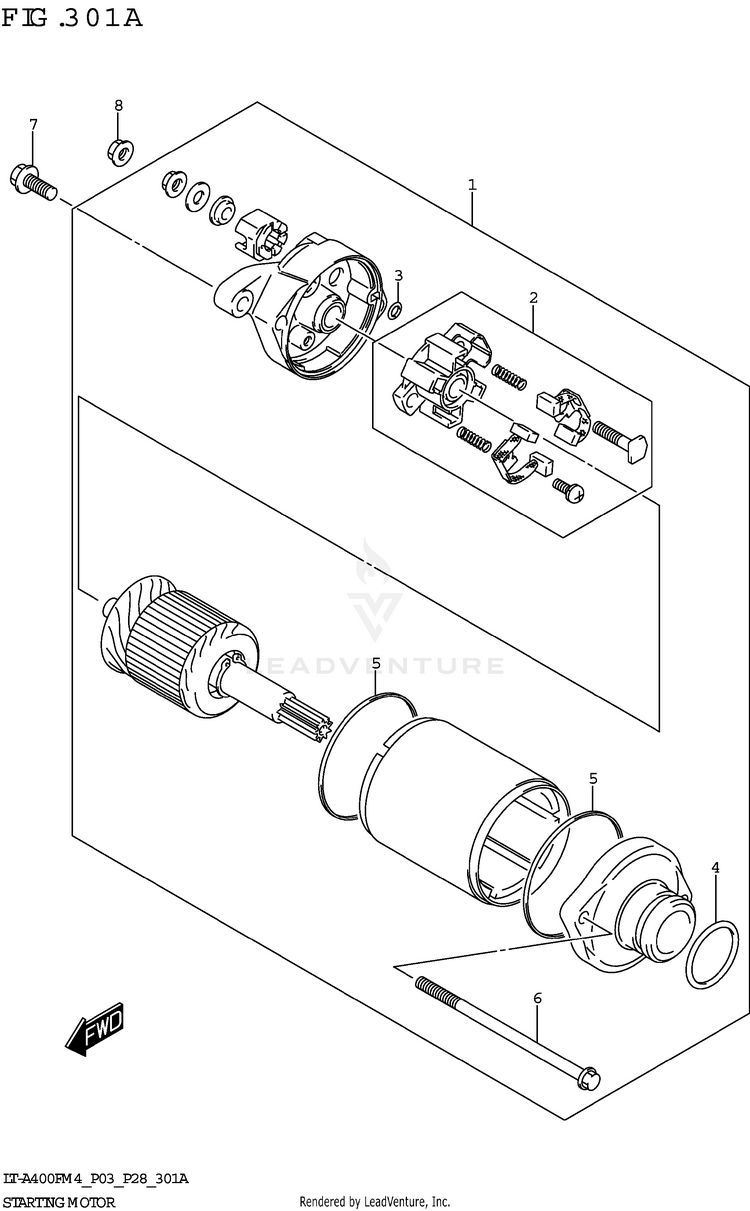

STARTING MOTOR

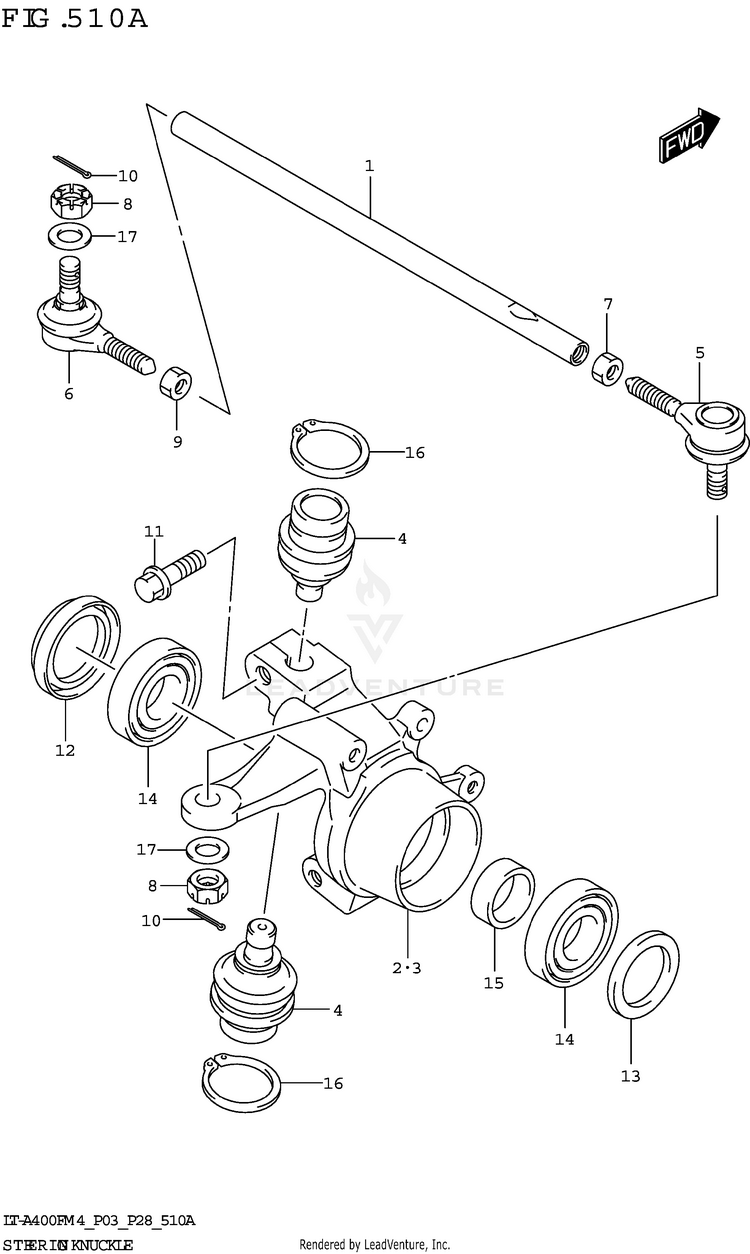

STEERING KNUCKLE

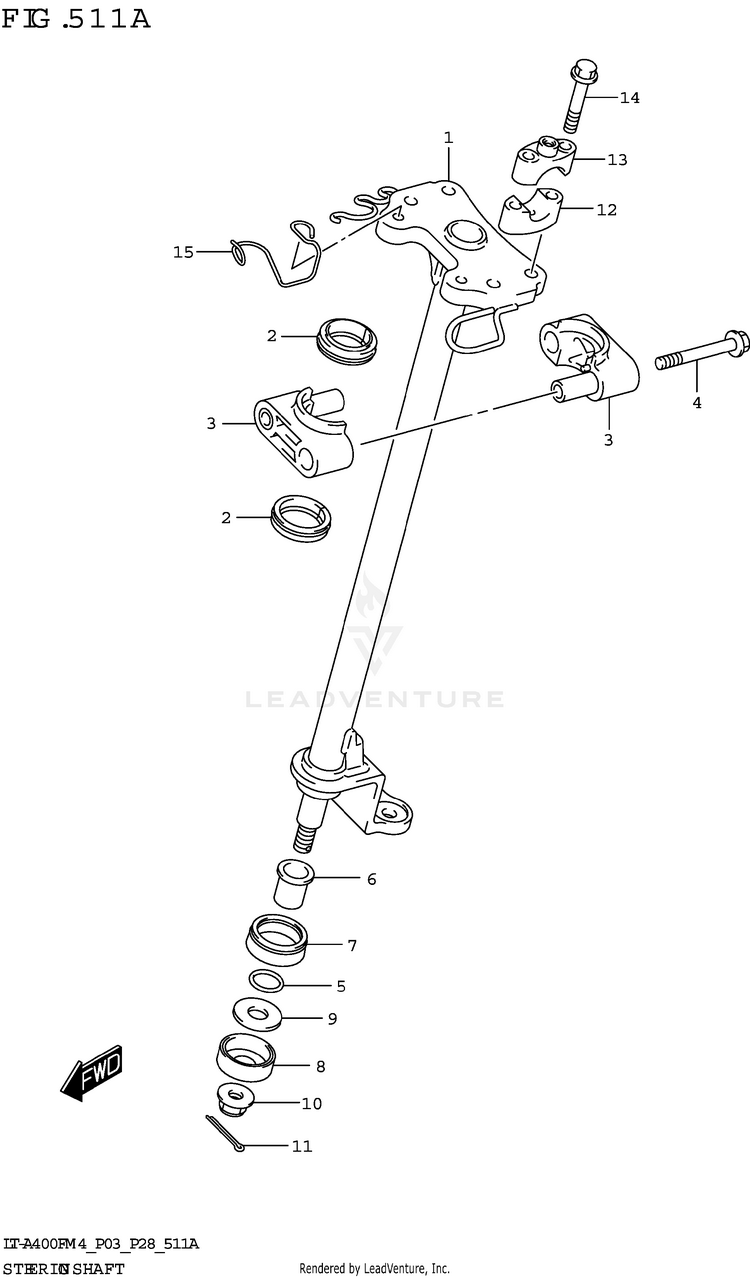

STEERING SHAFT

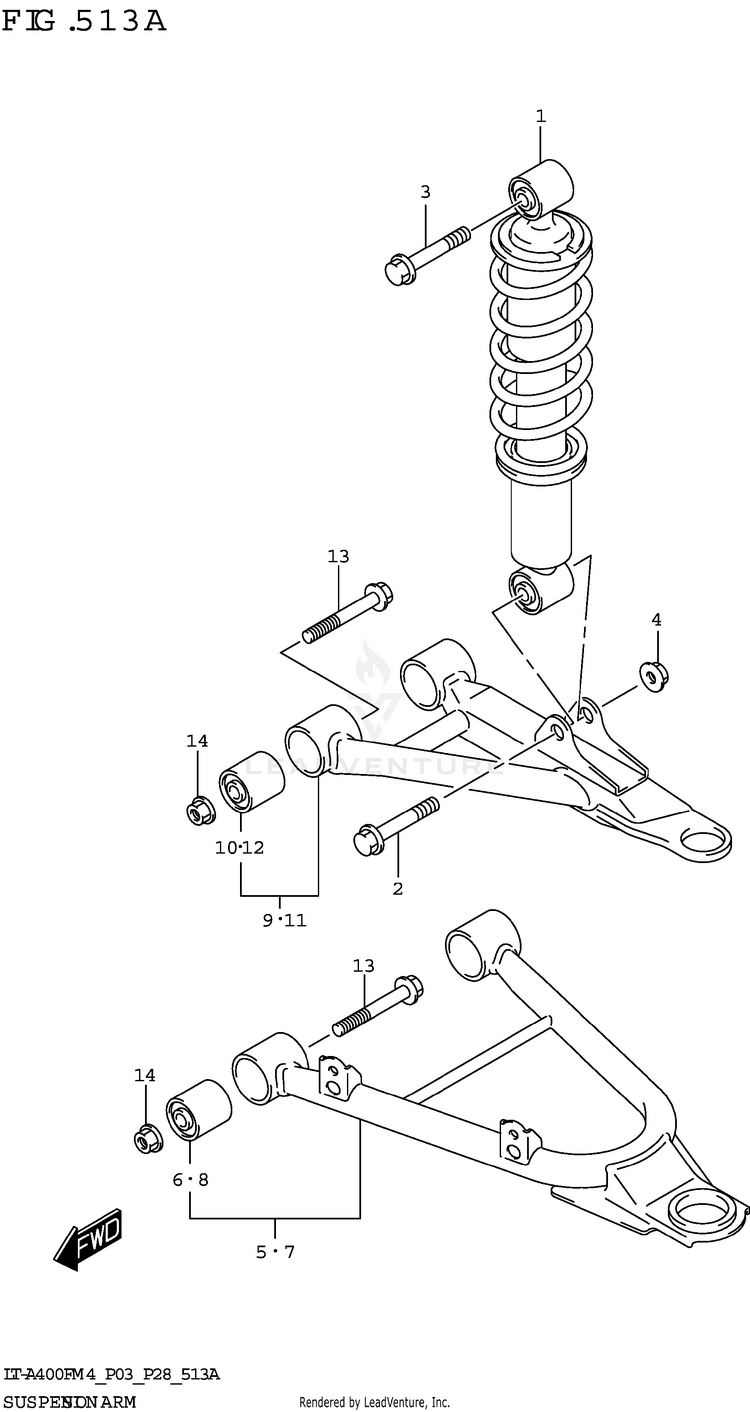

SUSPENSION ARM
THROTTLE BODY
TRANSMISSION (1)

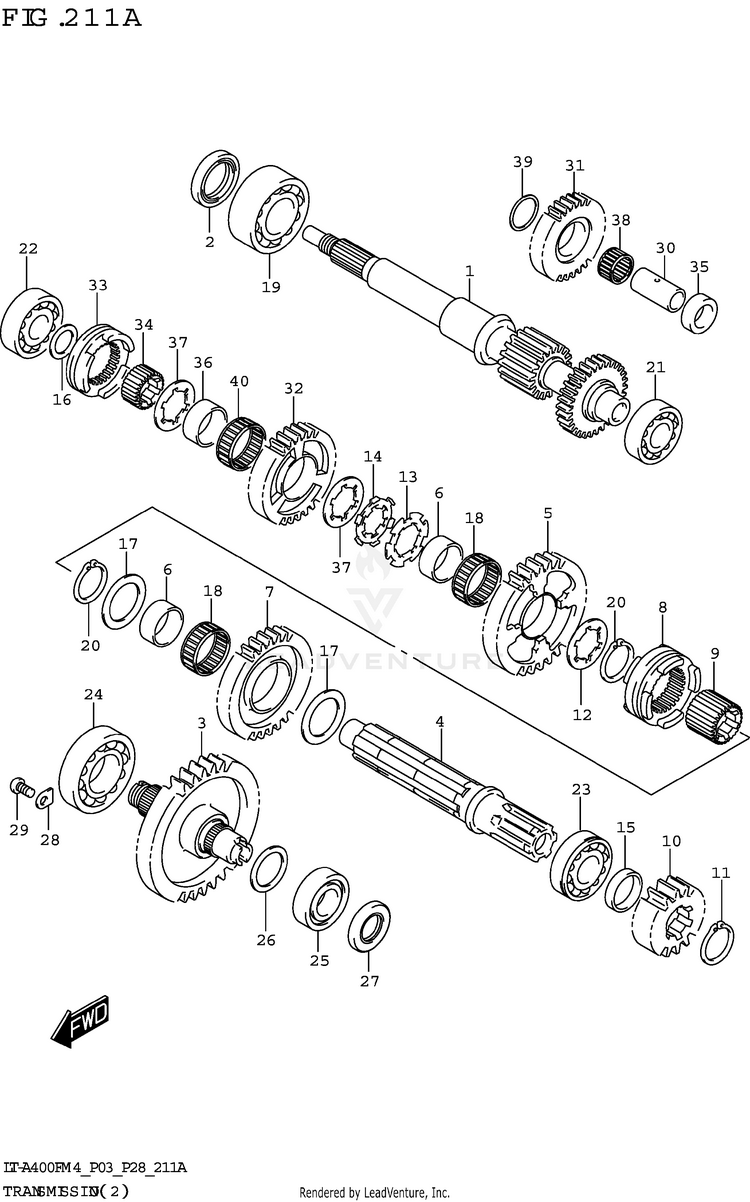

TRANSMISSION (2)

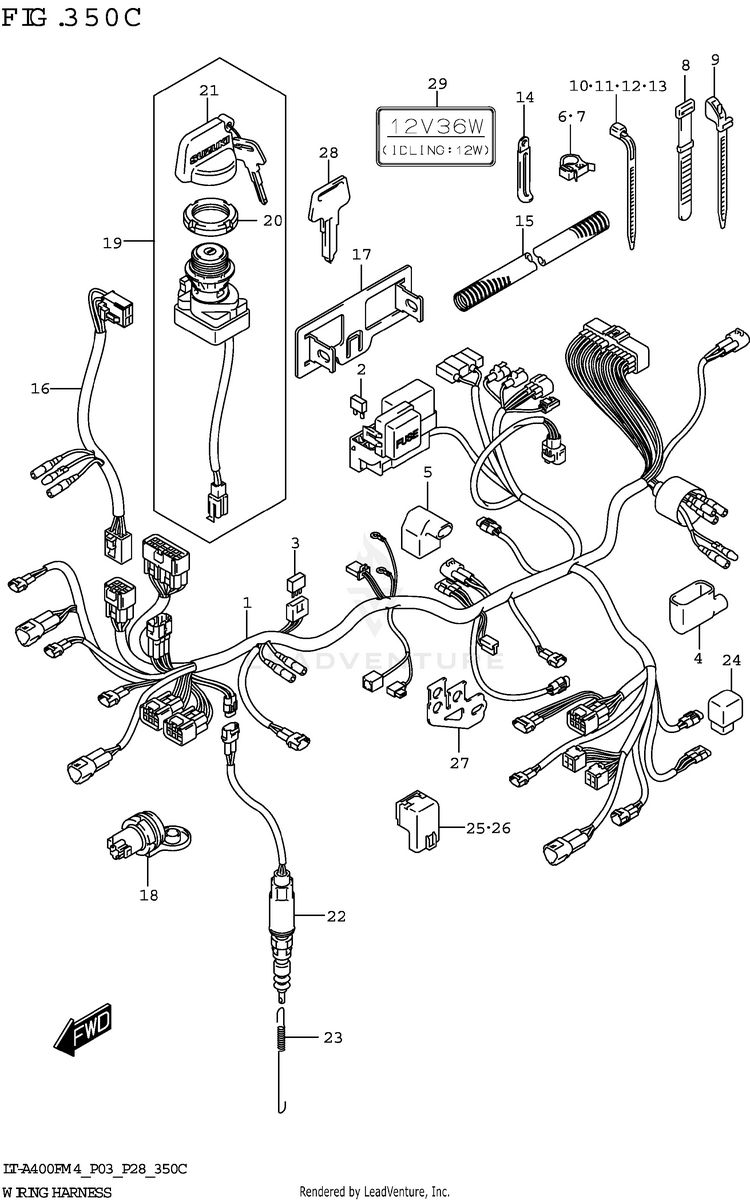

WIRING HARNESS

#

2ND AIR

A

AIR CLEANER

B

BATTERY
BELT COOLING DUCT

C

CAM CHAIN
CAMSHAFT/VALVE
CARRIER (P03)
CARRIER (P28)

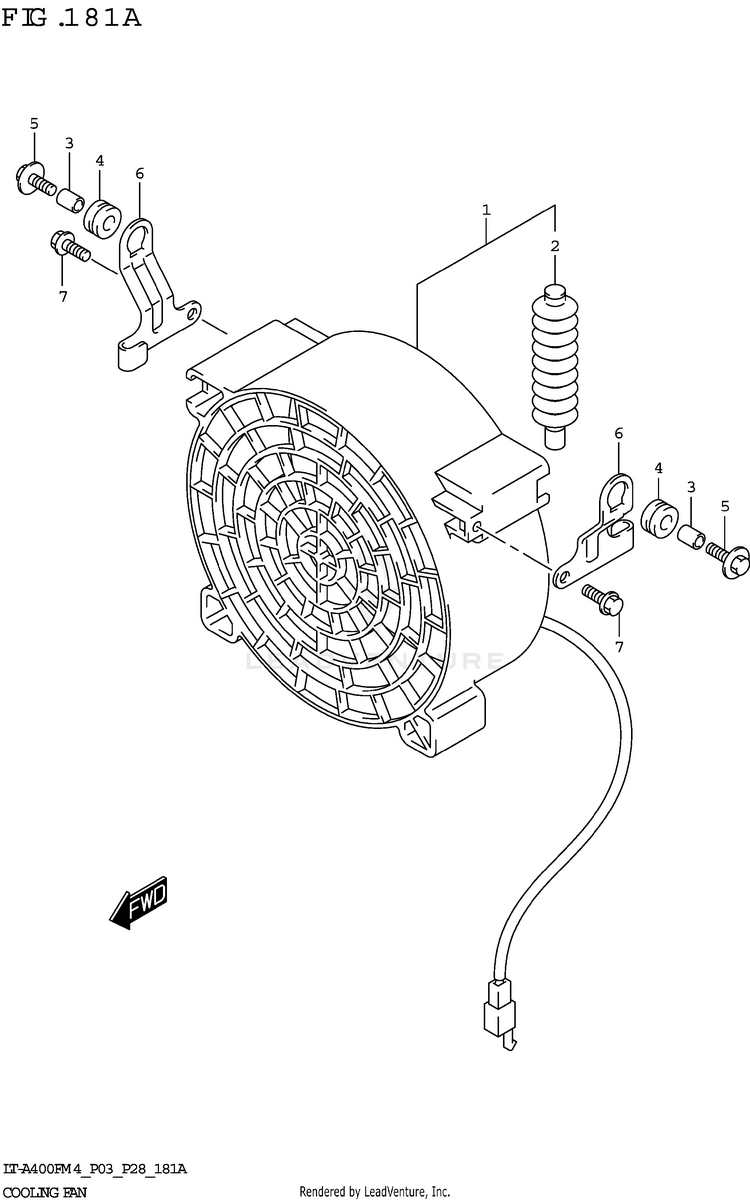

COOLING FAN
CRANK BALANCER

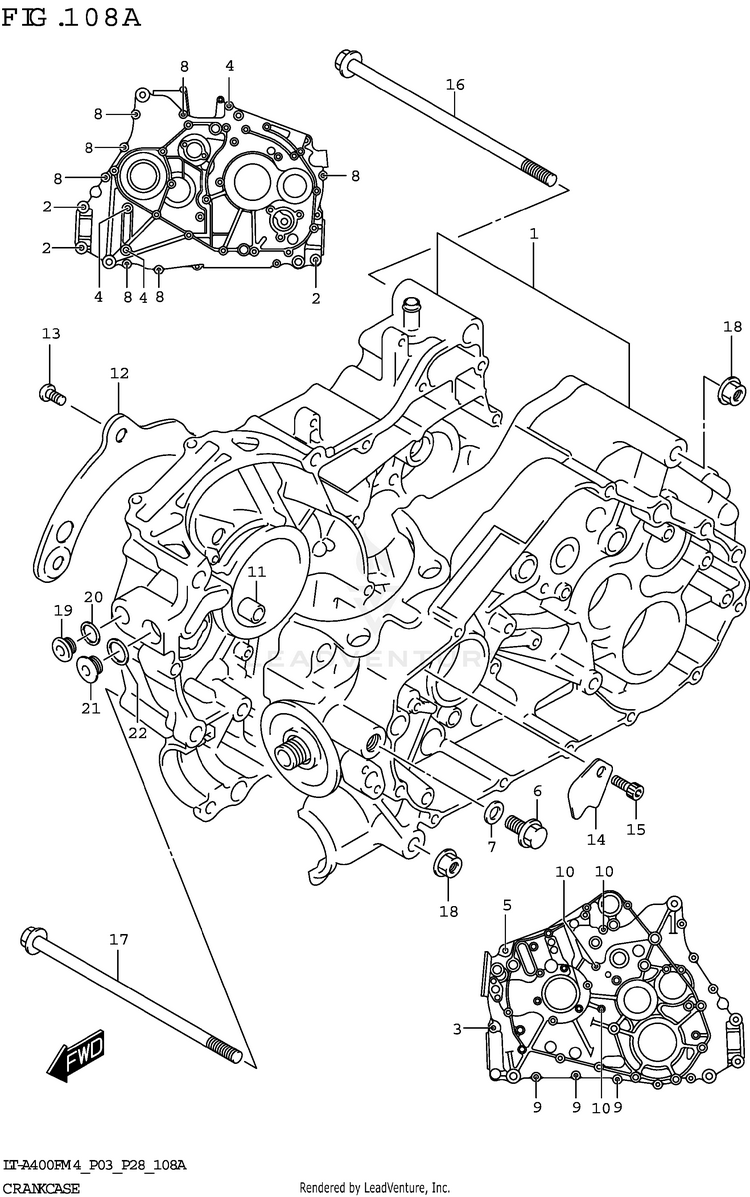

CRANKCASE

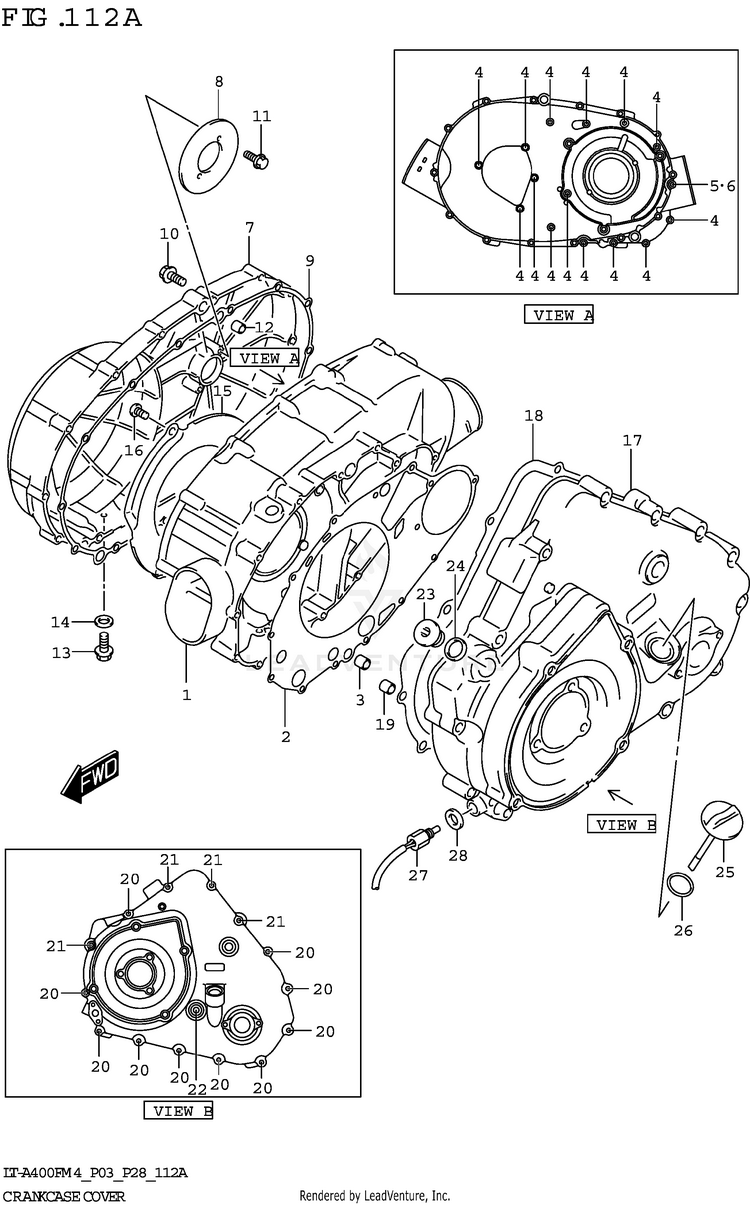

CRANKCASE COVER

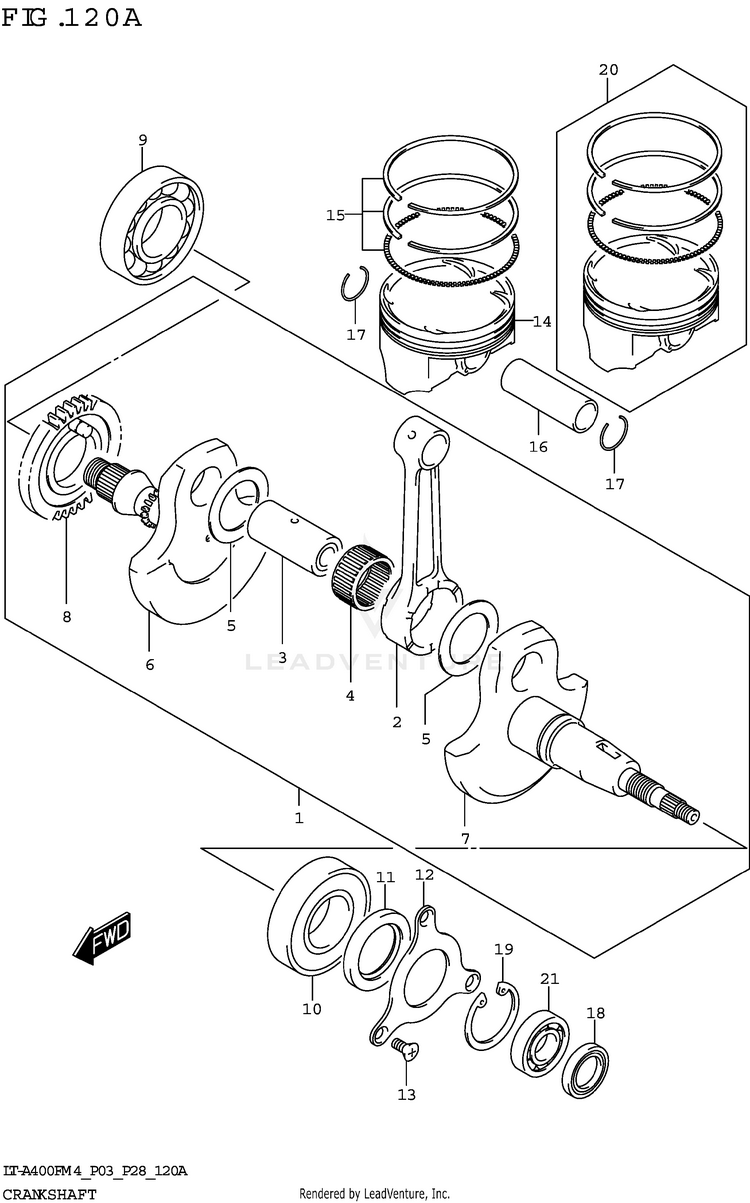

CRANKSHAFT

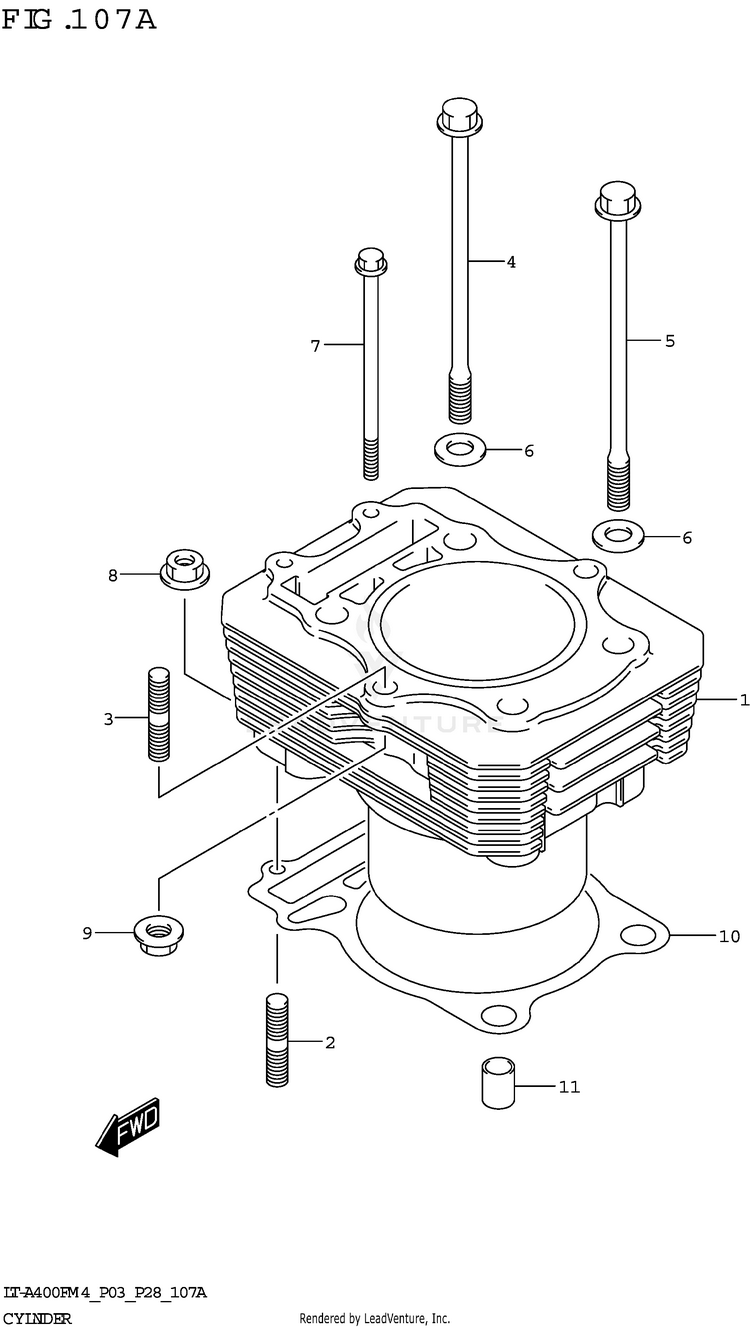

CYLINDER
CYLINDER HEAD

E

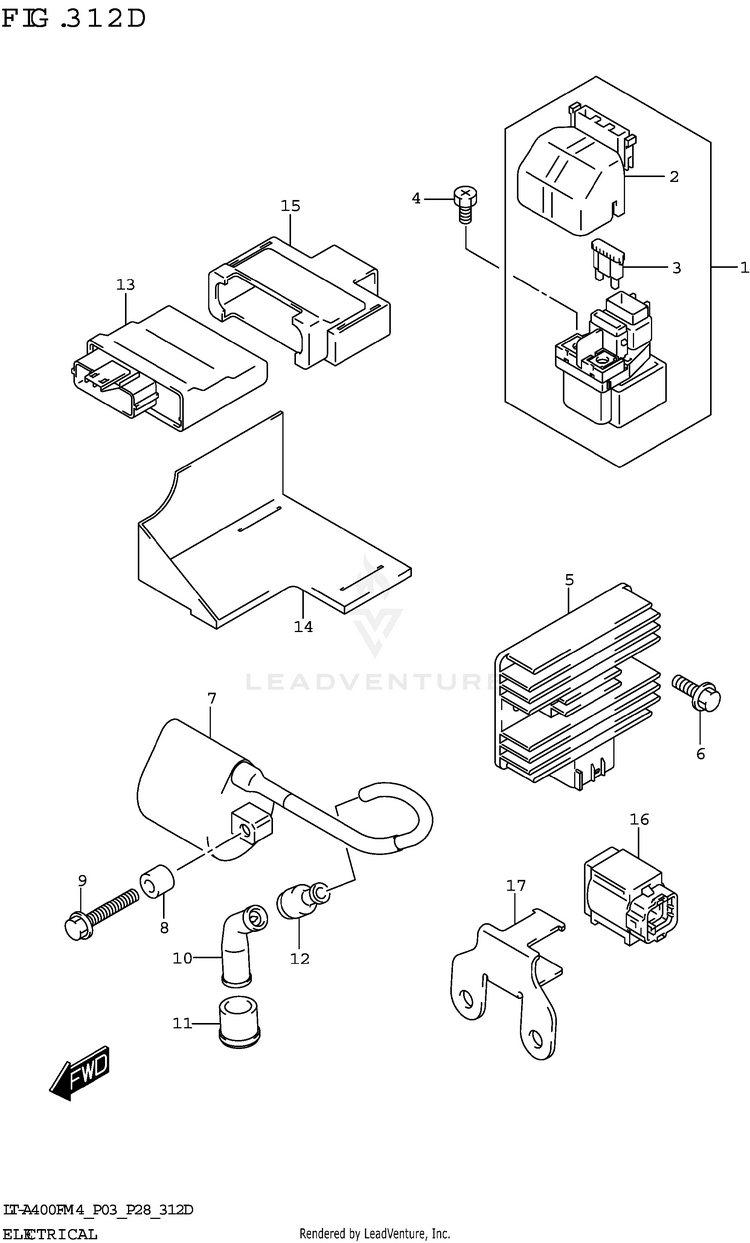

ELECTRICAL

F

FINAL BEVEL GEAR (FRONT)
FINAL BEVEL GEAR (REAR)
FOOTREST
FRAME
FRONT BRAKE HOSE
FRONT CALIPER
FRONT DRIVE SHAFT
FRONT FENDER (LT-A400F:P03)
FRONT FENDER (LT-A400F:P28)
FRONT FENDER (LT-A400FZ:P03)
FRONT MASTER CYLINDER
FRONT WHEEL (LT-A400F)
FRONT WHEEL (LT-A400FZ)
FUEL PUMP

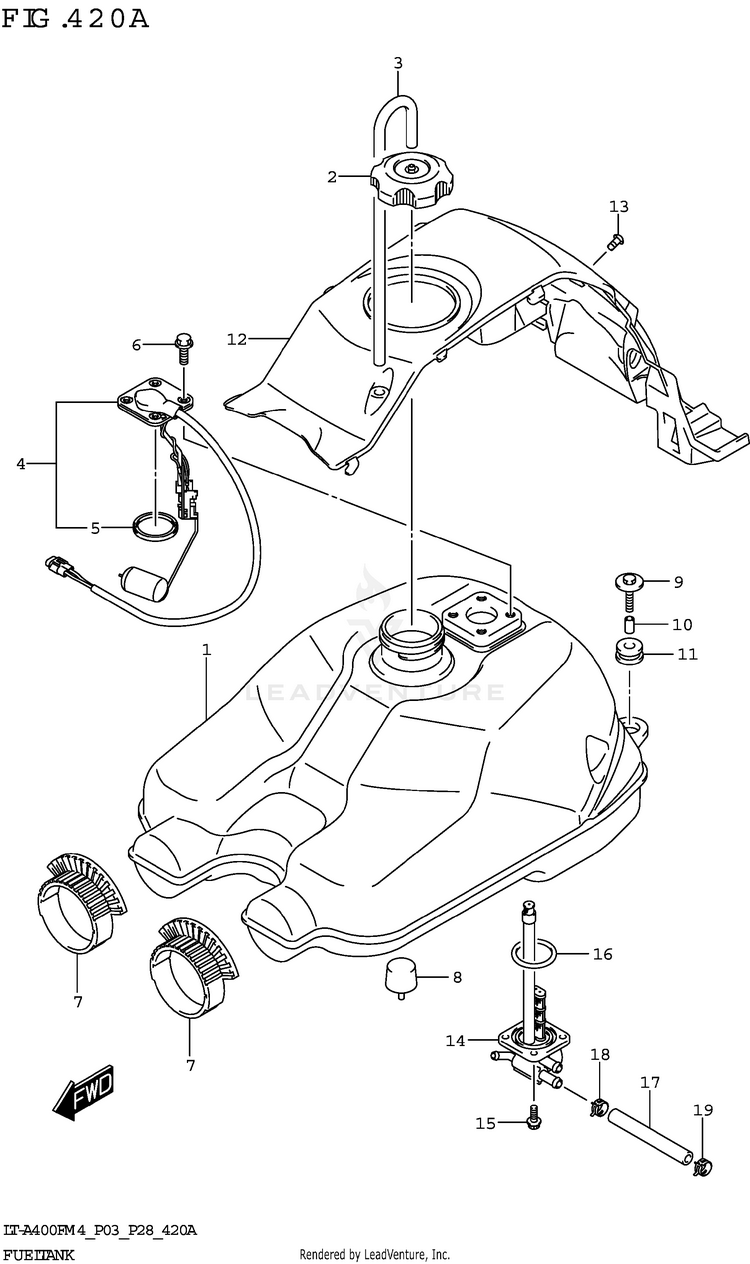

FUEL TANK

G

GASKET SET
GEAR SHIFTING

H

HANDLE LEVER
HANDLEBAR

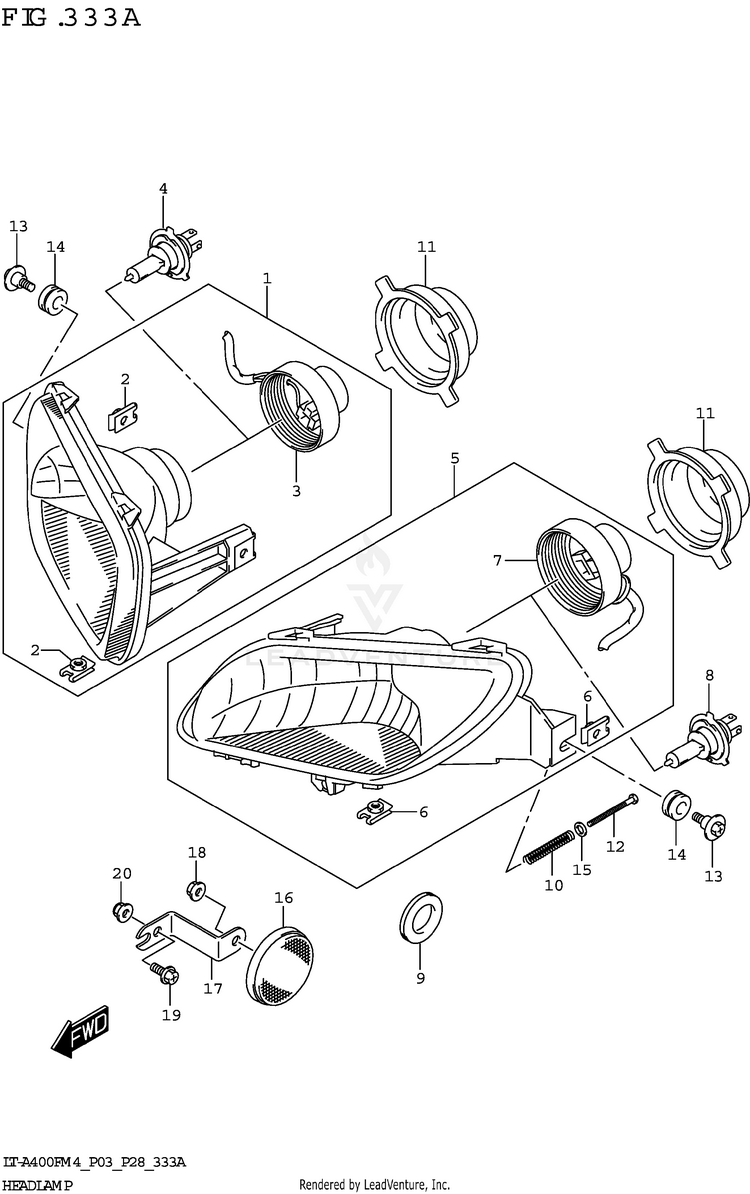

HEADLAMP
HEADLAMP HOUSING (P03)
HEADLAMP HOUSING (P28)

L

LABEL (P03)
LABEL (P28)
LH REAR WHEEL (LT-A400F)
LH REAR WHEEL (LT-A400FZ)

M

MAGNETO
MUDGUARD
MUFFLER

O

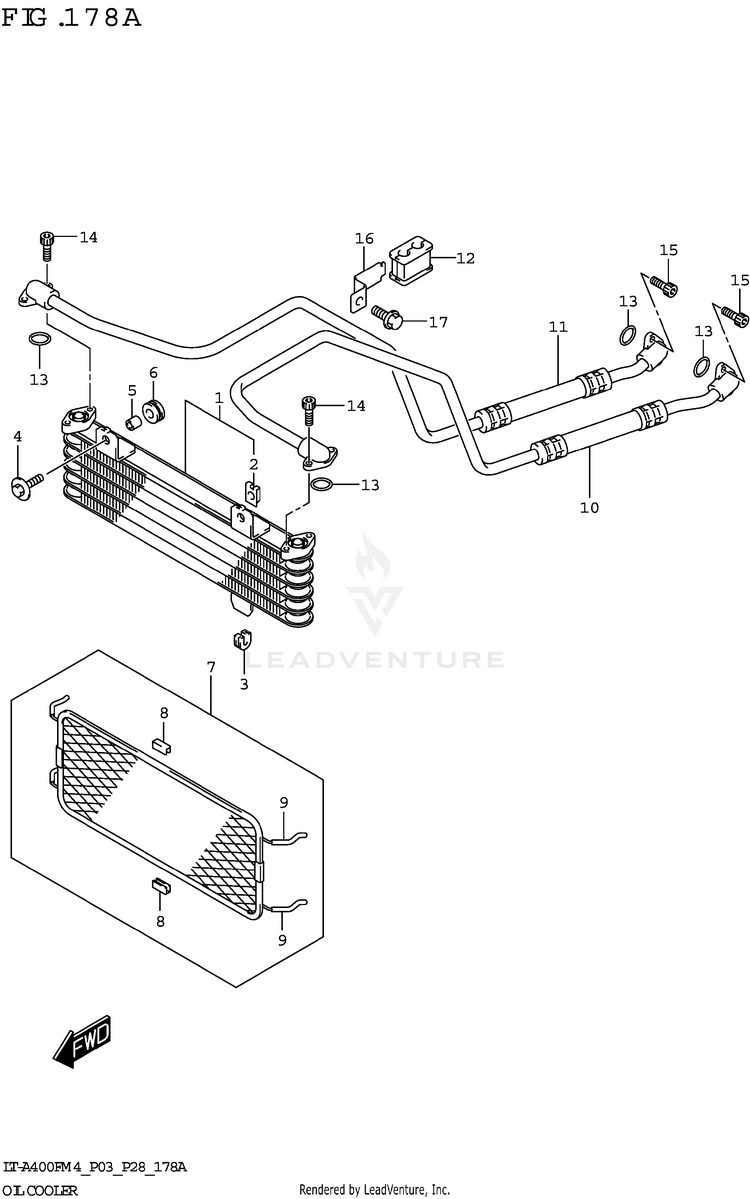

OIL COOLER
OIL PUMP

R

REAR BRAKE
REAR COMBINATION LAMP
REAR FENDER (LT-A400F:P03)
REAR FENDER (LT-A400F:P28)
REAR FENDER (LT-A400FZ:P03)
REAR SWINGINGARM

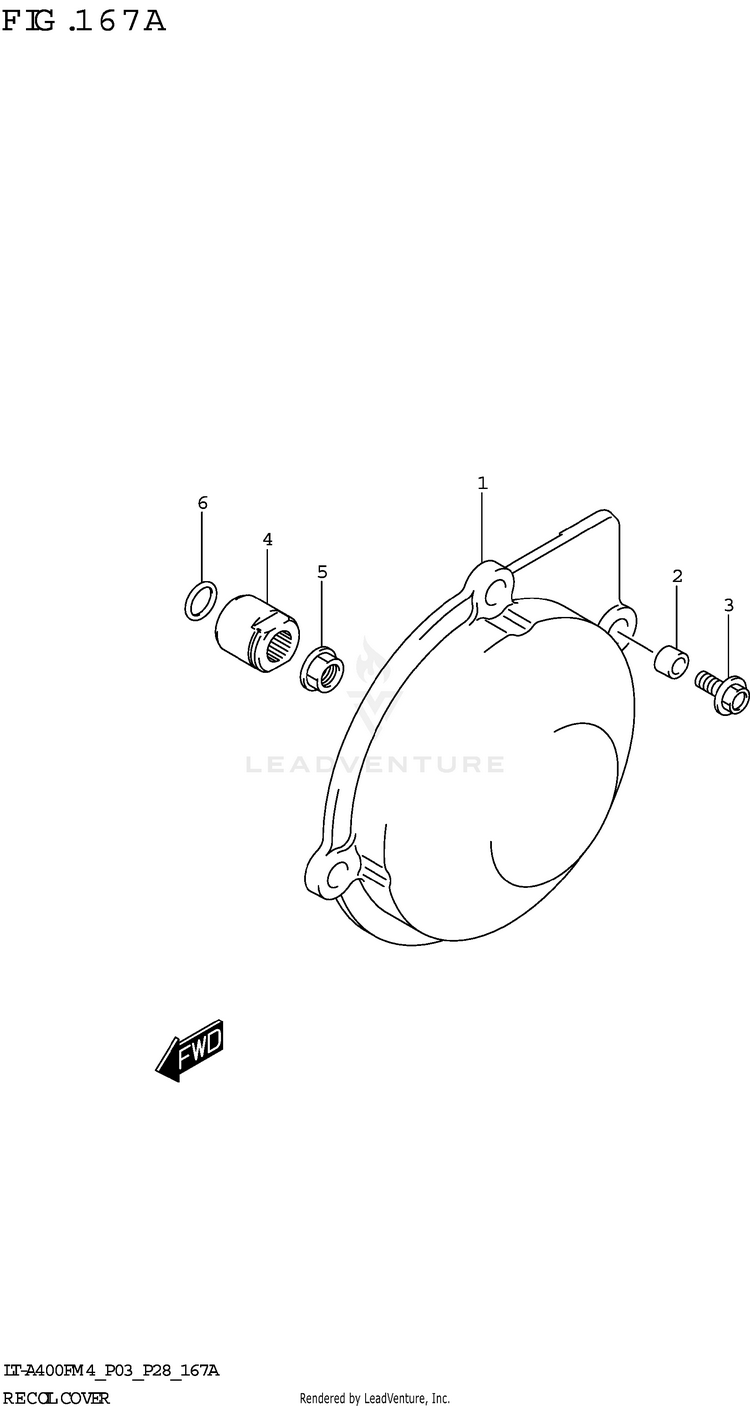

RECOIL COVER
RECOIL STARTER
RH REAR WHEEL (LT-A400F)
RH REAR WHEEL (LT-A400FZ)

S

SEAT

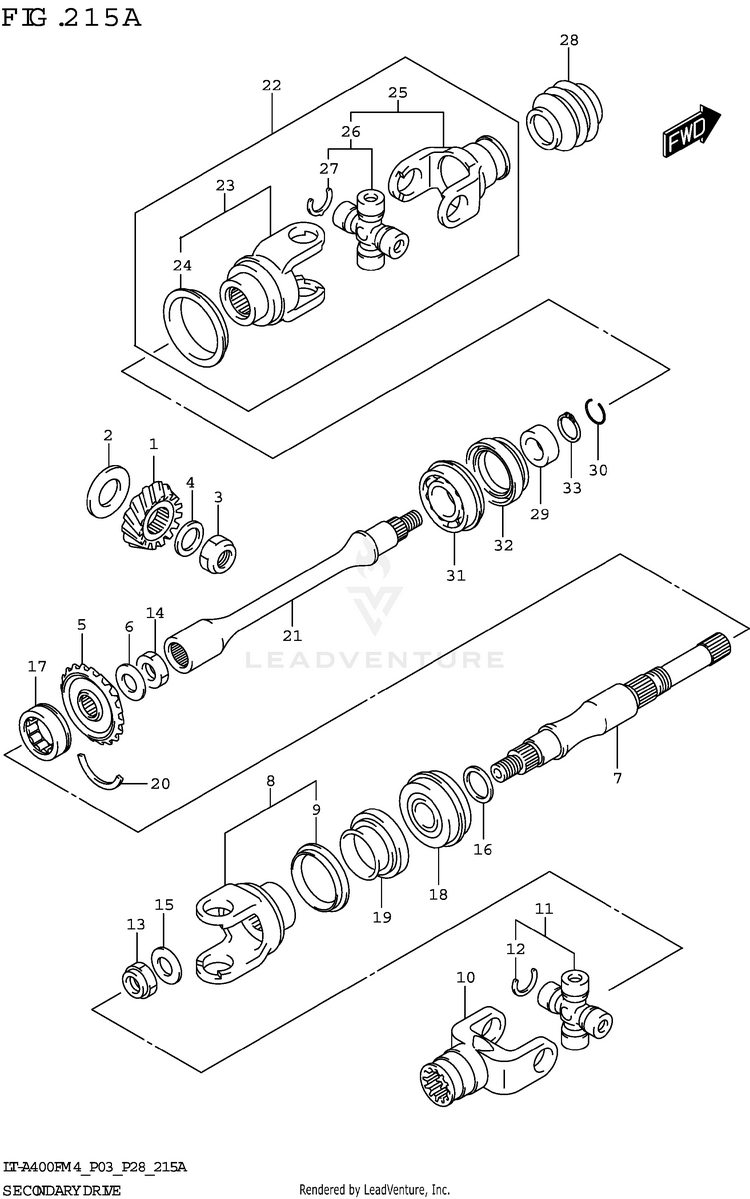

SECONDARY DRIVE
SHIFT LEVER
SPEEDOMETER (P03)
SPEEDOMETER (P28)
STARTER CLUTCH
STARTING MOTOR
STEERING KNUCKLE
STEERING SHAFT
SUSPENSION ARM

T

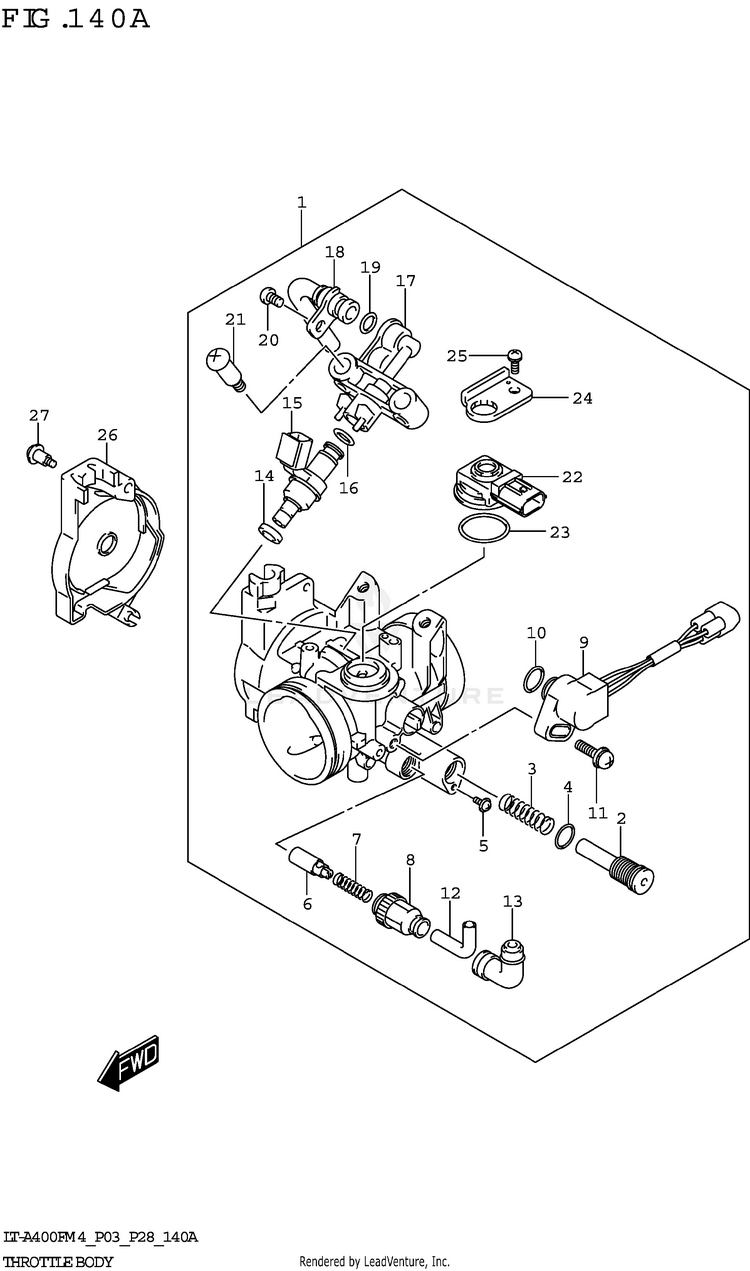

THROTTLE BODY

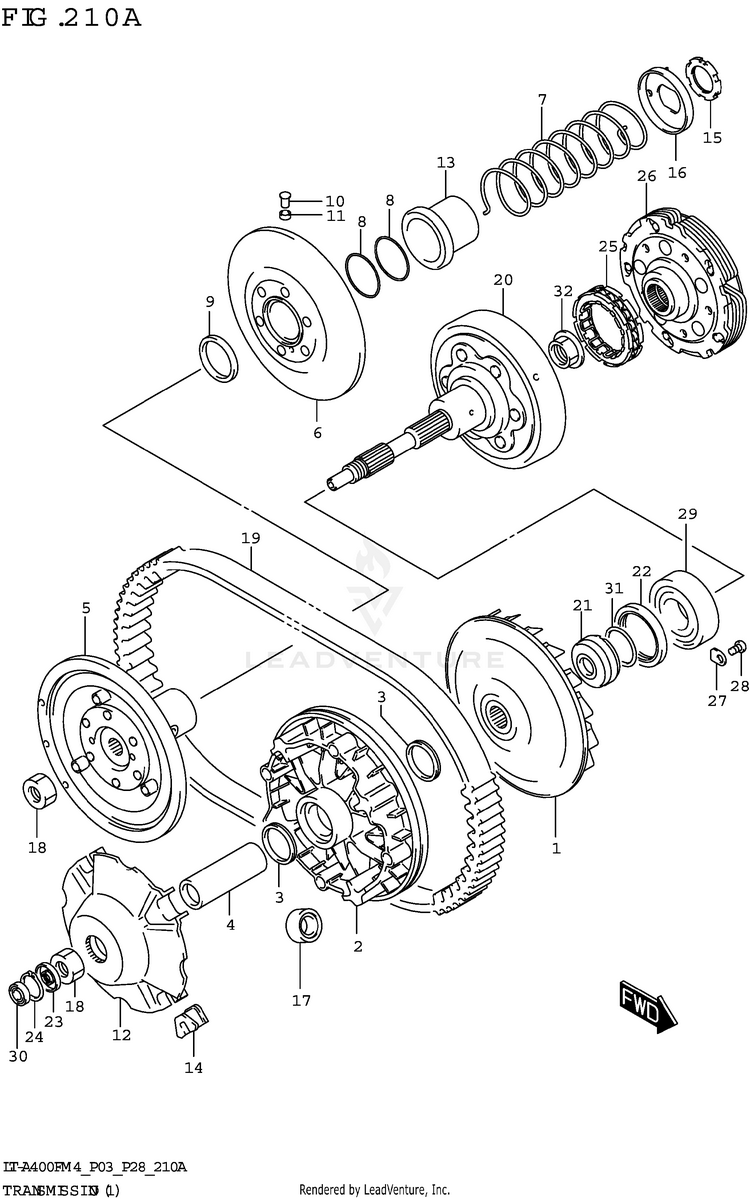

TRANSMISSION (1)
TRANSMISSION (2)

W

WIRING HARNESS
