Assemblies List (118)
#
C

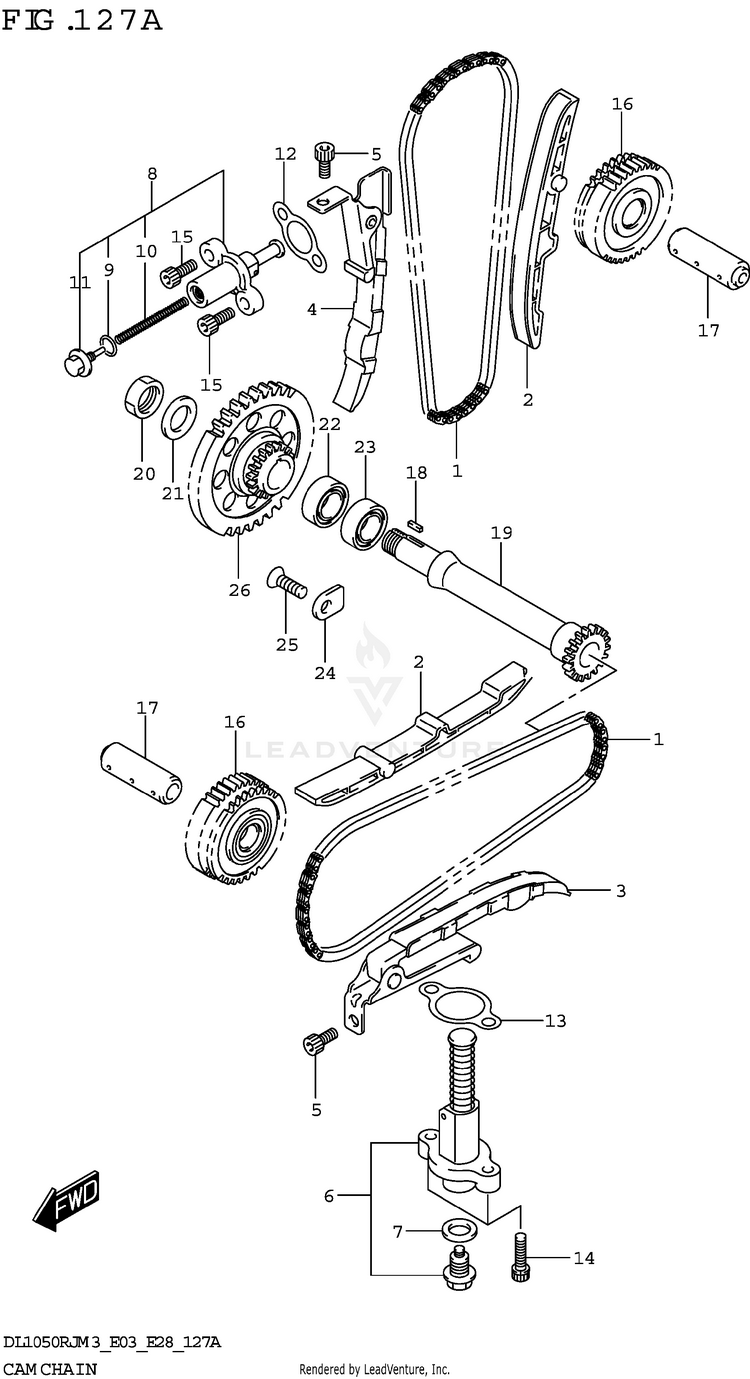

CAM CHAIN

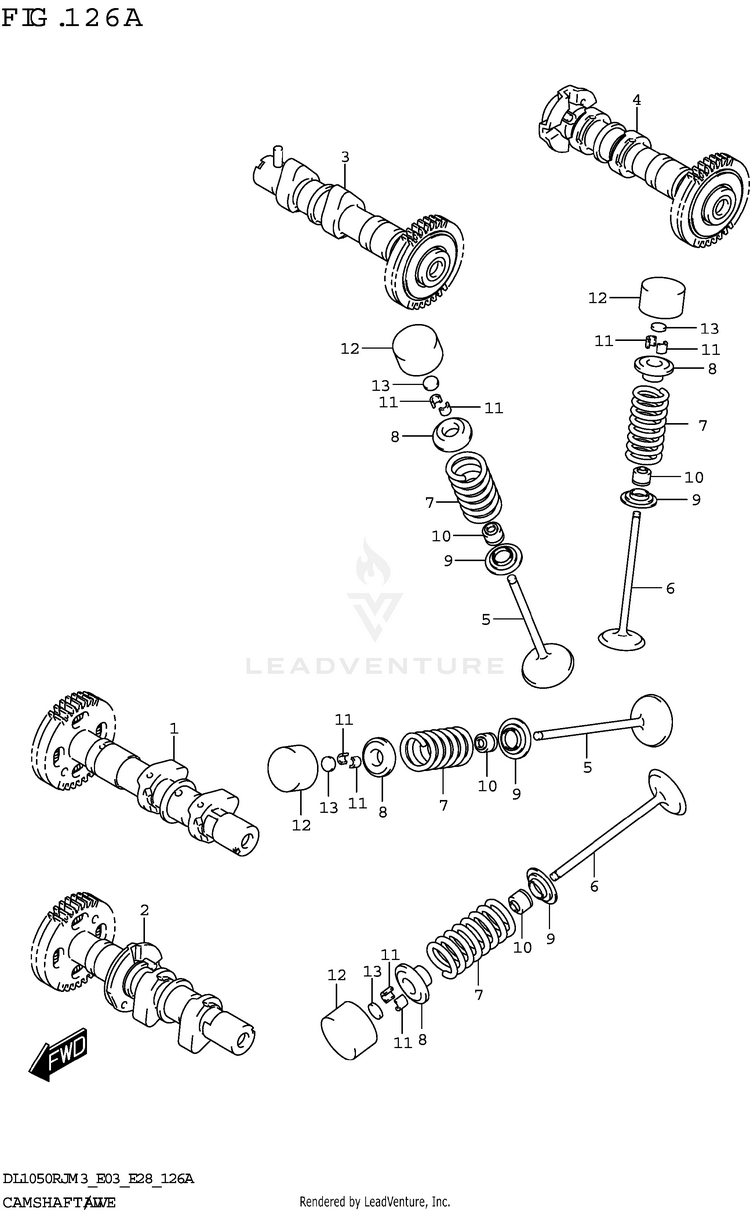

CAMSHAFT/VALVE

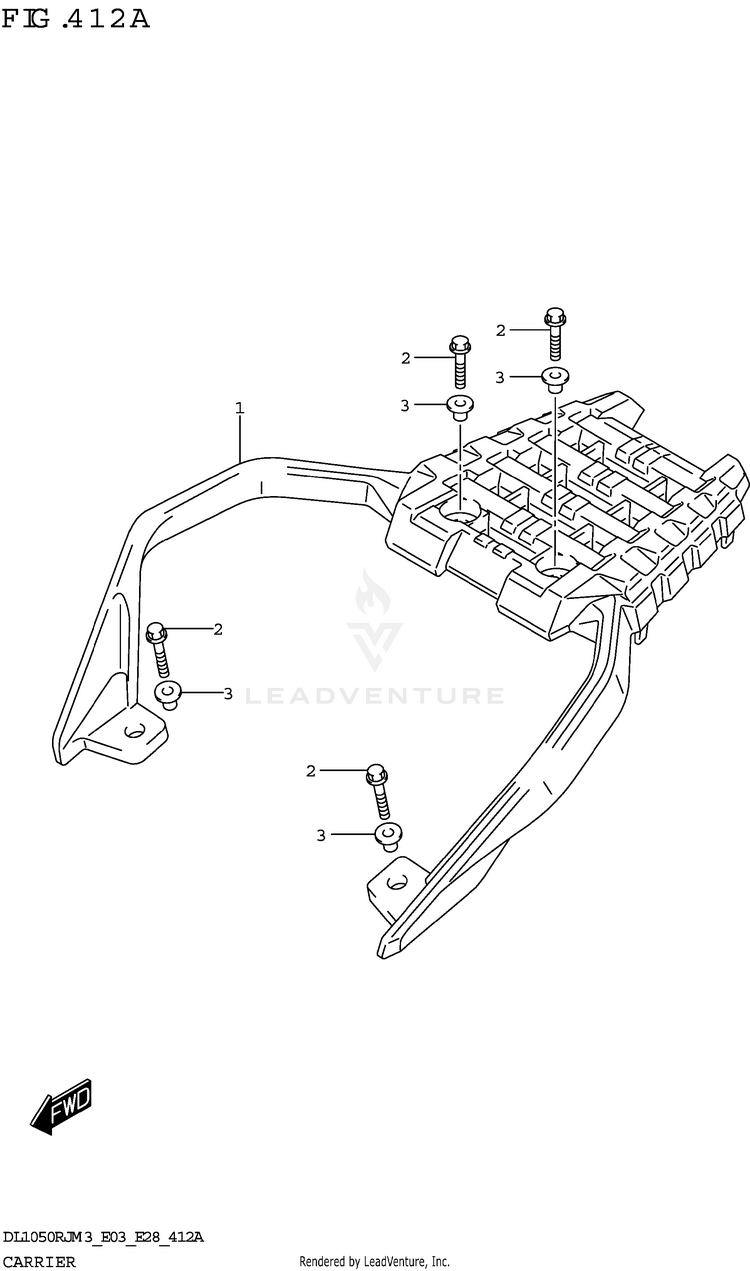

CARRIER

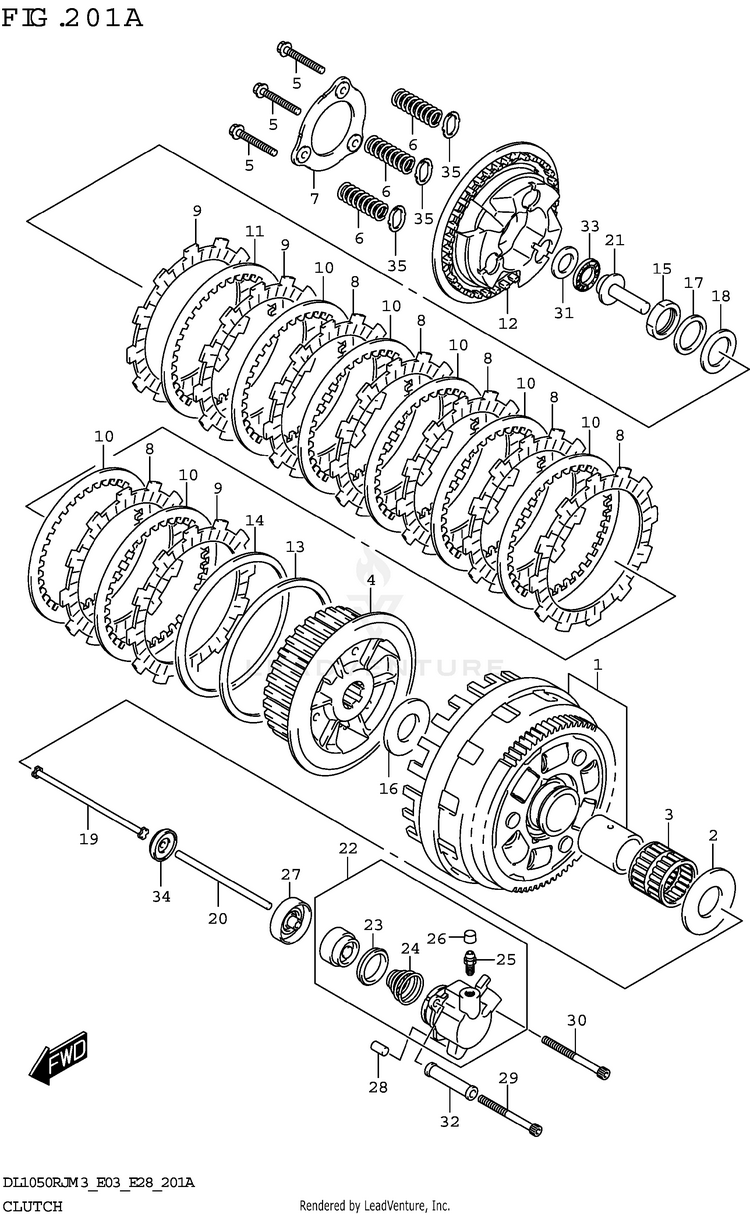

CLUTCH

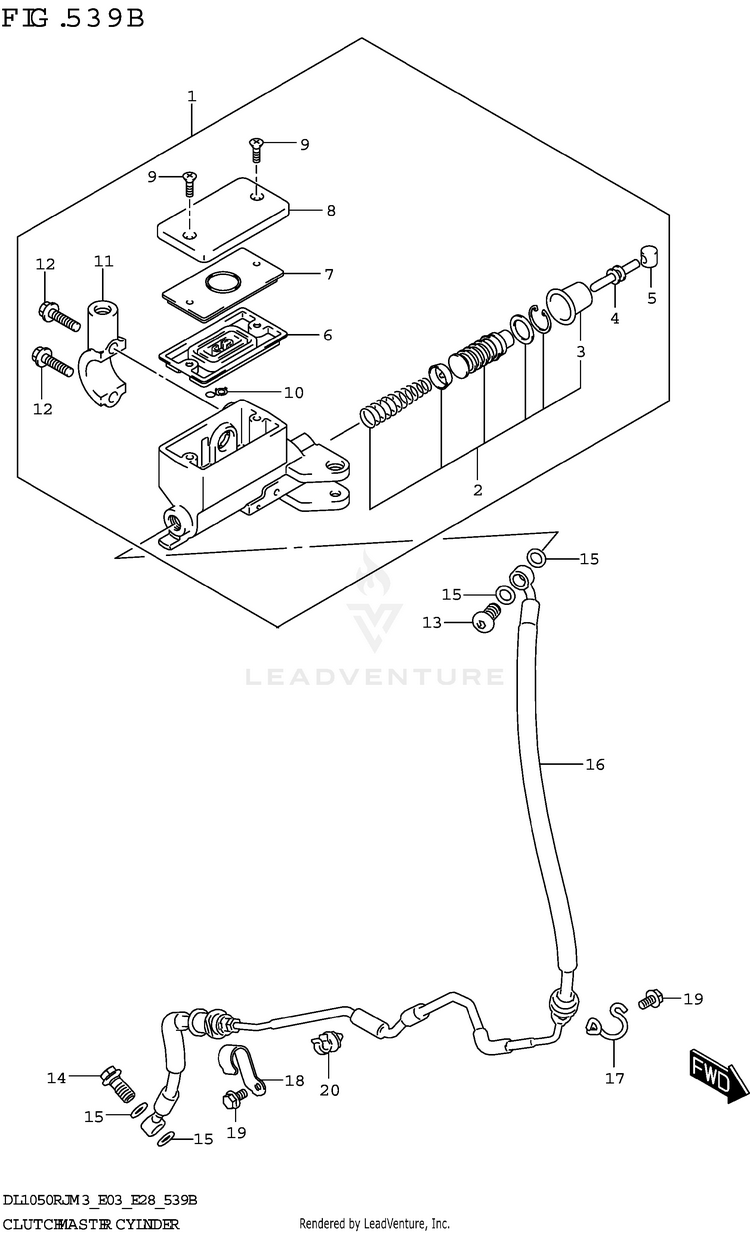

CLUTCH MASTER CYLINDER (DL1050RJ)
CLUTCH MASTER CYLINDER (DL1050RR)

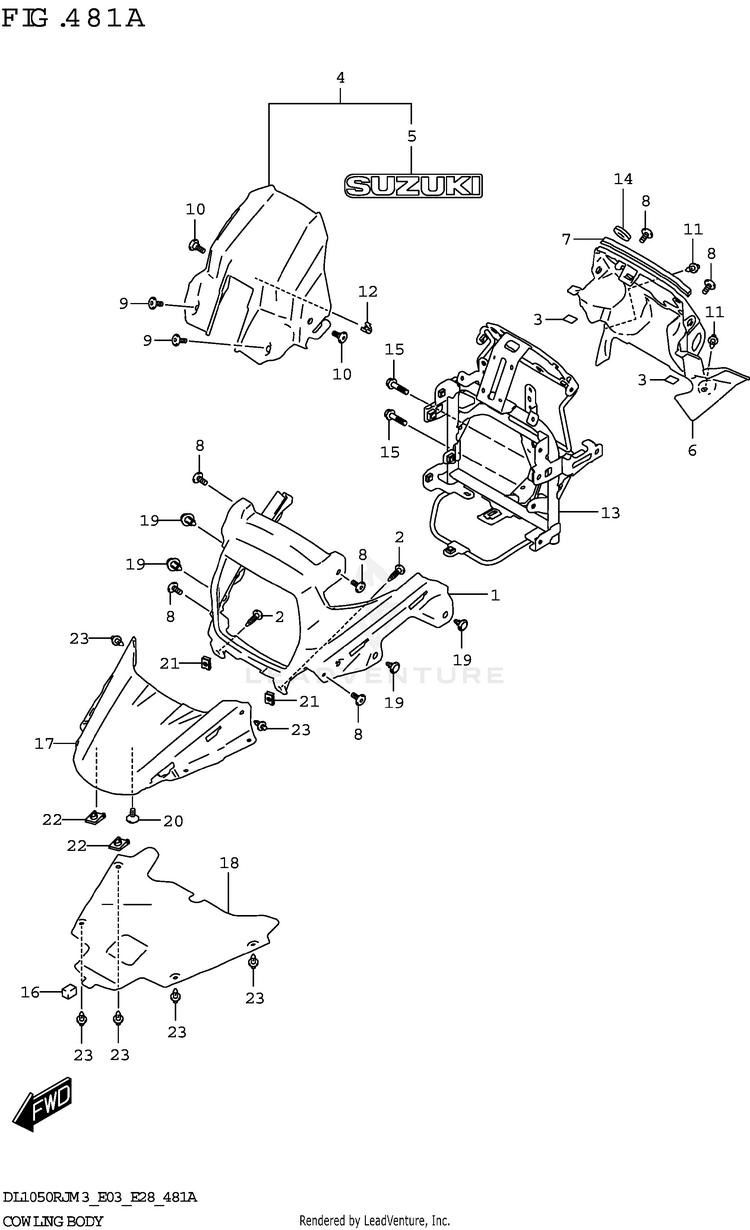

COWLING BODY (DL1050RJ)
COWLING BODY (DL1050RR)

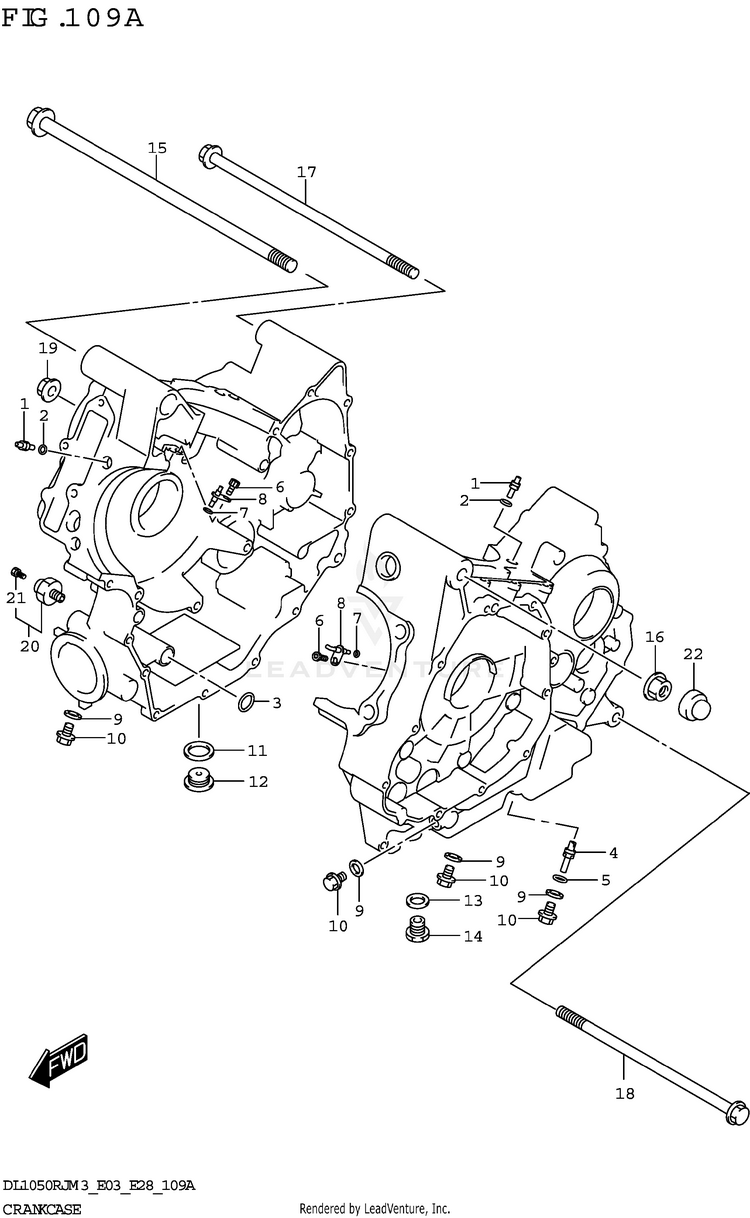

CRANKCASE
CRANKCASE (2) (DL1050RR)

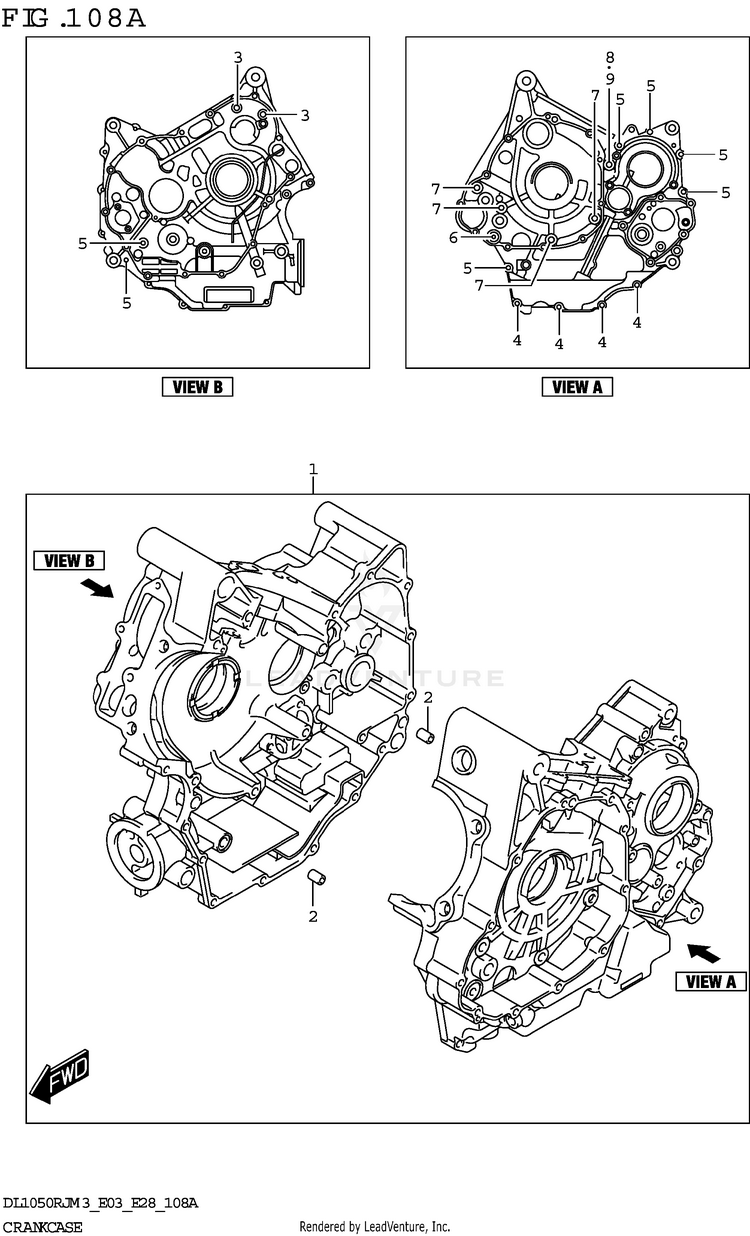

CRANKCASE (DL1050RJ)

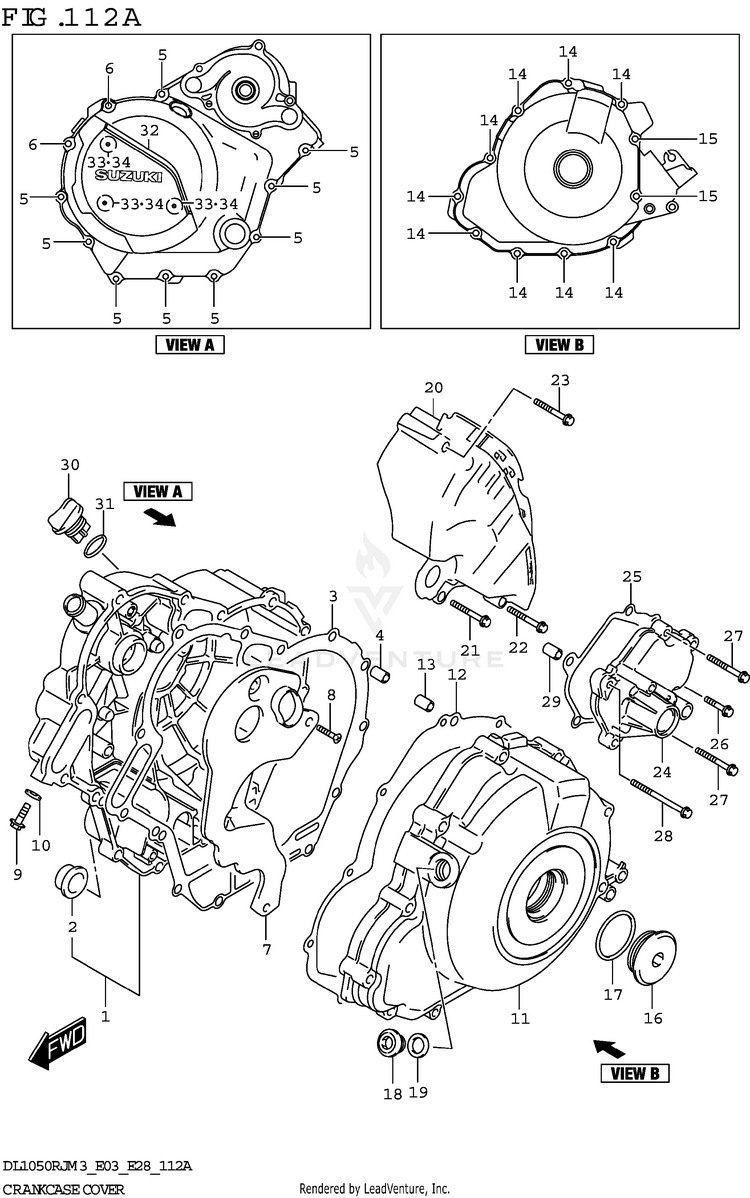

CRANKCASE COVER

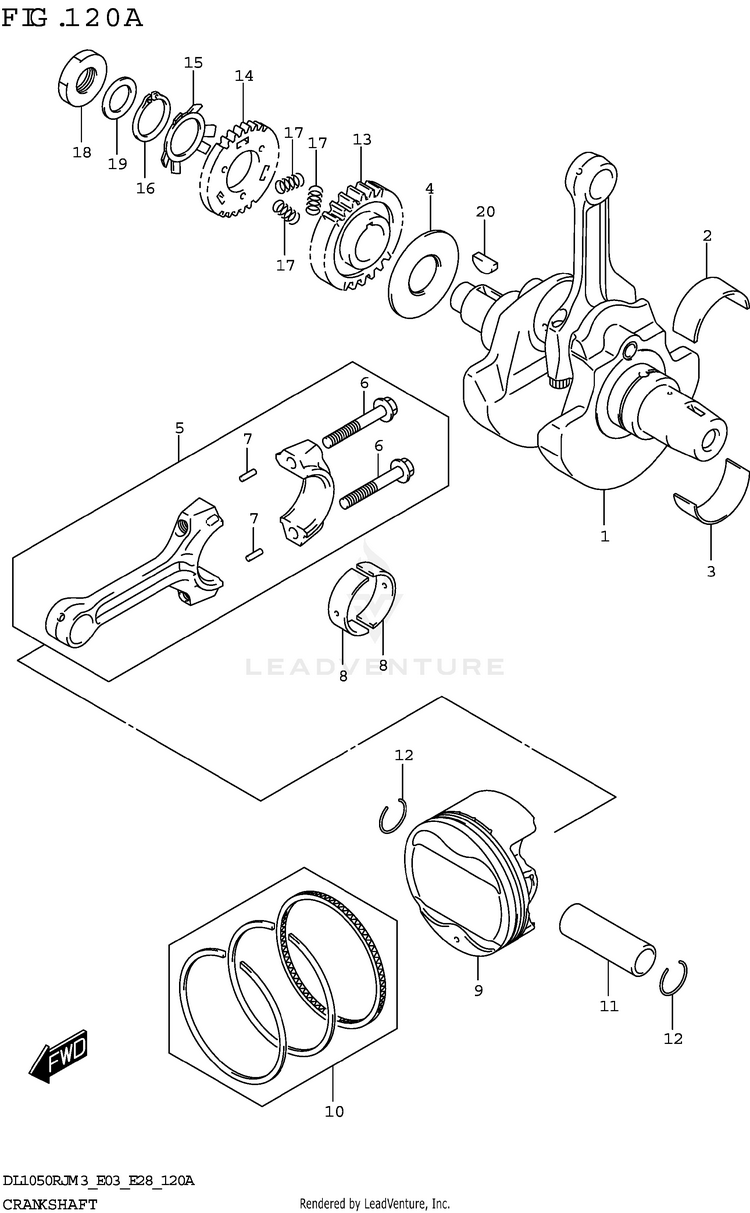

CRANKSHAFT

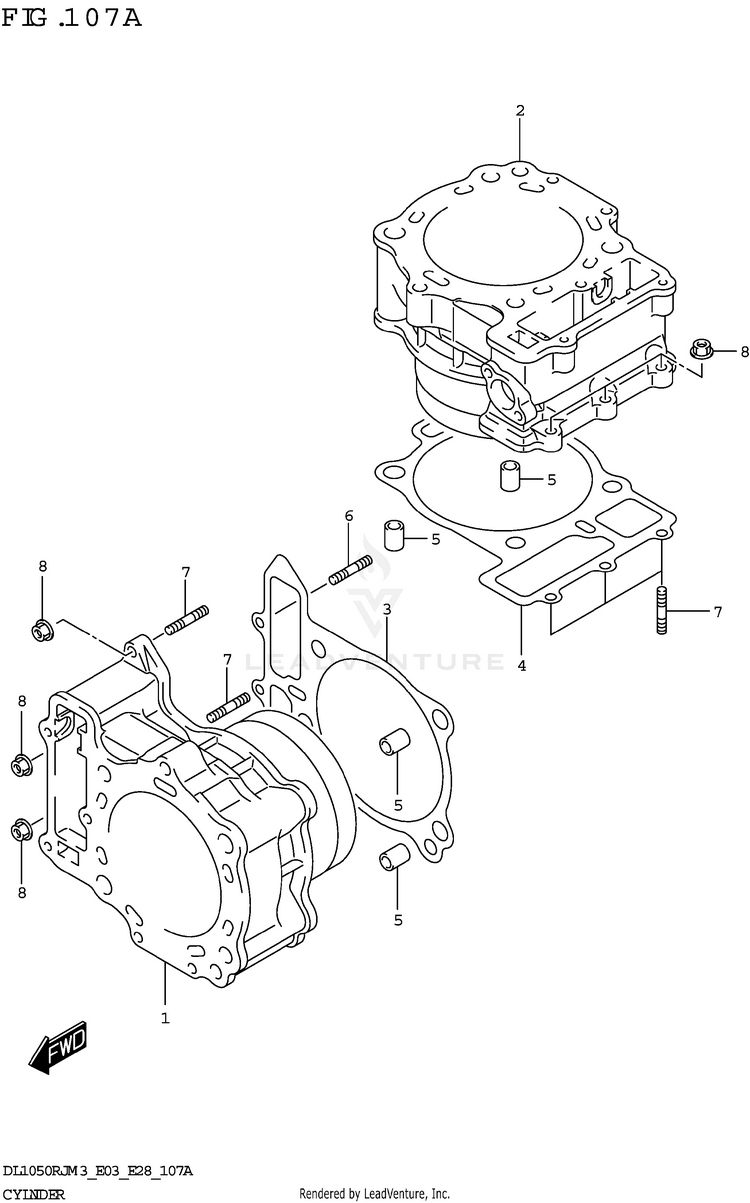

CYLINDER

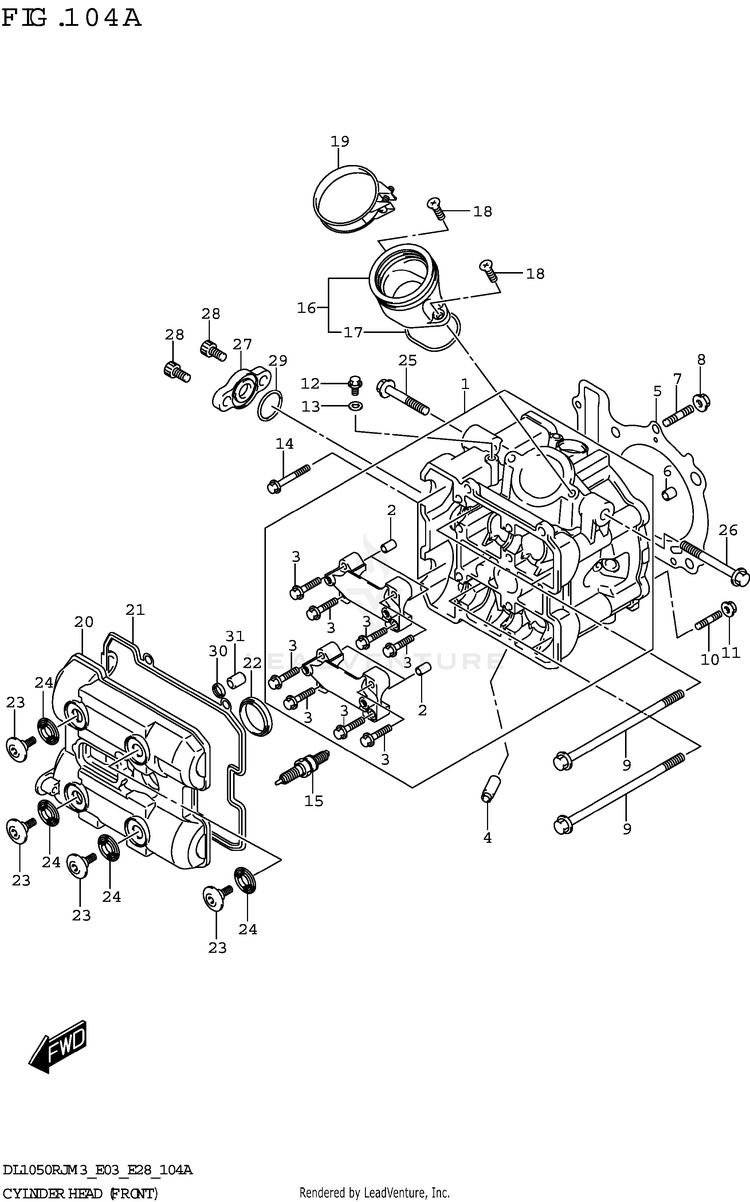

CYLINDER HEAD (FRONT) (DL1050RJ)
CYLINDER HEAD (FRONT) (DL1050RR)

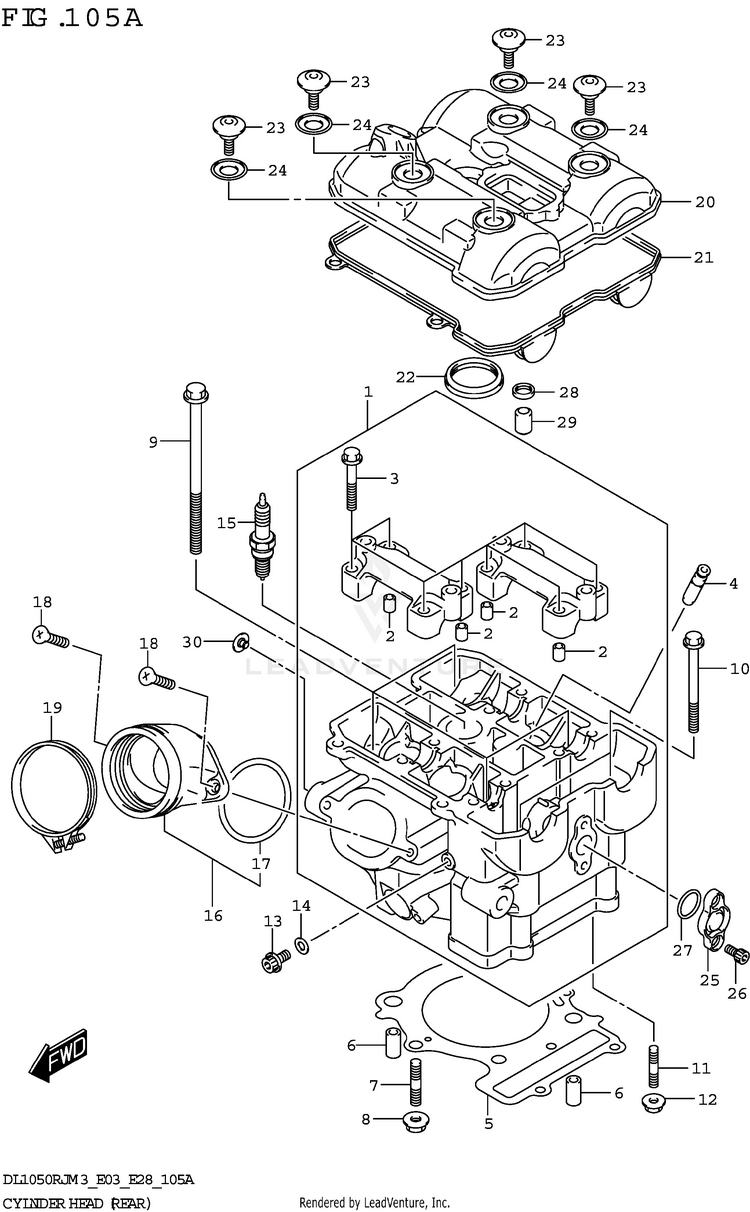

CYLINDER HEAD (REAR)
F

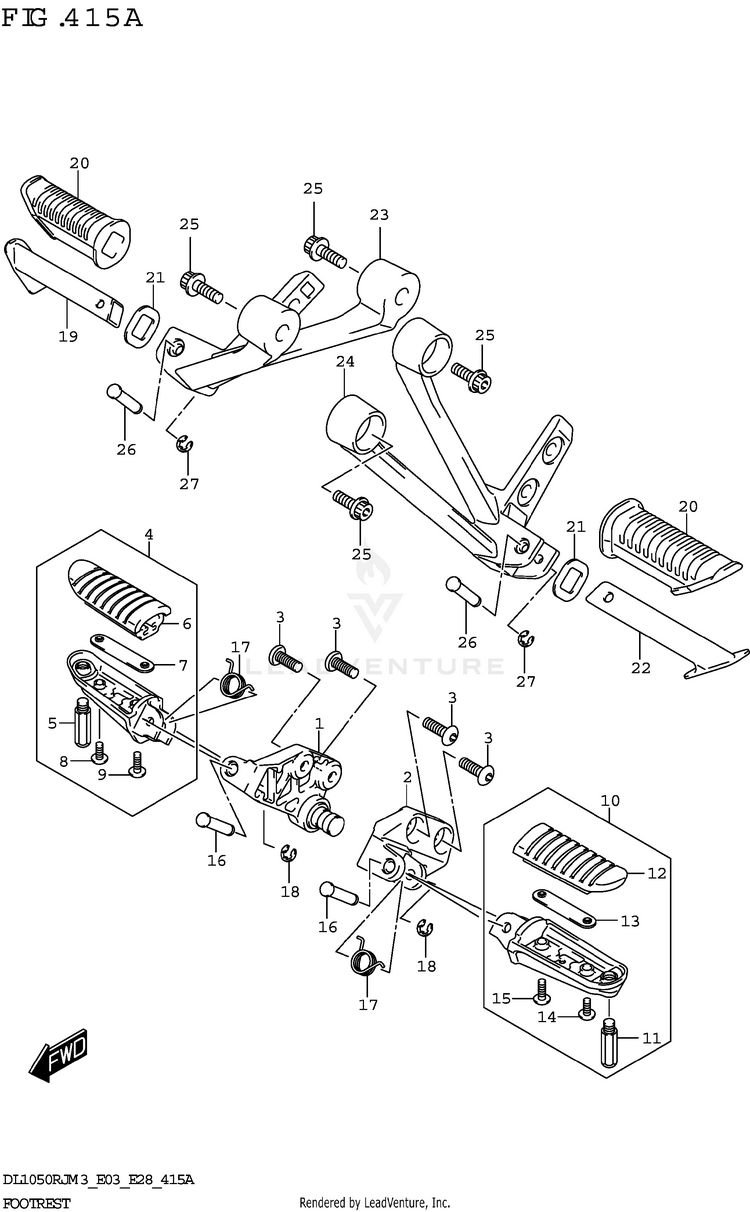

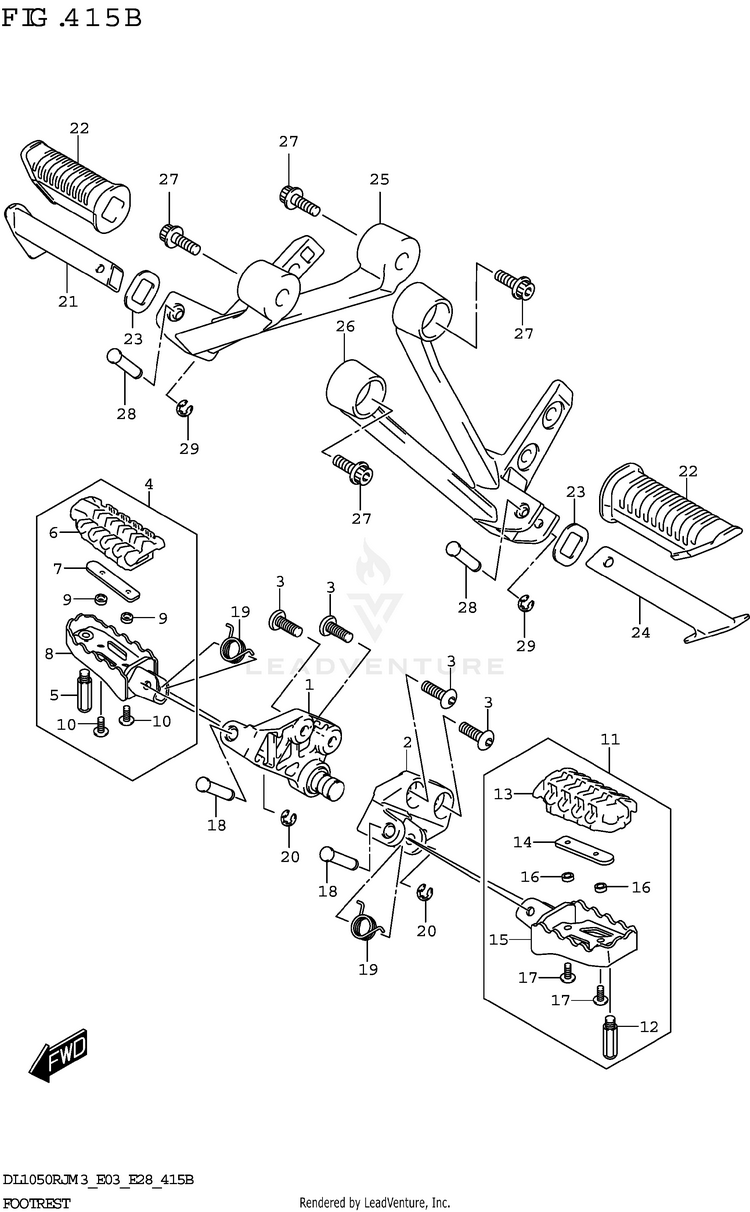

FOOTREST (DL1050RJ)
FOOTREST (DL1050RR)

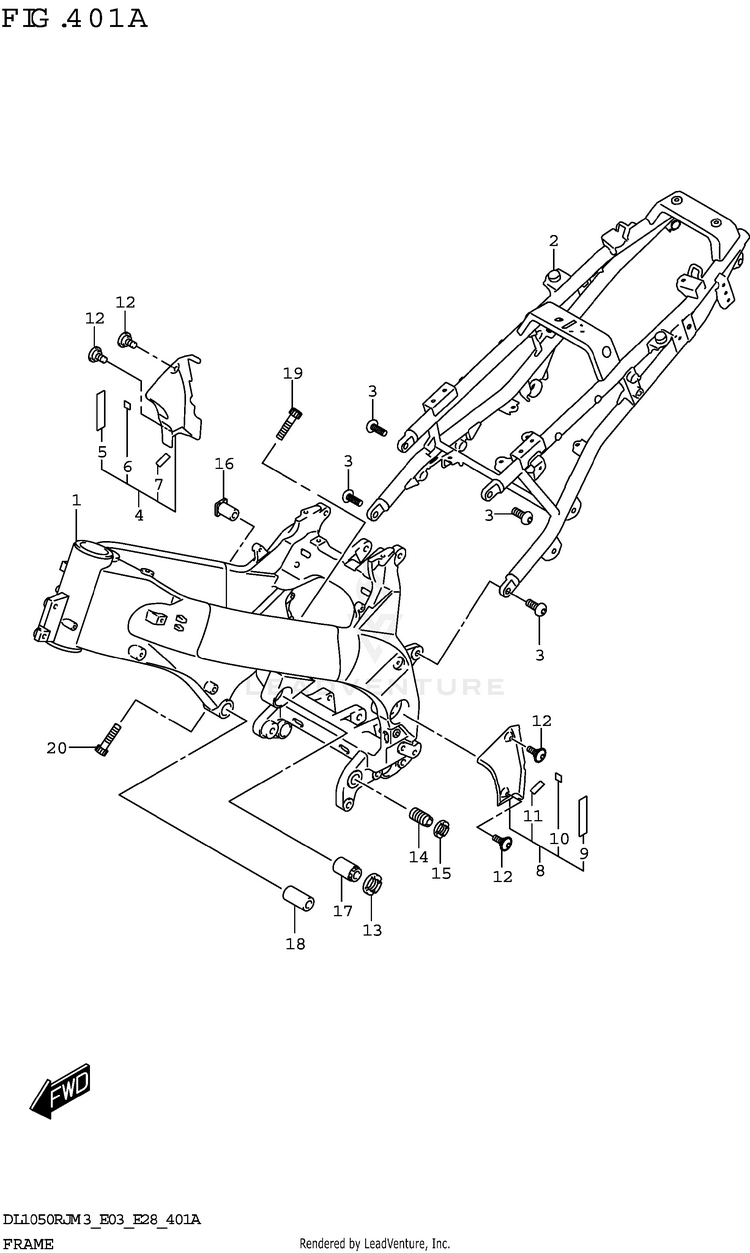

FRAME

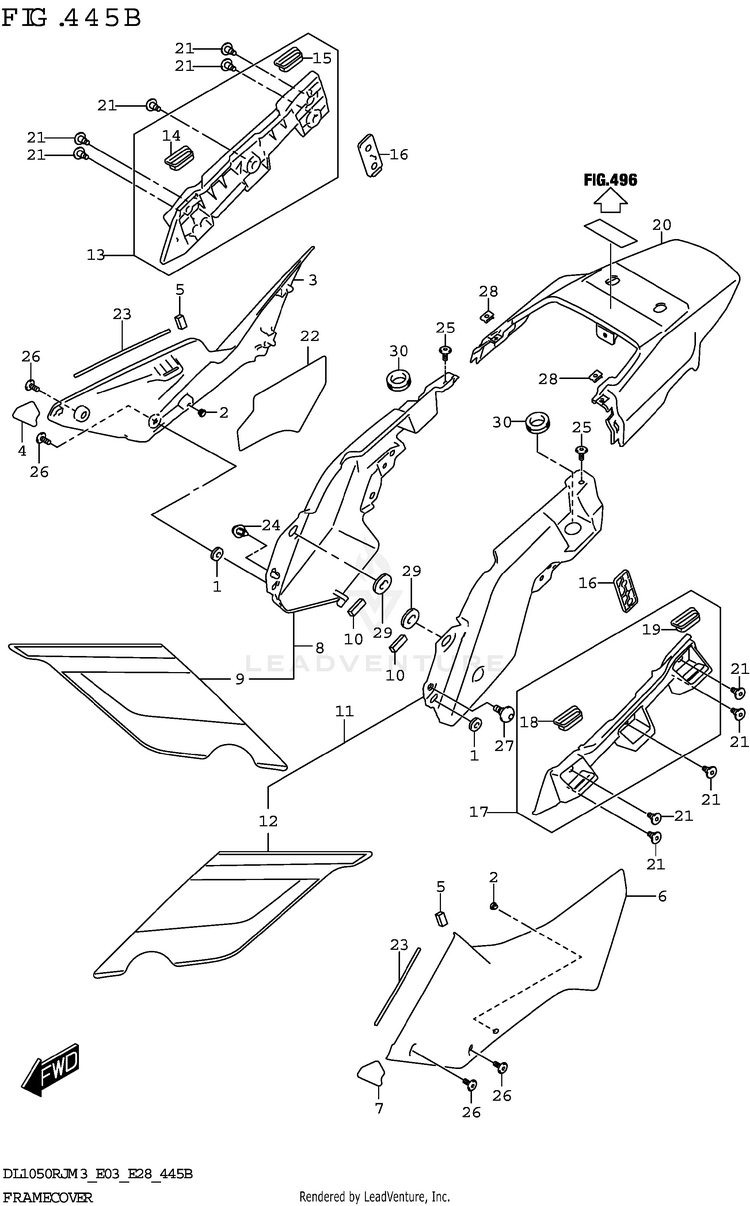

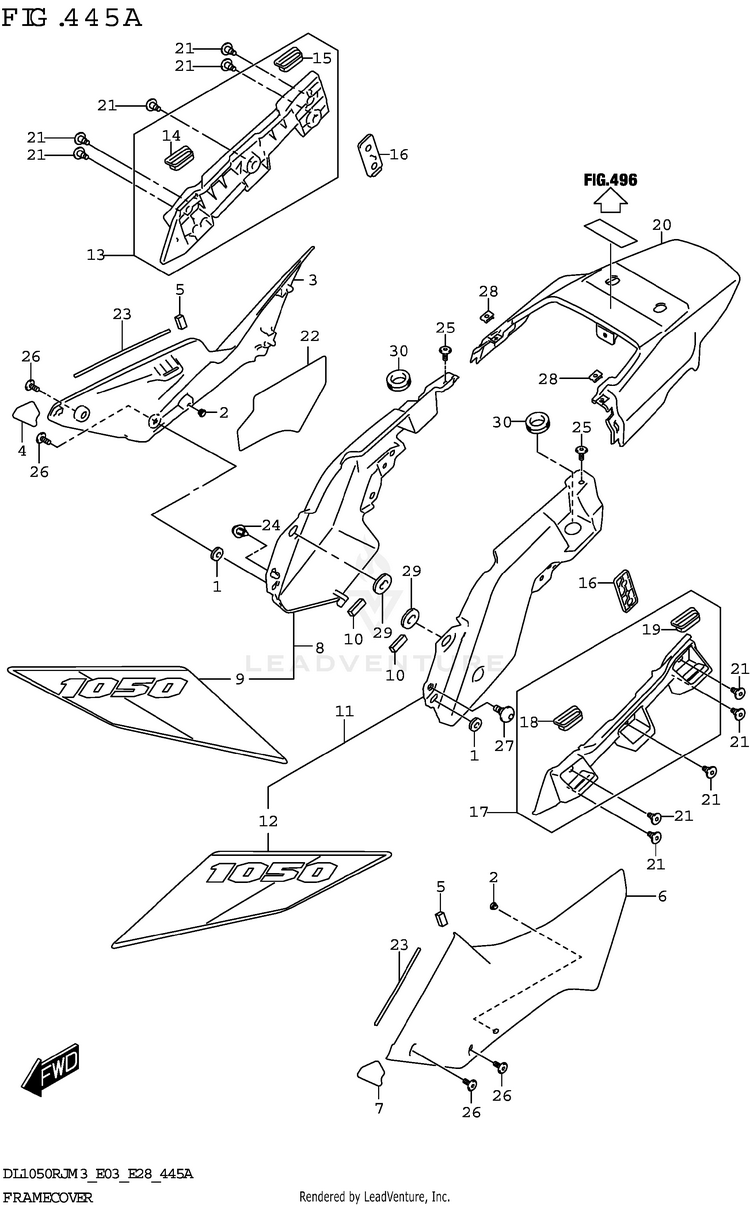

FRAME COVER (DL1050RJ)
FRAME COVER (DL1050RR)

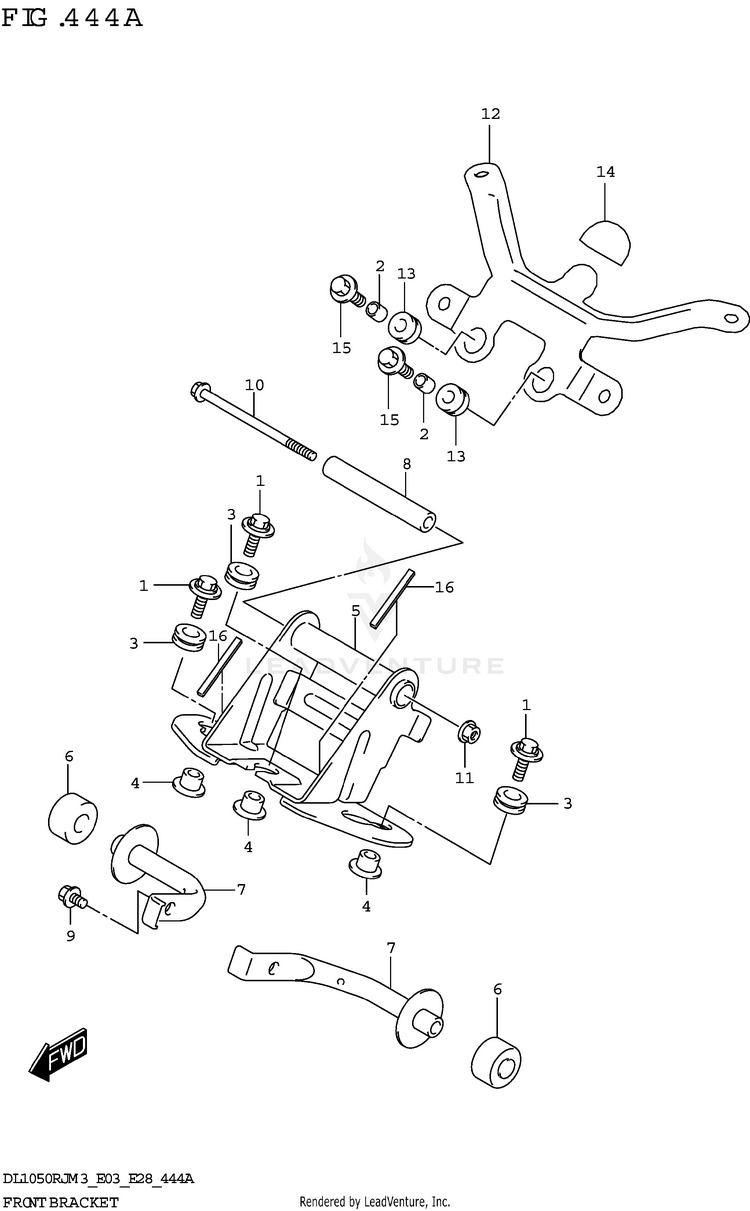

FRONT BRACKET

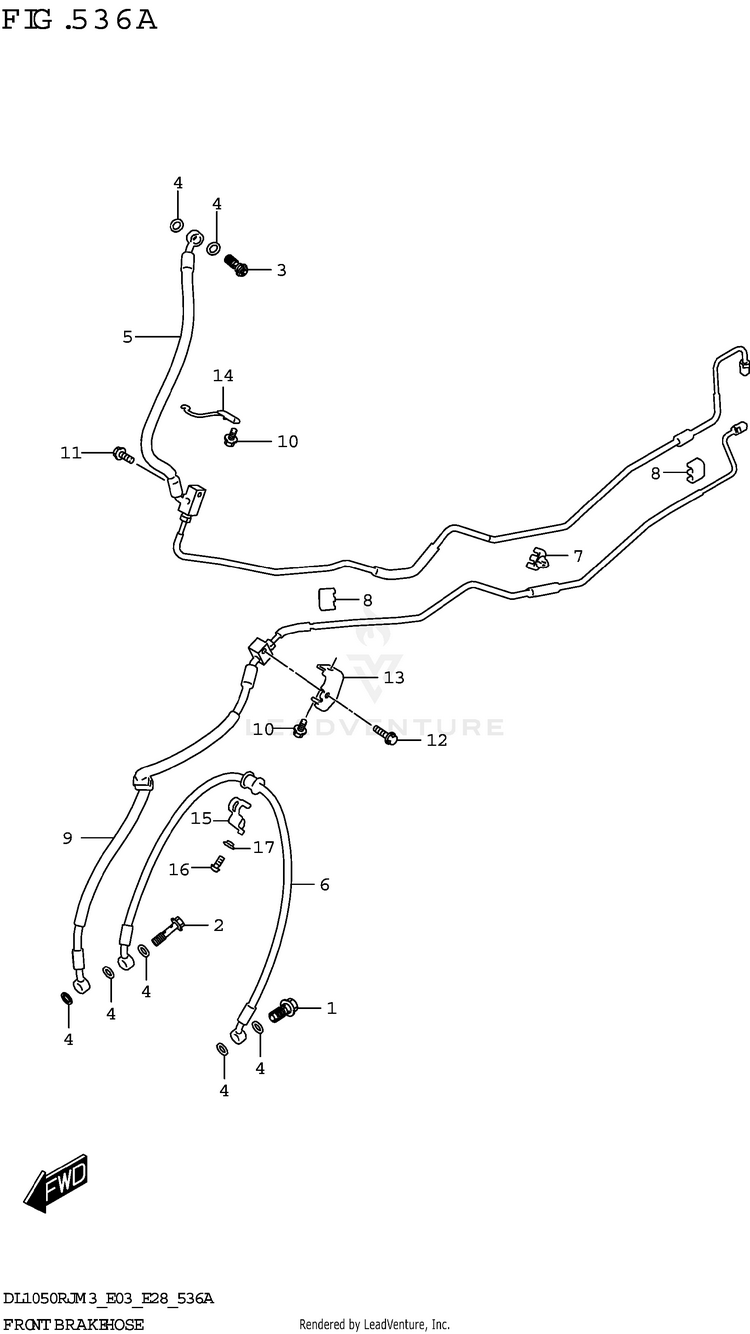

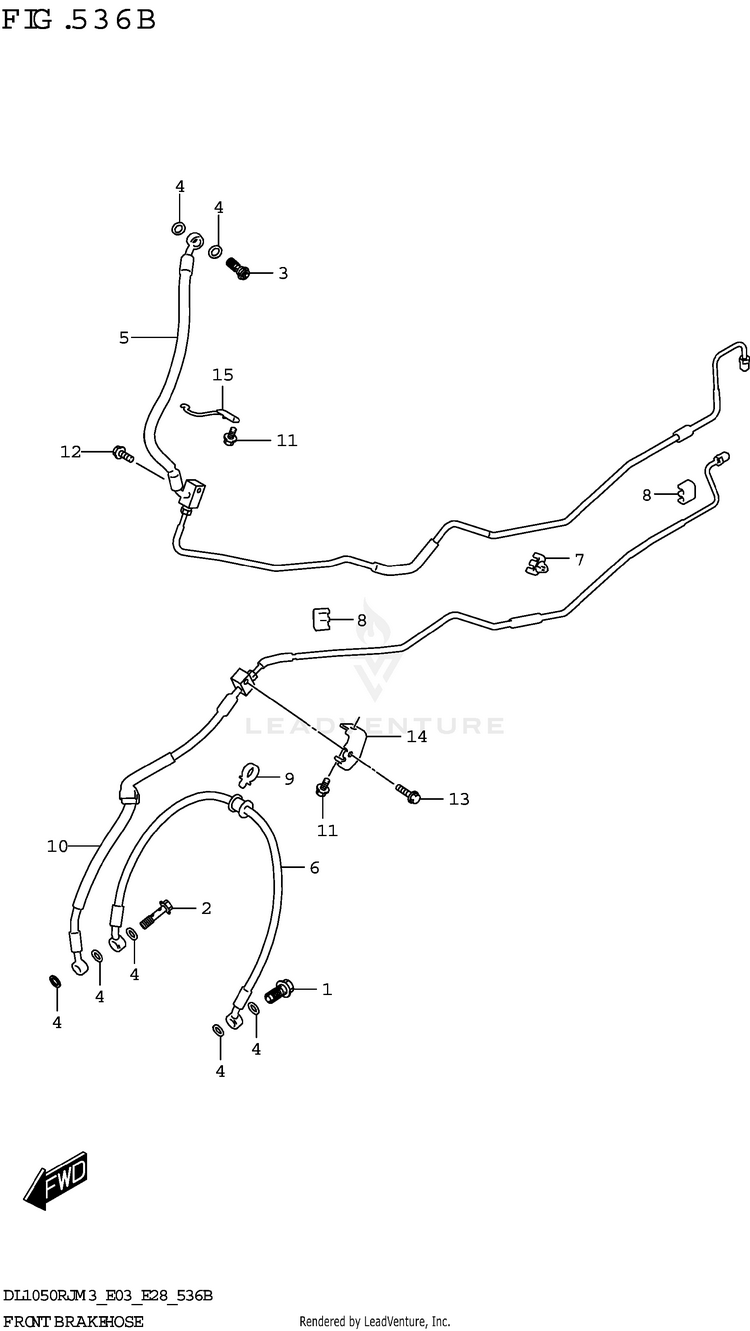

FRONT BRAKE HOSE (DL1050RJ)
FRONT BRAKE HOSE (DL1050RR)

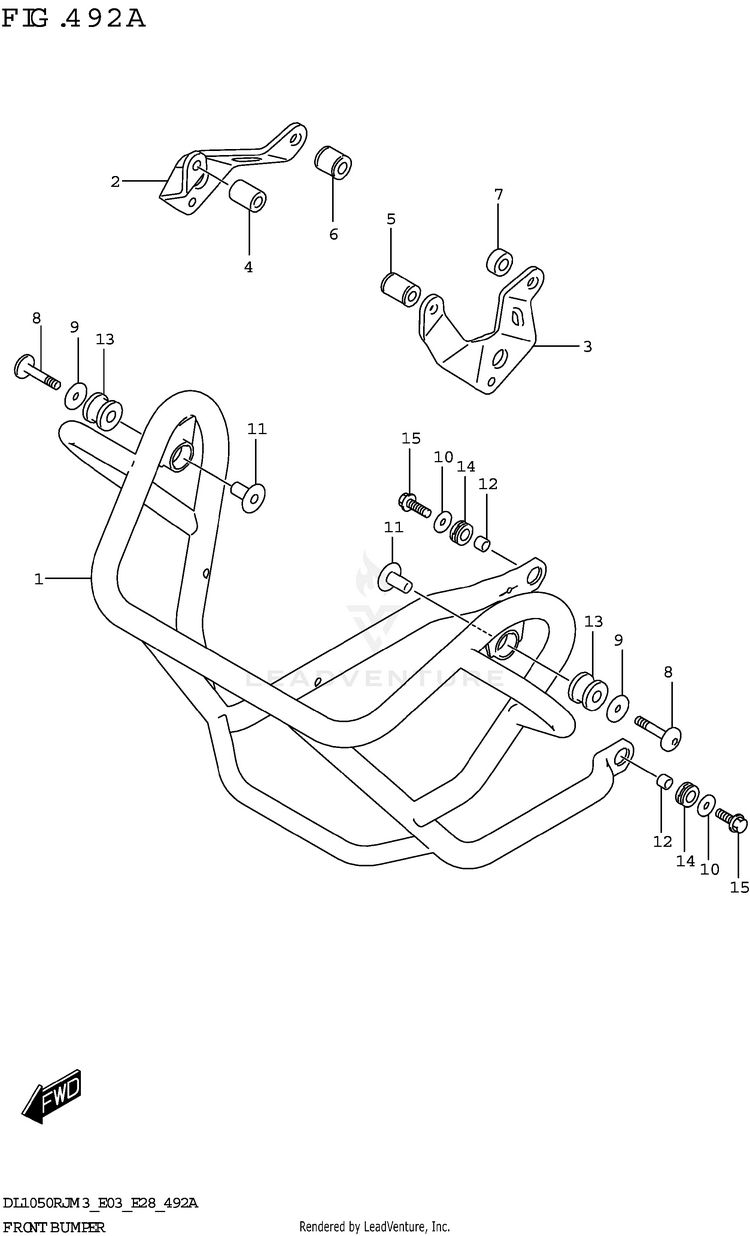

FRONT BUMPER (DL1050RJ)

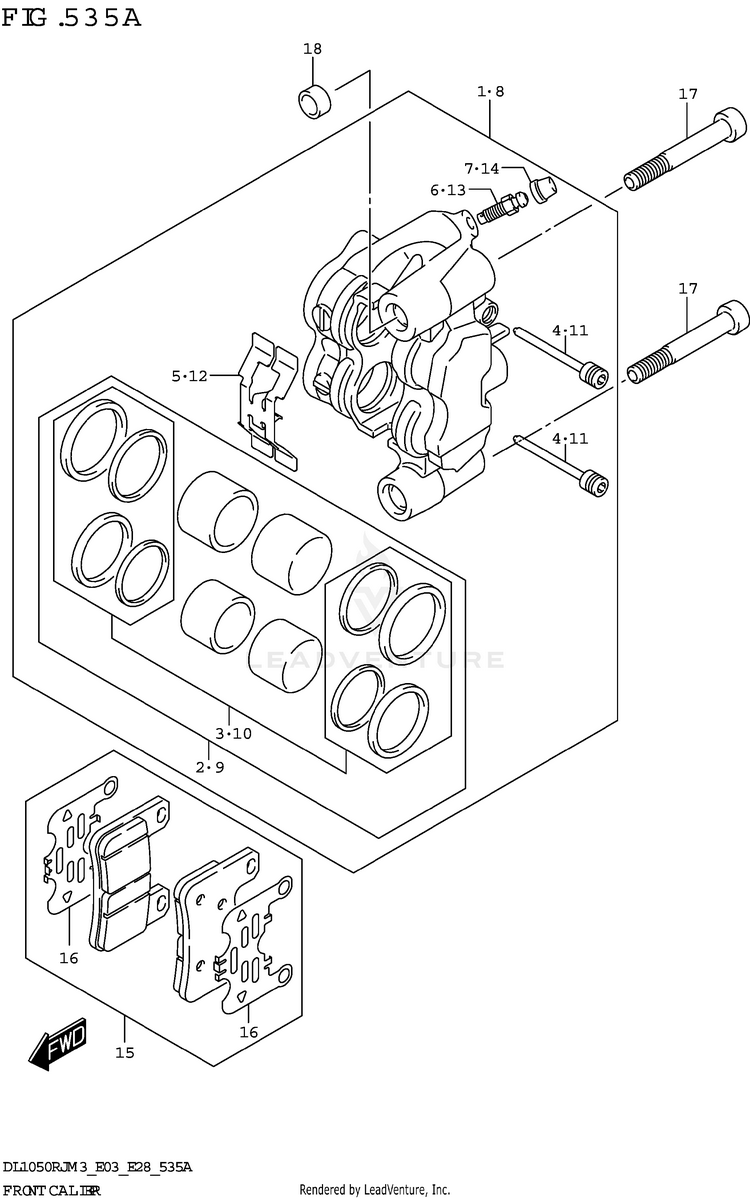

FRONT CALIPER

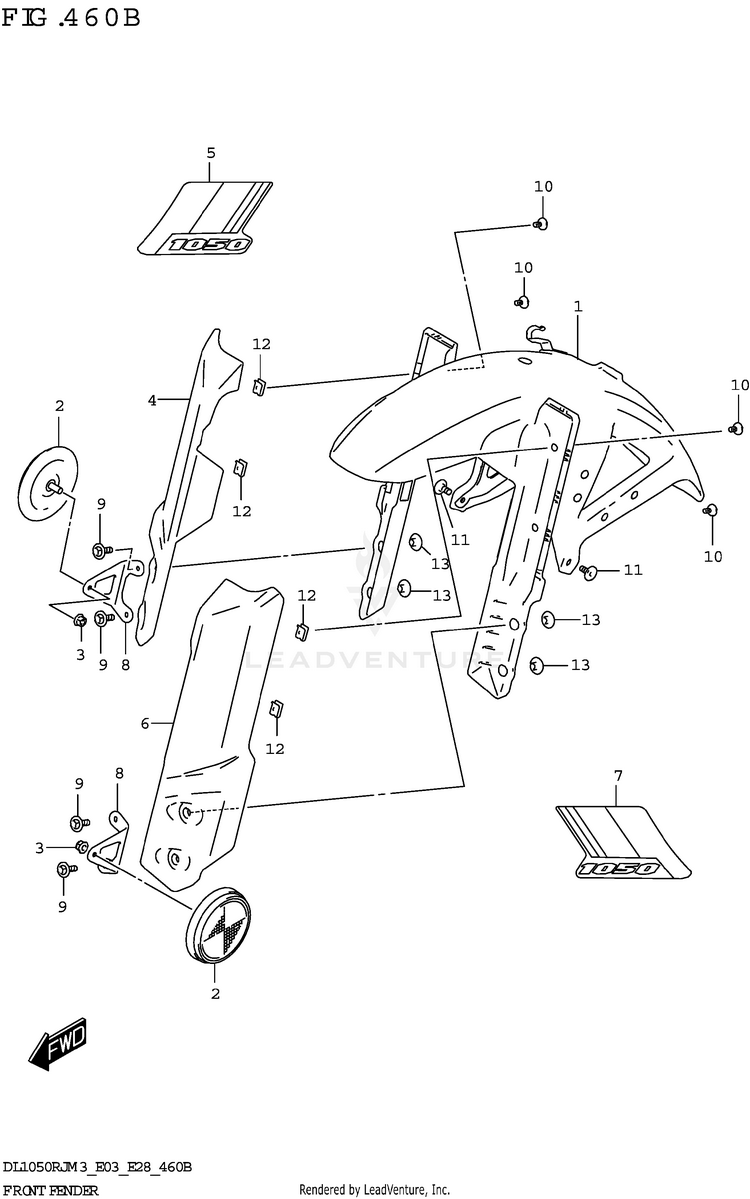

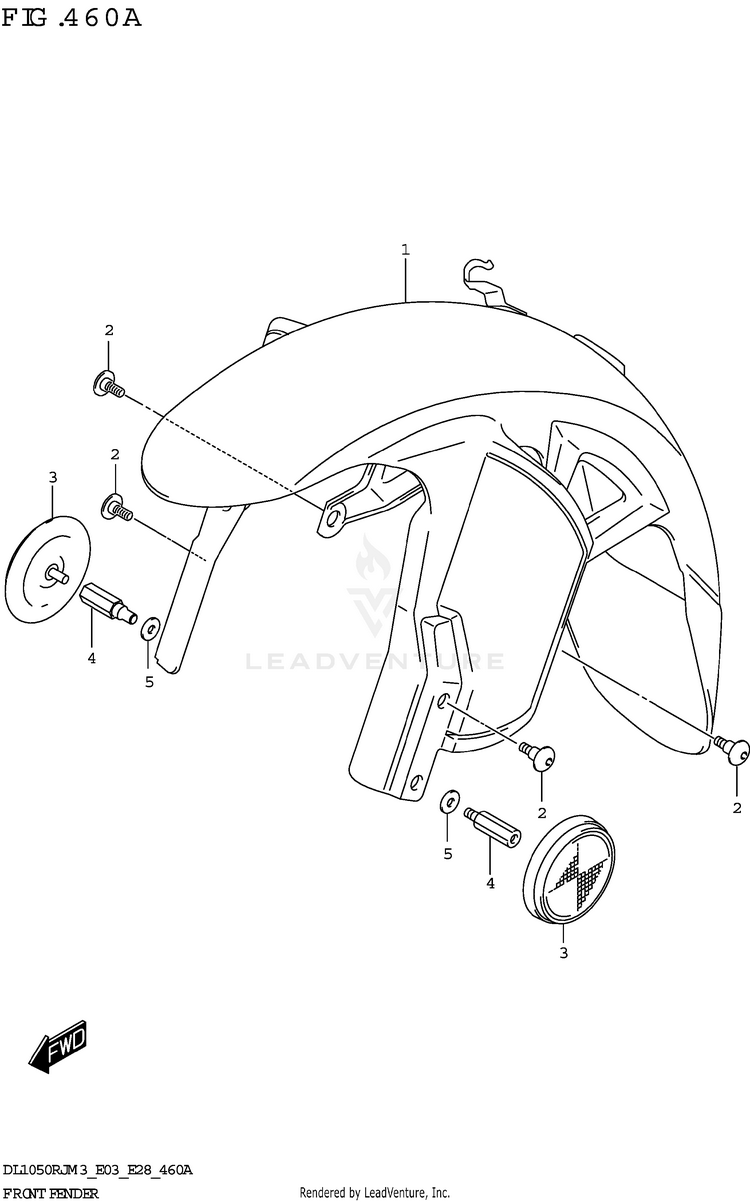

FRONT FENDER (DL1050RJ)
FRONT FENDER (DL1050RR)

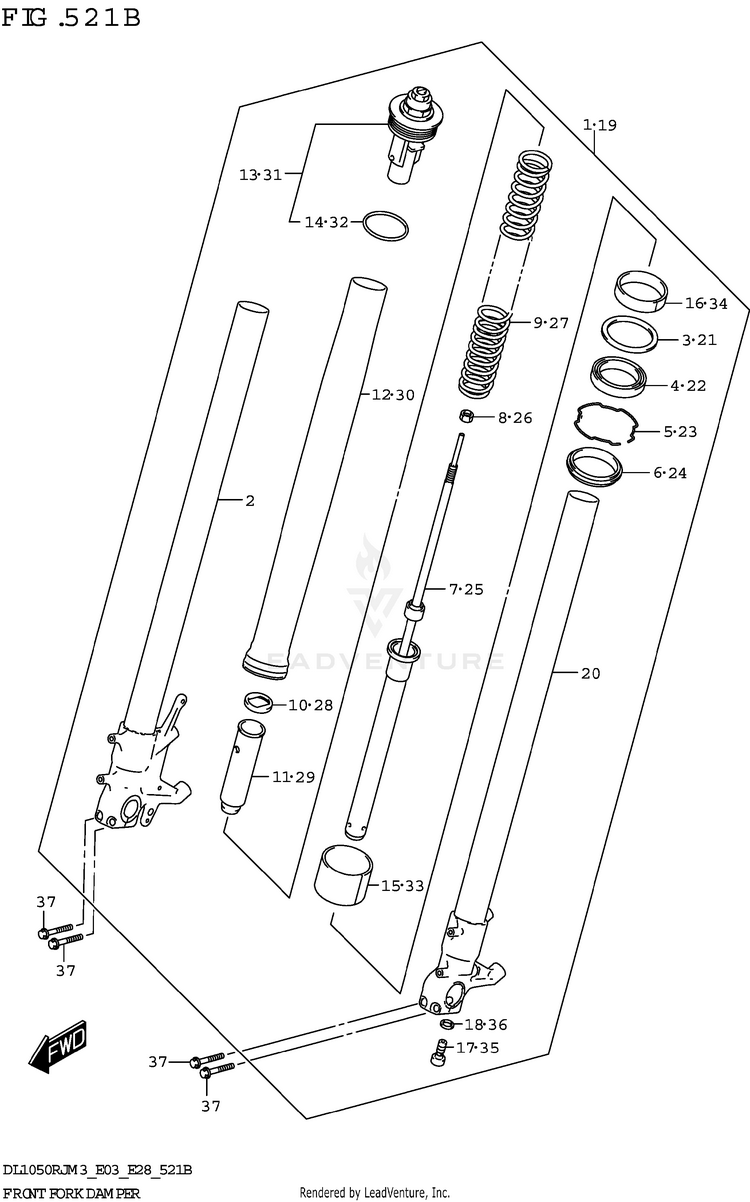

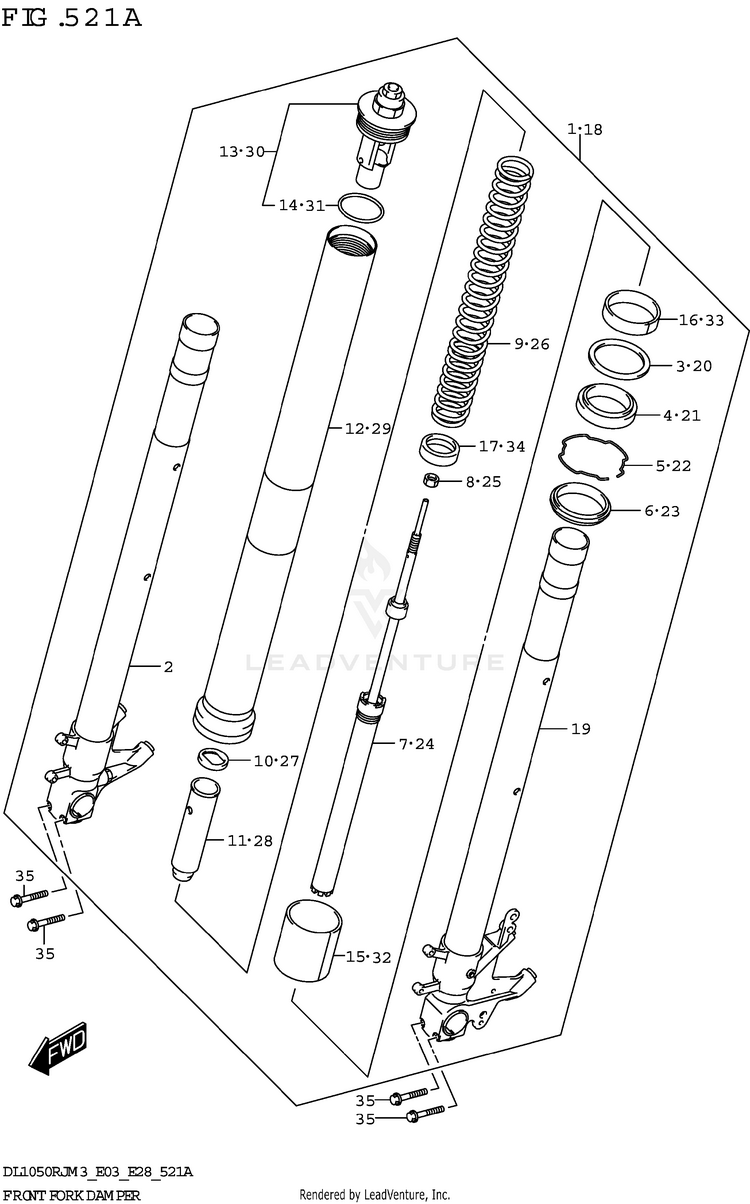

FRONT FORK DAMPER (DL1050RJ)
FRONT FORK DAMPER (DL1050RR)

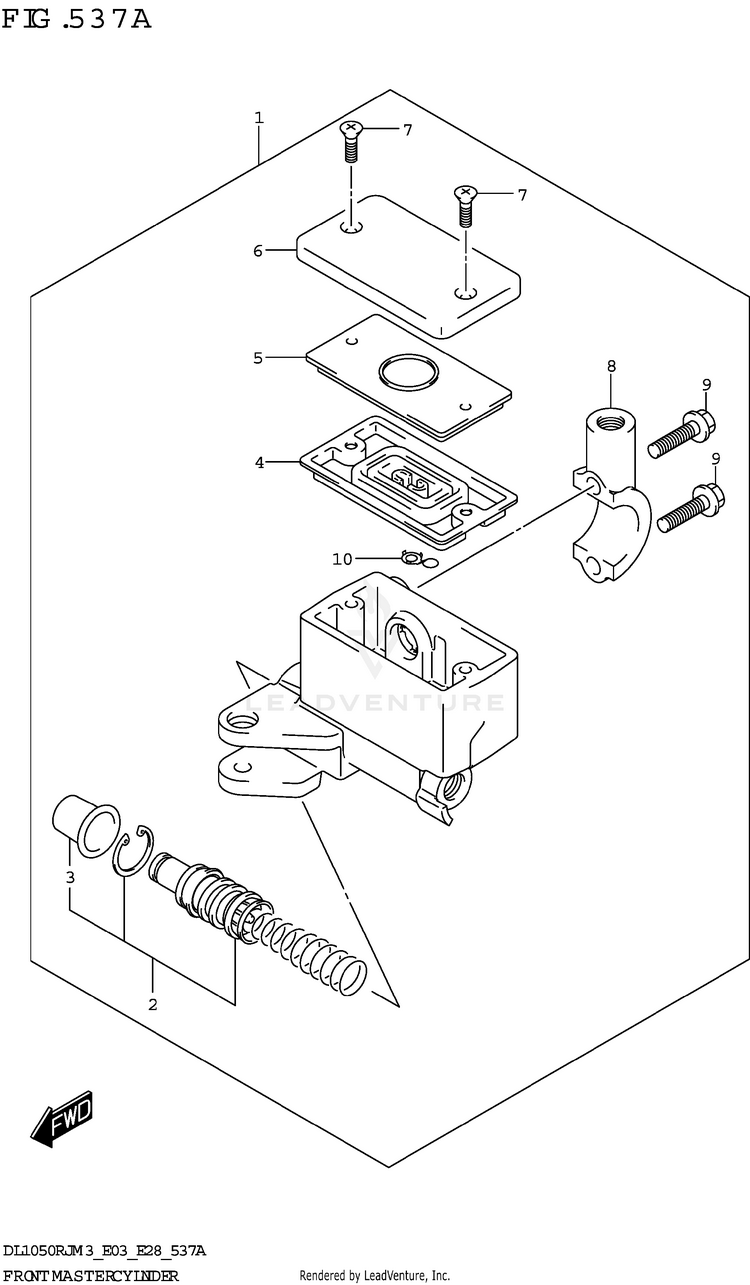

FRONT MASTER CYLINDER

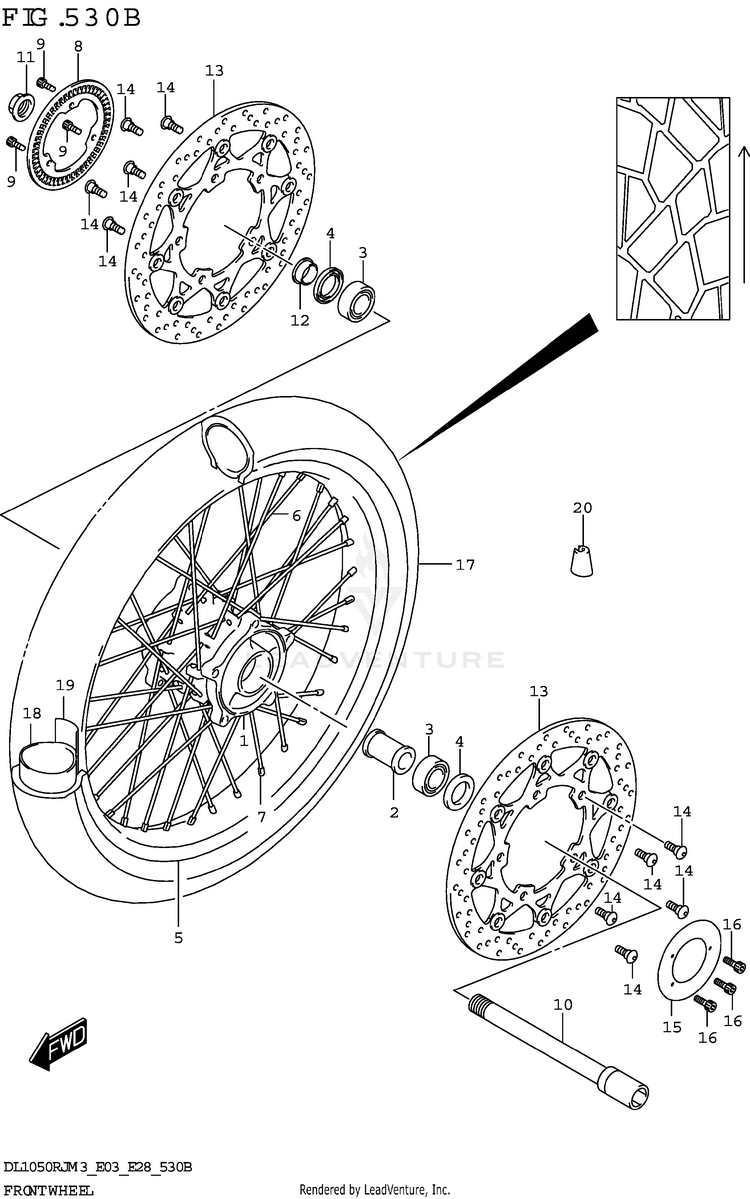

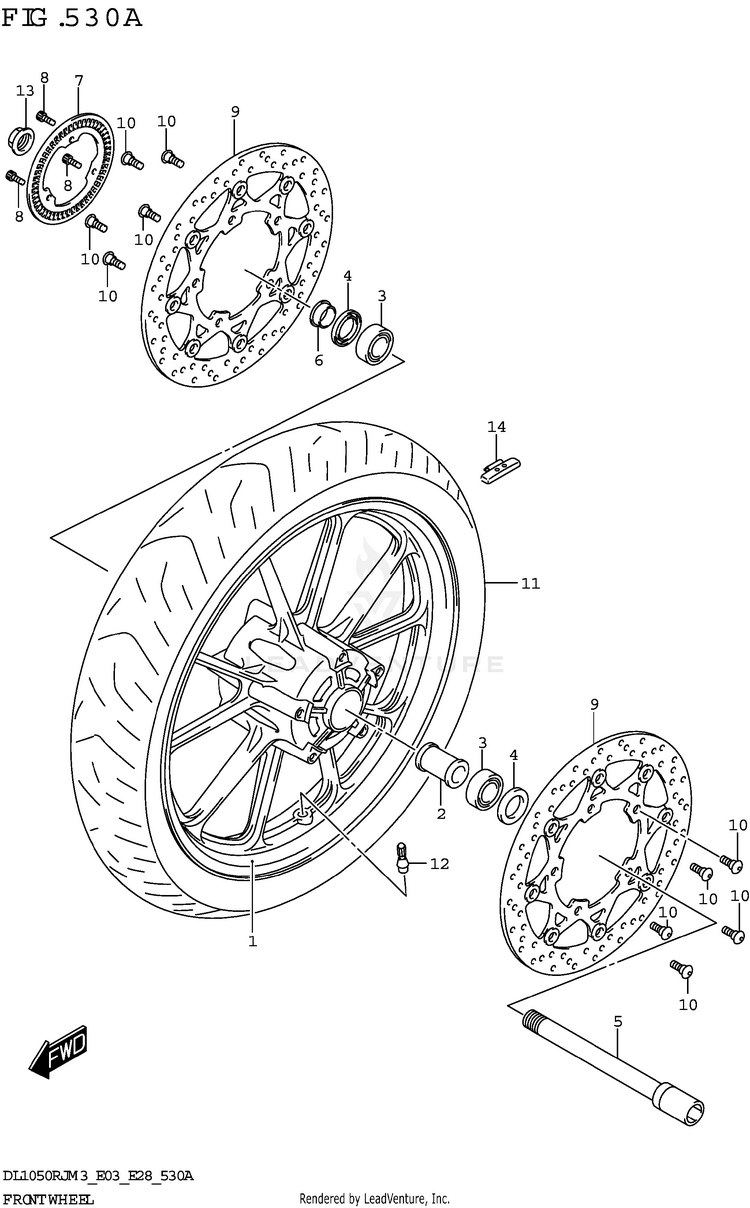

FRONT WHEEL (DL1050RJ)
FRONT WHEEL (DL1050RR)

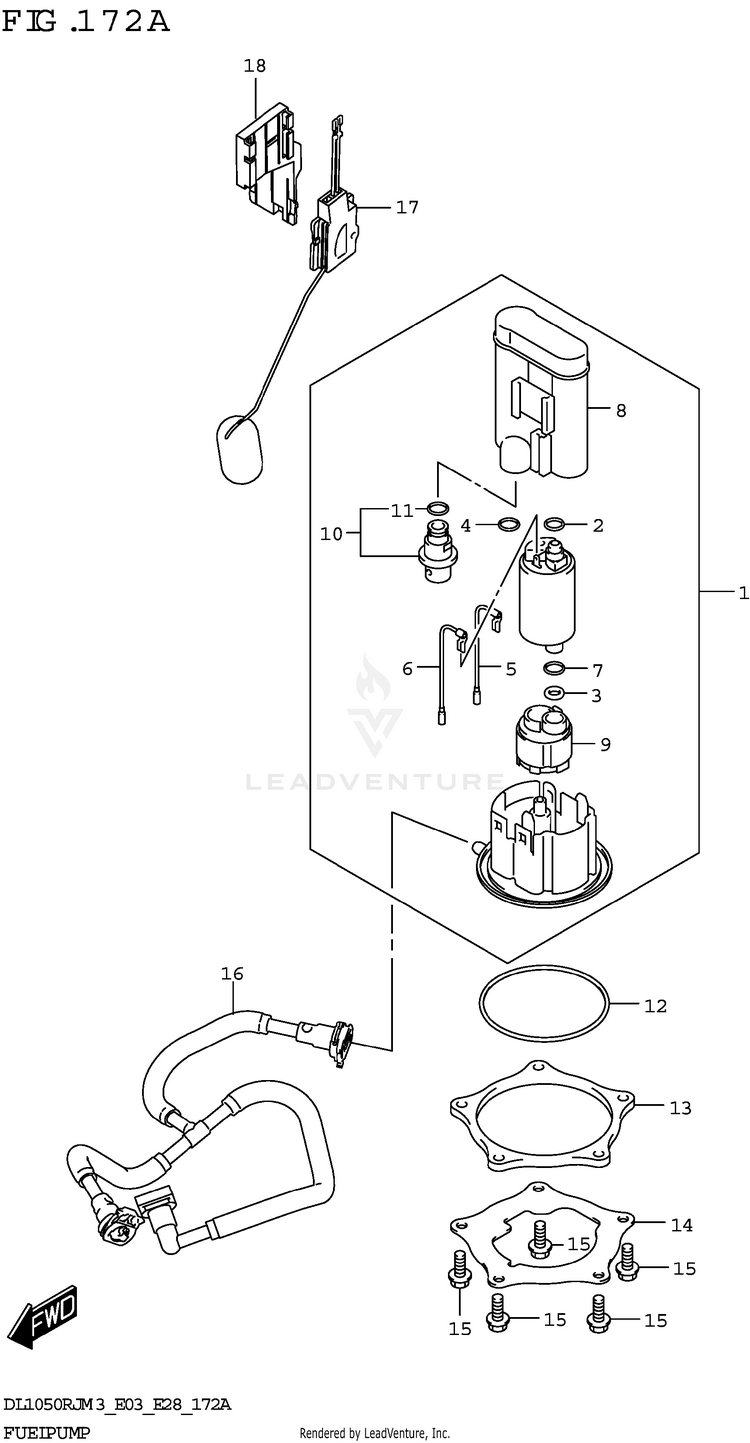

FUEL PUMP

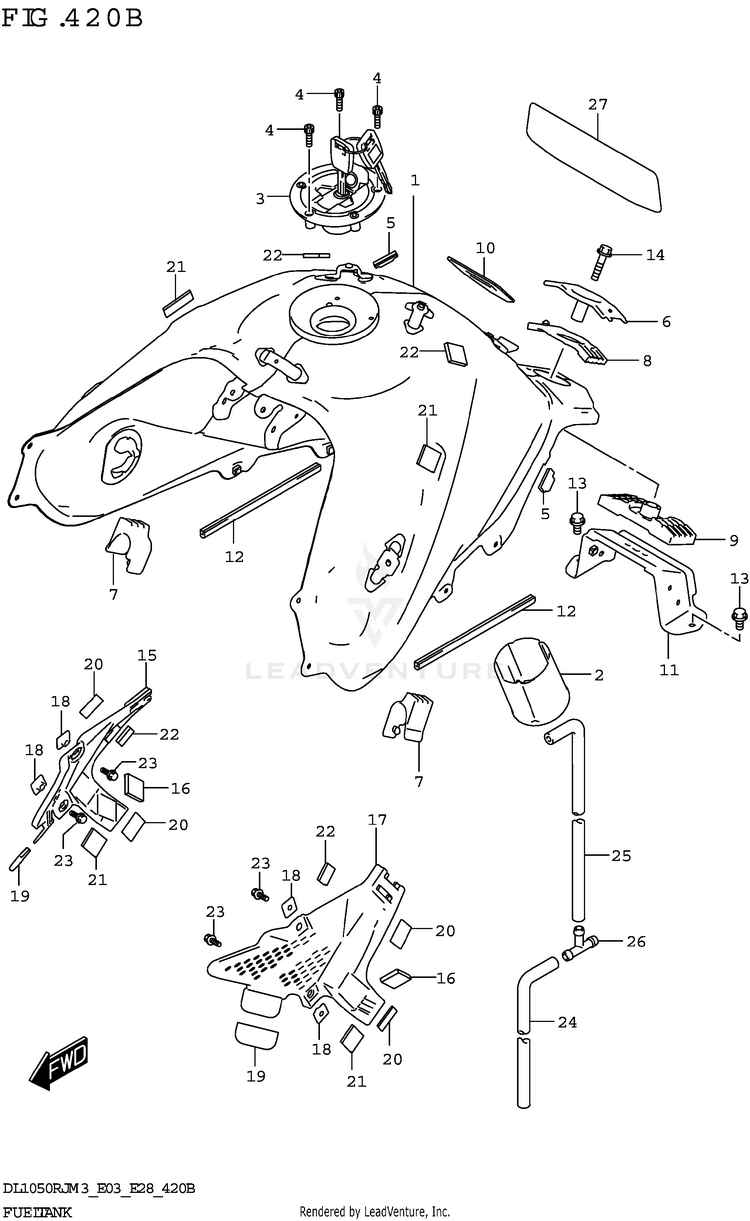

FUEL TANK (DL1050RJ)
FUEL TANK (DL1050RR)

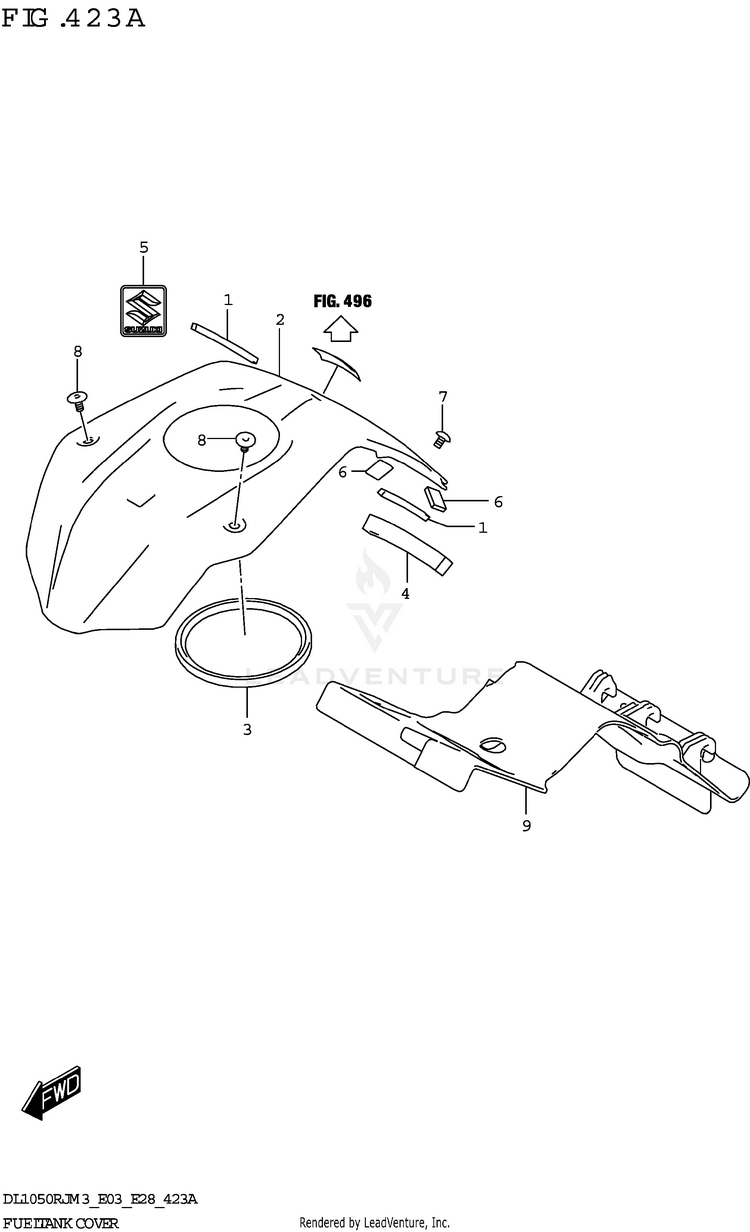

FUEL TANK COVER (DL1050RJ)
FUEL TANK COVER (DL1050RR)

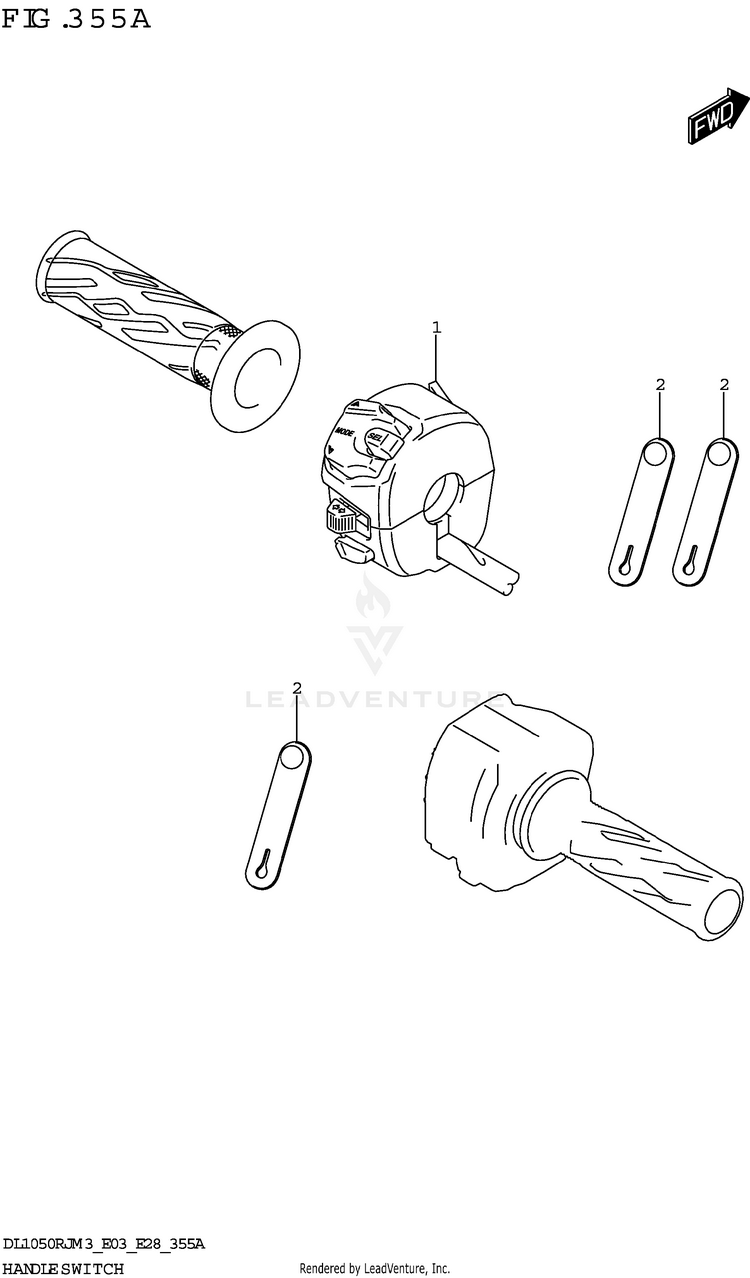

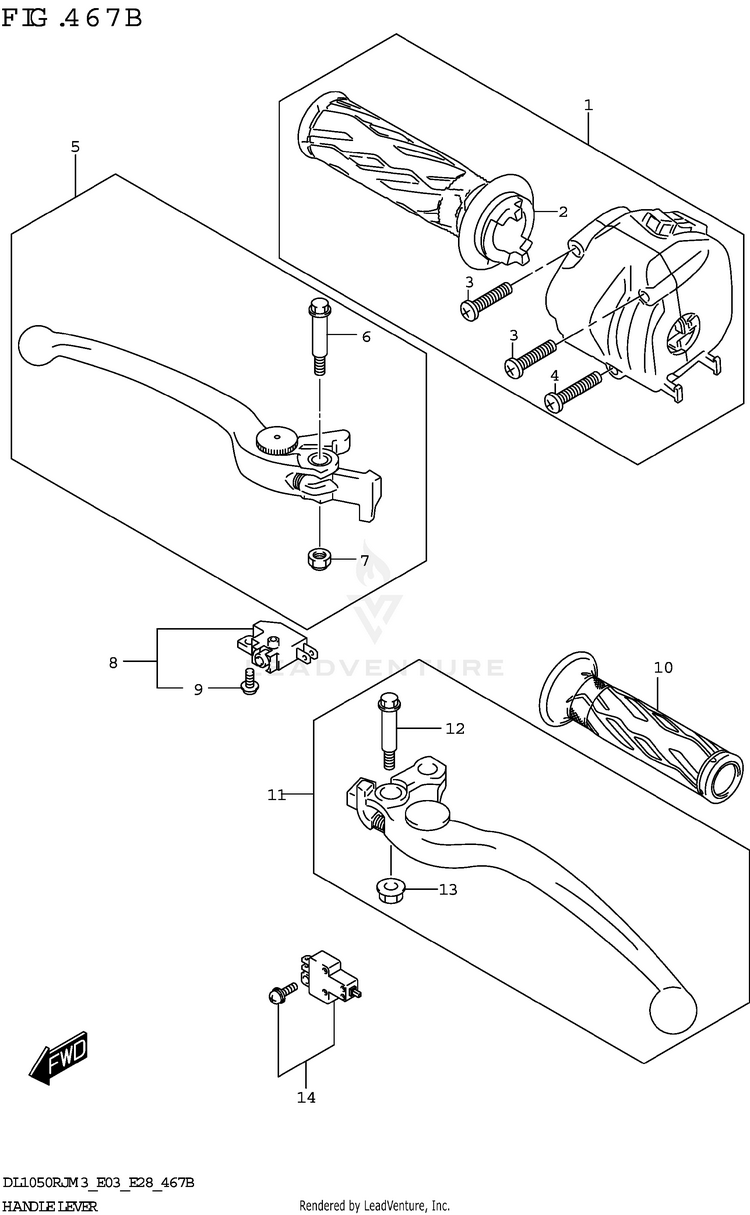

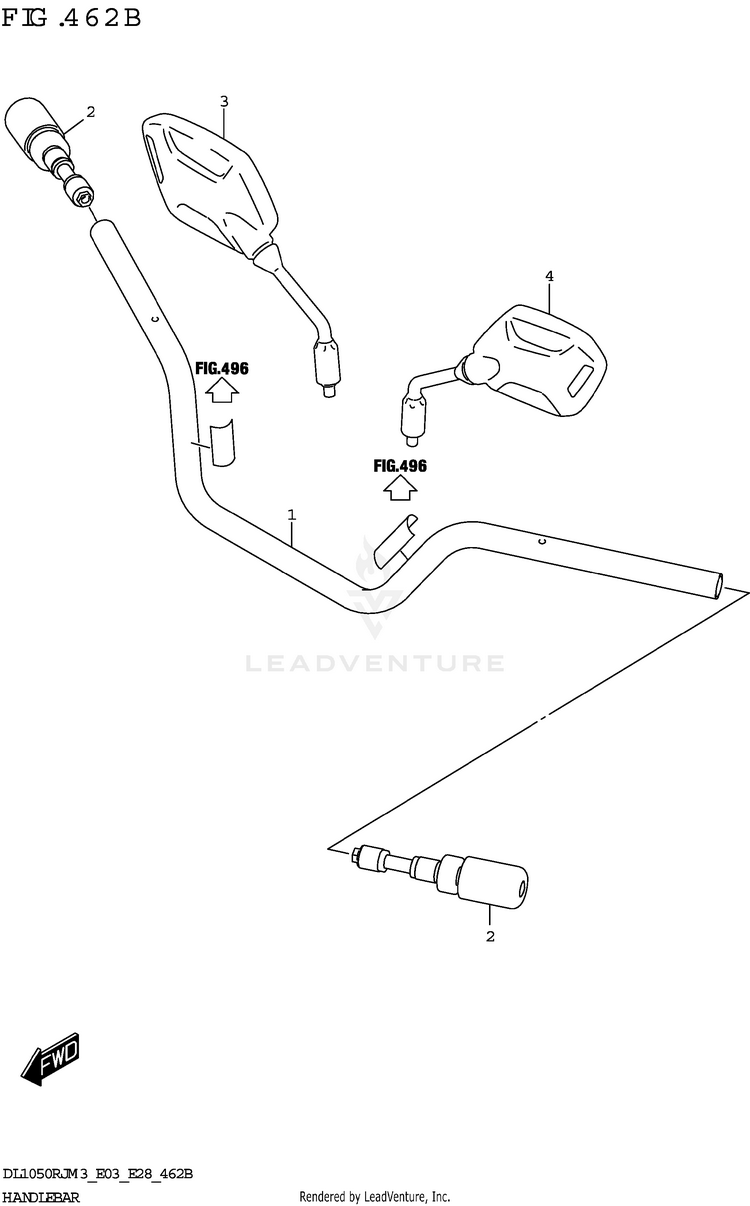

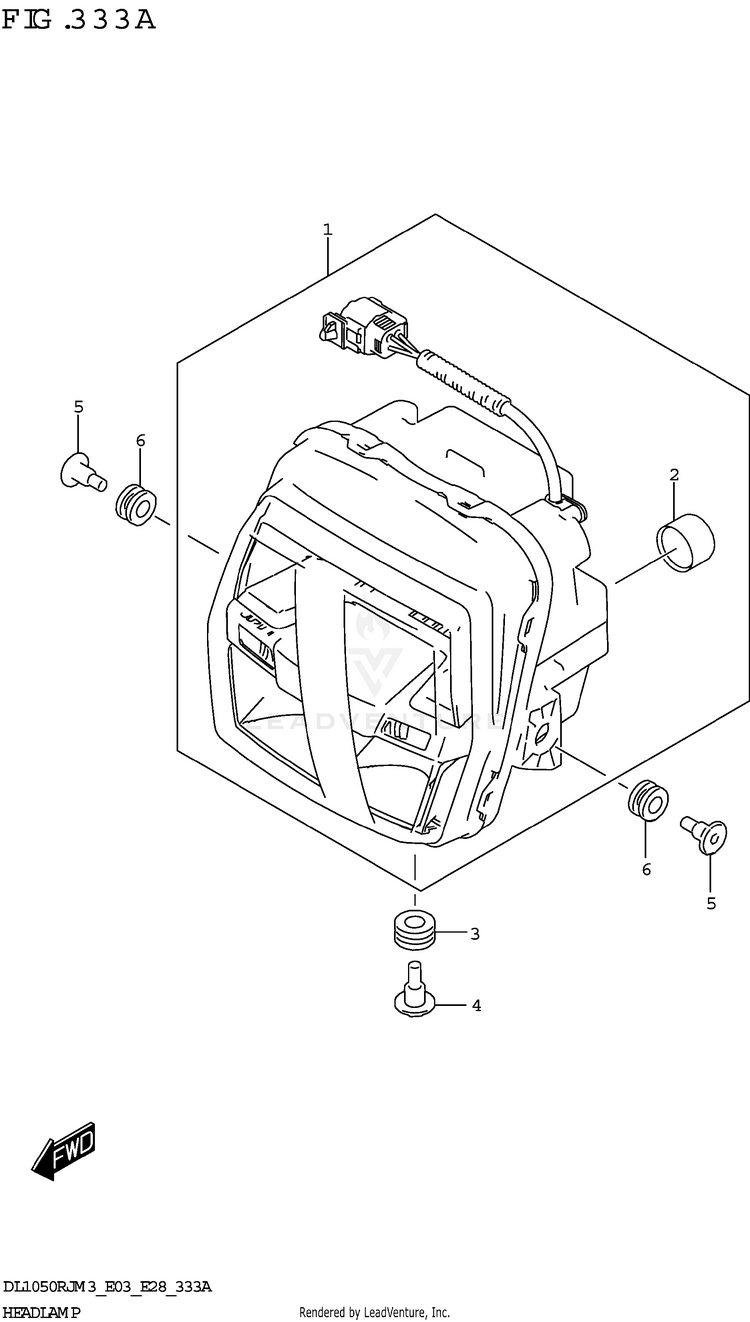

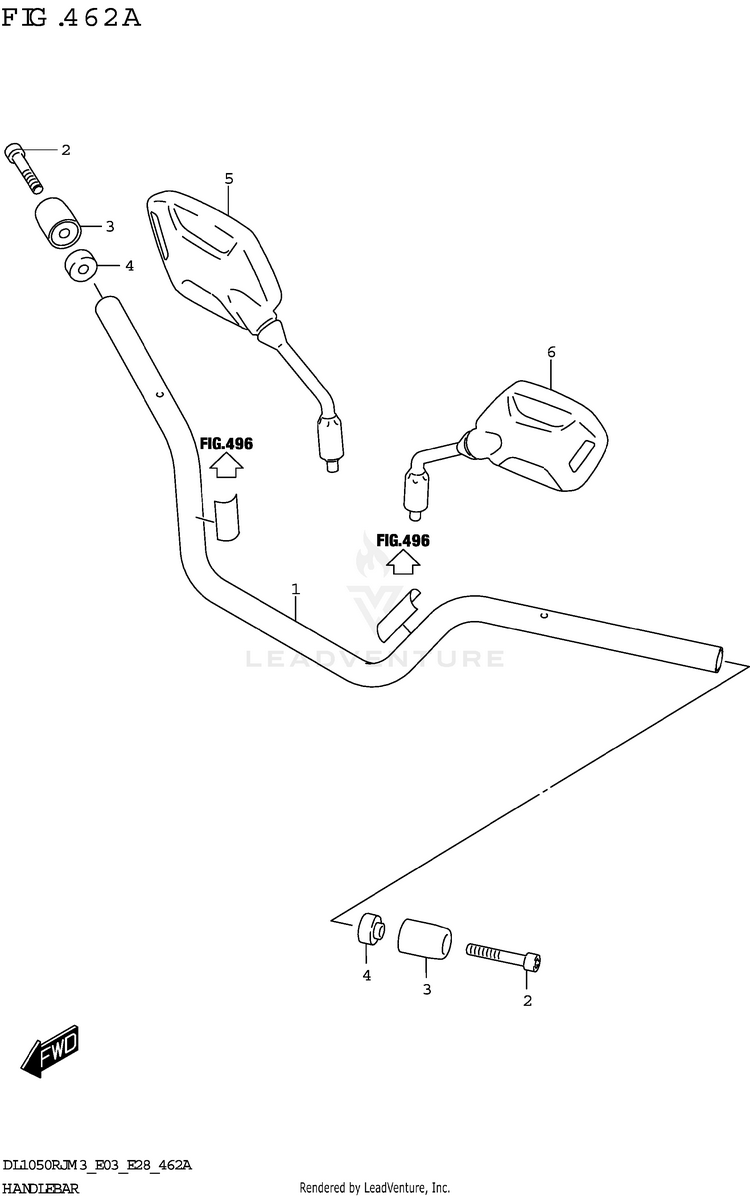

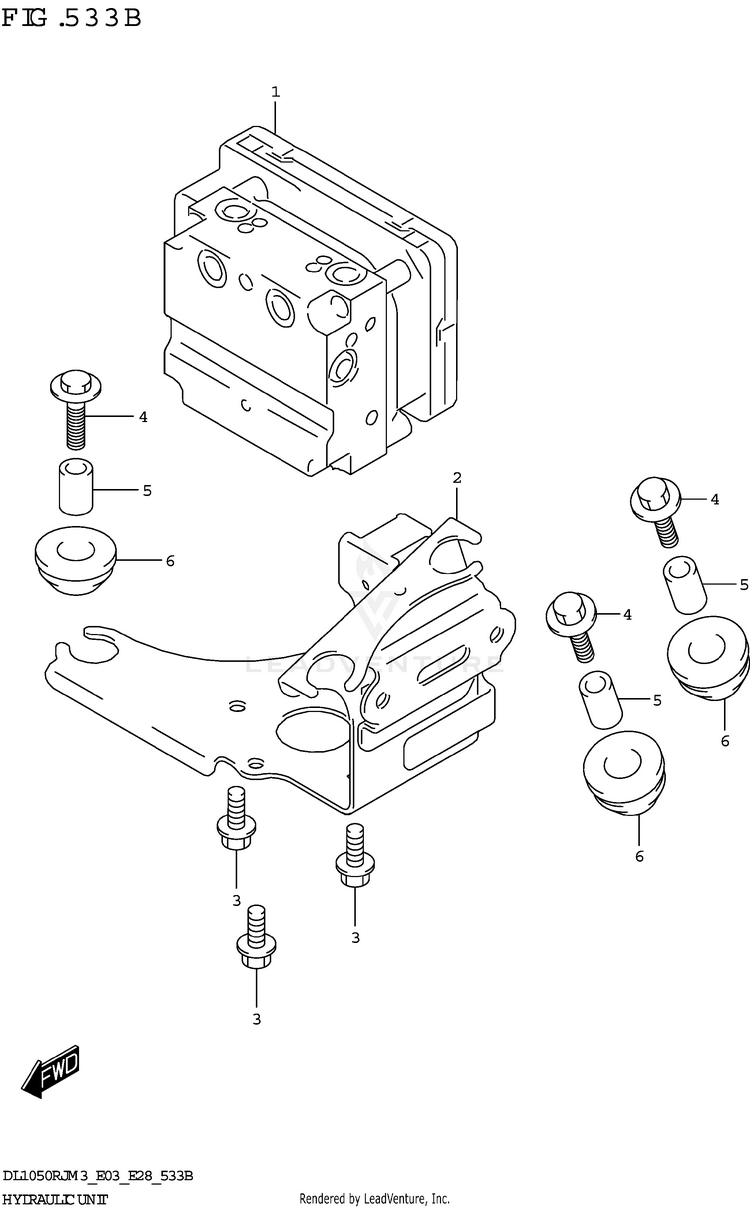

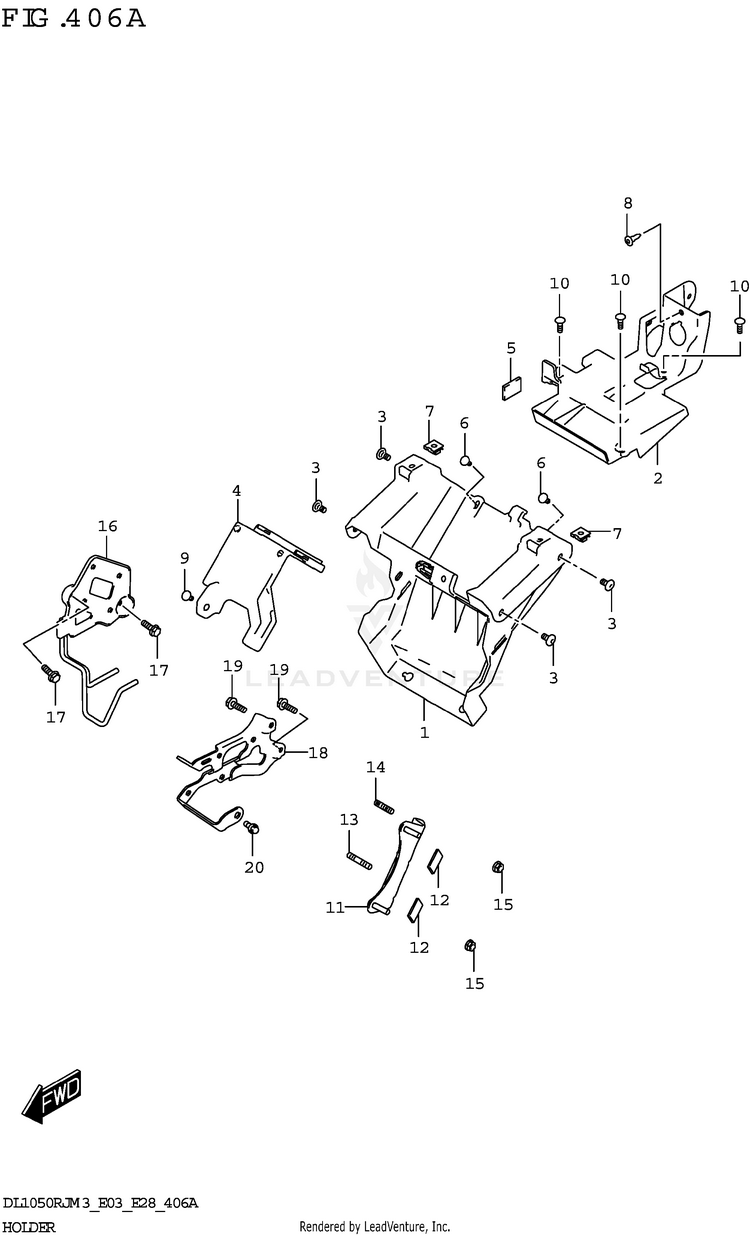

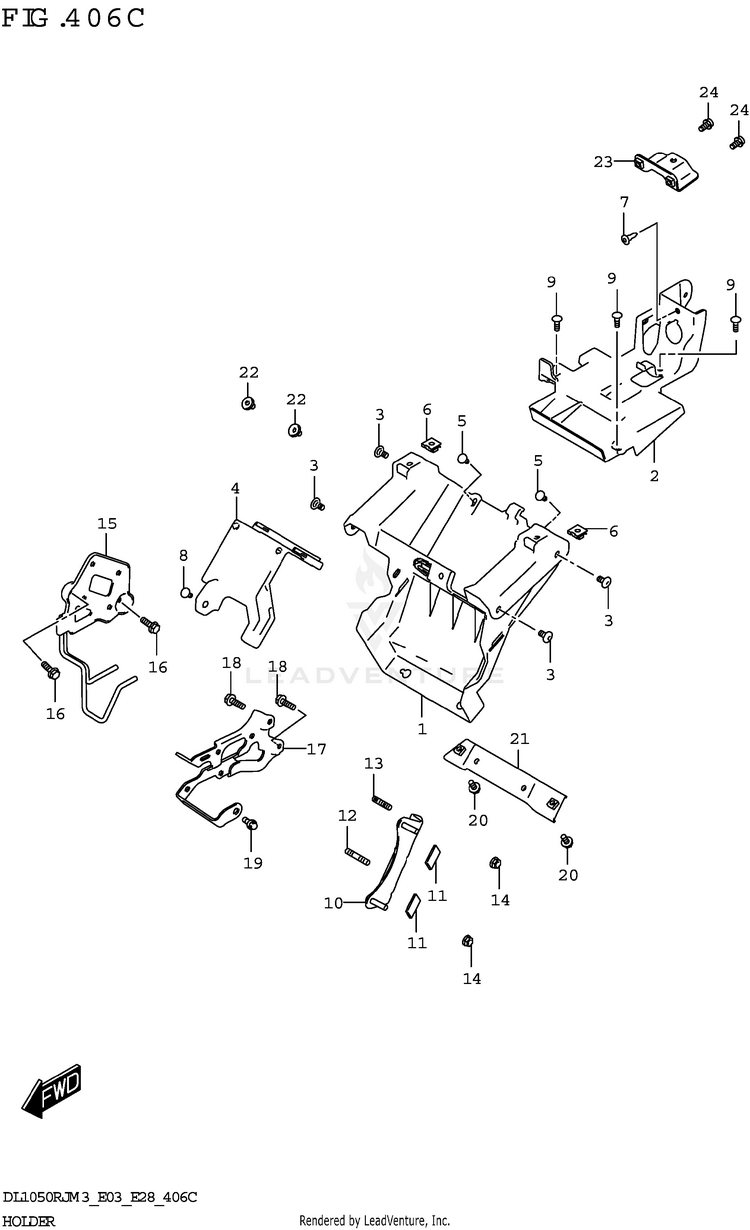

H

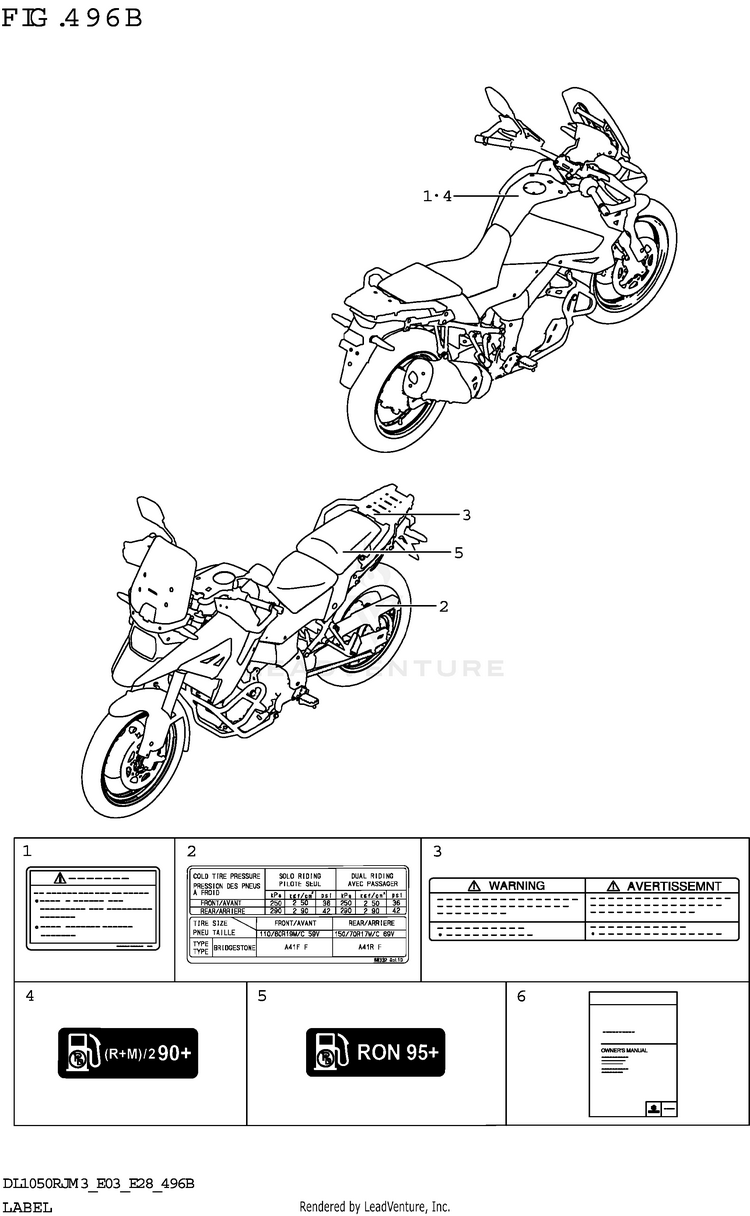

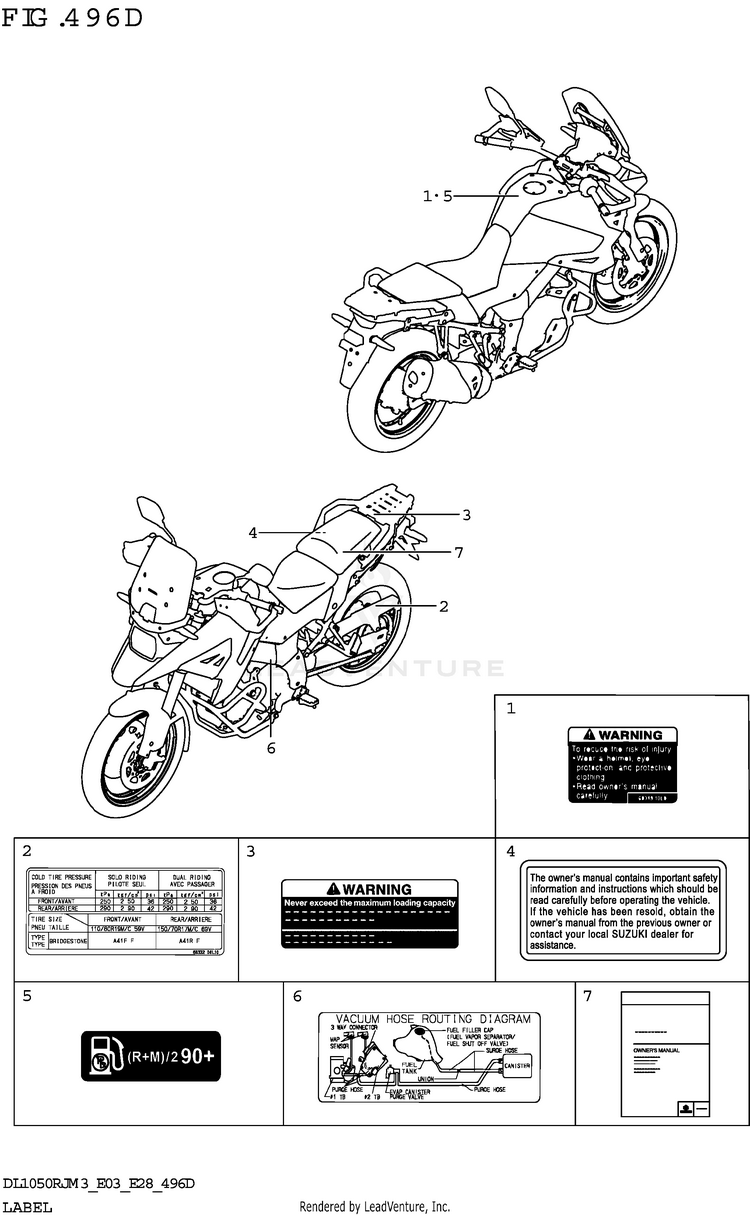

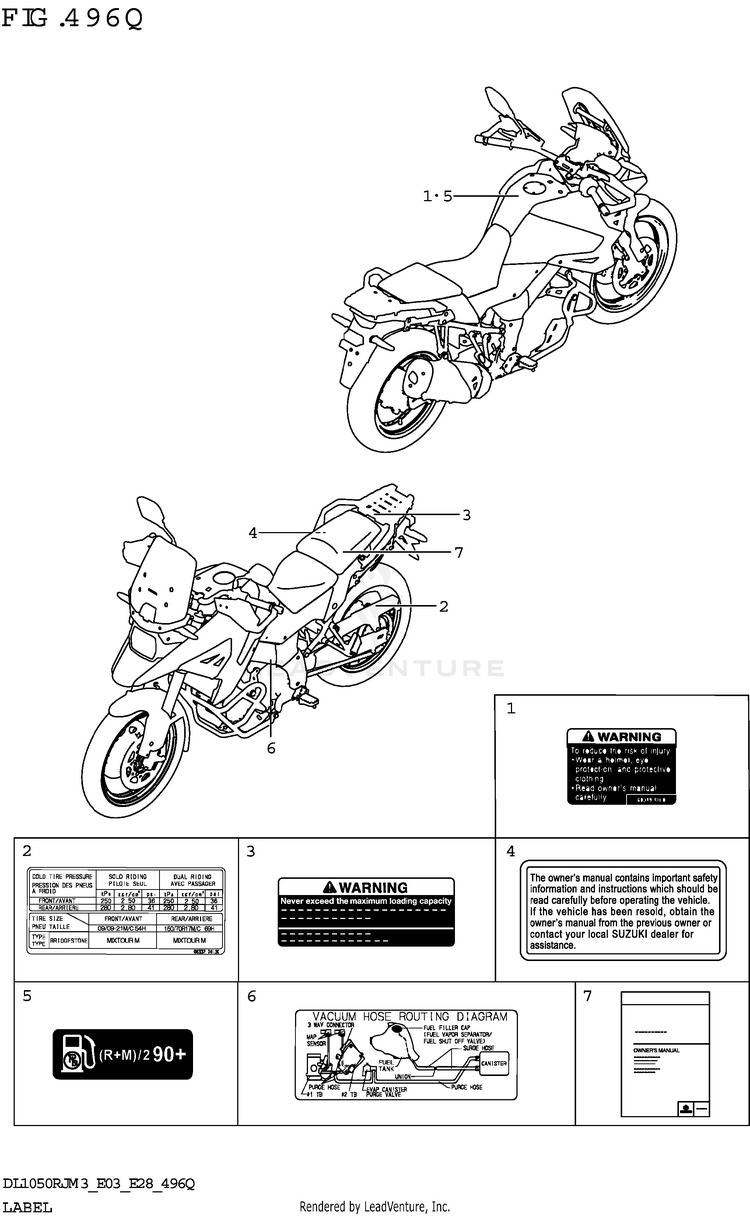

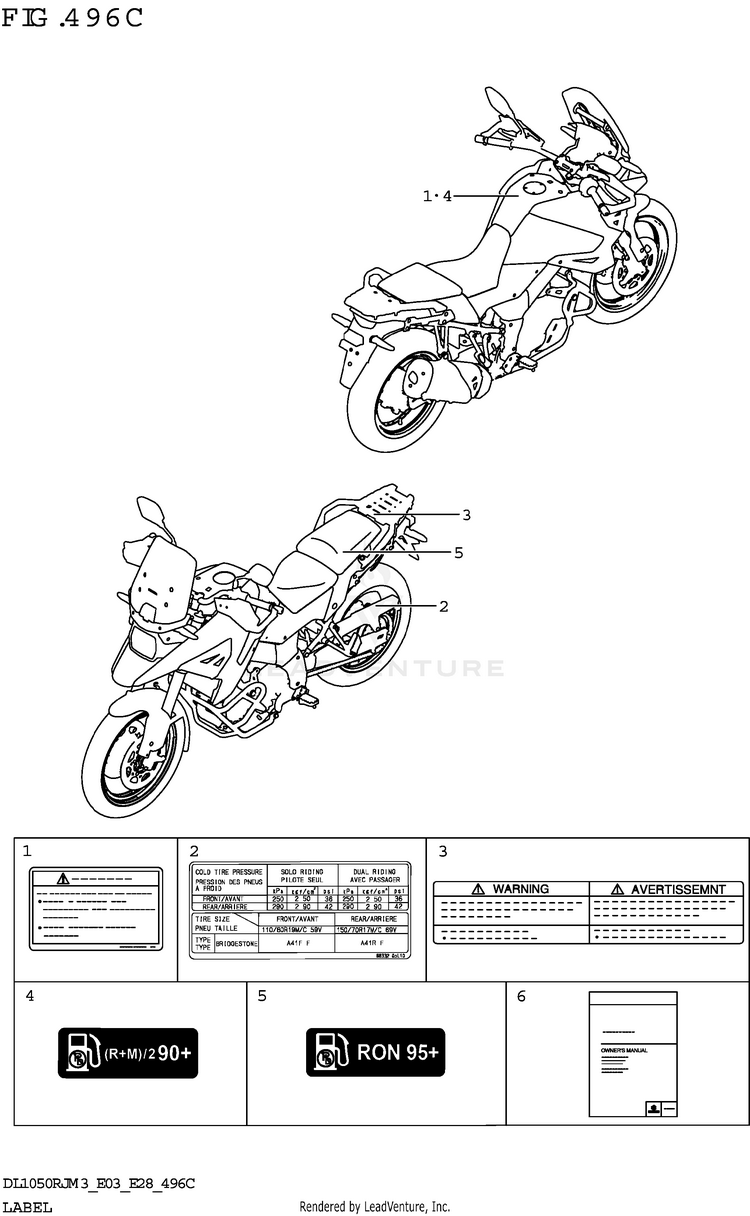

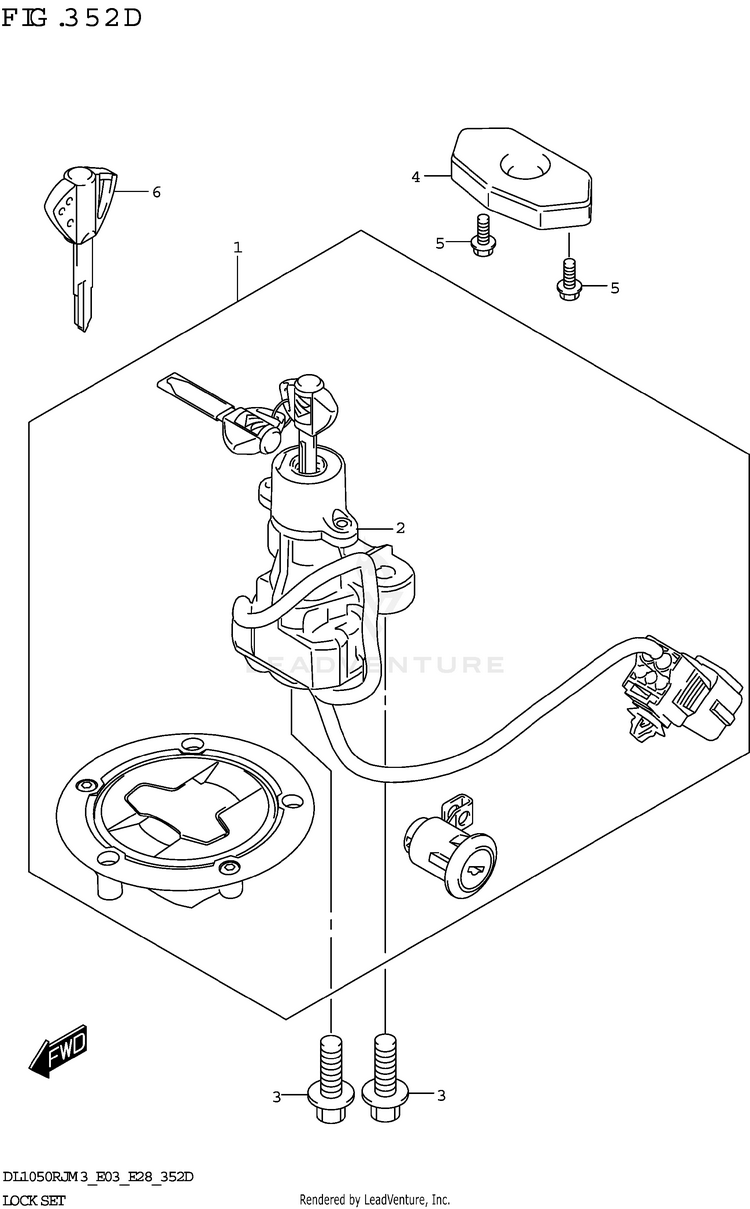

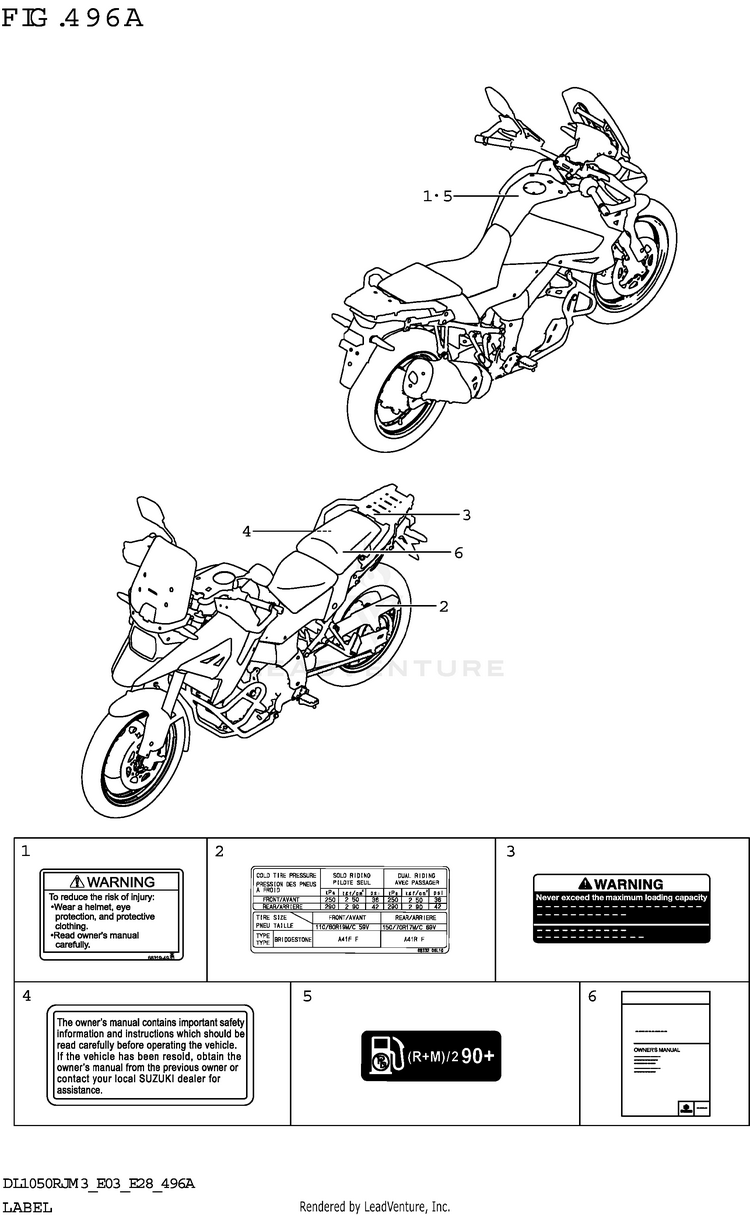

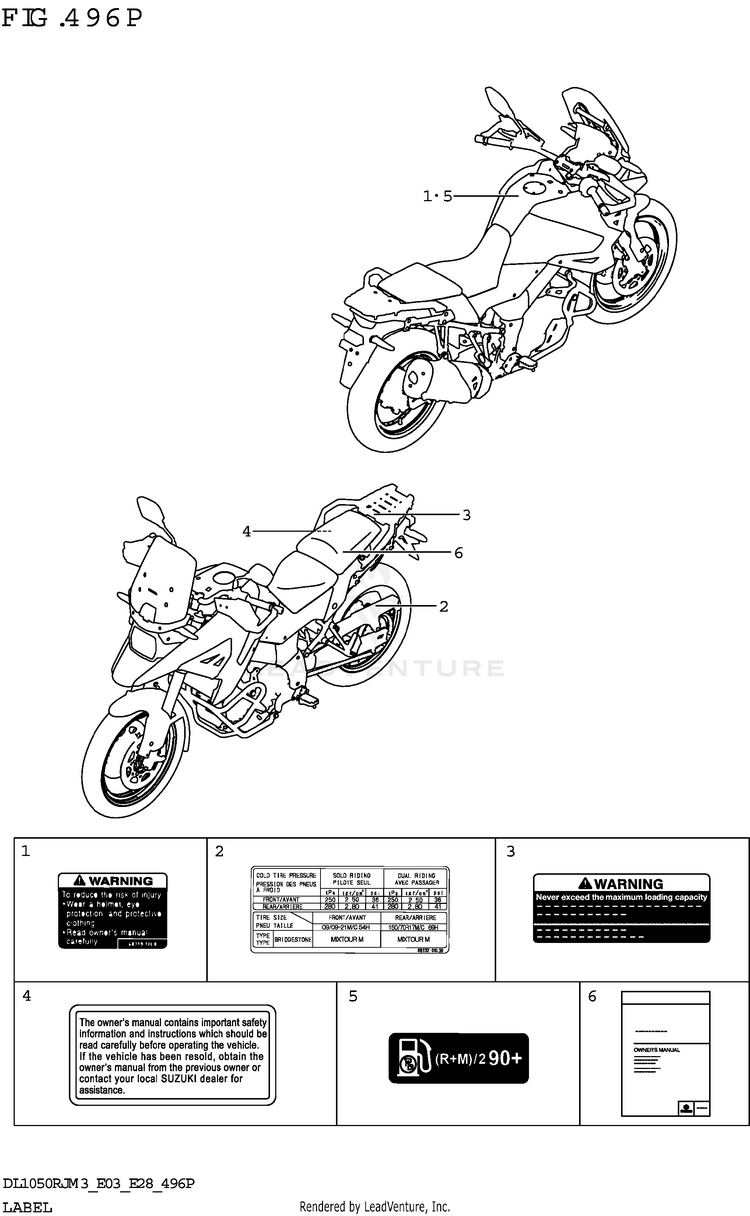

L
R

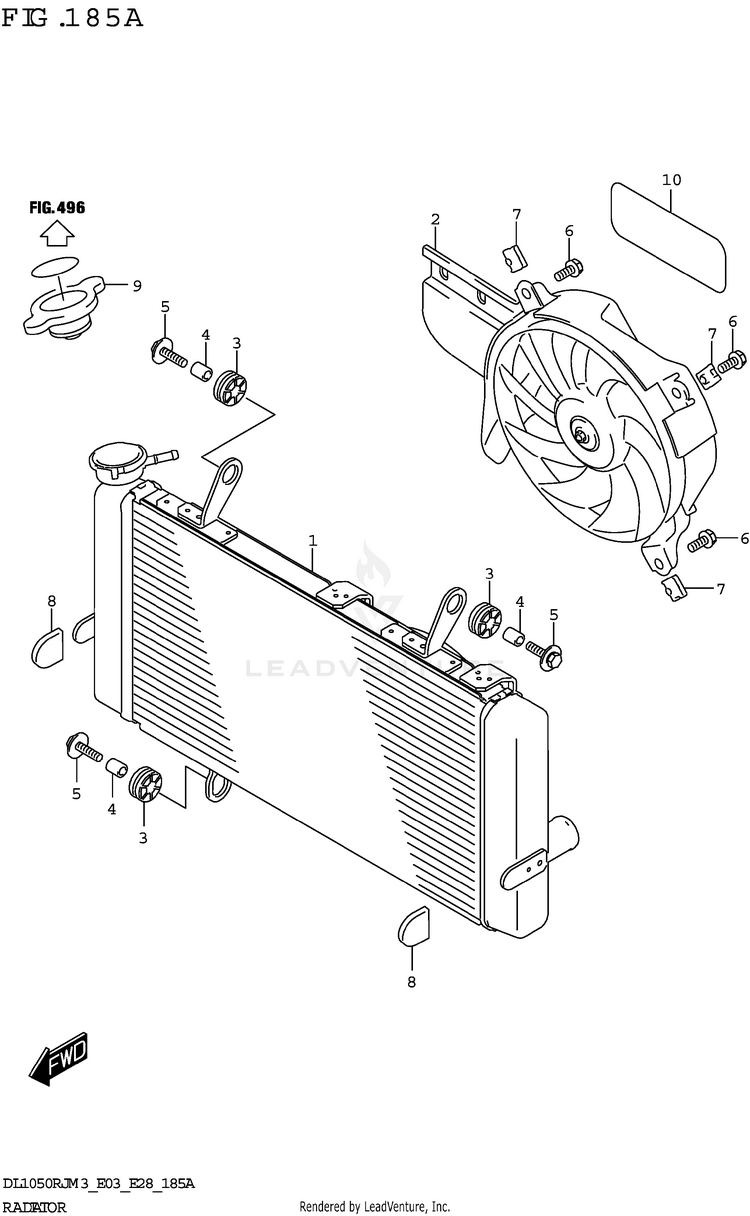

RADIATOR

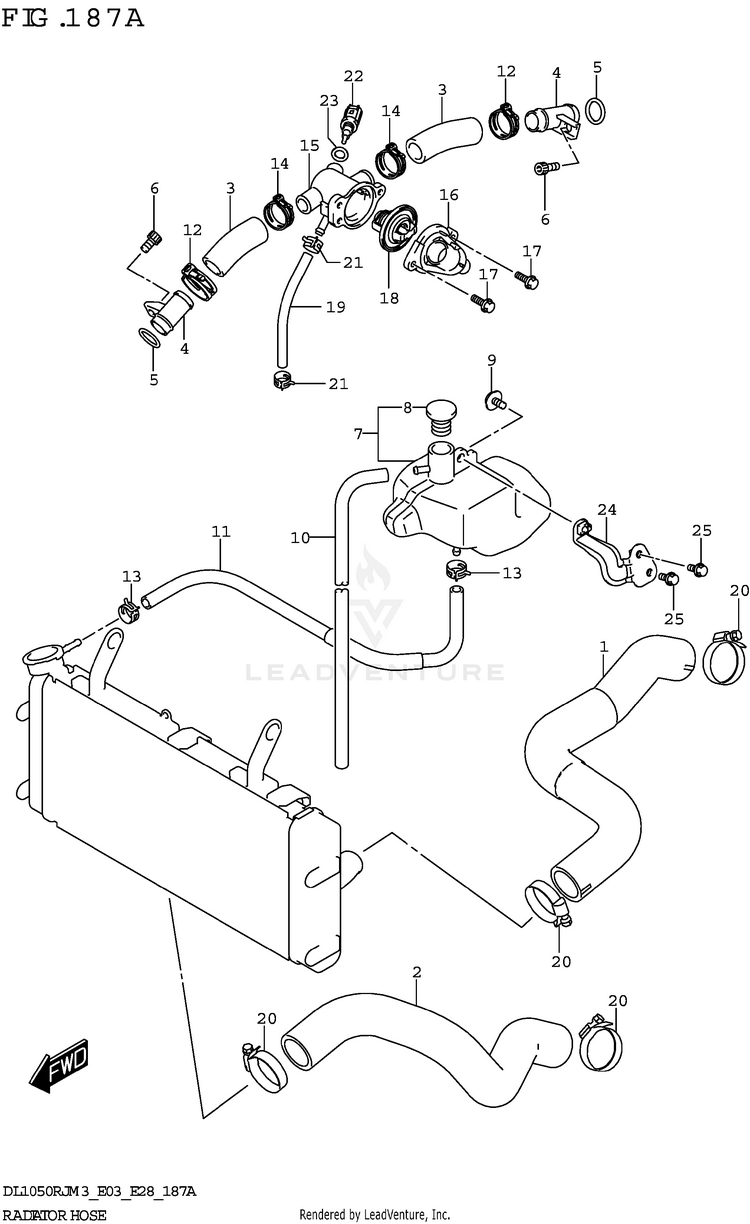

RADIATOR HOSE

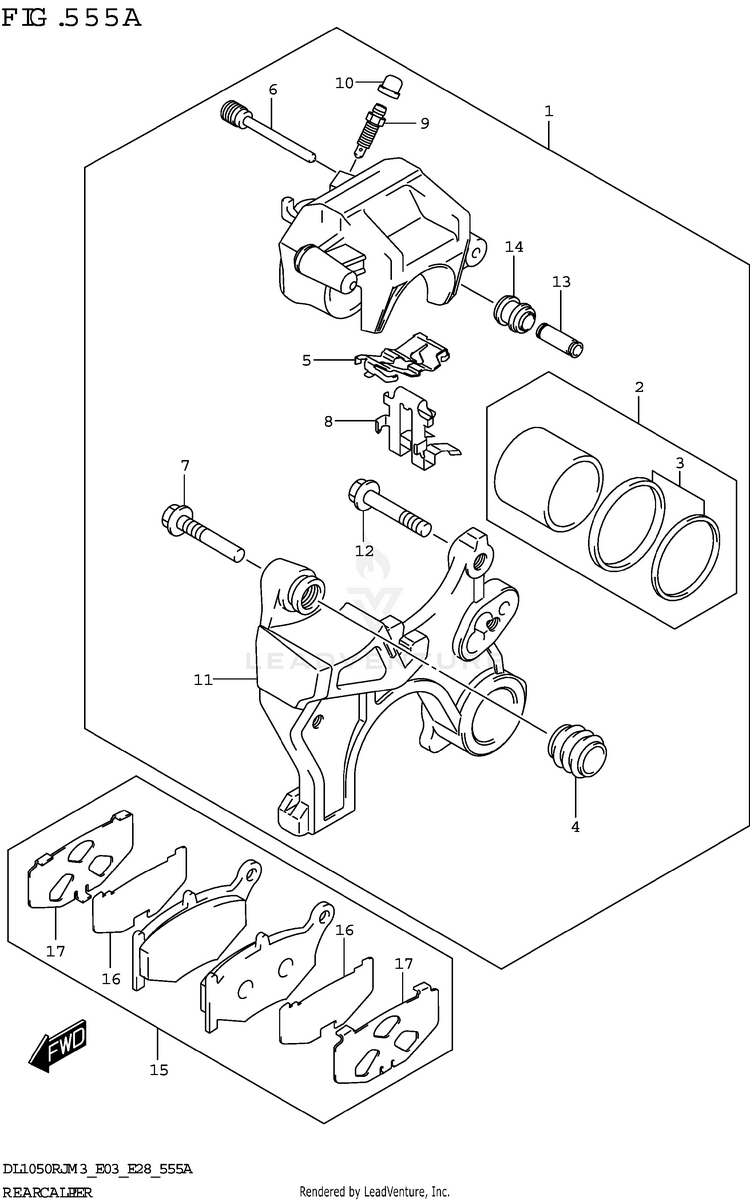

REAR CALIPER

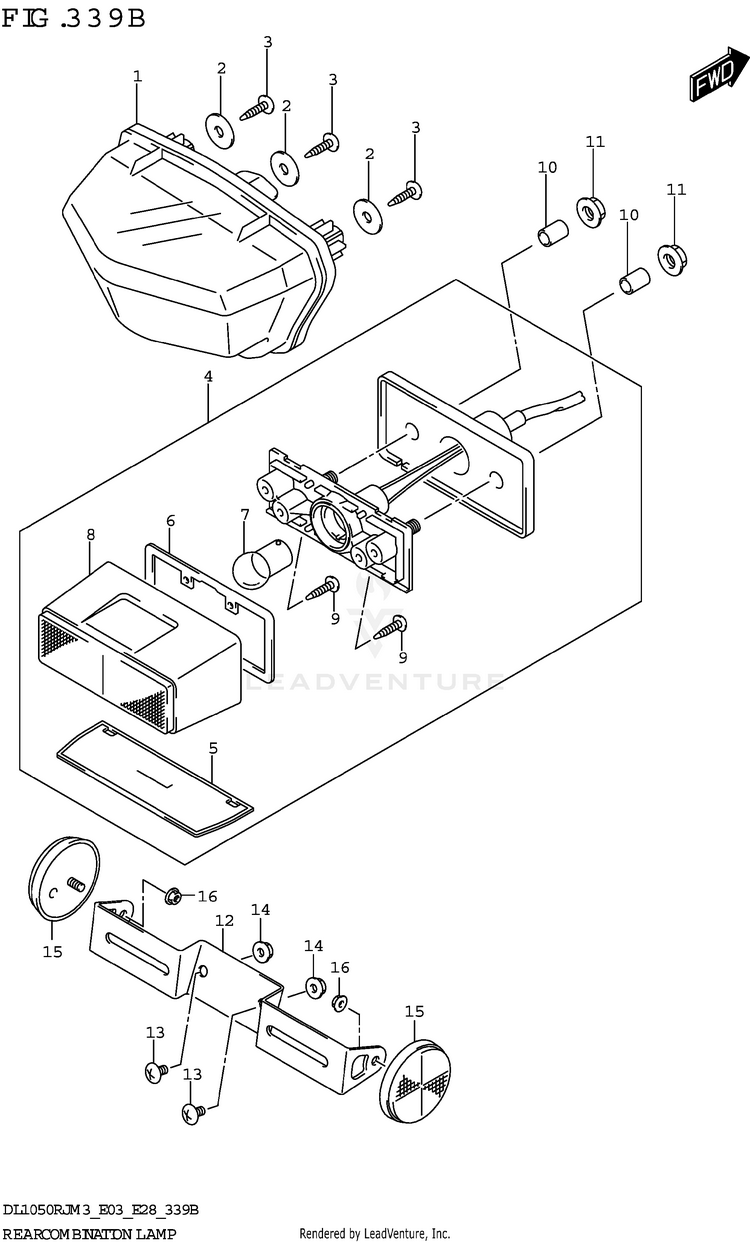

REAR COMBINATION LAMP

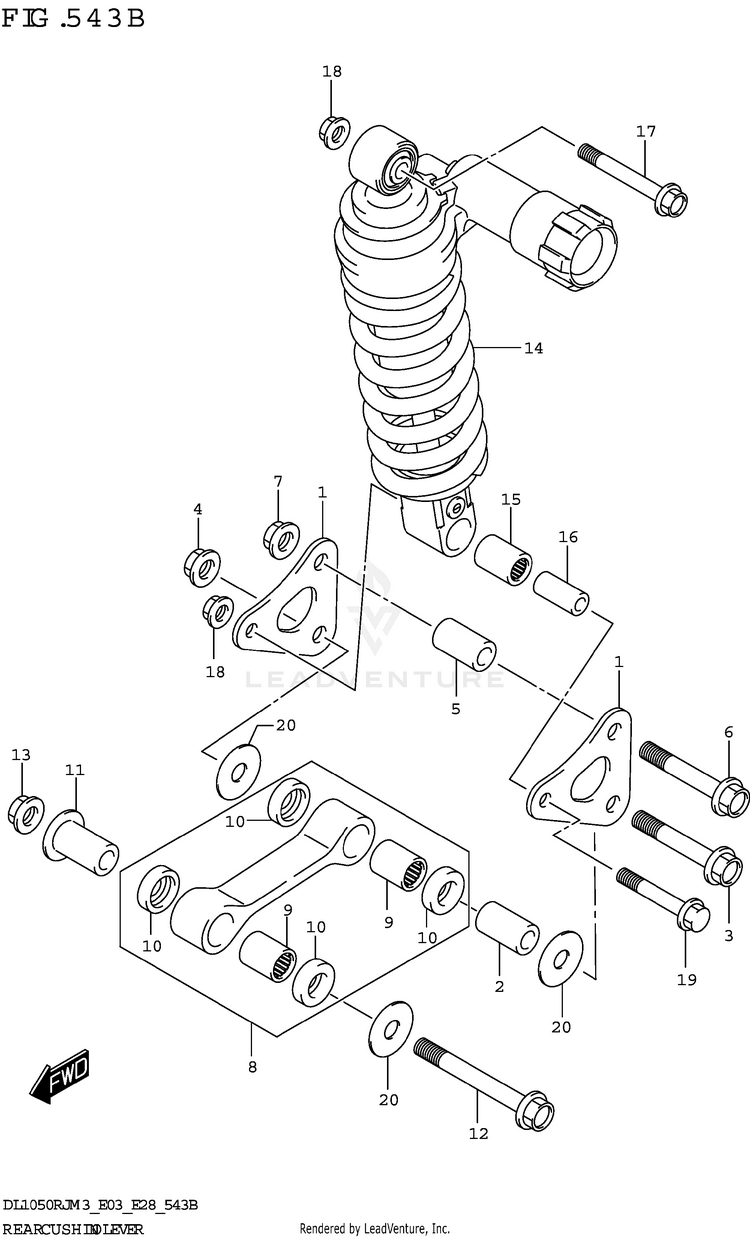

REAR CUSHION LEVER (DL1050RJ)
REAR CUSHION LEVER (DL1050RR)

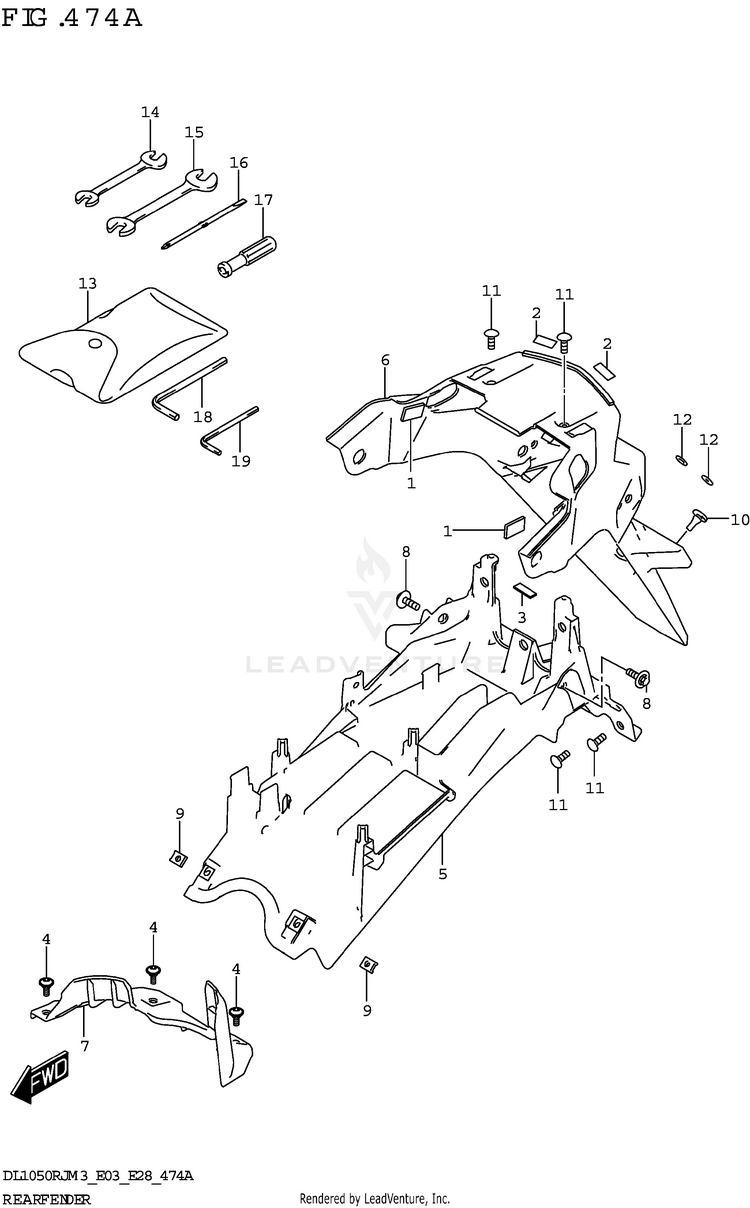

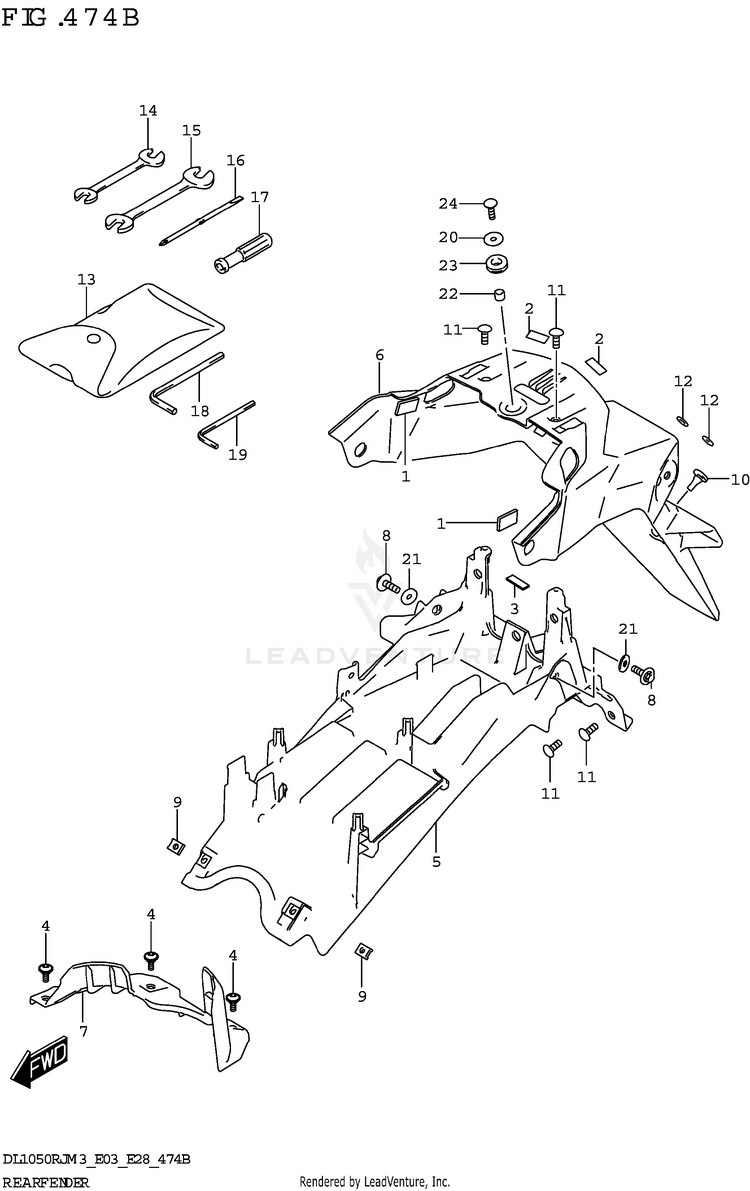

REAR FENDER (DL1050RJ)
REAR FENDER (DL1050RR)

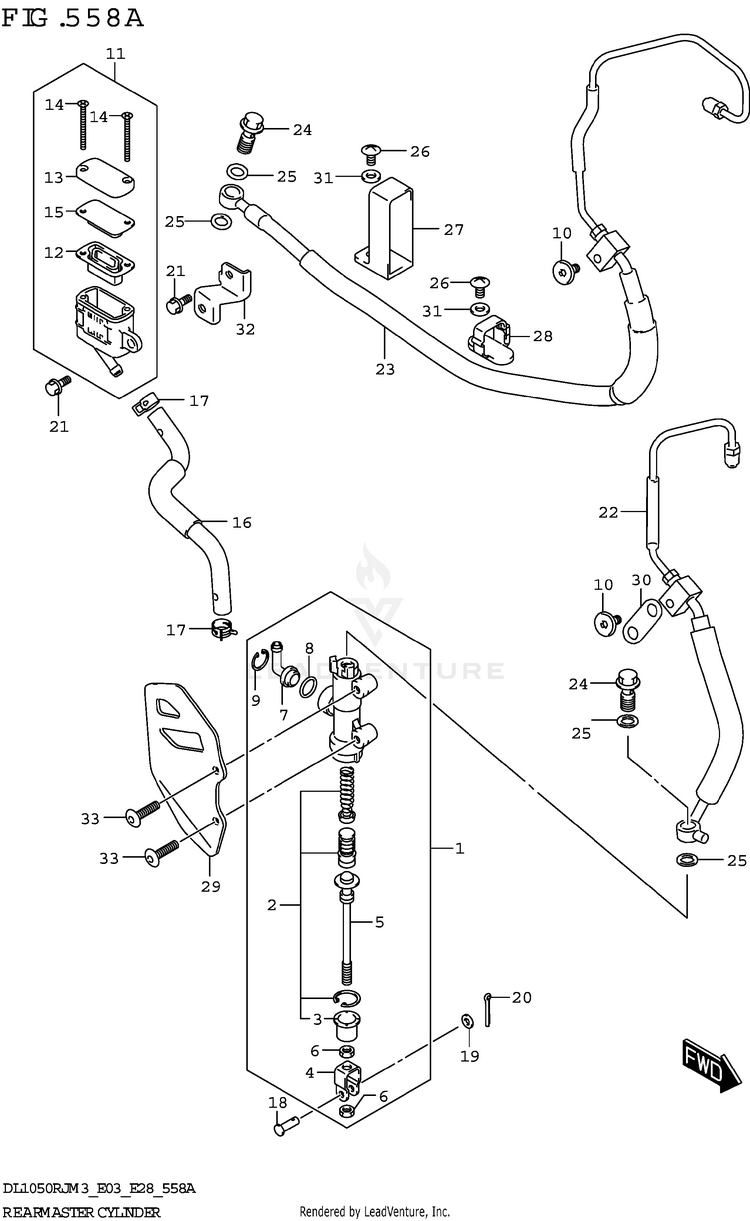

REAR MASTER CYLINDER (DL1050RJ)
REAR MASTER CYLINDER (DL1050RR)

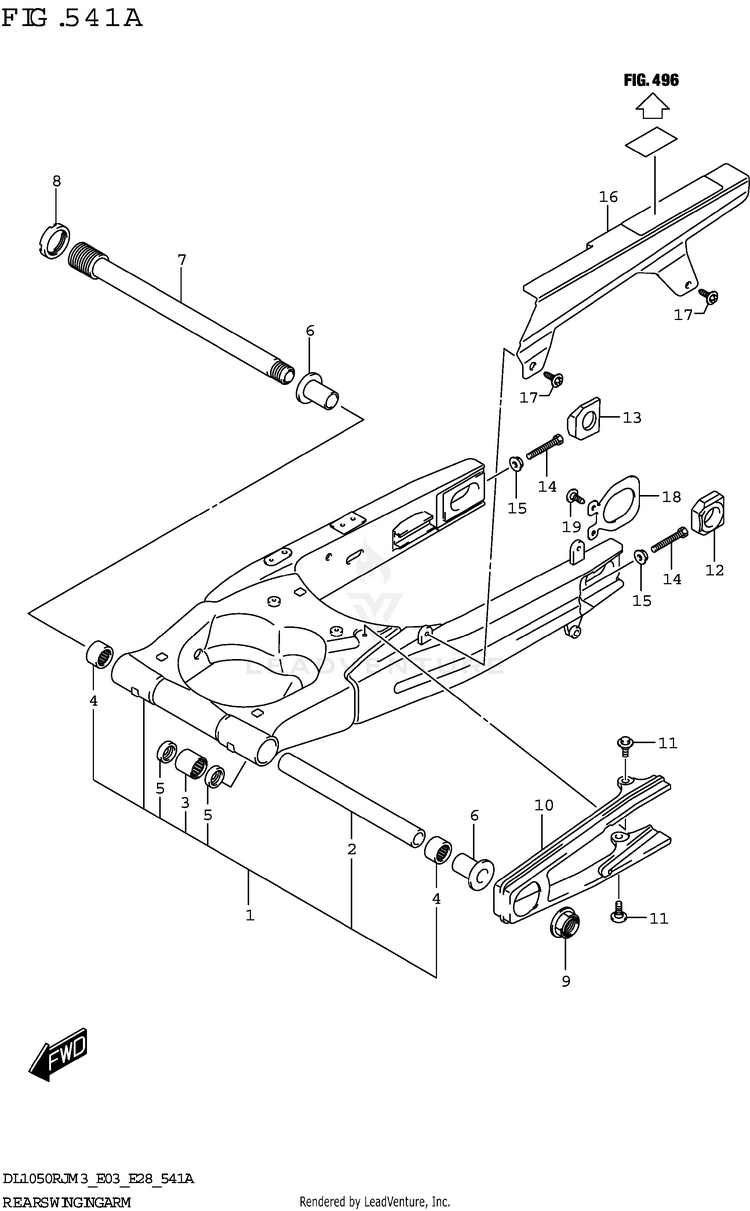

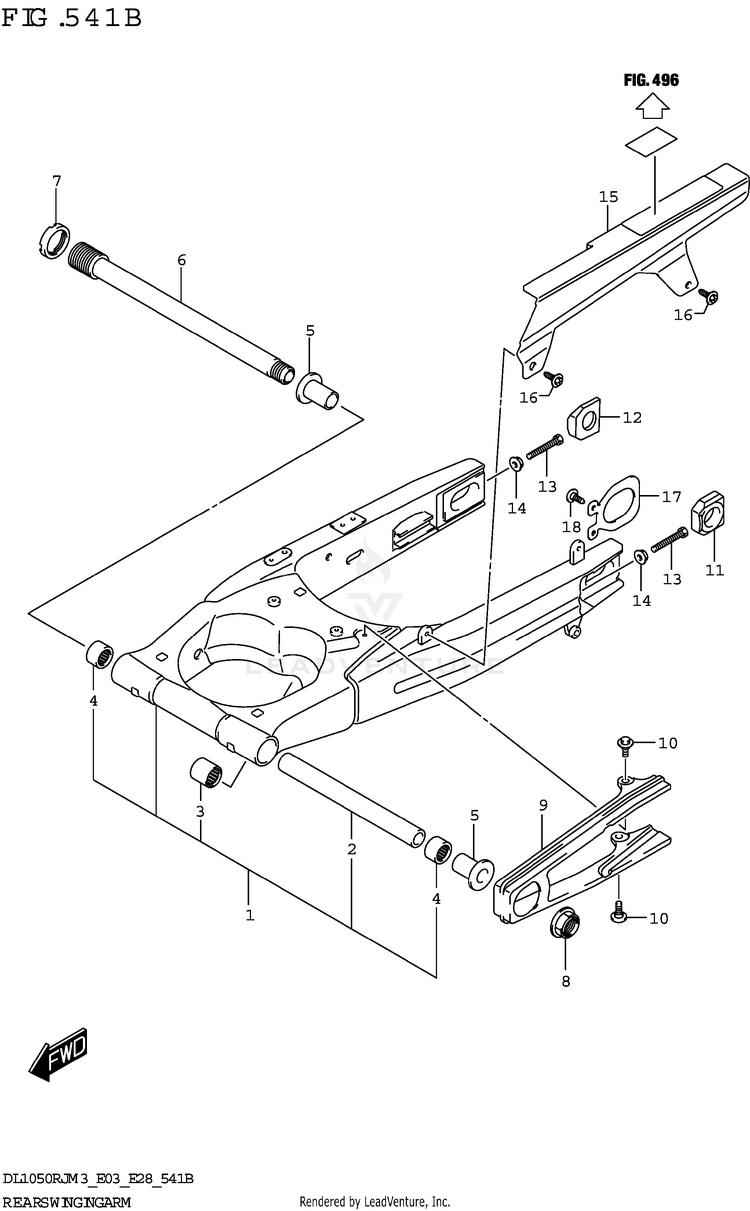

REAR SWINGINGARM (DL1050RJ)
REAR SWINGINGARM (DL1050RR)

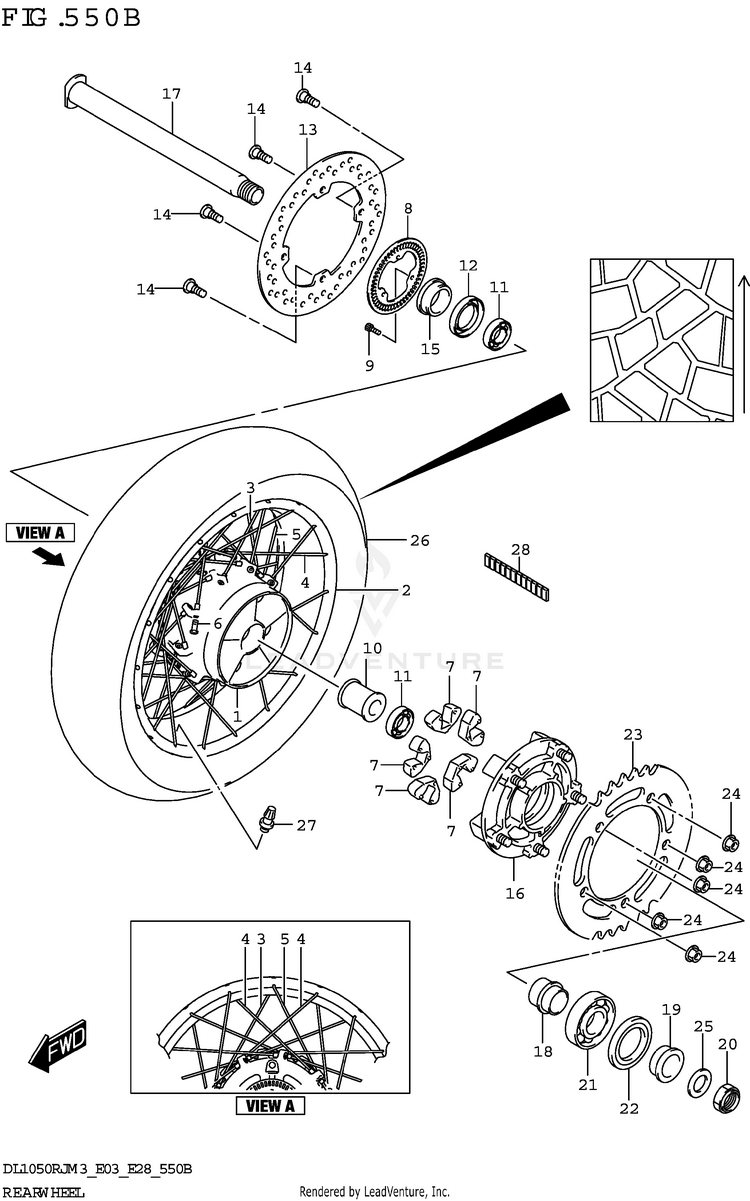

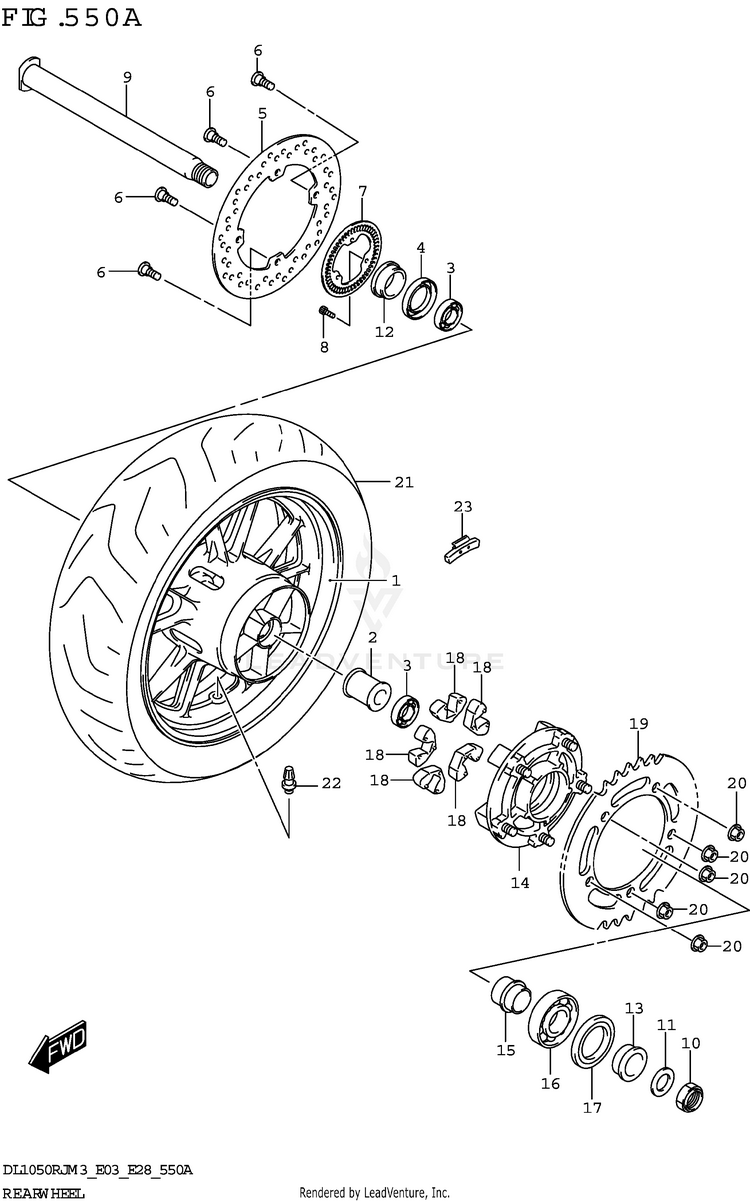

REAR WHEEL (DL1050RJ)
REAR WHEEL (DL1050RR)
S

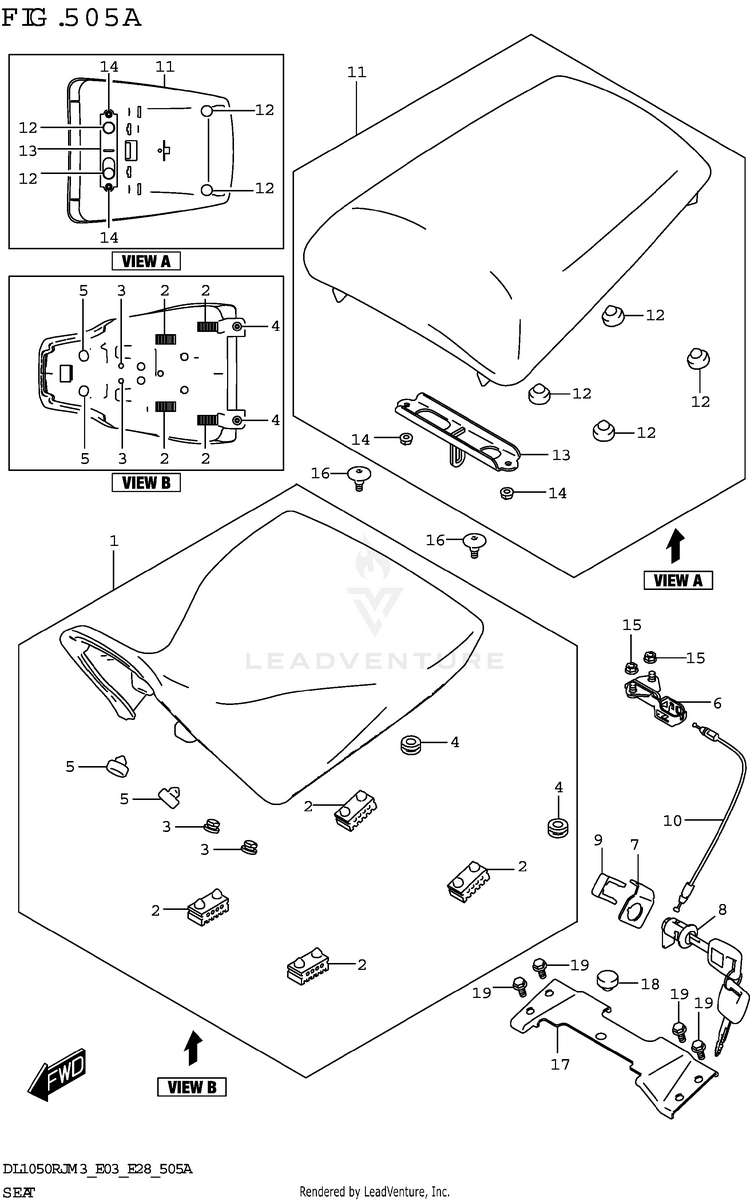

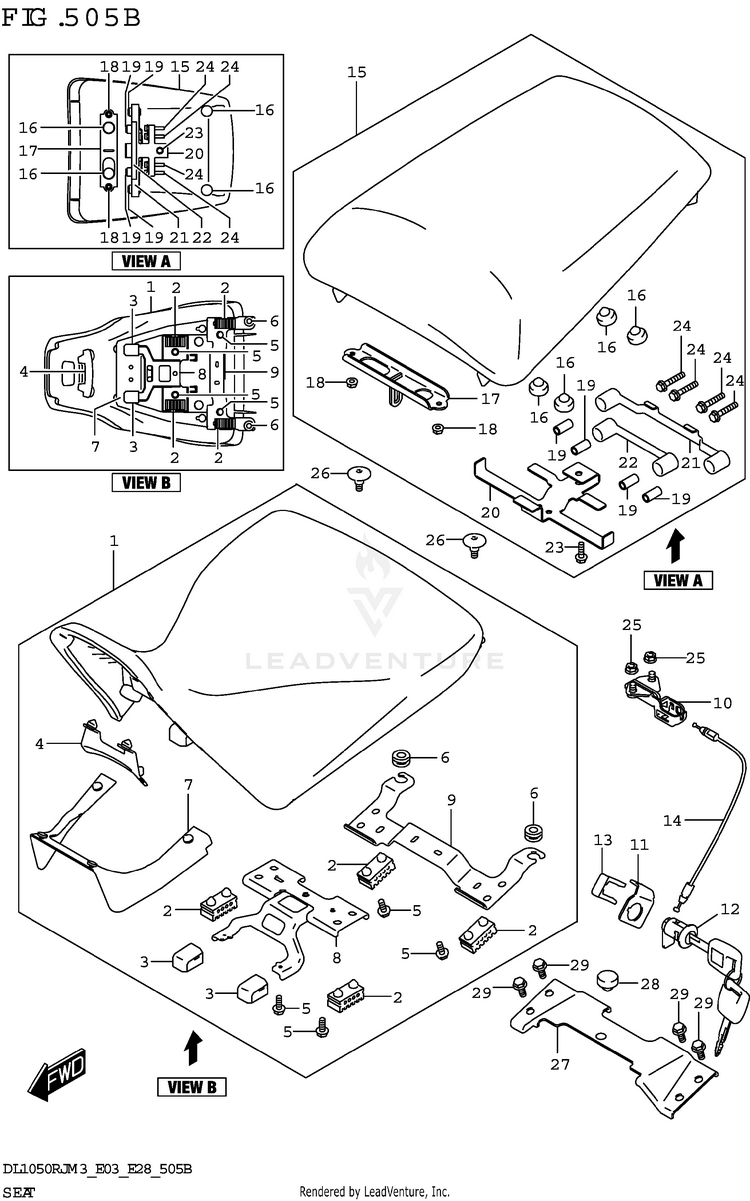

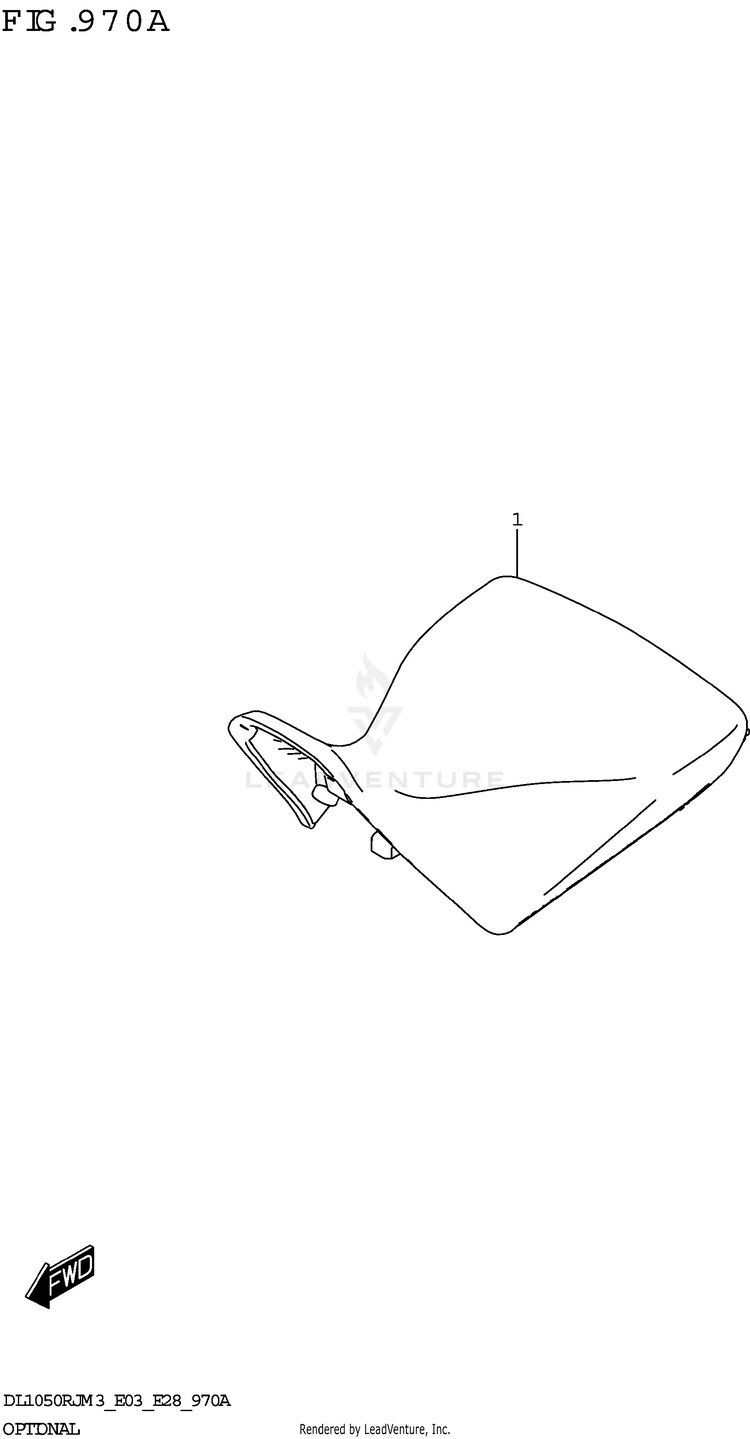

SEAT (DL1050RJ)
SEAT (DL1050RR)

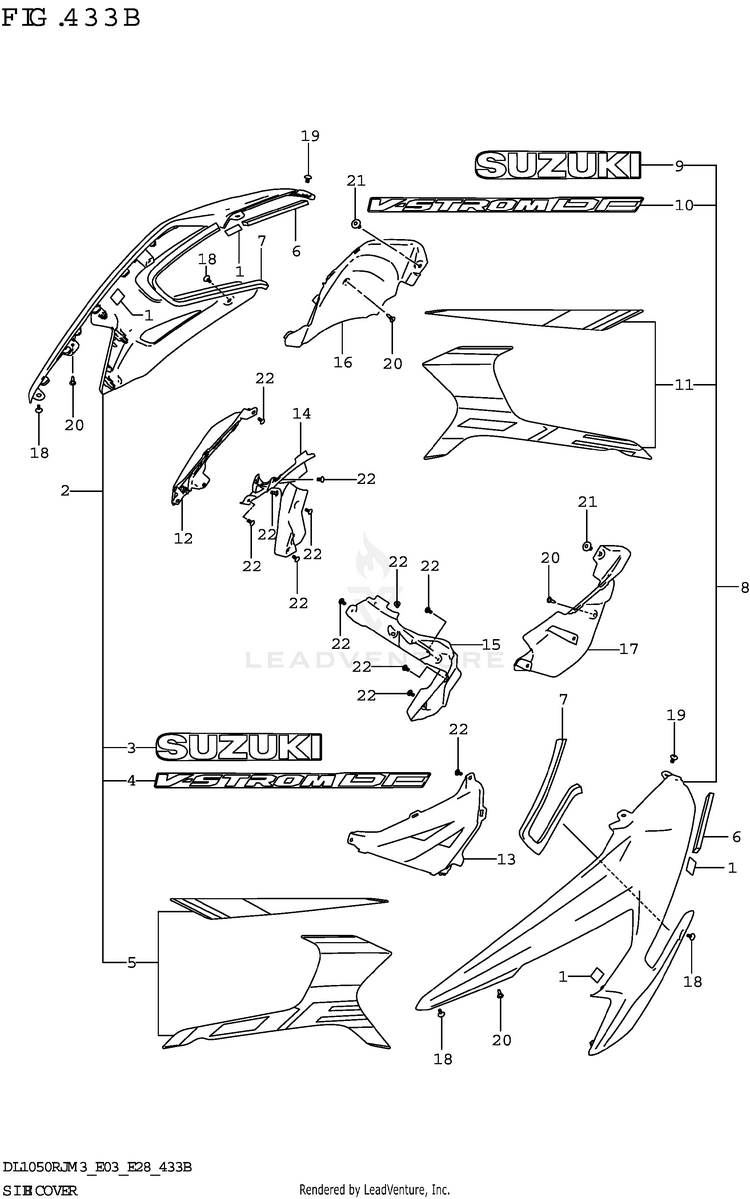

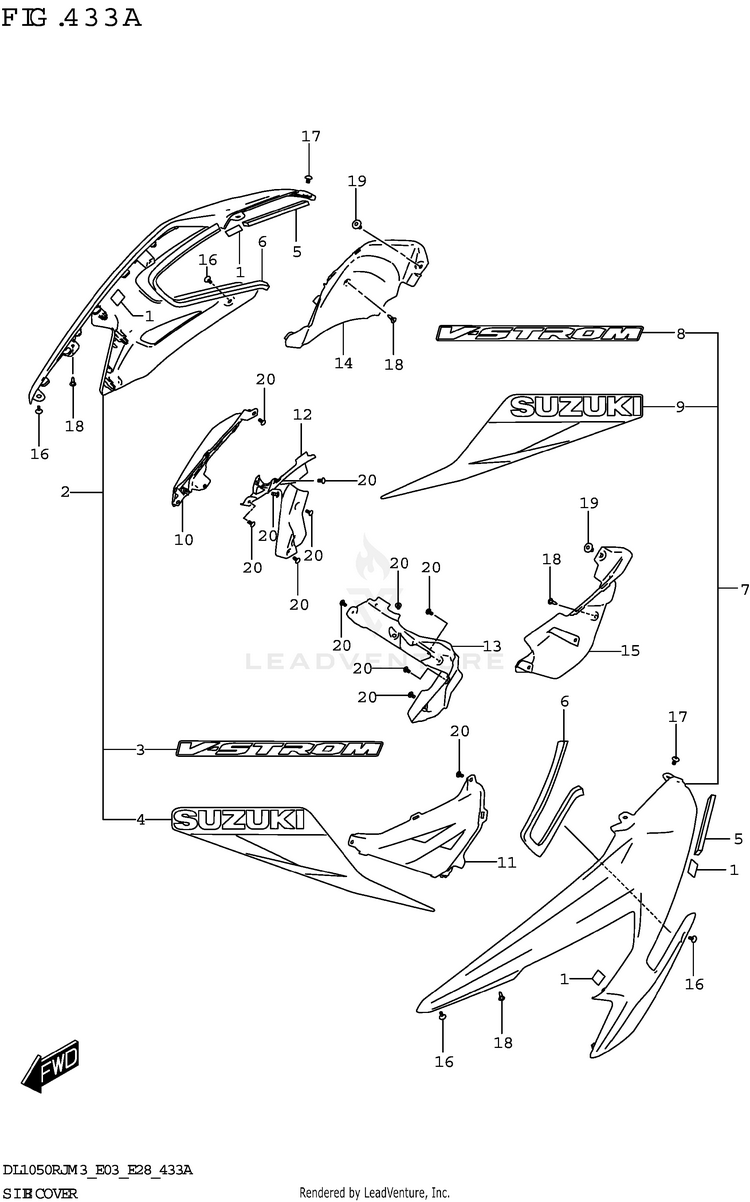

SIDE COVER (DL1050RJ)
SIDE COVER (DL1050RR)

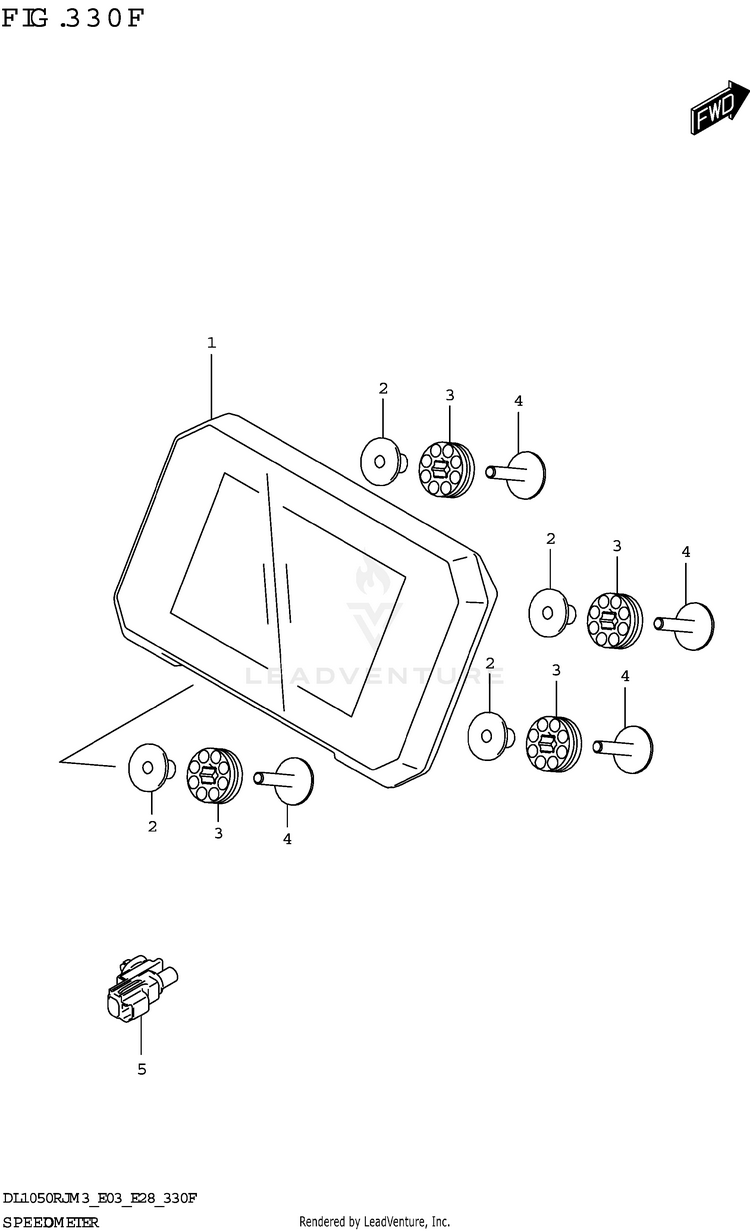

SPEEDOMETER (DL1050RJ:(E03,E33))
SPEEDOMETER (DL1050RJ:E28)
SPEEDOMETER (DL1050RR:(E03,E33))
SPEEDOMETER (DL1050RR:E28)

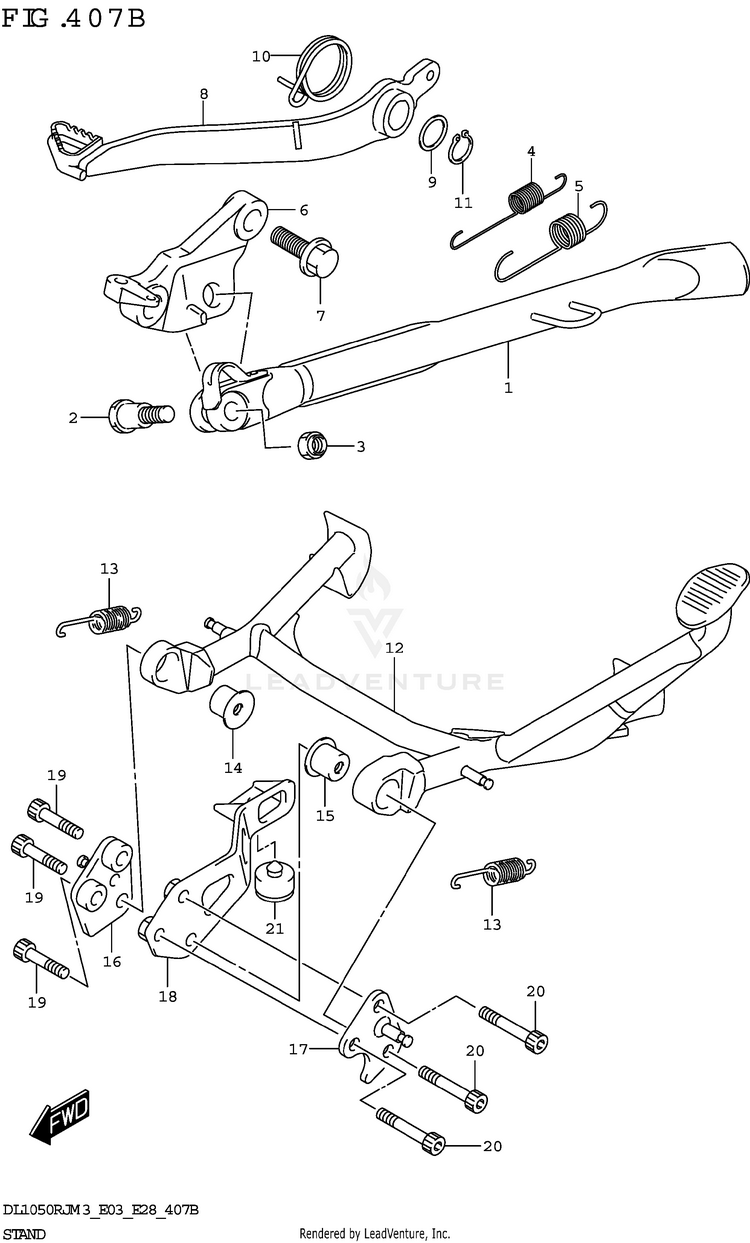

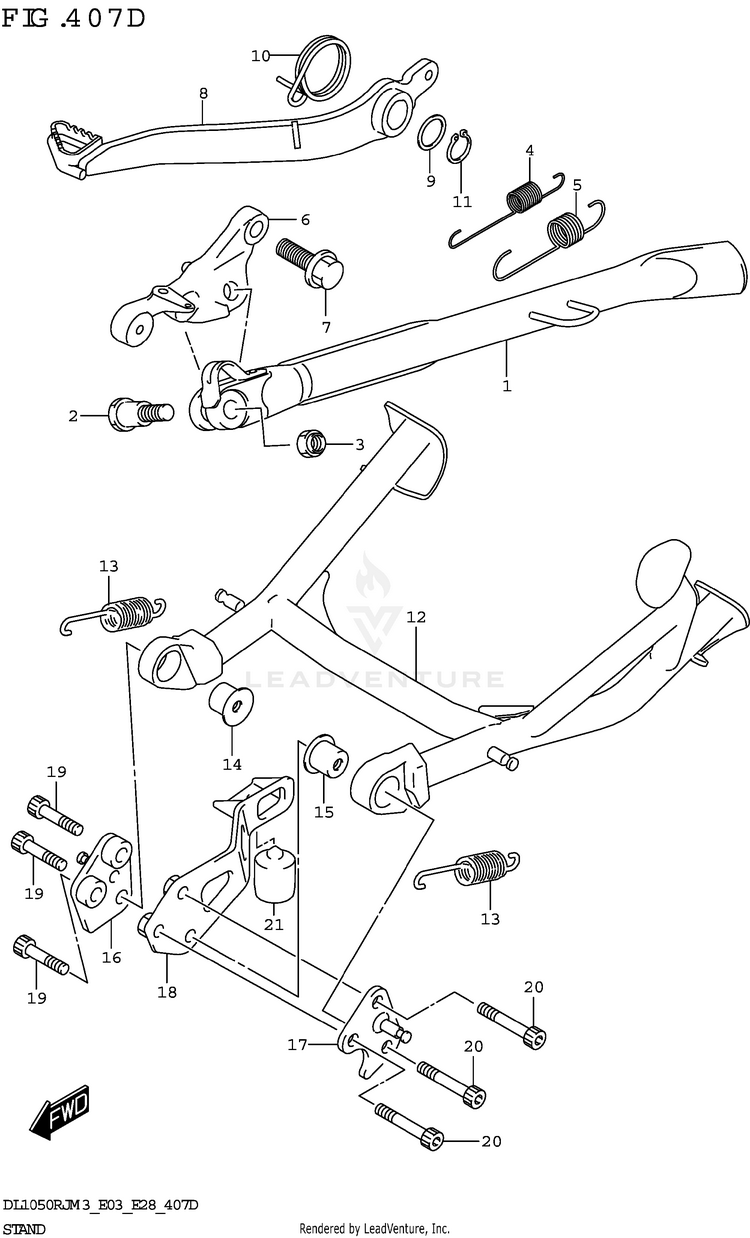

STAND (DL1050RJ)
STAND (DL1050RR)

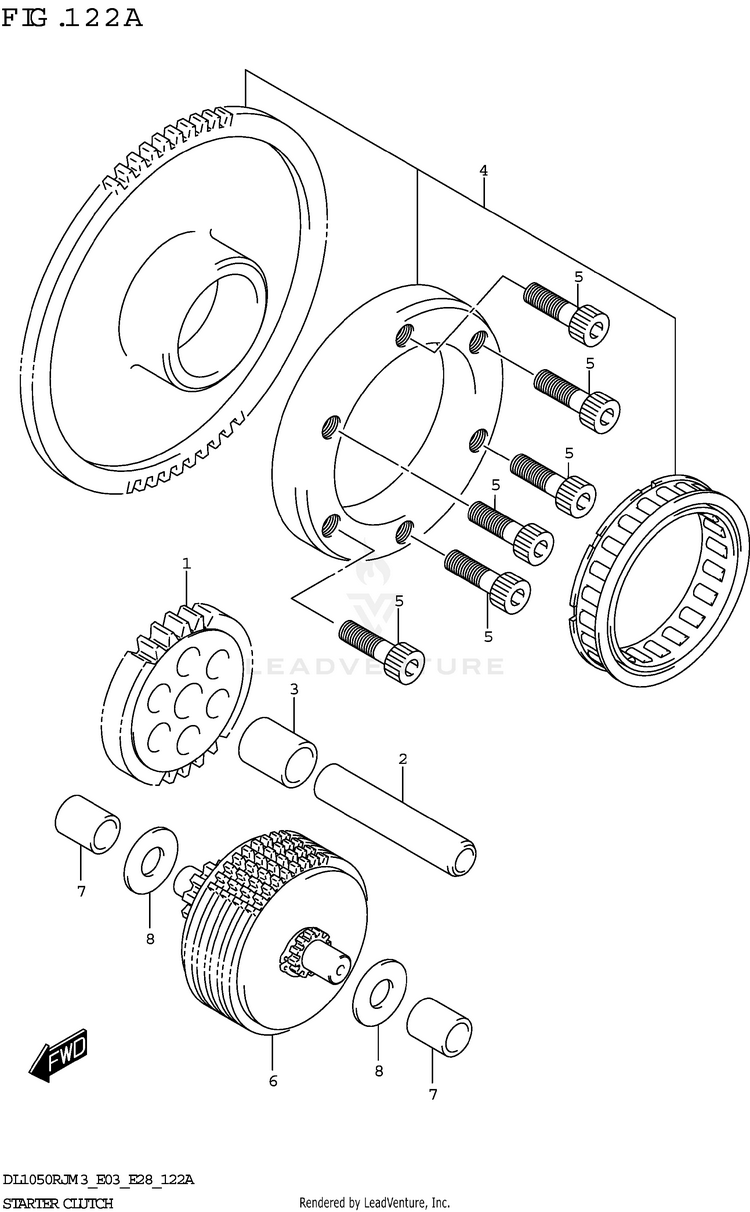

STARTER CLUTCH

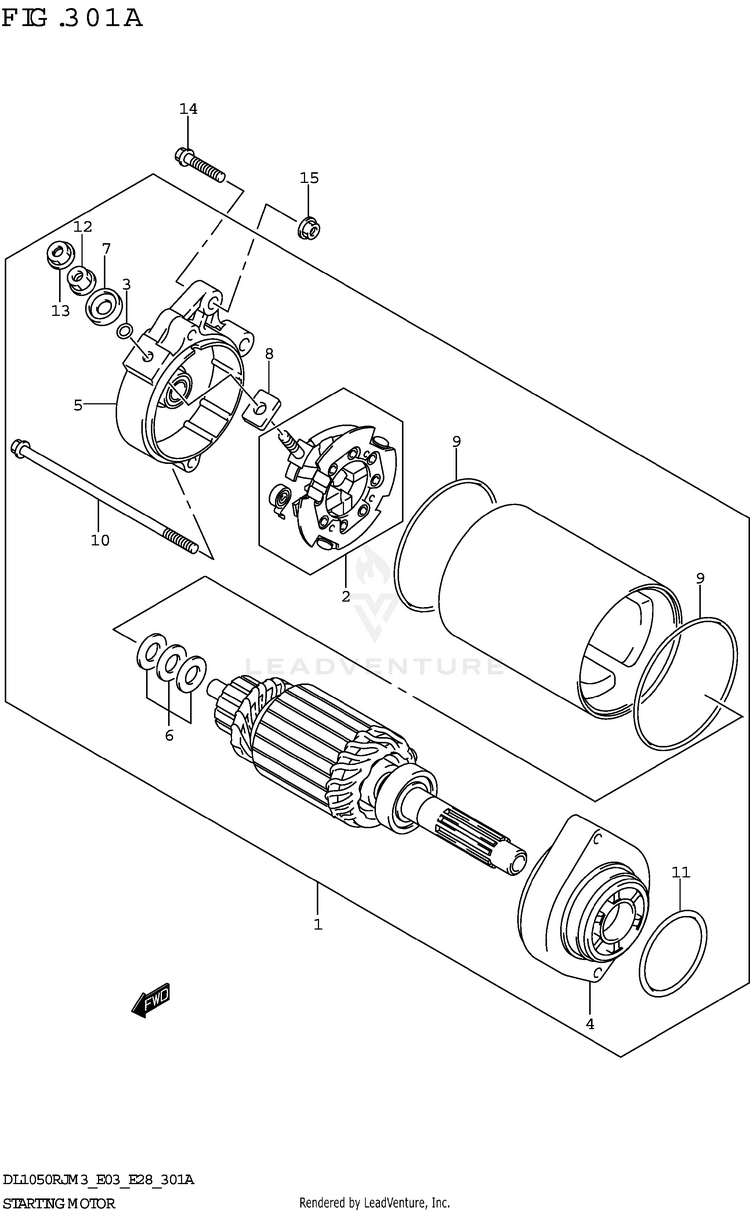

STARTING MOTOR

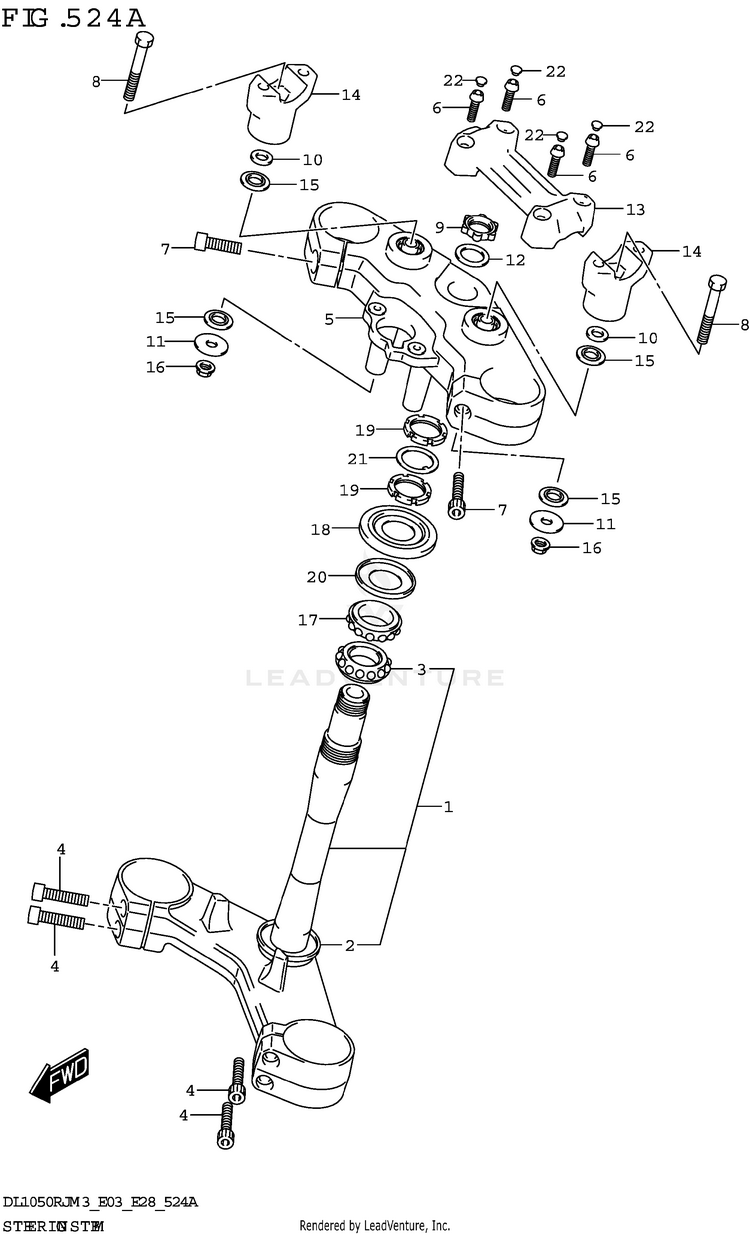

STEERING STEM (DL1050RJ)
STEERING STEM (DL1050RR)

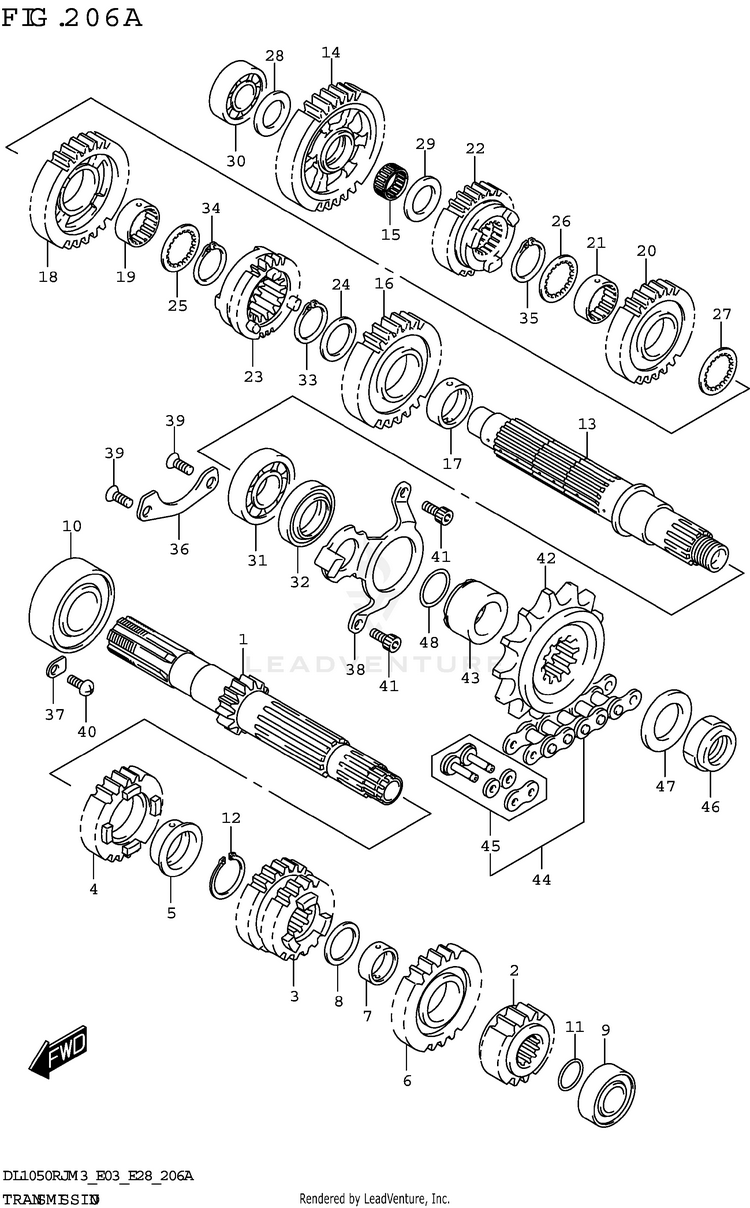

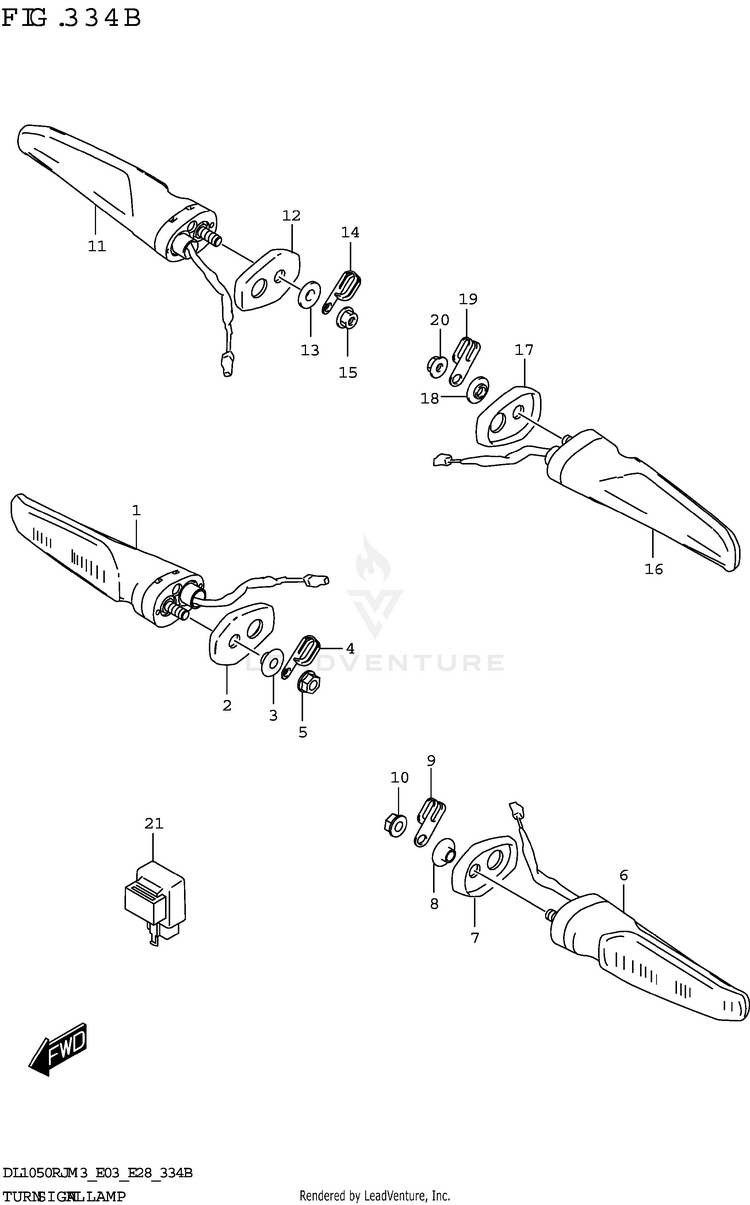

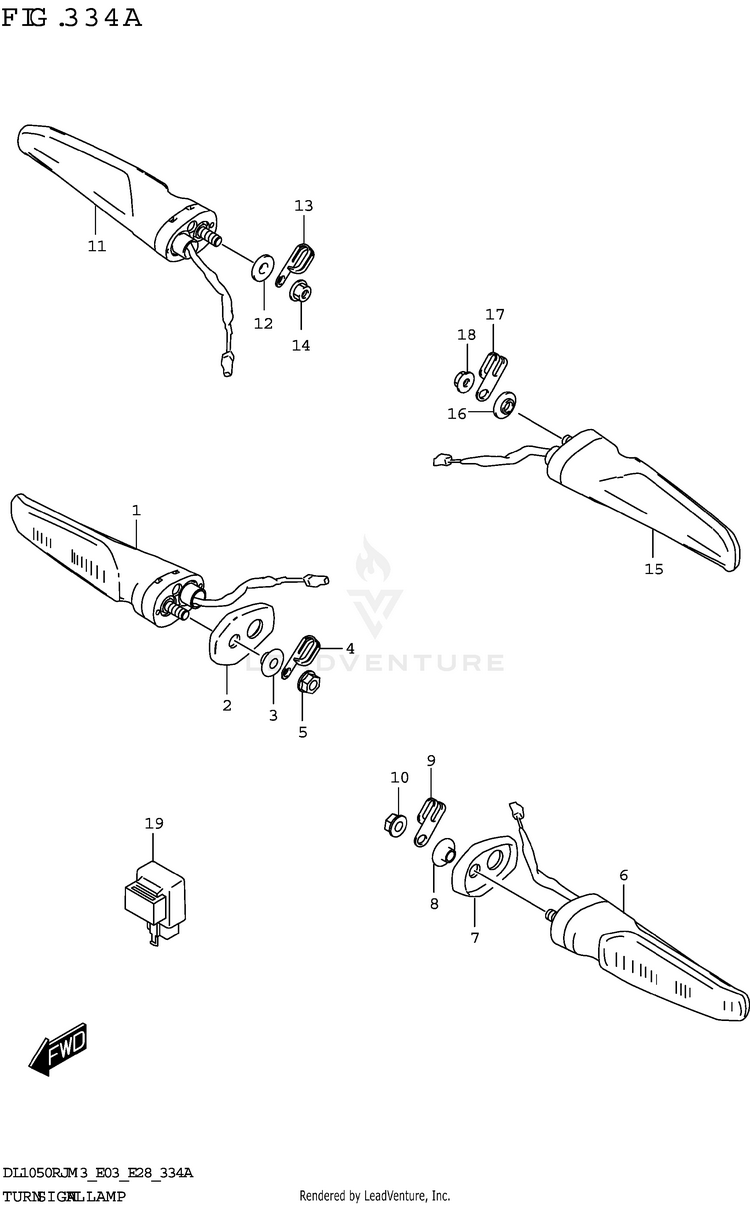

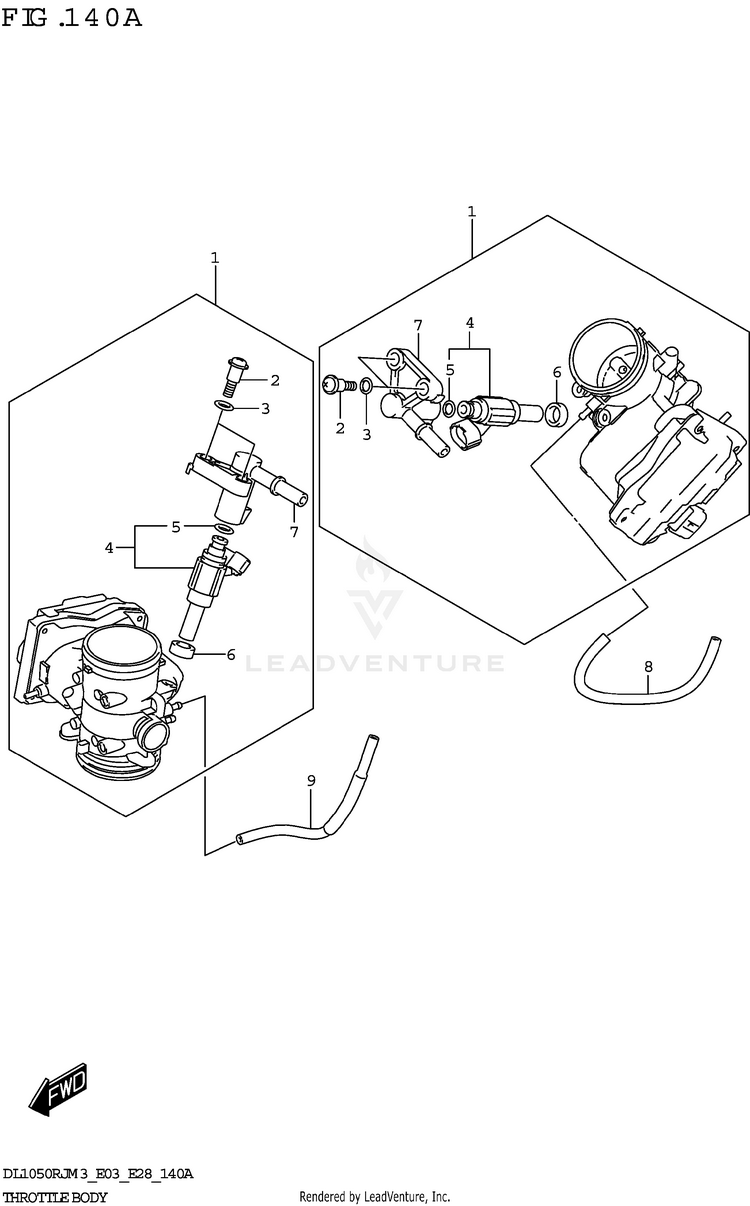

T
