2019 Suzuki DR200SL9 (2019) OEM Parts | Assembly Diagrams Lookup OEM Parts Finder and Diagram (Microfiche) Inspector

Suzuki Choose an assembly...

Assemblies List (68)

AIR CLEANER
BATTERY
CAM CHAIN
CAMSHAFT/VALVE
CARBURETOR (DR200SL9 E03)
CARBURETOR (DR200SL9 E28)
CARBURETOR (DR200SL9 E33)
CLUTCH
CRANKCASE
CRANKCASE COVER
CRANKSHAFT
CYLINDER
CYLINDER HEAD
ELECTRICAL
EVAP SYSTEM (DR200SL9 E33)
FOOTREST
FRAME (DR200SL9 E03)
FRAME (DR200SL9 E28)
FRAME (DR200SL9 E33)
FRAME COVER (DR200SL9 E03)
FRAME COVER (DR200SL9 E28)
FRAME COVER (DR200SL9 E33)
FRONT CALIPER
FRONT FORK DAMPER
FRONT MASTER CYLINDER
FRONT WHEEL
FUEL COCK (DR200SL9 E03)
FUEL COCK (DR200SL9 E28)
FUEL COCK (DR200SL9 E33)
FUEL TANK (DR200SL9 E03)
FUEL TANK (DR200SL9 E28)
FUEL TANK (DR200SL9 E33)
FUEL TANK COVER (DR200SL9 E03)
FUEL TANK COVER (DR200SL9 E28)
FUEL TANK COVER (DR200SL9 E33)
GASKET SET
GEAR SHIFTING
HANDLE LEVER
HANDLE SWITCH
HANDLEBAR
HEADLAMP
HEADLAMP COVER
LABEL (DR200SL9 E03)
LABEL (DR200SL9 E28)
LABEL (DR200SL9 E33)
MAGNETO
MUFFLER
OIL PUMP
OPTIONAL
OPTIONAL (KNUCKLE COVER SET)
REAR COMBINATION LAMP
REAR CUSHION LEVER
REAR FENDER
REAR SWINGINGARM
REAR WHEEL
SEAT

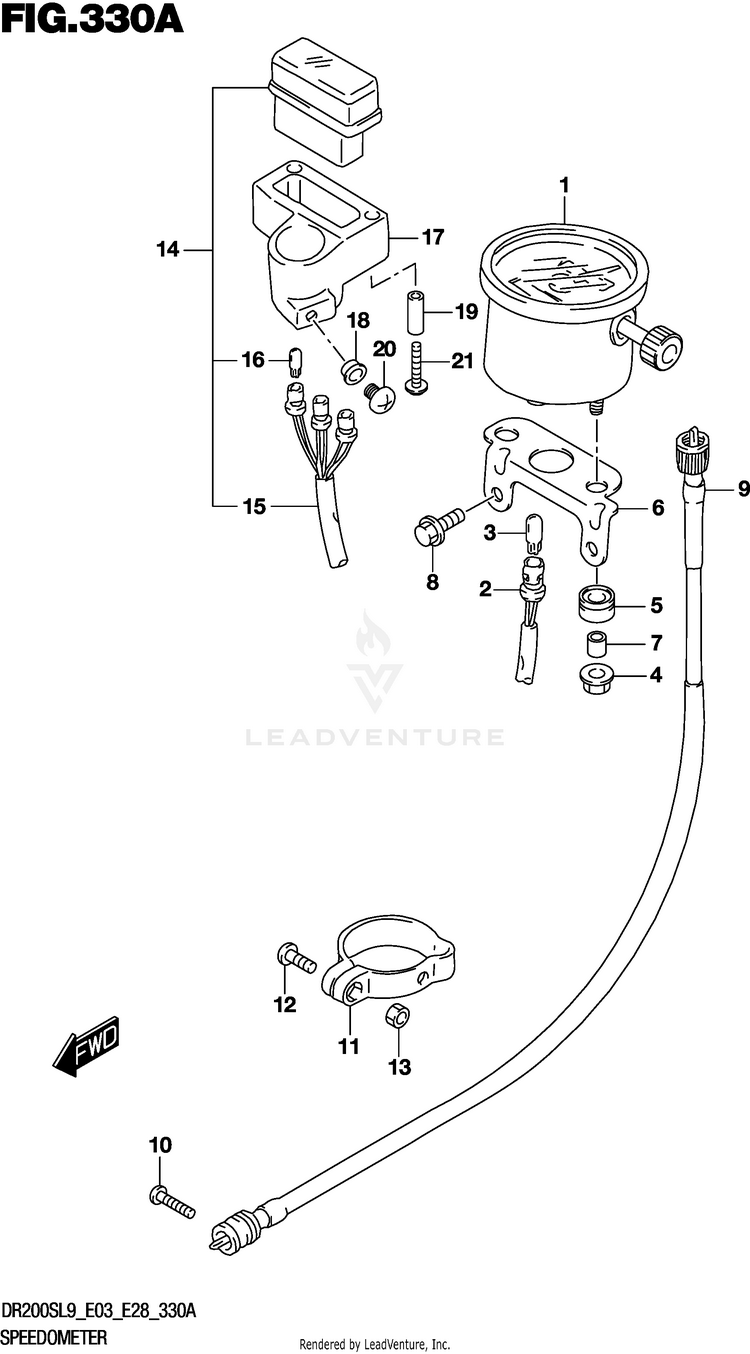

SPEEDOMETER (DR200SL9 E03)
SPEEDOMETER (DR200SL9 E28)
SPEEDOMETER (DR200SL9 E33)
STAND
STARTER CLUTCH
STARTING MOTOR
STEERING STEM
TRANSMISSION
TURNSIGNAL LAMP
WIRING HARNESS (DR200SL9 E03)
WIRING HARNESS (DR200SL9 E28)
WIRING HARNESS (DR200SL9 E33)

A

AIR CLEANER

B

BATTERY

C

CAM CHAIN
CAMSHAFT/VALVE

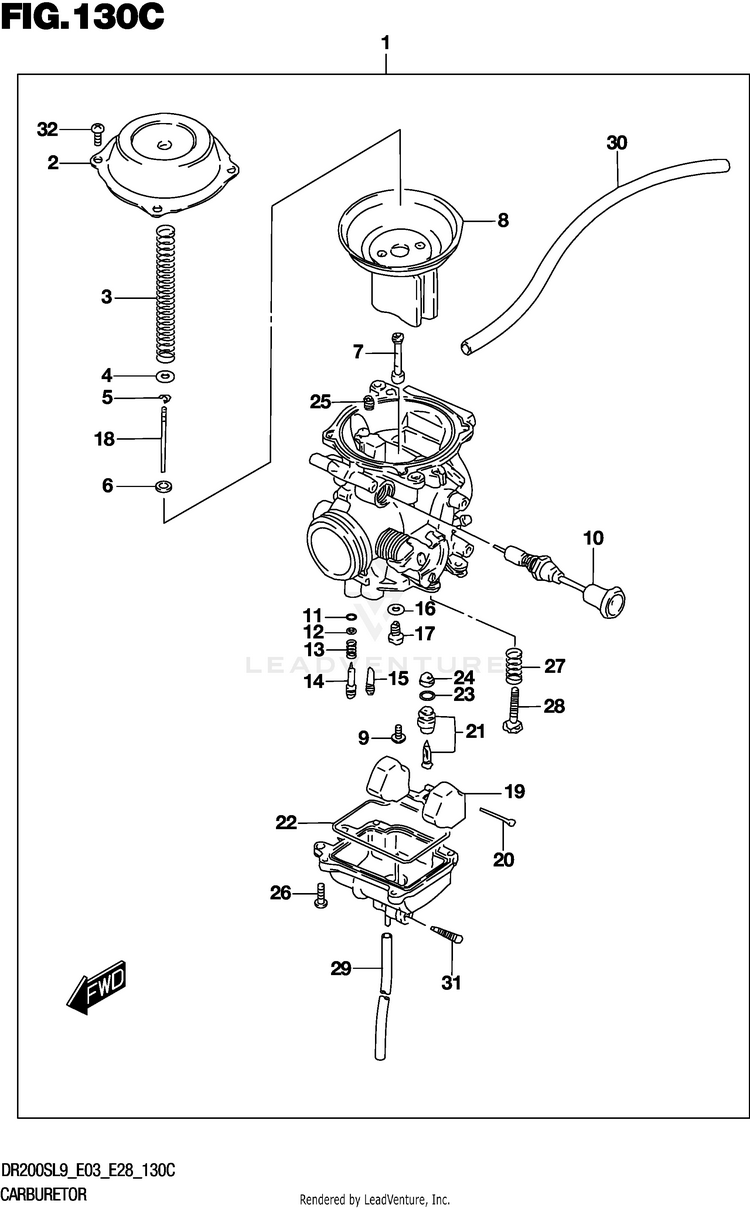

CARBURETOR (DR200SL9 E03)
CARBURETOR (DR200SL9 E28)
CARBURETOR (DR200SL9 E33)
CLUTCH
CRANKCASE
CRANKCASE COVER
CRANKSHAFT
CYLINDER
CYLINDER HEAD

E

ELECTRICAL
EVAP SYSTEM (DR200SL9 E33)

F

FOOTREST
FRAME (DR200SL9 E03)
FRAME (DR200SL9 E28)
FRAME (DR200SL9 E33)
FRAME COVER (DR200SL9 E03)
FRAME COVER (DR200SL9 E28)
FRAME COVER (DR200SL9 E33)
FRONT CALIPER

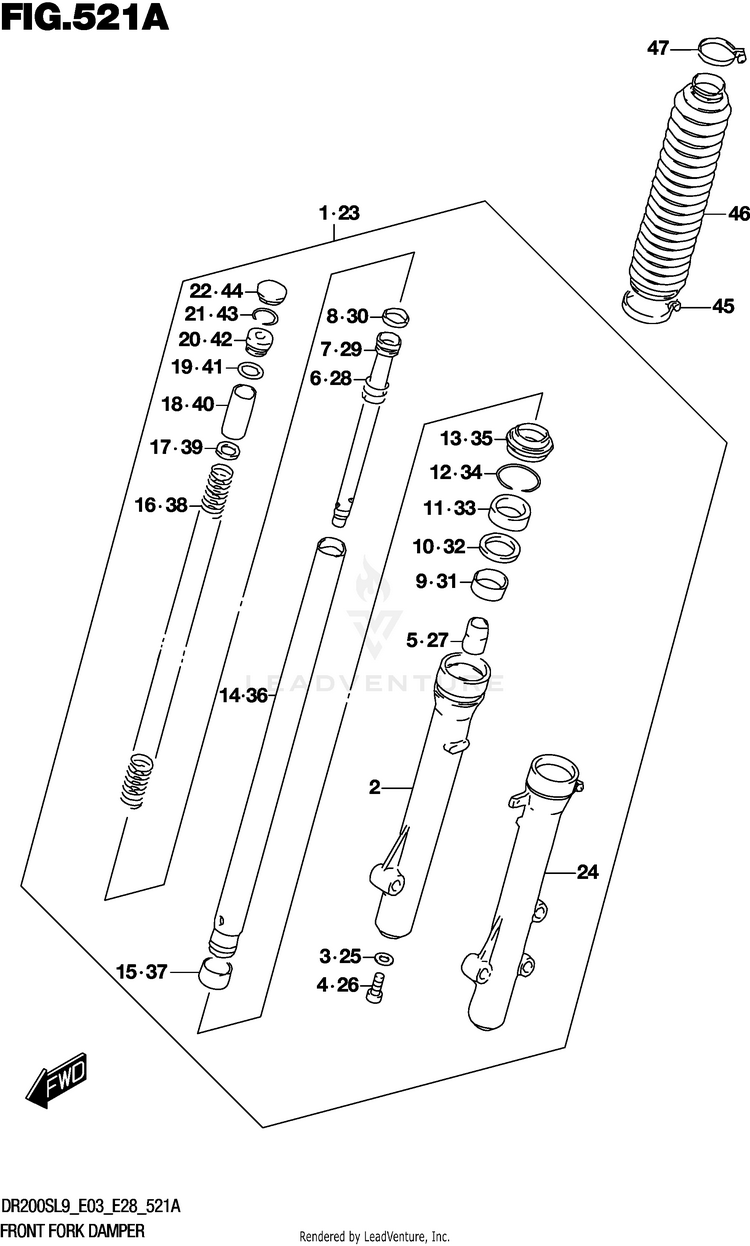

FRONT FORK DAMPER
FRONT MASTER CYLINDER
FRONT WHEEL
FUEL COCK (DR200SL9 E03)
FUEL COCK (DR200SL9 E28)
FUEL COCK (DR200SL9 E33)
FUEL TANK (DR200SL9 E03)
FUEL TANK (DR200SL9 E28)
FUEL TANK (DR200SL9 E33)
FUEL TANK COVER (DR200SL9 E03)
FUEL TANK COVER (DR200SL9 E28)
FUEL TANK COVER (DR200SL9 E33)

G

GASKET SET
GEAR SHIFTING

H

HANDLE LEVER
HANDLE SWITCH
HANDLEBAR
HEADLAMP
HEADLAMP COVER

L

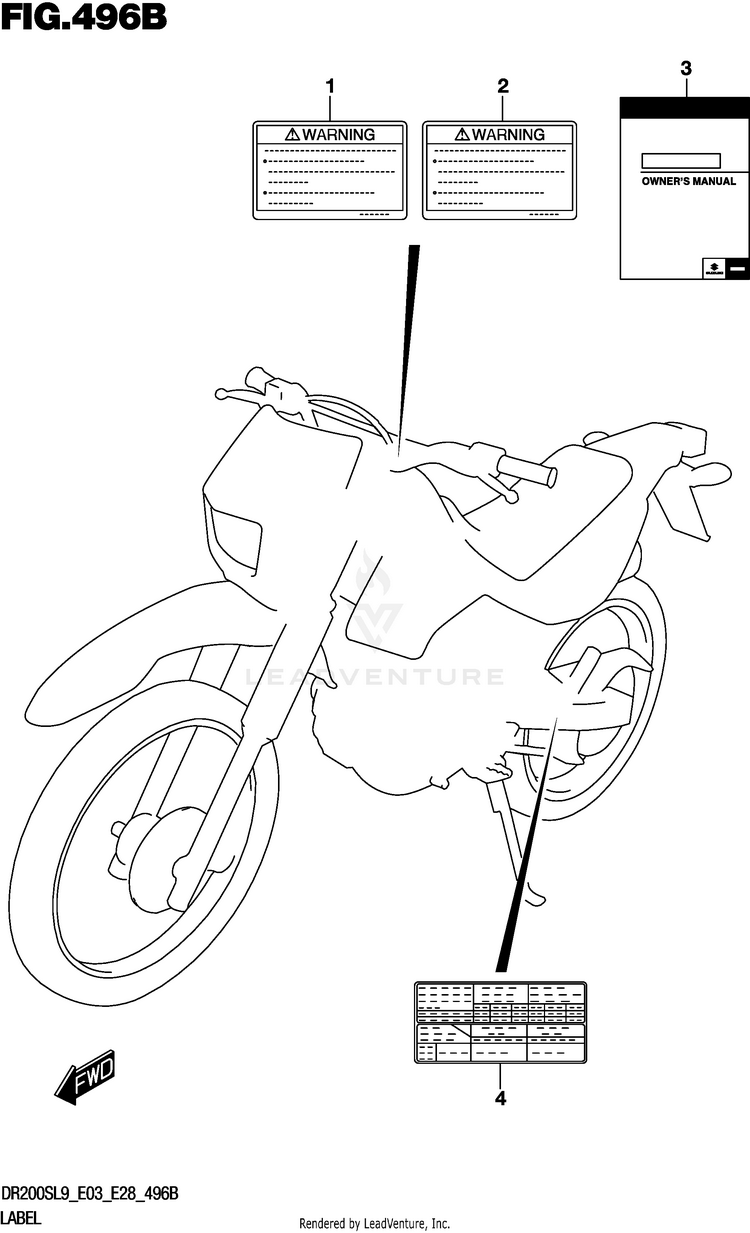

LABEL (DR200SL9 E03)
LABEL (DR200SL9 E28)
LABEL (DR200SL9 E33)

M

MAGNETO
MUFFLER

O

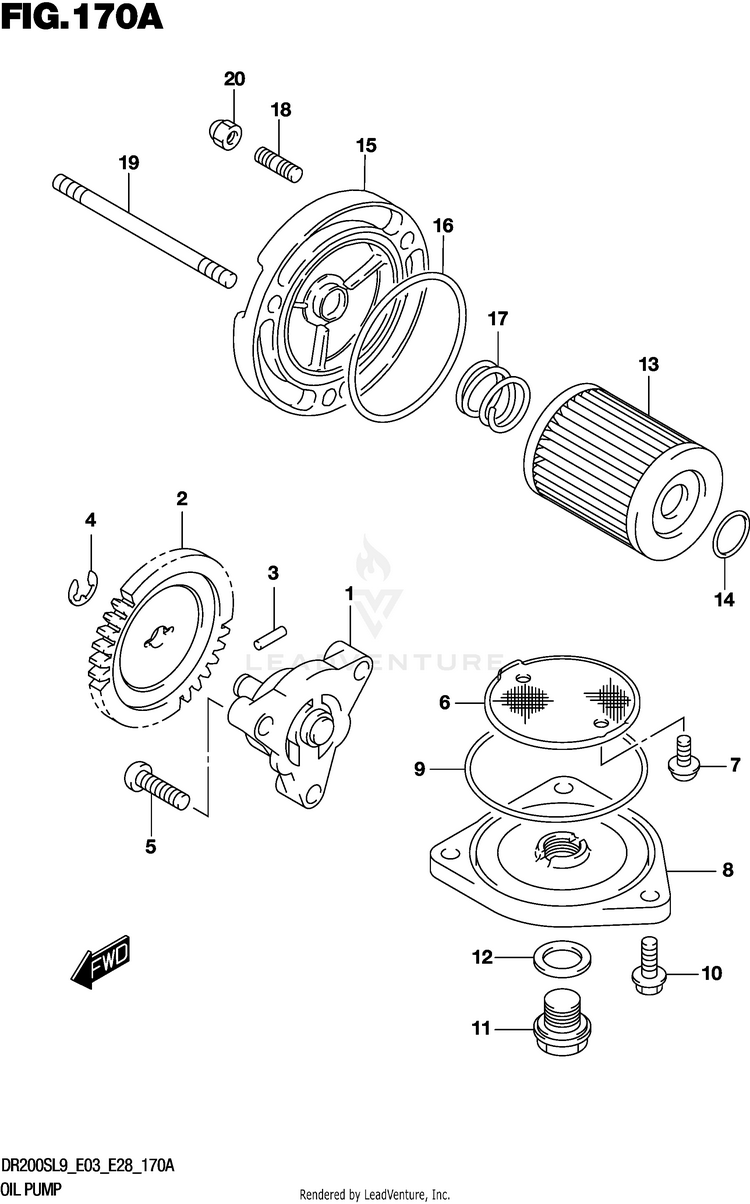

OIL PUMP
OPTIONAL
OPTIONAL (KNUCKLE COVER SET)

R

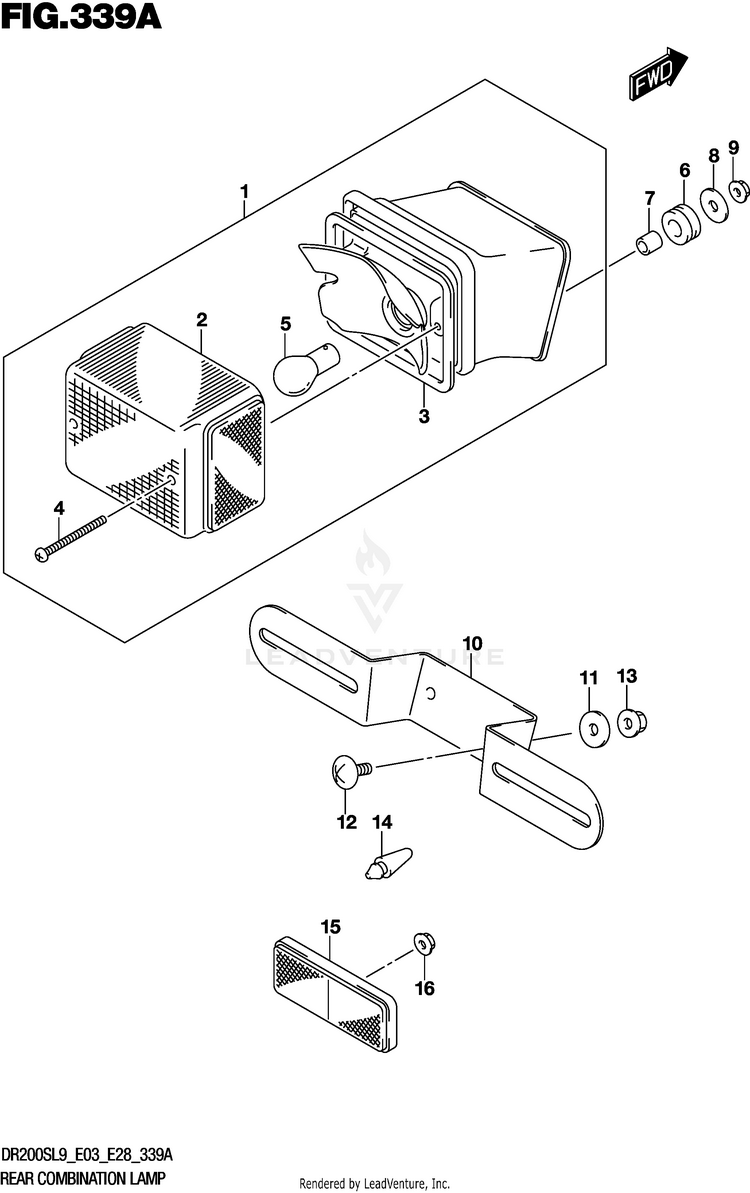

REAR COMBINATION LAMP
REAR CUSHION LEVER
REAR FENDER
REAR SWINGINGARM
REAR WHEEL

S

SEAT
SPEEDOMETER (DR200SL9 E03)
SPEEDOMETER (DR200SL9 E28)
SPEEDOMETER (DR200SL9 E33)
STAND
STARTER CLUTCH
STARTING MOTOR
STEERING STEM

T

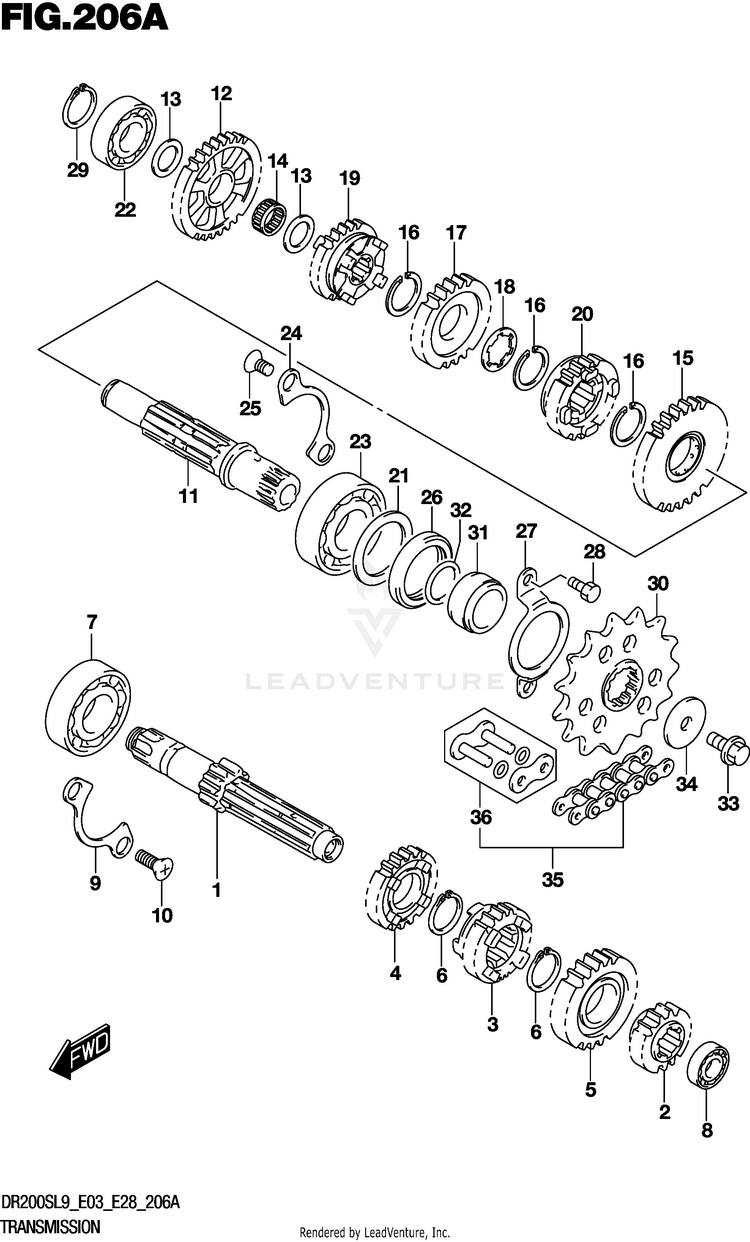

TRANSMISSION
TURNSIGNAL LAMP

W

WIRING HARNESS (DR200SL9 E03)
WIRING HARNESS (DR200SL9 E28)
WIRING HARNESS (DR200SL9 E33)
