2016 Suzuki VL1500TL6 (2016) OEM Parts | Assembly Diagrams Lookup OEM Parts Finder and Diagram (Microfiche) Inspector

Suzuki Choose an assembly...

Assemblies List (73)

2ND AIR
AIR CLEANER
BATTERY
BATTERY HOLDER
CAM CHAIN
CAMSHAFT/VALVE
CLUTCH
CRANKCASE
CRANKCASE COVER

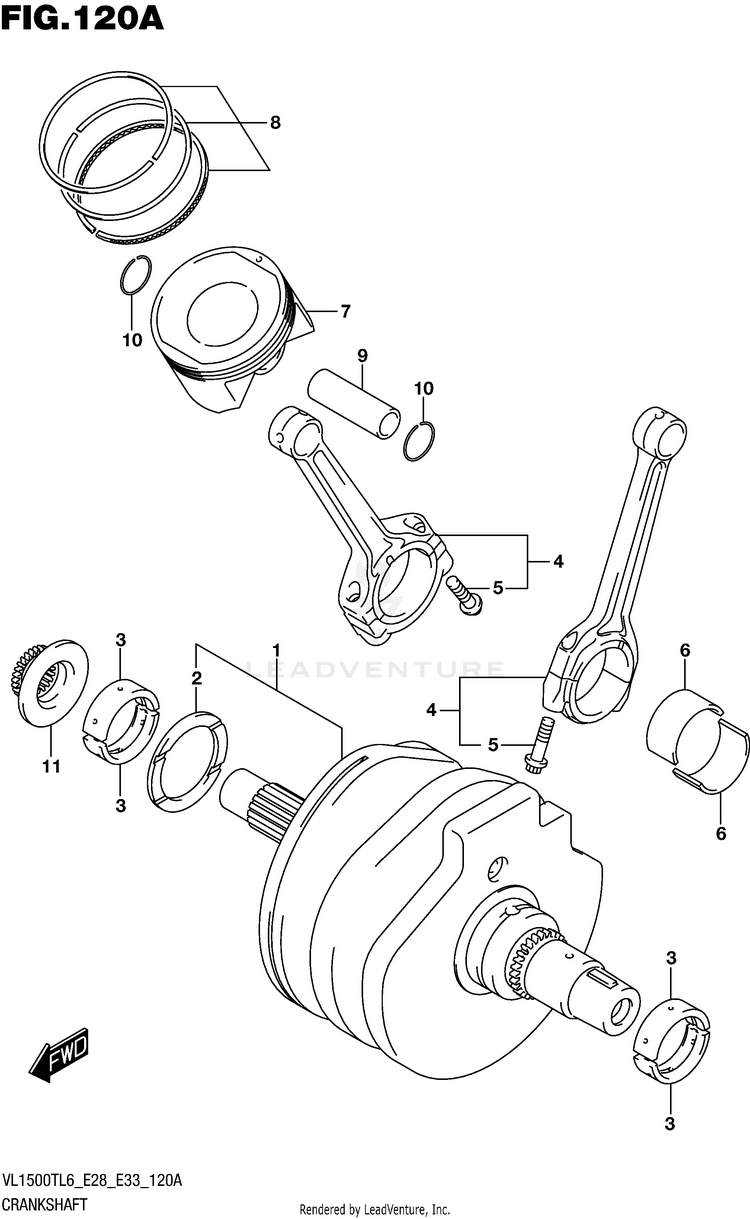

CRANKSHAFT

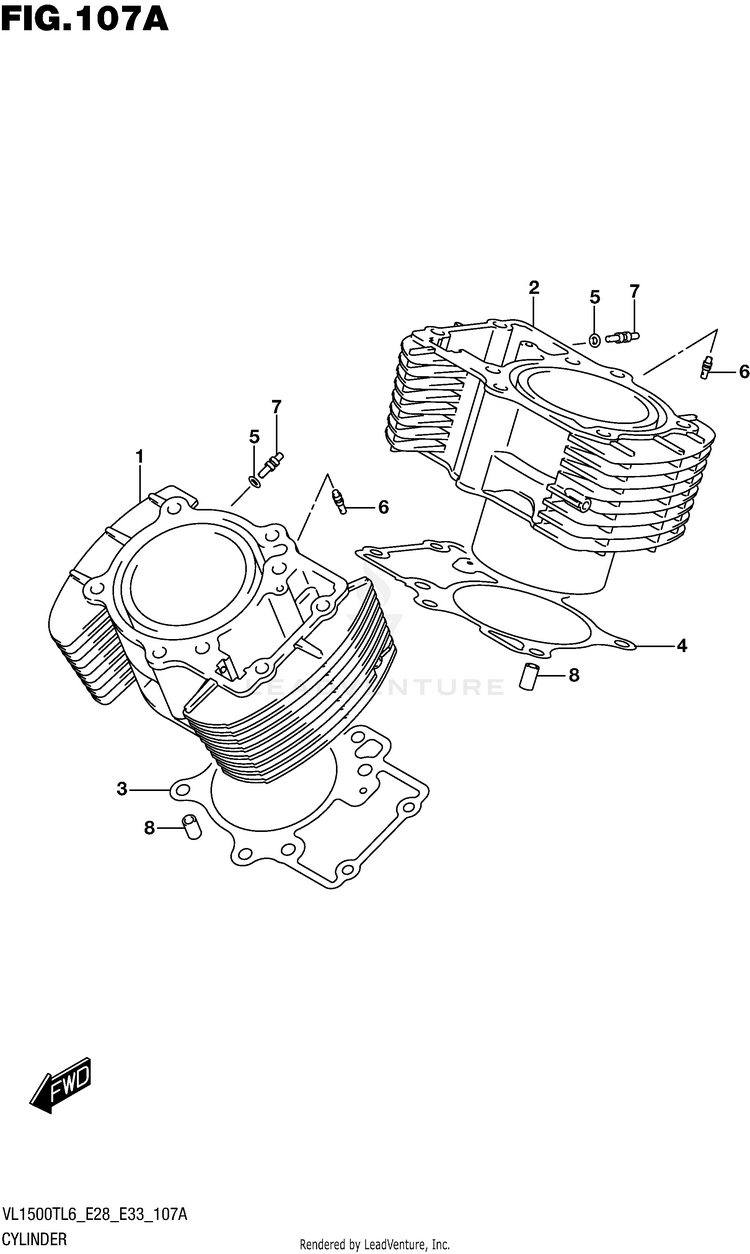

CYLINDER
CYLINDER HEAD (FRONT)
CYLINDER HEAD (REAR)
ELECTRICAL (VL1500TL6 E28)
ELECTRICAL (VL1500TL6 E33)
EVAP SYSTEM (VL1500TL6 E33)
FOOTREST
FRAME
FRAME COVER
FRAME HEAD COVER
FRONT CALIPER
FRONT FENDER

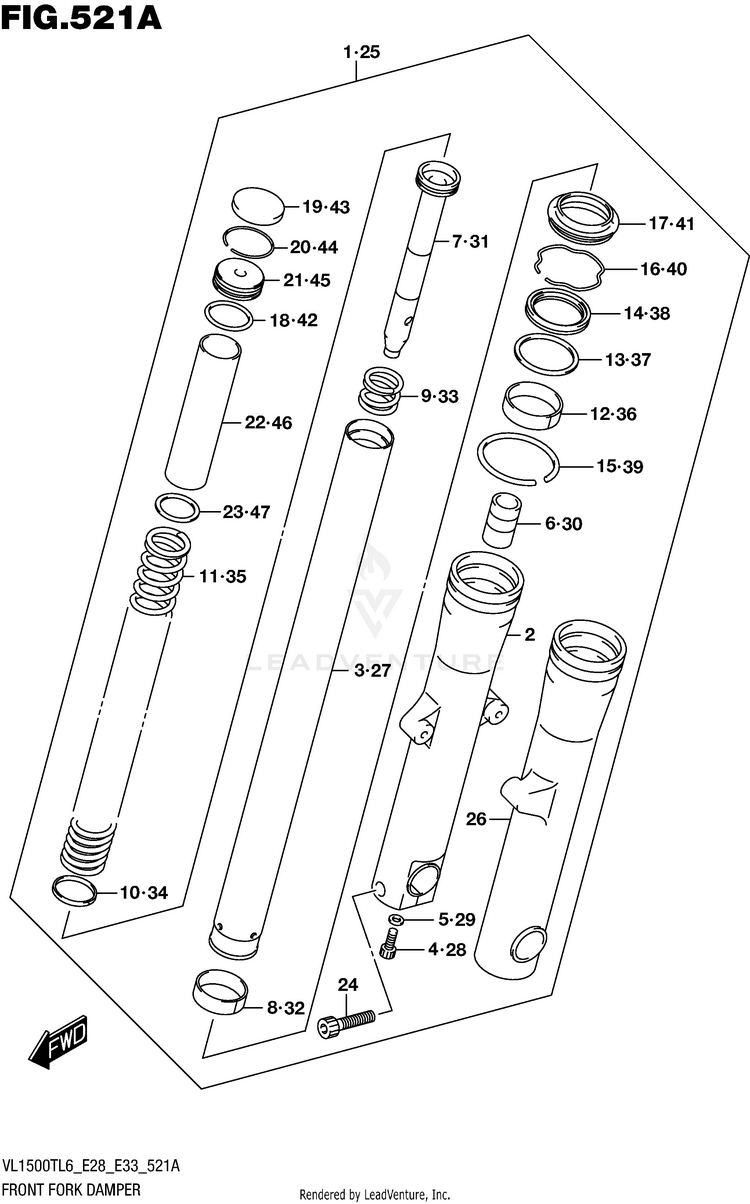

FRONT FORK DAMPER
FRONT MASTER CYLINDER
FRONT TURNSIGNAL LAMP
FRONT WHEEL
FUEL PUMP
FUEL TANK (VL1500TL6 E28)
FUEL TANK (VL1500TL6 E33)
FUEL TANK FRONT COVER
GASKET SET
GEAR SHIFTING
HANDLE LEVER
HANDLE SWITCH

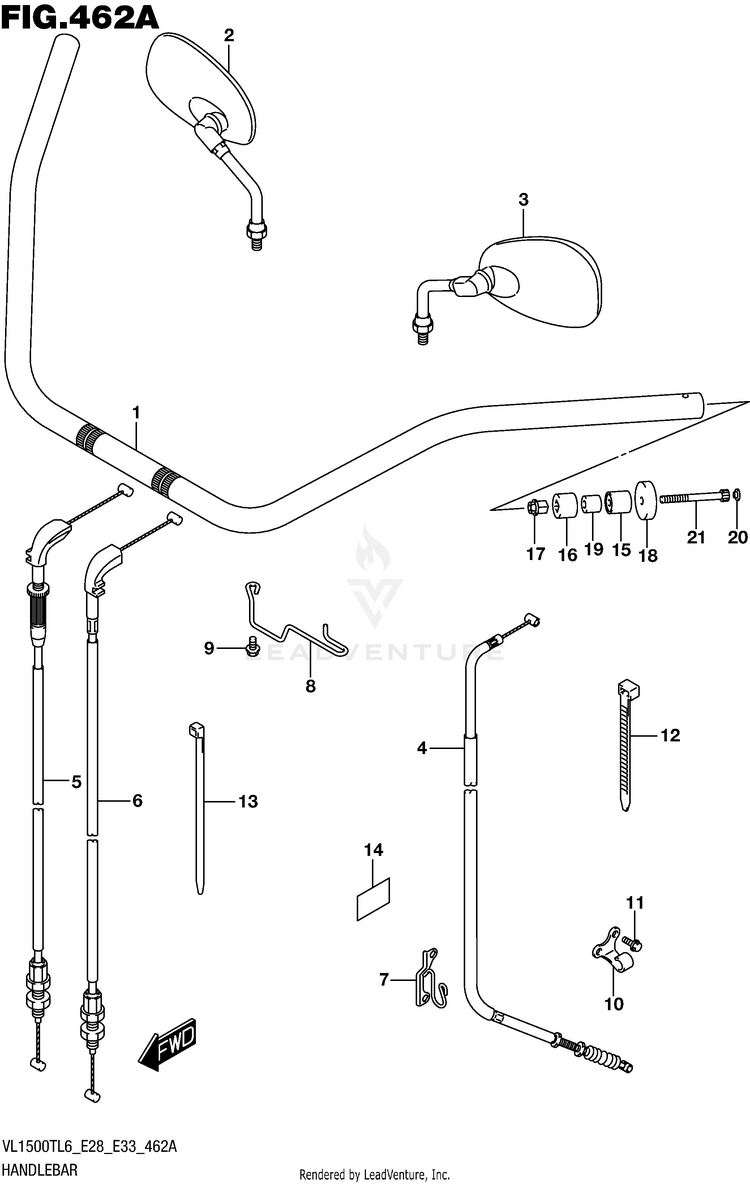

HANDLEBAR
HEADLAMP
HEADLAMP HOUSING
LABEL (VL1500TL6 E28)
LABEL (VL1500TL6 E33)
LOCK SET
MAGNETO
MUFFLER
OIL PUMP
OPTIONAL
PROPELLER SHAFT/FINAL DRIVE GEAR

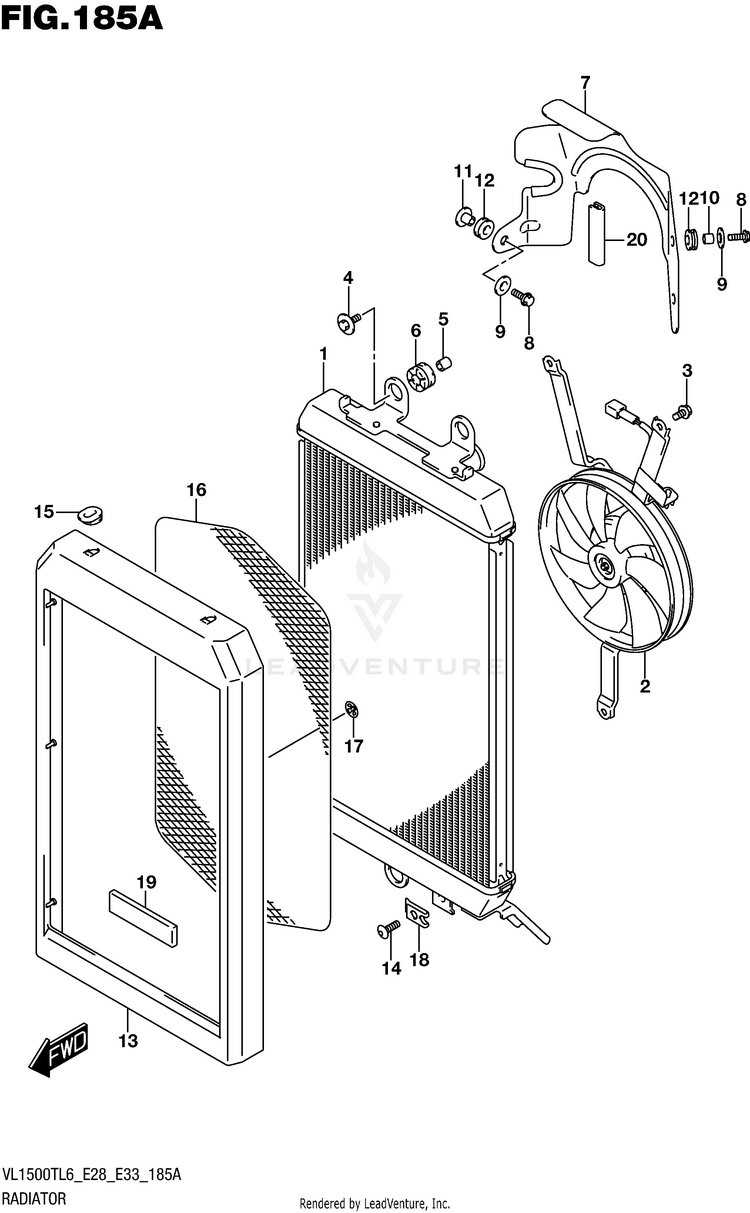

RADIATOR
RADIATOR HOSE (VL1500TL6 E28)
RADIATOR HOSE (VL1500TL6 E33)
REAR CALIPER
REAR COMBINATION LAMP
REAR CUSHION LEVER
REAR FENDER
REAR FRAME
REAR MASTER CYLINDER
REAR SWINGINGARM
REAR TURNSIGNAL LAMP
REAR WHEEL
SEAT

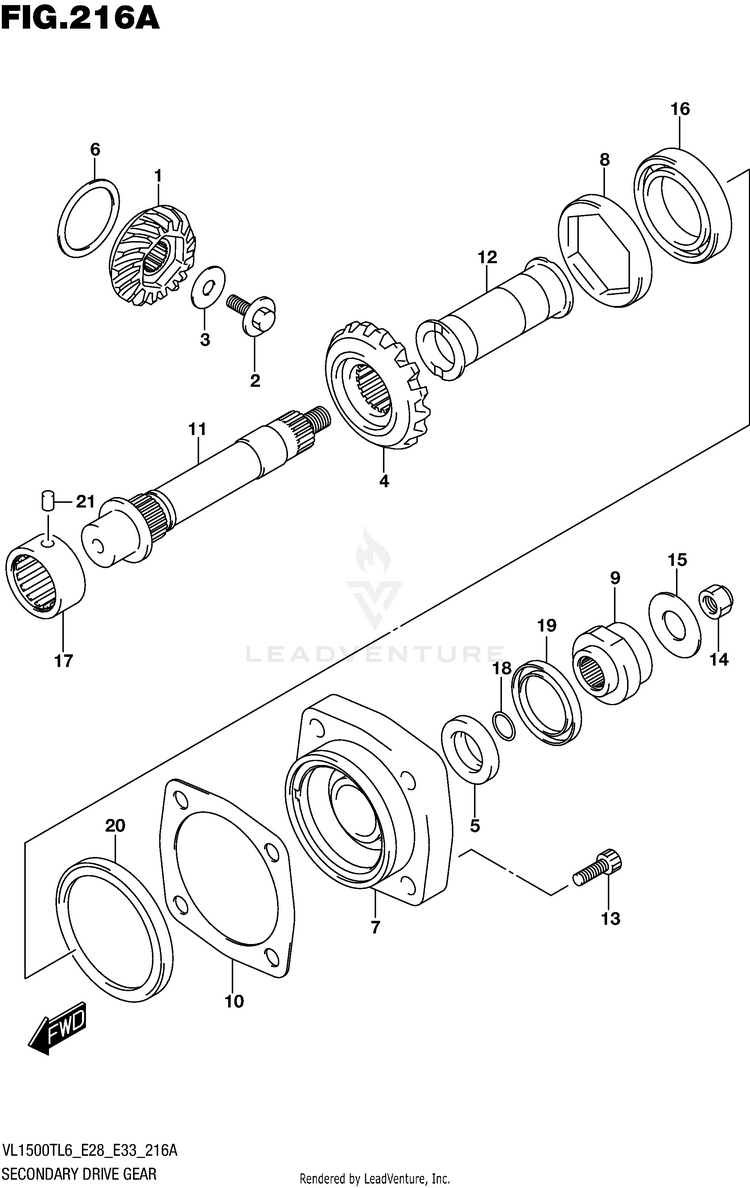

SECONDARY DRIVE GEAR
SIDE BAG
SPEEDOMETER (VL1500TL6 E28)
SPEEDOMETER (VL1500TL6 E33)
STAND
STARTER CLUTCH
STARTING MOTOR
STEERING STEM
THROTTLE BODY (VL1500TL6 E28)
THROTTLE BODY (VL1500TL6 E33)
TRANSMISSION
WATER PUMP
WINDSCREEN
WIRING HARNESS (VL1500TL6 E28)
WIRING HARNESS (VL1500TL6 E33)

#
