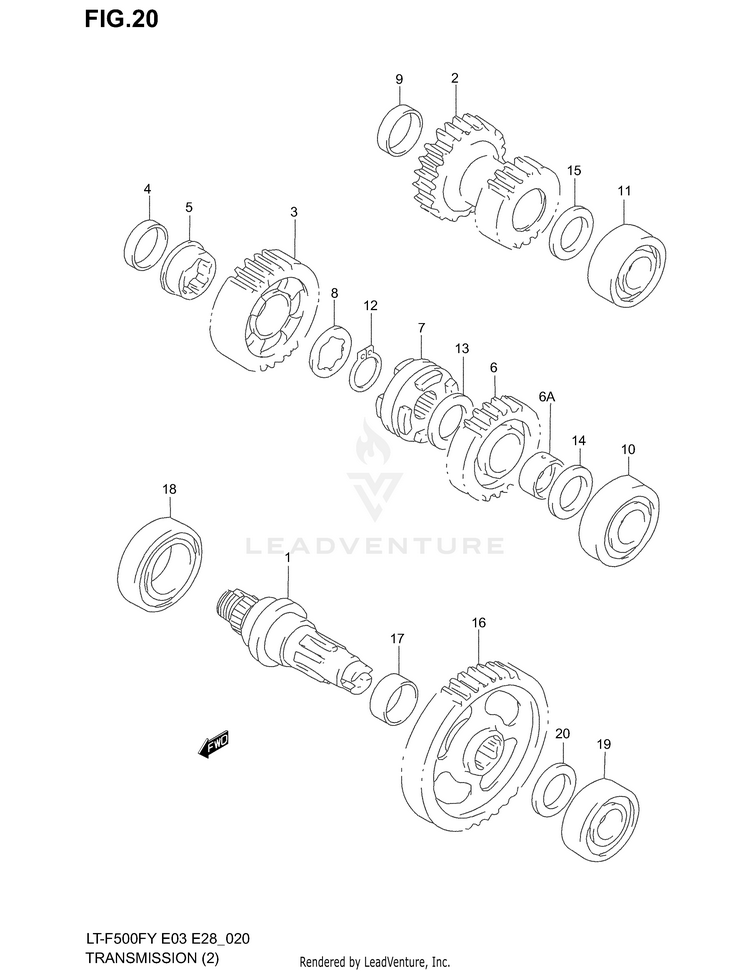

2002 Suzuki LT-F500F (2002) OEM Parts | Assembly Diagrams Lookup OEM Parts Finder and Diagram (Microfiche) Inspector
Assemblies List (91)

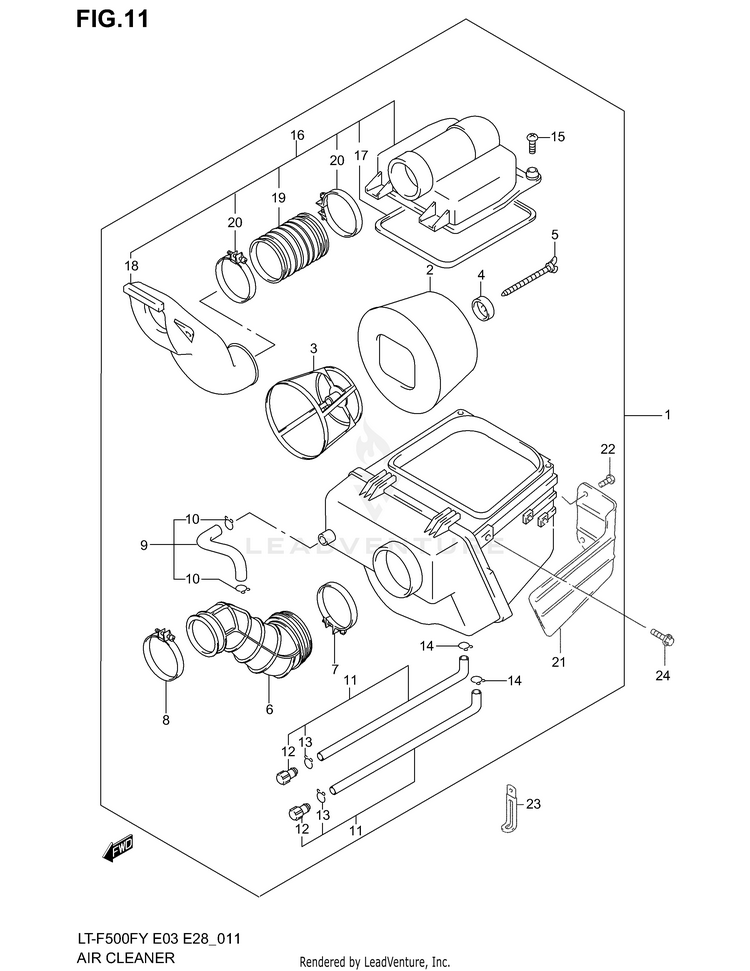

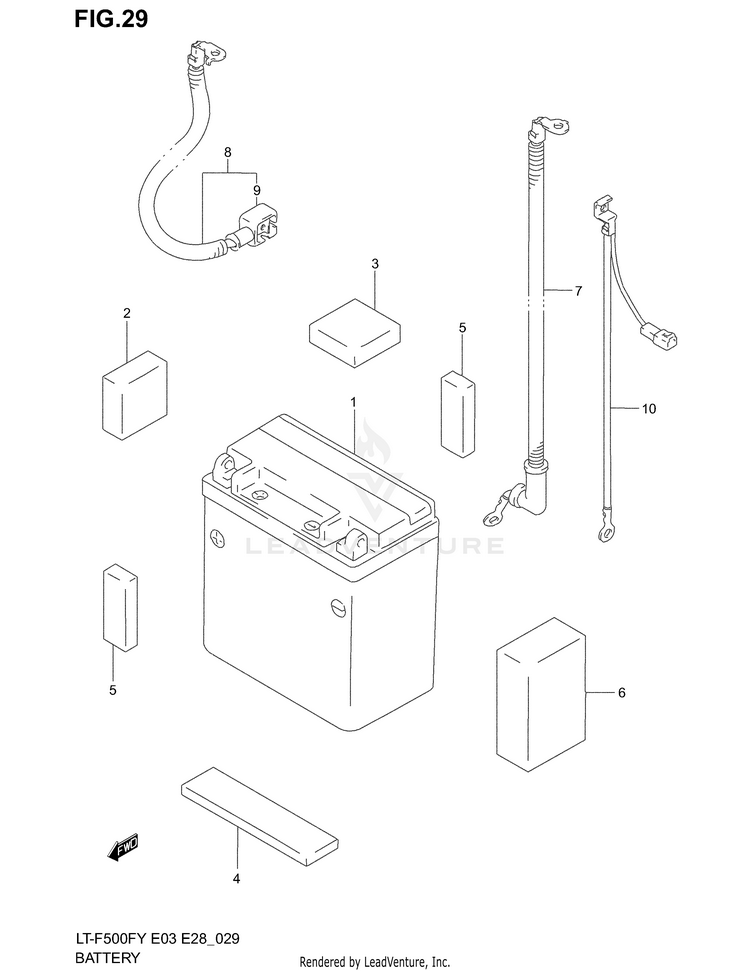

B

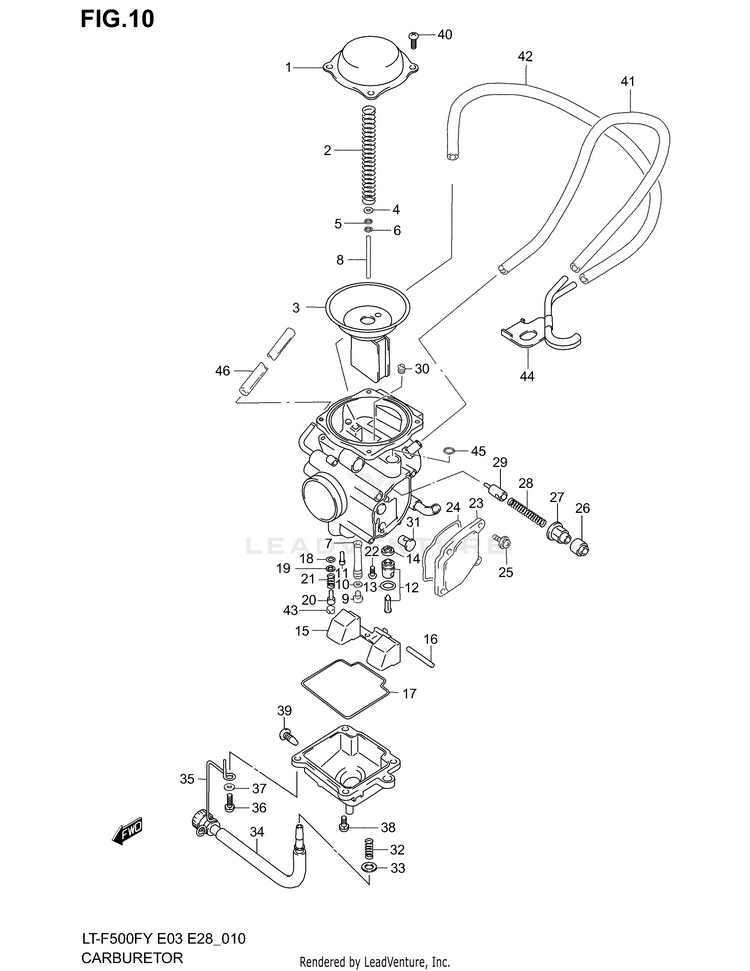

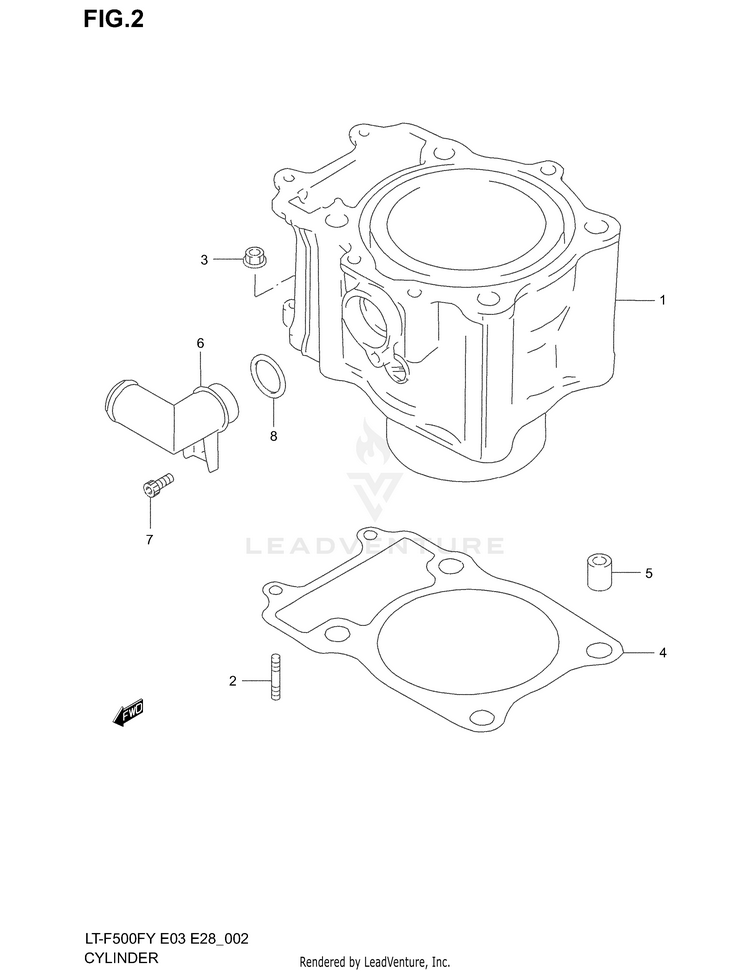

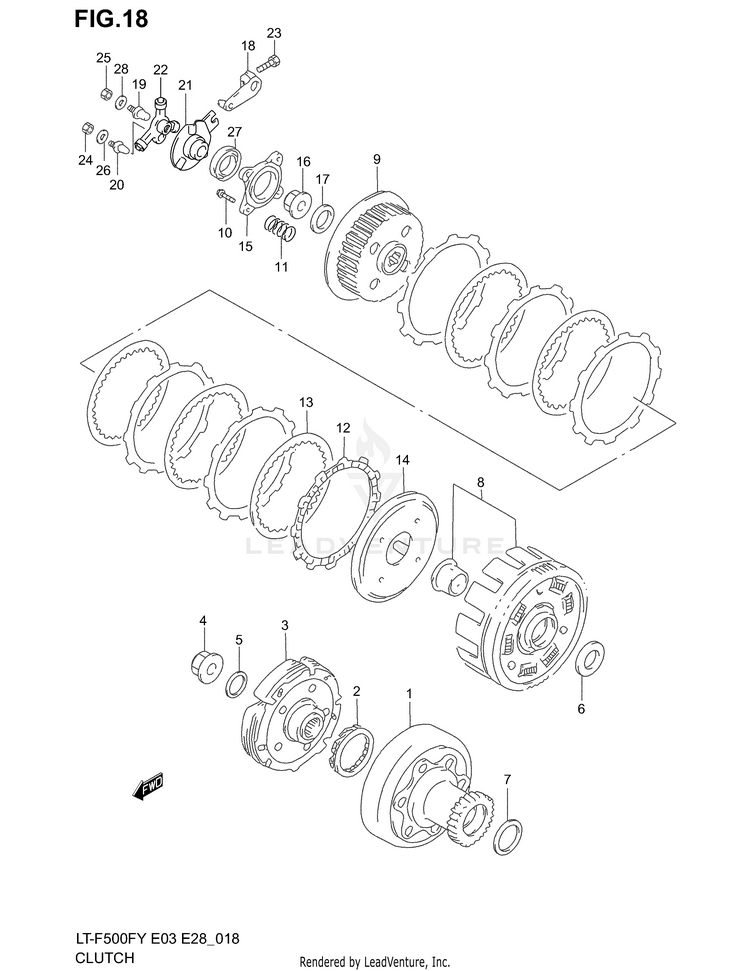

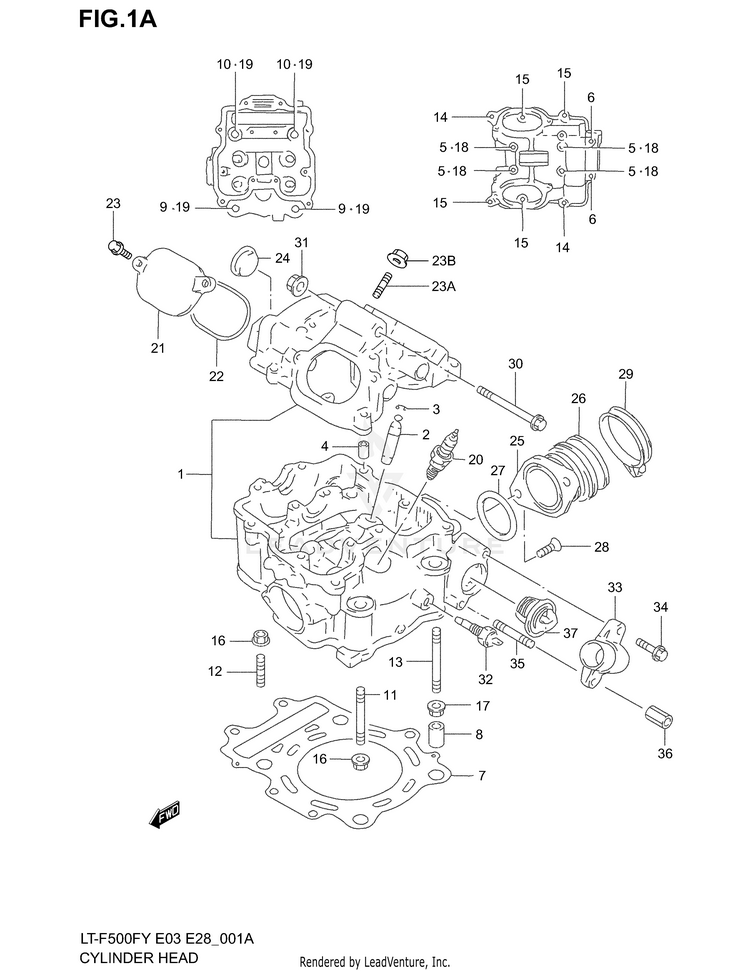

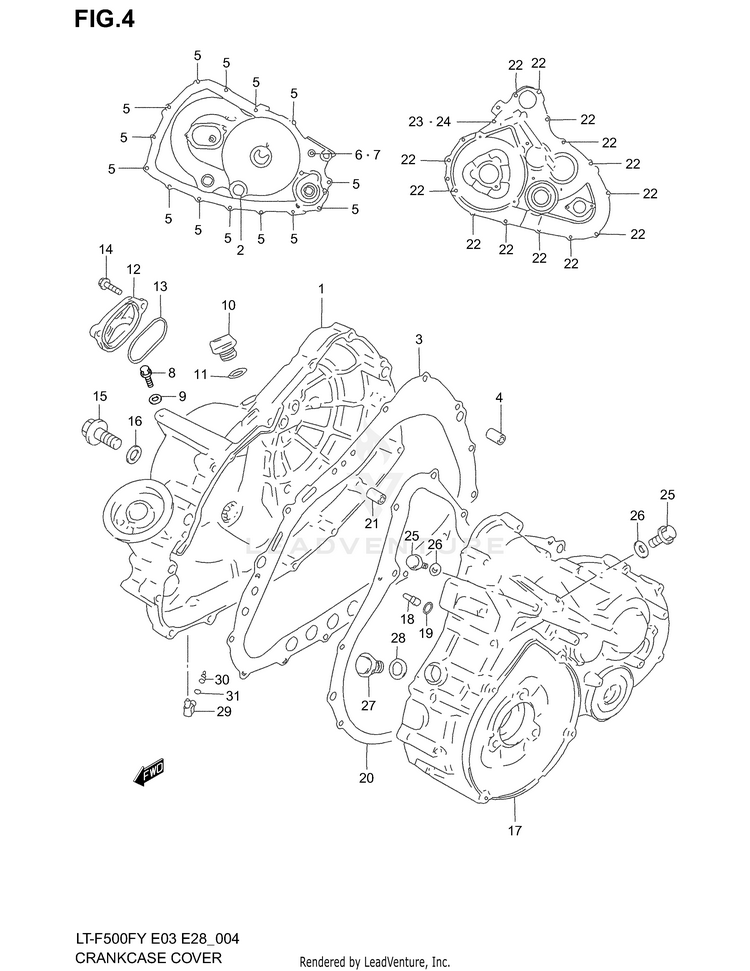

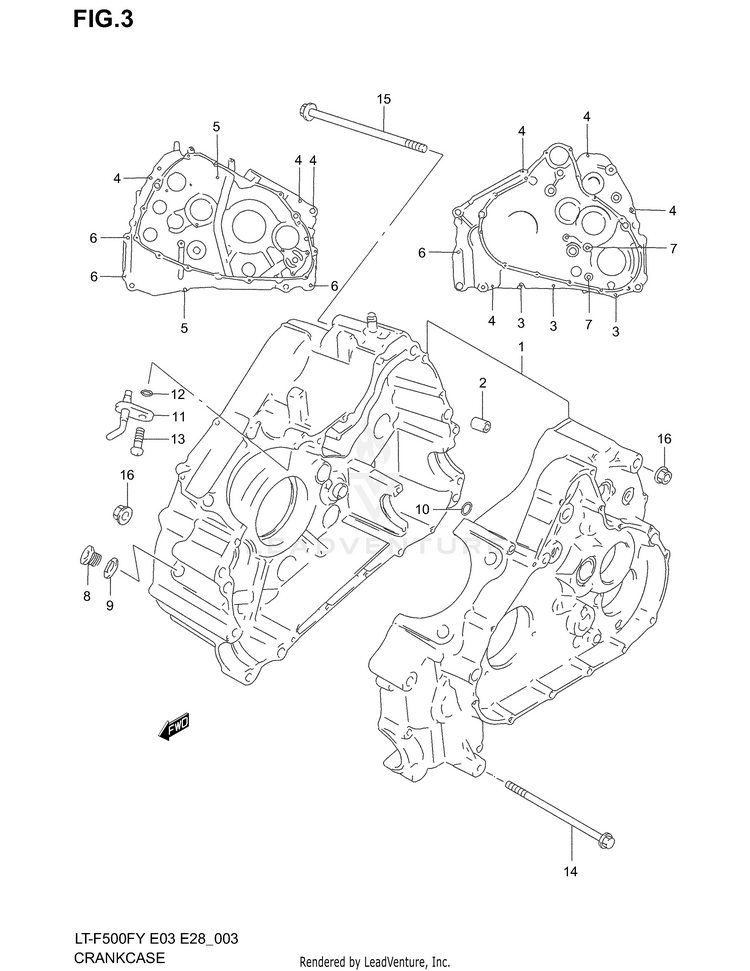

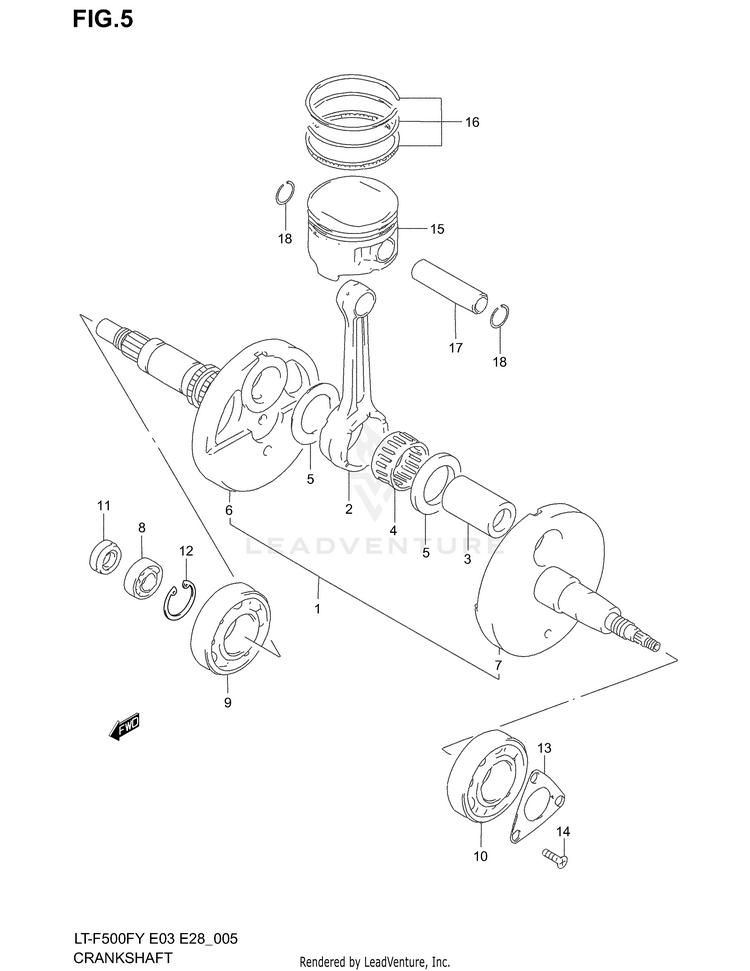

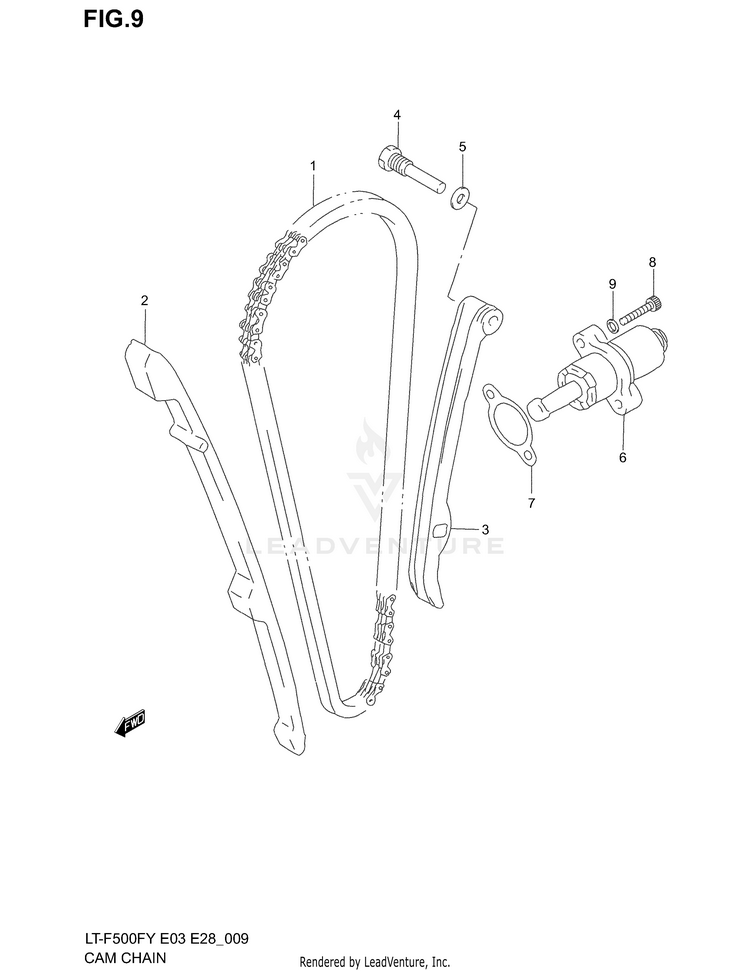

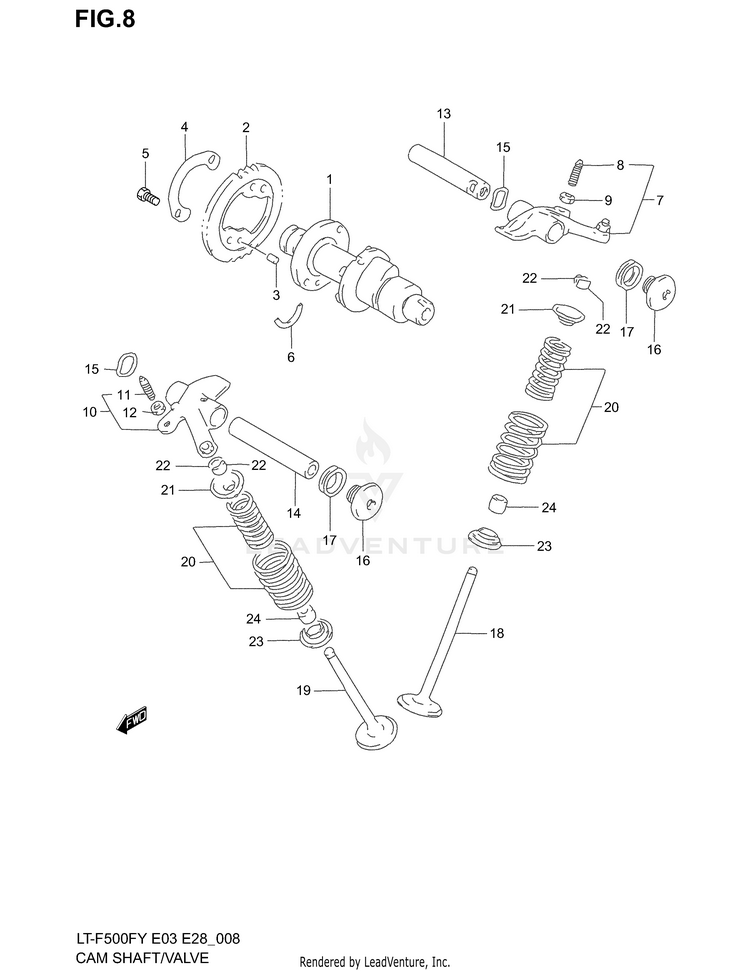

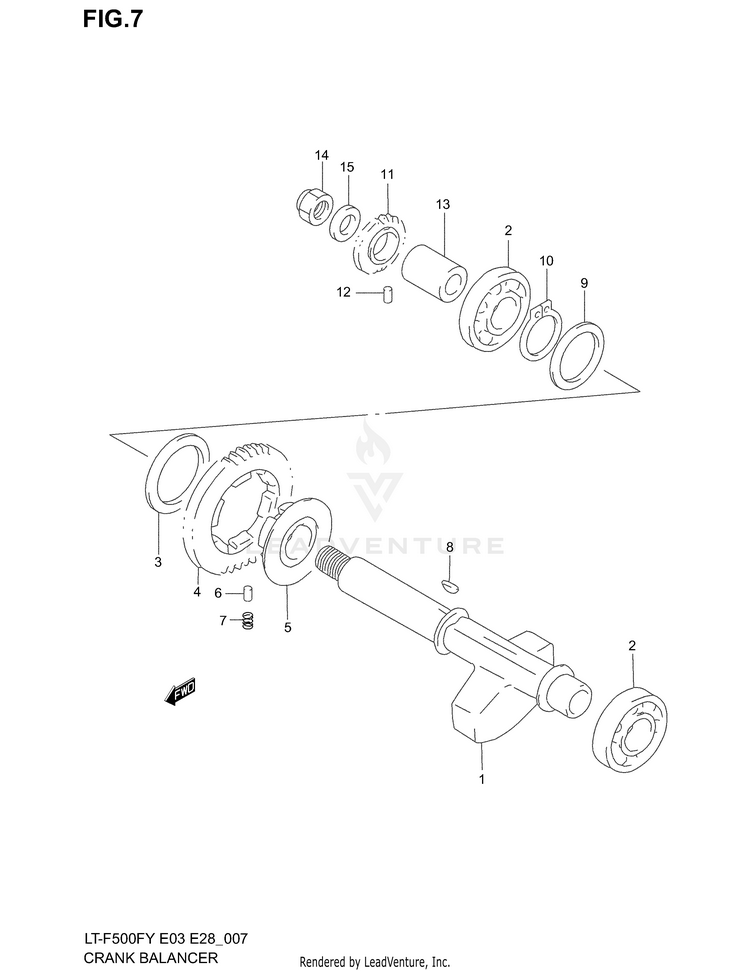

C
F

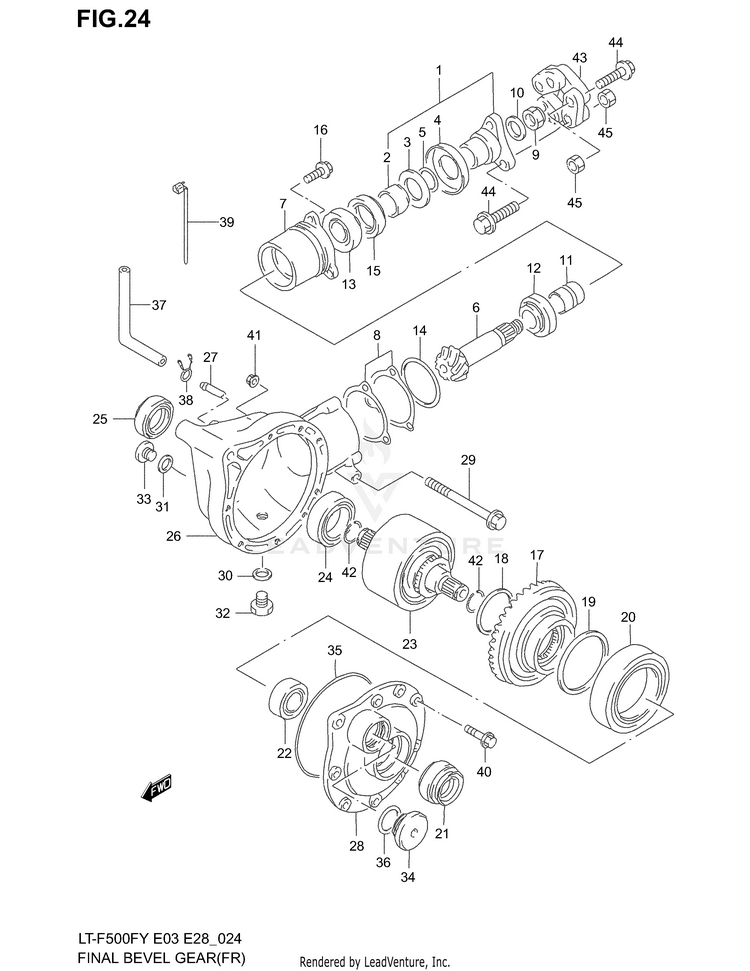

FINAL BEVEL GEAR (FRONT)(MODEL K1/K2)

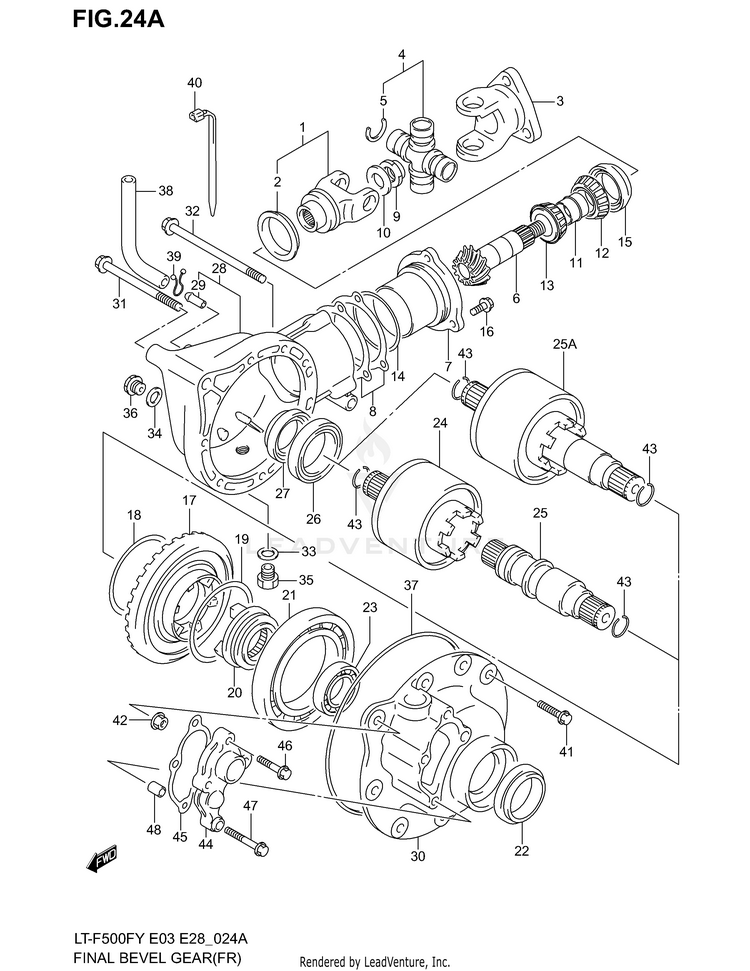

FINAL BEVEL GEAR (FRONT)(MODEL W/X/Y)

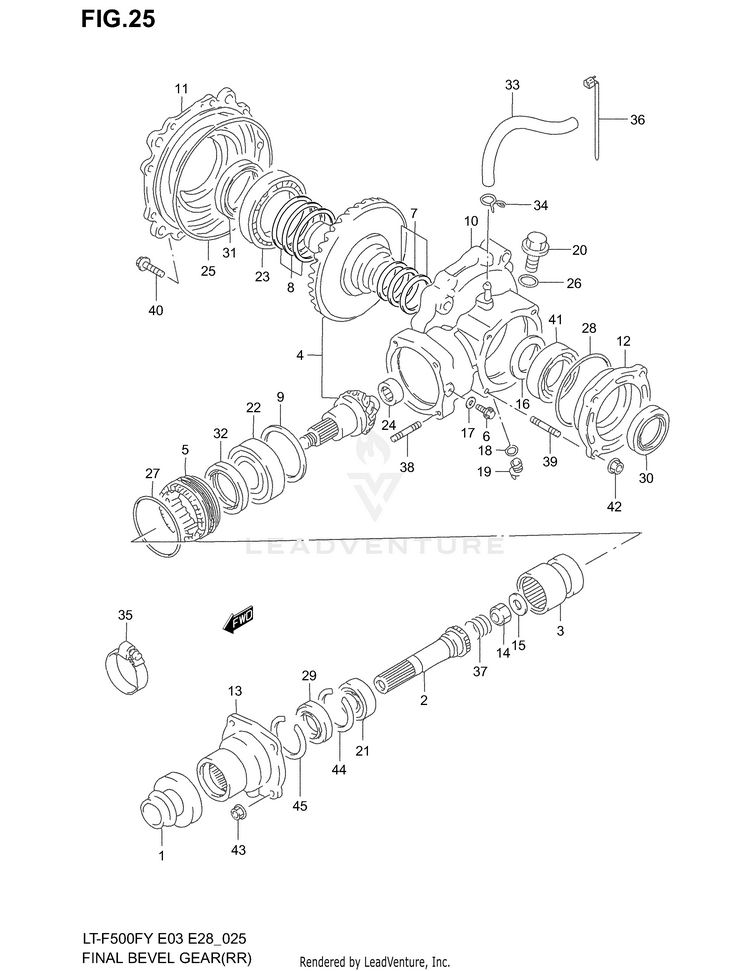

FINAL BEVEL GEAR (REAR)(MODEL K1/K2)
FINAL BEVEL GEAR (REAR)(MODEL W/X)

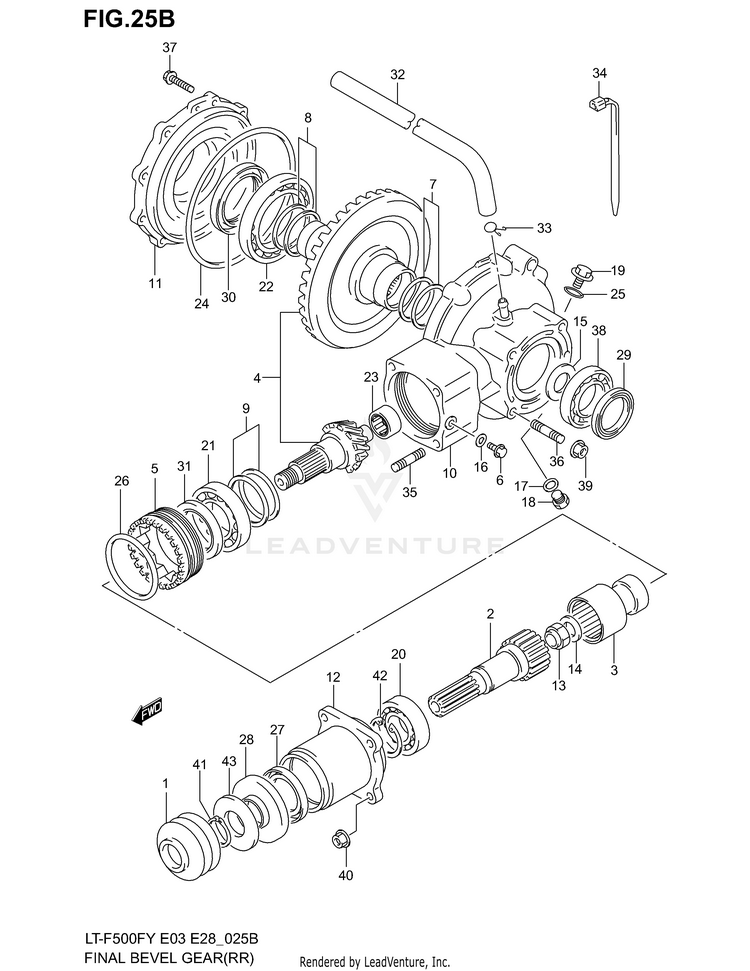

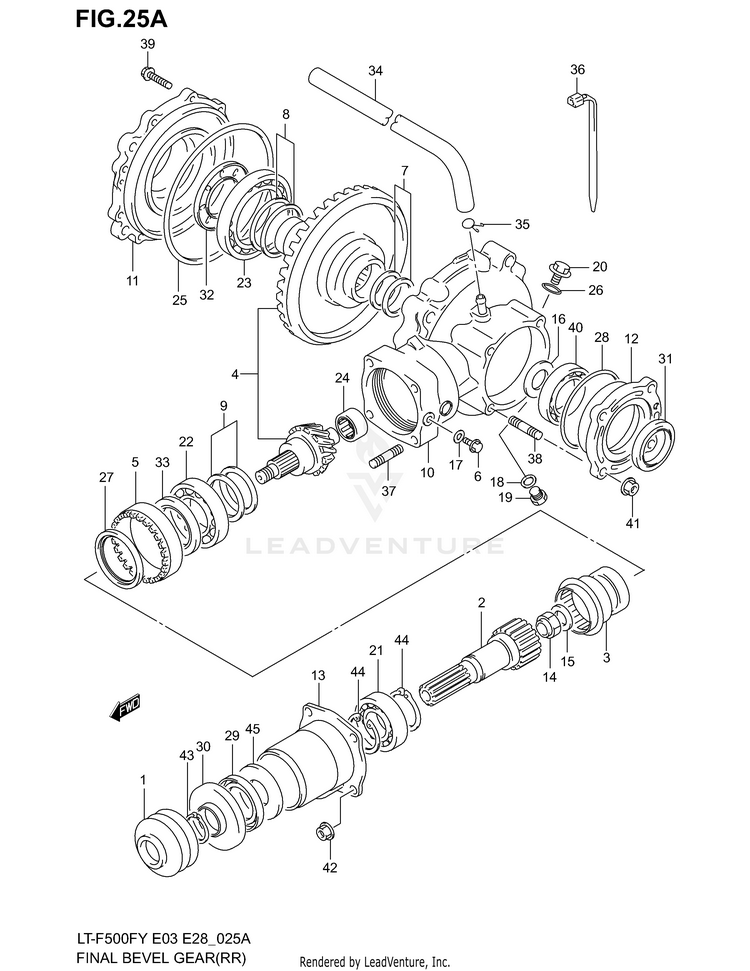

FINAL BEVEL GEAR (REAR)(MODEL Y)

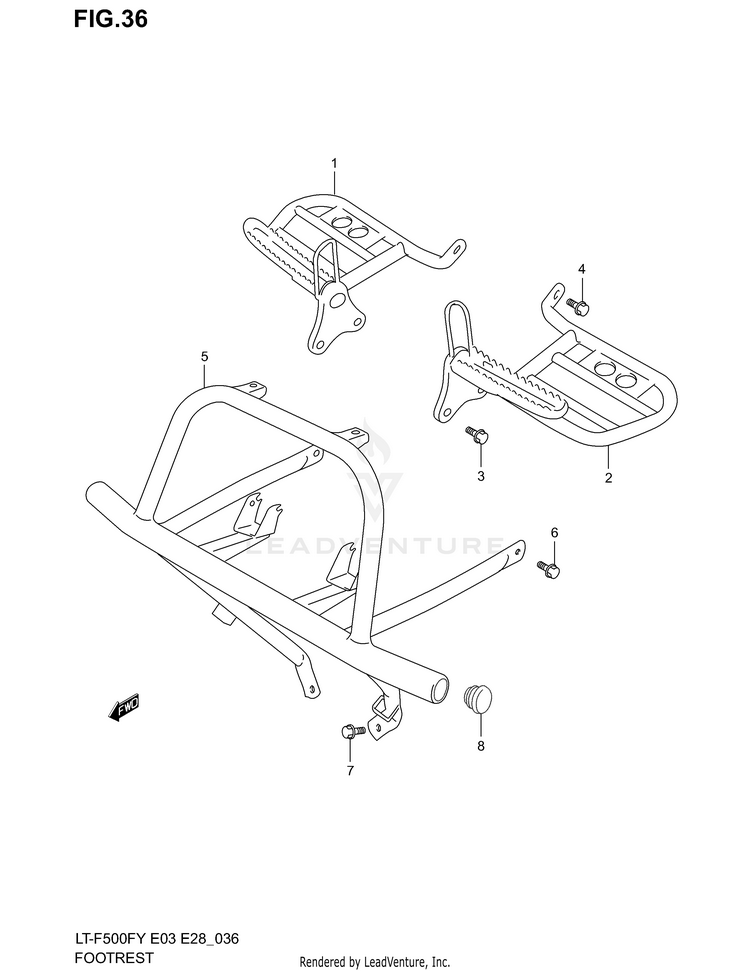

FOOTREST

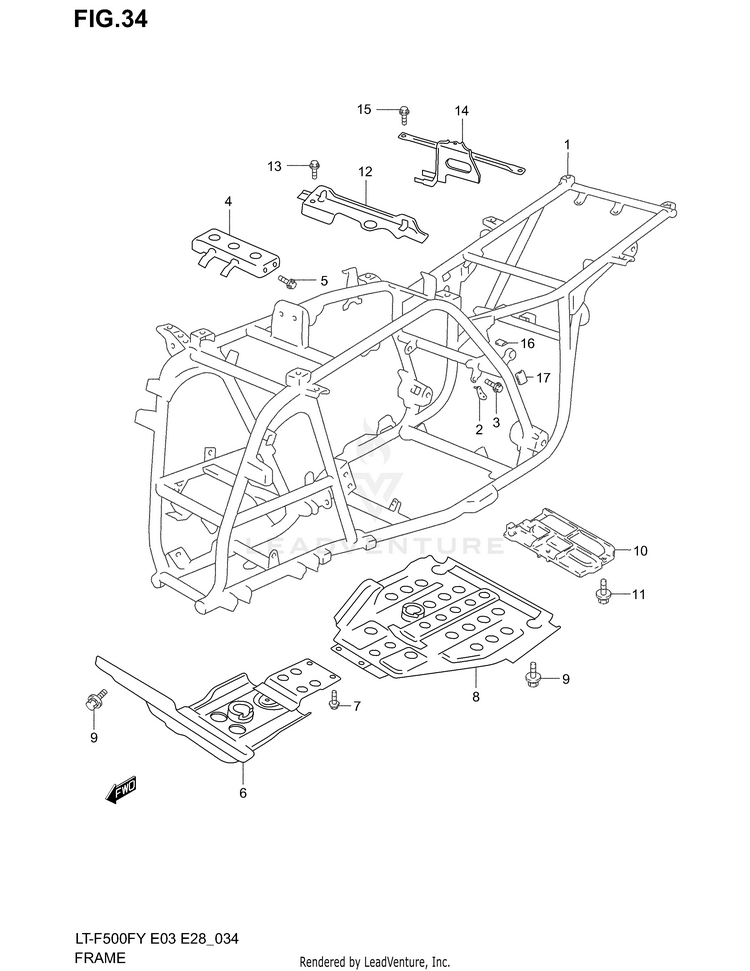

FRAME (MODEL K1/K2)

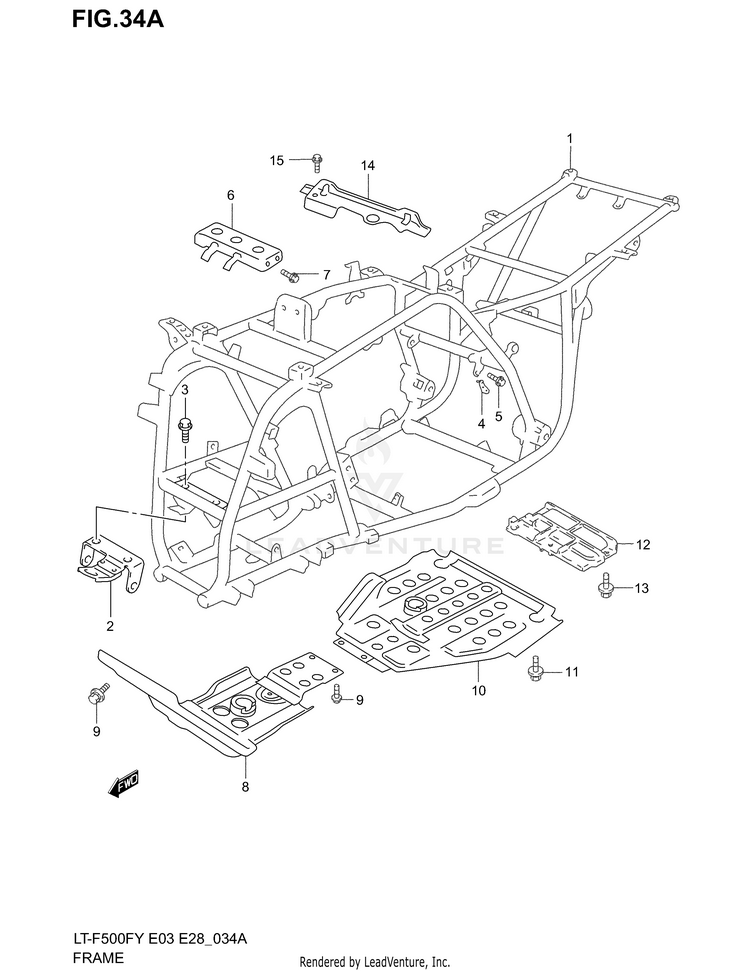

FRAME (MODEL W/X/Y)
FRONT BRAKE HOSE

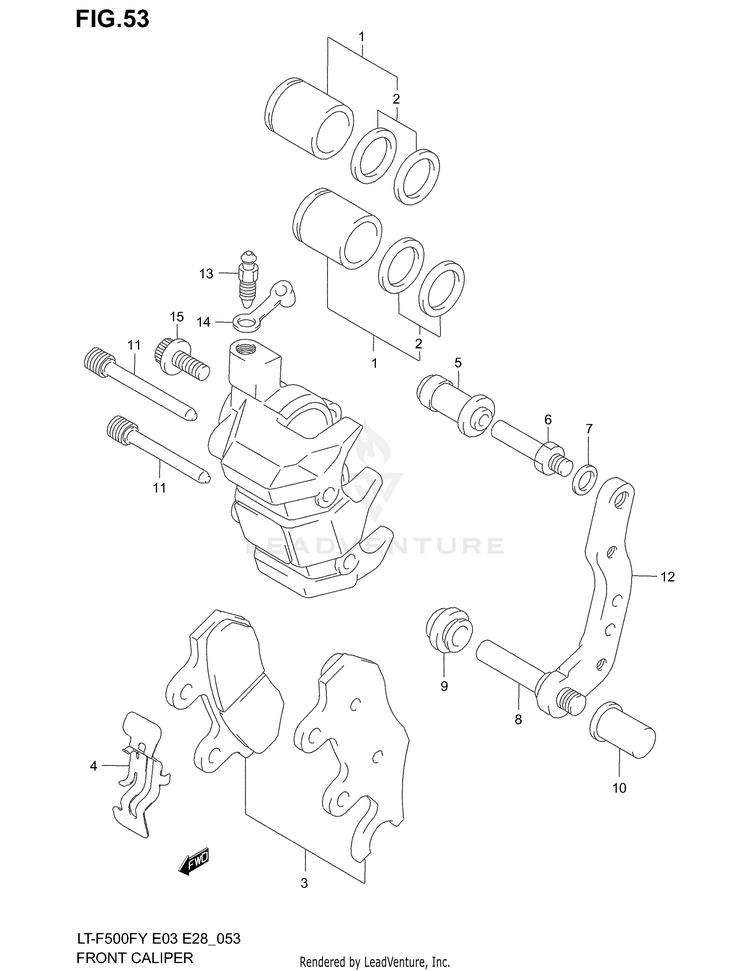

FRONT CALIPER (MODEL W/X)

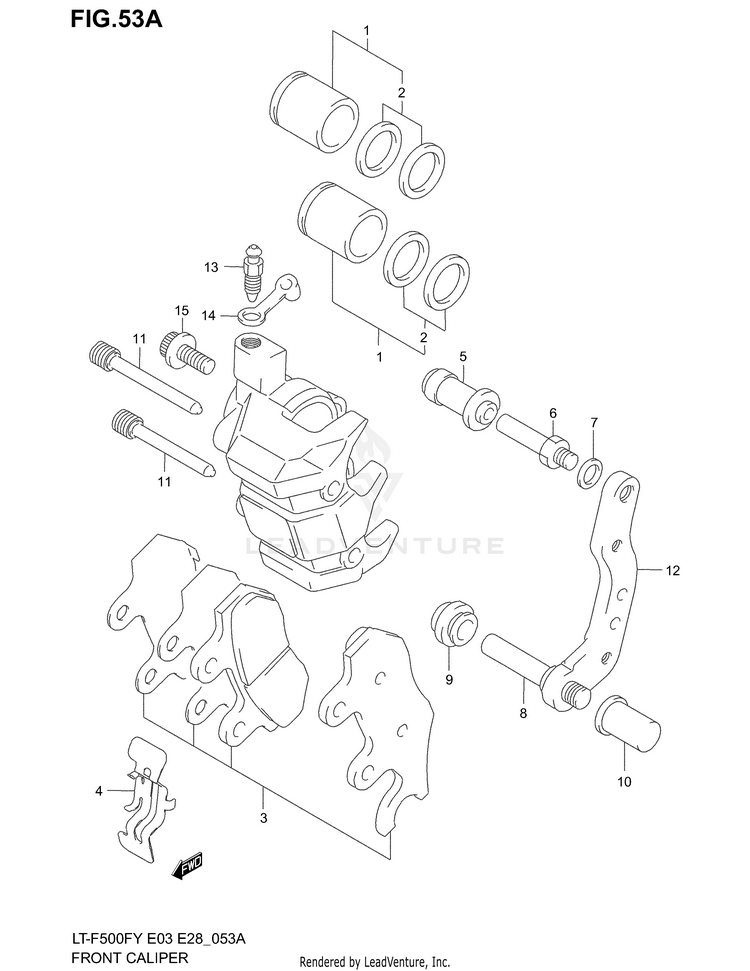

FRONT CALIPER (MODEL Y/K1/K2)

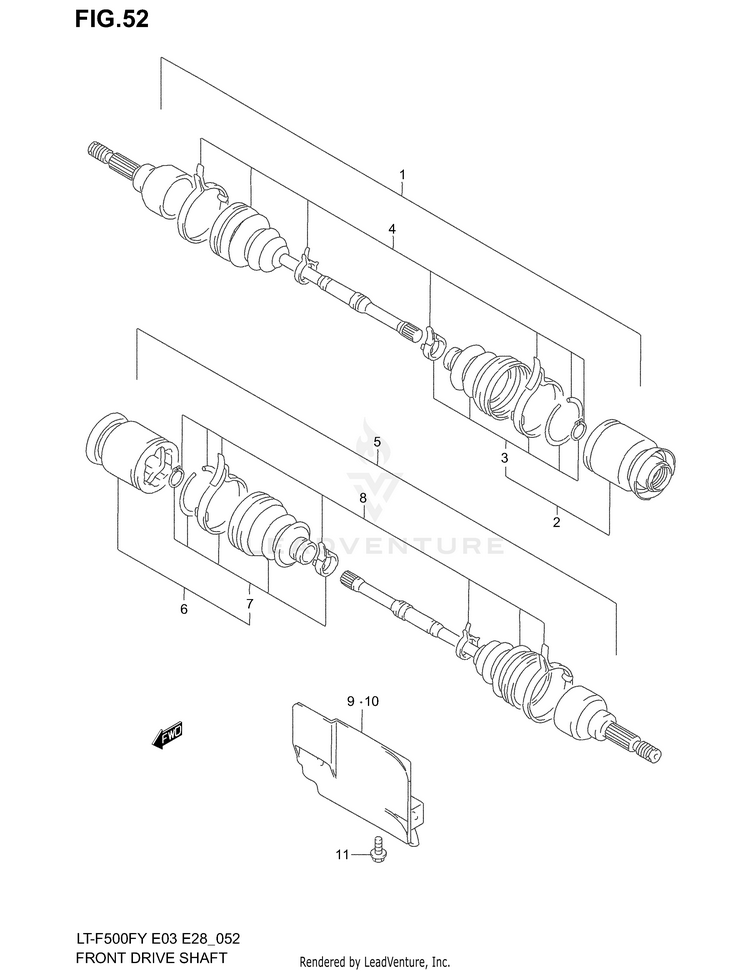

FRONT DRIVE SHAFT (MODEL K1/K2)
FRONT DRIVE SHAFT (MODEL W/X)

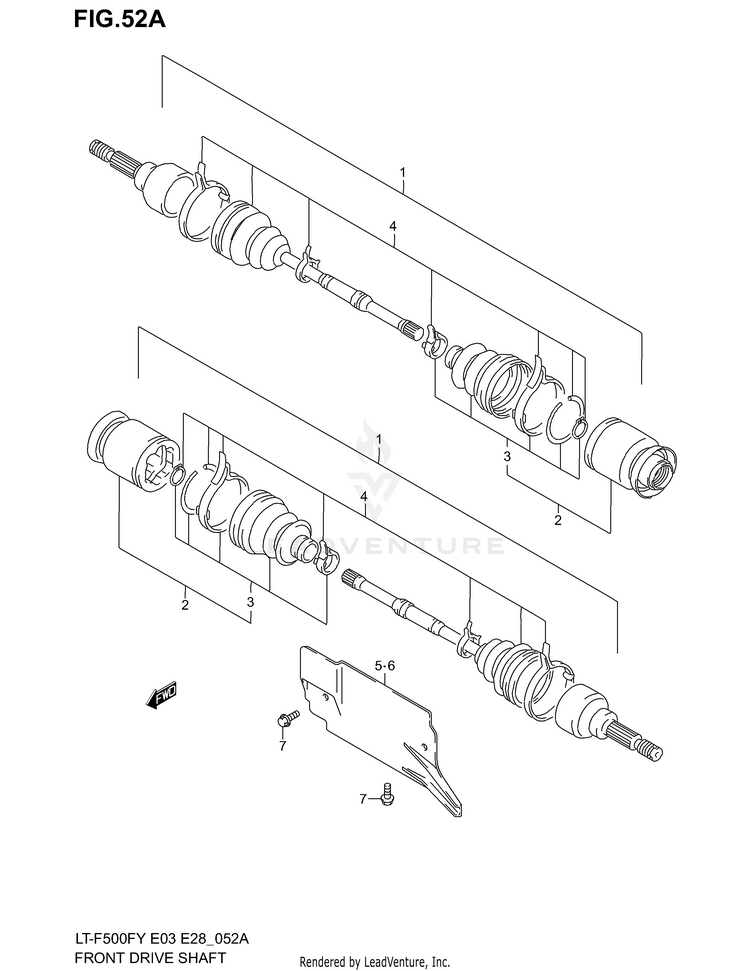

FRONT DRIVE SHAFT (MODEL Y)

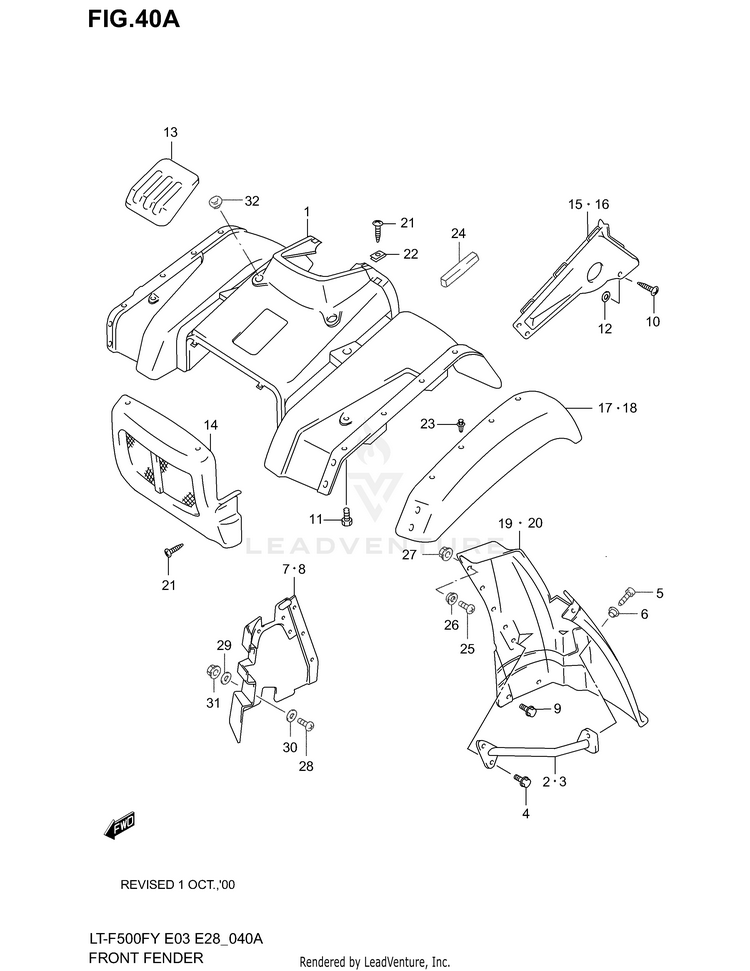

FRONT FENDER (MODEL K1/K2)
FRONT FENDER (MODEL W)

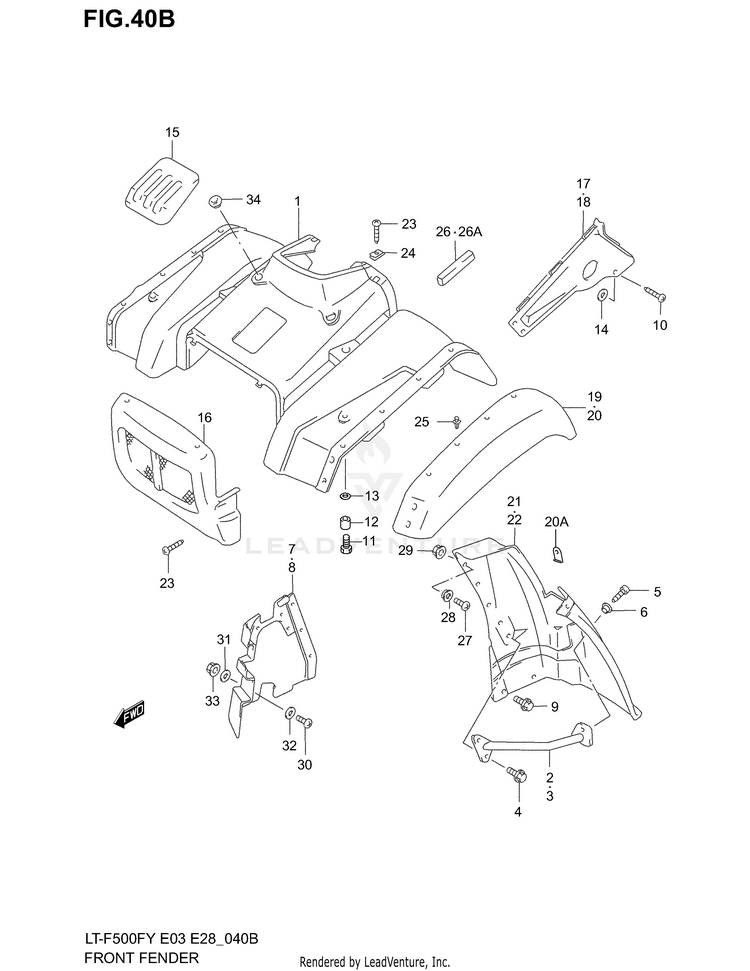

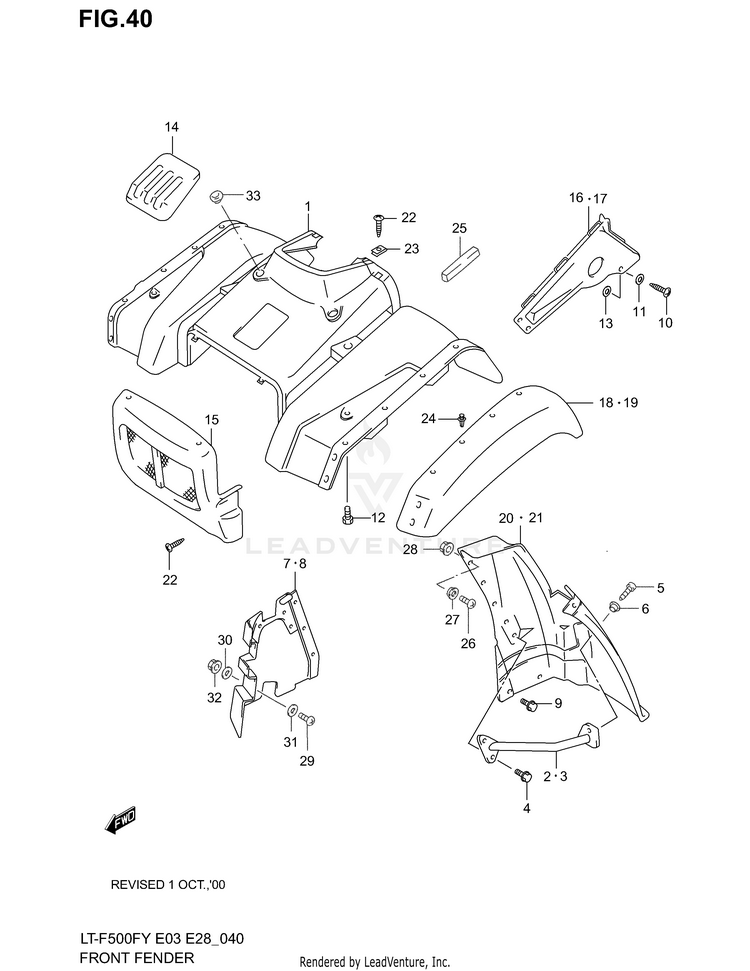

FRONT FENDER (MODEL X/Y)

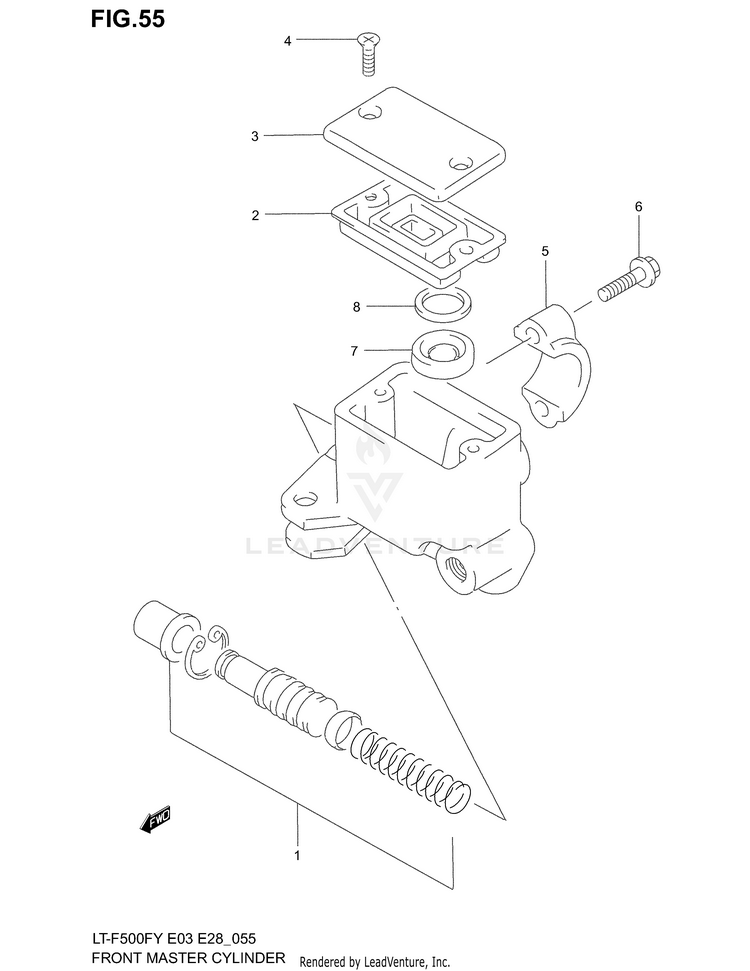

FRONT MASTER CYLINDER

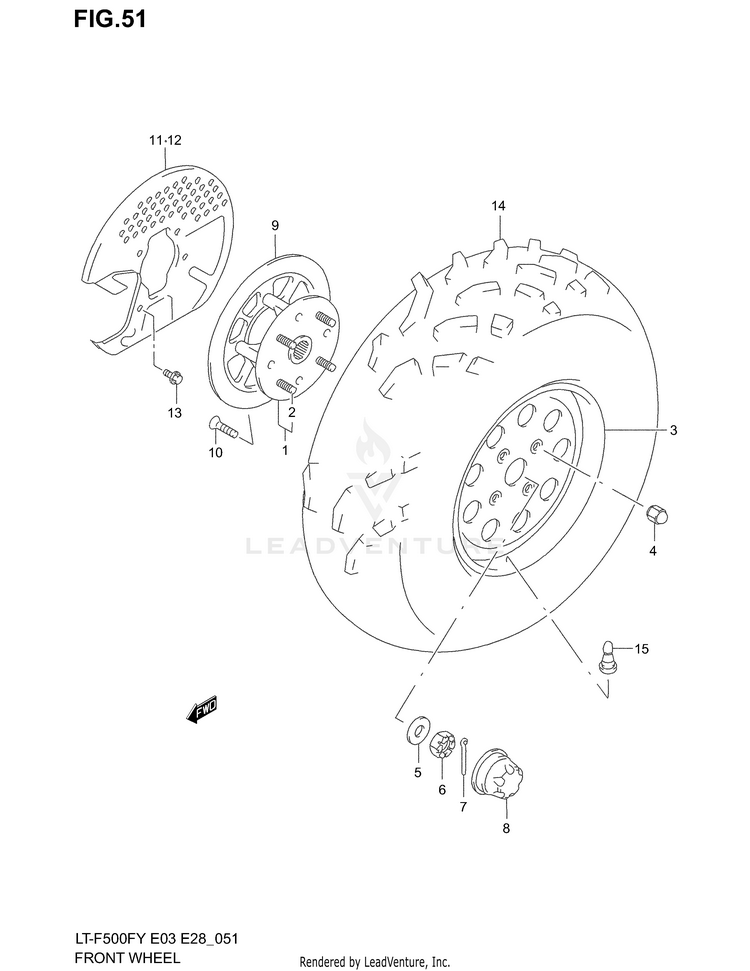

FRONT WHEEL (MODEL W/X)
FRONT WHEEL (MODEL Y/K1/K2)
FUEL TANK (MODEL K1/K2)
FUEL TANK (MODEL W)

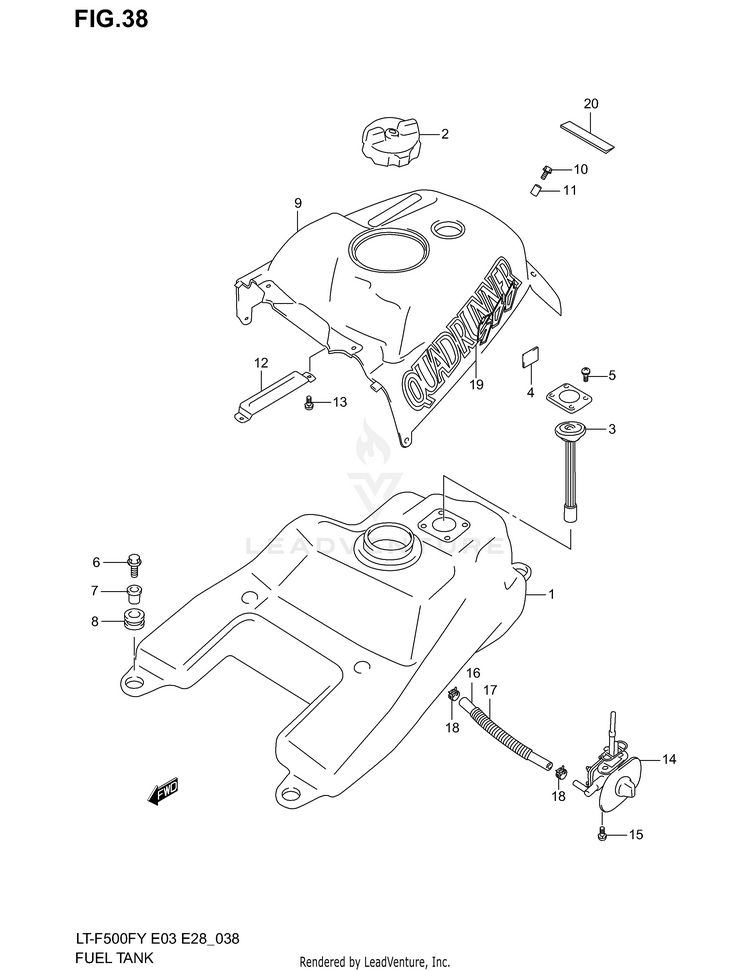

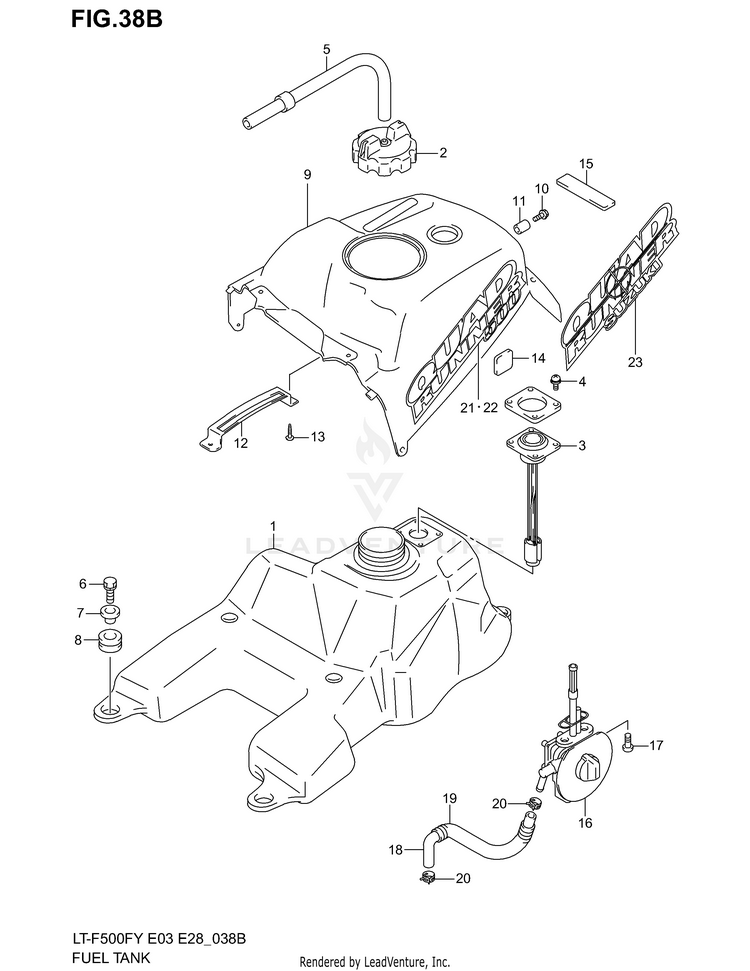

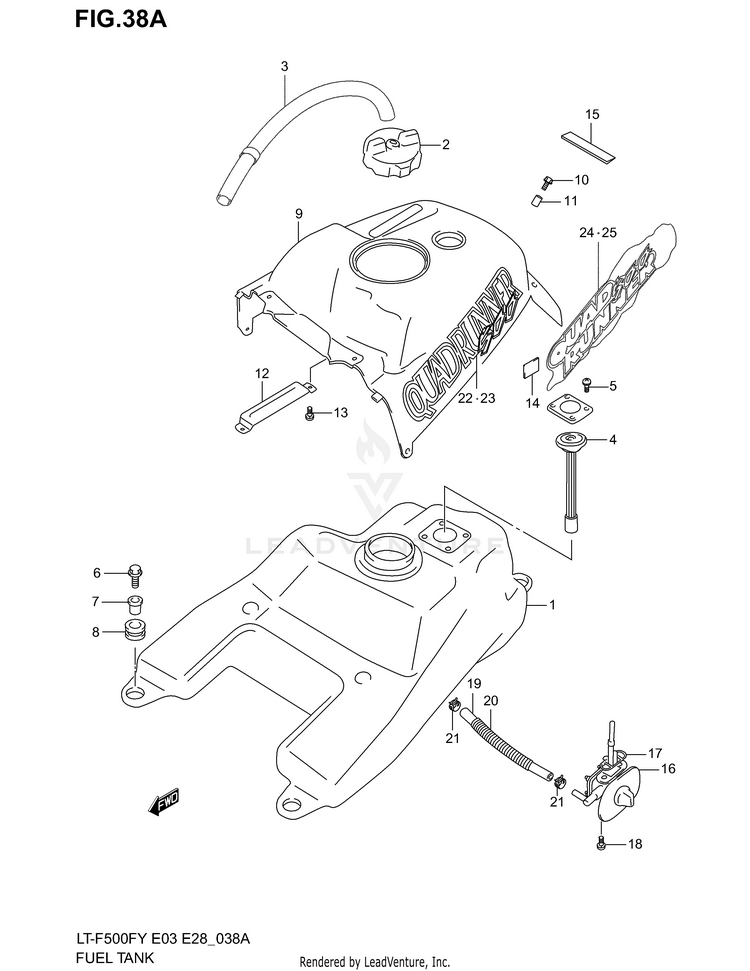

FUEL TANK (MODEL X/Y)

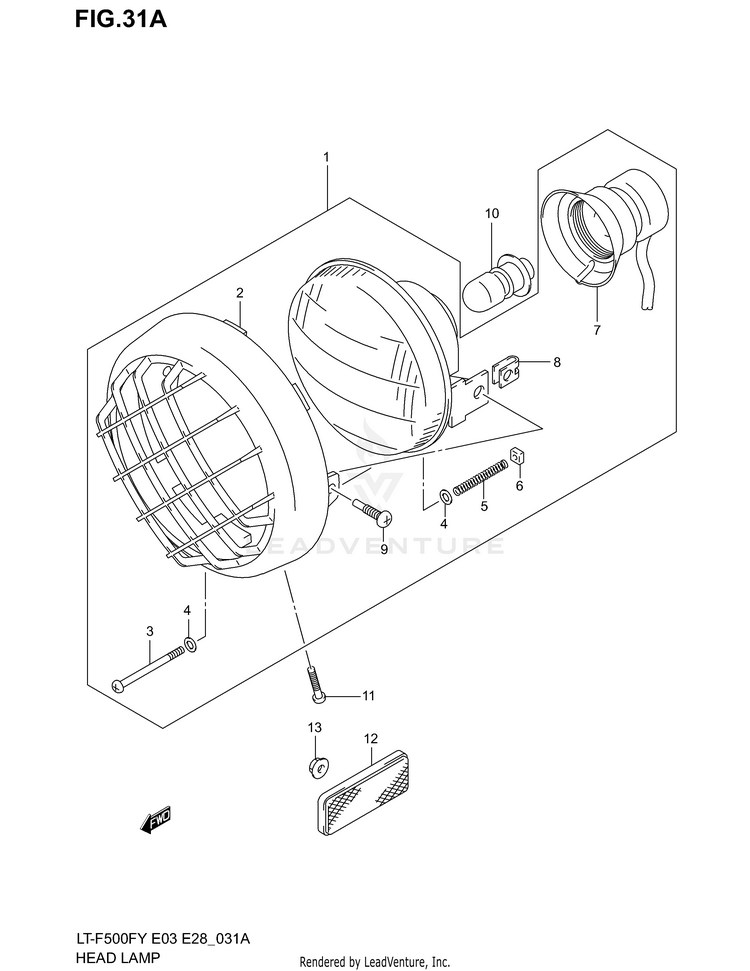

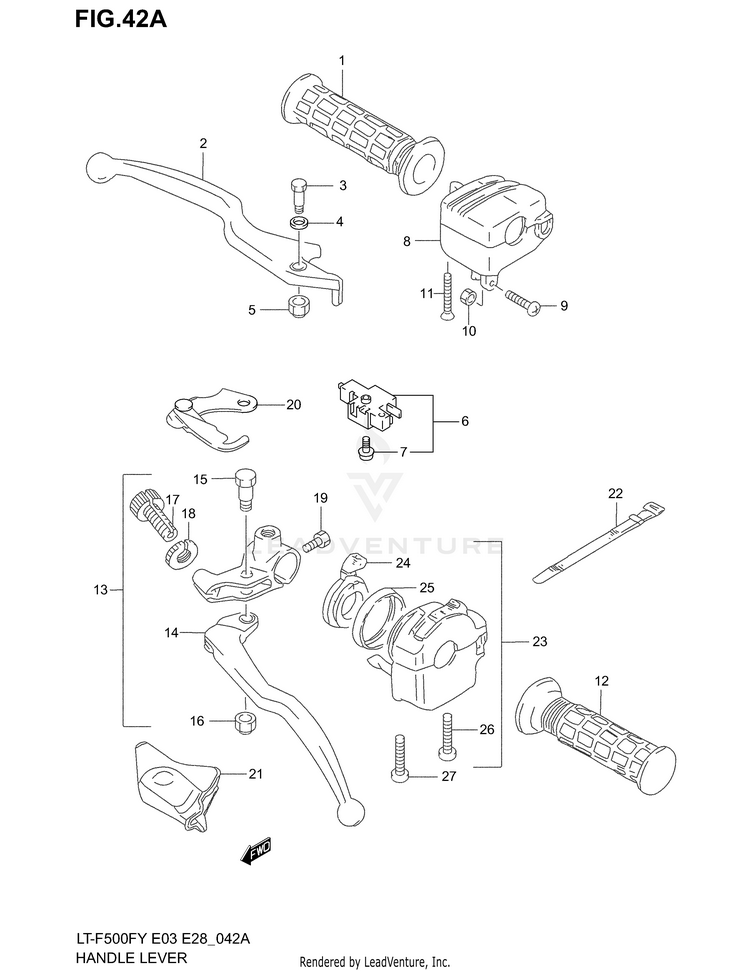

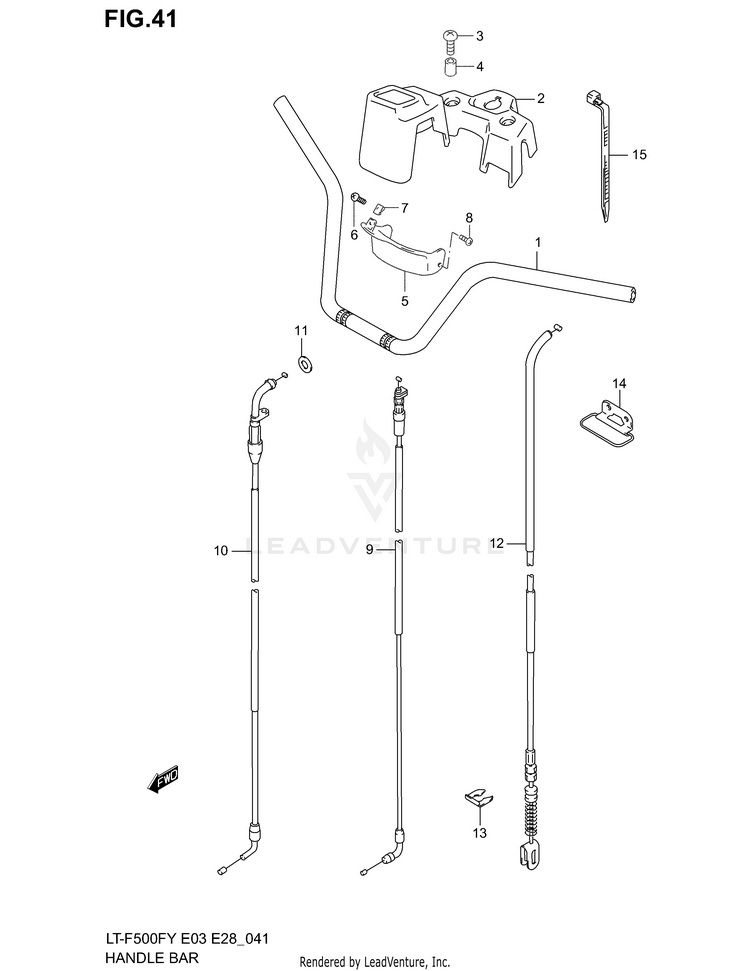

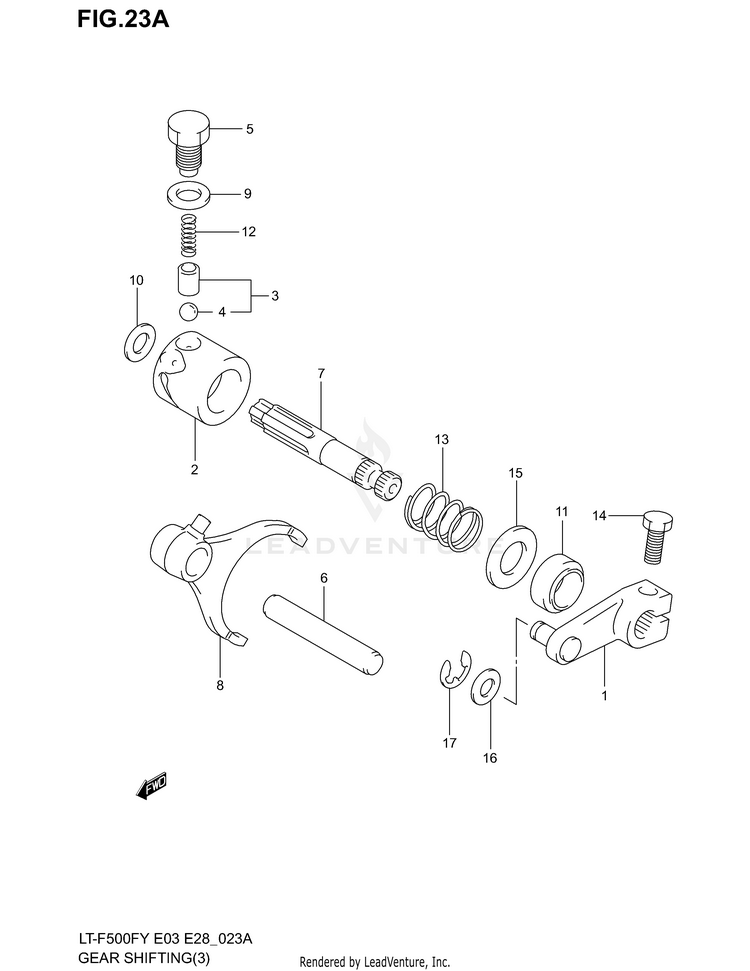

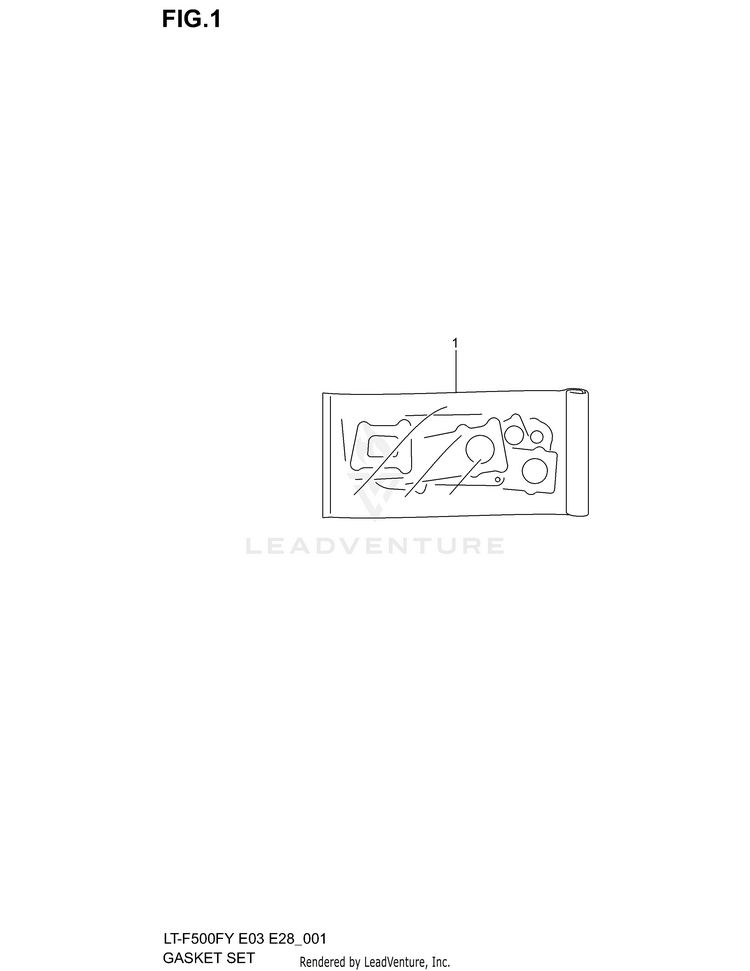

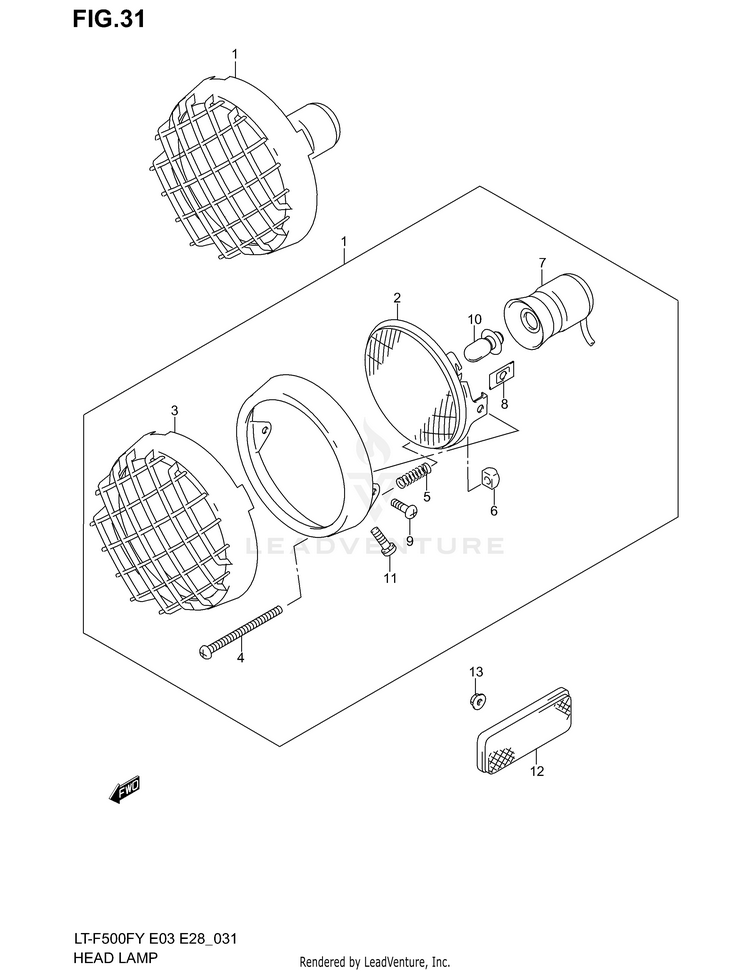

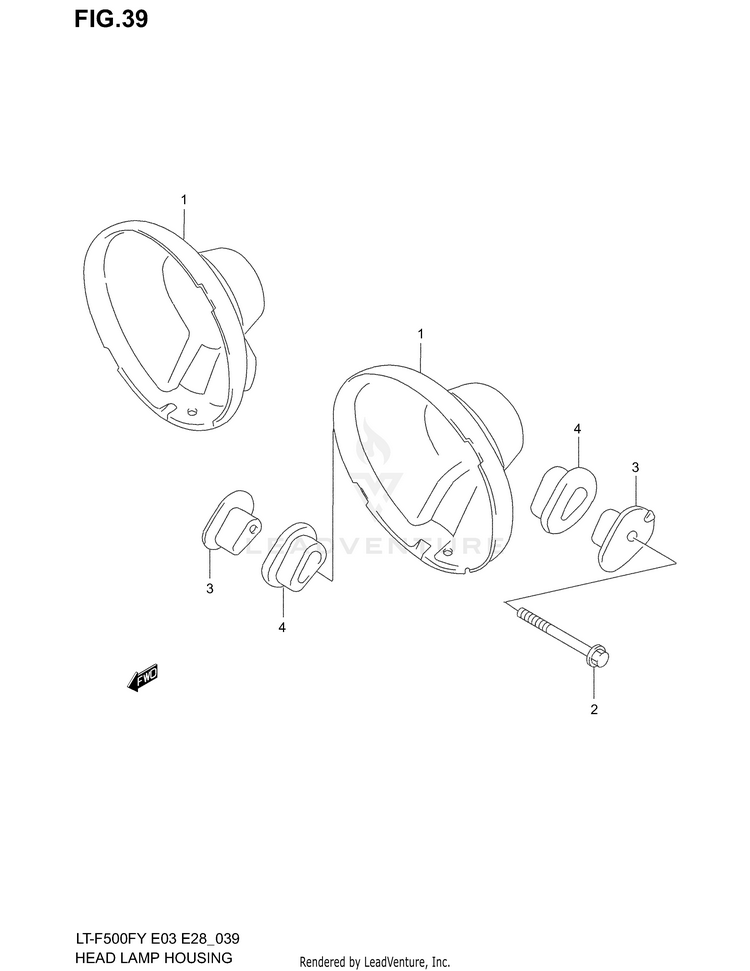

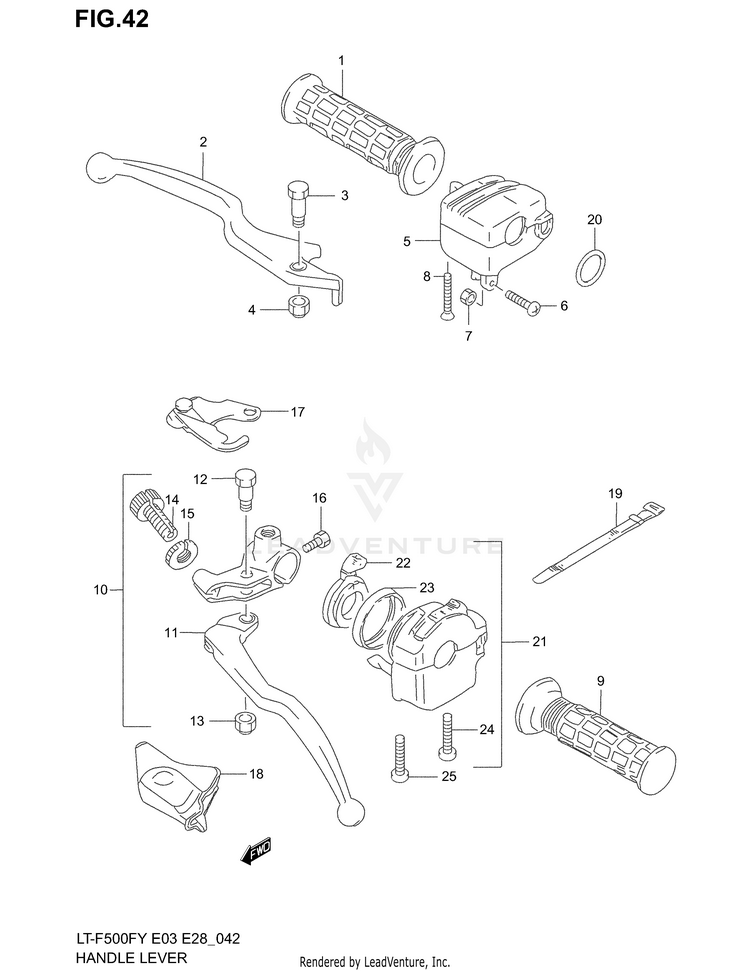

H

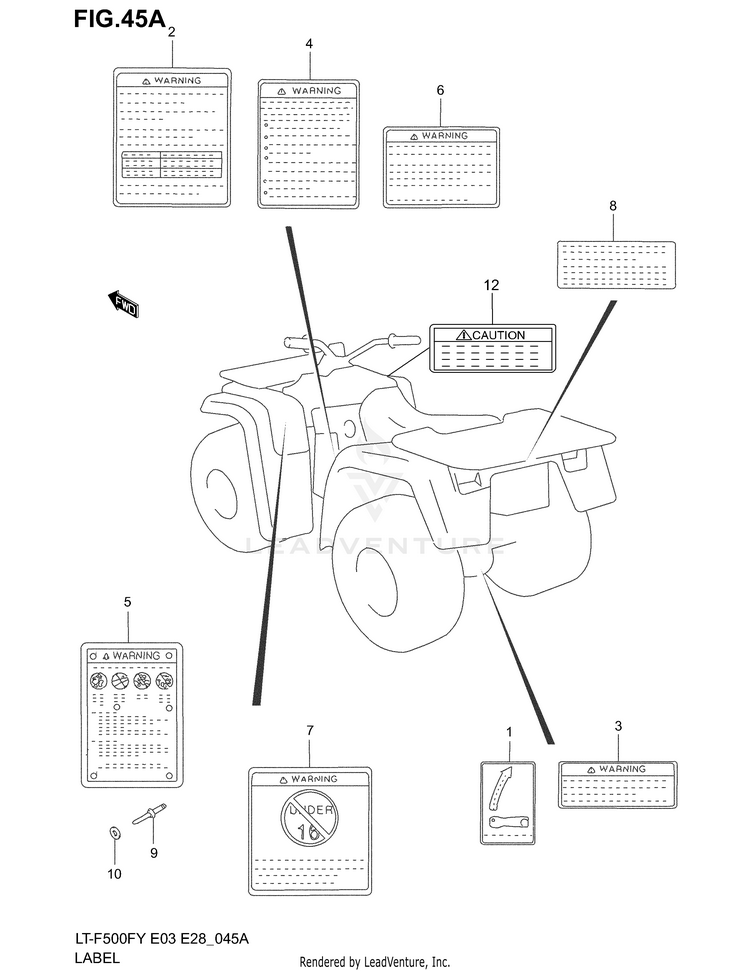

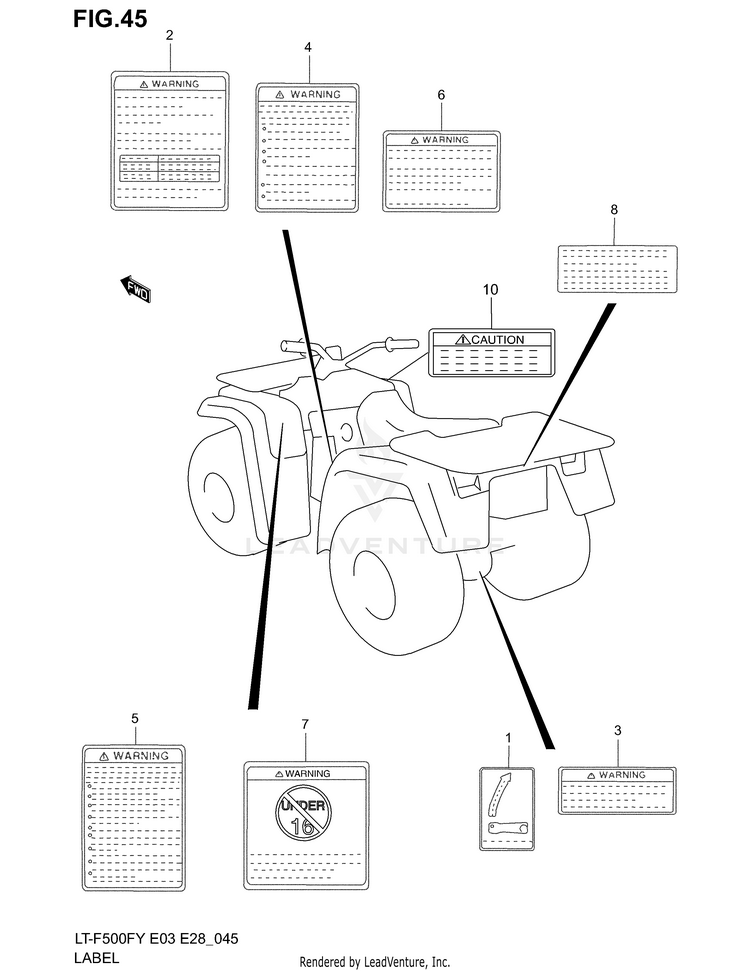

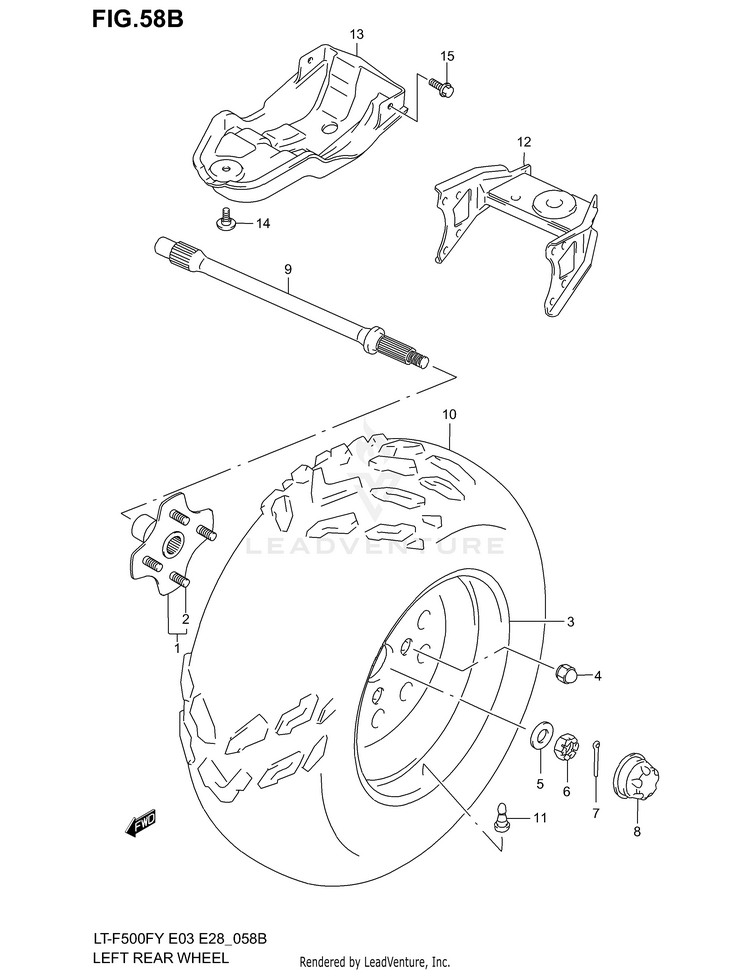

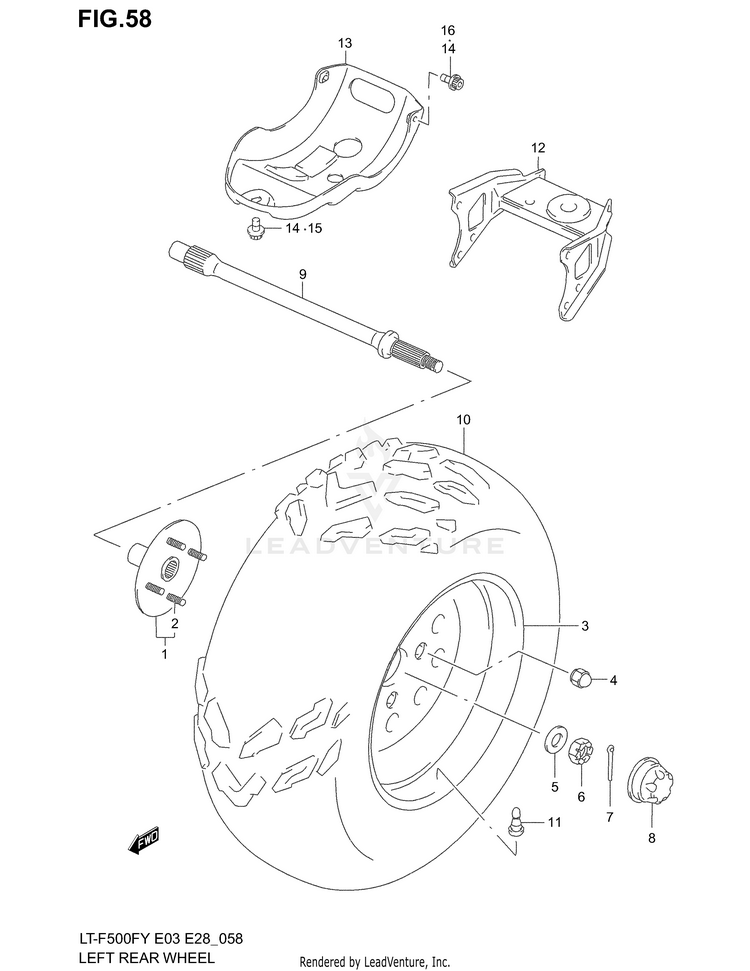

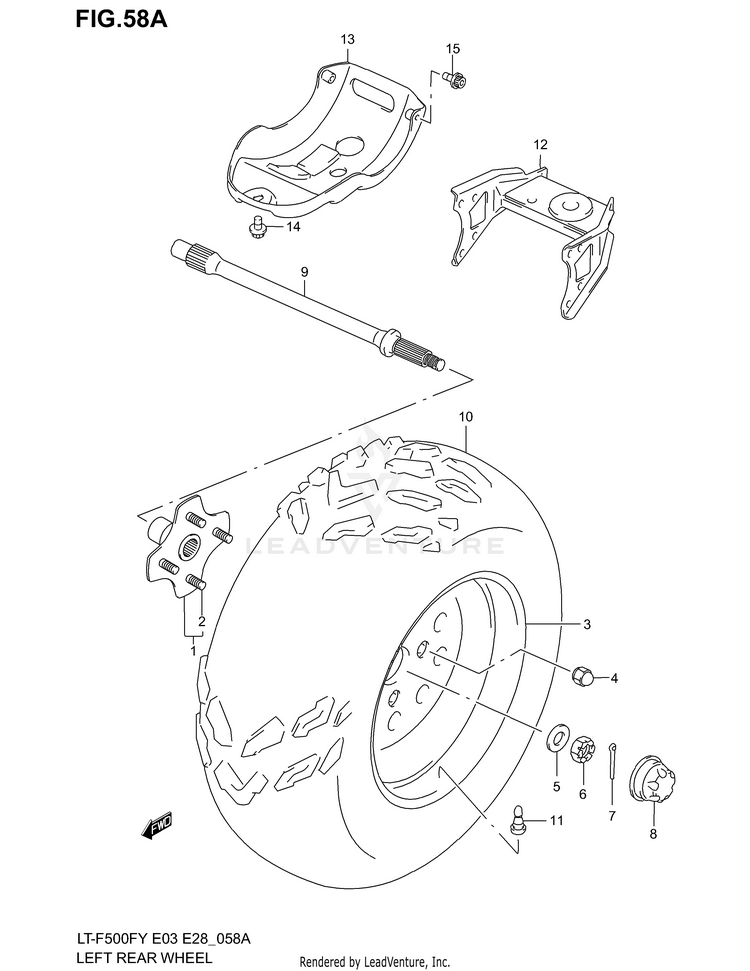

L
R

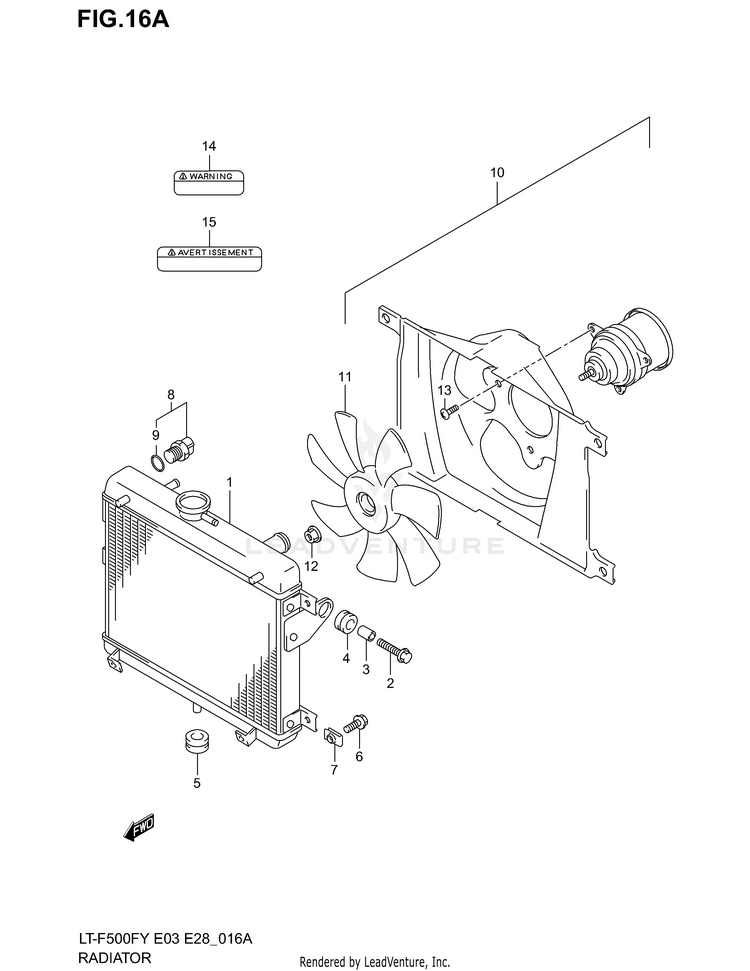

RADIATOR (MODEL K1/K2)

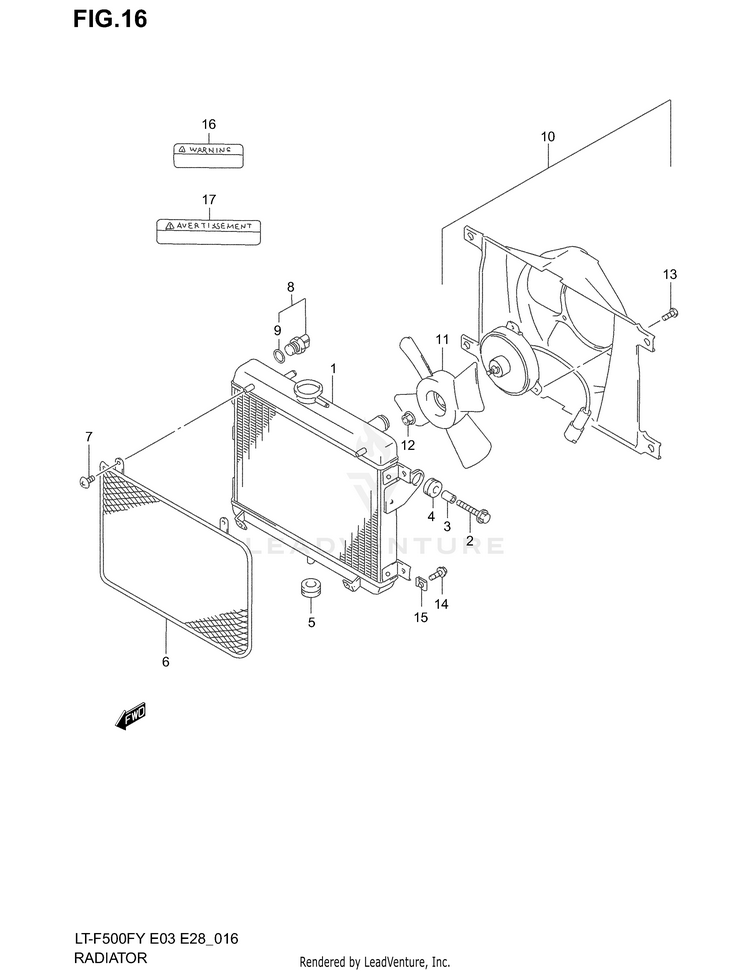

RADIATOR (MODEL W/X/Y)

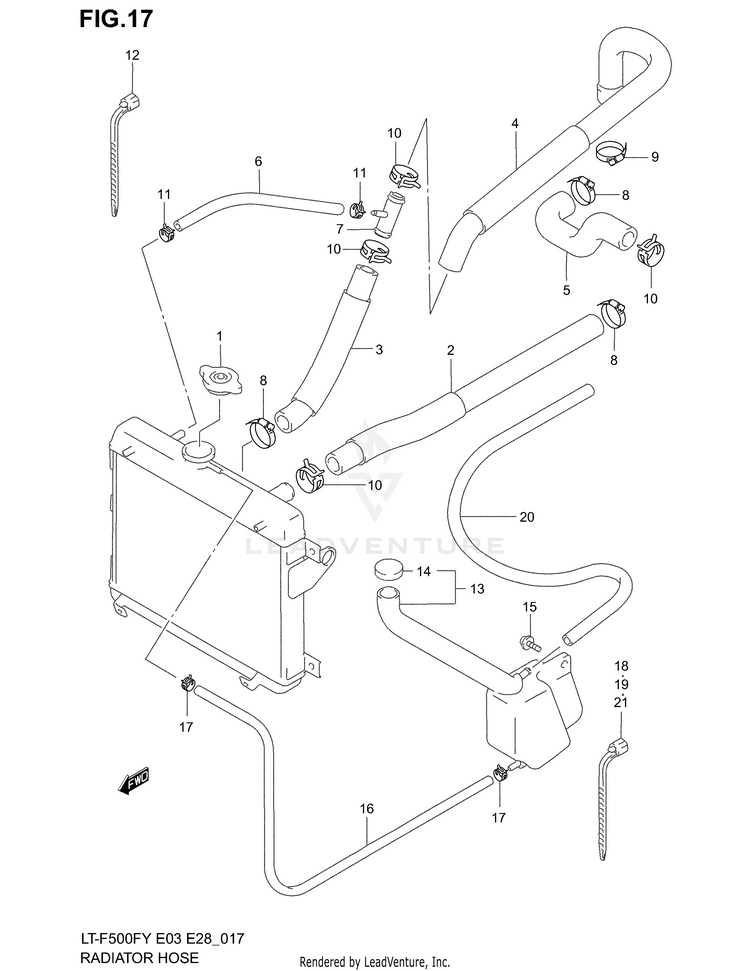

RADIATOR HOSE

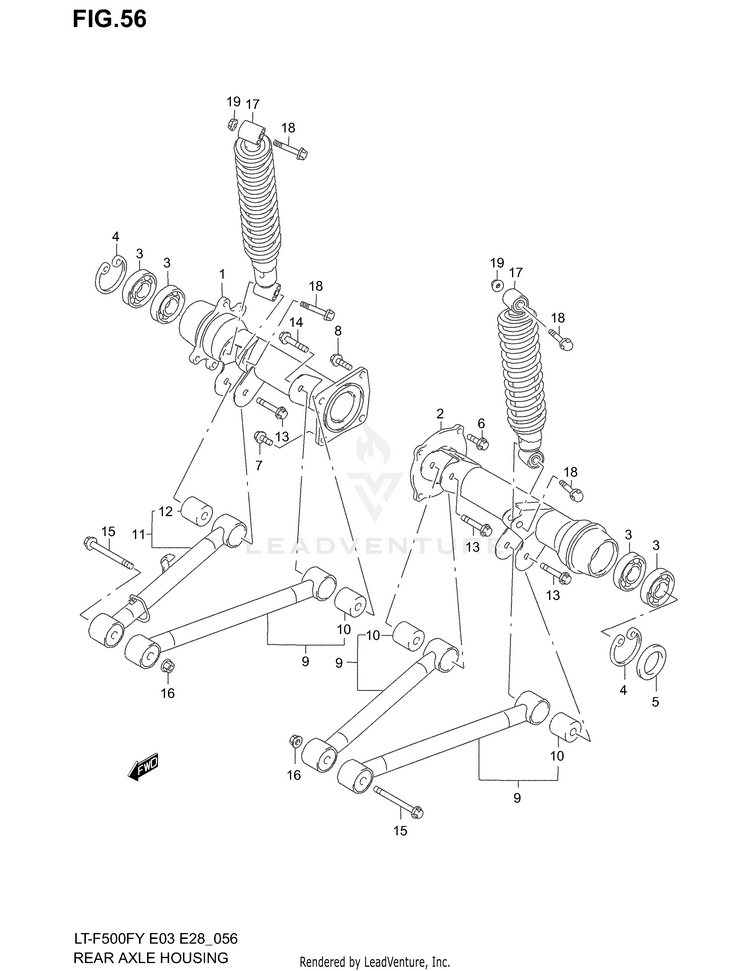

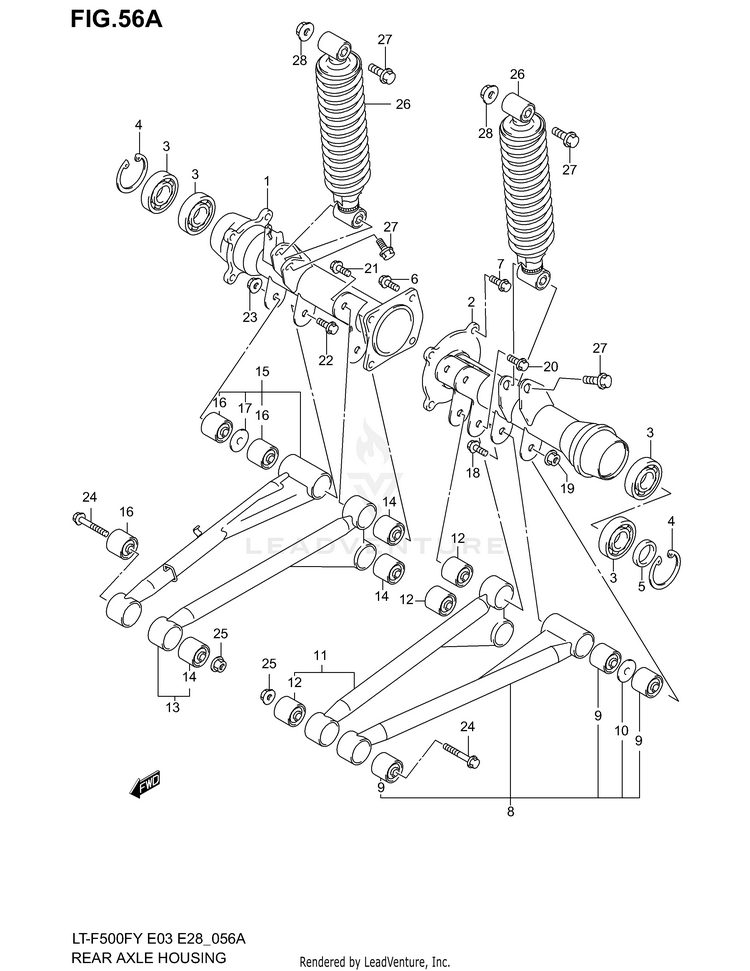

REAR AXLE HOUSING (MODEL K1/K2)
REAR AXLE HOUSING (MODEL W/X)

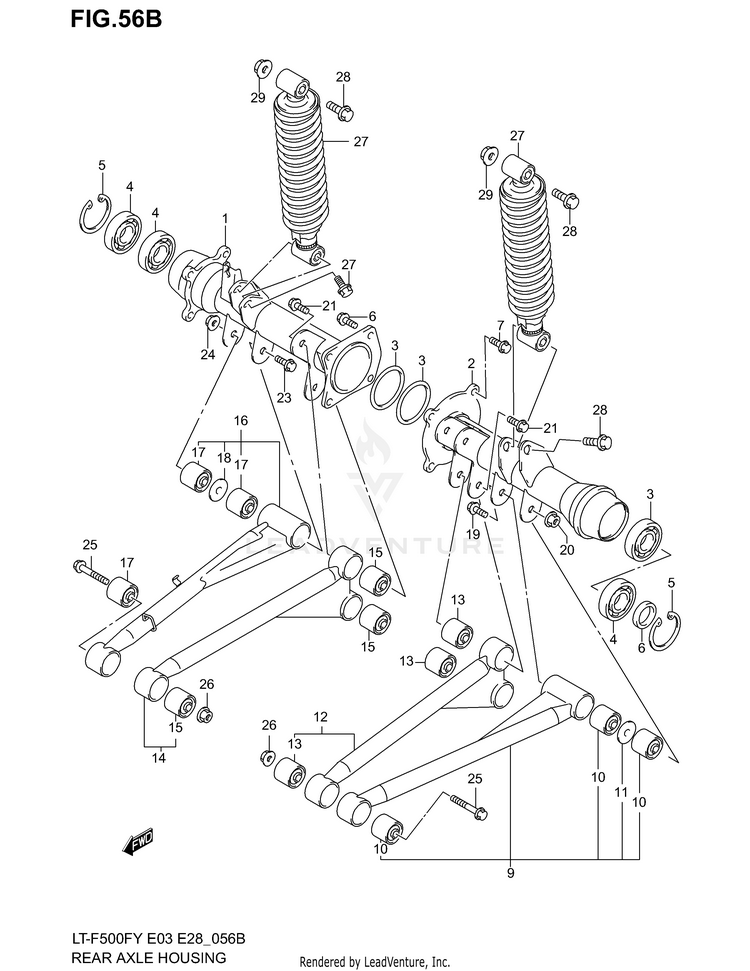

REAR AXLE HOUSING (MODEL Y)
REAR BOX (MODEL K1/K2)

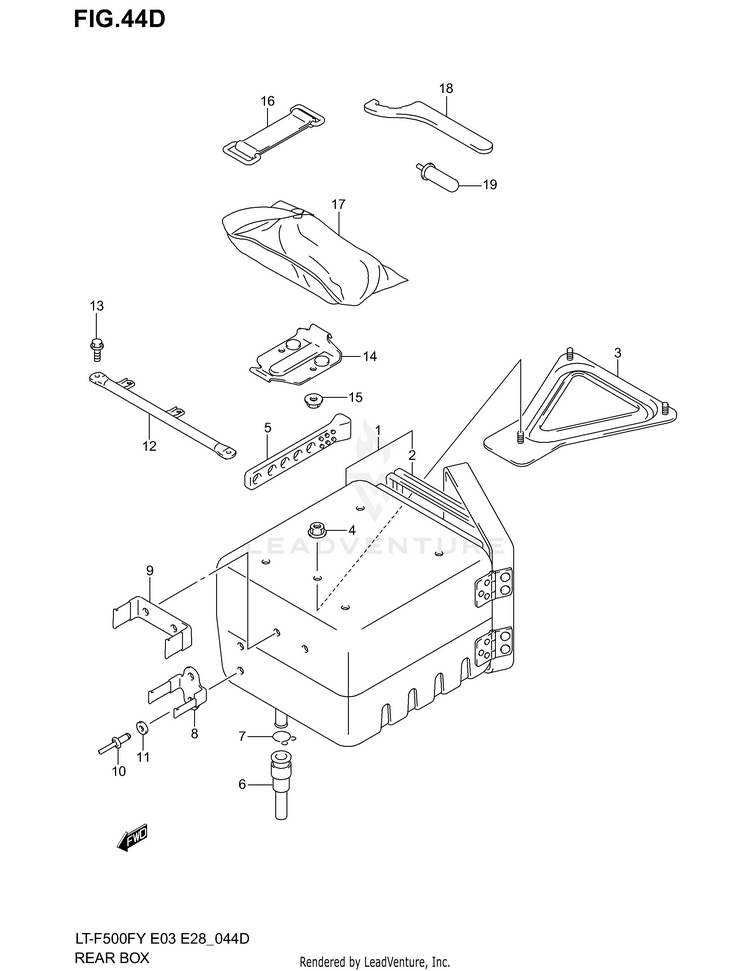

REAR BOX (MODEL W/X/Y)

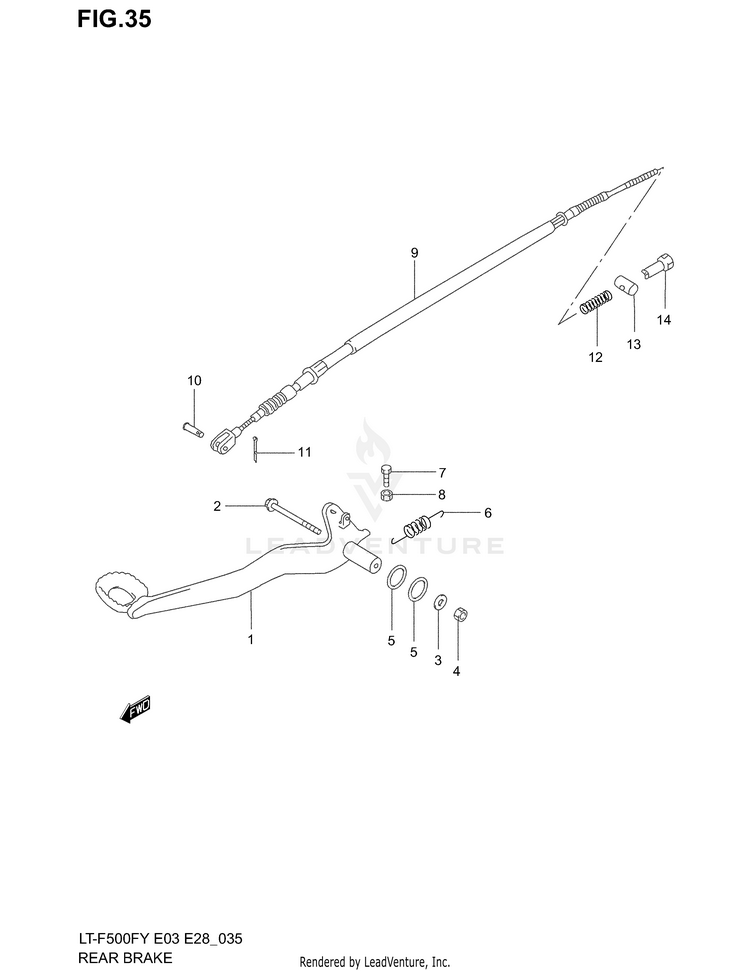

REAR BRAKE

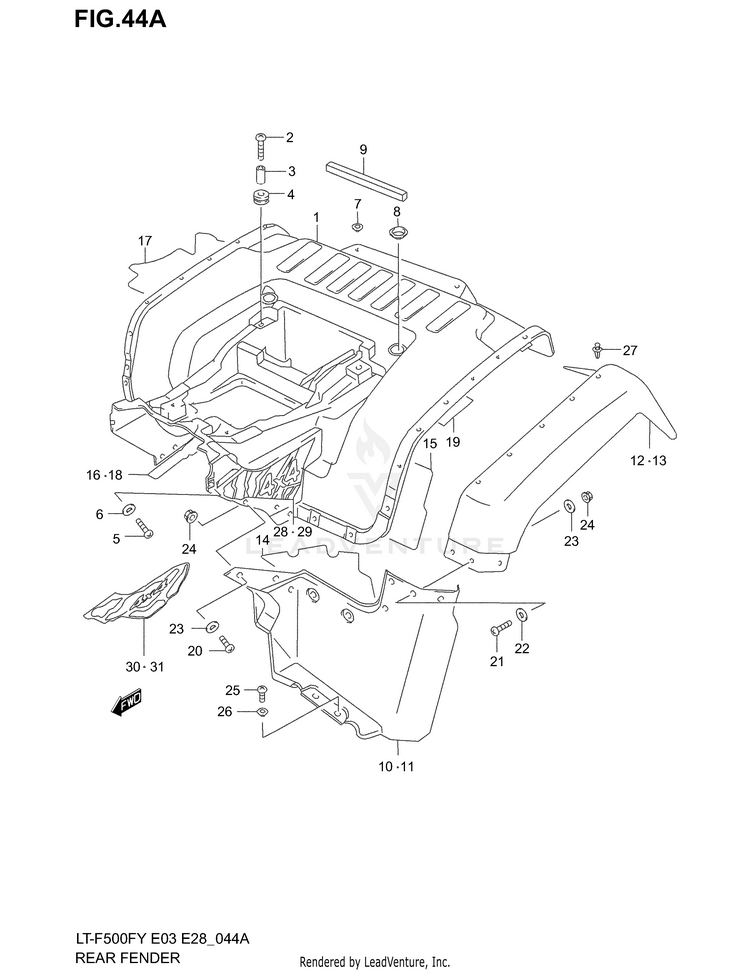

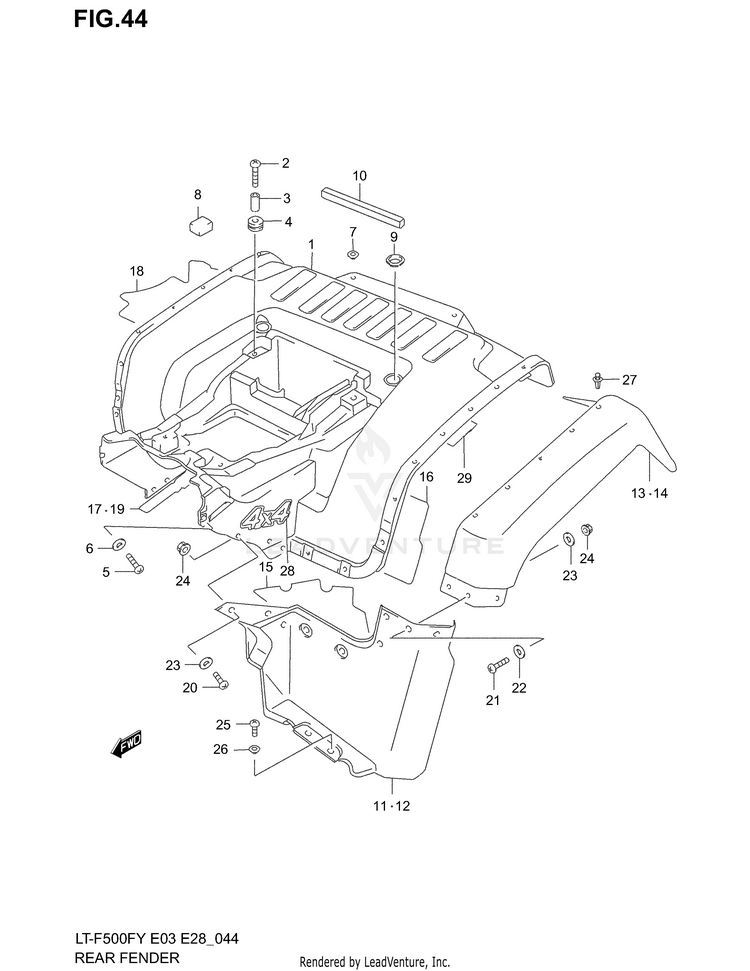

REAR FENDER (MODEL K1/K2)

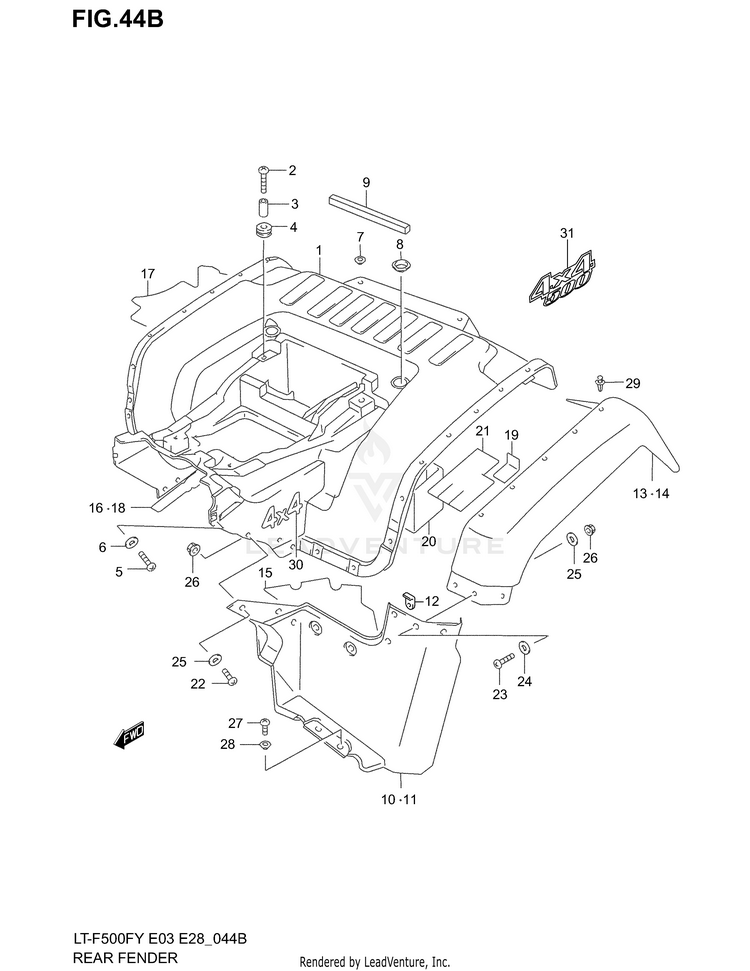

REAR FENDER (MODEL W)
REAR FENDER (MODEL X/Y)

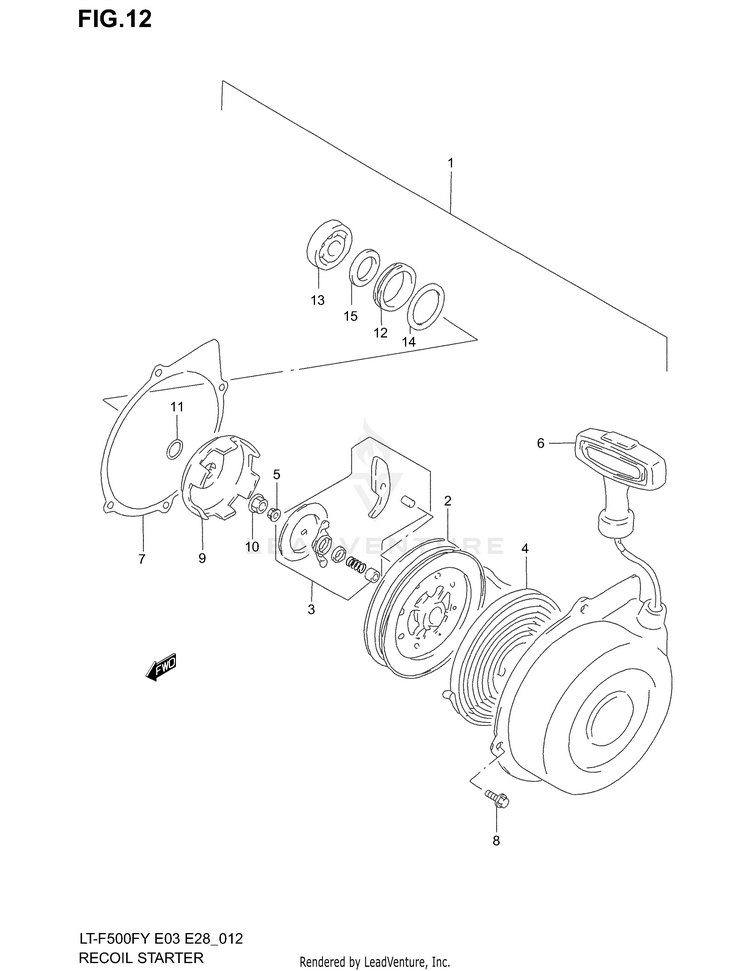

RECOIL STARTER

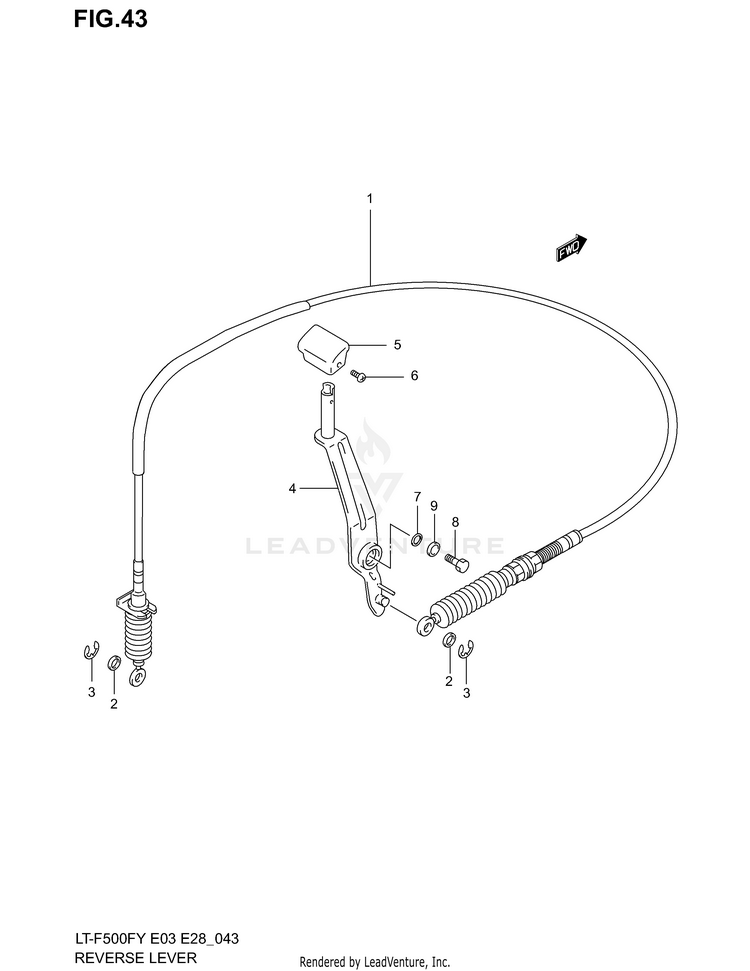

REVERSE LEVER

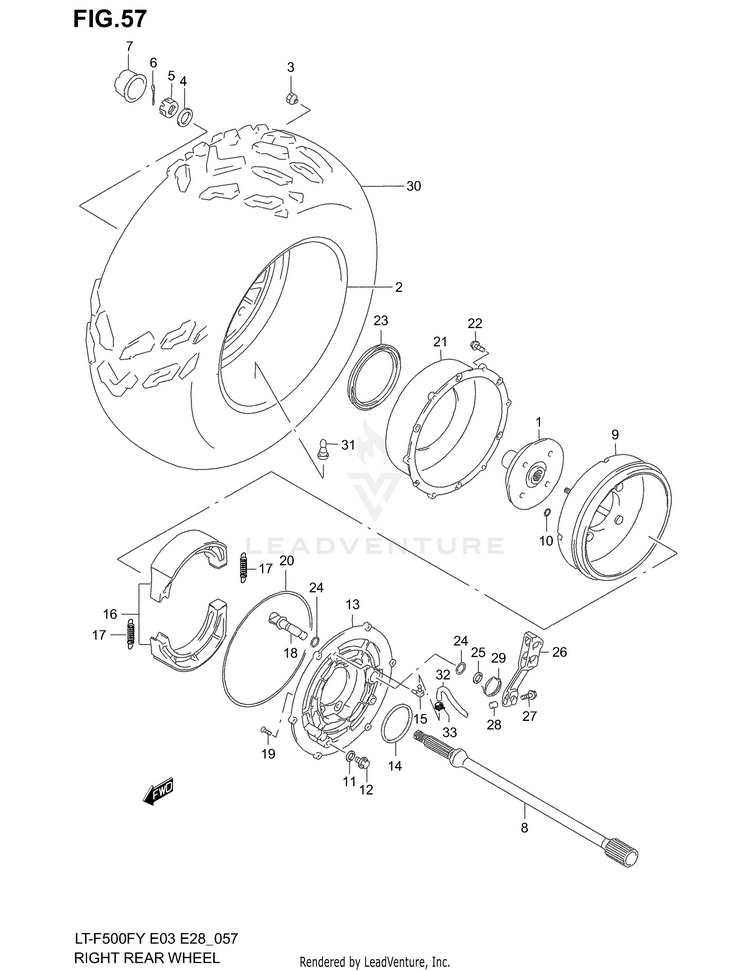

RIGHT REAR WHEEL (MODEL K1/K2)

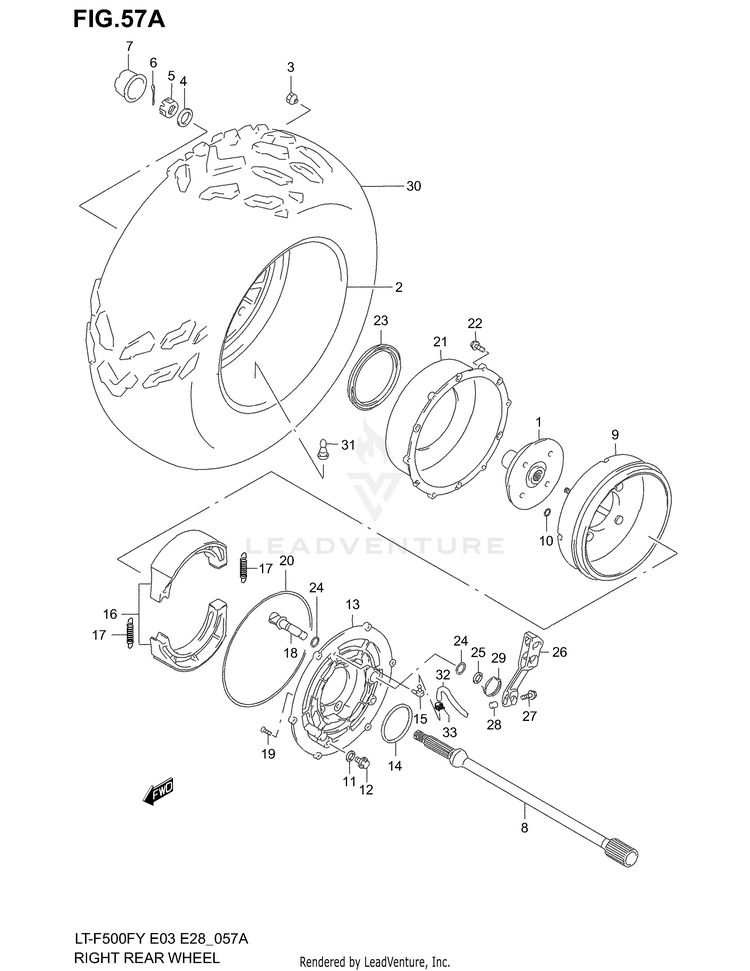

RIGHT REAR WHEEL (MODEL W/X/Y)
S

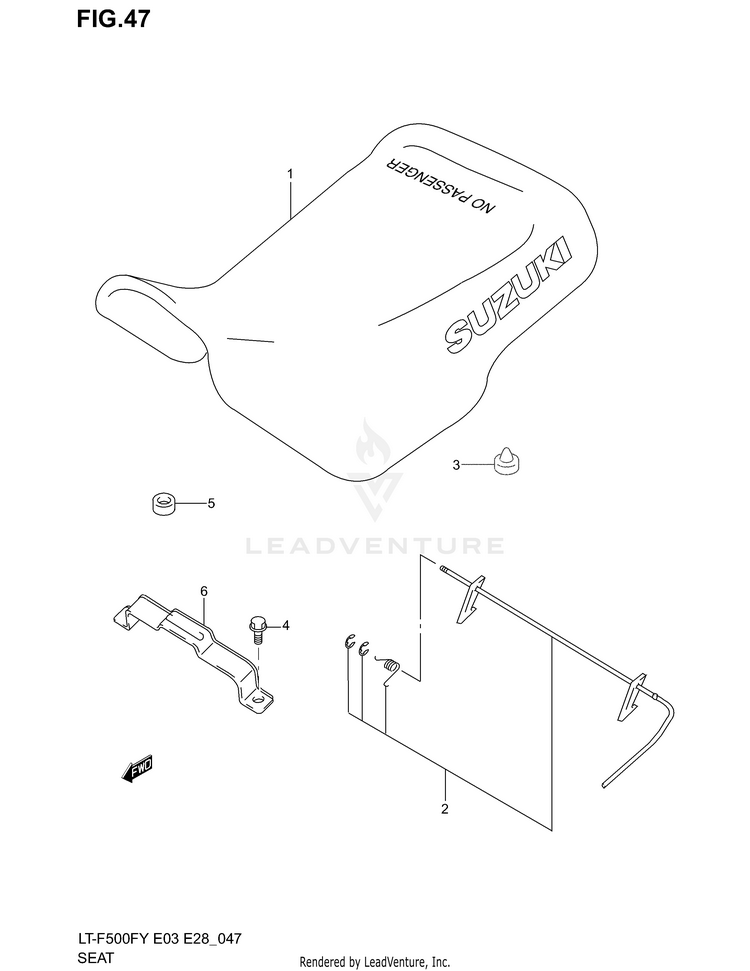

SEAT

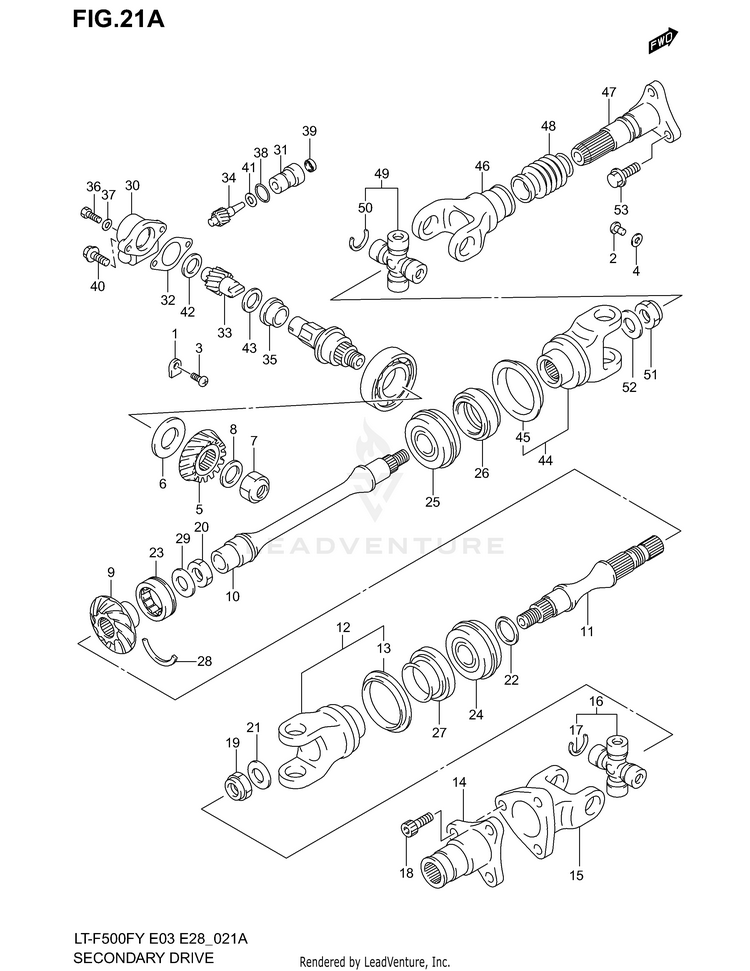

SECONDARY DRIVE (MODEL K1/K2)

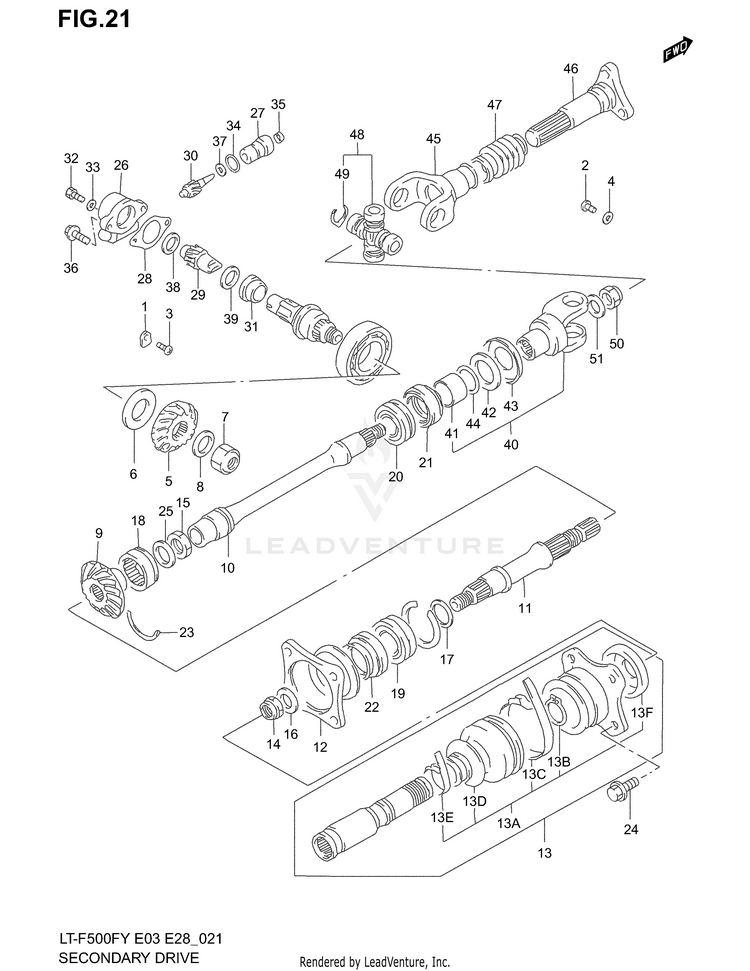

SECONDARY DRIVE (MODEL W/X/Y)

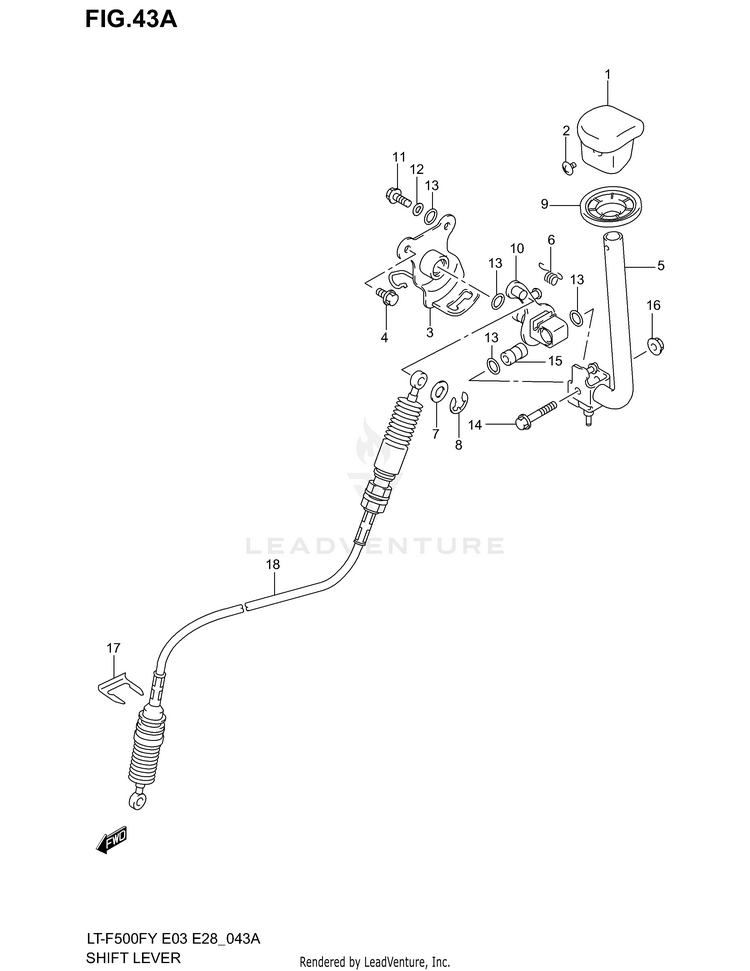

SHIFT LEVER (MODEL K1/K2)

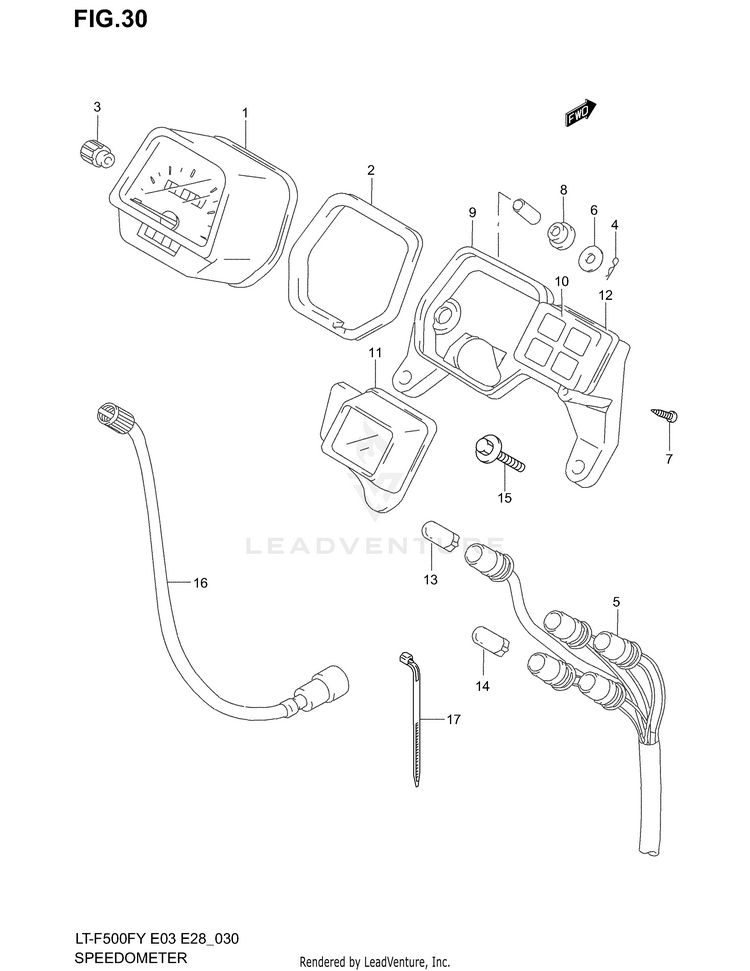

SPEEDOMETER

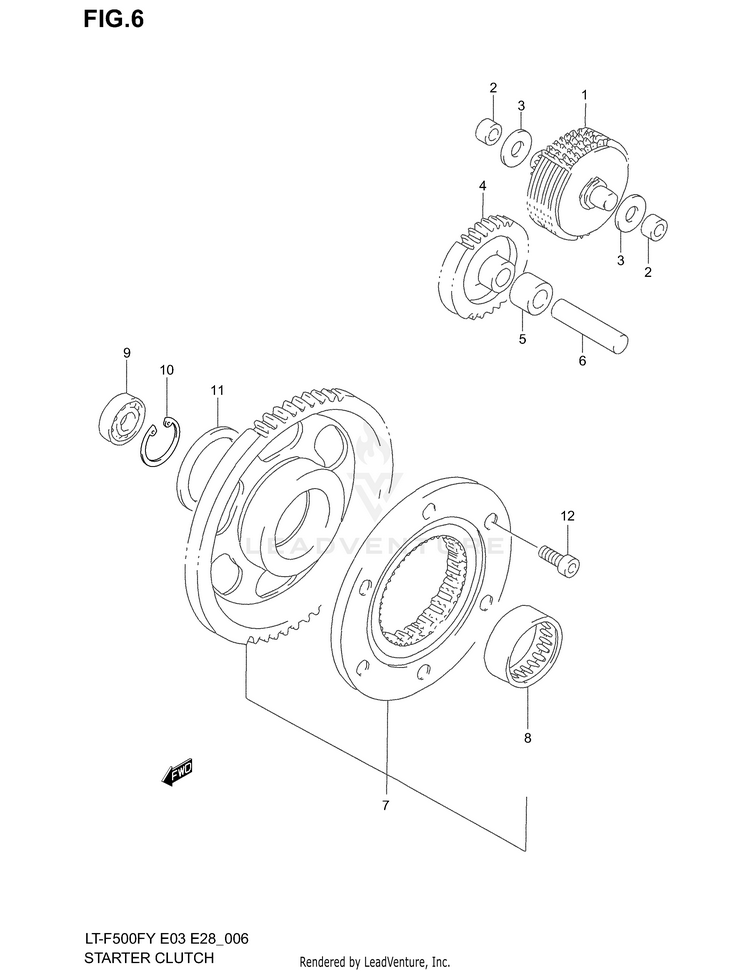

STARTER CLUTCH (MODEL W/X)

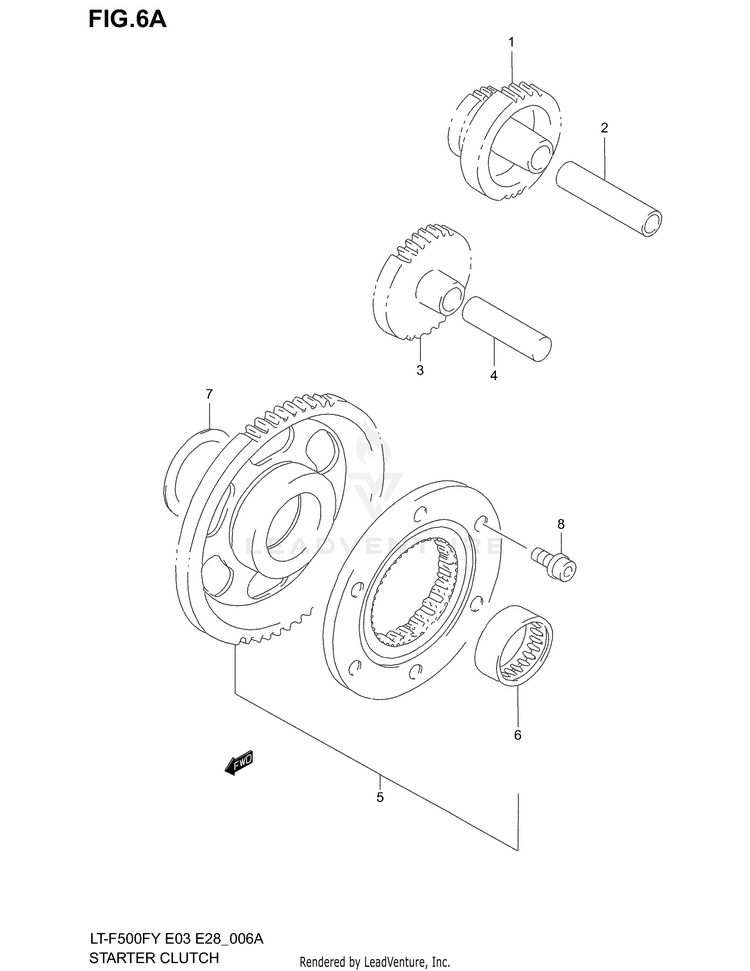

STARTER CLUTCH (MODEL Y/K1/K2)

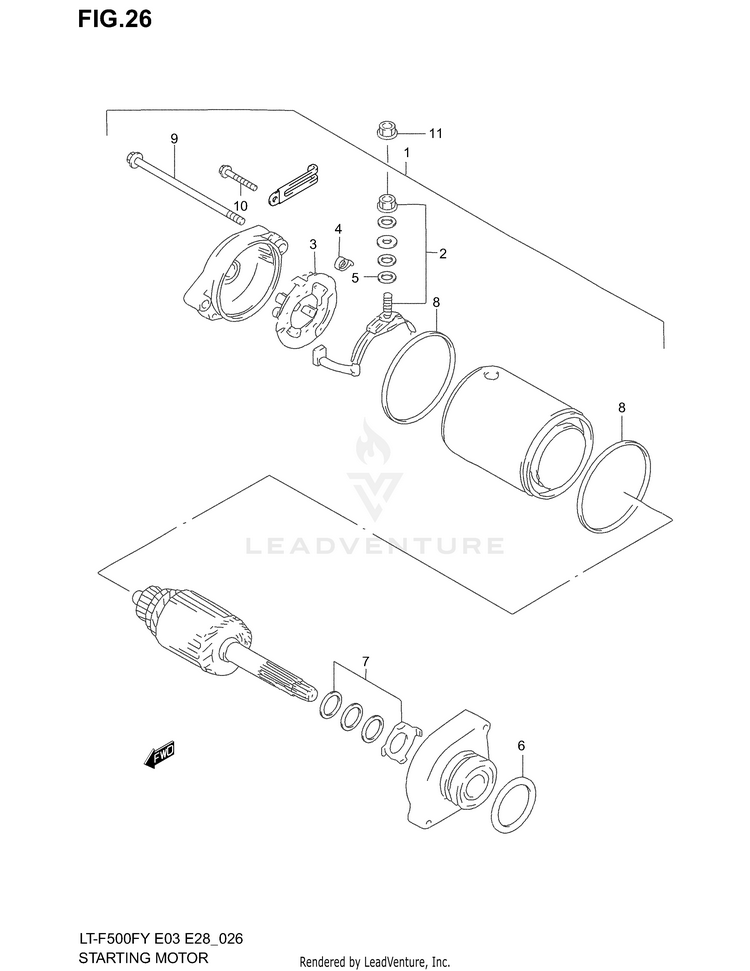

STARTING MOTOR

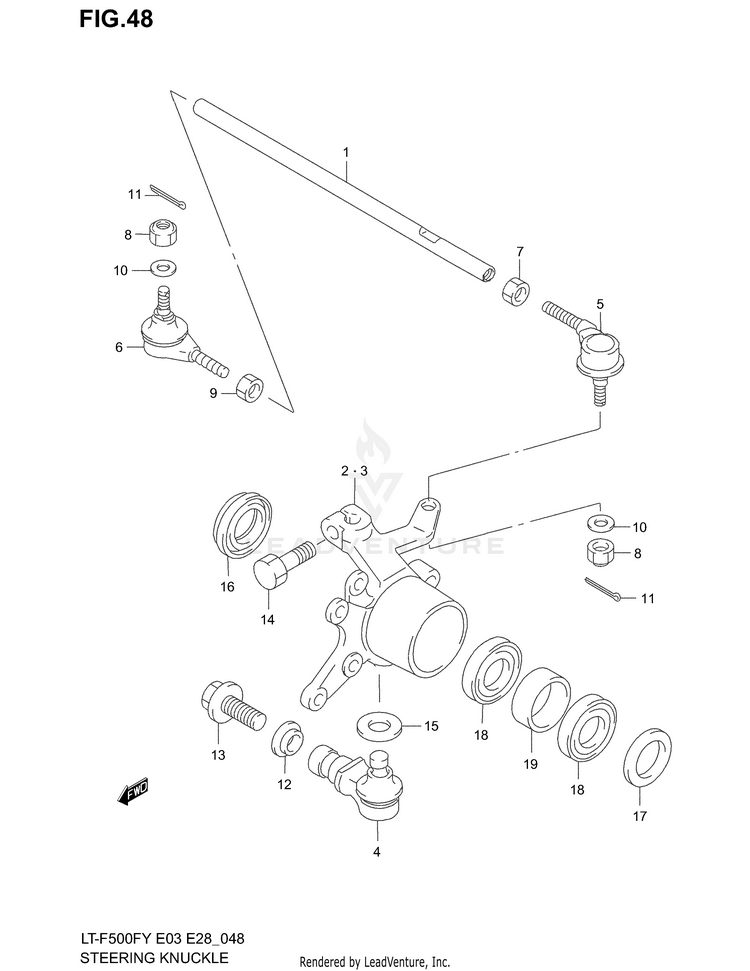

STEERING KNUCKLE

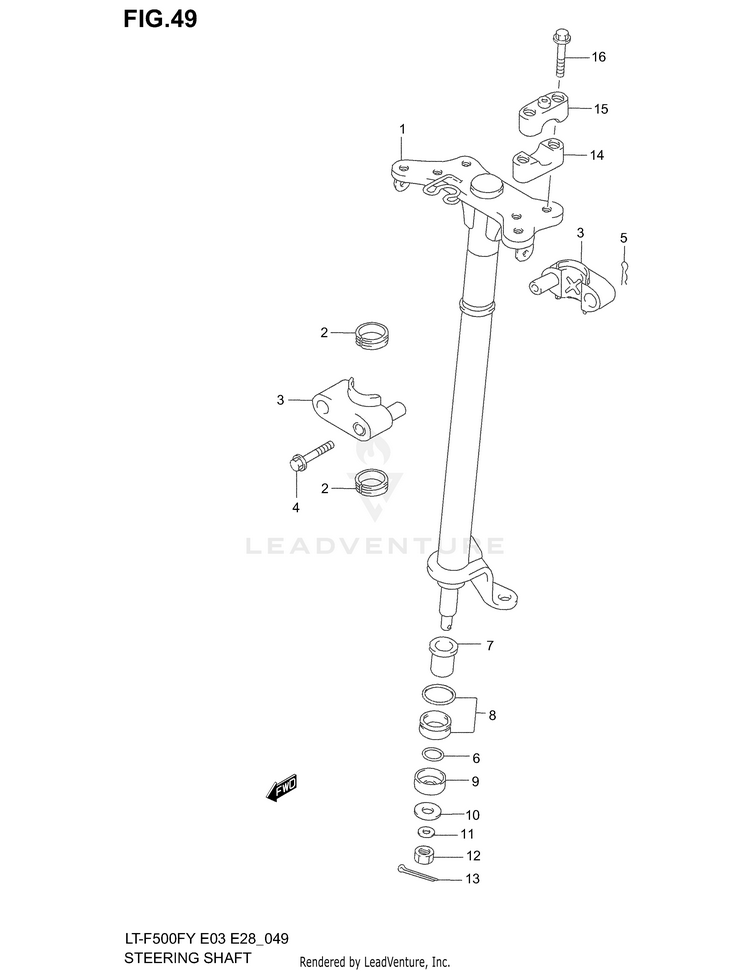

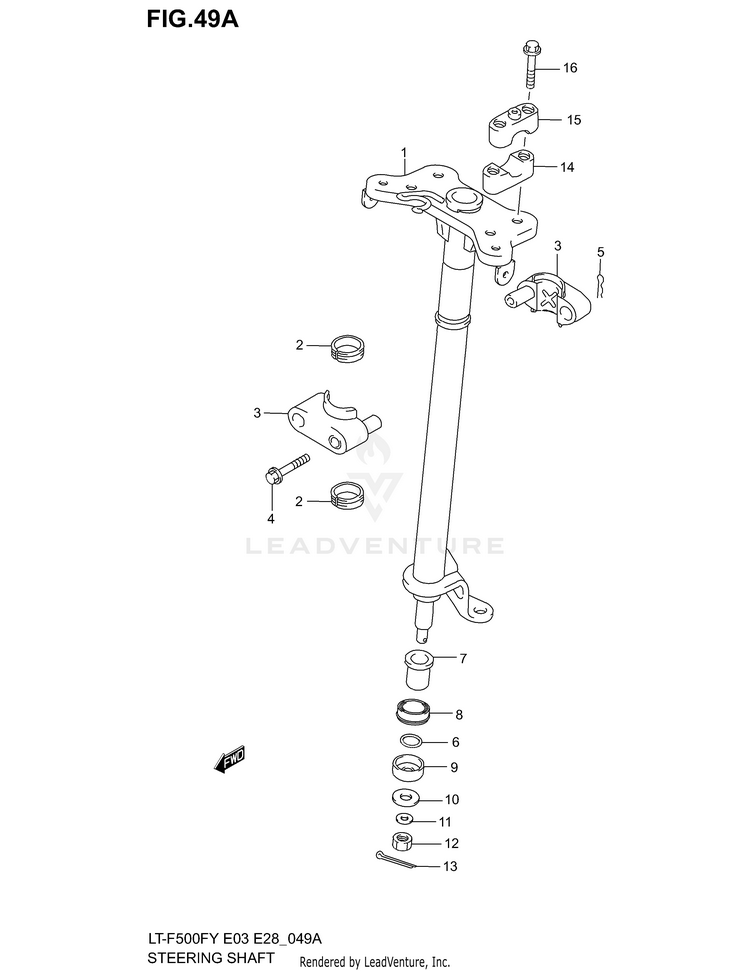

STEERING SHAFT (MODEL W/X)
STEERING SHAFT (MODEL Y/K1/K2)

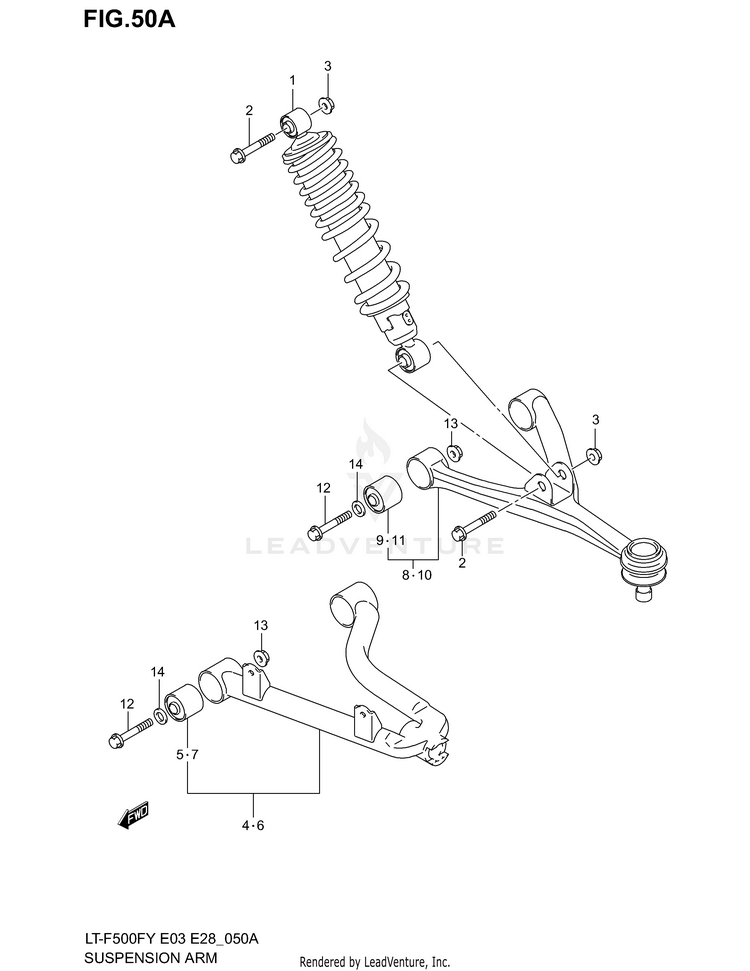

SUSPENSION ARM (MODEL W/X)

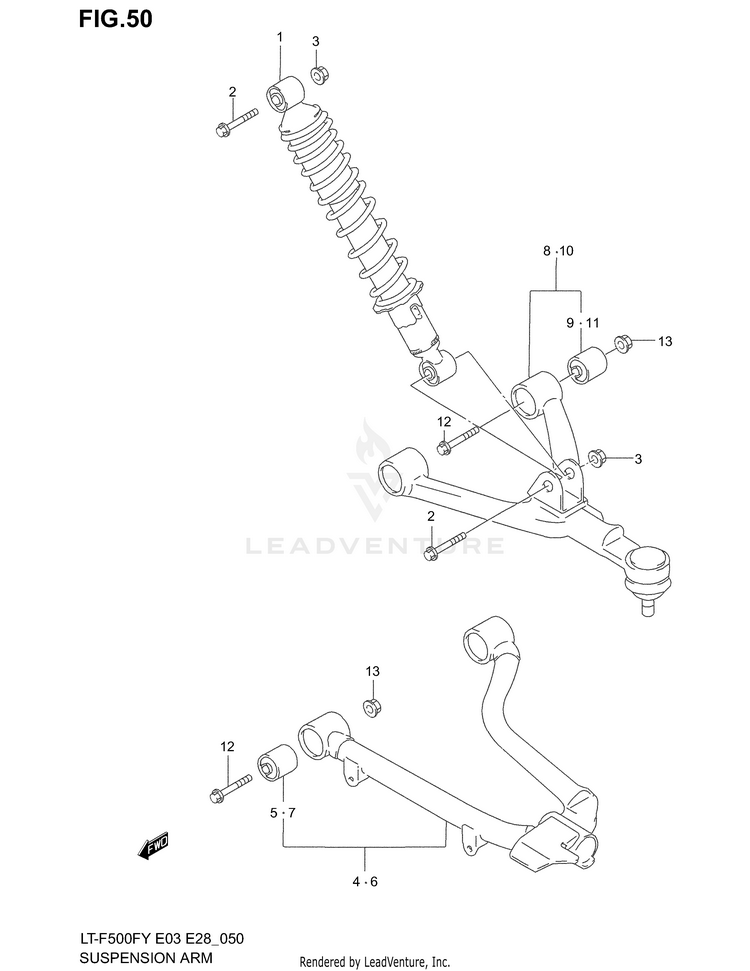

SUSPENSION ARM (MODEL Y/K1/K2)

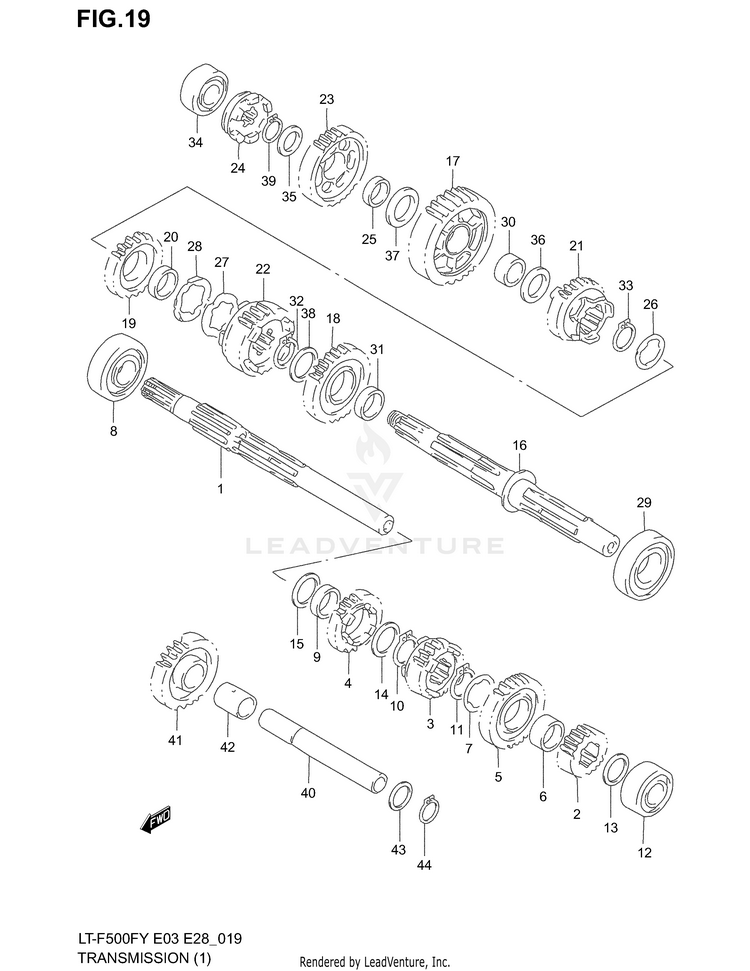

No results with applied page filter:
