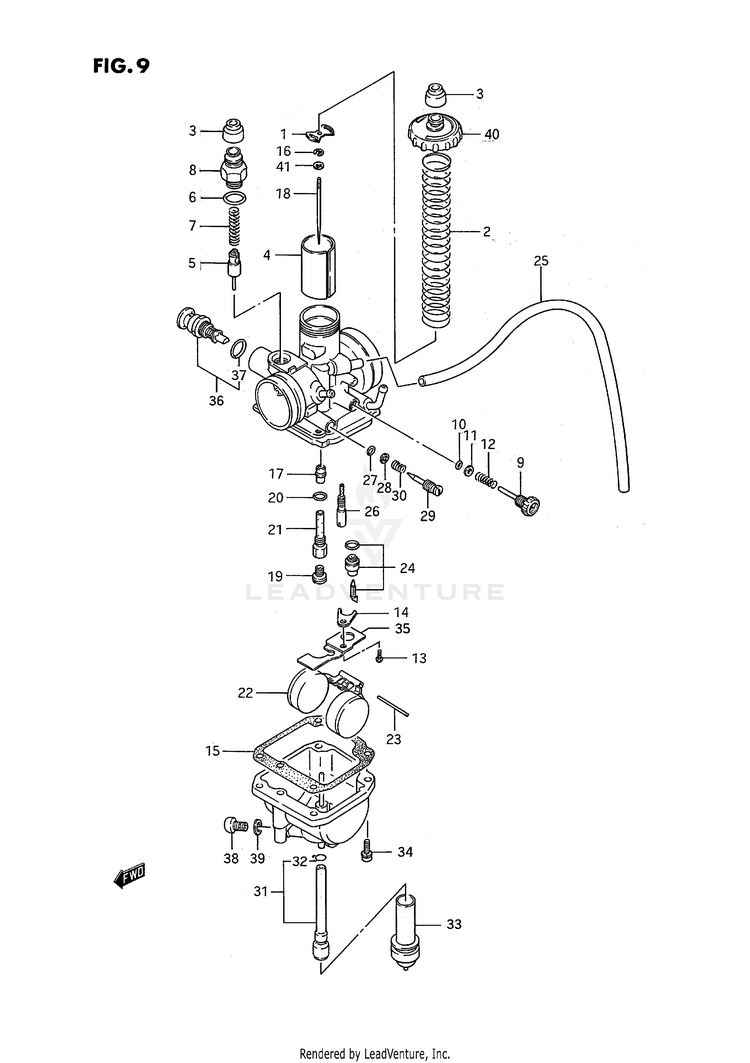

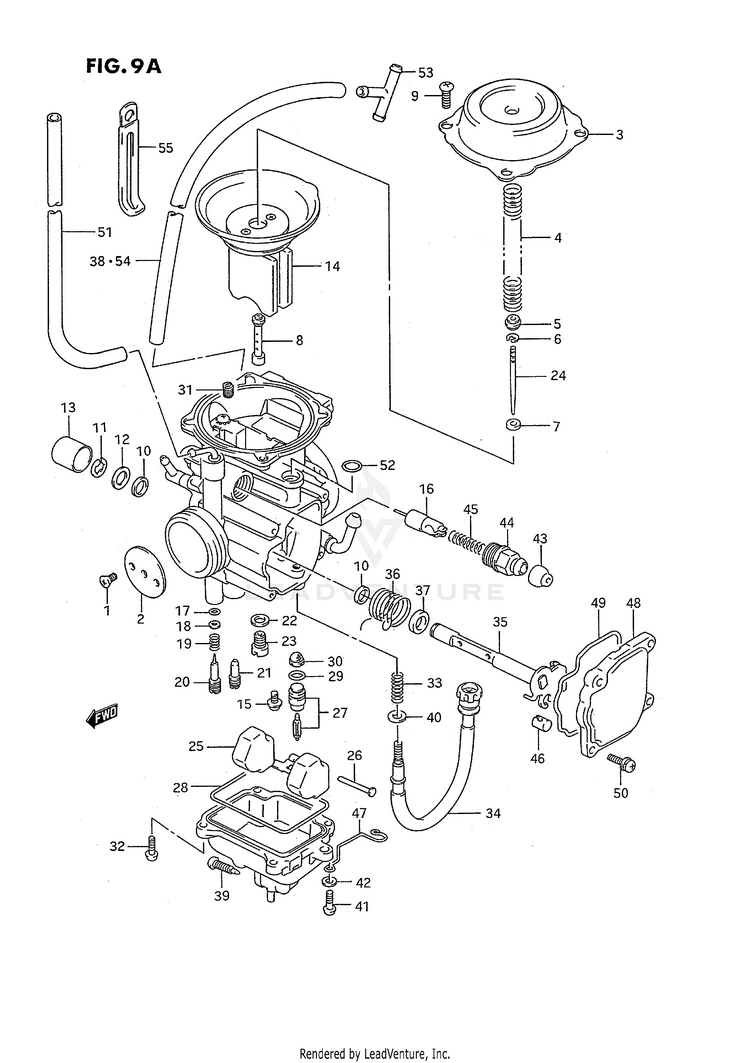

CARBURETOR (MODEL L/M/N/P/R/S)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 14 15 16 17 18 19 20 21 22 23 24 24 25 26 27 27 28 29 30 31 32 33 34 34 35 36 37 38 39 40 41 42 43 44 45 46 47 47 48 49 50 51 52 53 54 55

Use scroll wheel, or pinch and drag to and .

MPN/SKU: 13200-19B65

CARBURETOR ASSY

Unavailable

$437.18

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

MPN/SKU: 13200-19B65

CARBURETOR ASSY

Unavailable

$437.18

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

MPN/SKU: 13200-19B65

CARBURETOR ASSY

Unavailable

$437.18

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

MPN/SKU: 13200-19BA3

CARBURETOR ASSY

Unavailable

$543.06

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1065212

Suzuki Screw - 13604-44080

Leaves Warehouse: 2 to 3 days

$3.97

Recommended Quantity: 2

This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

MPN/SKU: 13551-42A10

VALVE, THROTTLE

Unavailable

$19.83

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1065061

Suzuki Cover, Diaphragm - 13502-42A00

Out of Stock

$25.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1064908

Suzuki Spring - 13417-42A00

Leaves Warehouse: 2 to 3 days

$5.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1064662

Suzuki Ring - 13382-42A00

Leaves Warehouse: 2 to 3 days

$3.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1064803

Suzuki Clip - 13394-10010

Out of Stock

$3.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1068715

Suzuki Ring - 13387-47010

Leaves Warehouse: 2 to 3 days

$5.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

MPN/SKU: 09494-00512

JET, NEEDLE (P-4)

Unavailable

$19.86

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1057450

Suzuki Screw - 02112-0408A

Leaves Warehouse: 2 to 3 days

$2.33

Recommended Quantity: 4

This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

MPN/SKU: 13556-05A11

SEAL

Unavailable

$3.98

Recommended Quantity: 2

This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1068768

Suzuki E Ring - 13617-44080

Out of Stock

$3.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1068743

Suzuki Gasket, Throttle Shaft - 13557-47070

Out of Stock

$4.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

MPN/SKU: 13578-47070

CAP

Unavailable

$5.02

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1073694

Suzuki Diaphragm Assembly - 13500-19B63

Out of Stock

$248.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1073694

Suzuki Diaphragm Assembly - 13500-19B63

Out of Stock

$248.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1065210

Suzuki Screw - 13602-43410

Out of Stock

$2.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1064872

Suzuki Plunger Assembly - 13411-19B50

Leaves Warehouse: 2 to 3 days

$17.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1073493

Suzuki O Ring, Pilot Air Screw - 13295-29901

Leaves Warehouse: 2 to 3 days

$3.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1068692

Suzuki Washer - 13291-29900

Leaves Warehouse: 2 to 3 days

$1.73

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1068688

Suzuki Spring - 13268-47070

Leaves Warehouse: 2 to 3 days

$3.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1064553

Suzuki Screw, Pilot - 13279-47070

Leaves Warehouse: 2 to 3 days

$10.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1061882

Suzuki Jet, Pilot - 09492-40014

Out of Stock

$14.28

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1064655

Suzuki Washer - 13382-03110

Leaves Warehouse: 2 to 3 days

$2.78

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1061741

Suzuki Jet, Main - 09491-24013

Out of Stock

$12.93

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1064700

Suzuki Needle, Jet - 13383-19B50

Leaves Warehouse: 2 to 3 days

$17.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

MPN/SKU: 13383-19B60

NEEDLE, JET (J8-5D67)

Unavailable

$15.77

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1064391

Suzuki Float - 13250-42A00

Leaves Warehouse: 2 to 3 days

$27.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1064426

Suzuki Pin, Float - 13254-92311

Leaves Warehouse: 2 to 3 days

$2.01

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1064640

Suzuki Valve Assembly, Needle - 13370-44500

Leaves Warehouse: 2 to 3 days

$41.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1064640

Suzuki Valve Assembly, Needle - 13370-44500

Leaves Warehouse: 2 to 3 days

$41.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1068667

Suzuki O Ring, Float Chamber - 13251-42A00

Leaves Warehouse: 2 to 3 days

$7.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1068699

Suzuki O Ring, Needle Valve Seat - 13374-35C00

Leaves Warehouse: 2 to 3 days

$4.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1064649

Suzuki Filter - 13376-19F00

Leaves Warehouse: 2 to 3 days

$8.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1090363

Suzuki Jet Gallery Balancer (100) - 09493-32002

Leaves Warehouse: 2 to 3 days

$22.30

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1057455

Suzuki Screw - 02112-0412A

Leaves Warehouse: 2 to 3 days

$2.57

Recommended Quantity: 3

This part has 3 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1064480

Suzuki Spring - 13268-19B50

Leaves Warehouse: 2 to 3 days

$4.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

MPN/SKU: 13260-19BV0

ADJUSTER

Unavailable

$65.95

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1064467

Suzuki Adjuster Assembly - 13267-19B70

Out of Stock

$59.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

MPN/SKU: 13550-19B50

SHAFT ASSY, THROTTLE

Unavailable

$40.84

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

MPN/SKU: 13573-19B50

SPRING

Unavailable

$6.03

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

MPN/SKU: 13574-19B50

RING

Unavailable

$2.39

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1060999

Suzuki Hose, 5X8X2000 - 09351-50803-00B

Out of Stock

$11.85

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1064353

Suzuki Plug, Drain - 13247-02340

Leaves Warehouse: 2 to 3 days

$5.00

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1068766

Suzuki Washer, Starter Shaft - 13615-45010

Leaves Warehouse: 2 to 3 days

$3.97

Recommended Quantity: 2

This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1069298

Suzuki Screw - 02112-0416A

Leaves Warehouse: 2 to 3 days

$2.57

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1058100

Suzuki Washer - 08322-0104A

Leaves Warehouse: 2 to 3 days

$3.01

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1073801

Suzuki Cap - 13681-04011

Leaves Warehouse: 2 to 3 days

$3.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1064924

Suzuki Holder, Guide - 13418-43410

Leaves Warehouse: 2 to 3 days

$5.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1068723

Suzuki Spring - 13417-43010

Leaves Warehouse: 2 to 3 days

$3.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1065174

Suzuki Guide, Cable - 13591-19B50

Leaves Warehouse: 2 to 3 days

$10.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

MPN/SKU: 13692-19B50

CLIP

Unavailable

$6.87

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

MPN/SKU: 13692-19B60

CLIP

Unavailable

$9.96

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1065056

Suzuki Cover - 13502-19B50

Out of Stock

$19.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1064397

Suzuki O Ring - 13251-19B50

Leaves Warehouse: 2 to 3 days

$12.97

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1065205

Suzuki Screw - 13602-19B50

Leaves Warehouse: 2 to 3 days

$2.97

Recommended Quantity: 4

This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1070873

Suzuki Hose, 4.5X8.5X600 - 09355-45001-600

Out of Stock

$12.54

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1060492

Suzuki O-Ring, Belt Lube - 09280-06008

Leaves Warehouse: 2 to 3 days

$3.35

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

MPN/SKU: 09367-08004

UNION, 3 WAY

Unavailable

$4.40

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

MPN/SKU: 09359-50823-00B

HOSE, AIR VENT

Unavailable

$24.24

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1061277

Suzuki Clamp - 09404-06435

Leaves Warehouse: 2 to 3 days

$5.59

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

No results with applied page filter:

All Assemblies

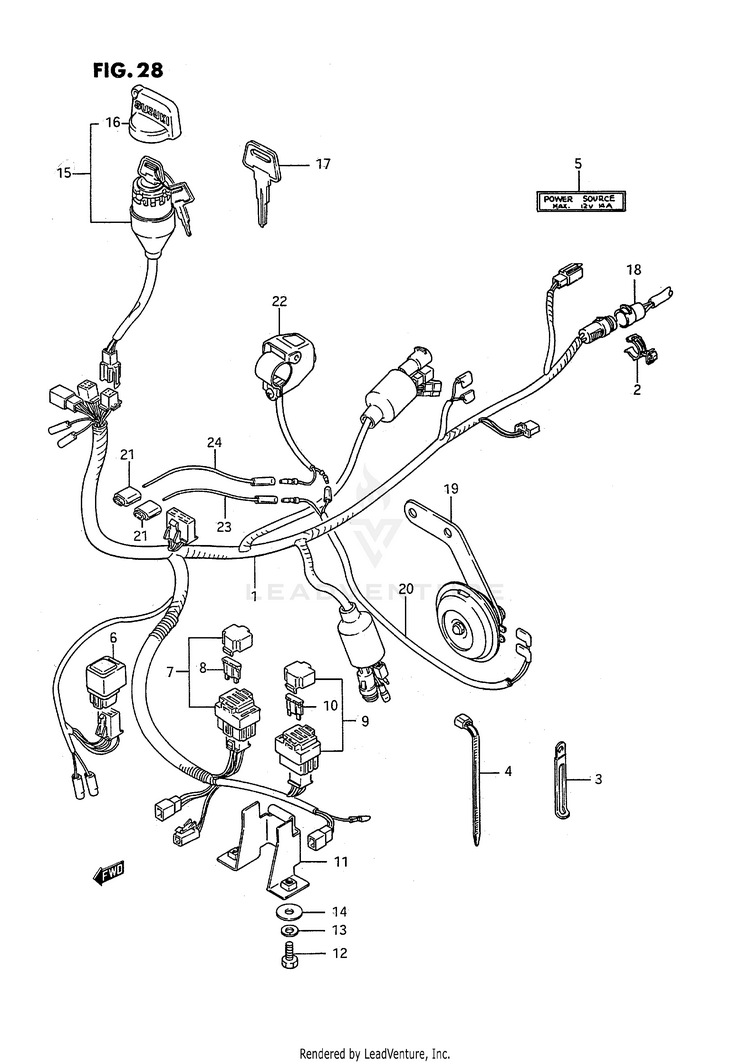

For the current model: LT-4WD (1992)

See All

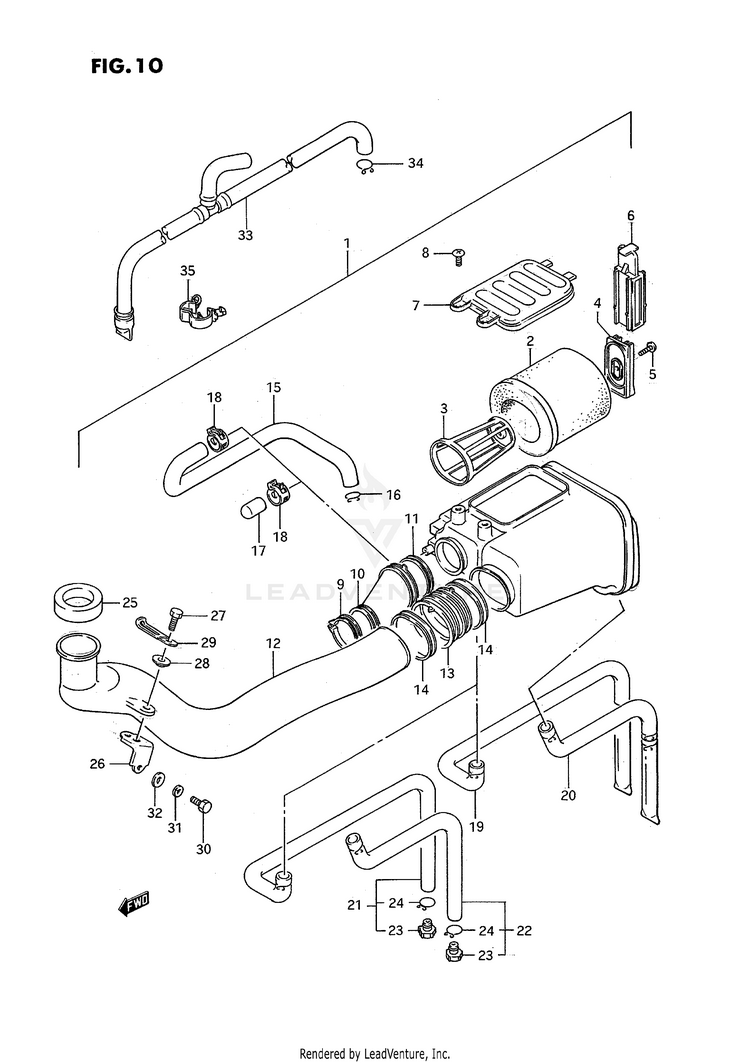

AIR CLEANER (MODEL H/J/K/L)

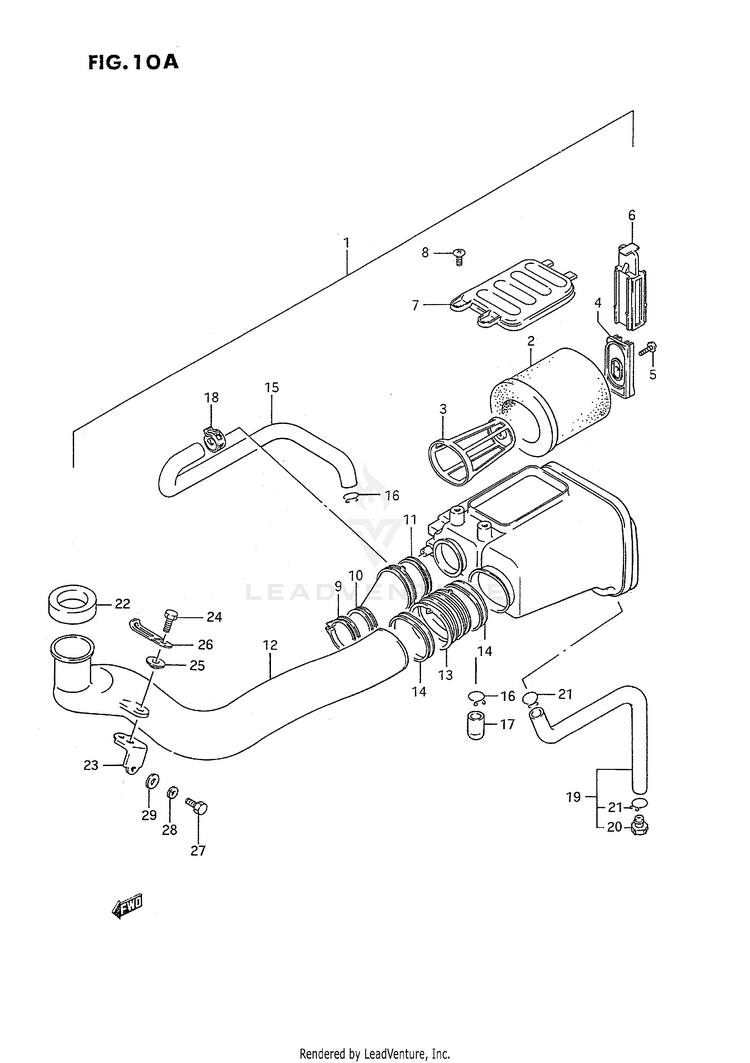

AIR CLEANER (MODEL M/N/P/R/S)

BACKUP LAMP (OPTIONAL)

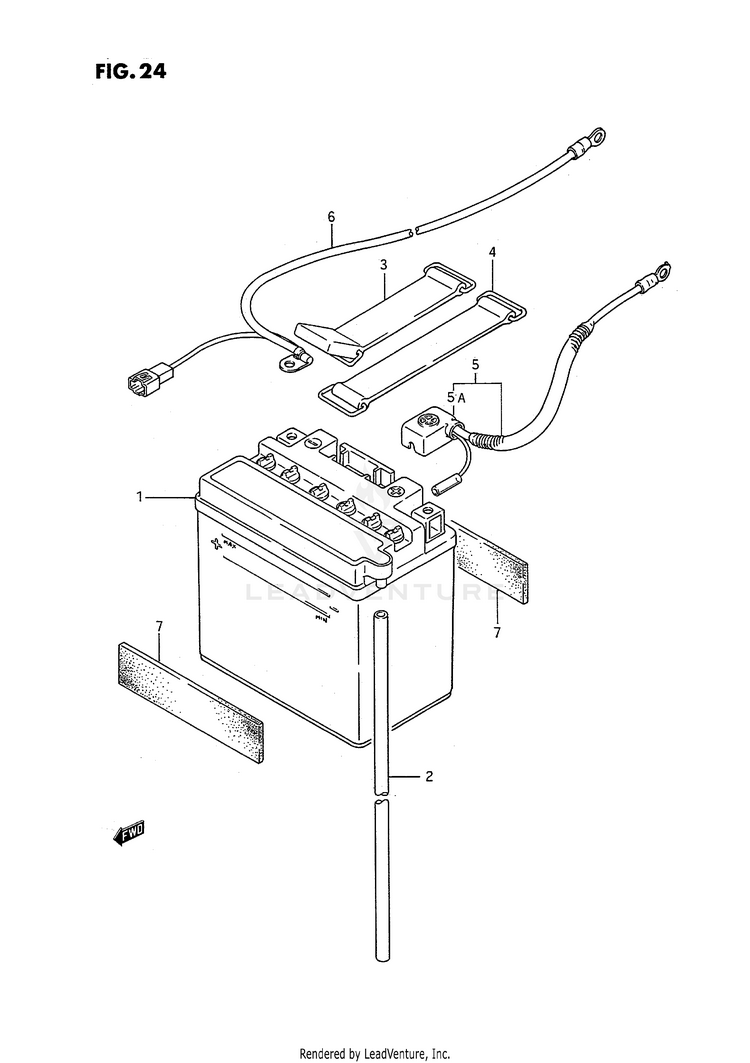

BATTERY

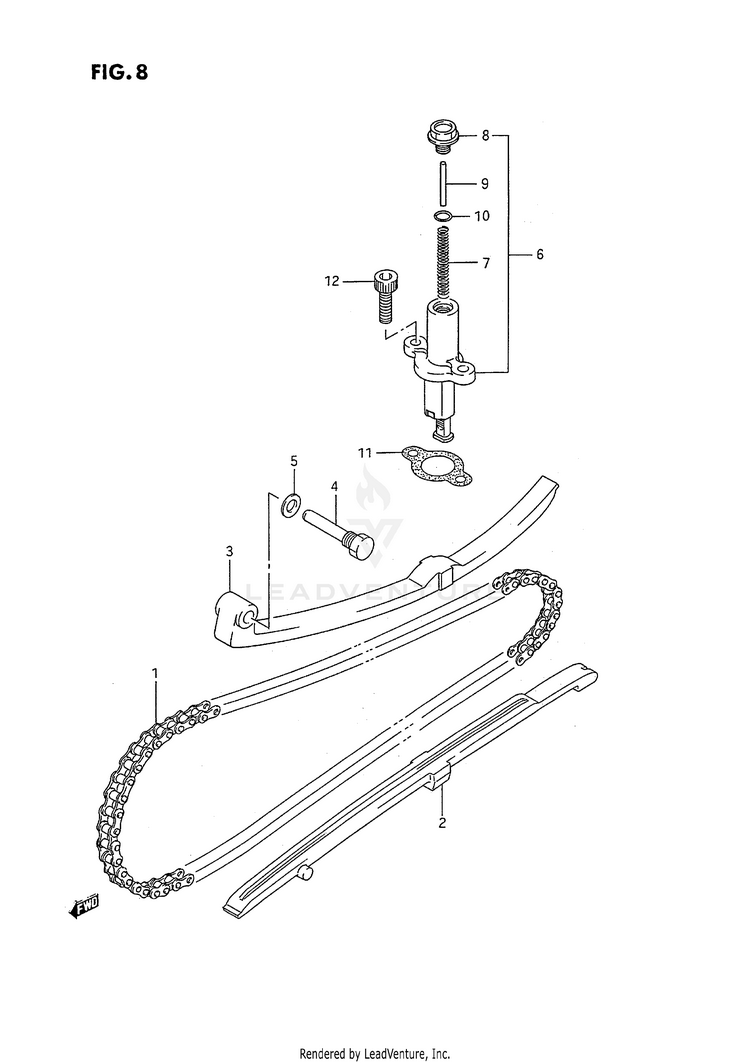

CAM CHAIN

CAM SHAFT - VALVE

CARBURETOR (MODEL H/J/K)

CARBURETOR (MODEL L/M/N/P/R/S)

CARRIER (MODEL H/J)

CARRIER (MODEL K/L/M/N/P/R/S)

CLUTCH

COOLING FAN (MODEL H/J/K/L/M:OPTIONAL)

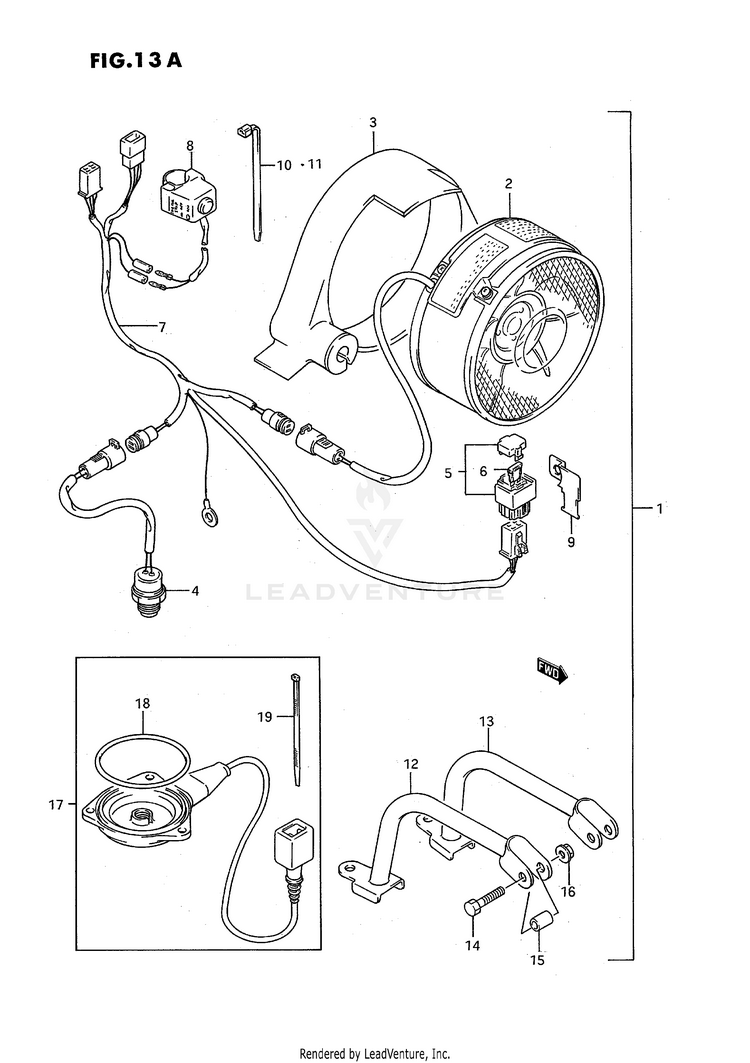

COOLING FAN (MODEL N/P/R/S:OPTIONAL)

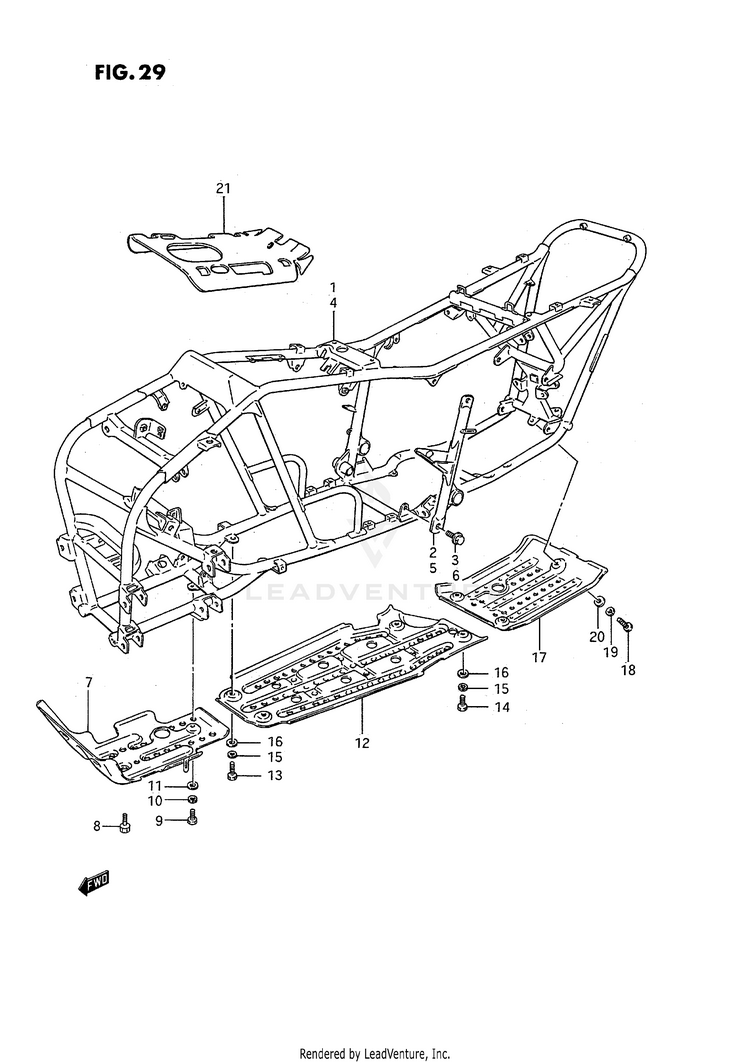

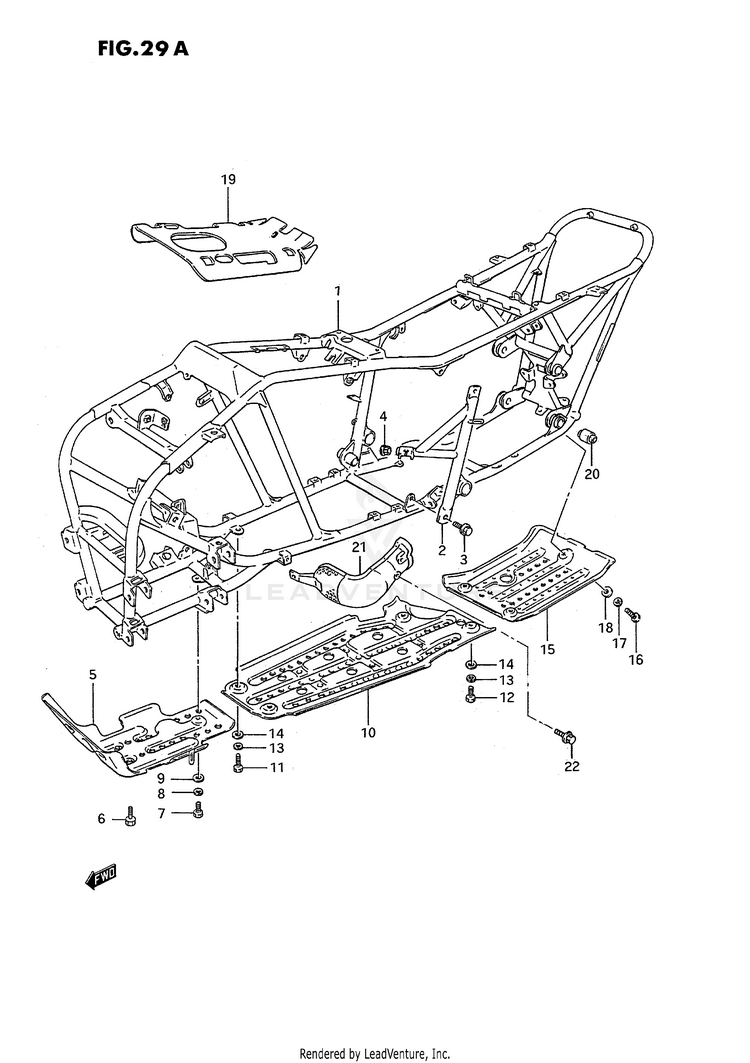

FRAME (MODEL L/M/N/P/R/S)

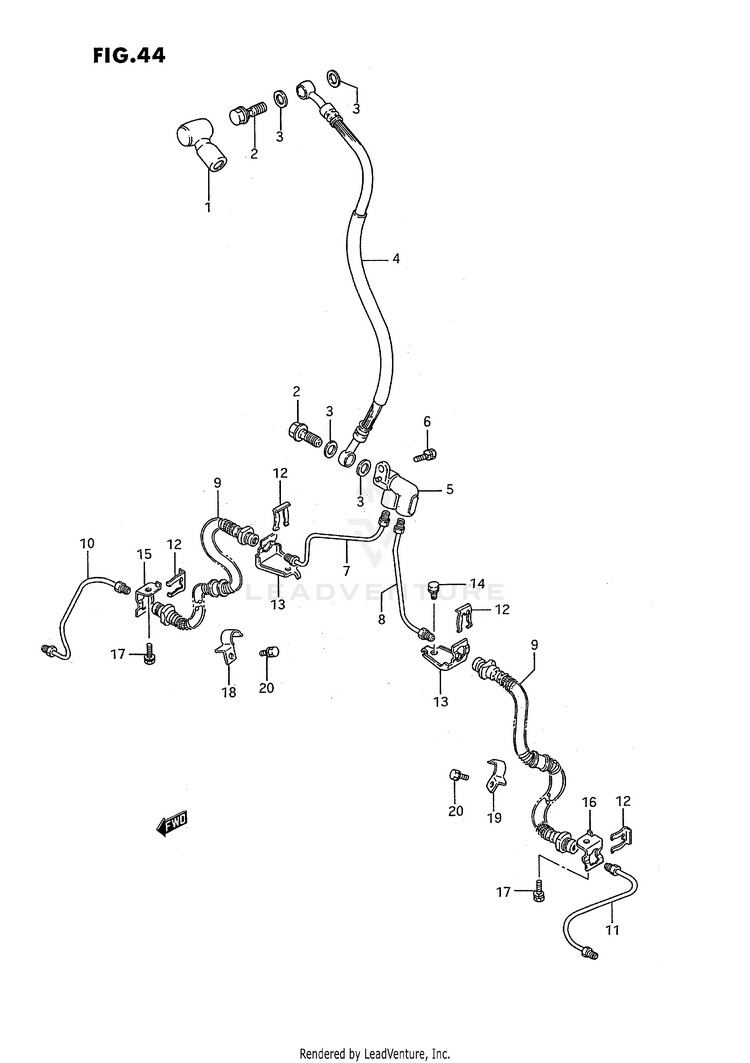

FRONT BRAKE HOSE

FRONT FENDER (MODEL H/J/K/L)

FRONT FENDER (MODEL M/N/P/R/S)

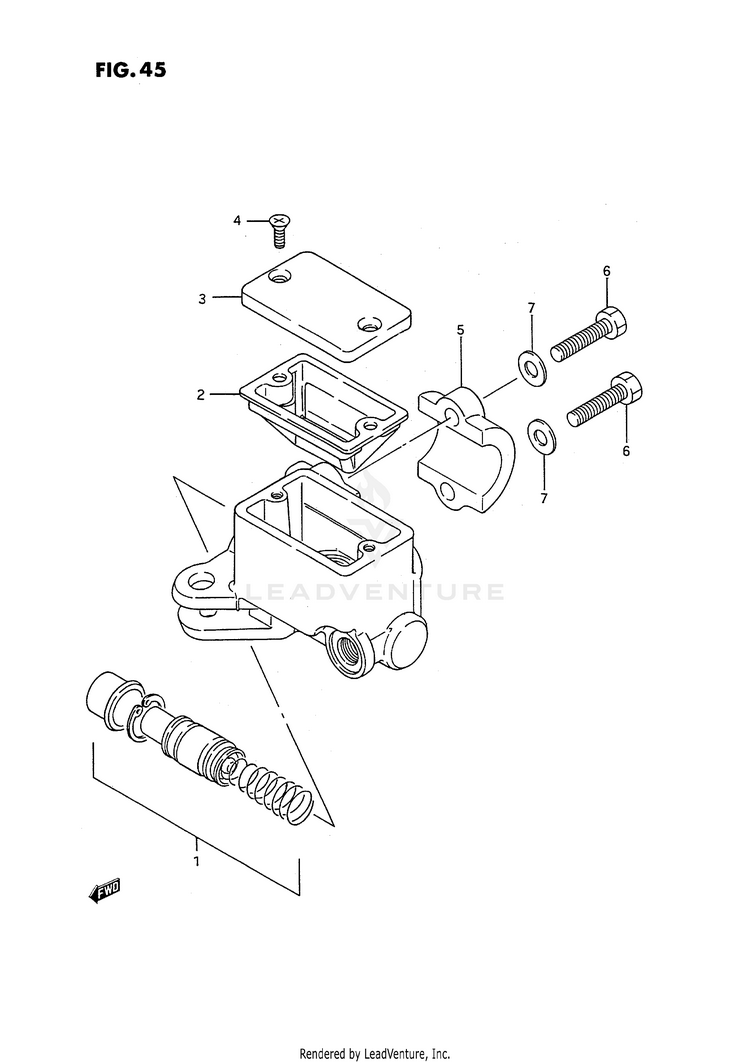

FRONT MASTER CYLINDER (MODEL H/J/K/L)

FRONT MASTER CYLINDER (MODEL M/N/P/R/S)

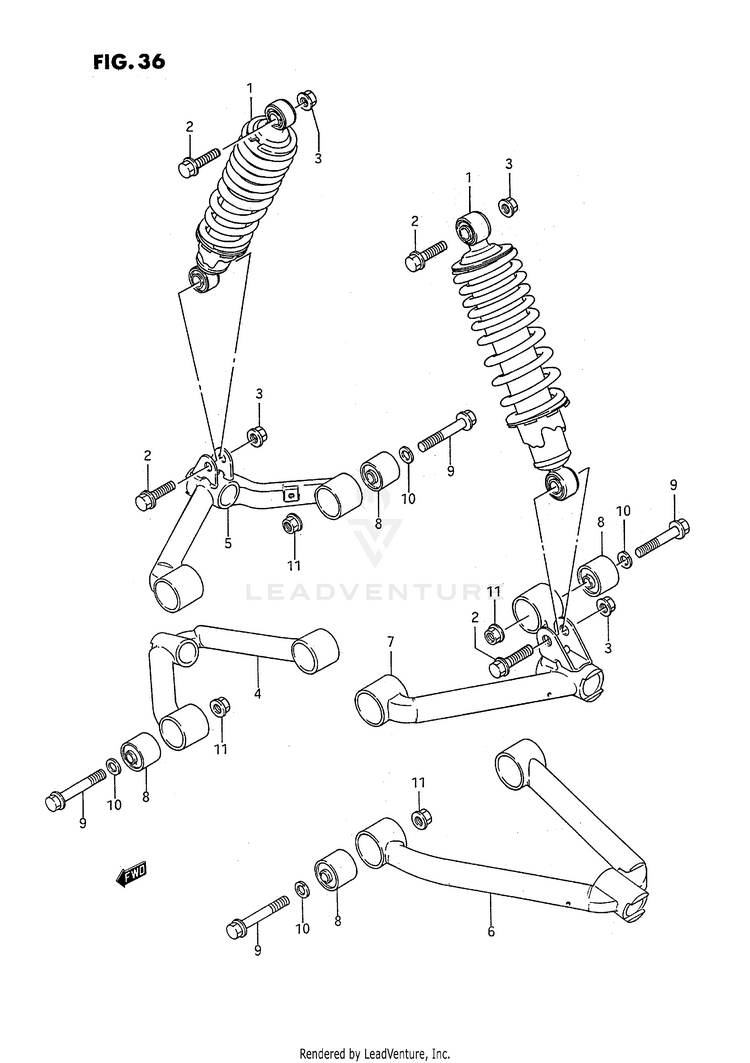

FRONT SUSPENSION ARM

FRONT WHEEL (MODEL H/J/K/L)

FRONT WHEEL (MODEL M/N)

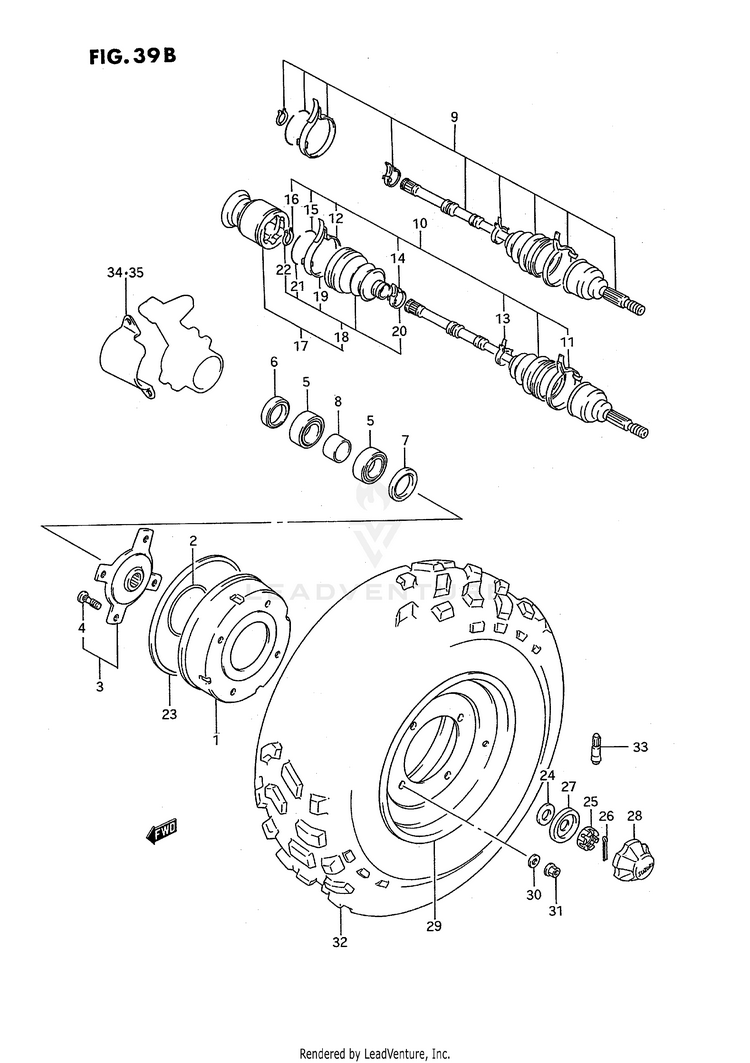

FRONT WHEEL (MODEL P/R/S)

FRONT WHEEL BRAKE (MODEL H/J/K/L)

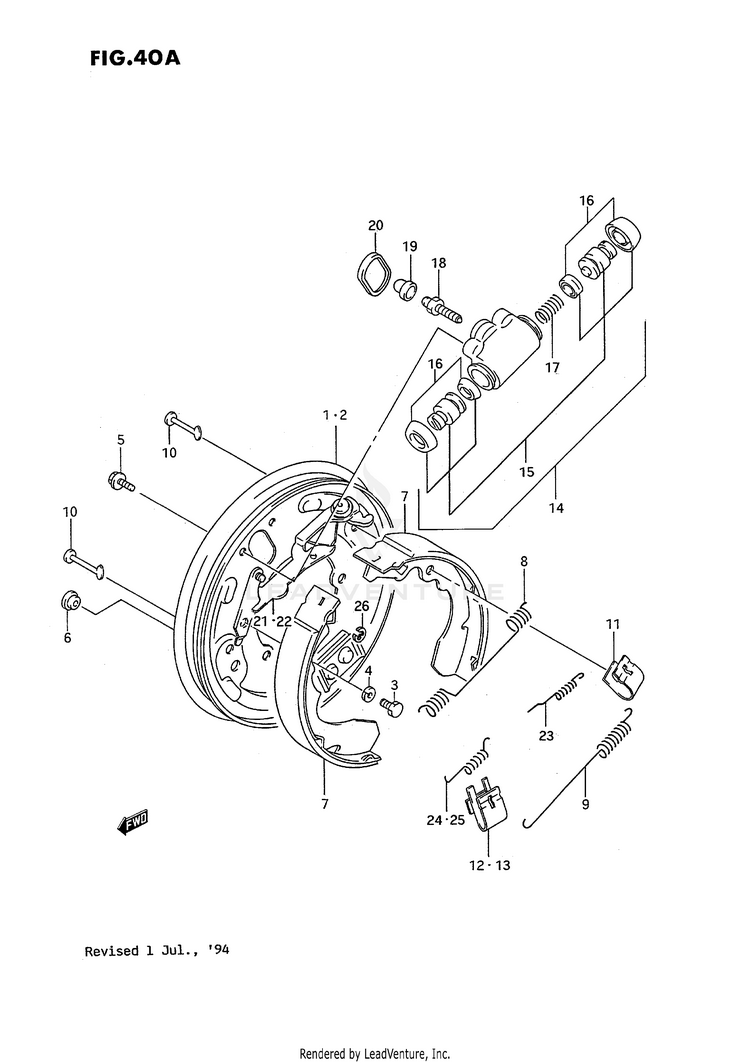

FRONT WHEEL BRAKE (MODEL M/N/P/R/S)

FUEL TANK

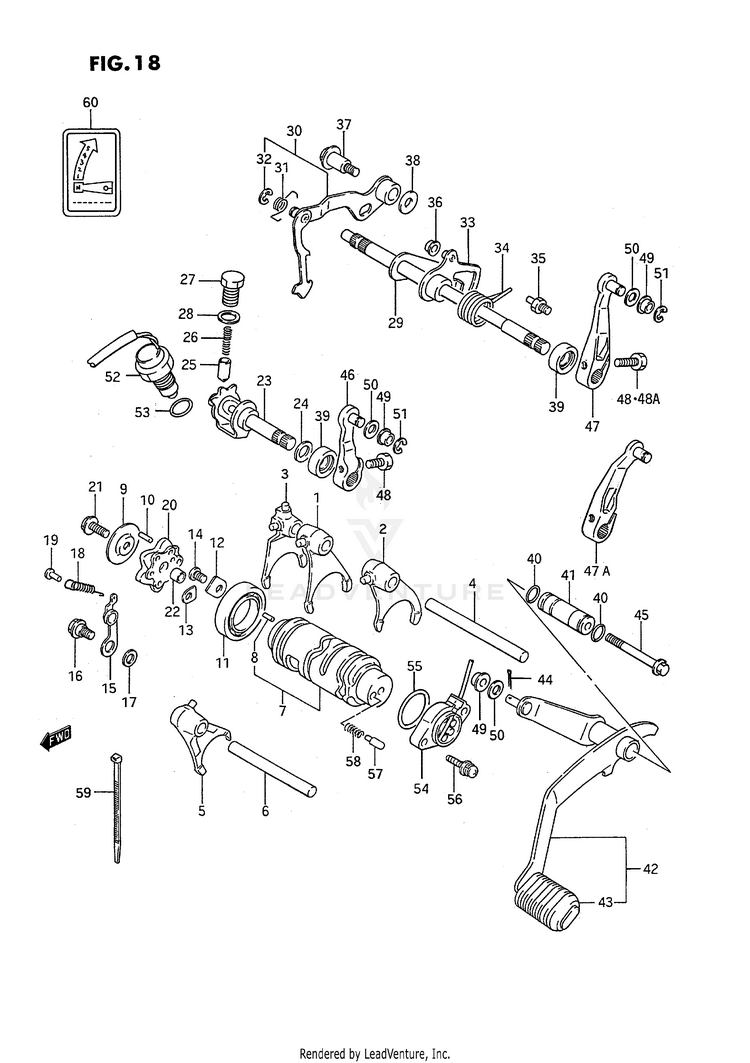

GEAR SHIFTING

HANDLE SWITCH (MODEL H/J/K/L)

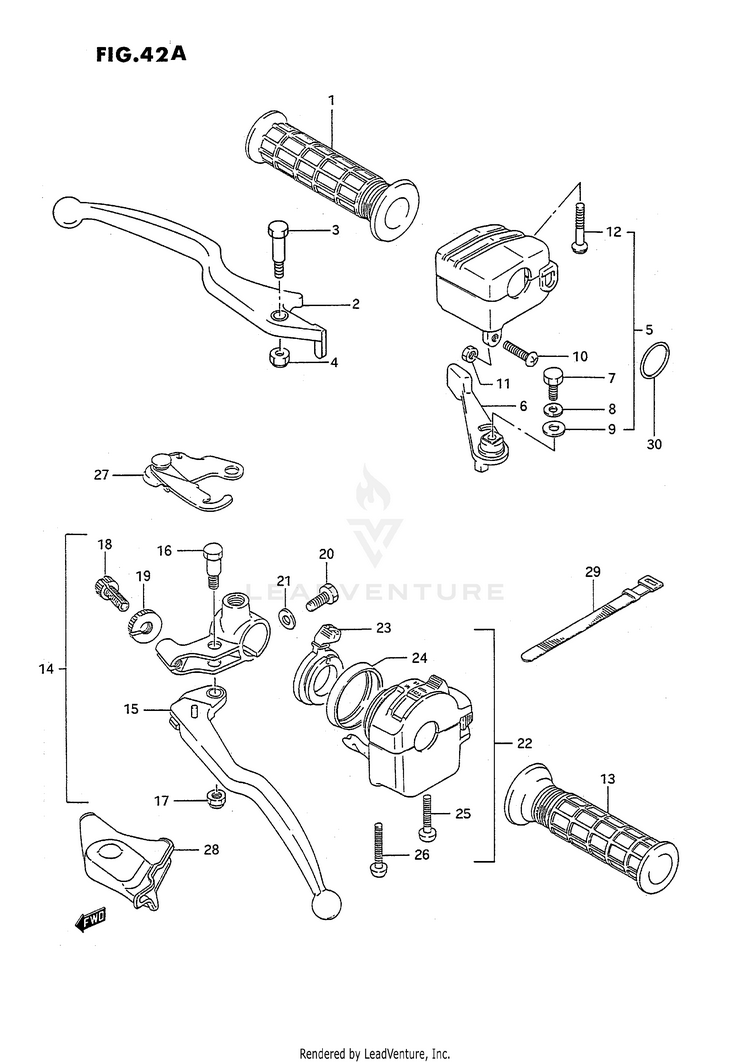

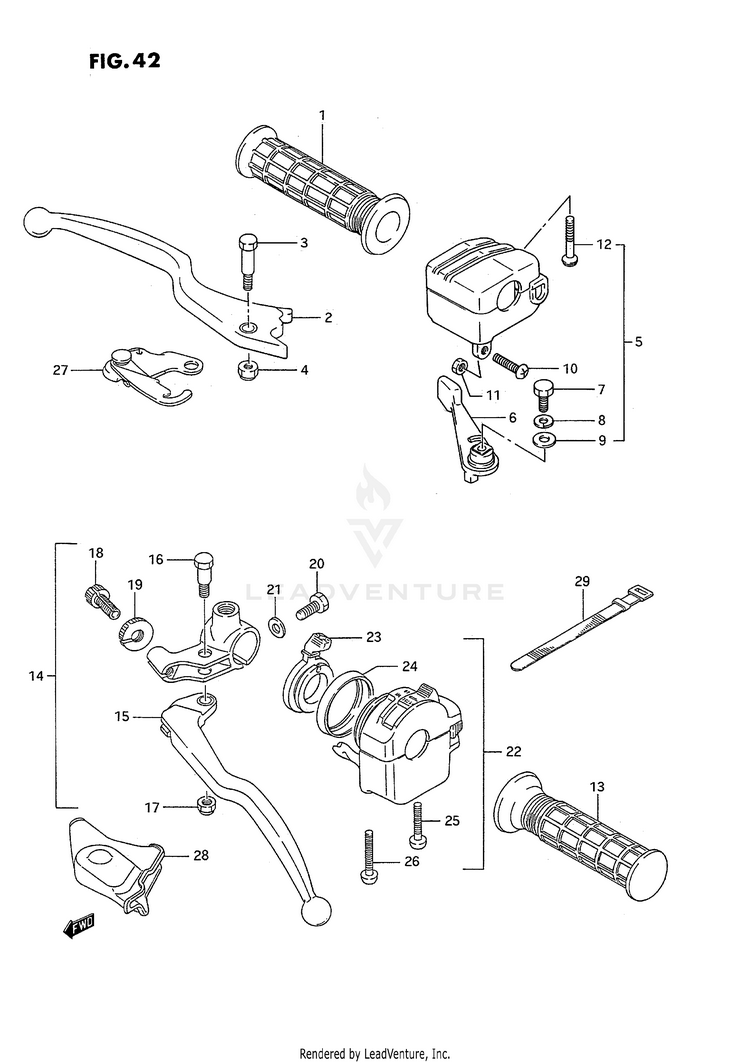

HANDLE SWITCH (MODEL M/N/P/R/S)

HANDLEBAR - CONTROL CABLE (MODEL H)

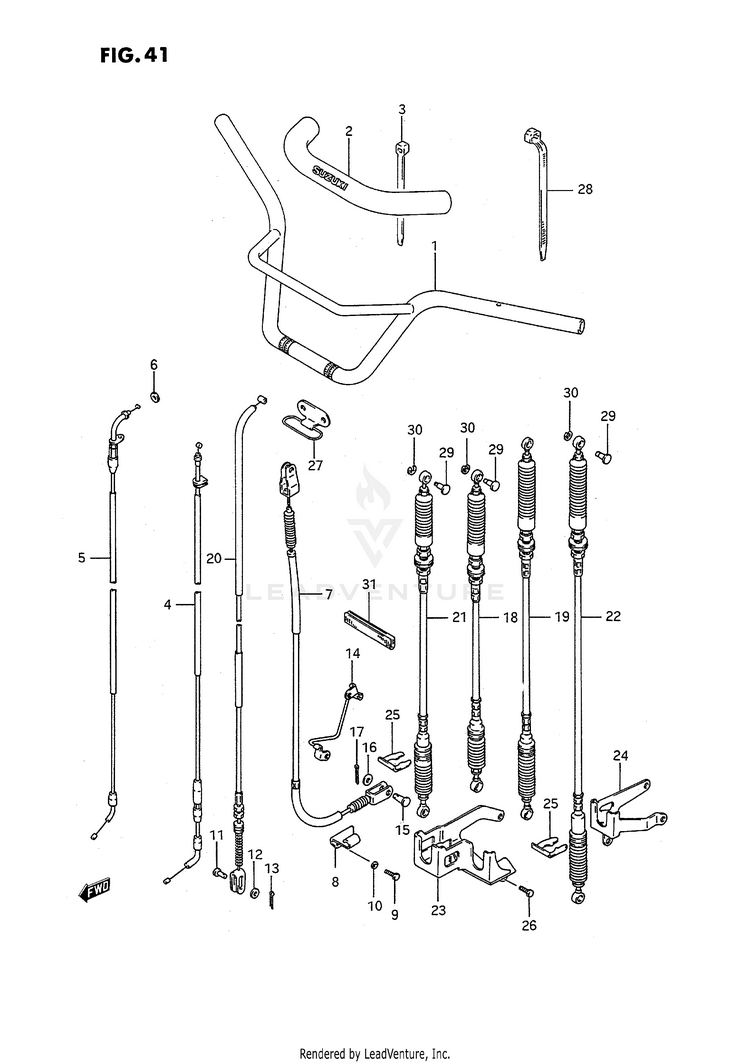

HANDLEBAR - CONTROL CABLE (MODEL J/K/L/M/N/P/R/S)

HEADLAMP

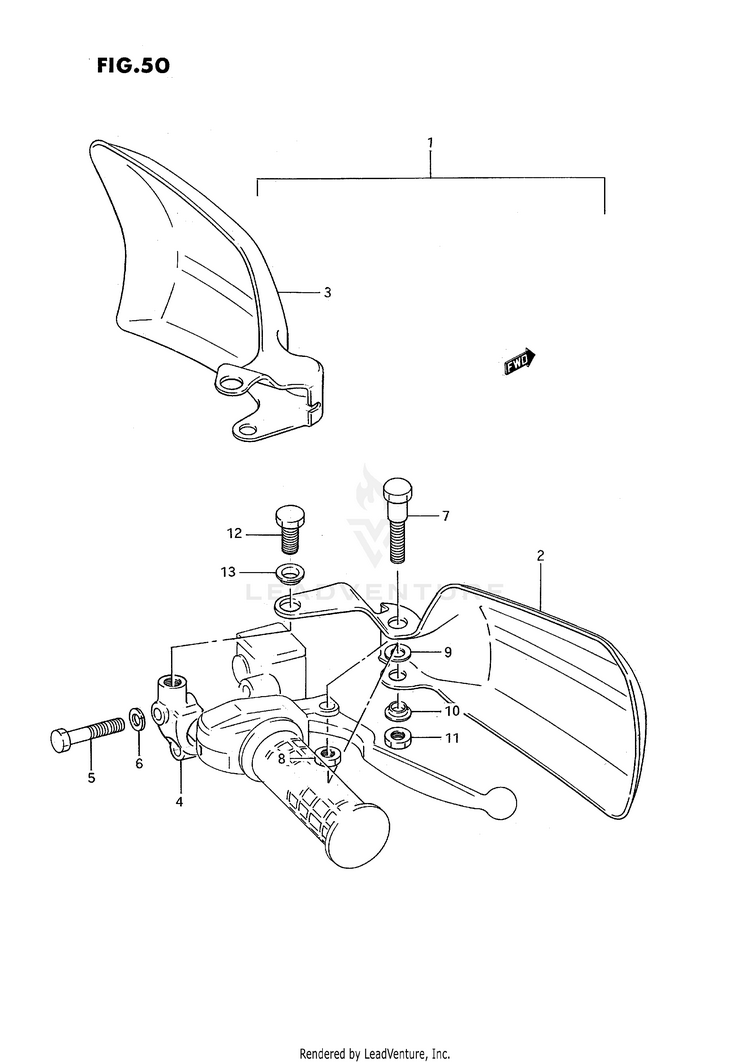

KNUCKLE COVER (OPTIONAL)

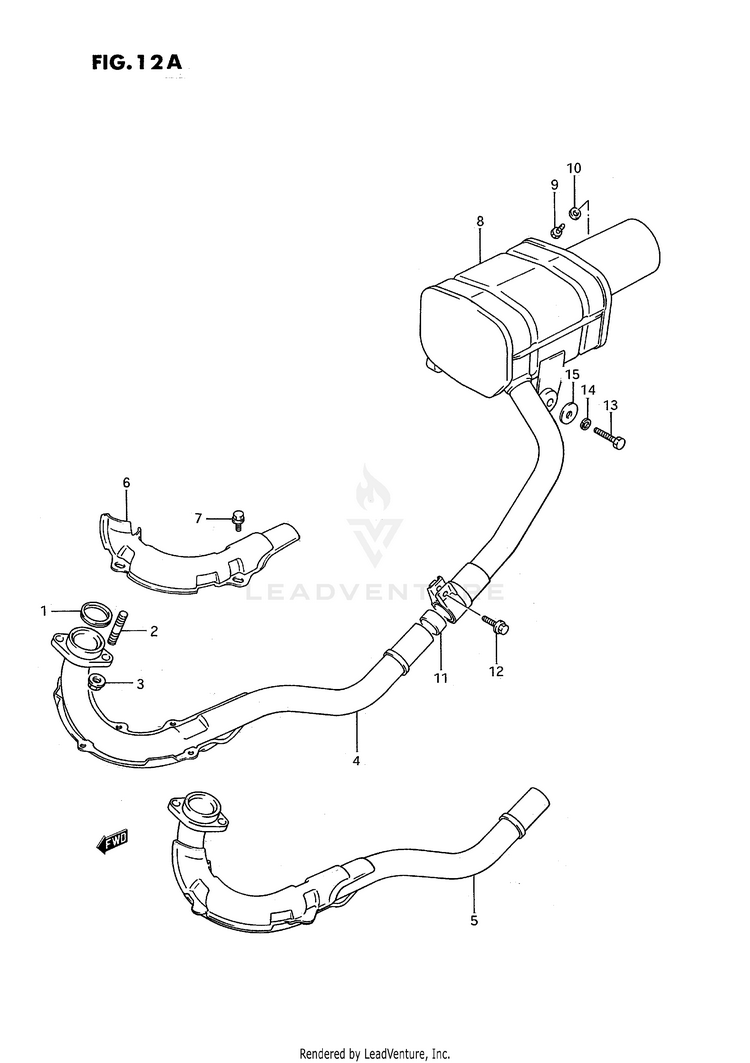

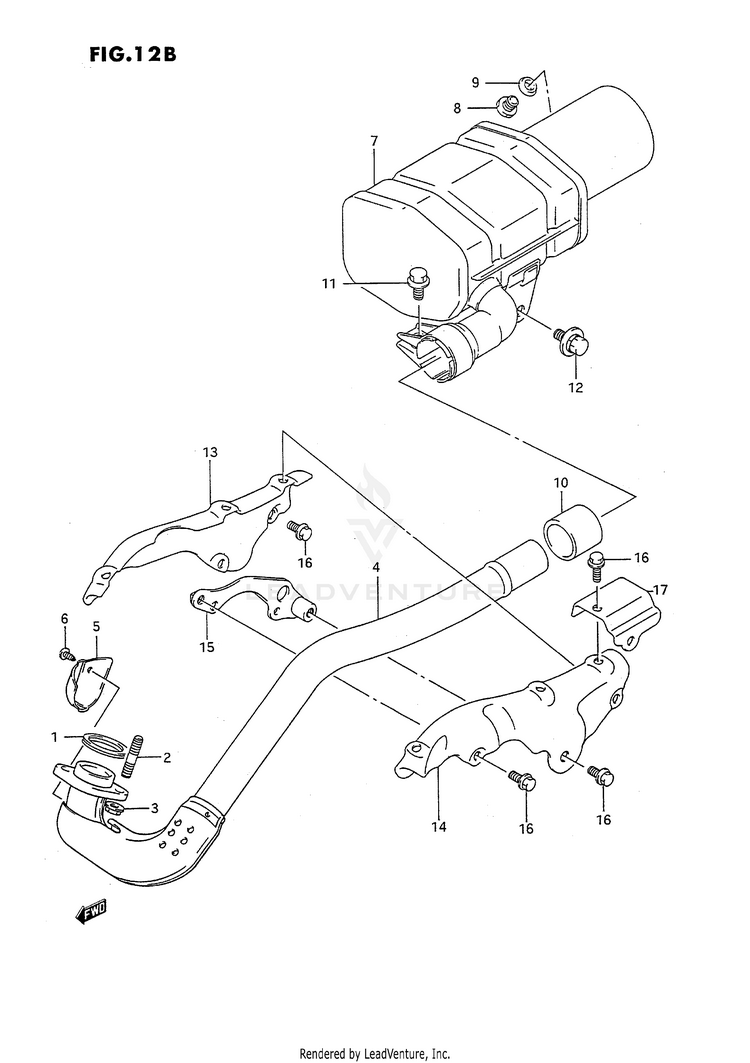

MUFFLER (MODEL M/N/P/R/S)

OIL PUMP - FUEL PUMP

OPTIONAL

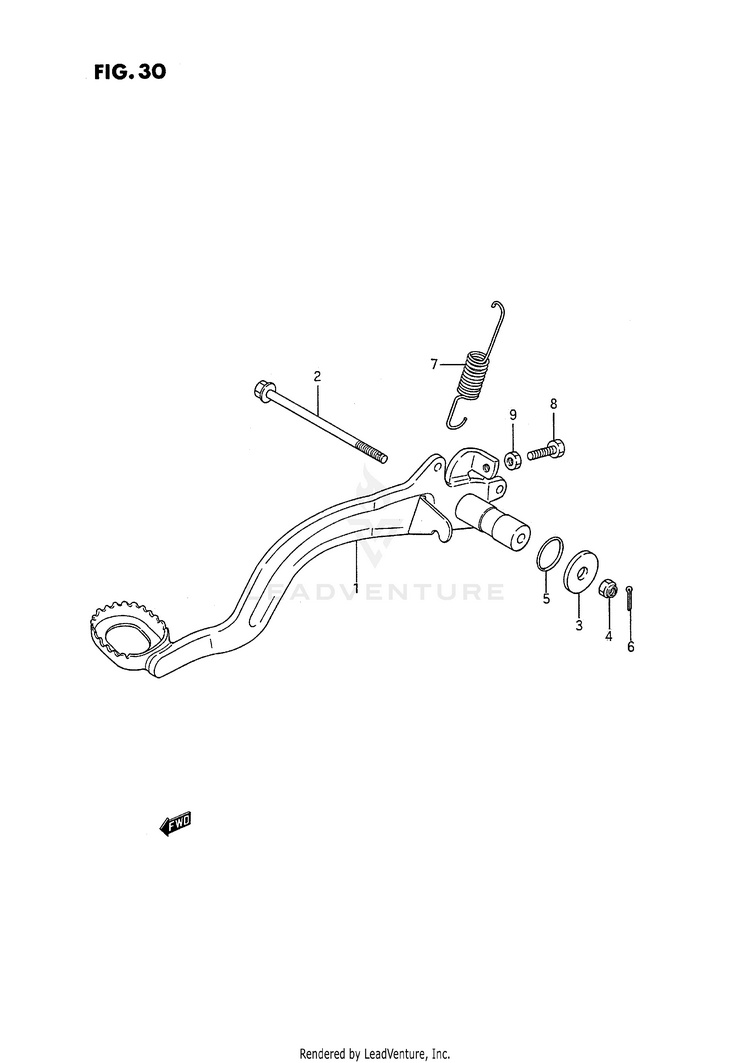

REAR BRAKE

REAR FENDER (MODEL H/J/K/L)

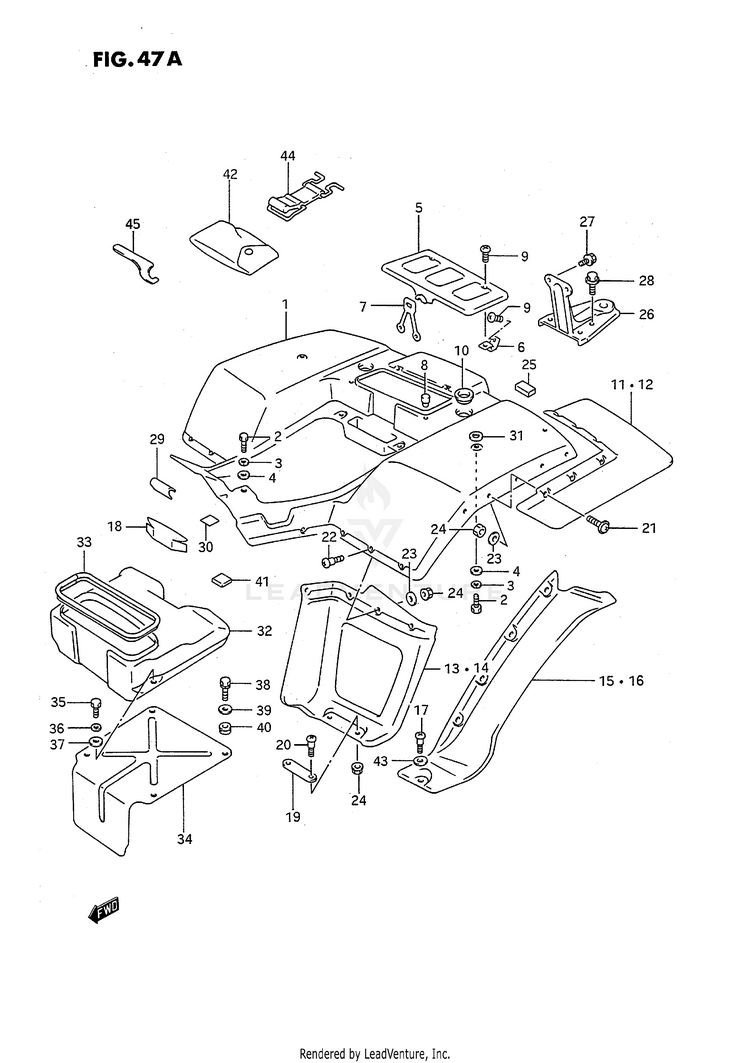

REAR FENDER (MODEL M/N/P/R/S)

REAR SUSPENSION ARM (MODEL H)

REAR SUSPENSION ARM (MODEL J/K/L/M/N/P/R/S)

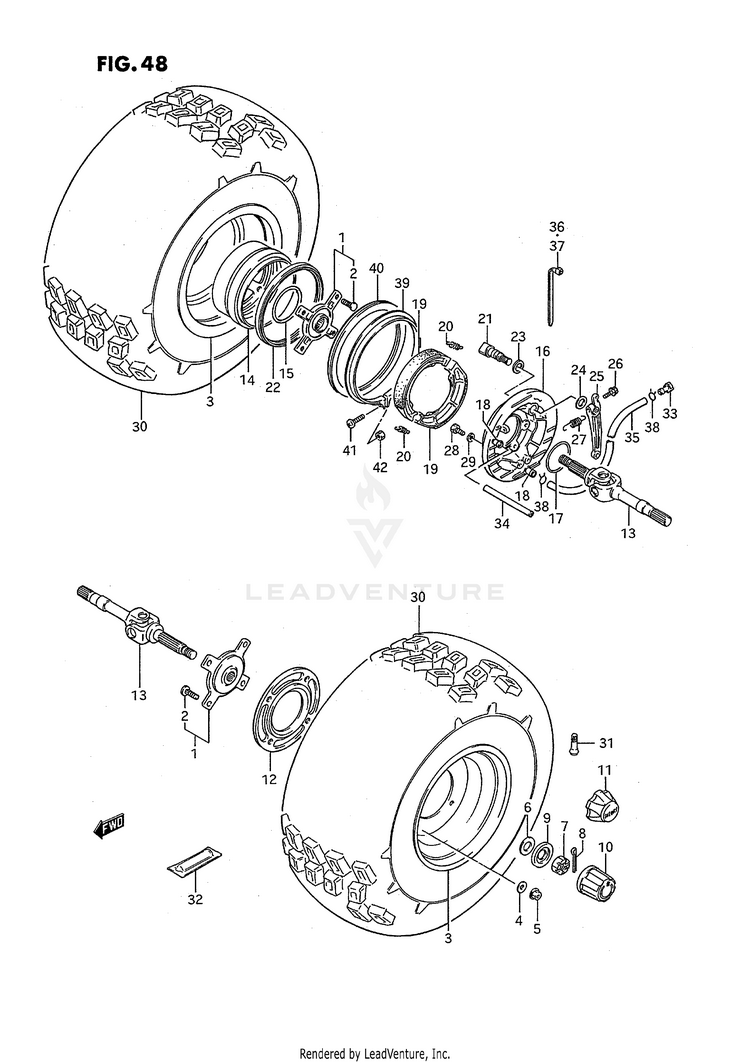

REAR WHEEL

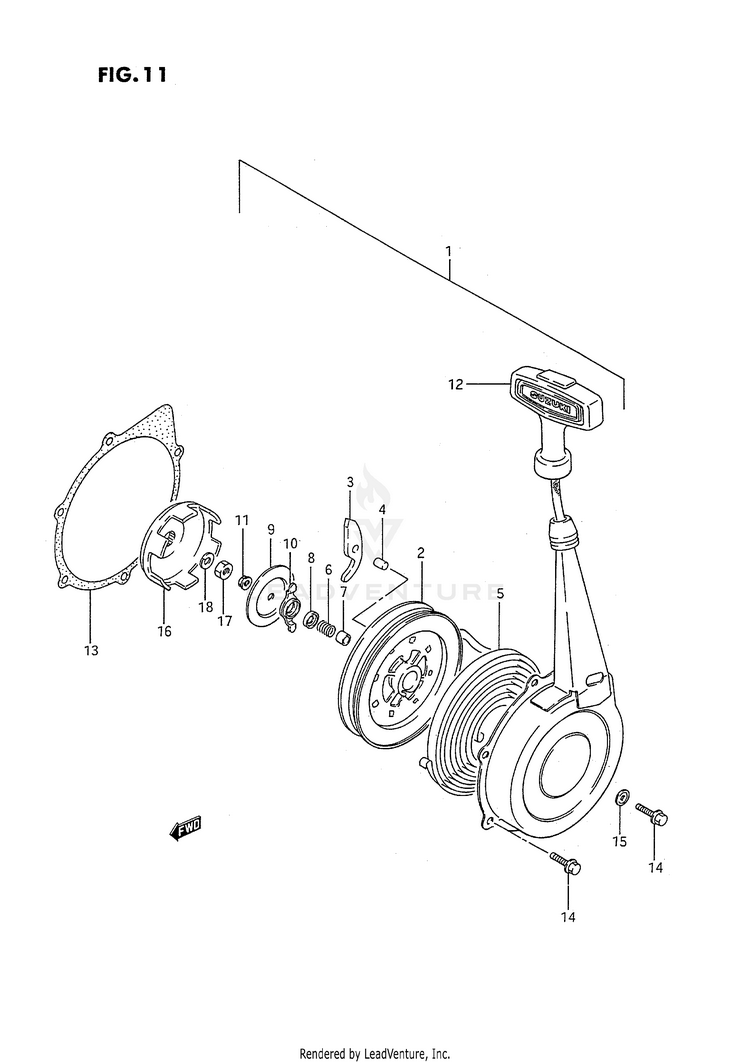

RECOIL STARTER

SEAT

SECONDARY GEAR - PROPELLER SHAFT (MODEL H/J/K/L/M/N/P)

SECONDARY GEAR - PROPELLER SHAFT (MODEL R/S)

SPEEDOMETER

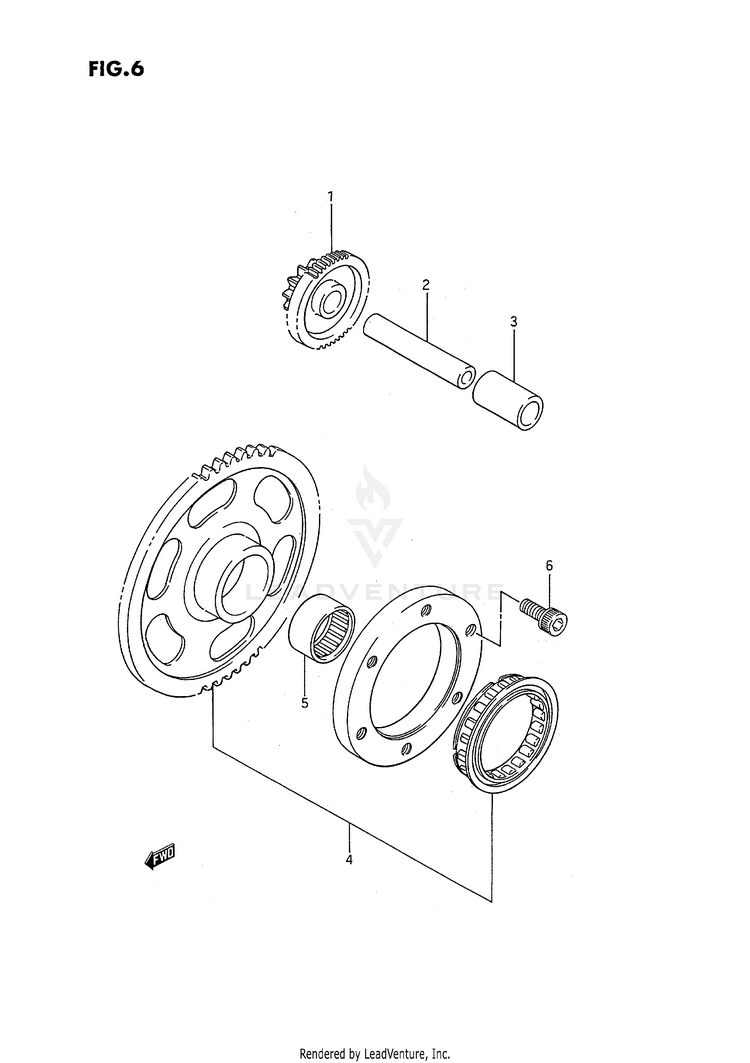

STARTER CLUTCH

STARTING MOTOR (%E.NO.125080)

STARTING MOTOR (E.NO.125081%)

Suzuki

1992 Suzuki LT-4WD (1992) CARBURETOR (MODEL L/M/N/P/R/S) OEM Parts | Assembly Diagram OEM Parts Finder and Diagram (Microfiche) Inspector

All Assemblies

Change Language

Explore

Helpful Information

Get In Touch

Resources

Stay Connected
