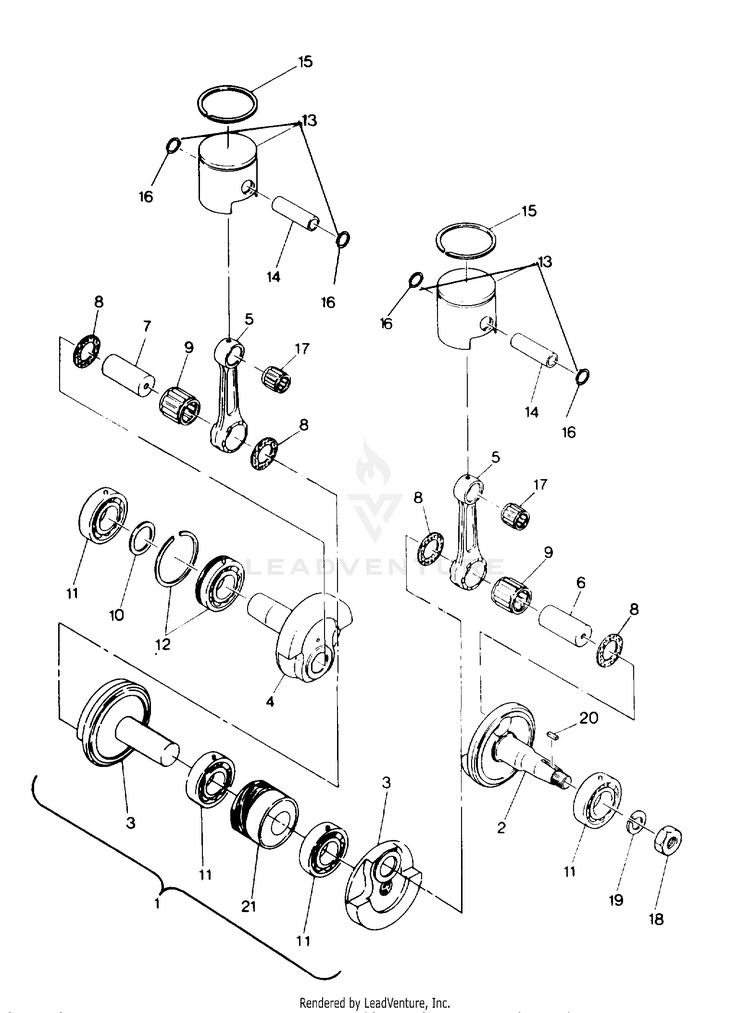

1991 SNO Polaris 0911759 XC 400 (1991) (0911759) PISTON AND CRANKSHAFT 400 XC (4920122012029A) OEM Parts | Assembly Diagram OEM Parts Finder and Diagram (Microfiche) Inspector

Polaris Choose parts...

Use scroll wheel, or pinch and drag to and .

1
Item # 1668801
Polaris / Indian Crankshaft Assembly - 3084612
Leaves Warehouse: 3 to 4 days
$1,219.99
          Recommended Quantity: 1

          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

          Stock: TBD
          2
          MPN/SKU: 3083362
          CRANKSHAFT #1
          Unavailable
          $0.00
                  Recommended Quantity: 1

                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                  Stock: TBD
                  3
                  Item # 1668559
                  Polaris / Indian Crankshaft 2 Comp - 3083713
                  Leaves Warehouse: 3 to 4 days
                  $767.99
                          Recommended Quantity: 1

                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                          Stock: TBD
                          4
                          Item # 1668463
                          Polaris / Indian Crankshaft 3 - 3083364
                          Out of Stock
                          $139.49
                                  Recommended Quantity: 1

                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                  Stock: TBD
                                  5
                                  Item # 1668439
                                  Polaris / Indian Connecting Rod - 3083252
                                  Leaves Warehouse: 3 to 4 days
                                  $224.99
                                          Recommended Quantity: 2

                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                          Stock: TBD
                                          7
                                          Item # 1630481
                                          Polaris / Indian Pin Crank 2 - 5141629
                                          Leaves Warehouse: 3 to 4 days
                                          $54.99
                                                  Recommended Quantity: 1

                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                  Stock: TBD
                                                  8
                                                  Item # 1668442
                                                  Polaris / Indian Crankpin Spacer - 3083277
                                                  Leaves Warehouse: 3 to 4 days
                                                  $25.99
                                                          Recommended Quantity: 4

                                                          This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                          Stock: TBD
                                                          9
                                                          Item # 1669091
                                                          Polaris / Indian Bearing Large End - 3085628
                                                          Leaves Warehouse: 3 to 4 days
                                                          $51.99
                                                                  Recommended Quantity: 2

                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                  Stock: TBD
                                                                  10
                                                                  Item # 1668337
                                                                  Polaris / Indian Spacer Crankshaft - 3080447
                                                                  Leaves Warehouse: 3 to 4 days
                                                                  $3.09
                                                                          Recommended Quantity: 1

                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                          Stock: TBD
                                                                          11
                                                                          MPN/SKU: 3084586
                                                                          Bearing, Ball
                                                                          Unavailable
                                                                          $44.99
                                                                                  Recommended Quantity: 4

                                                                                  This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                  Stock: TBD
                                                                                  12
                                                                                  MPN/SKU: 3083714
                                                                                  BALL BEARING, C-4
                                                                                  Unavailable
                                                                                  $0.00
                                                                                          Recommended Quantity: 1

                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                          Stock: TBD
                                                                                          13
                                                                                          MPN/SKU: 3083877
                                                                                          PISTON, .010 O/S
                                                                                          Unavailable
                                                                                          $0.00
                                                                                                  Recommended Quantity: 2

                                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                  Stock: TBD
                                                                                                  13
                                                                                                  MPN/SKU: 3083878
                                                                                                  PISTON, .020 O/S
                                                                                                  Unavailable
                                                                                                  $0.00
                                                                                                          Recommended Quantity: 2

                                                                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                          Stock: TBD
                                                                                                          13
                                                                                                          MPN/SKU: 3083848
                                                                                                          PISTON
                                                                                                          Unavailable
                                                                                                          $0.00
                                                                                                                  Recommended Quantity: 2

                                                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                  Stock: TBD
                                                                                                                  14
                                                                                                                  Item # 1630498
                                                                                                                  Polaris / Indian Pin Piston Wrist - 3083849
                                                                                                                  Leaves Warehouse: 3 to 4 days
                                                                                                                  $30.29
                                                                                                                          Recommended Quantity: 2

                                                                                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                          Stock: TBD
                                                                                                                          15
                                                                                                                          Item # 1668447
                                                                                                                          Polaris / Indian Ring Piston - 3083302
                                                                                                                          Out of Stock
                                                                                                                          $47.89
                                                                                                                                  Recommended Quantity: 2

                                                                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                  Stock: TBD
                                                                                                                                  15
                                                                                                                                  MPN/SKU: 3083358
                                                                                                                                  RING, PISTON .010 O/S
                                                                                                                                  Unavailable
                                                                                                                                  $0.00
                                                                                                                                          Recommended Quantity: 22

                                                                                                                                          This part has 22 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                          Stock: TBD
                                                                                                                                          15
                                                                                                                                          MPN/SKU: 3083359
                                                                                                                                          RING,PISTON .020 O/S
                                                                                                                                          Unavailable
                                                                                                                                          $0.00
                                                                                                                                                  Recommended Quantity: 2

                                                                                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                  Stock: TBD
                                                                                                                                                  16
                                                                                                                                                  Item # 1596829
                                                                                                                                                  Polaris / Indian Clip Piston Pin - 3083839
                                                                                                                                                  Leaves Warehouse: Same Day
                                                                                                                                                  $6.99
                                                                                                                                                          Recommended Quantity: 4

                                                                                                                                                          This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                          Stock: TBD
                                                                                                                                                          17
                                                                                                                                                          MPN/SKU: 3083216
                                                                                                                                                          BEARING, SMALL END Substituted by 3085595
                                                                                                                                                          Unavailable
                                                                                                                                                          $18.99
                                                                                                                                                                  Recommended Quantity: 2

                                                                                                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                  Stock: TBD
                                                                                                                                                                  18
                                                                                                                                                                  Item # 1625226
                                                                                                                                                                  Polaris / Indian Nut - 3083093
                                                                                                                                                                  Leaves Warehouse: 3 to 4 days
                                                                                                                                                                  $34.99
                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                          Stock: TBD
                                                                                                                                                                          19
                                                                                                                                                                          Item # 1648165
                                                                                                                                                                          Polaris / Indian Washer-Spring - 3083094
                                                                                                                                                                          Leaves Warehouse: 3 to 4 days
                                                                                                                                                                          $3.99
                                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                  20
                                                                                                                                                                                  MPN/SKU: 3080364
                                                                                                                                                                                  KEY Substituted by 3081447
                                                                                                                                                                                  Unavailable
                                                                                                                                                                                  $0.00
                                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                          21
                                                                                                                                                                                          Item # 1668581
                                                                                                                                                                                          Polaris / Indian Gear Drive Oil Pump - 3083782
                                                                                                                                                                                          Leaves Warehouse: 3 to 4 days
                                                                                                                                                                                          $142.99
                                                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                  Stock: TBD
