Assemblies List (65)
B
BODY, DASH AND GLOVEBOX - Z24A5E87A5 (C0704747-2)

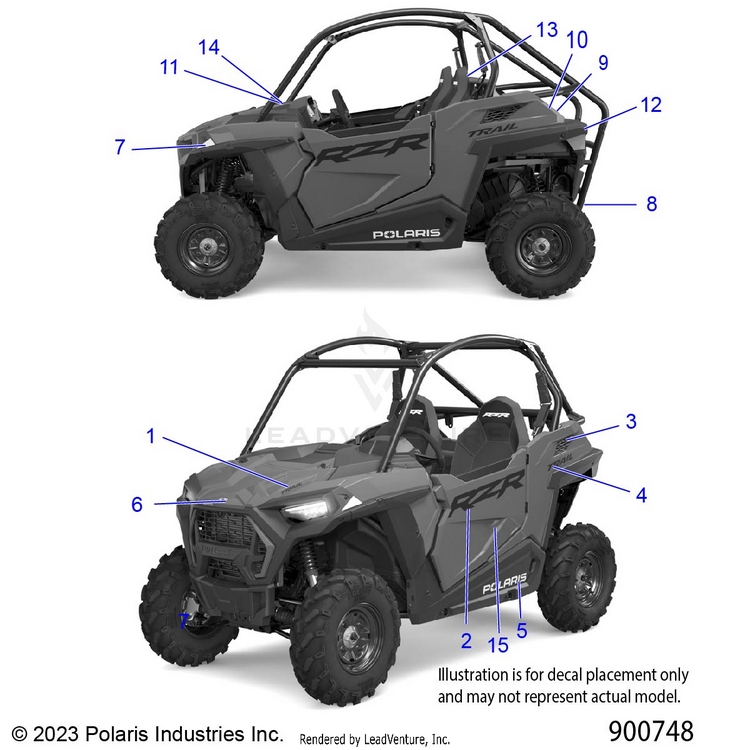

BODY, DECALS - Z24A5E87A5(900747)
BODY, DOORS - Z24A5E87A5(C0704741-2)
BODY, FLOOR and ROCKER PANELS - Z24A5E87A5(C030134)
BODY, FRONT BUMPER - Z24A5E87A5(C0704747-7)
BODY, GRAB BAR, PASSENGER - Z24A5E87A5(C701027-1)
BODY, HOOD AND FRONT BODY WORK - Z24A5E87A5(C0704747-3)
BODY, REAR RACK AND FENDERS - Z24A5E87A5(C0704747-4)

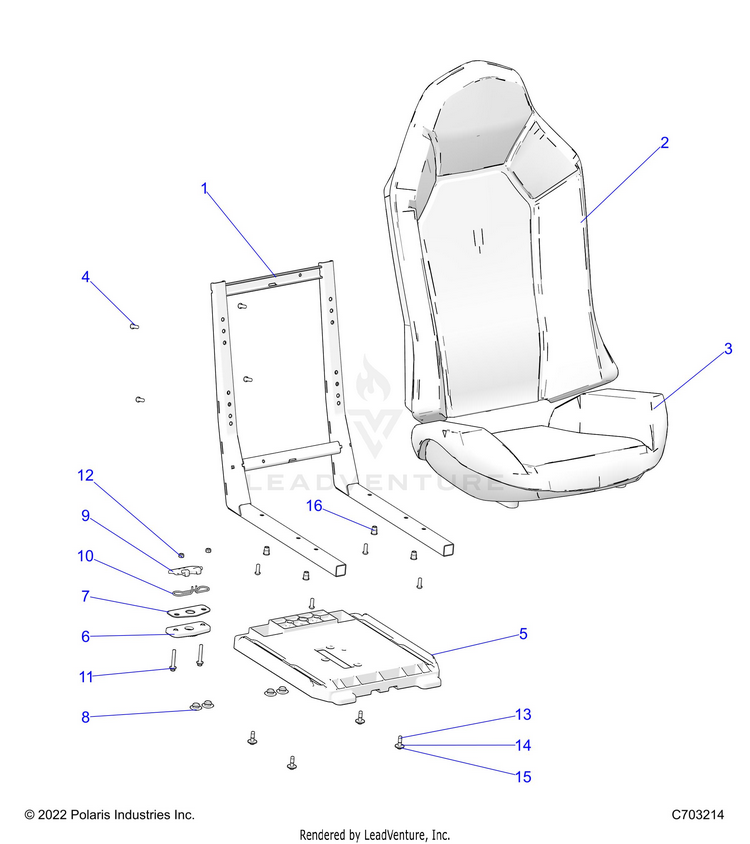

BODY, SEAT ASM. - Z24A5E87A5(C703214)
BODY, SEAT BELT MOUNTING - Z24A5E87A5(C701032-2)

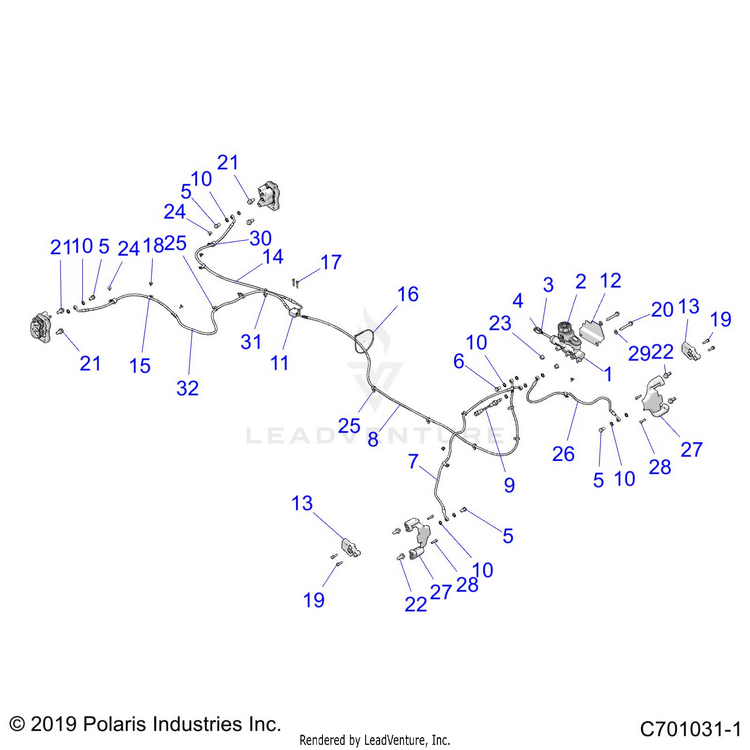

BRAKES, BRAKE LINES AND MASTER CYLINDER - Z24A5E87A5(C701031-1)
BRAKES, FRONT CALIPER - Z24A5E87A5(C701031-2)

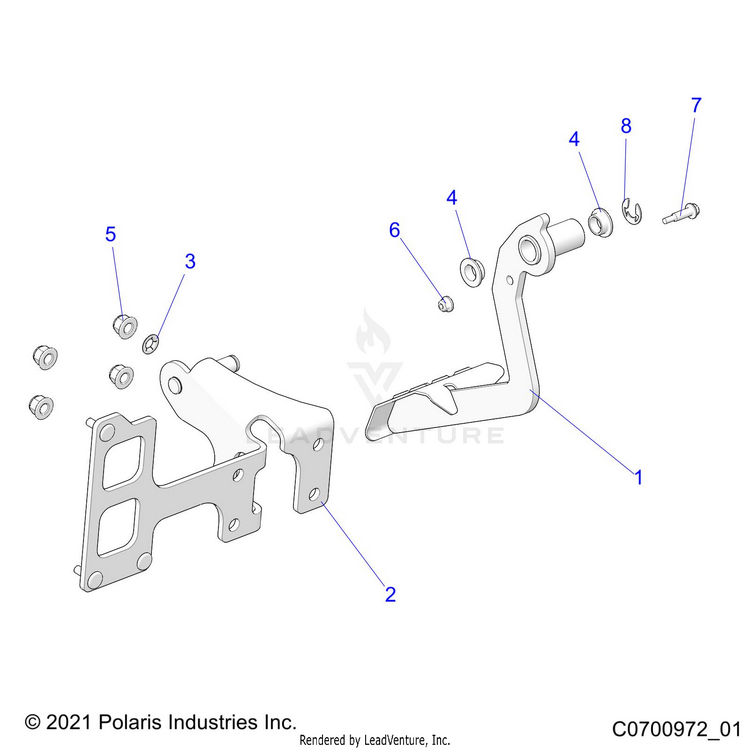

BRAKES, PEDAL AND MASTER CYLINDER - Z24A5E87A5(C0700972_01)

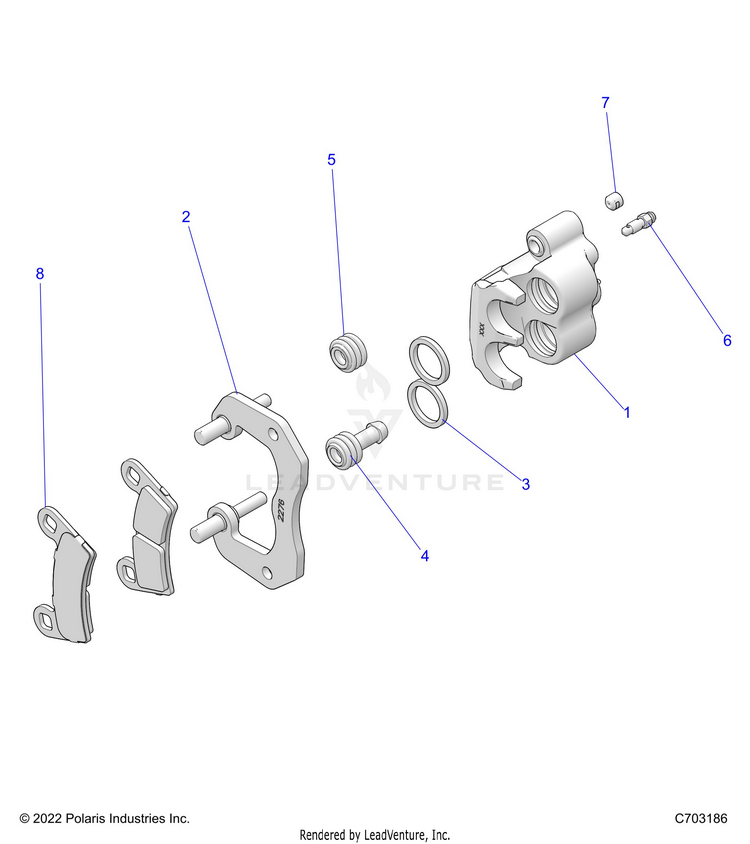

BRAKES, REAR CALIPER - Z24A5E87A5(C703186)
C
D
DRIVE TRAIN, CLUTCH COVER AND DUCTING - Z24A5E87A5(C0701452)
DRIVE TRAIN, FRONT GEARCASE INTERNALS - Z24A5E87A5(100834)

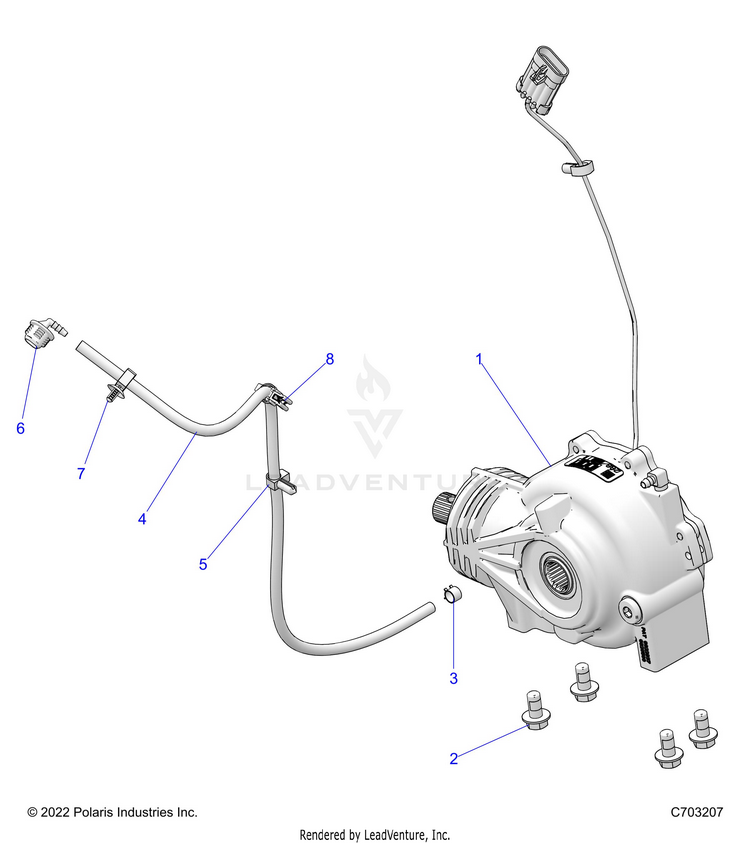

DRIVE TRAIN, FRONT GEARCASE MOUNTING - Z24A5E87A5(C703207)
DRIVE TRAIN, FRONT HALF SHAFT - Z24A5E87A5(702050)
DRIVE TRAIN, FRONT PROP SHAFT - Z24A5E87A5(C0704176-1)
DRIVE TRAIN, GEAR SELECTOR - Z24A5E87A5(C701027-2)
DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z24A5E87A5(702678)

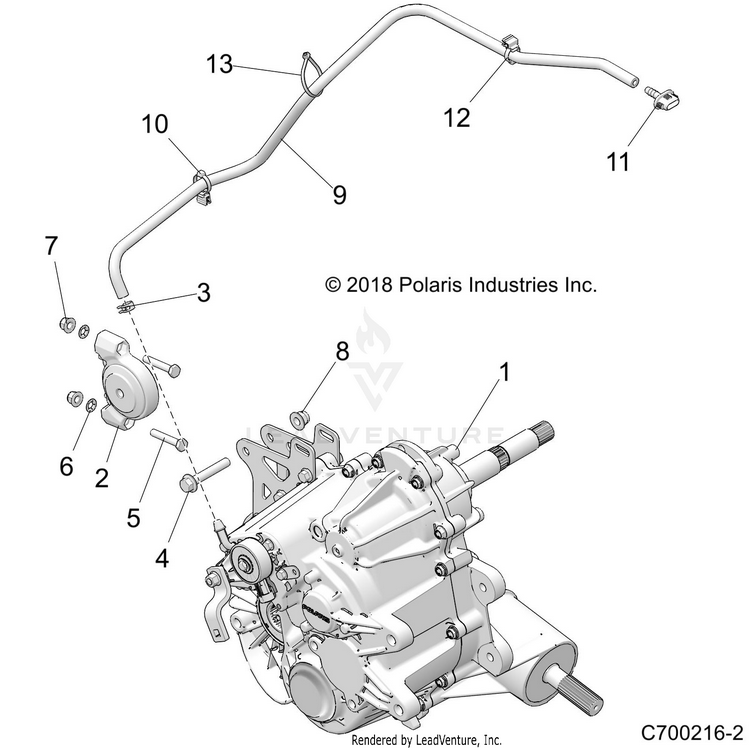

DRIVE TRAIN, MAIN GEARCASE MOUNTING - Z24A5E87A5(C700216-2)
DRIVE TRAIN, PRIMARY CLUTCH - Z24A5E87A5(C701015-1)
DRIVE TRAIN, REAR HALF SHAFT - Z24A5E87A5(702052)
DRIVE TRAIN, SECONDARY CLUTCH - Z24A5E87A5(701737)
E

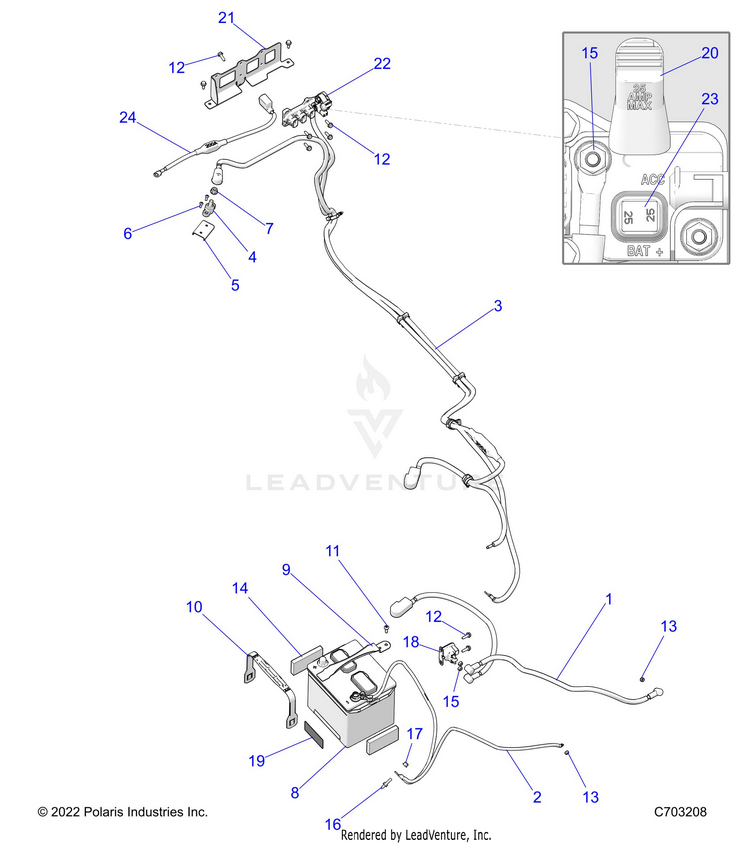

ELECTRICAL, BATTERY - Z24A5E87A5(C703208)

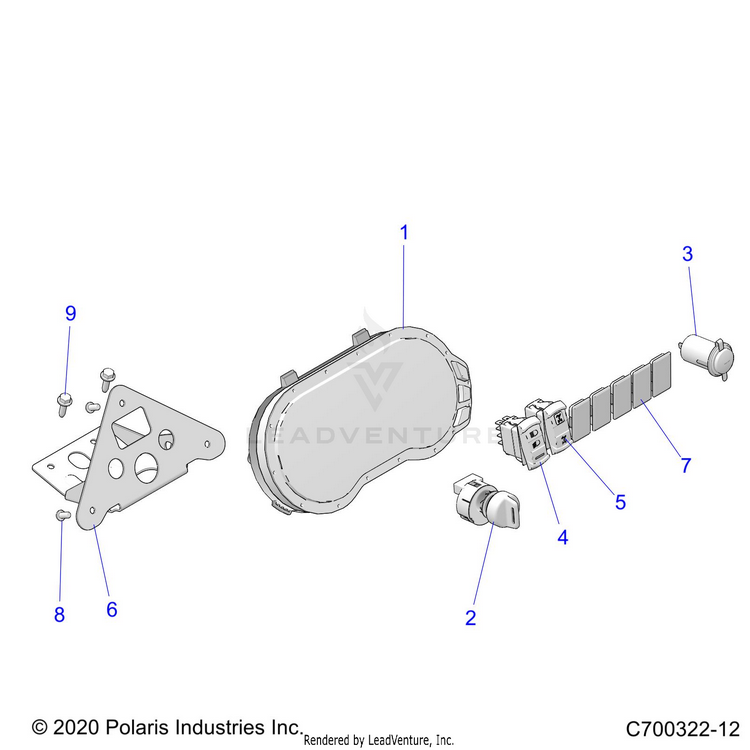

ELECTRICAL, DASH INSTRUMENTS AND CONTROLS - Z24A5E87A5(C700322-12)

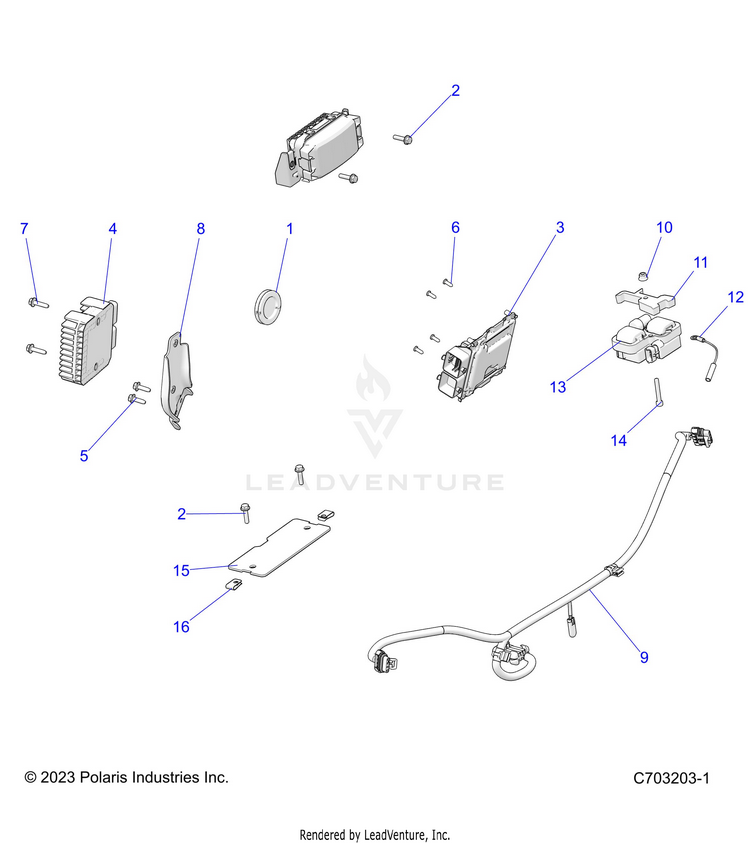

ELECTRICAL, HARNESS COMPONENTS AND RELATED - Z24A5E87A5(C703203)
ELECTRICAL, HEADLIGHTS AND TAILLIGHTS - Z24A5E87A5(C703205)
ELECTRICAL, WIRE HARNESS - Z24A5E87A5(C0704712-2)
ENGINE, AIR INTAKE SYSTEM - Z24A5E87A5(C701028)
ENGINE, BALANCER - Z24A5E87A5(C701025-1)
ENGINE, COOLING SYSTEM - Z24A5E87A5(C7045494)
ENGINE, COOLING, THERMOSTAT and BYPASS - Z24A5E87A5(C701025-3)
ENGINE, COOLING, WATERPUMP - Z24A5E87A5(C701025-2)
ENGINE, COOLING, WATERPUMP ASSEMBLY - Z24A5E87A5(C730082)
ENGINE, CRANKCASE - Z24A5E87A5(C701025-4)
ENGINE, CRANKSHAFT and PISTON - Z24A5E87A5(C701025-5)
ENGINE, CYLINDER and HEAD - Z24A5E87A5(C701025-6)
ENGINE, EXHAUST SYSTEM - Z24A5E87A5(C0701887)
ENGINE, INTAKE and THROTTLE BODY - Z24A5E87A5(C700203)
ENGINE, MOUNTING & LONG BLOCK - Z24A5E87A5(C701025-7)

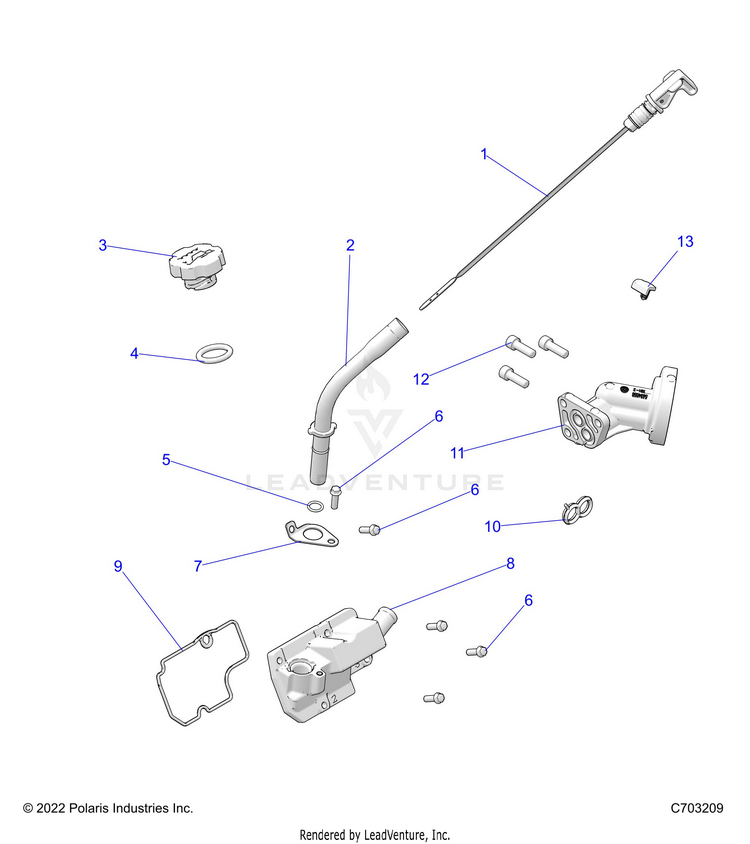

ENGINE, OIL DIPSTICK and BREATHER - Z24A5E87A5(C703209)
ENGINE, OIL PUMP and OIL COOLER - Z24A5E87A5(C701025-9)
ENGINE, STARTER and DRIVE - Z24A5E87A5(C700044)
ENGINE, STATOR and COVER - Z24A5E87A5(C701025-10)
ENGINE, THROTTLE PEDAL - Z24A5E87A5(C701027-3)
ENGINE, VALVE COVER - Z24A5E87A5(C700106-13)
ENGINE, VALVES and CAMSHAFTS - Z24A5E87A5(C701025-11)
S
STEERING, GEAR BOX - Z24A5E87A5(C701011-5)
STEERING, POWER STEERING ASM. - Z24A5E87A5(C701082-1)
SUSPENSION, FRONT CARRIER - Z24A5E87A5(C701011-4)
SUSPENSION, FRONT CONTROL ARMS - Z24A5E87A5(C701021-3)
SUSPENSION, FRONT SHOCK - Z24A5E87A5(C701021-1)
SUSPENSION, FRONT STABILIZER BAR - Z24A5E87A501021-2)
SUSPENSION, REAR CARRIER - Z24A5E87A5(C701010-4)
SUSPENSION, REAR CONTROL ARMS - Z24A5E87A5(C701020-4)

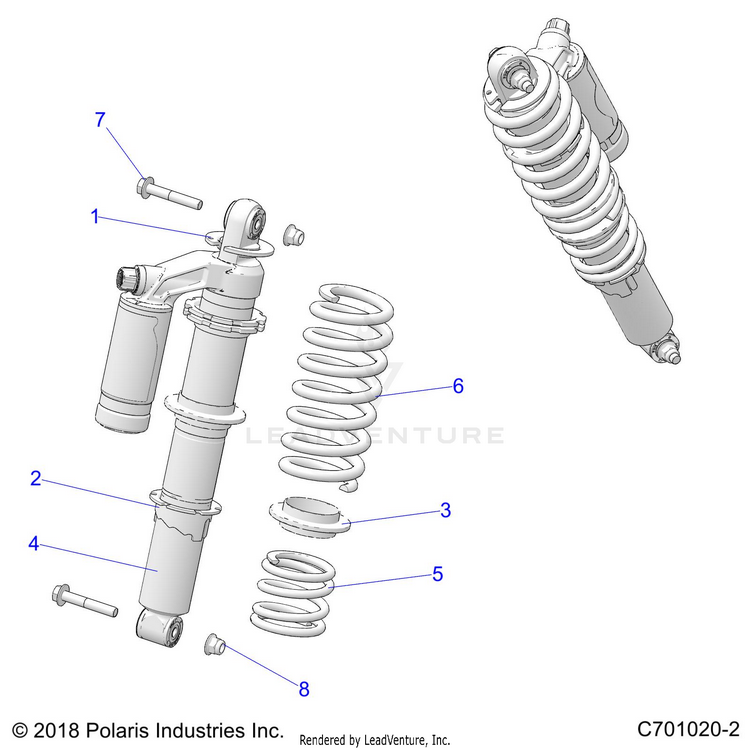

SUSPENSION, REAR SHOCK - Z24A5E87A5(C701020-2)
SUSPENSION, REAR STABILIZER BAR - Z24A5E87A5(C701020-1)
