2024 RZR Polaris RZR 200 EVAP (2024) (R02) (Z24HCB18A4/B4) OEM Parts | Assembly Diagrams Lookup OEM Parts Finder and Diagram (Microfiche) Inspector
Assemblies List (64)
B
BODY, DASH - Z24HCB18A4/B4 (C0201105-2)

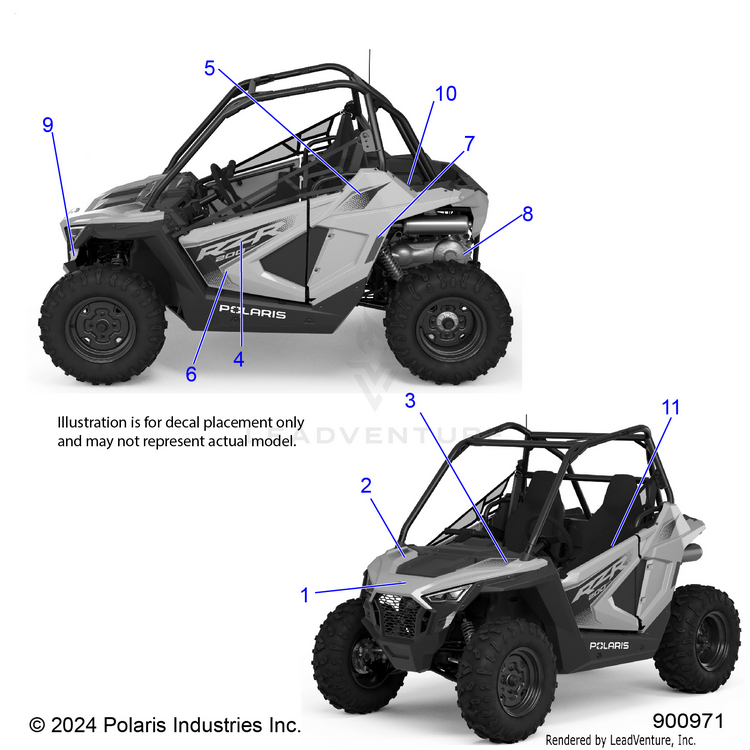

BODY, DECALS - Z24HCB18A4/B4 (900971)
BODY, DOORS - Z24HCB18A4/B4 (C0201137-1)
BODY, FLAG, BEACON and PASS HANDLE - Z24HCB18A4/B4 (C0201110-1)
BODY, FLOOR - Z24HCB18A4/B4 (C0201105-4)
BODY, FRONT BUMPER and HOOD - Z24HCB18A4/B4 (C0201105-1)
BODY, NETS - Z24HCB18A4/B4 (C0201105-6)
BODY, REAR RACK and CARGO BOX - Z24HCB18A4/B4 (0201105-5)
BODY, ROCKERS - Z24HCB18A4/B4 (C0201105-3)
BODY, SEAT, MOUNTING and BELTS - Z24HCB18A4/B4 (C0201107-1)
BRAKES, BRAKE LINES and MASTER CYLINDER - Z24HCB18A4/B4 (C0201096-3)
BRAKES, CALIPER, FRONT - Z24HCB18A4/B4 (C0201096-1)
BRAKES, CALIPER, REAR - Z24HCB18A4/B4 (C102398)
BRAKES, PARK LOCK - Z24HCB18A4/B4 (C0201101-2)
BRAKES, PEDAL AND MASTER CYLINDER MOUNTING - Z24HCB18A4/B4 (C0201096-4)
D
DRIVE TRAIN, CHAIN GUARD - Z24HCB18A4/B4 (C0201095-1)
DRIVE TRAIN, CHAIN TENSIONER AND SPROCKET - Z24HCB18A4/B4 (C0201102-3)
DRIVE TRAIN, GEAR SELECTOR - Z24HCB18A4/B4 (C0201101-1)
DRIVE TRAIN, HALF SHAFT, REAR - Z24HCB18A4/B4 (C0201095-3)
DRIVE TRAIN, MAIN GEARCASE - Z24HCB18A4/B4 (702829)
DRIVE TRAIN, PRIMARY CLUTCH - Z24HCB18A4/B4 (702822)
E
ELECTRICAL, BATTERY - Z24HCB18A4/B4 (C0201126-3)
ELECTRICAL, COMPONENTS - Z24HCB18A4/B4 (C0201126-6)
ELECTRICAL, DASH INSTRUMENTS AND CONTROLS - Z24HCB18A4/B4 (C0201126-4)
ELECTRICAL, HEADLIGHTS and TAILLIGHT - Z24HCB18A4/B4 (C0201126-2)
ELECTRICAL, IGNITION - Z24HCB18A4/B4 (C0201126-5)
ELECTRICAL, WIRE HARNESS - Z24HCB18A4/B4 (C0201138)
ENGINE, AIR INTAKE SYSTEM - Z24HCB18A4/B4 (C0201104-1)
ENGINE, BALANCE SHAFT and BALANCE GEAR - Z24HCB18A4/B4 (702836)
ENGINE, BREATHER - Z24HCB18A4/B4 (702825)
ENGINE, CRANKCASE COMP, LEFT - Z24HCB18A4/B4 (702833)
ENGINE, CRANKCASE COMP, RIGHT - Z24HCB18A4/B4 (702832)
ENGINE, CRANKCASE COVER ASM, LEFT - Z24HCB18A4/B4 (702831)
ENGINE, CRANKCASE COVER ASM, RIGHT - Z24HCB18A4/B4 (702830)
ENGINE, CRANKSHAFT, CONNECTING ROD AND PISTON - Z24HCB18A4/B4 (702835)
ENGINE, CYLINDER COMP - Z24HCB18A4/B4 (702826)
ENGINE, CYLINDER HEAD ASM. - Z24HCB18A4/B4 (702827)
ENGINE, ENGINE and TRANSMISSION MOUNTING - Z24HCB18A4/B4 (C102543)
ENGINE, EXHAUST - Z24HCB18A4/B4 (C0201103-1)
ENGINE, FAN COVER AND SHROUD COMP - Z24HCB18A4/B4 (702823)
ENGINE, OIL COOLER and FILTER - Z24HCB18A4/B4 (C0201102-1)
ENGINE, OIL PUMP - Z24HCB18A4/B4 (702824)
ENGINE, STARTER MOTOR - Z24HCB18A4/B4 (702820)
ENGINE, STATOR and FLYWHEEL - Z24HCB18A4/B4 (702821)
ENGINE, THROTTLE BODY and FUEL RAIL - Z24HCB18A4/B4 (0201102-2)
ENGINE, THROTTLE PEDAL - Z24HCB18A4/B4 (0201101-3)
ENGINE, VALVETRAIN - Z24HCB18A4/B4 (702834)

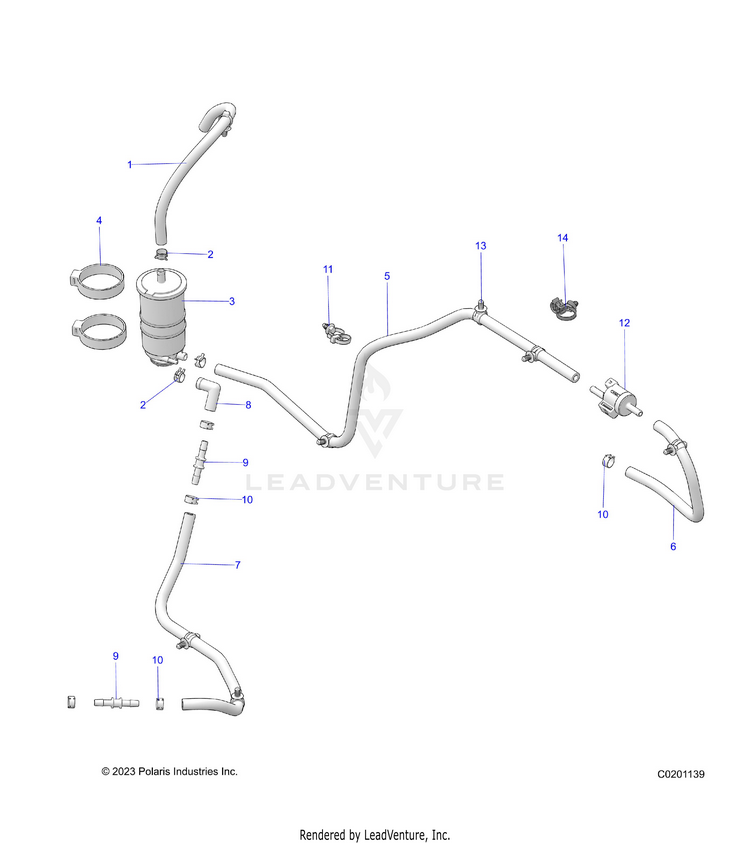

F
S
STEERING, FRONT HUB and SPINDLE - Z24HCB18A4/B4 (C0201099-2)
STEERING, LOWER - Z24HCB18A4/B4 (C0201141)
STEERING, UPPER - Z24HCB18A4/B4 (C0201100-1)
SUSPENSION, FRONT CONTROL ARMS - Z24HCB18A4/B4 (C0201099-1)
SUSPENSION, FRONT STABILIZER BAR - Z24HCB18A4/B4 (C0201099-3)
SUSPENSION, REAR - Z24HCB18A4/B4 (C0201098-2)
SUSPENSION, REAR AXLE - Z24HCB18A4/B4 (C0201095-2)
SUSPENSION, REAR STABILIZER BAR - Z24HCB18A4/B4 (C0201098-1)
SUSPENSION, SHOCK, FRONT - Z24HCB18A4/B4 (C7045485)
SUSPENSION, SHOCK, REAR - Z24HCB18A4/B4 (C7045486)
