Assemblies List (72)
B

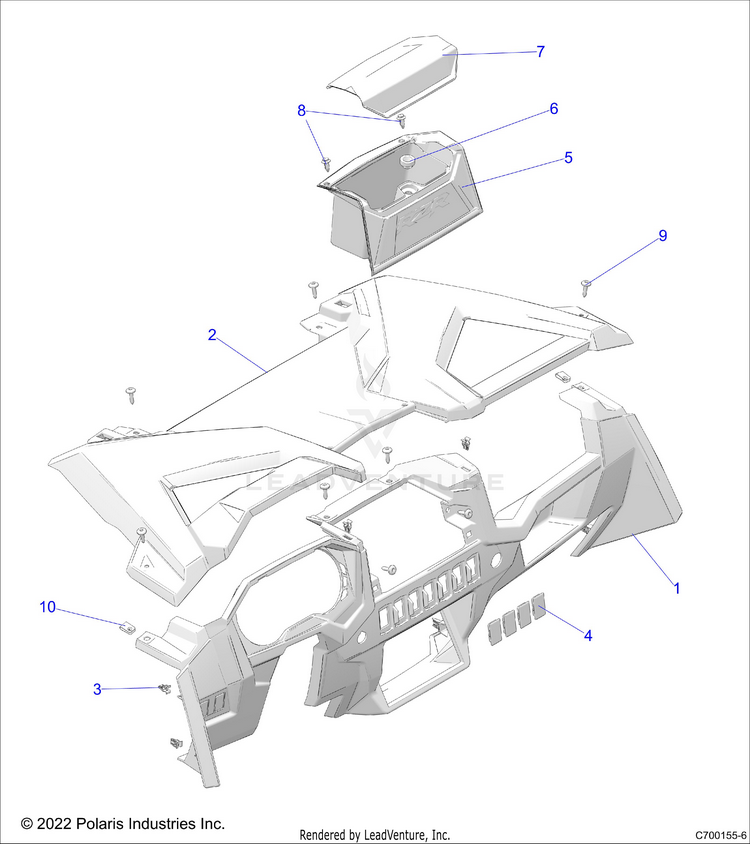

BODY, DASH - Z23NAV99A/99B (C0704156)
BODY, DASH STORAGE - Z23NAV99A/99B (C0704156-1)
BODY, DECALS - Z23NAV99A/99B (900521)
BODY, DECALS, GRAPHICS - Z23NAV99AR/BR (900523-01)
BODY, DECALS, GRAPHICS- Z23NAV99AL/BL (900522-01)
BODY, DOORS - Z23NAV99A/99B (C700285-1)
BODY, FLOOR - Z23NAV99A/99B (C0704156-2)
BODY, FRONT BUMPER - Z23NAV99A/99B (C0704157-5)
BODY, GRAB BAR, PASSENGER - Z23NAV99A/99B (C701027-1)
BODY, HOOD AND FRONT BODY WORK - Z23NAV99A/99B (C700248-5)
BODY, REAR BUMPER - Z23NAV99A/99B (C700155-5)
BODY, REAR CLOSEOFF - Z23NAV99A/99B (C700248-7)
BODY, REAR FENDERS AND BEZELS - Z23NAV99A/99B (C700248-8)
BODY, REAR RACK - Z23NAV99A/99B (C700248-9)
BODY, ROCKER PANELS - Z23NAV99A/99B (C700248-10)
BODY, SEAT ASM. AND SLIDER - Z23NAV99A/99B (C701171)
BODY, SEAT BELT MOUNTING - Z23NAV99A/99B (C700996-2)
BRAKES, BRAKE LINES AND MASTER CYLINDER - Z23NAV99A/99B (C700997-1)
BRAKES, FRONT CALIPER - Z23NAV99A/99B (C700096-2)
BRAKES, PEDAL - Z23NAV99A/99B (C0700972_01
BRAKES, REAR CALIPER - Z23NAV99A/99B (C700997-3)
C
D
DRIVE TRAIN, CLUTCH COVER AND DUCTING - Z23NAV99A/99B (C700274-3)
DRIVE TRAIN, FRONT GEARCASE - Z23NAV99A/99B (701246)
DRIVE TRAIN, FRONT GEARCASE MOUNTING - Z23NAV99A/99B (C700546-1)
DRIVE TRAIN, FRONT HALF SHAFT - Z23NAV99A/99B (701208)
DRIVE TRAIN, FRONT PROP SHAFT - Z23NAV99A/99B (C701096)
DRIVE TRAIN, GEAR SELECTOR - Z23NAV99A/99B (C700729)
DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z23NAV99A/99B (702682)
DRIVE TRAIN, MAIN GEARCASE MOUNTING - Z23NAV99A/99B (C700275-4)
DRIVE TRAIN, PRIMARY CLUTCH - Z23NAV99A/99B (C1323317-01)
DRIVE TRAIN, REAR HALF SHAFT - Z23NAV99A/99B (700288)
DRIVE TRAIN, SECONDARY CLUTCH - Z23NAV99A/99B (703158)
E
ELECTRICAL, BATTERY - Z23NAV99A/99B (C0706566)

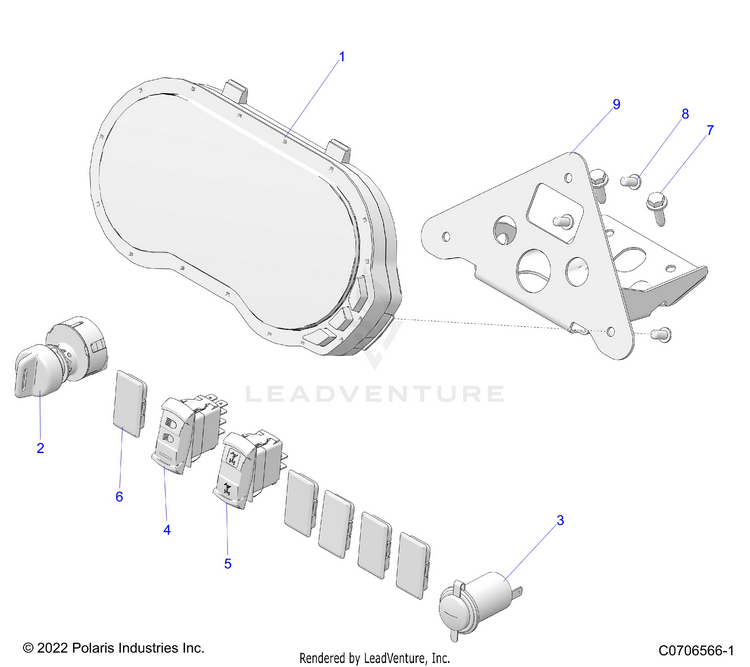

ELECTRICAL, DASH INSTRUMENTS AND CONTROLS - Z23NAV99A/99B (C0706566-1)

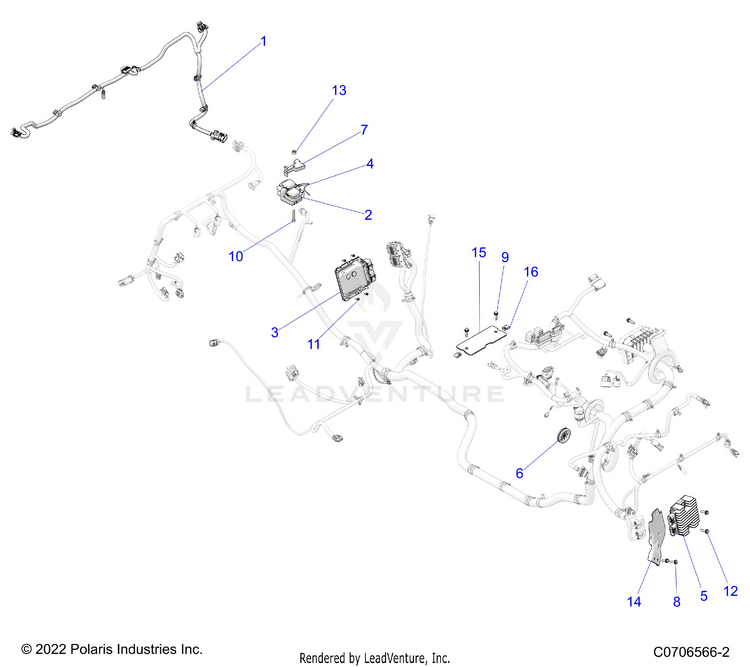

ELECTRICAL, ECM, COIL, REGULATOR - Z23NAV99A/99B (C0706566-2)

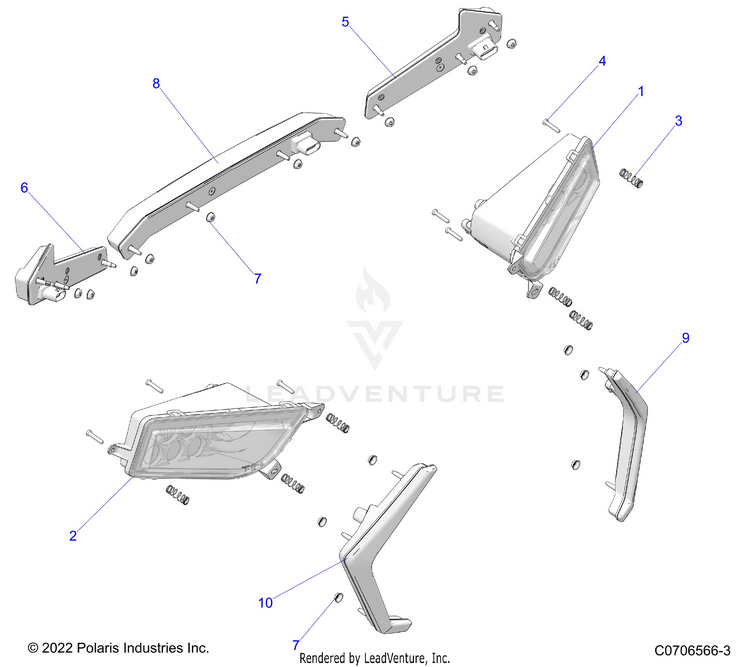

ELECTRICAL, HEADLIGHTS AND TAILLIGHTS - Z23NAV99A/99B (C0706566-3)
ELECTRICAL, WIRE HARNESS - Z23NAV99A/99B (C701343-2)
ENGINE, AIR INTAKE SYSTEM - Z23NAV99A/99B (C701348)
ENGINE, CAM CHAIN AND TENSIONER - Z23NAV99A/99B (C700048)
ENGINE, COOLING SYSTEM - Z23NAV99A/99B (C700277)
ENGINE, CRANKCASE AND CRANKSHAFT - Z23NAV99A/99B (49RGRCRANKCASE14RZR1000)
ENGINE, CYLINDER AND PISTON - Z23NAV99A/99B (C701039)
ENGINE, CYLINDER HEAD AND VALVES - Z23NAV99A/99B (C701058-5)
ENGINE, DIPSTICK AND OIL FILTER - Z23NAV99A/99B (C700226)
ENGINE, EXHAUST SYSTEM - Z23NAV99A/99B (C701346)
ENGINE, MOUNTING & LONG BLOCK - Z23NAV99A/99B (C701070-5)
ENGINE, OIL PUMP - Z23NAV99A/99B (C701070-4)
ENGINE, STARTER - Z23NAV99A/99B (C1205828-15)
ENGINE, STATOR AND FLYWHEEL - Z23NAV99A/99B (C701344)
ENGINE, THROTTLE BODY AND VALVE COVER - Z23NAV99A/99B (C0704162-1)
ENGINE, THROTTLE PEDAL - Z23NAV99A/99B (C701027-3)
ENGINE, WATERPUMP AND BYPASS - Z23NAV99A/99B (C701058-1)
ENGINE, WATERPUMP ASSEMBLY - Z23NAV99A/99B (C701058-1)
F
S
STEERING, POWER STEERING ASM. - Z23NAV99A/99B (C700280-1)
SUSPENSION, FRONT CARRIER- Z23NAV99A/99B (C0704127-2)
SUSPENSION, FRONT CONTROL ARMS - Z23NAV99A/99B (C701006-2)
SUSPENSION, FRONT SHOCK INTERNALS - Z23NAV99A/99B (702509)
SUSPENSION, FRONT SHOCK MOUNTING - Z23NAV99A/99B (C700280-3)
SUSPENSION, FRONT STABILIZER BAR- Z23NAV99A/99B (C701006-3)
SUSPENSION, REAR CARRIER - Z23NAV99A/99B (C0703316-2)

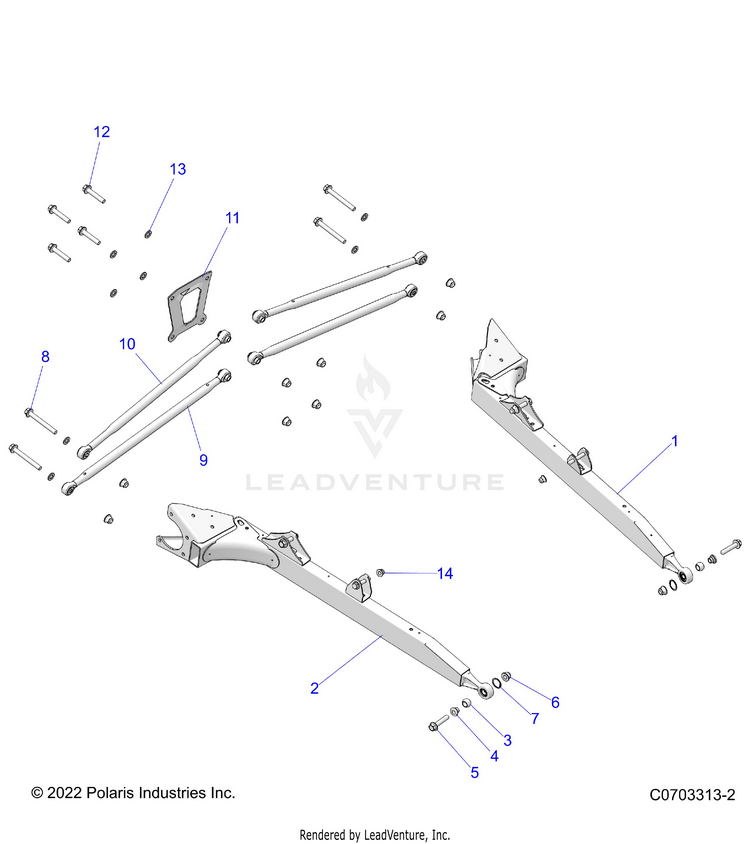

SUSPENSION, REAR CONTROL ARMS - Z23NAV99A/99B (C0703313-2)
SUSPENSION, REAR SHOCK INTERNALS - Z23NAV99A/99B (C0703312)
SUSPENSION, REAR SHOCK MOUNTING - Z23NAV99A/99B (C701005-2)
SUSPENSION, STABILIZER BAR, REAR - Z23NAV99A/99B (C701005-3)
