Assemblies List (91)
S
*SERVICE & MAINTENANCE PARTS 1500 XD NSTR
STEERING, STEERING ASM - R25XAL1RBD/BM (C731045)
STEERING, STEERING GEARBOX - R25XAL1RBD/BM (C731186)
SUSPENSION, FRONT CONTROL ARMS - R25XAL1RBD/BM (C730952)
SUSPENSION, FRONT HUB - R25XAL1RBD/BM (C730956)
SUSPENSION, FRONT SHOCK MOUNTING - R25XAL1RBD/BM (C730954)
SUSPENSION, FRONT STABILIZER BAR - R25XAL1RBD/BM (C730953)
SUSPENSION, REAR CARRIER - R25XAL1RBD/BM (C730948)
SUSPENSION, REAR CONTROL ARMS - R25XAL1RBD/BM (C730946)
SUSPENSION, REAR SHOCK MOUNTING - R25XAL1RBD/BM (C730949)
SUSPENSION, REAR STABILIZER BAR - R25XAL1RBD/BM (C730945)
B
BODY, BOX ASSEMBLY - R25XAL1RBD/BM (C731011)
BODY, BOX, MOUNTING - R25XAL1RBD/BM (C731068)
BODY, BOX, SHIELDS - R25XAL1RBD/BM (C731008)
BODY, BOX, TAILGATE - R25XAL1RBD/BM (C731007)
BODY, DASH, LOWER - R25XAL1RBD/BM (C731054)
BODY, DASH, UPPER AND A-PILLERS - R25XAL1RBD/BM (C731056)

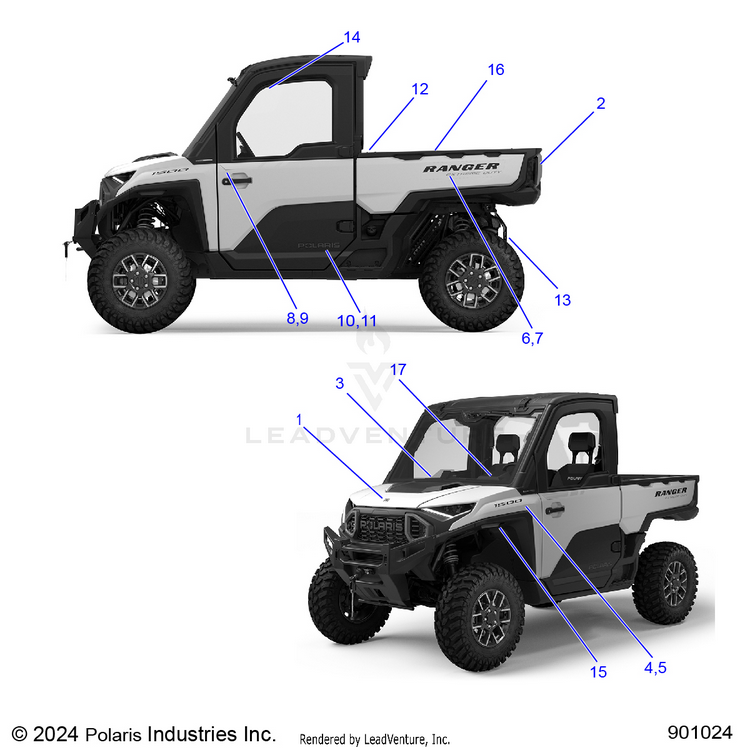

BODY, DECALS - R25XAL1RBD/BM (901024)
BODY, DOOR MOUNTING - R25XAL1RBD/BM (C731061)
BODY, DOORS - R25XAL1RBD/BM (C731059)
BODY, FLOOR AND REAR CLOSEOFF - R25XAL1RBD/BM (C731074)
BODY, FRONT BUMPER - R25XAL1RBD/BM (C731006)
BODY, FRONT FASCIA, GRILLE, AND FLARES - R25XAL1RBD/BM (C731017)
BODY, HOOD AND FRONT FENDERS - R25XAL1RBD/BM (C731018)
BODY, HOOD LINER AND FRONT CLOSEOFF - R25XAL1RBD/BM (C731053)
BODY, HVAC DUCTING - R25XAL1RBD/BM (C731051)
BODY, HVAC HOSES - R25XAL1RBD/BM (C731052)
BODY, HVAC MAIN - R25XAL1RBD/BM (900716)
BODY, HVAC MAIN MOUTING - R25XAL1RBD/BM (731100)
BODY, MIRROR, REAR - R25XAL1RBD/BM (C731075)
BODY, REAR FENDERS AND ROCKERS - R25XAL1RBD/BM (C731058)
BODY, REAR WINDOW - R25XAL1RBD/BM (C731071)
BODY, ROOF - R25XAL1RBD/BM (C731073)
BODY, SEAT ASM. DRIVER - R25XAL1RBD/BM (C731013)
BODY, SEAT ASM. PASSENGER - R25XAL1RBD/BM (C731015)
BODY, SEAT BELT ASM. - R25XAL1RBD/BM (C731016)
BODY, WINDSHIELD - R25XAL1RBD/BM (C731070)
BODY, WINDSHIELD WIPER - R25XAL1RBD/BM (C731072)
BRAKES, BRAKE LINES AND MASTER CYLINDER - R25XAL1RBD/BM (C730984-1)
BRAKES, FOOT PEDAL - R25XAL1RBD/BM (C730985)
BRAKES, FRONT CALIPER - R25XAL1RBD/BM (C730982)
BRAKES, REAR CALIPER - R25XAL1RBD/BM (C730983)
C
D
DRIVE TRAIN, FRONT GEARCASE INTERNALS - R25XAL1RBD/BM (702794)
DRIVE TRAIN, FRONT GEARCASE MOUNTING - R25XAL1RBD/BM (C730987)
DRIVE TRAIN, FRONT HALFSHAFT - R25XAL1RBD/BM (C731003)
DRIVE TRAIN, FRONT PROP SHAFT - R25XAL1RBD/BM (C730989)
DRIVE TRAIN, GEAR SELECTOR - R25XAL1RBD/BM (C733446)
DRIVE TRAIN, HEAT SHIELDS - R25XAL1RBD/BM (C730996)
DRIVE TRAIN, MID PROP SHAFT - R25XAL1RBD/BM (C730990)
DRIVE TRAIN, REAR GEARCASE INTERNALS - R25XAL1RBD/BM (1337092)
DRIVE TRAIN, REAR GEARCASE MOUNTING - R25XAL1RBD/BM (C730992)
DRIVE TRAIN, REAR HALF SHAFT - R25XAL1RBD/BM (C731003)
DRIVE TRAIN, REAR PROP SHAFT - R25XAL1RBD/BM (C730991)
DRIVE TRAIN, TRANMISSION VENT LINES - R25XAL1RBD/BM (C730997)
DRIVE TRAIN, TRANSMISSION INTERNALS - R25XAL1RBD/BM (C730993)
DRIVE TRAIN, TRANSMISSION MOUNTING - R25XAL1RBD/BM (C730993)
E
ELECTRICAL, BATTERY/CABLES - R25XAL1RBD/BM (C730970-1)
ELECTRICAL, DASH COMPONENTS - R25XAL1RBD/BM (C731109)
ELECTRICAL, HEADLIGHTS AND TAILLIGHTS - R25XAL1RBD/BM (C730975)
ELECTRICAL, THROTTLE PEDAL - R25XAL1RBD/BM (C730978)
ELECTRICAL, WIRE HARNESS COMPONENTS - R25XAL1RBD/BM (C731110)
ELECTRICAL, WIRE HARNESS, BOX - R25XAL1RBD/BM (C733184)
ELECTRICAL, WIRE HARNESS, CHASSIS - R25XAL1RBD/BM (C731062)
ELECTRICAL, WIRE HARNESS, ENGINE - R25XAL1RBD/BM (C730955)
ELECTRICAL, WIRE HARNESS, ROOF - R25XAL1RBD/BM (C731063)
ENGINE, AIR INTAKE - R25XAL1RBD/BM (C730967)
ENGINE, ALTERNATOR - R25XAL1RBD/BM (C731046)
ENGINE, CAM CHAIN AND SPROCKET - R25XAL1RBD/BM (C730939)
ENGINE, COOLANT PUMP AND THERMOSTAT - R25XAL1RBD/BM (C731049)
ENGINE, COOLING - R25XAL1RBD/BM (C731050)
ENGINE, CRANKCASE, CRANKSHAFT - R25XAL1RBD/BM (C730941)
ENGINE, CYLINDER AND PISTON - R25XAL1RBD/BM (C730940)
ENGINE, CYLINDER HEAD AND VALVES - R25XAL1RBD/BM (C730947)
ENGINE, EXHAUST - R25XAL1RBD/BM (C730960)
ENGINE, HVAC COMPRESSOR - R25XAL1RBD/BM (C731048)
ENGINE, INTAKE MANIFOLD, THROTTLE BODY, FUEL RAIL - R25XAL1RBD/BM (C730968)
ENGINE, MOUNTING AND LONG BLOCK - R25XAL1RBD/BM (C730955)
ENGINE, OIL COOLER, FILTER AND DIPSTICK - R25XAL1RBD/BM (C730964)
ENGINE, OIL PUMP - R25XAL1RBD/BM (C730963)
ENGINE, OIL TUBES - R25XAL1RBD/BM (C730965)
ENGINE, STARTER - R25XAL1RBD/BM (C730944)
ENGINE, TRANSMISSION ADAPTOR AND FLEX PLATE - R25XAL1RBD/BM (C730962)
ENGINE, VALVE COVER & SPARK PLUGS - R25XAL1RBD/BM (C730951)
