2024 RGR Polaris INTL RANGER XP 1000 PS HD (2024) (R01) (R24RRE99DK) OEM Parts | Assembly Diagrams Lookup OEM Parts Finder and Diagram (Microfiche) Inspector
Assemblies List (69)
B
BODY, BOX - R24RRE99DK (C700064)
BODY, BOX, MOUNTING - R24RRE99DK (C730801-01)
BODY, BOX, TAILGATE - R24RRE99DK (C701245)
BODY, DASH - R24RRE99DK (C731034)

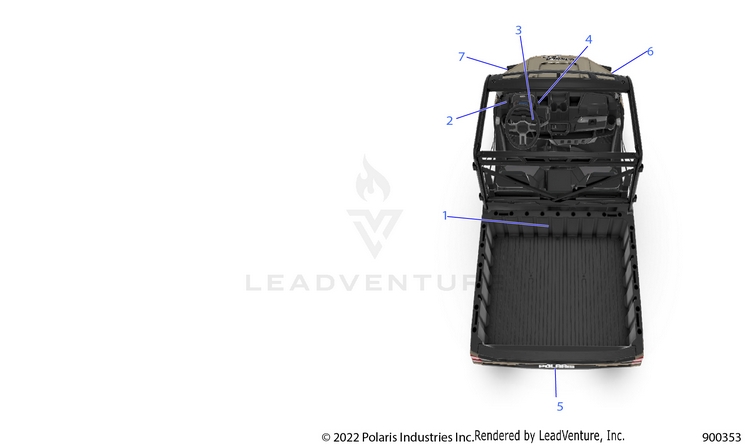

BODY, DECALS, GENERAL - R24RRE99DK (900353)

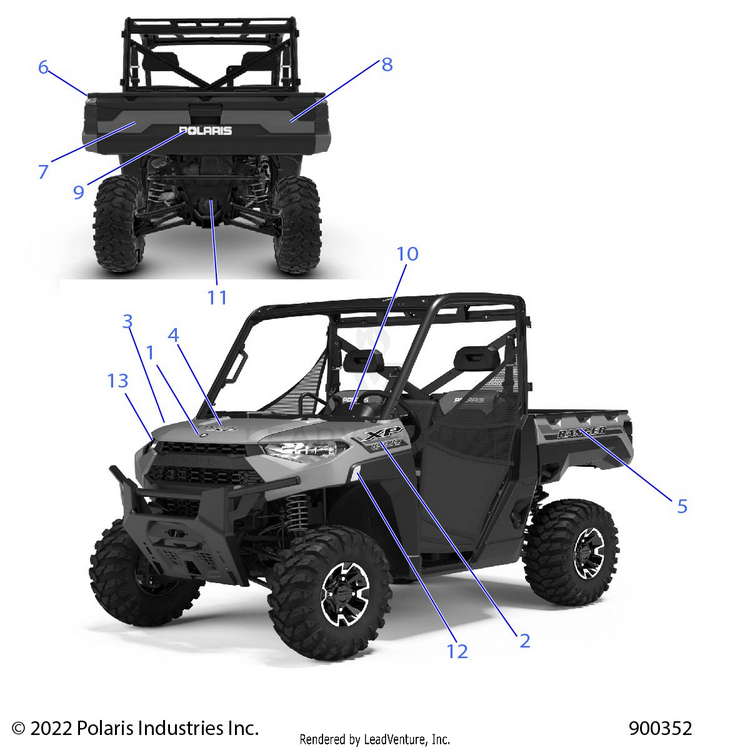

BODY, DECALS, GRAPHICS - R24RRE99DK (900352)
BODY, FLOOR AND ROCKER - R24RRE99DK (C700058-1)
BODY, HOOD AND FRONT FASCIA - R24RRE99DK (C730777)

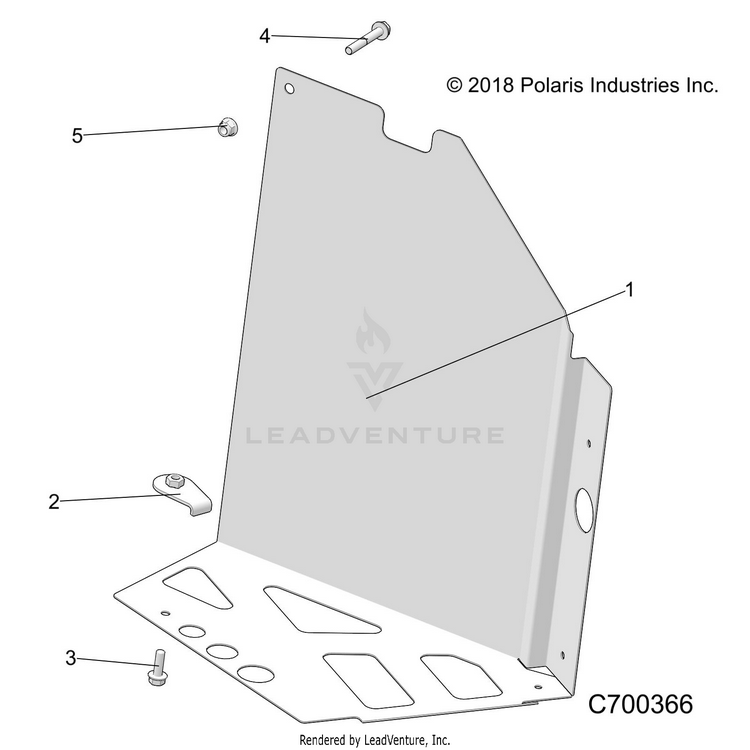

BODY, MUD COVER REAR - R24RRE99DK (C700366)
BODY, NETS - R24RRE99DK (C0706506)

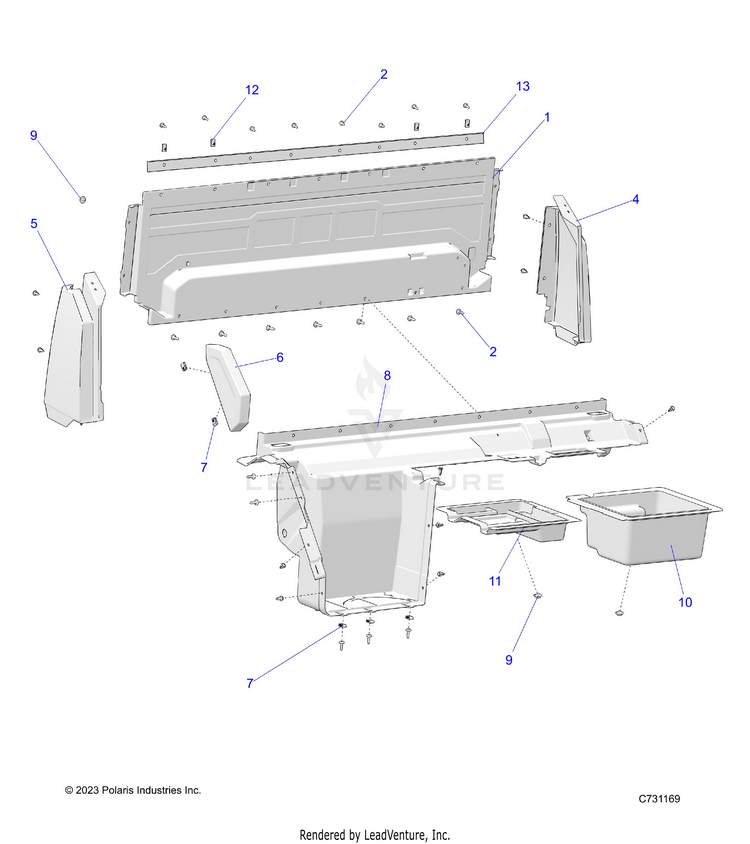

BODY, REAR CLOSEOFF, AND FENDERS - R24RRE99DK (C731169)
BODY, SEAT ASM. AND SLIDER - R24RRE99DK (C700069)
BODY, SEAT BELT AND MOUNTING - R24RRE99DK (C700082-1)

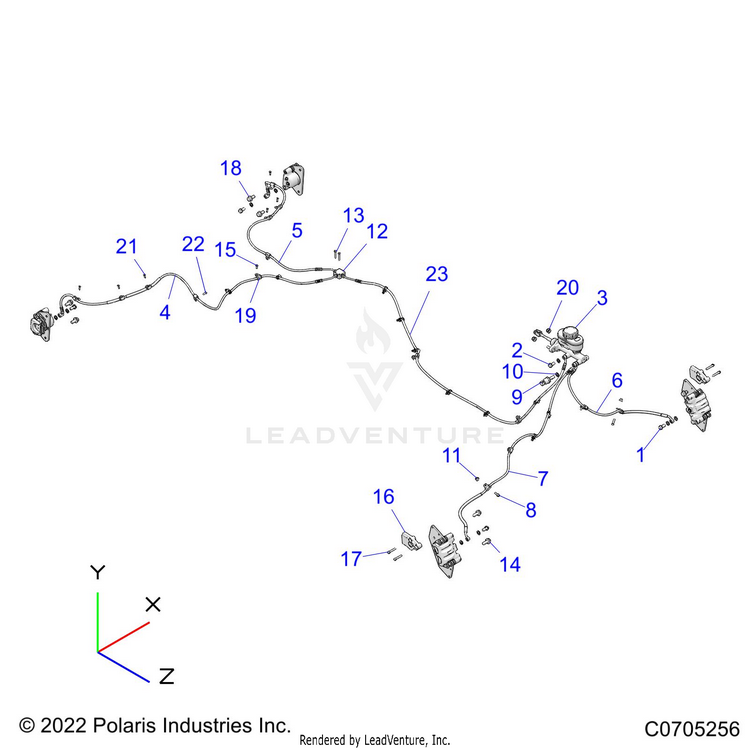

BRAKES, BRAKE LINES AND MASTER CYLINDER - R24RRE99DK (C0705256)
BRAKES, FRONT CALIPER - R24RRE99DK (C730831)

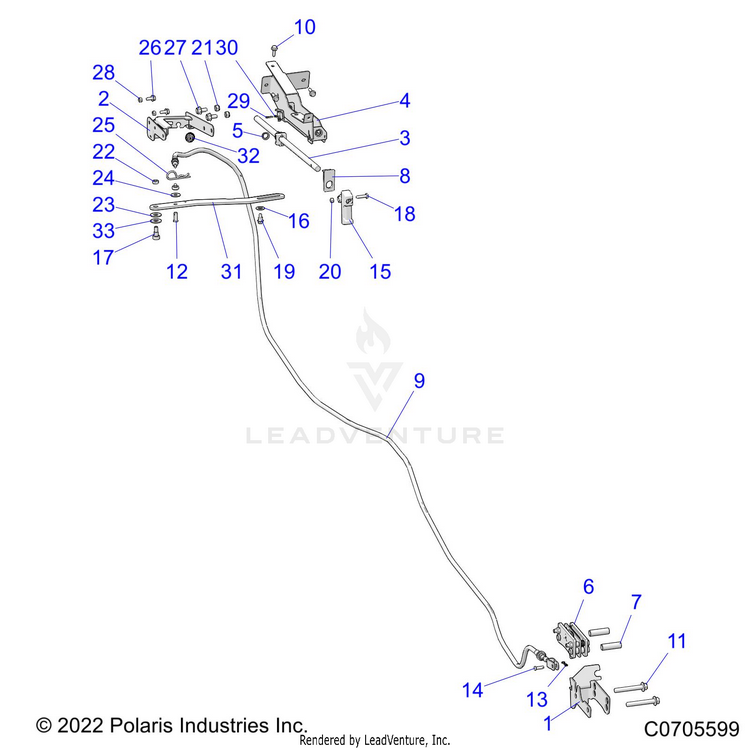

BRAKES, PARK BRAKE - R24RRE99DK (C0705599)
BRAKES, PEDAL - R24RRE99DK (C701139-1)
BRAKES, REAR CALIPER - R24RRE99DK (C730771)
C
D

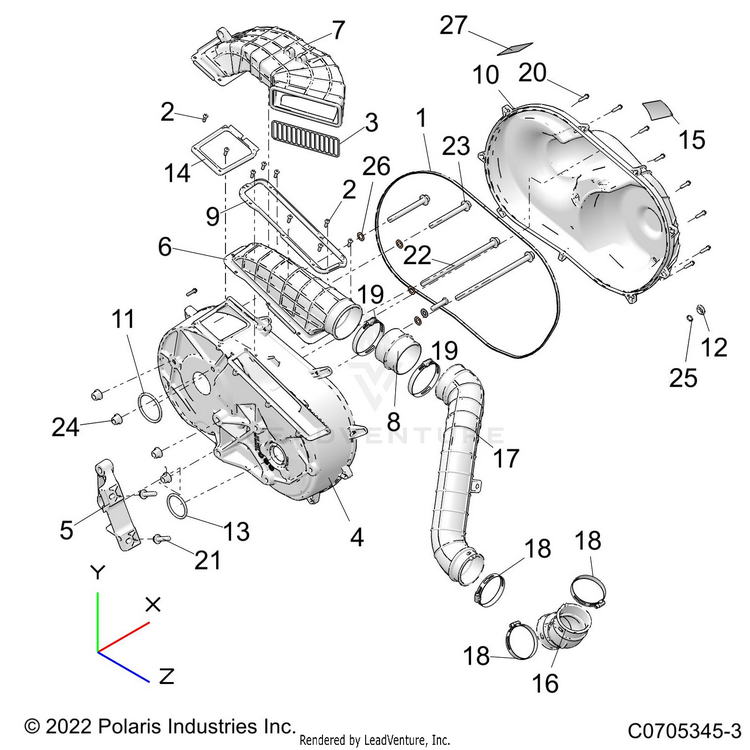

DRIVE TRAIN, CLUTCH COVER AND DUCTING - R24RRE99DK (C0705345-3)
DRIVE TRAIN, FRONT GEARCASE INTERNALS - R24RRE99DK (702658)
DRIVE TRAIN, FRONT GEARCASE MOUNTING - R24RRE99DK (C730196-1)
DRIVE TRAIN, FRONT HALF SHAFT - R24RRE99DK (C730012)
DRIVE TRAIN, FRONT PROP SHAFT - R24RRE99DK (C731221)

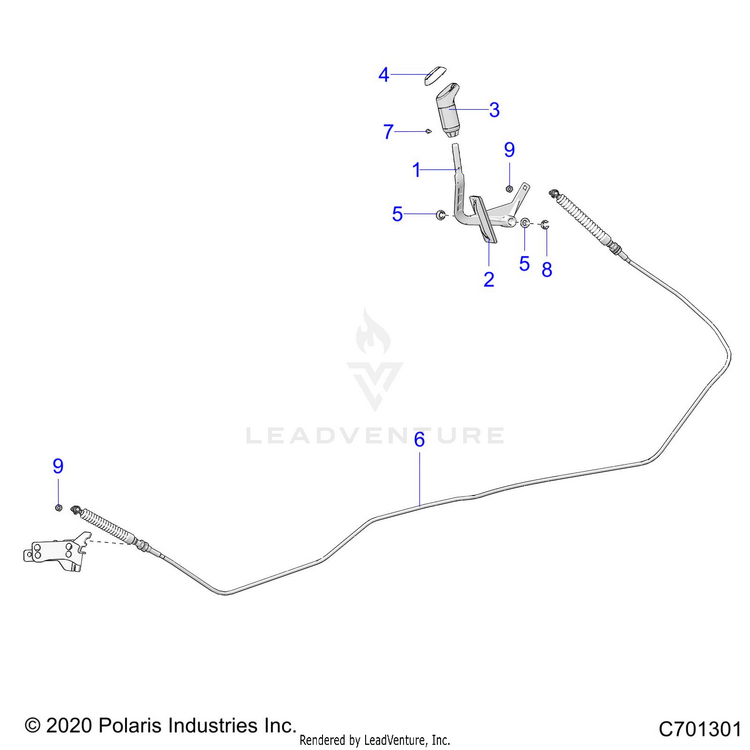

DRIVE TRAIN, GEAR SELECTOR - R24RRE99DK (C701301)

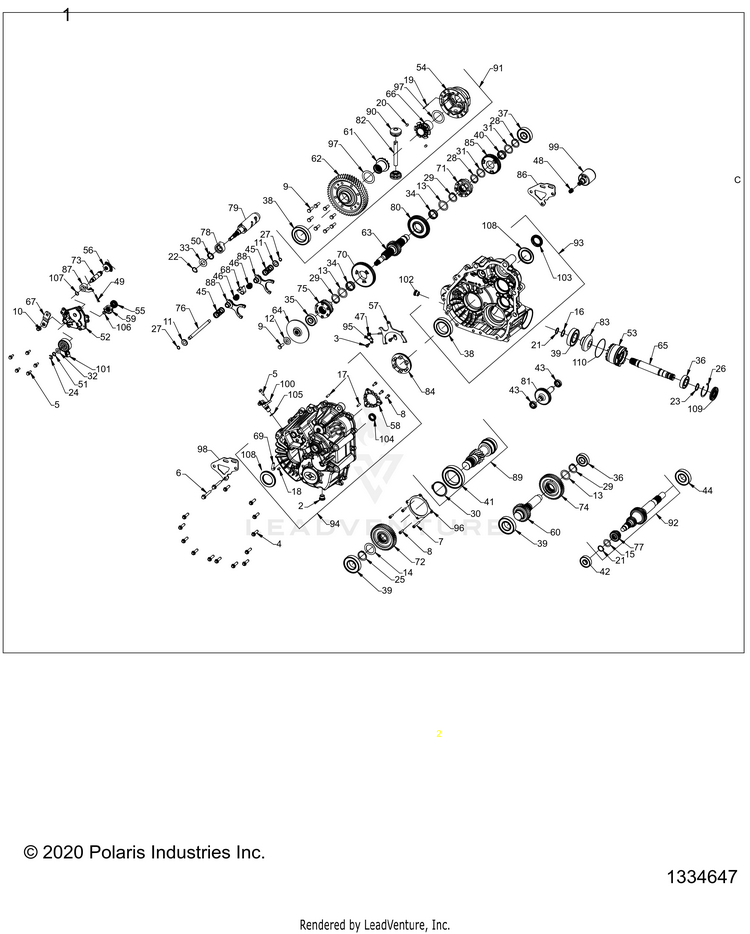

DRIVE TRAIN, MAIN GEARCASE INTERNALS - R24RRE99DK (1334647)
DRIVE TRAIN, MAIN GEARCASE MOUNTING - R24RRE99DK (C730059)

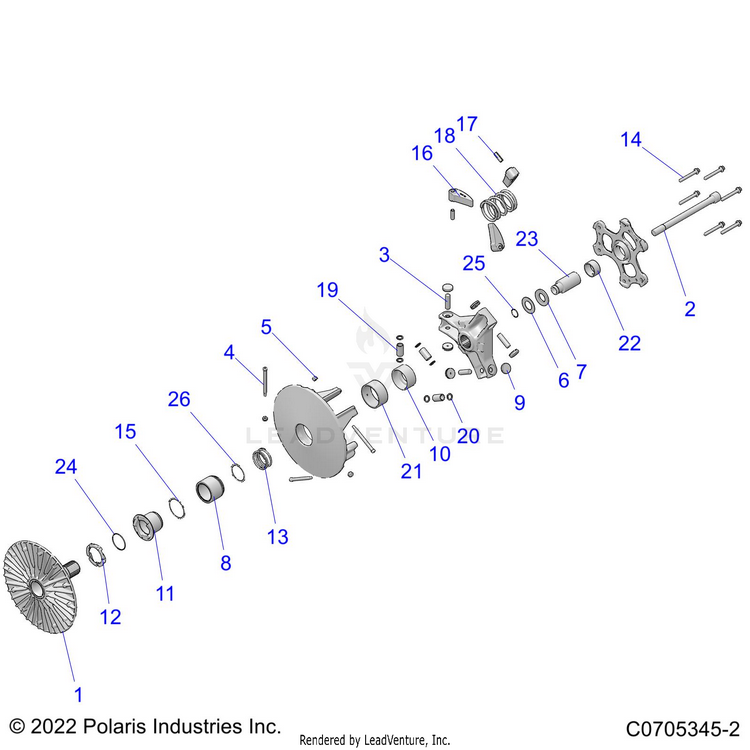

DRIVE TRAIN, PRIMARY CLUTCH - R24RRE99DK (C0705345-2)
DRIVE TRAIN, REAR HALF SHAFT - R24RRE99DK (702405)
DRIVE TRAIN, REAR PROP SHAFT - R24RRE99DK (C700235)
DRIVE TRAIN, SECONDARY CLUTCH - R24RRE99DK (C701169)
E
ELECTRICAL, BATTERY - R24RRE99DK (C700072)

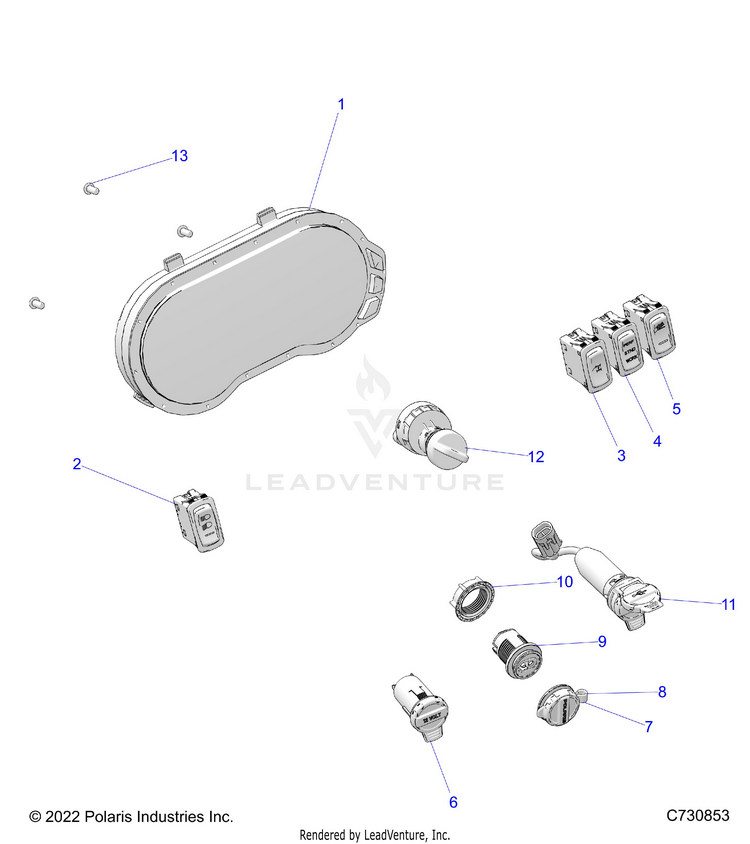

ELECTRICAL, DASH INSTRUMENTS - R24RRE99DK (C730472)
ELECTRICAL, HEADLIGHTS AND TAILLIGHTS - R24RRE99DK (C700717)

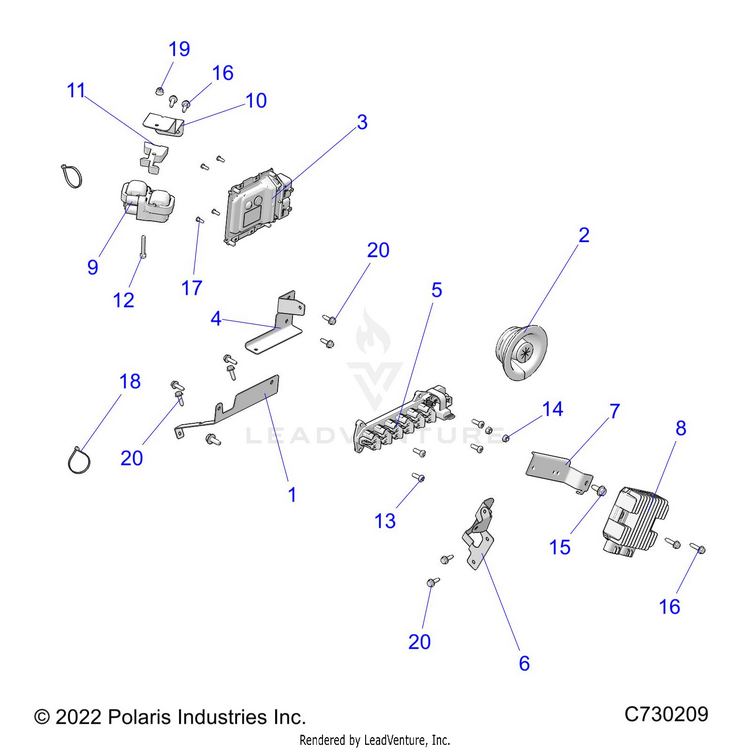

ELECTRICAL, WIRE HARNESS, COMPONENTS - R24RRE99DK (C730209)

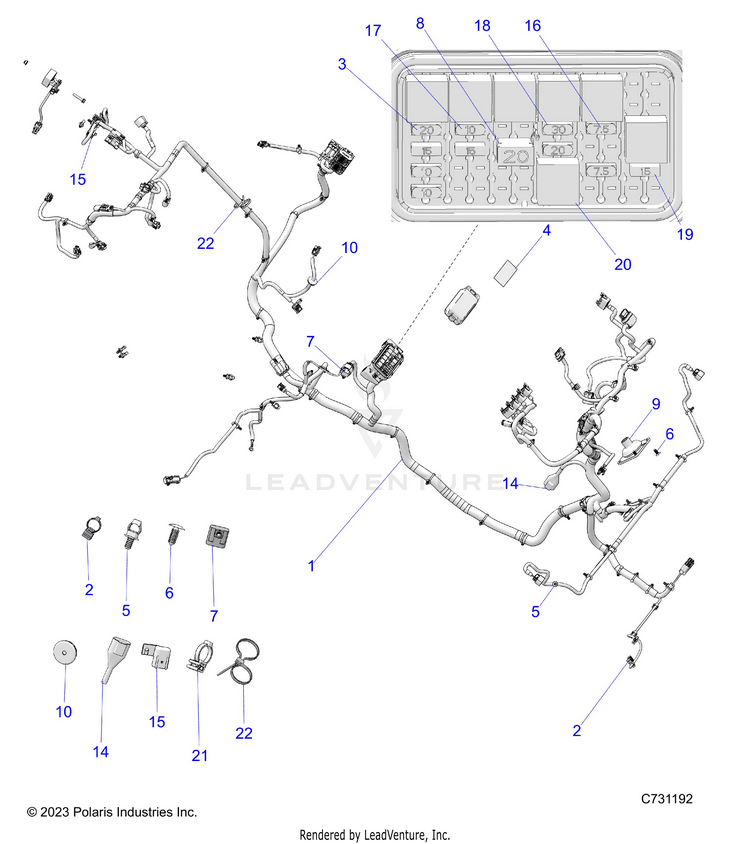

ELECTRICAL, WIRE HARNESSES - R24RRE99DK (C0705442)
ELECTRICAL, WIRE HARNESSES, BOX - R24RRE99DK (C0701209-2)
ENGINE, AIR INTAKE MANIFOLD - R24RRE99DK (C700047)
ENGINE, AIR INTAKE SYSTEM - R24RRE99DK (C701191)
ENGINE, CAM CHAIN AND TENSIONER - R24RRE99DK (C700048)
ENGINE, COOLING SYSTEM - R24RRE99DK (C701145)
ENGINE, CRANKCASE AND CRANKSHAFT - R24RRE99DK (C700342)
ENGINE, CYLINDER AND PISTON - R24RRE99DK (C700349)
ENGINE, CYLINDER HEAD AND VALVES - R24RRE99DK (C700049)
ENGINE, DIPSTICK AND OIL FILTER - R24RRE99DK (C700226-1)
ENGINE, EXHAUST SYSTEM - R24RRE99DK (C700343-1)
ENGINE, MOUNTING & LONG BLOCK - R24RRE99DK (C700042)
ENGINE, OIL PUMP - R24RRE99DK (C700046-1)
ENGINE, STARTER - R24RRE99DK (C700044-1)
ENGINE, STATOR AND FLYWHEEL - R24RRE99DK (C750038)
ENGINE, THROTTLE BODY AND VALVE COVER - R24RRE99DK (C701254)
ENGINE, THROTTLE PEDAL - R24RRE99DK (C700040)

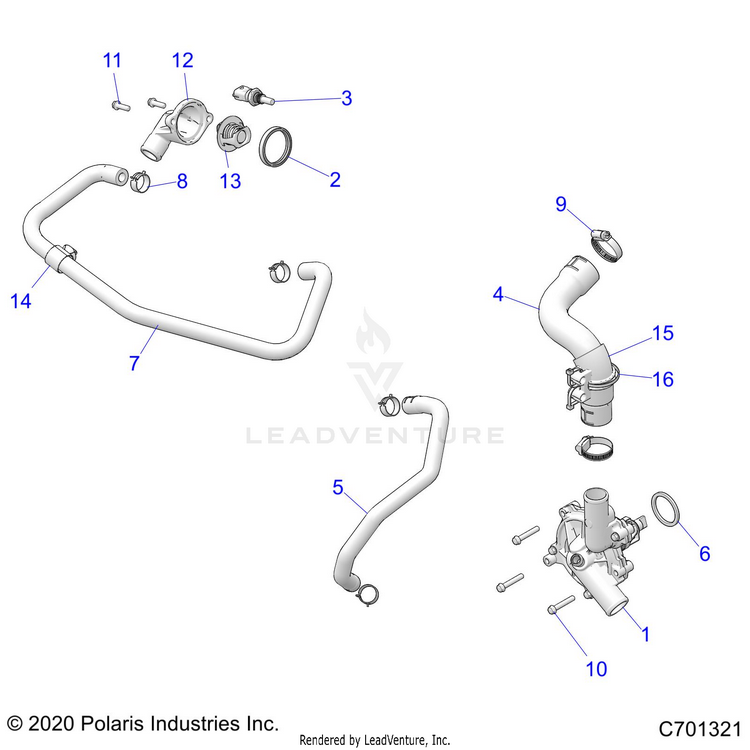

ENGINE, WATERPUMP AND BYPASS - R24RRE99DK (C701321)
S
STEERING, STEERING ASM. - R24RRE99DK (C730373)
STEERING, STEERING GEARBOX - R24RRE99DK (C731186)
SUSPENSION, FRONT CONTROL ARMS - R24RRE99DK (C731080)
SUSPENSION, FRONT HUB - R24RRE99DK (C730376)
SUSPENSION, FRONT SHOCK MOUNTING - R24RRE99DK (C701218-01)
SUSPENSION, FRONT STABILIZER BAR - R24RRE99DK (C700032)
SUSPENSION, REAR CARRIER - R24RRE99DK (C731082)
SUSPENSION, REAR CONTROL ARMS - R24RRE99DK (C701219-01)
SUSPENSION, REAR SHOCK MOUNTING - R24RRE99DK (C701220-01)
SUSPENSION, REAR STABILIZER BAR - R24RRE99DK (C700027-1)
No results with applied page filter:
