Assemblies List (61)
B
BODY, BOX ASM. - R12WH50AG/AH/AK/AR (49RGRBOX10)
BODY, BOX MOUNTING - R12WH50AG/AH/AK/AR (49RGRBOXMOUNTING11500CREW)
BODY, DECALS - R12WH50AG/AH/AK/AR (49RGRDECAL12500CREW)
BODY, FLOOR and FENDERS - R12WH50AG/AH/AK/AR (49RGRMOLDINGS11500CREW)
BODY, FUEL TANK ASM. - R12WH50AG/AH/AK/AR (49RGRFUEL12500CREW)

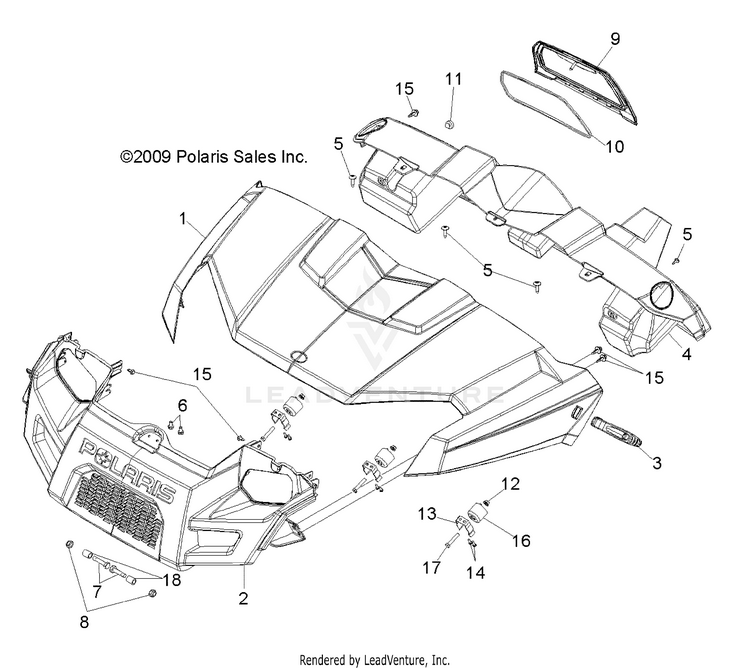

BODY, HOOD, DASH and GRILL - R12WH50AG/AH/AK/AR (49RGRHOOD11500CREW)

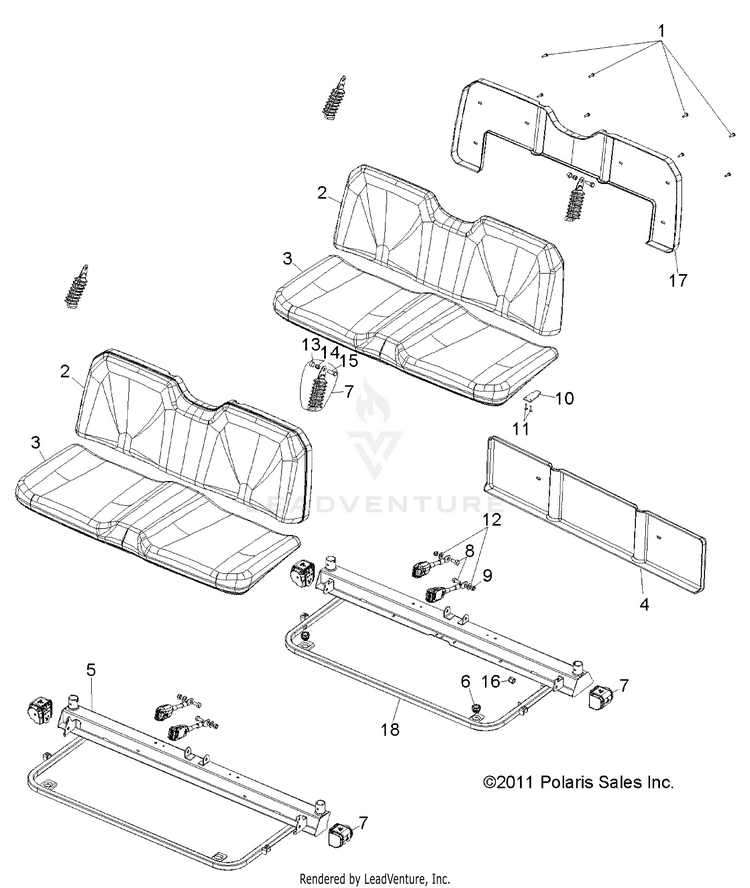

BODY, SEAT - R12WH50AG/AH/AK/AR (49RGRSEAT12500CREW)
BODY, SIDE NETS - R12WH50AG/AH/AK/AR (49RGRNETS12500CREW)
BODY, TAILGATE ASM. - R12WH50AG/AH/AK/AR (49RGRTAILGATE12LSV)
BRAKES, FRONT CALIPER - R12WH50AG/AH/AK/AR (49LEVCALIPER10SDW)
BRAKES, LINES and MASTER CYLINDER - R12WH50AG/AH/AK/AR (49RGRBRAKELINES11CREW)
BRAKES, PEDAL and MASTER CYLINDER MOUNTING - R12WH50AG/AH/AK/AR (49RGRBRAKEFOOT10)
BRAKES, REAR CALIPER - R12WH50AG/AH/AK/AR (49RGRCALIPERRR097004X4)

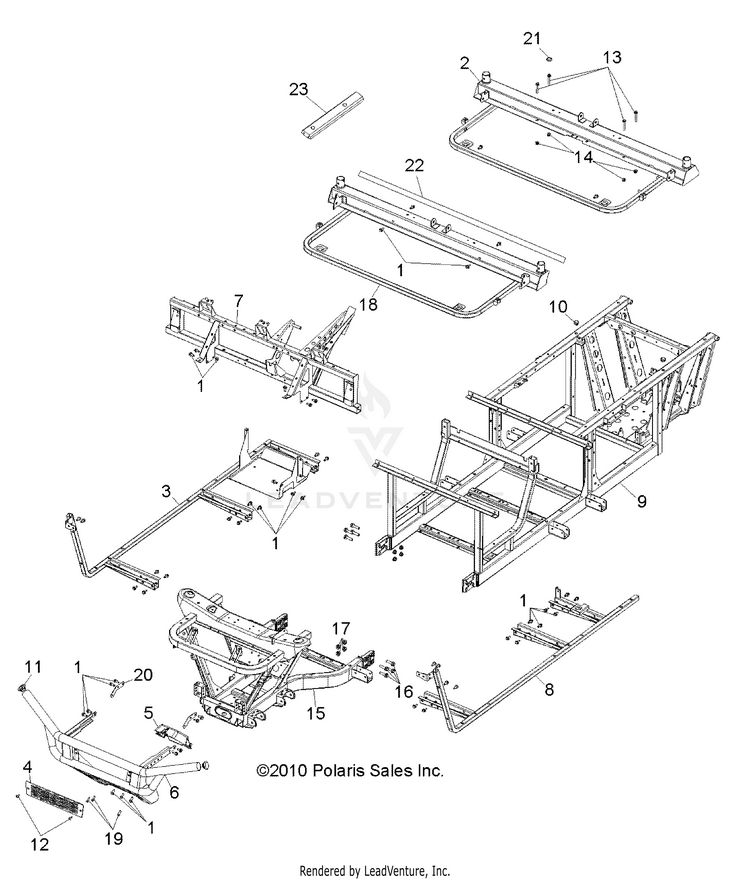

C
D
DRIVE TRAIN, CLUTCH COVER - R12WH50AG/AH/AK/AR (49RGRCLUTCHCVR12500CREW)
DRIVE TRAIN, FRONT DRIVE SHAFT - R12WH50AG/AH/AK/AR (49RGRSHAFTDRV104004X4)
DRIVE TRAIN, FRONT GEARCASE INTERNALS - R12WH50AG/AH/AK/AR (49RGRGEARCASE1332829)
DRIVE TRAIN, FRONT GEARCASE MOUNTING - R12WH50AG/AH/AK/AR (49RGRGEARCASEMTG10450)
DRIVE TRAIN, FRONT PROP SHAFT - R12WH50AG/AH/AK/AR (49RGRSHAFTPROP11500CREW)

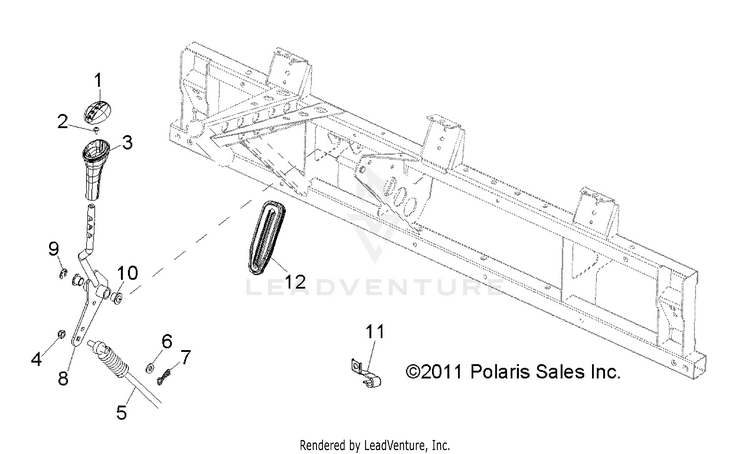

DRIVE TRAIN, GEAR SELECTOR - R12WH50AG/AH/AK/AR (49RGRGEARSELECT12500CREW)
DRIVE TRAIN, MAIN GEARCASE - R12WH50AG/AH/AK/AR (49RGRGEARCASE1332982)
DRIVE TRAIN, MAIN GEARCASE INTERNAL - R12WH50AG/AH/AK/AR (49RGRTRANSINTL10450)
DRIVE TRAIN, MAIN GEARCASE MOUNTING - R12WH50AG/AH/AK/AR (49RGRGEARCASEMTG10)
DRIVE TRAIN, MAIN GEARCASE OUTPUT SHAFT - R12WH50AG/AH/AK/AR (49RGRTRANSOTPT10450)
DRIVE TRAIN, PRIMARY CLUTCH - R12WH50AG/AH/AK/AR (49RGRCLUTCHDRV11500EFI)
DRIVE TRAIN, REAR DRIVE SHAFT - R12WH50AG/AH/AK/AR (49RGRSHAFTDRIVERR10)
DRIVE TRAIN, SECONDARY CLUTCH - R12WH50AG/AH/AK/AR (49RGRCLUTCHDVN11500EFI)
E
ELECTRICAL, BATTERY - R12WH50AG/AH/AK/AR (49RGRBATTERY12500CREW)
ELECTRICAL, DASH INSTRUMENTS and CONTROLS - R12WH50AG/AH/AK/AR (49RGRDASH11500CREW)
ELECTRICAL, HEADLIGHTS, TAILLIGHTS and BULBS - R12WH50AG/AH/AK/AR (49RGRTAILLAMPS097004X4)
ELECTRICAL, IGNITION SYSTEM - R12WH50AG/AH/AK/AR (49RGRIGNITION095004X4)

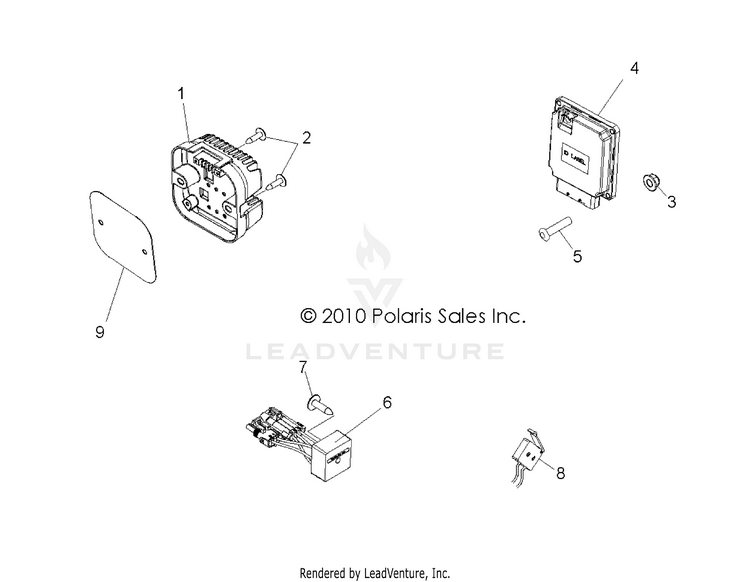

ELECTRICAL, REGULATOR, RELAYS and ECU - R12WH50AG/AH/AK/AR (49RGRELECT11500CREW)
ELECTRICAL, WIRE HARNESSES - R12WH50AG/AH/AK/AR (49RGRHARNESS12500CREW)

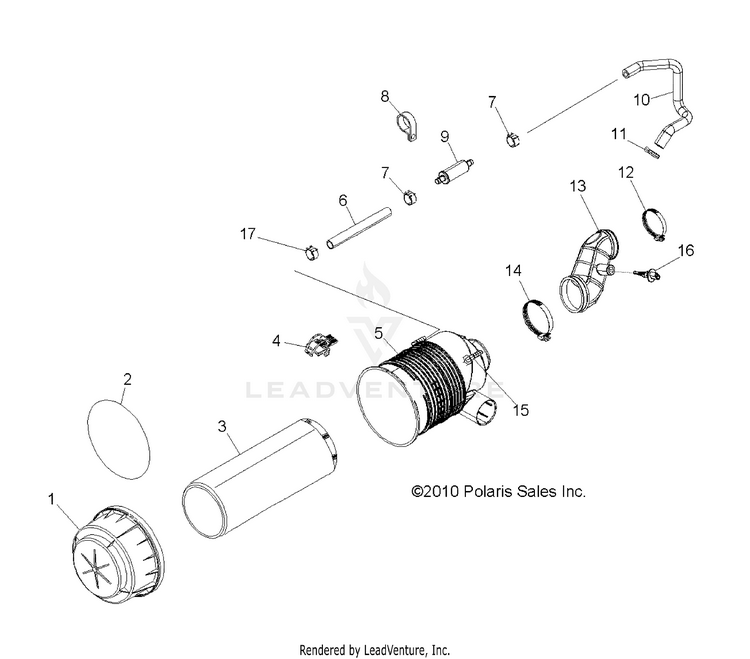

ENGINE, AIR INTAKE - R12WH50AG/AH/AK/AR (49RGRAIRINTAKE12500CREW)
ENGINE, AIR INTAKE SYSTEM - R12WH50AG/AH/AK/AR (49RGRAIRBOX11500CREW)
ENGINE, CAMSHAFT and VALVES - R12WH50AG/AH/AK/AR (4999203249920324D14)
ENGINE, COOLING SYSTEM - R12WH50AG/AH/AK/AR (49RGRCOOL12500CREW)
ENGINE, CRANKCASE - R12WH50AG/AH/AK/AR (49ATVCRANKCASE11SP500)
ENGINE, CRANKSHAFT and PISTON - R12WH50AG/AH/AK/AR (4999203249920324D11)
ENGINE, CYLINDER - R12WH50AG/AH/AK/AR (49RGRCYLINDER095004X4)

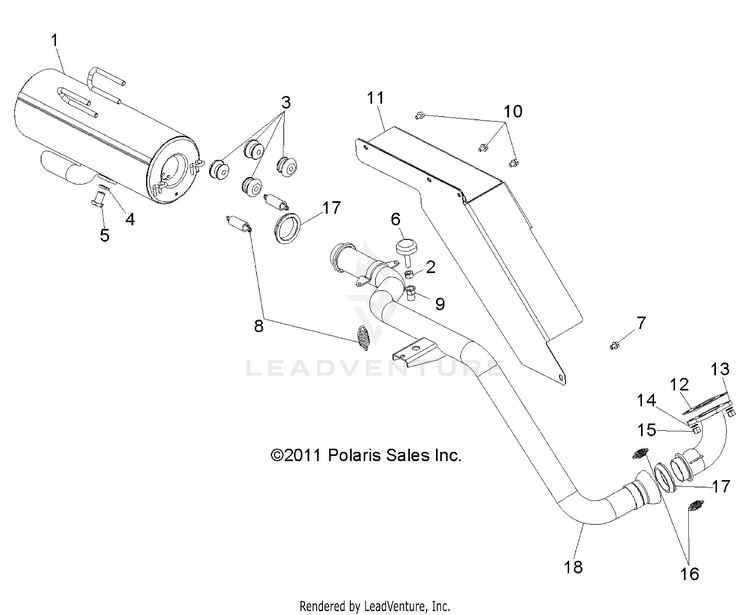

ENGINE, EXHAUST - R12WH50AG/AH/AK/AR (49RGREXHAUST12500CREW)
ENGINE, FLYWHEEL and STATOR - R12WH50AG/AH/AK/AR (4999203249920324E06)
ENGINE, FLYWHEEL COVER - R12WH50AG/AH/AK/AR (49RGRFLYWHEELCVR11500EFI)
ENGINE, FUEL INJECTION - R12WH50AG/AH/AK/AR (49RGRFUELINJECT08500EFI)
ENGINE, MOUNTING - R12WH50AG/AH/AK/AR (49RGRENGINEMTG12500CREW)
ENGINE, OIL FILTER - R12WH50AG/AH/AK/AR (4999203249920324E03)
ENGINE, OIL PUMP - R12WH50AG/AH/AK/AR (49RGROILPUMP105004X4)
ENGINE, OIL TANK - R12WH50AG/AH/AK/AR (49RGROILTANK12500)
ENGINE, STARTING MOTOR - R12WH50AG/AH/AK/AR (49RGRSTARTINGMTR105004X4)
ENGINE, THROTTLE BODY - R12WH50AG/AH/AK/AR (49ATVTHROTTLEBODY500EFI)
ENGINE, THROTTLE PEDAL - R12WH50AG/AH/AK/AR (49RGRTHROTTLE10)
ENGINE, WATER PUMP - R12WH50AG/AH/AK/AR (49RGRWATERPUMP105004X4)
S
STEERING, STEERING ASM. - R12WH50AG/AH/AK/AR (49RGRSTEERING11EV)

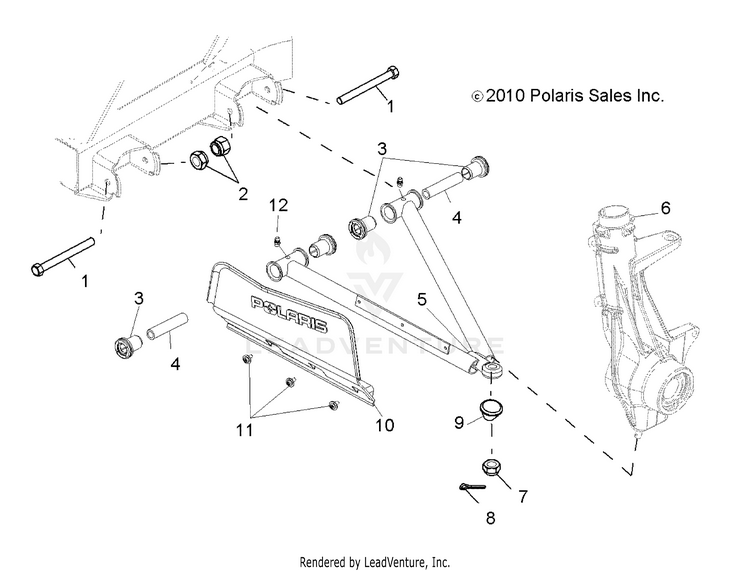

SUSPENSION, A-ARM and STRUT MOUNTING - R12WH50AG/AH/AK/AR (49RGRAARM11500CREW)
SUSPENSION, FRONT STRUT - R12WH50AG/AH/AK/AR (49RGRSUSPFRT10450)

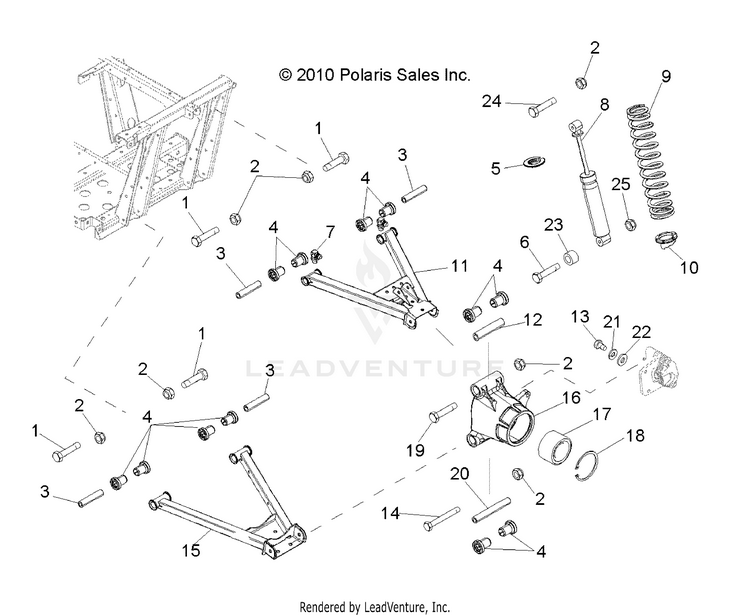

SUSPENSION, REAR - R12WH50AG/AH/AK/AR (49RGRSUSPRR11500CREW)
SUSPENSION, REAR STABILIZER BAR - R12WH50AG/AH/AK/AR (49RGRSTABILIZERRR10)
