Assemblies List (71)
B
BODY, BOX ASM. - R11TH90DG (49RGRBOX11800)
BODY, BOX MOUNTING - R11TH90DG (49RGRBOXMOUNTING11900D)
BODY, CLUTCH COVER and DUCTING - R11TH90DG (49RGRCLUTCHCVR11900D)
BODY, DECALS - R11TH90DG (49RGRDECAL11900D)

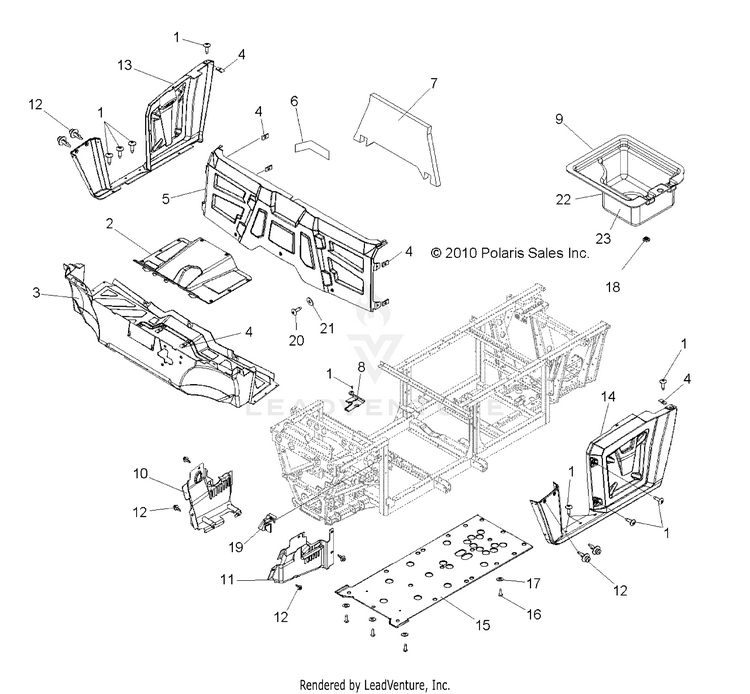

BODY, FLOOR and FENDERS - R11TH90DG (49RGRMOLDINGS11900D)
BODY, FUEL TANK ASM. - R11TH90DG (49RGRFUEL11900D)
BODY, GLOVE BOX STORAGE - R11TH90DG (49RGRGLOVEBOX118004X4)
BODY, HOOD and FRONT FASCIA - R11TH90DG (49RGRLATCH118004X4)
BODY, HOOD LATCH - R11TH90DG (49RGRLATCH10CREW)

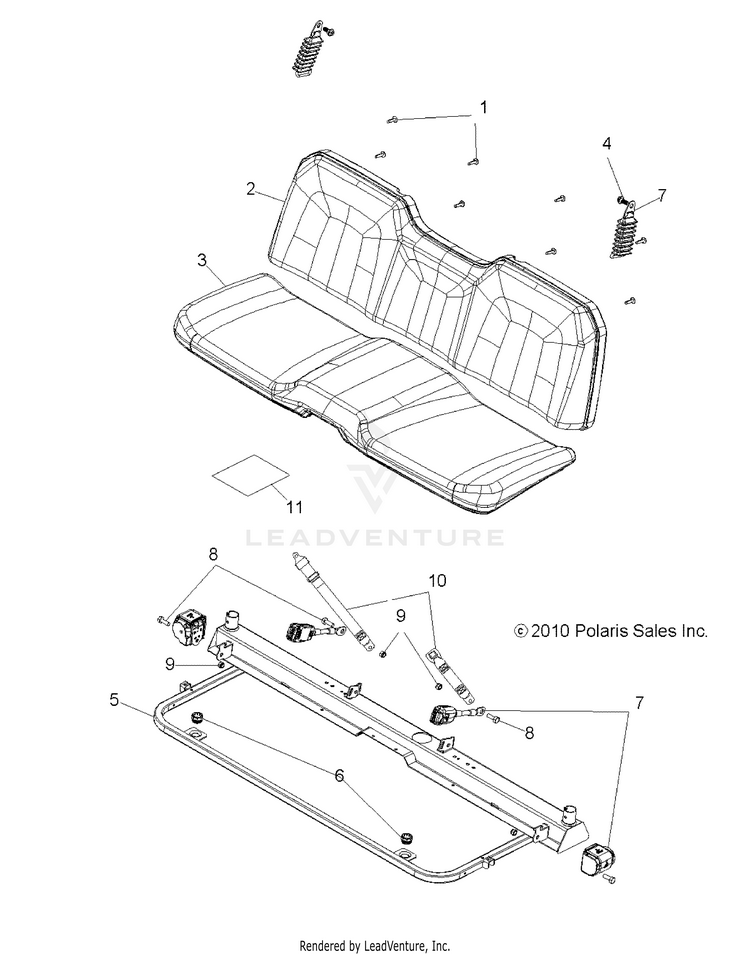

BODY, SEAT and BASE - R11TH90DG (49RGRSEAT11900D)
BODY, SIDE NETS - R11TH90DG (49RGRNETS118004X4)
BODY, TAILGATE ASM. - R11TH90DG (49RGRTAILGATE095004X4)
BRAKES, FRONT CALIPER - R11TH90DG (49RGRCALIPER097004X4)
BRAKES, LINES and MASTER CYLINDER - R11TH90DG (49RGRBRAKELINES11900D)
BRAKES, PARK BRAKE ASM. - R11TH90DG (49RGRBRAKEPARK11900D)
BRAKES, PEDAL and MASTER CYLINDER MOUNTING - R11TH90DG (49RGRBRAKEFOOT097004X4)
BRAKES, REAR CALIPER - R11TH90DG (49RGRCALIPERRR097004X4)
C
D
DRIVE TRAIN, DRIVE COUPLER and BELLHOUSING - R11TH90DG (49RGRCOUPLER11900D)
DRIVE TRAIN, FRONT DRIVE SHAFT - R11TH90DG (49RGRSHAFTDRV11DCREW)
DRIVE TRAIN, FRONT GEARCASE INTERNALS - R11TH90DG (49RGRTRANSINTL1332842)
DRIVE TRAIN, FRONT GEARCASE MOUNTING - R11TH90DG (49RGRGEARCASEMTG11900D)
DRIVE TRAIN, FRONT PROP SHAFT - R11TH90DG (49RGRSHAFTPROP11DCREW)
DRIVE TRAIN, GEAR SELECTOR - R11TH90DG (49RGRGEARSELECT11DCREW)
DRIVE TRAIN, MAIN GEARCASE - R11TH90DG (49RGRGEARCASE11DCREW)
DRIVE TRAIN, MAIN GEARCASE INTERNALS - R11TH90DG (49RGRTRANSINTL11DCREW)
DRIVE TRAIN, MAIN GEARCASE SHIFT FORKS - R11TH90DG (49RGRFORKS11DCREW)

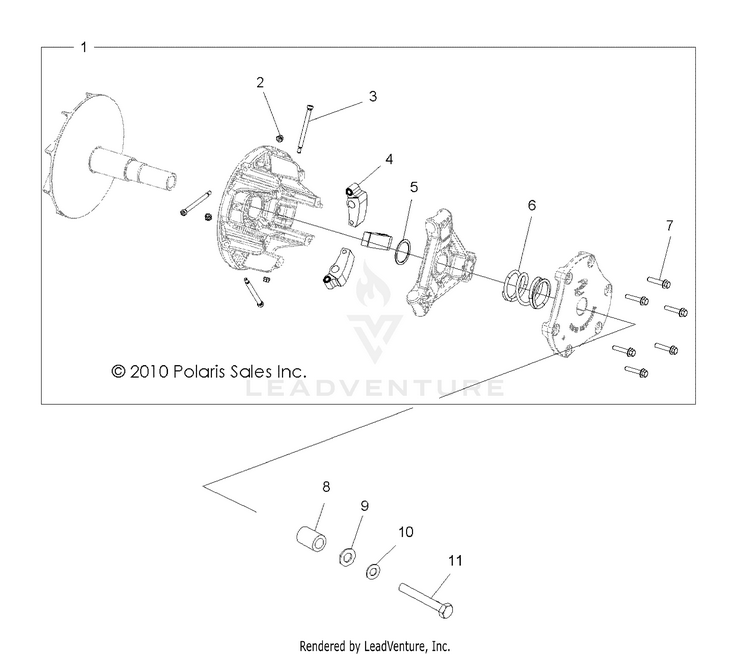

DRIVE TRAIN, PRIMARY CLUTCH - R11TH90DG (49RGRCLUTCHDRV11900D)
DRIVE TRAIN, REAR DRIVE SHAFT - R11TH90DG (49RGRSHAFTDRVRR11DCREW)
DRIVE TRAIN, REAR GEARCASE - R11TH90DG (49RGRGEARCASERR11900D)
DRIVE TRAIN, REAR GEARCASE MOUNTING - R11TH90DG (49RGRGEARCASERRMTG11900D)
DRIVE TRAIN, REAR PROP SHAFT - R11TH90DG (49RGRSHAFTPROPRR11900D)

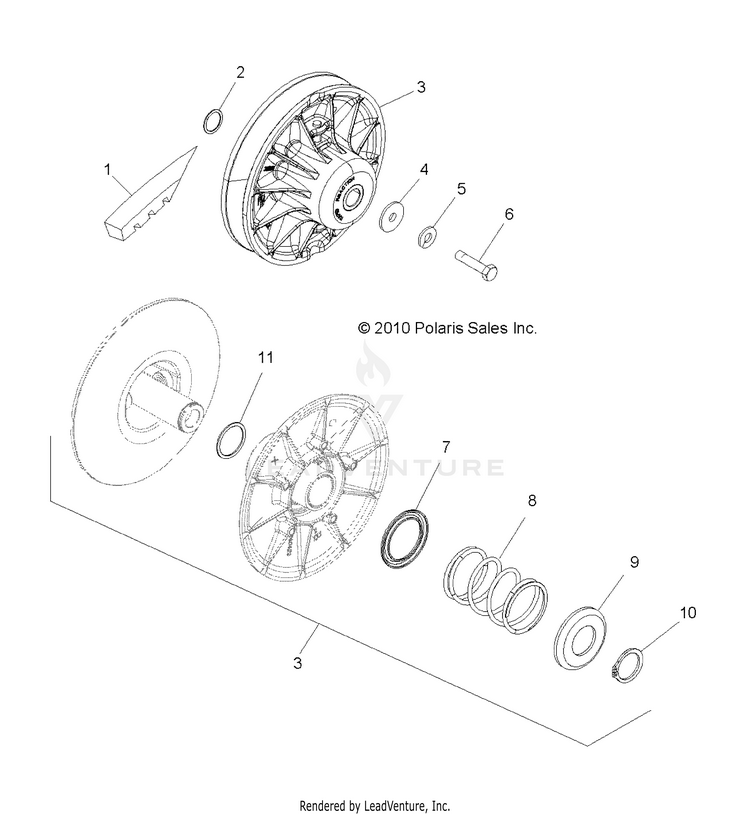

DRIVE TRAIN, SECONDARY CLUTCH - R11TH90DG (49RGRCLUTCHDVN11900D)
DRIVE TRAIN, TRANSMISSION MOUNTING - R11TH90DG (49RGRTRANSMTG11D)
E
ELECTRICAL, BATTERY - R11TH90DG (49RGRBATTERY11900D)
ELECTRICAL, DASH INSTRUMENTS and CONTROLS - R11TH90DG (49RGRDASH11900D)
ELECTRICAL, HEADLIGHTS, TAILLIGHTS and BULBS - R11TH90DG (49RGRTAILLAMPS097004X4)
ELECTRICAL, REGULATOR, RELAYS and ECU - R11TH90DG (49RGRELECT11900D)
ELECTRICAL, WIRE HARNESSES - R11TH90DG (49RGRHARNESS11900D)

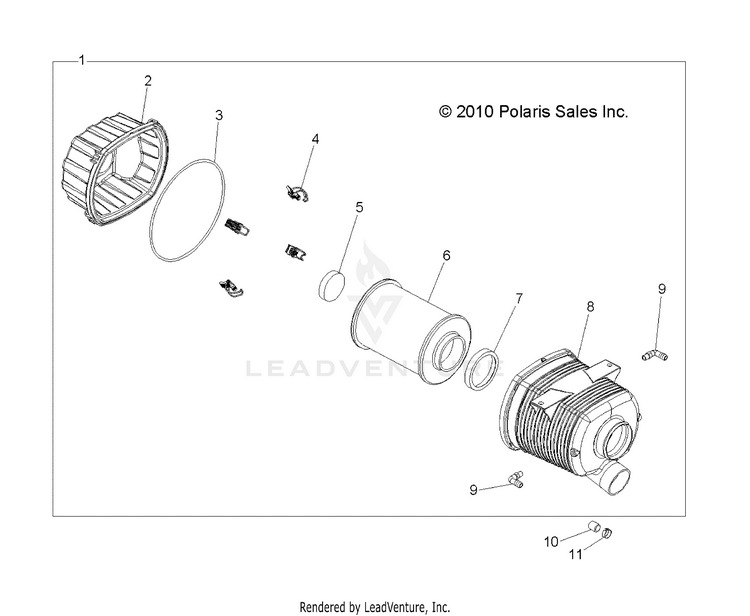

ENGINE, AIR INTAKE - R11TH90DG (49RGRAIRINTAKE11900D)
ENGINE, AIR INTAKE DUCTING - R11TH90DG (49RGRAIRINTAKEDCTG11900D)
ENGINE, ALTERNATOR - R11TH90DG (49RGRALTERNATOR11DCREW)
ENGINE, CAMSHAFT and DRIVING GEAR - R11TH90DG (49RGRCAMSHAFT11DCREW)

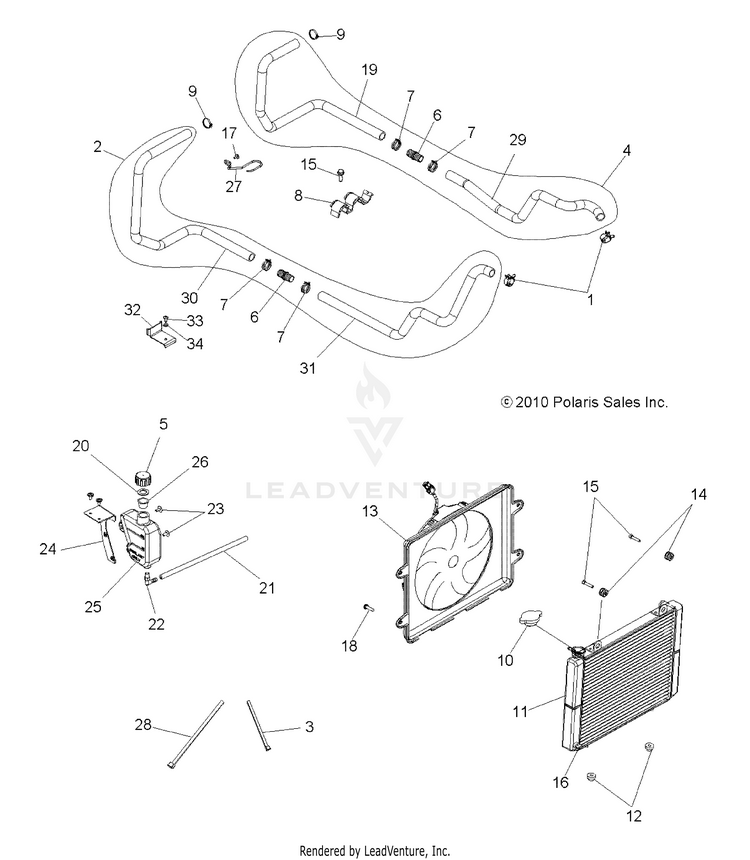

ENGINE, COOLING SYSTEM - R11TH90DG (49RGRCOOL11900D)
ENGINE, CRANKSHAFT and PISTON - R11TH90DG (49RGRPISTON11DCREW)
ENGINE, CYLINDER BLOCK - R11TH90DG (49RGRCYLINDER11DCREW)
ENGINE, CYLINDER HEAD and BONNET - R11TH90DG (49RGRCYLINDERHD11DCREW)
ENGINE, EXHAUST - R11TH90DG (49RGREXHAUST11900D)
ENGINE, EXHAUST MANIFOLD - R11TH90DG (49RGRMANIFOLD11DCREW)
ENGINE, FUEL INJECTION PUMP - R11TH90DG (49RGRFUELINJECT11DCREW)
ENGINE, FUEL INJECTION VALVE - R11TH90DG (49RGRVALVE11DCREW)
ENGINE, FUEL LINE - R11TH90DG (49RGRFUELLINE11DCREW)
ENGINE, GASKET SET - R11TH90DG (49RGRGASKET11DCREW)
ENGINE, GEAR HOUSING - R11TH90DG (49RGRGEARCASE11D)
ENGINE, GOVERNOR - R11TH90DG (49RGRGOVERNOR11DCREW)
ENGINE, LONG BLOCK - R11TH90DG (49RGRLB1204209)
ENGINE, MOUNTING - R11TH90DG (49RGRENGINEMTG11900D)
ENGINE, MOUNTING FLANGE and OIL SUMP - R11TH90DG (49RGROILSUMP11DCREW)
ENGINE, OIL SYSTEM and DIPSTICK - R11TH90DG (49RGROILPUMP11DCREW)
ENGINE, STARTING MOTOR - R11TH90DG (49RGRSTARTINGMTR11DCREW)

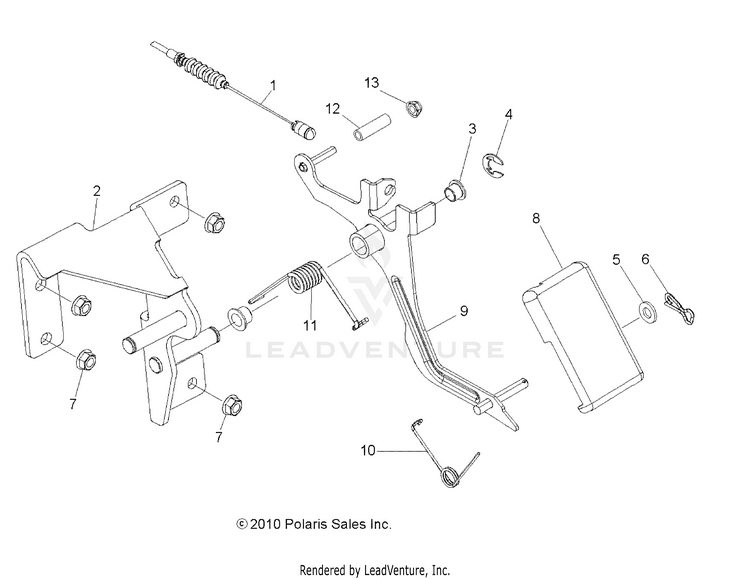

ENGINE, THROTTLE PEDAL - R11TH90DG (49RGRTHROTTLEPEDAL11900D)
ENGINE, WATER COOLING SYSTEM - R11TH90DG (49RGRWATERPUMP11DCREW)
S
STEERING, STEERING ASM. - R11TH90DG (49RGRSTEERING11900D)
SUSPENSION, FRONT CONTROL ARMS - R11TH90DG (49RGRSUSPFRT108004X4)
SUSPENSION, FRONT SHOCK - R11TH90DG (49RGRSHOCKMTG097004X4)
SUSPENSION, REAR - R11TH90DG (49RGRSUSPRR10800CREW)
SUSPENSION, REAR STABILIZER BAR - R11TH90DG (49RGRSTABILIZERRR11900D)
