2017 ATV Polaris A17SWE57A1 SPORTSMAN 570 EFI X2 EPS (2017) (R10) (A17SWE57A1) OEM Parts | Assembly Diagrams Lookup OEM Parts Finder and Diagram (Microfiche) Inspector
Assemblies List (71)
B
BODY, BOX, REAR - A17SWE57A1 (49ATVBOXRR15570X2)
BODY, CLUTCH COVER - A17SWE57A1 (49ATVCLUTCHCVR1570TRG)

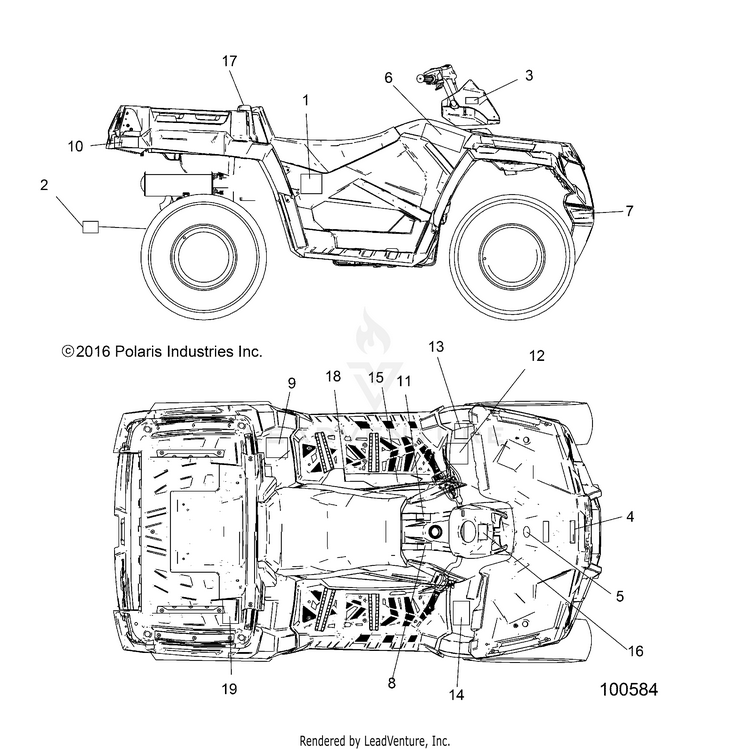

BODY, DECALS - A17SWE57A1 (100584)
BODY, FRONT BUMPER and MOUNTING - A17SWE57A1 (100098)
BODY, FRONT CAB and SIDE PANELS - A17SWE57A1 (101201)

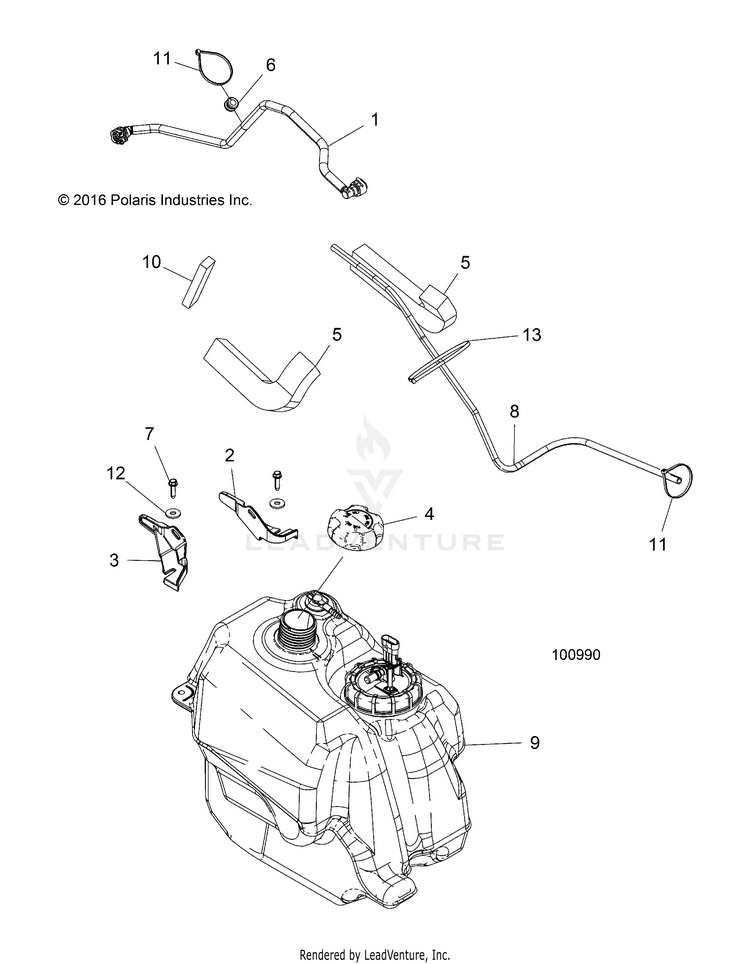

BODY, FUEL TANK ASM. - A17SWE57A1 (100990)
BODY, HEADLIGHT POD - A17SWE57A1 (49ATVHEADLIGHT11SP800)
BODY, REAR BOX FRAME AND PIVOT - A17SWE57A1 (49ATVBOX15570X2)
BODY, REAR CAB and FOOTWELLS - A17SWE57A1 (49ATVCABRR15570X2)
BODY, RIGHT HAND SIDE PANEL HEAT SHIELD AND HARDWARE 2 UP - A17SWE57A1 (101068)
BODY, SEAT, OPERATOR - A17SWE57A1 (49ATVSEAT15570X2)
BODY, SEAT, PASSENGER, BACK - A17SWE57A1 (49ATVSEATBACK15570X2)
BODY, SEAT, PASSENGER, BOTTOM - A17SWE57A1 (49ATVSEATBOTTOM15570X2)
BODY, STORAGE, FRONT - A17SWE57A1 (49ATVSTORAGE15570AA)
BODY, TAILGATE - A17SWE57A1 (49ATVTAILGATEMTG15570X2)
BODY, TAILGATE BRACKETS - A17SWE57A1 (49ATVTAILGATEMTG1570X2)

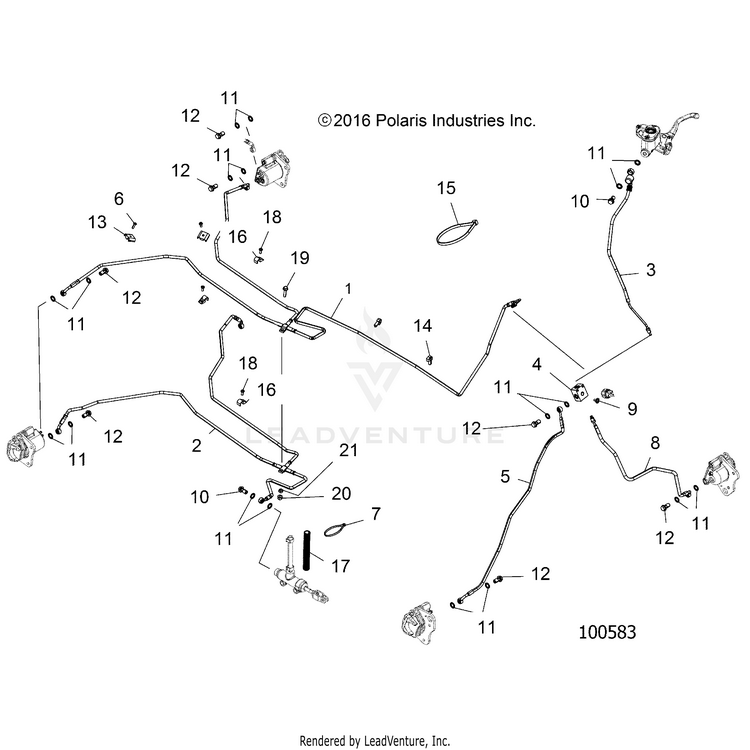

BRAKES, BRAKE LINES - A17SWE57A1 (100583)
BRAKES, BRAKE PEDAL and MASTER CYLINDER - A17SWE57A1 (49ATVBRAKEFOOT11SP500)
BRAKES, FRONT BRAKE LEVER and MASTER CYLINDER - A17SWE57A1 (100994)
BRAKES, FRONT CALIPER - A17SWE57A1 (49RGRCALIPER10)
BRAKES, REAR CALIPERS - A17SWE57A1 (49ATVBRAKERR09SP500)

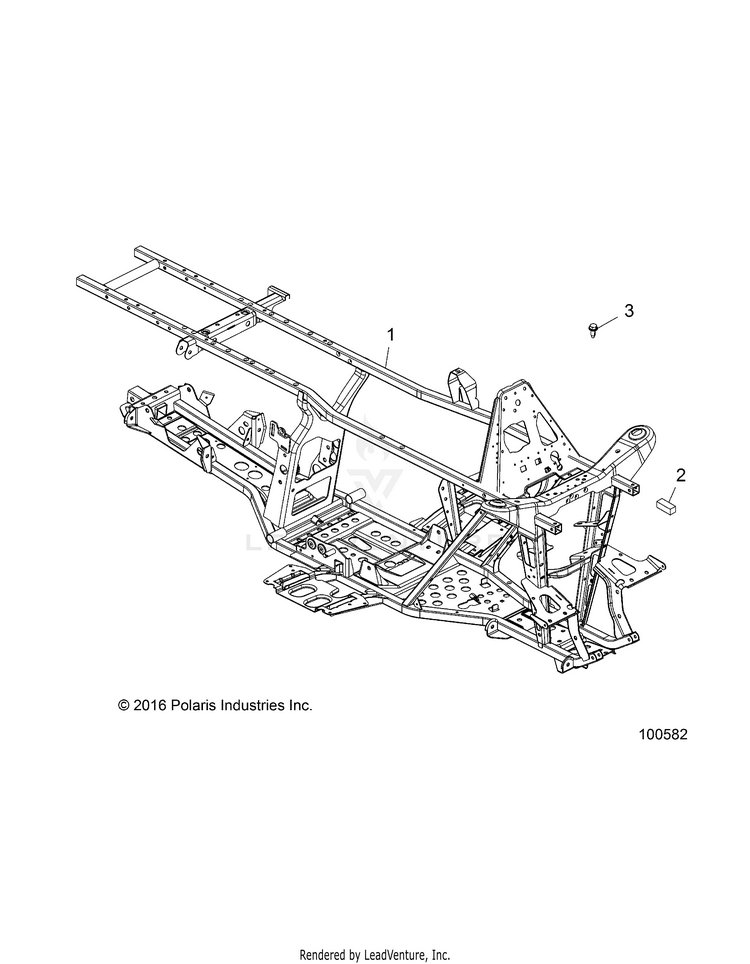

D
DRIVE TRAIN, FRONT DRIVE SHAFT - A17SWE57A1 (49ATVSHAFTDRIVE1332881)
DRIVE TRAIN, FRONT GEARCASE - A17SWE57A1 (49ATVGEARCASE1333239)
DRIVE TRAIN, FRONT GEARCASE MOUNTING - A17SWE57A1 (49ATVGEARCASEMTG13SP500F)
DRIVE TRAIN, FRONT PROP SHAFT - A17SWE57A1 (49ATVSHAFTPROP08SP500A)
DRIVE TRAIN, GEAR SELECTOR - A17SWE57A1 (49ATVGEARSELECT14SP570HD)
DRIVE TRAIN, MAIN GEARCASE - A17SWE57A1 (100247)
DRIVE TRAIN, MAIN GEARCASE MOUNTING - A17SWE57A1 (49ATVGEARCASEMTGN14SP500)
DRIVE TRAIN, PRIMARY CLUTCH - A17SWE57A1 (49ATVCLUTCH14SP570)
DRIVE TRAIN, REAR DRIVE SHAFT (FROM 8/29/16) - A17SWE57A1 (49ATVSHAFTDRIVERR1332935)
DRIVE TRAIN, REAR DRIVE SHAFT (TO 8/29/16) - A17SWE57A1 (100631)
DRIVE TRAIN, SECONDARY CLUTCH - A17SWE57A1 [100242]
E
ELECTRICAL, BATTERY - A17SWE57A1 (49ATVBATTERY15570X2)
ELECTRICAL, BULBS - A17SWE57A1 (49ATVBULBS08SP500)
ELECTRICAL, GAUGES and INDICATORS - A17SWE57A1 (49ATVGAUGES08SP500)

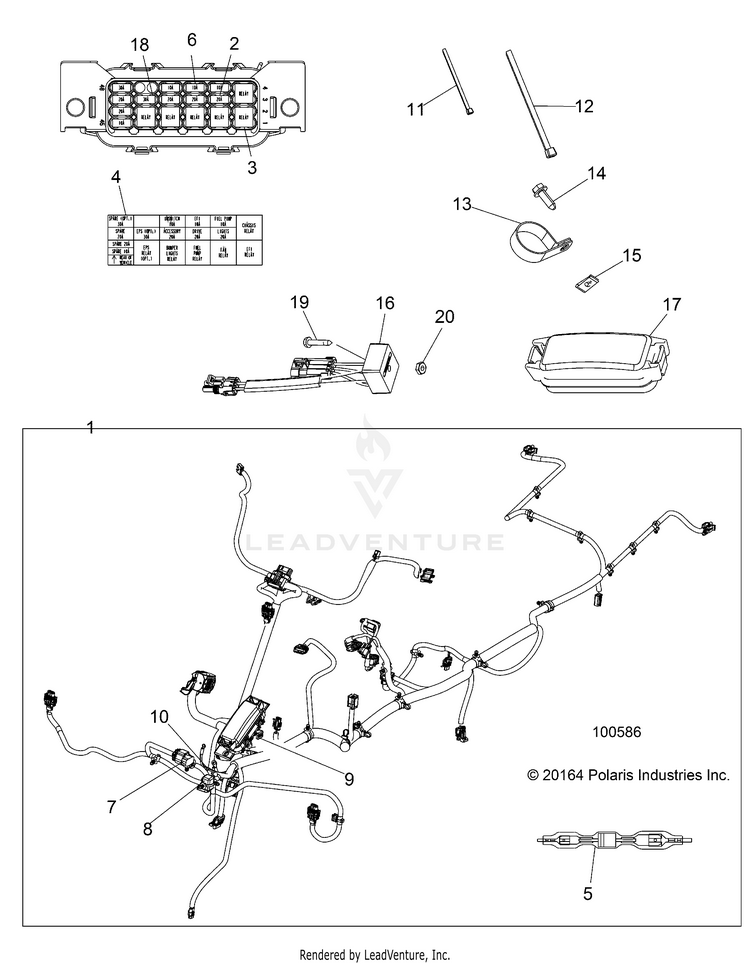

ELECTRICAL, HARNESS - A17SWE57A1 (100586)
ELECTRICAL, HEADLIGHTS - A17SWE57A1 (49ATVHEADLIGHT11SP500)
ELECTRICAL, IGNITION COIL, WIRE AND SPARK PLUG - A17SWE57A1 (49ATVIGNITION14SP570)
ELECTRICAL, SWITCHES, SENSORS and ECM - A17SWE57A1 (49ATVELECT14SP570)
ELECTRICAL, TAILLIGHTS - A17SWE57A1 (49ATVTAILLAMPS10SP550X2)

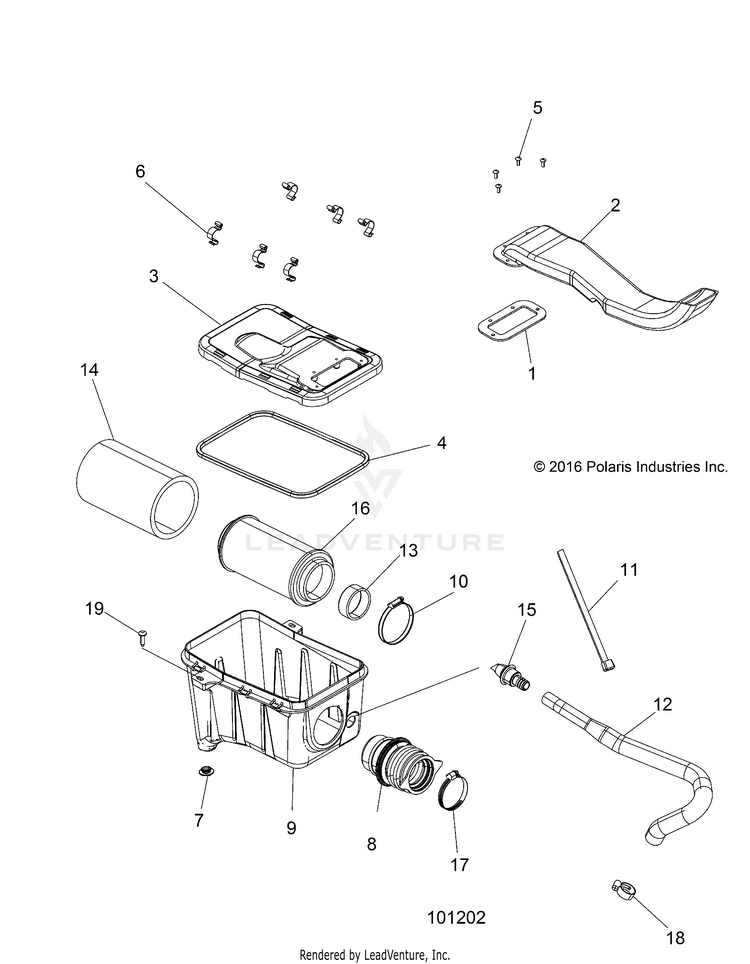

ENGINE, AIR INTAKE SYSTEM - A17SWE57A1 (101202)
ENGINE, AIR INTAKE SYSTEM SUPPORT BRACKET - A17SWE57A1 [101065]
ENGINE, CAM CHAIN and SPROCKET - A17SWE57A1 (49RGRCAM12RZR570)
ENGINE, COOLING SYSTEM - A17SWE57A1 (101200)
ENGINE, CRANKCASE - A17SWE57A1 (100043)
ENGINE, CRANKSHAFT, PISTON and BALANCE SHAFT - A17SWE57A1 (49RGRPISTON12RZR570)
ENGINE, CYLINDER - A17SWE57A1 (49RGRCYLINDER12RZR570)
ENGINE, CYLINDER HEAD, CAMS and VALVES - A17SWE57A1 [100092]

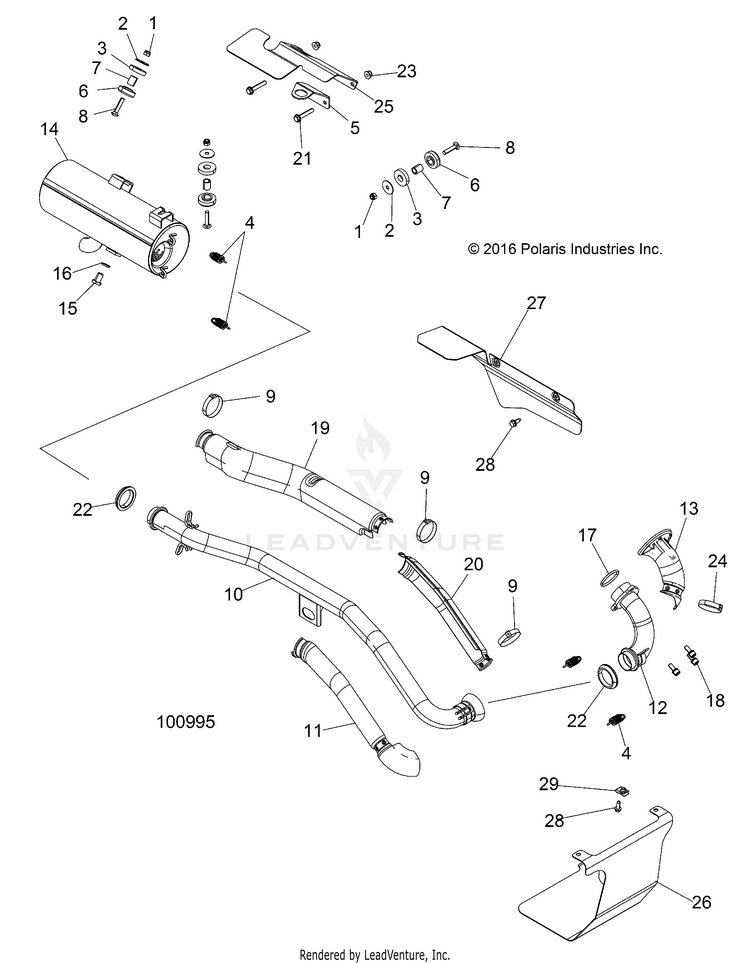

ENGINE, EXHAUST - A17SWE57A1 [100995]
ENGINE, MOUNTING & LONG BLOCK - A17SWE57A1 (49ATVENGINEMTG15QUAD)
ENGINE, OIL FILTER and DIPSTICK - A17SWE57A1 (49ATVOILFILTER14SP570)
ENGINE, OIL PUMP - A17SWE57A1 (49ATVOILPUMP15570AA)
ENGINE, STARTER DRIVE - A17SWE57A1 (49ATVSTARTER15570AA)
ENGINE, STATOR COVER and FLYWHEEL - A17SWE57A1 [100093]
ENGINE, THERMOSTAT and COVER - A17SWE57A1 (49RGRTHERMO12RZR570)
ENGINE, THROTTLE BODY and FUEL RAIL - A17SWE57A1 (49ATVTHROTTLEBODY15570AA)
ENGINE, VALVE COVER - A17SWE57A1 (49RGRVALVE12RZR570)
ENGINE, WATERPUMP IMPELLER and COVER - A17SWE57A1 (49ATVWATERPUMP14SP570)
S
STEERING, CONTROLS, THROTTLE ASM. and CABLE - A17SWE57A1 (49ATVCONTROLS15570X2)
STEERING, EPS - A17SWE57A1 (49ATVSTEERING14SP570)
STEERING, HANDLEBAR and CONTROLS - A17SWE57A1 (100059)
SUSPENSION, A-ARM and STRUT MOUNTING - A17SWE57A1 (100091)
SUSPENSION, FRONT STRUT - A17SWE57A1 (49ATVSTRUT10SP500I)
SUSPENSION, REAR - A17SWE57A1 (100090)
SUSPENSION, TORSION BAR - A17SWE57A1 (49ATVTORSION14SP570)
