2016 ATV Polaris A16SES57F1/F2/SBT57F1 INTL SPORTSMAN 570/450 EPS ZUG (2016) (R10) (A16SES57F1/F2/SBT57F1) BODY, FRONT BUMPER and MOUNTING - A16SES57F1/F2/SBT57F1 [100271] OEM Parts | Assembly Diagram OEM Parts Finder and Diagram (Microfiche) Inspector

Polaris Choose parts...

Use scroll wheel, or pinch and drag to and .

1
Item # 1613968

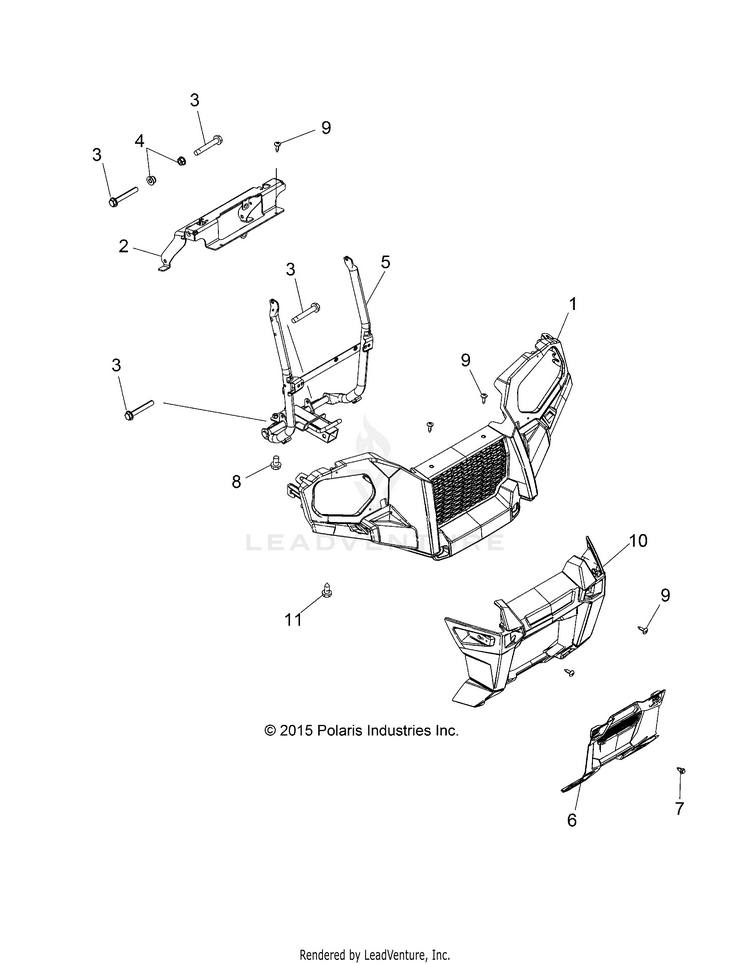

Polaris / Indian Front Bumper Gloss Black - 5438559-070
Leaves Warehouse: 3 to 4 days
$284.99
          Recommended Quantity: 1

          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

          Stock: TBD
          2
          Item # 1593346
          Polaris / Indian Bracket-Radiator Upper E-Coat - 5259852
          Out of Stock
          $84.99
                  Recommended Quantity: 1

                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                  Stock: TBD
                  3
                  Item # 1591967
                  Polaris / Indian Bolt-5/16-18X1-3/4 Hex Flange GR5 - 7518341
                  Leaves Warehouse: 3 to 4 days
                  $8.99
                          Recommended Quantity: 4

                          This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

                          Stock: TBD
                          4
                          Item # 1613029
                          Polaris / Indian Flange Nut - 7542343
                          Leaves Warehouse: 3 to 4 days
                          $8.99
                                  Recommended Quantity: 2

                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                  Stock: TBD
                                  5
                                  Item # 1656243
                                  Polaris / Indian Weld Hitch Front Tractor M.Black - 1020902-458
                                  Leaves Warehouse: 3 to 4 days
                                  $284.99
                                          Recommended Quantity: 1

                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                          Stock: TBD
                                          6
                                          Item # 1650867
                                          Polaris / Indian Winch Cover Gloss Black - 5451441-070
                                          Leaves Warehouse: 3 to 4 days
                                          $159.99
                                                  Recommended Quantity: 1

                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                  Stock: TBD
                                                  7
                                                  Item # 1646924
                                                  Polaris / Indian Tuflok Rivet - 7661855
                                                  Leaves Warehouse: Same Day
                                                  $2.10
                                                          Recommended Quantity: 4

                                                          This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                          Stock: TBD
                                                          8
                                                          Item # 1616905
                                                          Polaris / Indian HEX Flange Bolt 10 mm X 1.5 mm X 20 mm - 7518460
                                                          Leaves Warehouse: 3 to 4 days
                                                          $3.15
                                                                  Recommended Quantity: 2

                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                  Stock: TBD
                                                                  9
                                                                  Item # 1636959
                                                                  Polaris / Indian Screw - 7517685
                                                                  Leaves Warehouse: Same Day
                                                                  $3.15
                                                                          Recommended Quantity: 6

                                                                          This part has 6 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                          Stock: TBD
                                                                          10
                                                                          Item # 1646116
                                                                          Polaris / Indian Tractor Cover Front Lower Gloss Black - 5451817-070
                                                                          Leaves Warehouse: 3 to 4 days
                                                                          $164.99
                                                                                  Recommended Quantity: 2

                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                  Stock: TBD
                                                                                  11
                                                                                  Item # 1636907
                                                                                  Polaris / Indian Screw - 7515399
                                                                                  Leaves Warehouse: 3 to 4 days
                                                                                  $2.10
                                                                                          Recommended Quantity: 2

                                                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                          Stock: TBD
                                                                                          No results with applied page filter:

                                                                                          All Assemblies

                                                                                          For the current model: A16SES57F1/F2/SBT57F1 INTL SPORTSMAN 570/450 EPS ZUG (2016) (R10) (A16SES57F1/F2/SBT57F1)
                                                                                          BODY, CLUTCH COVER - A16SES57F1/F2/SBT57F1 [49ATVCLUTCHCVR15570AA]

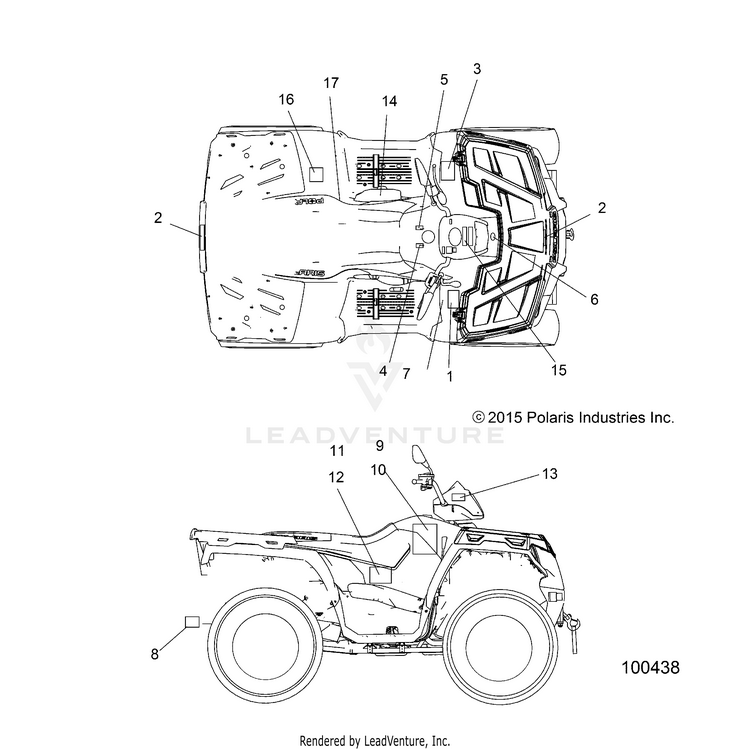

                                                                                          BODY, DECALS - A16SES57F1/F2/SBT57F1 [100438]
                                                                                          BODY, FRONT BUMPER and MOUNTING - A16SES57F1/F2/SBT57F1 [100271]
                                                                                          BODY, FRONT CAB and SIDE PANELS - A16SES57F1/F2/SBT57F1 [100100]
                                                                                          BODY, FUEL TANK ASM. - A16SES57F1/F2/SBT57F1 [100178]
                                                                                          BODY, HEADLIGHT POD - A16SES57F1/F2/SBT57F1 [ATVHEADLIGHT11SP800]
                                                                                          BODY, HEADLIGHT POD COVER BRACKET - A16SBT57F1 [100272]
                                                                                          BODY, MIRRORS - A16SES57F1/F2/SBT57F1 [49ATVMIRRORS14SP850F]
                                                                                          BODY, REAR CAB, SEAT and FOOTWELLS - A16SES57F1/F2/SBT57F1 [100439]
                                                                                          BODY, REAR RACK - A16SES57F1/F2/SBT57F1 [49ATVRACKMTGRR14570]
                                                                                          BODY, RIGHT HAND SIDE PANEL HEAT SHIELD AND HARDWARE 1 UP - A16SES57F1/F2/SBT57F1 (101067)
                                                                                          BODY, STORAGE, FRONT - A16SES57F1/F2/SBT57F1 [49ATVSTORAGE15570AA]
                                                                                          BRAKES, BRAKE LINES - A16SES57F1/F2/SBT57F1 [49ATVBRAKELINE14SP570]
                                                                                          BRAKES, BRAKE PEDAL and MASTER CYLINDER - A16SES57F1/F2/SBT57F1 [49ATVBRAKEFOOT11SP500]
                                                                                          BRAKES, FRONT BRAKE LEVER and MASTER CYLINDER - A15SET57CA/S57CJ [4999204069920406B08]
                                                                                          BRAKES, FRONT CALIPER - A16SES57F1/F2/SBT57F1 [49ATVBRAKEFRT08SP500]
                                                                                          BRAKES, REAR CALIPER - A16SES57F1/F2/SBT57F1 [49ATVBRAKERR09SP500]
                                                                                          CHASSIS, FRAME - A16SES57F1/F2/SBT57F1 [49ATVFRAME15570AA]
                                                                                          CHASSIS, HITCH - A16SES57F1/F2/SBT57F1 [100376]
                                                                                          DRIVE TRAIN, FRONT DRIVE SHAFT - A16SES57F1/F2/SBT57F1 [49ATVSHAFTDRIVE1332931]
                                                                                          DRIVE TRAIN, FRONT GEARCASE - A16SES57F1/F2/SBT57F1 [49RGRTRANSINTL1333393]
                                                                                          DRIVE TRAIN, FRONT GEARCASE MOUNTING - A16SES57F1/F2/SBT57F1 [49ATVGEARCASEMTG13SP500F]
                                                                                          DRIVE TRAIN, FRONT PROP SHAFT - A16SES57F1/F2/SBT57F1 [49ATVSHAFTPROP08SP500A]
                                                                                          DRIVE TRAIN, GEAR SELECTOR - A16SES57F1/F2/SBT57F1 [49ATVGEARSELECT14SP570HD]
                                                                                          DRIVE TRAIN, MAIN GEARCASE - A16SES57F1/F2/SBT57F1 [49ATVGEARCASE1333302]
                                                                                          DRIVE TRAIN, MAIN GEARCASE MOUNTING - A16SES57F1/F2/SBT57F1 [49ATVGEARCASEMTGN14SP500]
                                                                                          DRIVE TRAIN, PRIMARY CLUTCH - A16SES57F1/F2/SBT57F1 [49ATVCLUTCH14SP570]
                                                                                          DRIVE TRAIN, REAR DRIVE SHAFT - A16SES57F1/F2/SBT57F1 [49ATVSHAFTDRIVERR14SP500]
                                                                                          DRIVE TRAIN, SECONDARY CLUTCH - A16SES57F1/F2/SBT57F1 [49ATVCLUTCHDRIVEN11SP500]
                                                                                          ELECTRICAL, BATTERY - A16SES57F1/F2/SBT57F1 [49ATVBATTERY15TRCTR]
                                                                                          ELECTRICAL, BULBS - A16SES57F1/F2/SBT57F1 [49ATVBULBS11SP500TR]

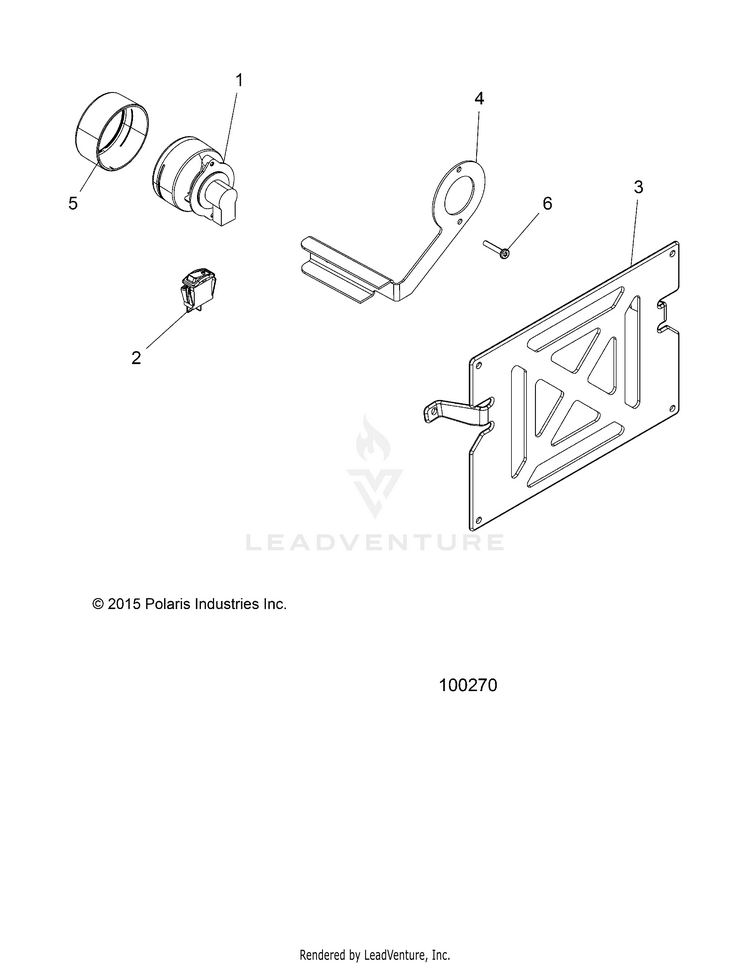

                                                                                          ELECTRICAL, FOG LAMP and FRONT LICENSE BRACKET - A16SES57F1/F2/SBT57F1 [100270]
                                                                                          ELECTRICAL, GAUGES and INDICATORS - A16SES57F1/F2/SBT57F1 [49ATVGAUGES15TRCTR]
                                                                                          ELECTRICAL, HARNESS - A16SES57F1/F2/SBT57F1 [100245]
                                                                                          ELECTRICAL, HEADLIGHTS - A16SES57F1/F2/SBT57F1 [49ATVHEADLTASM11SP500TR]
                                                                                          ELECTRICAL, IGNITION COIL, WIRE AND SPARK PLUG - A16SES57F1/F2/SBT57F1 [49ATVIGNITION14SP570]

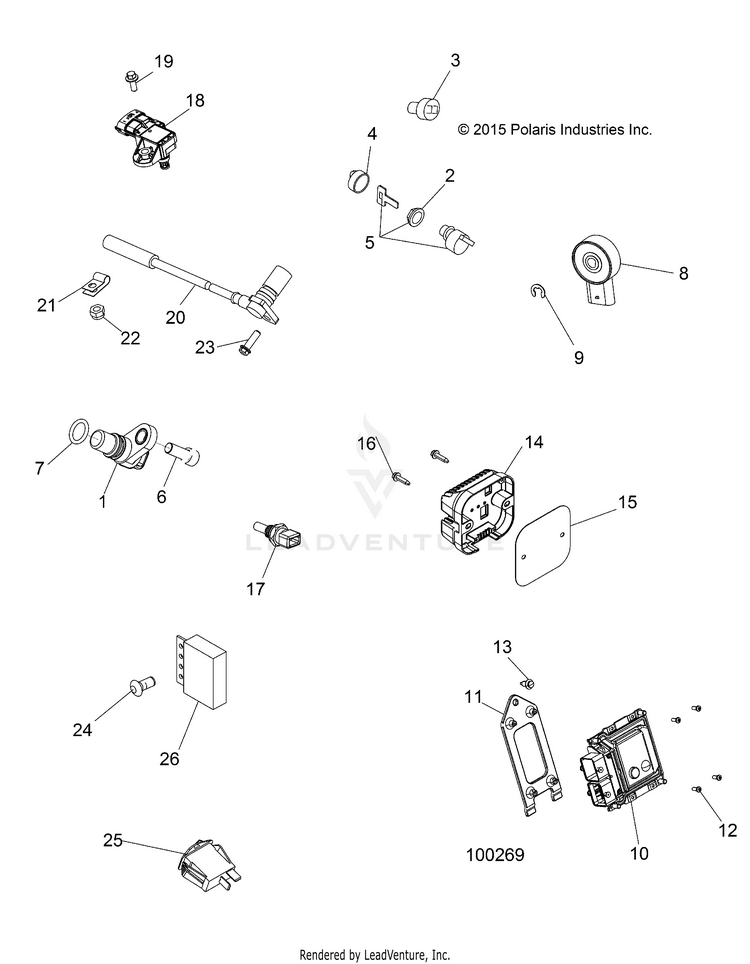

                                                                                          ELECTRICAL, SWITCHES, SENSORS and ECM - A16SES57F1/F2/SBT57F1 [100269]
                                                                                          ELECTRICAL, TAILLAMPS - A16SES57F1/F2/SBT57F1 [49ATVTAILLAMPS08SP800EFI]
                                                                                          ELECTRICAL, TURN SIGNALS, HORN and LICENSE PLATE LIGHT - A16SES57F1/F2/SBT57F1 [49ATVTURNSIG15TRCTR]

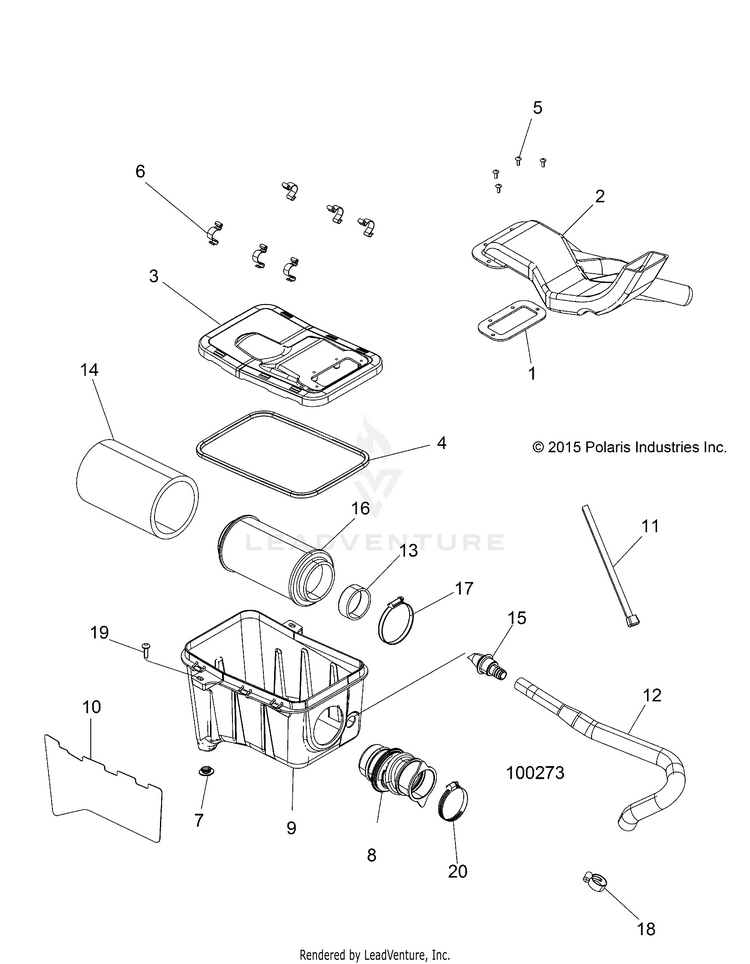

                                                                                          ENGINE, AIR INTAKE SYSTEM - A16SES57F1/F2/SBT57F1 [100273]
                                                                                          ENGINE, CAM CHAIN and SPROCKET - A16SES57F1/F2/SBT57F1 [49RGRCAM12RZR570]
                                                                                          ENGINE, COOLING SYSTEM - A16SES57F1/F2/SBT57F1 [49ATVCOOL14SP570HD]
                                                                                          ENGINE, CRANKCASE - A16SES57F1/F2/SBT57F1 [100043]
                                                                                          ENGINE, CRANKSHAFT, PISTON and BALANCE SHAFT - A16SES57F1/F2/SBT57F1 [49RGRPISTON12RZR570]
                                                                                          ENGINE, CYLINDER - A16SES57F1/F2/SBT57F1 [49RGRCYLINDER12RZR570]
                                                                                          ENGINE, CYLINDER HEAD, CAMS and VALVES - A16SES57F1/F2/SBT57F1 [100092]

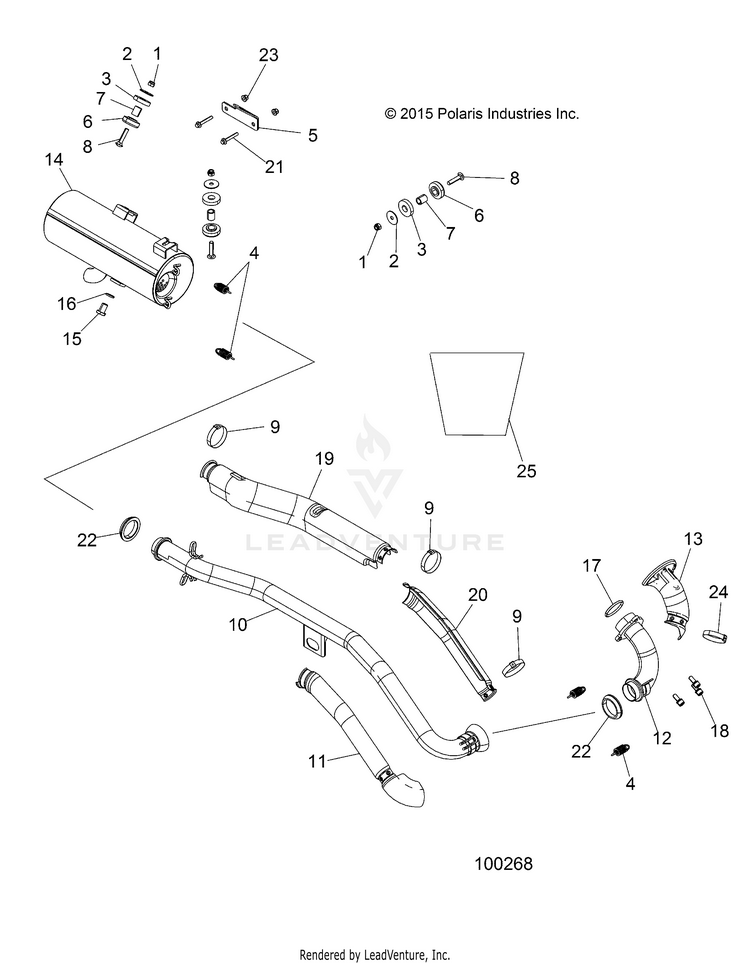

                                                                                          ENGINE, EXHAUST - A16SES57F1/F2/SBT57F1 [100268]
                                                                                          ENGINE, FUEL INJECTOR 2521068 O-RINGS - A16SES57F1/F2/SBT57F1 (101239)
                                                                                          ENGINE, MOUNTING & LONG BLOCK - A16SES57F1/F2/SBT57F1 [49ATVENGINEMTG15TRCTR]
                                                                                          ENGINE, OIL FILTER and DIPSTICK - A16SES57F1/F2/SBT57F1 [49ATVOILFILTER14SP570]
                                                                                          ENGINE, OIL PUMP - A16SES57F1/F2/SBT57F1 [49ATVOILPUMP14SP570]
                                                                                          ENGINE, STARTER DRIVE - A16SES57F1/F2/SBT57F1 [49RGRSTARTINGMTR15570AA]
                                                                                          ENGINE, STATOR COVER and FLYWHEEL - A16SES57F1/F2/SBT57F1 [100093]
                                                                                          ENGINE, THERMOSTAT and COVER - A16SES57F1/F2/SBT57F1 [49RGRTHERMO12RZR570]
                                                                                          ENGINE, THROTTLE BODY and FUEL RAIL - A16SES57F1/F2/SBT57F1 [49RGRTHROTTLEBODY15TRGEU]
                                                                                          ENGINE, VALVE COVER - A16SES57F1/F2/SBT57F1 [49RGRVALVE12RZR570]
                                                                                          ENGINE, WATERPUMP IMPELLER and COVER - A16SES57F1/F2/SBT57F1 [49ATVWATERPUMP14SP570]
                                                                                          REFERENCE, OWNERS MANUAL - A16SES57F1/F2/SBT57F1 [49ATVOM07OTLW90]
                                                                                          STEERING, CONTROLS, THROTTLE ASM. and CABLE - A16SES57F1/F2/SBT57F1 [49ATVCONTROLS15TRCTR]
                                                                                          STEERING, EPS - A16SES57F1/F2 [49ATVSTEERING14SP570]
                                                                                          STEERING, HANDLEBAR and CONTROLS - A16SES57F1/F2/SBT57F1 [49ATVHANDLEBAR15TRCTR]
                                                                                          STEERING, STEERING LOCK - A16SES57F1/F2/SBT57F1 [49ATVSTEERINGLOCK09SP500TR]
                                                                                          STEERING, STEERING POST - A16SBT57F1 [49ATVSTEERING11SP500]
                                                                                          SUSPENSION, A-ARM and STRUT MOUNTING - A16SES57F1/F2/SBT57F1 [100193]
                                                                                          SUSPENSION, FRONT STRUT - A16SES57F1/F2/SBT57F1 [49ATVSTRUT13SP500]
                                                                                          SUSPENSION, REAR - A16SES57F1/F2/SBT57F1 [100192]
                                                                                          SUSPENSION, TORSION BAR - A16SES57F1/F2/SBT57F1 [49ATVTORSION14SP570]
                                                                                          TOOLS, TOOL KIT - A16SES57F1/F2/SBT57F1 [100035]
                                                                                          WHEELS, FRONT TIRE and BRAKE DISC - A16SES57F1/F2/SBT57F1 [4999200059920005B12]
                                                                                          WHEELS, REAR TIRE and BRAKE DISC - A16SES57F1/F2/SBT57F1 [49ATVWHEELREAR11SP500]
