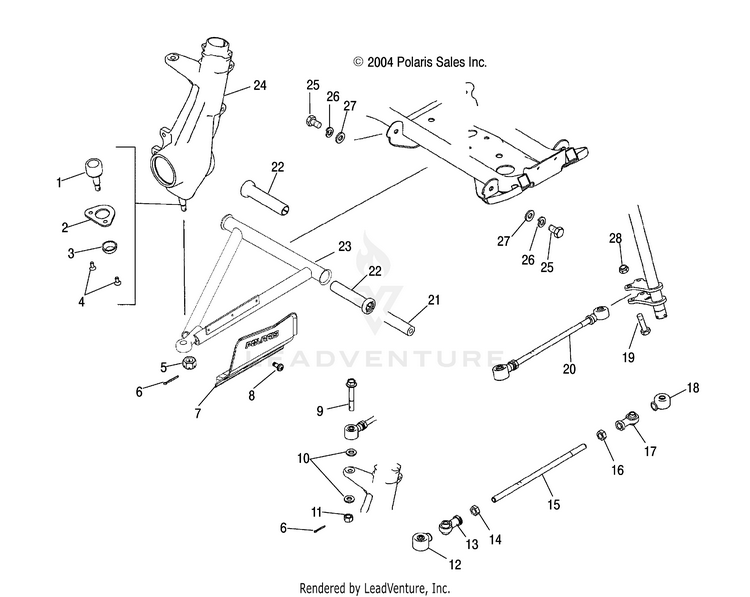

2005 ATV Polaris A05JD50AA ATP 500 4X4 (2005) (A05JD50AA) A-ARM/STRUT MOUNTING - A05JD50AA/AB/AC (4995189518B10) OEM Parts | Assembly Diagram OEM Parts Finder and Diagram (Microfiche) Inspector

Polaris Choose parts...

Use scroll wheel, or pinch and drag to and .

1
Item # 1590109
Polaris / Indian Balljoint-Greaseless Strut - 7061158
Leaves Warehouse: 3 to 4 days
$134.99
          Recommended Quantity: 2

          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

          Stock: TBD
          2
          Item # 1590085
          Polaris / Indian Ball Joint Bracket - 5211121
          Leaves Warehouse: 3 to 4 days
          $59.99
                  Recommended Quantity: 2

                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                  Stock: TBD
                  3
                  Item # 1592171
                  Polaris / Indian Boot Rubber - 5412658
                  Out of Stock
                  $8.99
                          Recommended Quantity: 2

                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                          Stock: TBD
                          4
                          Item # 1641372
                          Polaris / Indian Socket Bolt - 7512284
                          Leaves Warehouse: Same Day
                          $2.10
                                  Recommended Quantity: 4

                                  This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

                                  Stock: TBD
                                  5
                                  Item # 1625287
                                  Polaris / Indian Nut Castle - 7542438
                                  Leaves Warehouse: 3 to 4 days
                                  $3.15
                                          Recommended Quantity: 2

                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                          Stock: TBD
                                          6
                                          Item # 1598976
                                          Polaris / Indian Cotter Pin - 7661203
                                          Leaves Warehouse: 3 to 4 days
                                          $2.10
                                                  Recommended Quantity: 4

                                                  This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                  Stock: TBD
                                                  7
                                                  Item # 1639819
                                                  Polaris / Indian Shield-CV Front Black Left - 5435028-070
                                                  Leaves Warehouse: 3 to 4 days
                                                  $44.99
                                                          Recommended Quantity: 1

                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                          Stock: TBD
                                                          7
                                                          Item # 1639820
                                                          Polaris / Indian Shield-CV Front Black Right - 5435029-070
                                                          Leaves Warehouse: 3 to 4 days
                                                          $44.99
                                                                  Recommended Quantity: 1

                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                  Stock: TBD
                                                                  8
                                                                  Item # 1636875
                                                                  Polaris / Indian Screw - 7512084
                                                                  Leaves Warehouse: 3 to 4 days
                                                                  $2.10
                                                                          Recommended Quantity: 6

                                                                          This part has 6 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                          Stock: TBD
                                                                          9
                                                                          Item # 1592031
                                                                          Polaris / Indian Bolt-M10X1.25X57 HX Wash HD - 7517909
                                                                          Leaves Warehouse: 3 to 4 days
                                                                          $9.99
                                                                                  Recommended Quantity: 2

                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                  Stock: TBD
                                                                                  10
                                                                                  Item # 1647715
                                                                                  Polaris / Indian Washer - 7556099
                                                                                  Leaves Warehouse: 3 to 4 days
                                                                                  $3.15
                                                                                          Recommended Quantity: 4

                                                                                          This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                          Stock: TBD
                                                                                          11
                                                                                          Item # 1625543
                                                                                          Polaris / Indian Nut-M10X1.25-HX-Lock-Y - 7547177
                                                                                          Leaves Warehouse: 3 to 4 days
                                                                                          $3.99
                                                                                                  Recommended Quantity: 2

                                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                  Stock: TBD
                                                                                                  12
                                                                                                  Item # 1592172
                                                                                                  Polaris / Indian Boot Seal Rod End 10 mm - 5412929
                                                                                                  Leaves Warehouse: Same Day
                                                                                                  $19.99
                                                                                                          Recommended Quantity: 1

                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                          Stock: TBD
                                                                                                          13
                                                                                                          Item # 1636049
                                                                                                          Polaris / Indian Rod End 10 mm 1/2-20LH 42 Deg - 7061138
                                                                                                          Leaves Warehouse: 3 to 4 days
                                                                                                          $94.99
                                                                                                                  Recommended Quantity: 2

                                                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                  Stock: TBD
                                                                                                                  14
                                                                                                                  Item # 1625350
                                                                                                                  Polaris / Indian Nut Jam Left - 7547028
                                                                                                                  Leaves Warehouse: 3 to 4 days
                                                                                                                  $3.99
                                                                                                                          Recommended Quantity: 2

                                                                                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                          Stock: TBD
                                                                                                                          15
                                                                                                                          Item # 1645565
                                                                                                                          Polaris / Indian Tie Rod - 5020926
                                                                                                                          Leaves Warehouse: 3 to 4 days
                                                                                                                          $69.99
                                                                                                                                  Recommended Quantity: 2

                                                                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                  Stock: TBD
                                                                                                                                  16
                                                                                                                                  Item # 1625505
                                                                                                                                  Polaris / Indian Nut-Jam - 7542711
                                                                                                                                  Leaves Warehouse: 3 to 4 days
                                                                                                                                  $3.99
                                                                                                                                          Recommended Quantity: 2

                                                                                                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                          Stock: TBD
                                                                                                                                          17
                                                                                                                                          Item # 1636070
                                                                                                                                          Polaris / Indian Rod End Right - 7061139
                                                                                                                                          Leaves Warehouse: 3 to 4 days
                                                                                                                                          $99.99
                                                                                                                                                  Recommended Quantity: 2

                                                                                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                  Stock: TBD
                                                                                                                                                  18
                                                                                                                                                  Item # 1638171
                                                                                                                                                  Polaris / Indian Seal Boot Rod End 1/2" - 5412928
                                                                                                                                                  Leaves Warehouse: 3 to 4 days
                                                                                                                                                  $19.99
                                                                                                                                                          Recommended Quantity: 2

                                                                                                                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                          Stock: TBD
                                                                                                                                                          19
                                                                                                                                                          Item # 1591718
                                                                                                                                                          Polaris / Indian Bolt - 7515415
                                                                                                                                                          Leaves Warehouse: 3 to 4 days
                                                                                                                                                          $2.10
                                                                                                                                                                  Recommended Quantity: 2

                                                                                                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                  Stock: TBD
                                                                                                                                                                  20
                                                                                                                                                                  Item # 1660661
                                                                                                                                                                  Polaris / Indian Tie Rod 1/2-20X13.4 Assembly - 1822852
                                                                                                                                                                  Leaves Warehouse: 3 to 4 days
                                                                                                                                                                  $219.99
                                                                                                                                                                          Recommended Quantity: 2

                                                                                                                                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                          Stock: TBD
                                                                                                                                                                          21
                                                                                                                                                                          Item # 1639426
                                                                                                                                                                          Polaris / Indian Shaft A-Arm - 5133806
                                                                                                                                                                          Leaves Warehouse: 3 to 4 days
                                                                                                                                                                          $49.99
                                                                                                                                                                                  Recommended Quantity: 2

                                                                                                                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                  22
                                                                                                                                                                                  Item # 1594486
                                                                                                                                                                                  Polaris / Indian Bushing-A Arm Long Grey - 5436973
                                                                                                                                                                                  Leaves Warehouse: Same Day
                                                                                                                                                                                  $8.99
                                                                                                                                                                                          Recommended Quantity: 4

                                                                                                                                                                                          This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                          23
                                                                                                                                                                                          Item # 1581065
                                                                                                                                                                                          Polaris / Indian A-Frame Kit Left (1541448) - 2202280
                                                                                                                                                                                          Leaves Warehouse: 3 to 4 days
                                                                                                                                                                                          $259.99
                                                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                  23
                                                                                                                                                                                                  Item # 1581067
                                                                                                                                                                                                  Polaris / Indian A-Frame Kit Right (1541449) - 2202281
                                                                                                                                                                                                  Leaves Warehouse: 3 to 4 days
                                                                                                                                                                                                  $259.99
                                                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                                          24
                                                                                                                                                                                                          MPN/SKU: -------
                                                                                                                                                                                                          SUPPORT, HUBSTRUT
                                                                                                                                                                                                          Unavailable
                                                                                                                                                                                                          $0.00
                                                                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                                  25
                                                                                                                                                                                                                  Item # 1690237
                                                                                                                                                                                                                  Polaris / Indian Bolt - 7512492
                                                                                                                                                                                                                  Leaves Warehouse: 3 to 4 days
                                                                                                                                                                                                                  $2.10
                                                                                                                                                                                                                          Recommended Quantity: 4

                                                                                                                                                                                                                          This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                                                          26
                                                                                                                                                                                                                          Item # 1647848
                                                                                                                                                                                                                          Polaris / Indian Washer Springlock - 7552603
                                                                                                                                                                                                                          Leaves Warehouse: 3 to 4 days
                                                                                                                                                                                                                          $1.58
                                                                                                                                                                                                                                  Recommended Quantity: 4

                                                                                                                                                                                                                                  This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                                                  27
                                                                                                                                                                                                                                  Item # 1647690
                                                                                                                                                                                                                                  Polaris / Indian Washer - 7555832
                                                                                                                                                                                                                                  Leaves Warehouse: 3 to 4 days
                                                                                                                                                                                                                                  $3.99
                                                                                                                                                                                                                                          Recommended Quantity: 2

                                                                                                                                                                                                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                                                                          28
                                                                                                                                                                                                                                          Item # 1625385
                                                                                                                                                                                                                                          Polaris / Indian Nut Nylock - 7542439
                                                                                                                                                                                                                                          Leaves Warehouse: 3 to 4 days
                                                                                                                                                                                                                                          $2.10
                                                                                                                                                                                                                                                  Recommended Quantity: 2

                                                                                                                                                                                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                                  Stock: TBD
