2002 ATV Polaris A02CB50FC MAGNUM 500 2X4 HDS (2002) (A02CB50FC) OEM Parts | Assembly Diagrams Lookup OEM Parts Finder and Diagram (Microfiche) Inspector

Polaris Choose an assembly...

Assemblies List (48)

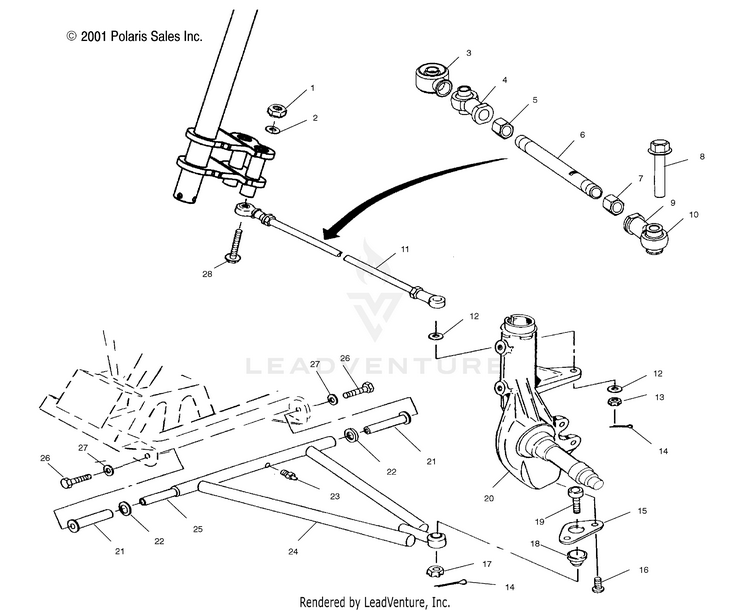

A-ARM/STRUT MOUNTING - A02CB50FC (4974857485B06)
AIR BOX - A02CB50FC (4974857485A11)

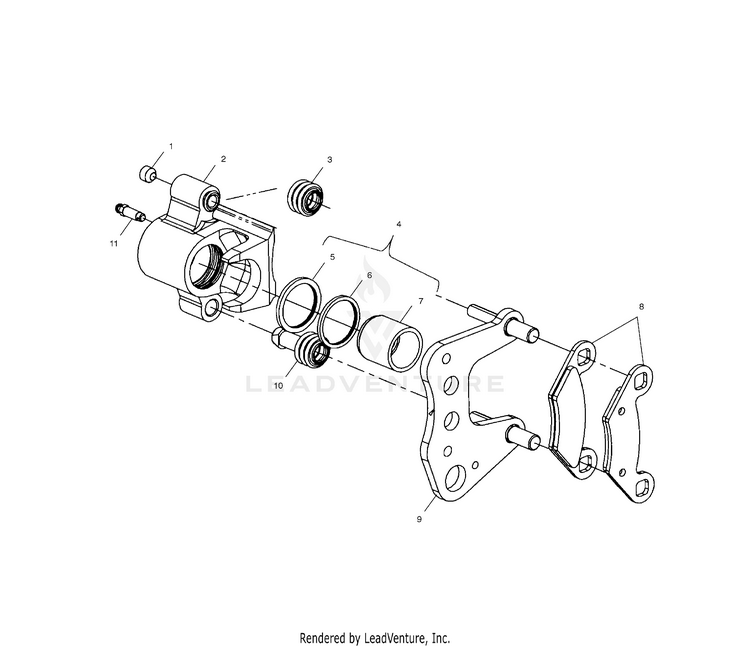

BRAKE (FRONT) - A02CB50FC (4974857485C02)

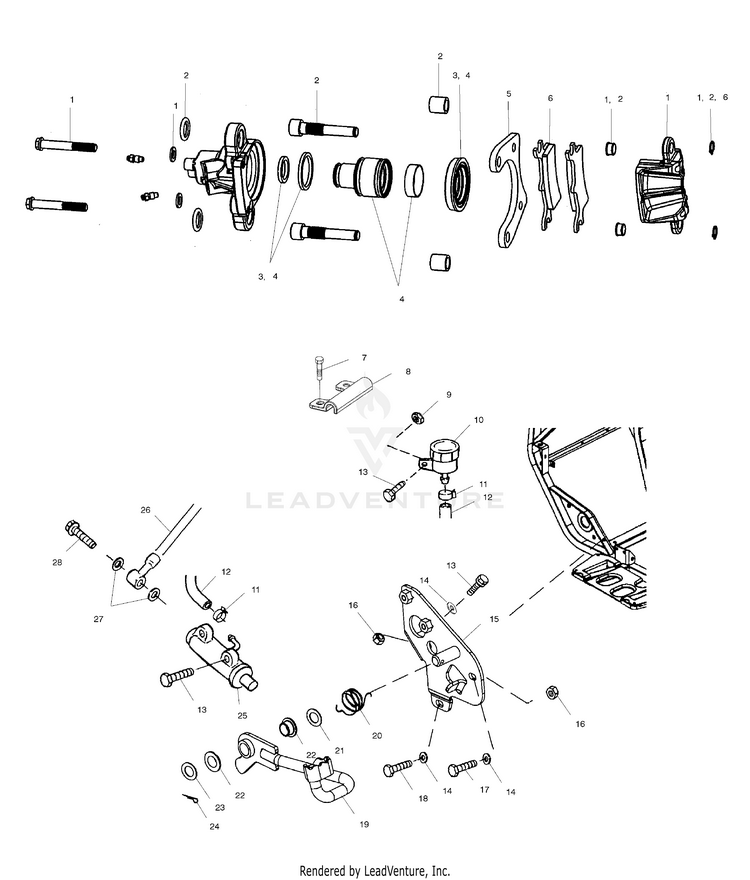

BRAKE (REAR) - A02CB50FC (4974857485C03)

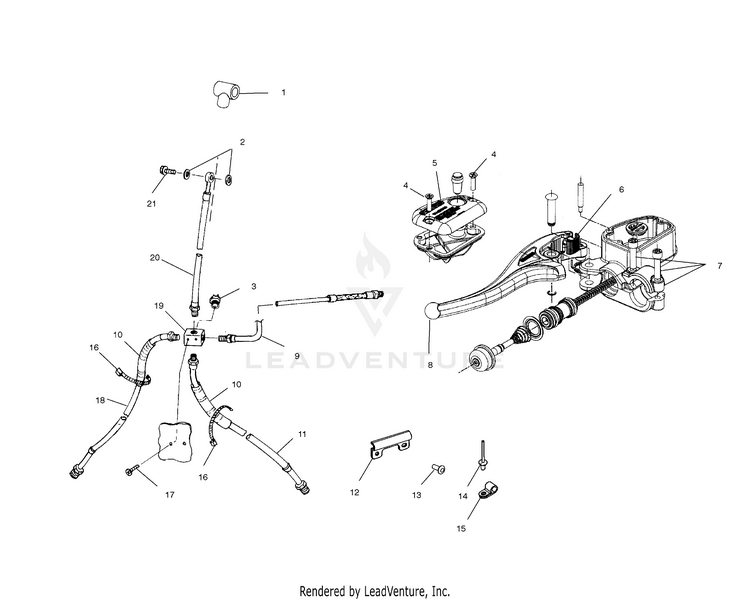

BRAKE LINE/MASTER CYLINDER - A02CB50FC (4974857485C01)

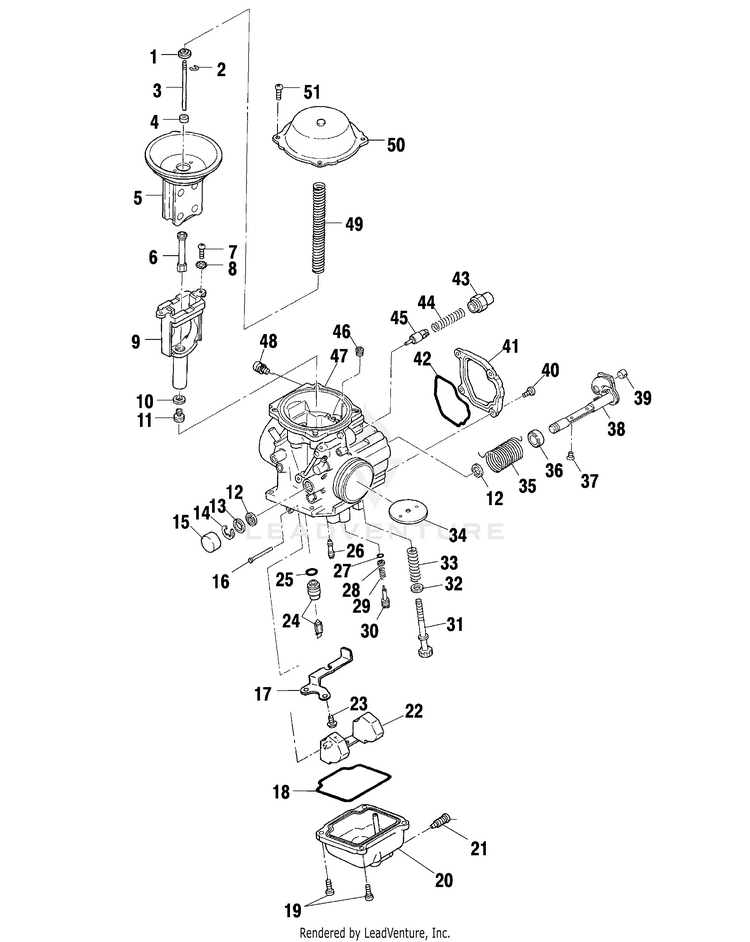

CARBURETOR - A02CB50FC (4974857485D03)

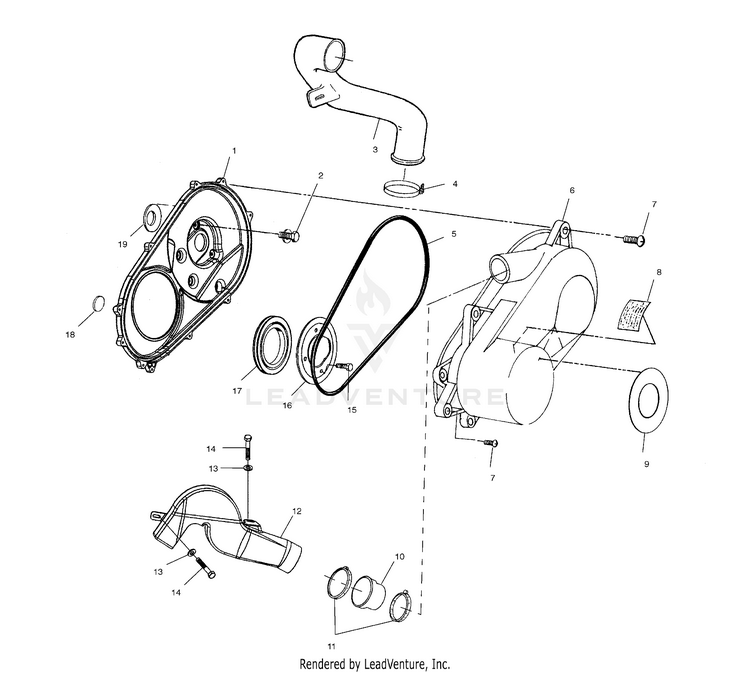

CLUTCH COVER - A02CB50FC (4974857485B14)

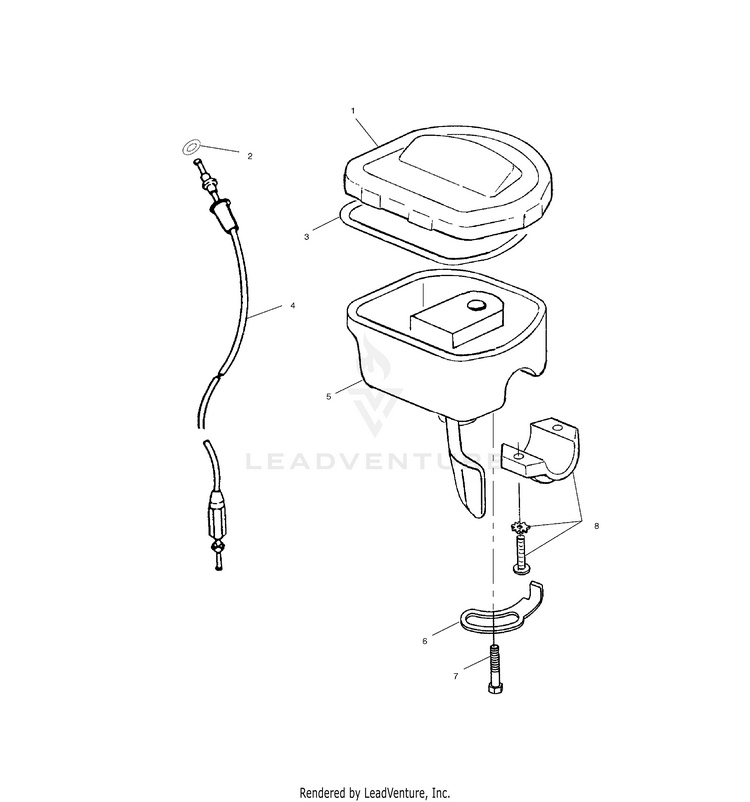

CONTROLS - THROTTLE ASM/CABLE - A02CB50FC (4974857485A12)

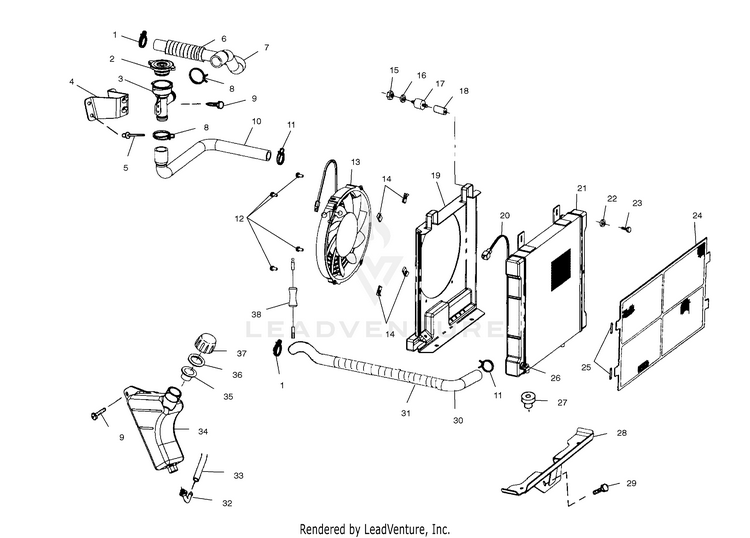

COOLING SYSTEM - A02CB50FC (4974857485A09)

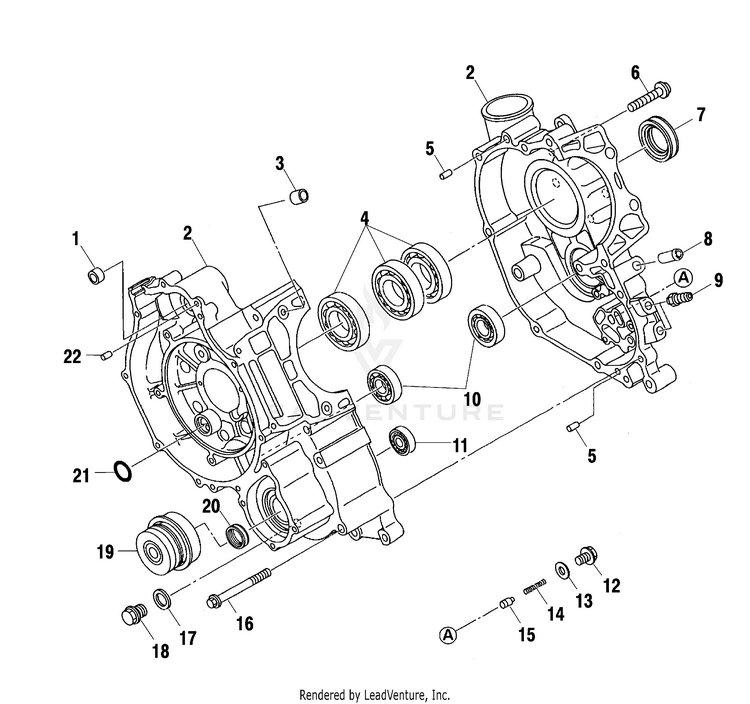

CRANKCASE - A02CB50FC (4974857485D05)

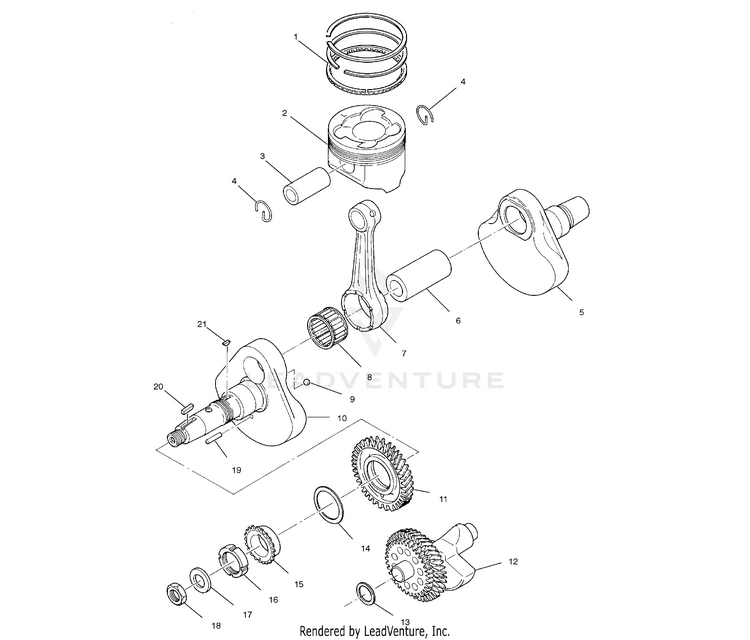

CRANKSHAFT and PISTON - A02CB50FC (4974857485C14)

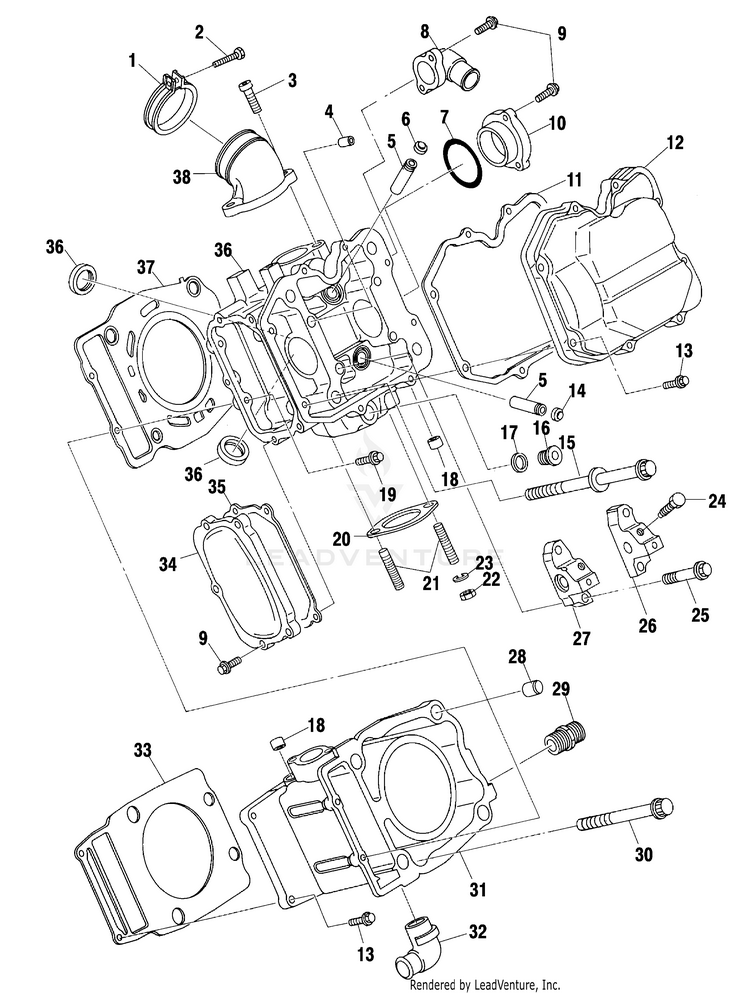

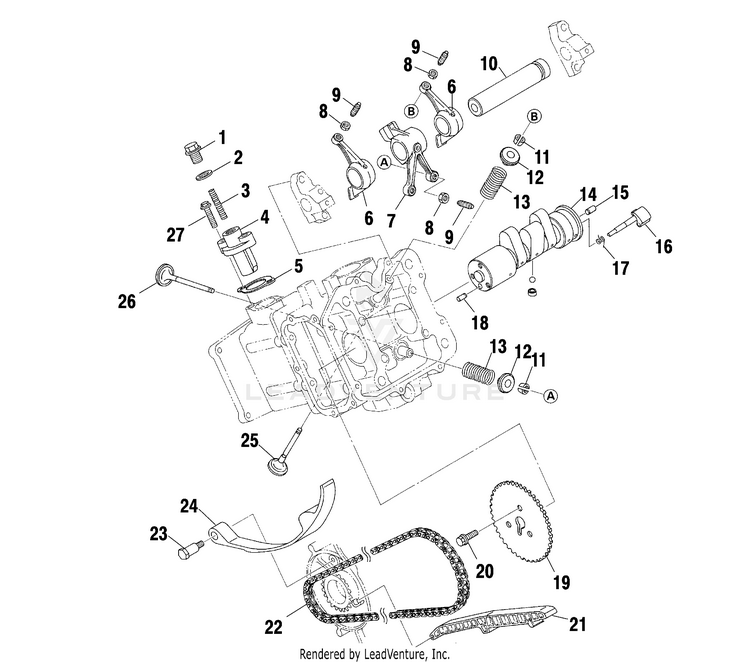

CYLINDER - A02CB50FC (4974857485D01)

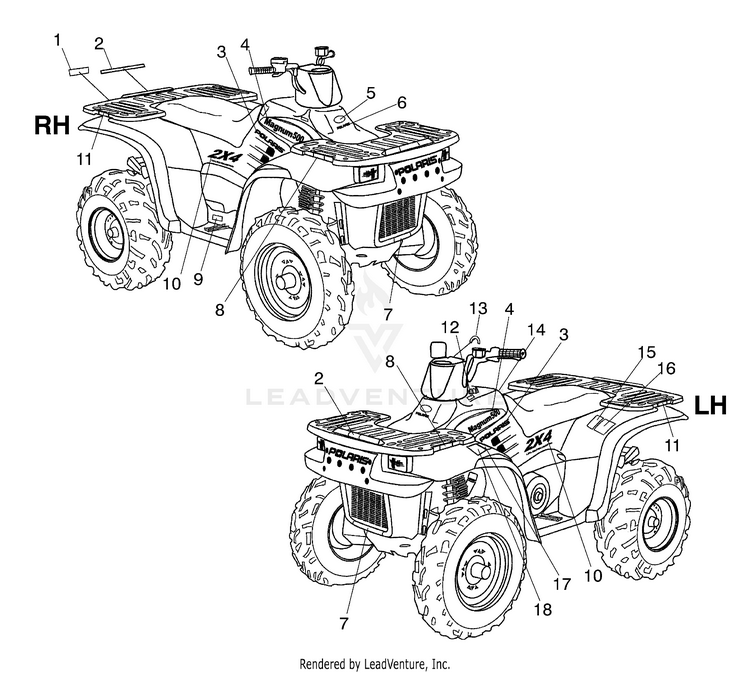

DECALS - A02CB50FC (4974857485A08)

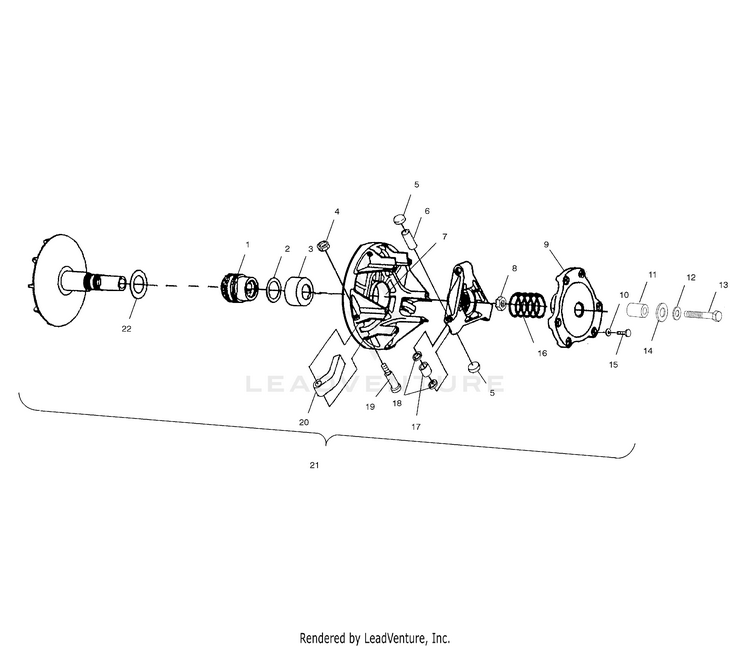

DRIVE CLUTCH - A02CB50FC (4974857485B12)

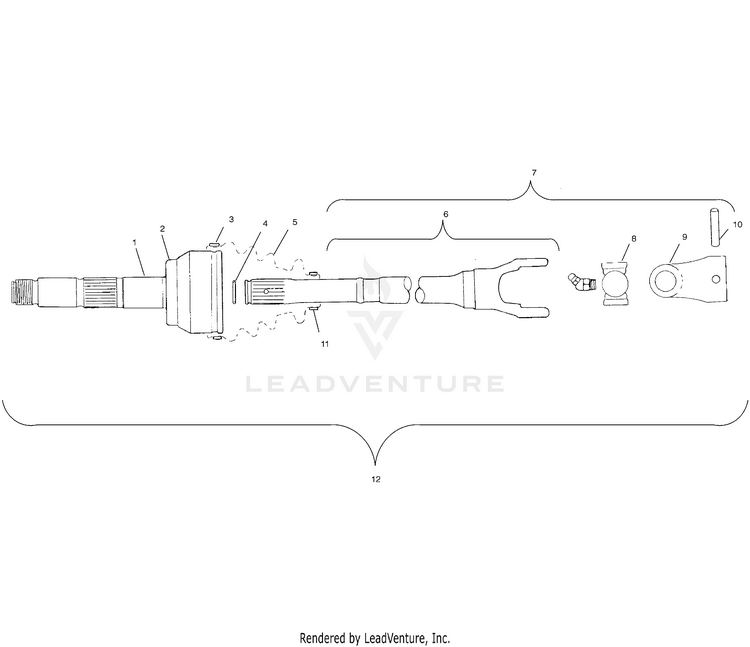

DRIVE SHAFT - A02CB50FC (4974857485B03)
DRIVEN CLUTCH - A02CB50FC (4974857485B13)

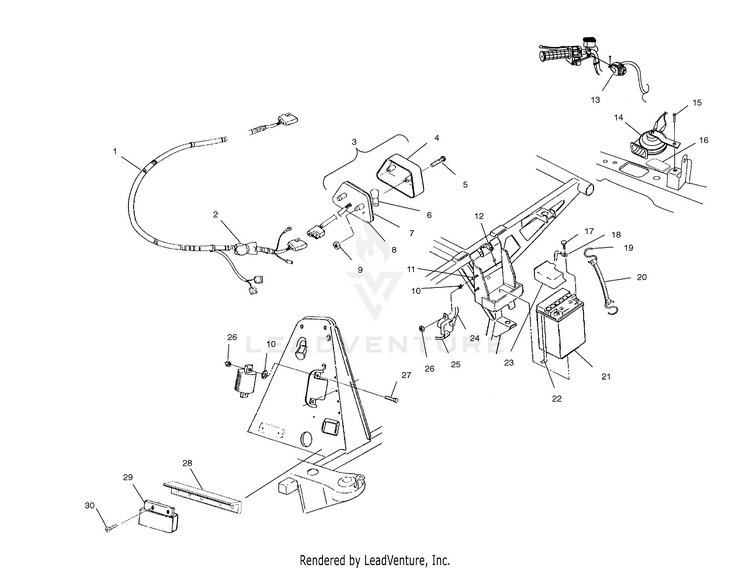

ELECTRICAL/TAILLIGHT - A02CB50FC (4974857485C05)

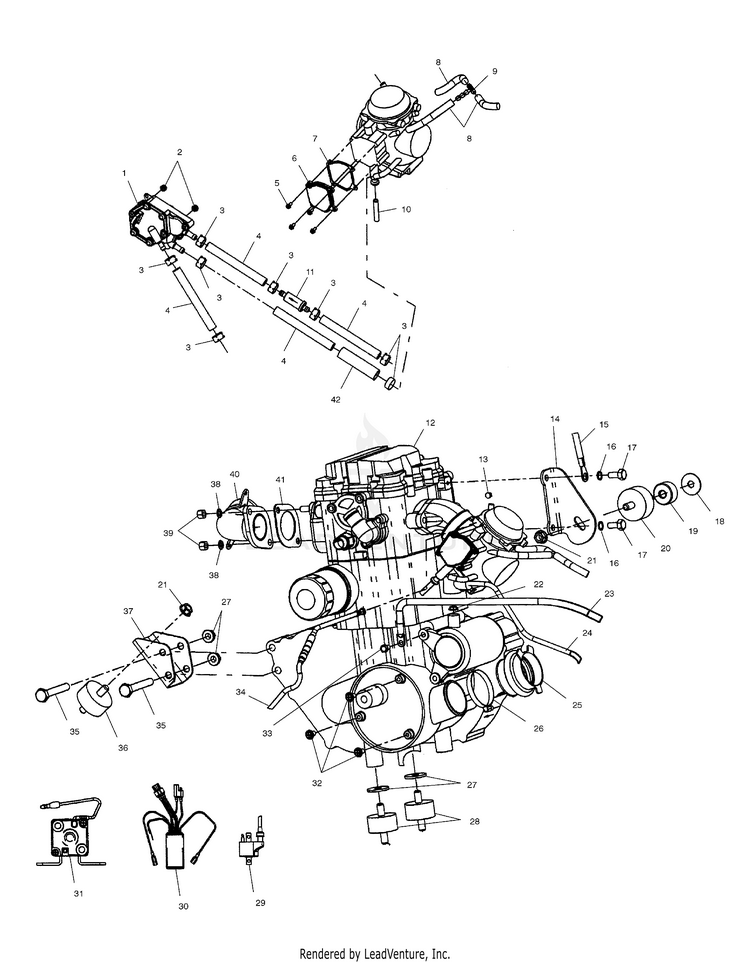

ENGINE MOUNTING - A02CB50FC (4974857485A13)

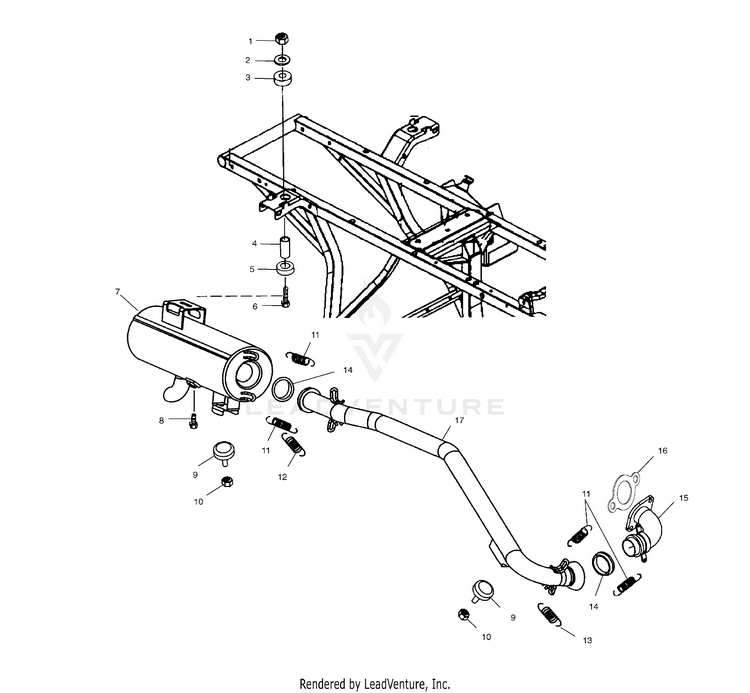

EXHAUST SYSTEM - A02CB50FC (4974857485A10)

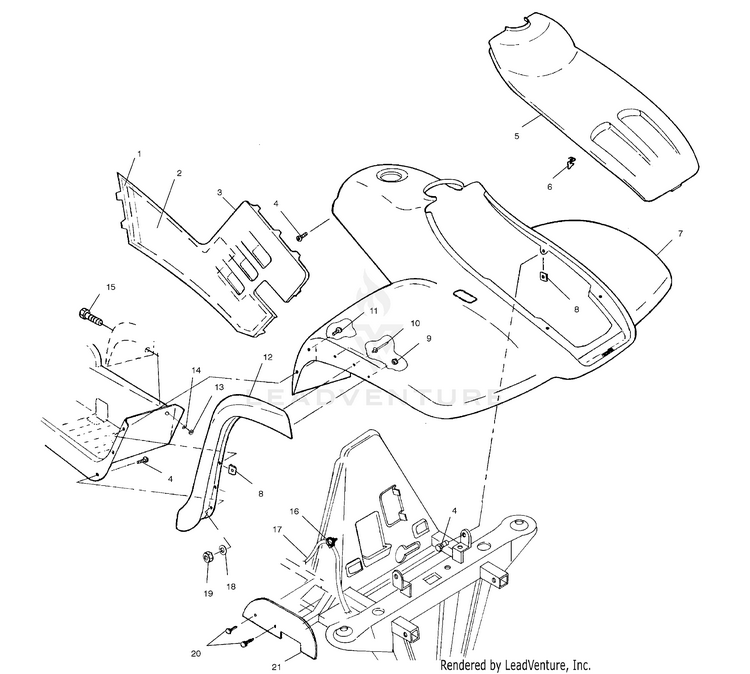

FRONT CAB - A02CB50FC (4974857485A05)

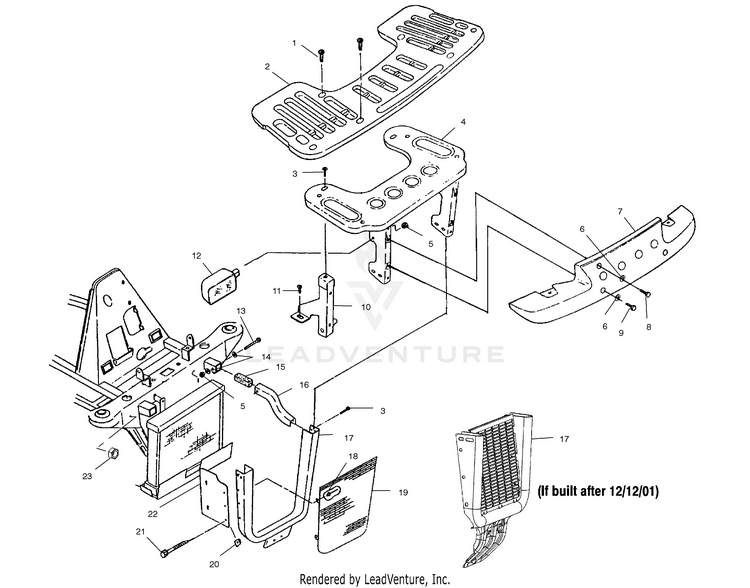

FRONT RACK and BUMPER MOUNTING - A02CB50FC (4974857485A07)

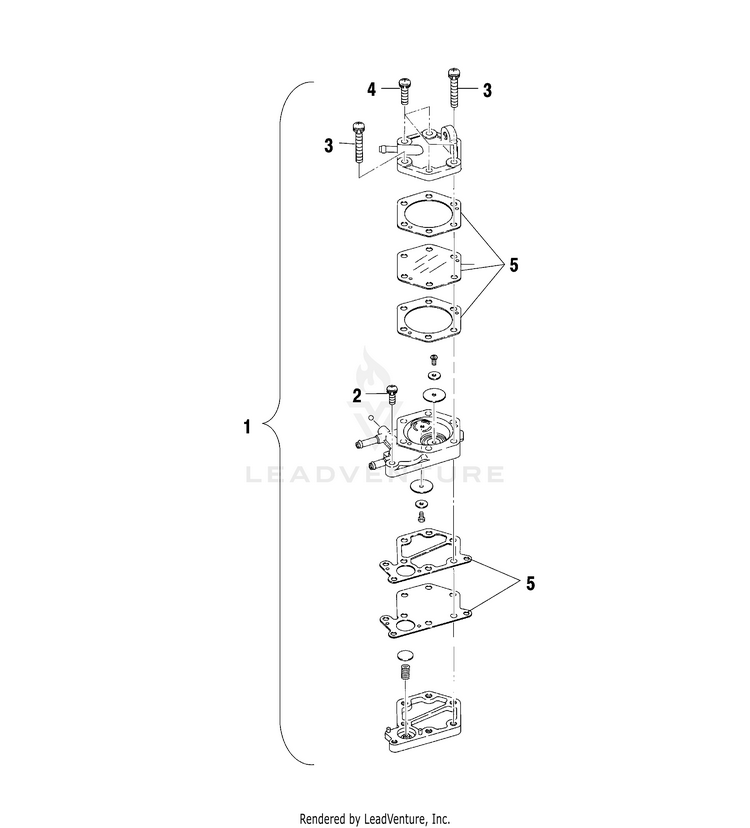

FUEL PUMP - A02CB50FC (4974857485D13)

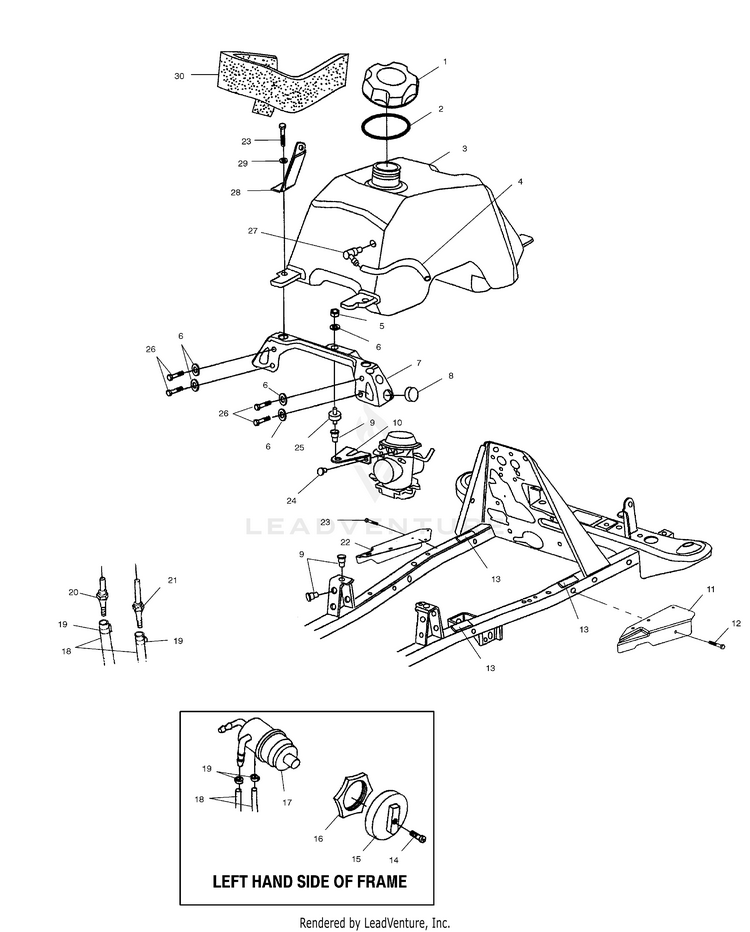

FUEL TANK and CARBURETOR MOUNTING - A02CB50FC (4974857485B01)

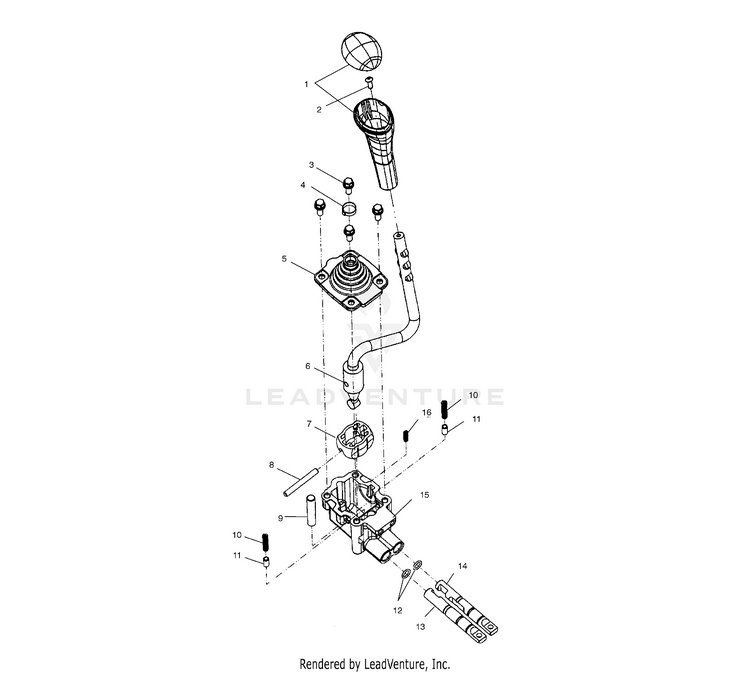

GEAR SELECTOR - A02CB50FC (4974857485C12)

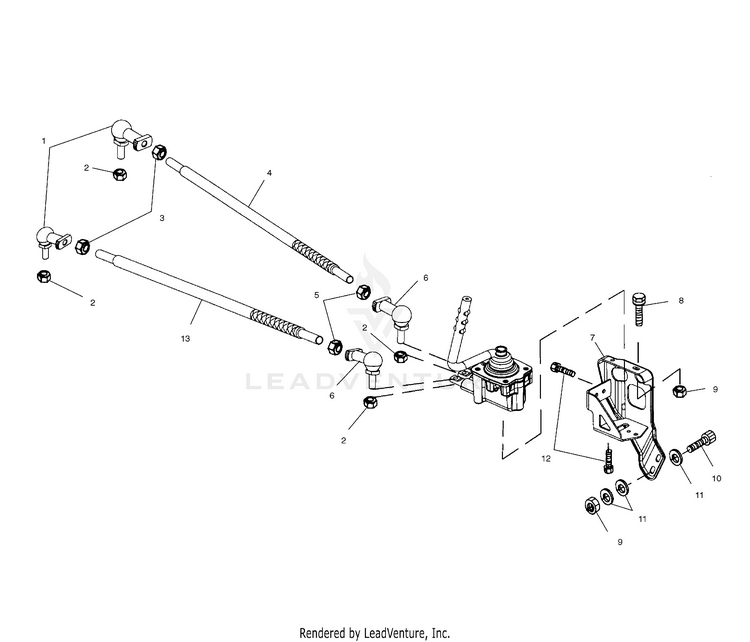

GEAR SELECTOR MOUNTING - A02CB50FC (4974857485C13)

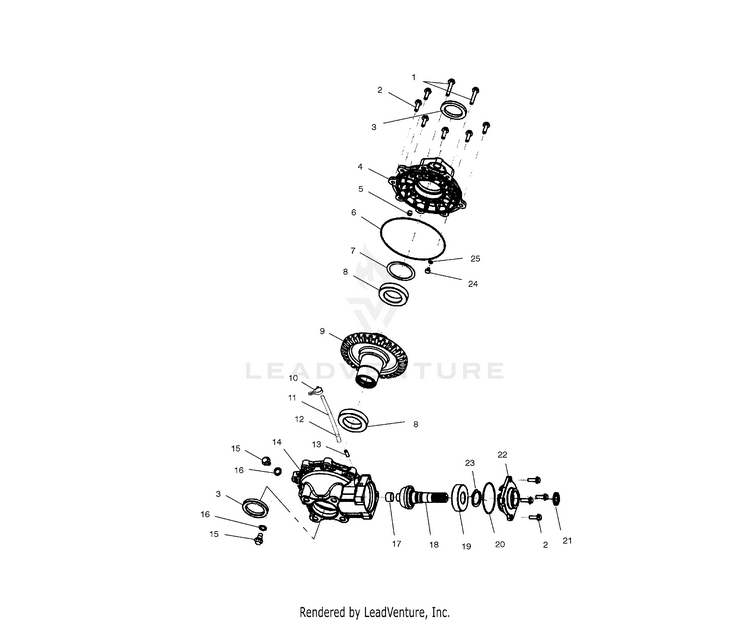

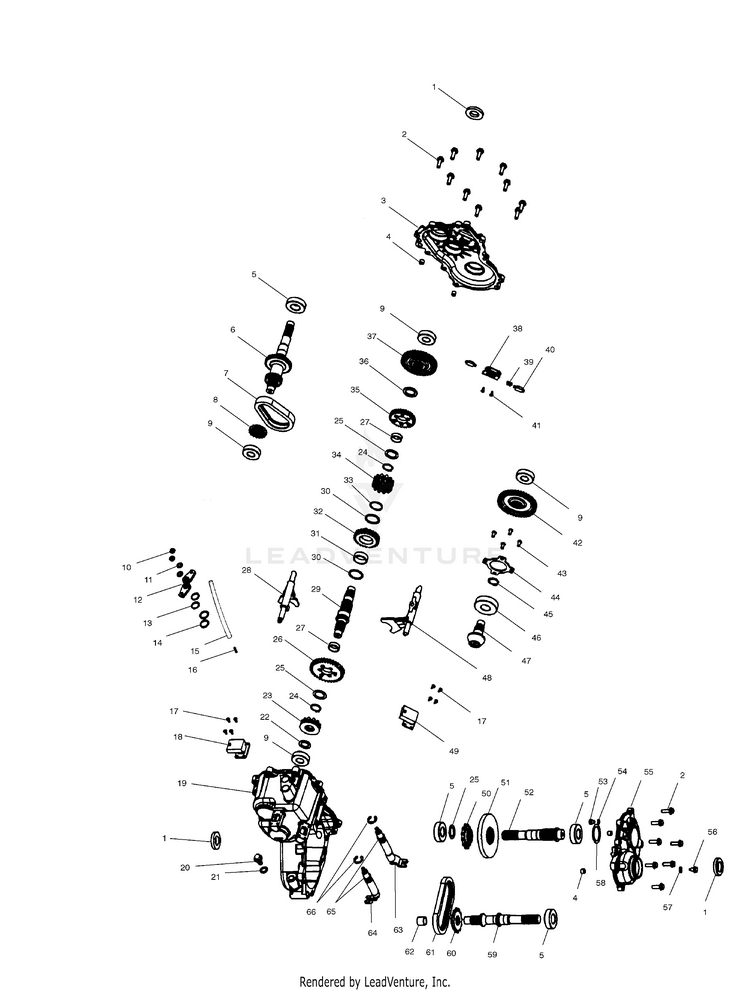

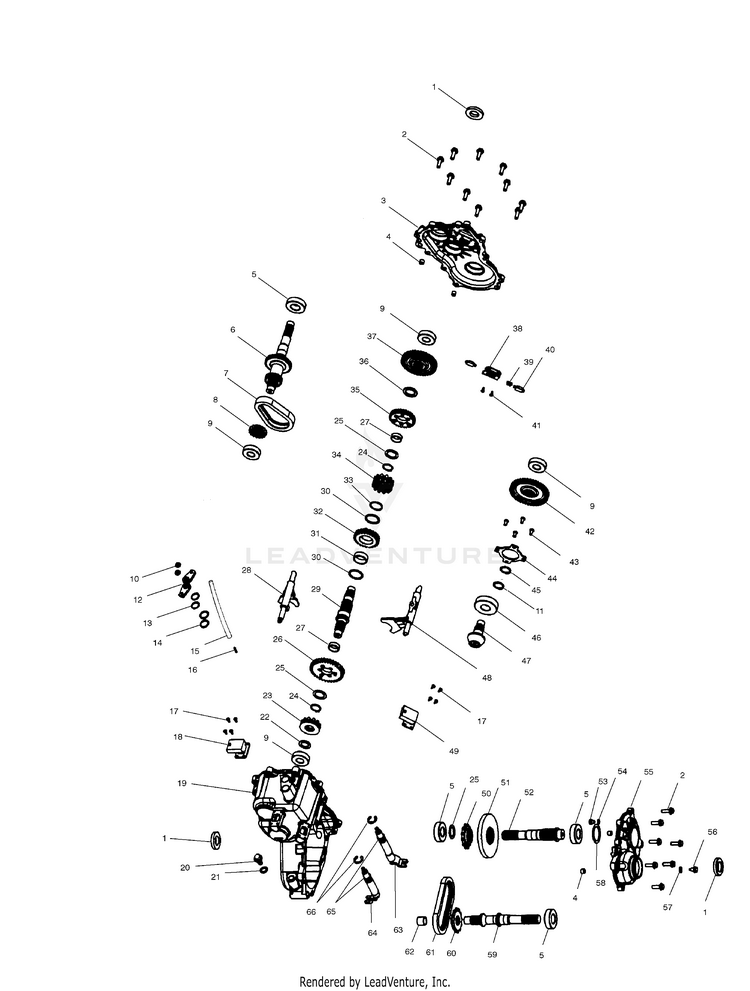

GEARCASE (Not All Internal Service Parts are Readily Available) - A02CB50FC (4974857485C09)
GEARCASE (Service Replacement Asm.) - A02CB50FC (49ATV\GEARCASE02MAG2X4)
HANDLEBAR - A02CB50FC (4974857485B09)
INTAKE and EXHAUST - A02CB50FC (4974857485D06)
MAGNETO - A02CB50FC (4974857485D11)

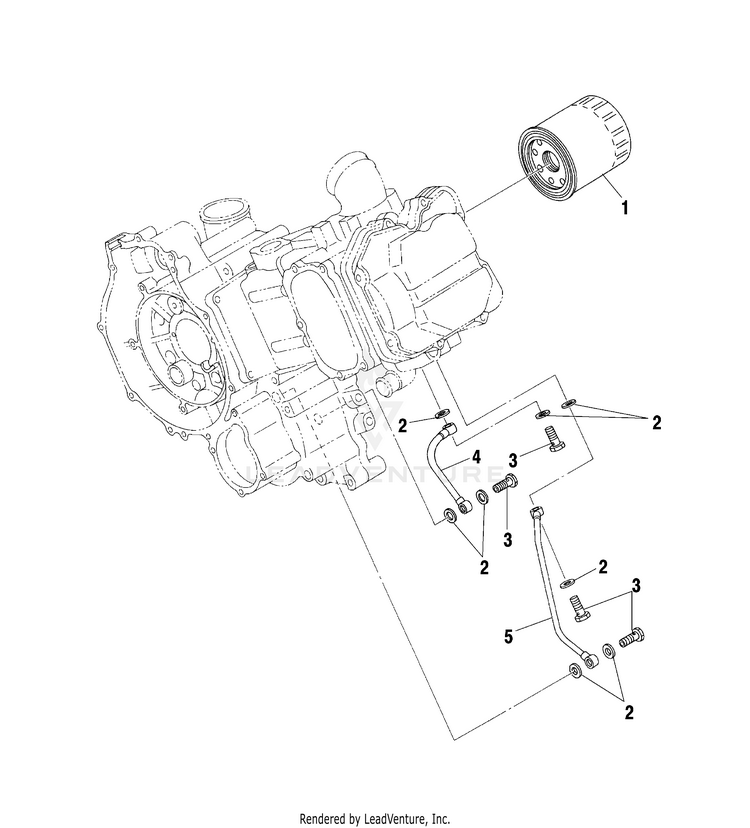

OIL FILTER - A02CB50FC (4974857485D10)
OIL PUMP - A02CB50FC (4974857485D09)

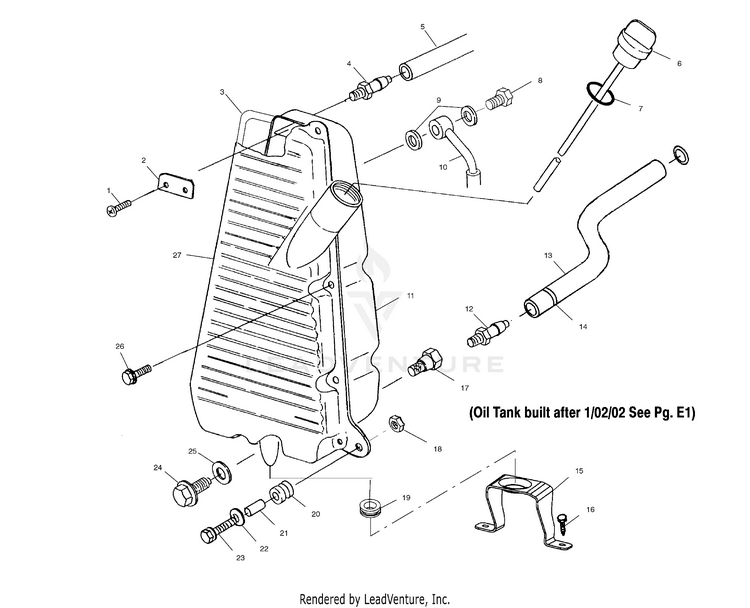

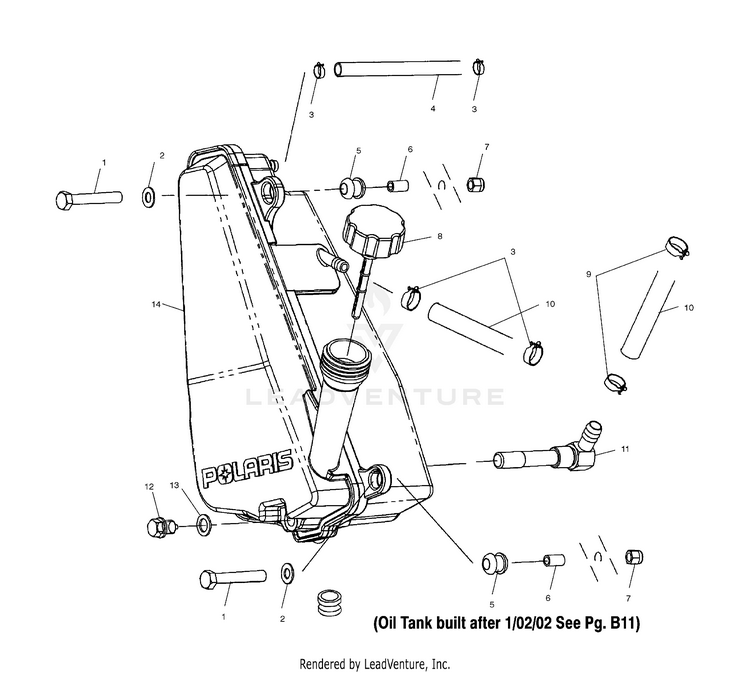

OIL TANK (If Built After 1/02/02) - A02CB50FC (4974857485E01)
OIL TANK (If Built Before 1/02/02) - A02CB50FC (4974857485B11)

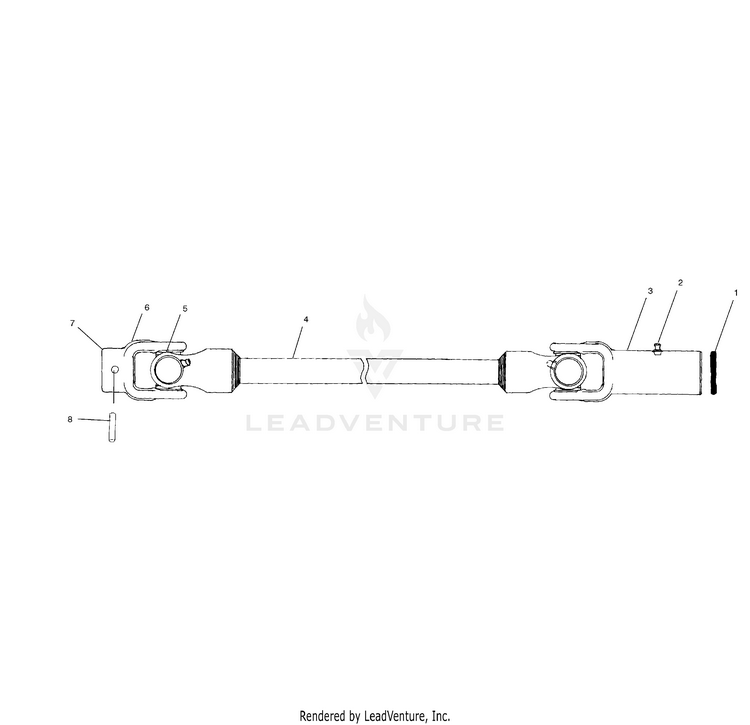

PROP SHAFT - A02CB50FC (4974857485B04)
REAR CAB and SEAT - A02CB50FC (4974857485A03)
REAR HOUSING - A02CB50FC (4974857485C11)
REAR RACK MOUNTING - A02CB50FC (4974857485A06)
REAR WHEEL DRIVE - A02CB50FC (4974857485C06)

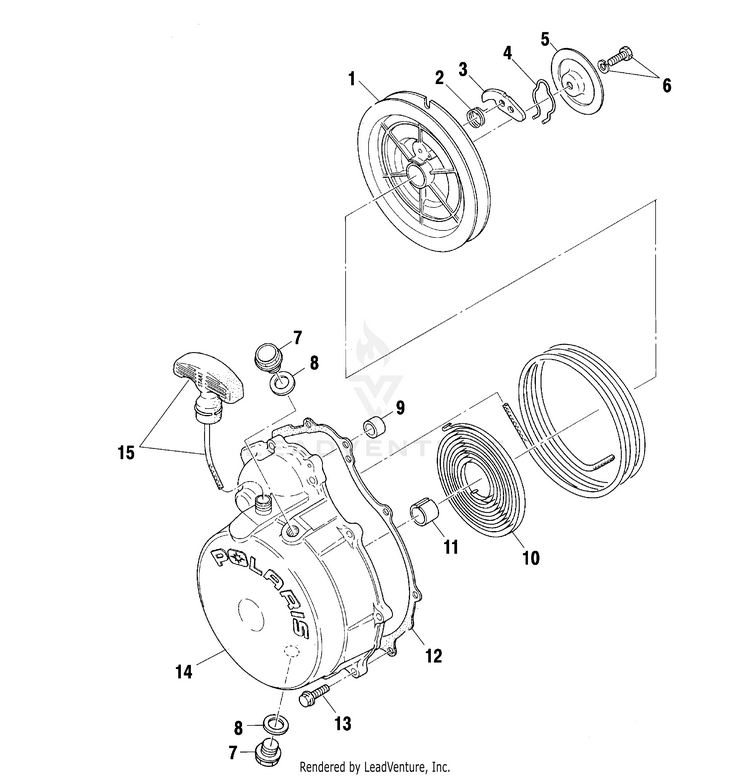

RECOIL STARTER - A02CB50FC (4974857485D07)

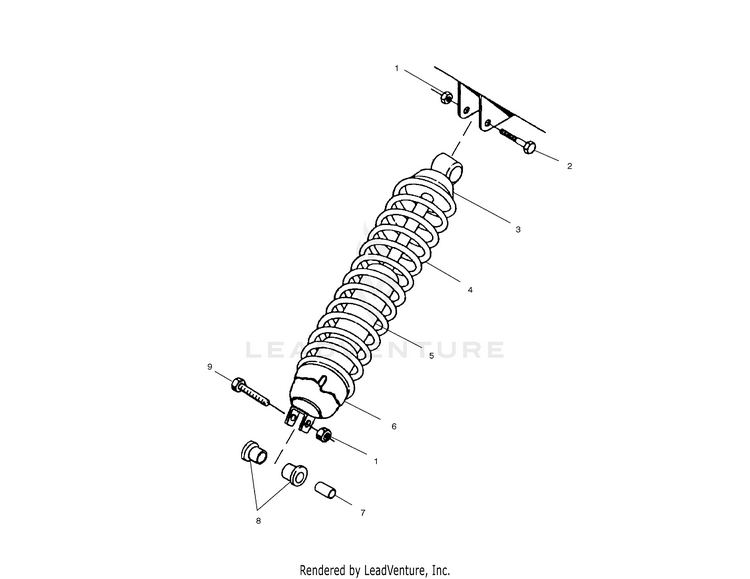

SHOCK MOUNTING - A02CB50FC (4974857485C07)

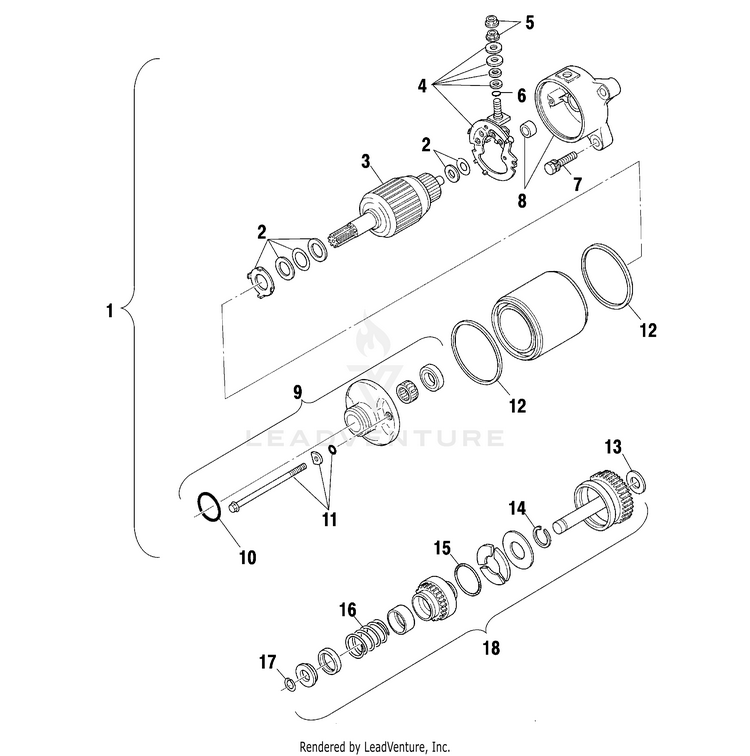

STARTING MOTOR - A02CB50FC (4974857485D12)

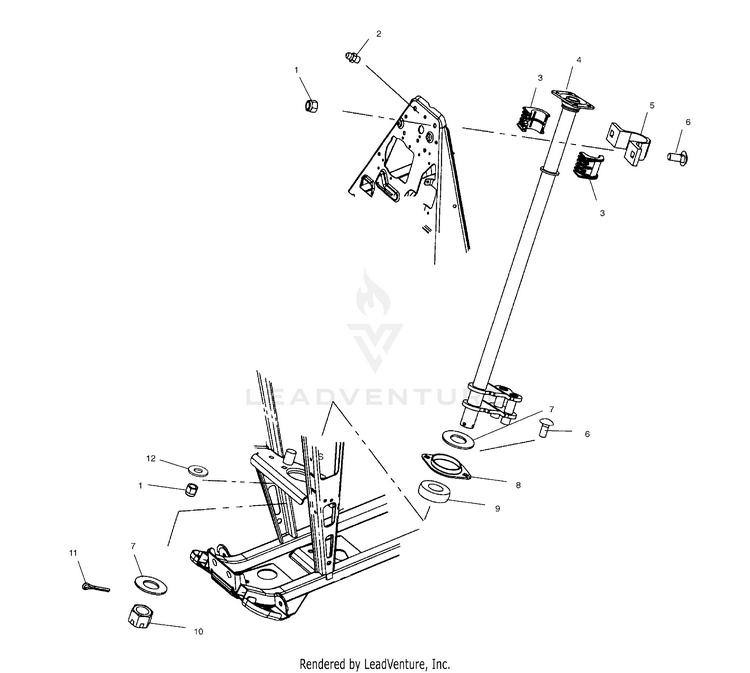

STEERING POST - A02CB50FC (4974857485B08)
STRUT - A02CB50FC (4949354935B008)
SWING ARM/REAR GEARCASE MOUNTING - A02CB50FC (4974857485C08)

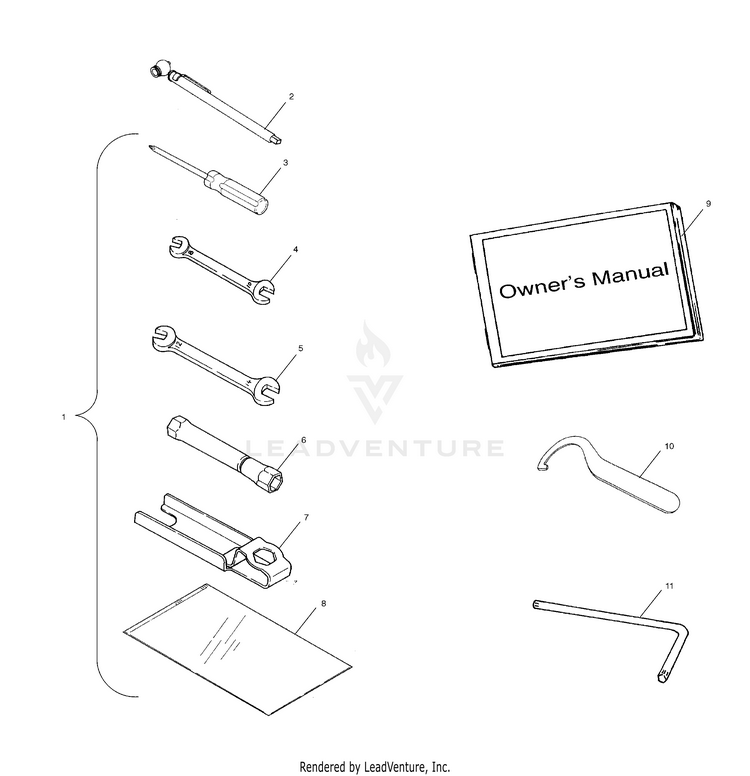

TOOL KIT - A02CB50FC (4974857485D14)

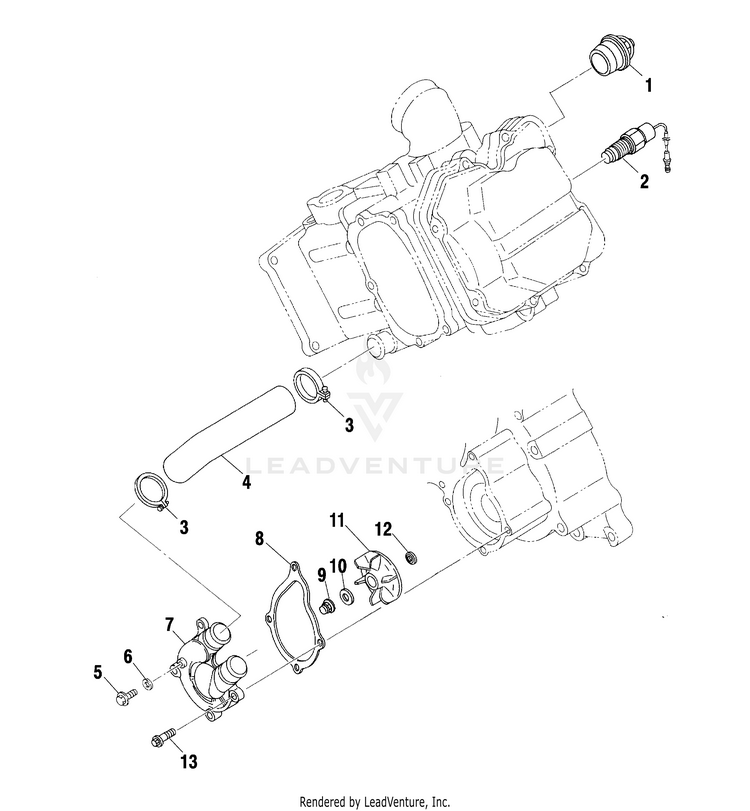

WATER PUMP - A02CB50FC (4974857485D08)

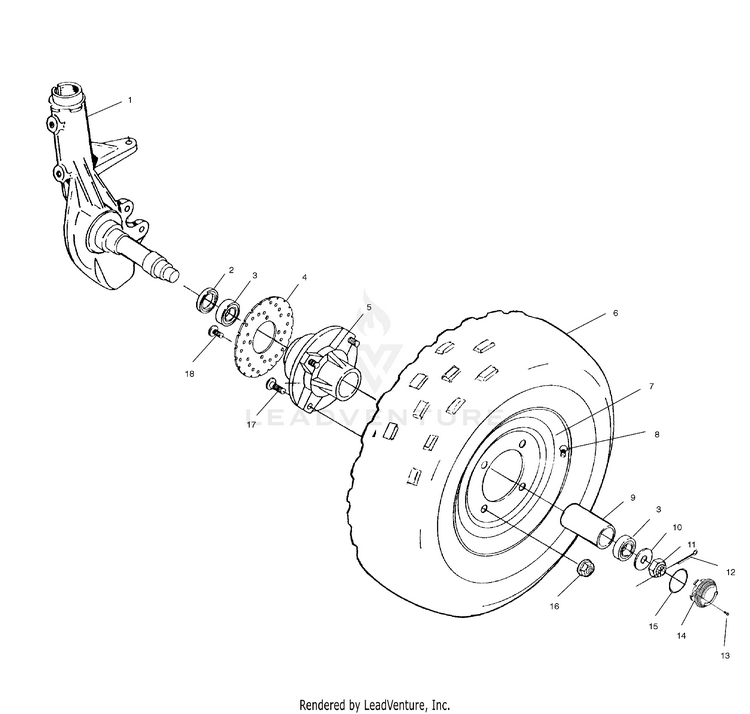

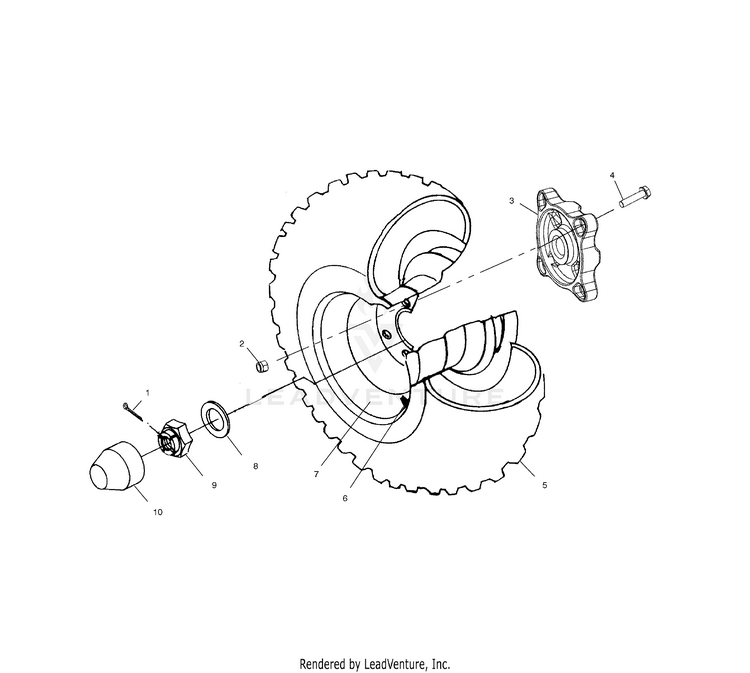

WHEEL (FRONT) - A02CB50FC (4974857485B05)

A

A-ARM/STRUT MOUNTING - A02CB50FC (4974857485B06)
AIR BOX - A02CB50FC (4974857485A11)

B

BRAKE (FRONT) - A02CB50FC (4974857485C02)
BRAKE (REAR) - A02CB50FC (4974857485C03)
BRAKE LINE/MASTER CYLINDER - A02CB50FC (4974857485C01)

C

CARBURETOR - A02CB50FC (4974857485D03)
CLUTCH COVER - A02CB50FC (4974857485B14)
CONTROLS - THROTTLE ASM/CABLE - A02CB50FC (4974857485A12)
COOLING SYSTEM - A02CB50FC (4974857485A09)
CRANKCASE - A02CB50FC (4974857485D05)
CRANKSHAFT and PISTON - A02CB50FC (4974857485C14)
CYLINDER - A02CB50FC (4974857485D01)

D

DECALS - A02CB50FC (4974857485A08)

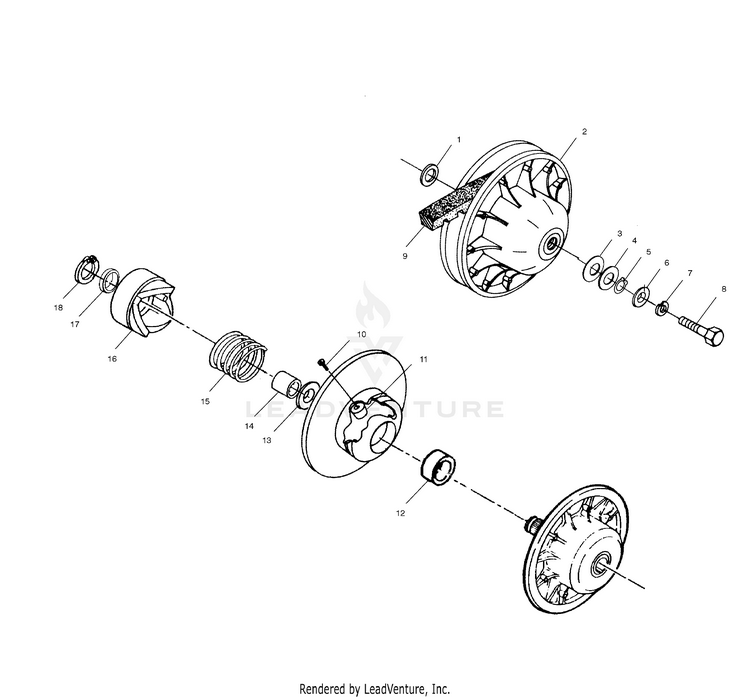

DRIVE CLUTCH - A02CB50FC (4974857485B12)
DRIVE SHAFT - A02CB50FC (4974857485B03)
DRIVEN CLUTCH - A02CB50FC (4974857485B13)

E

ELECTRICAL/TAILLIGHT - A02CB50FC (4974857485C05)
ENGINE MOUNTING - A02CB50FC (4974857485A13)
EXHAUST SYSTEM - A02CB50FC (4974857485A10)

F

FRONT CAB - A02CB50FC (4974857485A05)
FRONT RACK and BUMPER MOUNTING - A02CB50FC (4974857485A07)
FUEL PUMP - A02CB50FC (4974857485D13)
FUEL TANK and CARBURETOR MOUNTING - A02CB50FC (4974857485B01)

G

GEAR SELECTOR - A02CB50FC (4974857485C12)
GEAR SELECTOR MOUNTING - A02CB50FC (4974857485C13)
GEARCASE (Not All Internal Service Parts are Readily Available) - A02CB50FC (4974857485C09)
GEARCASE (Service Replacement Asm.) - A02CB50FC (49ATV\GEARCASE02MAG2X4)

H

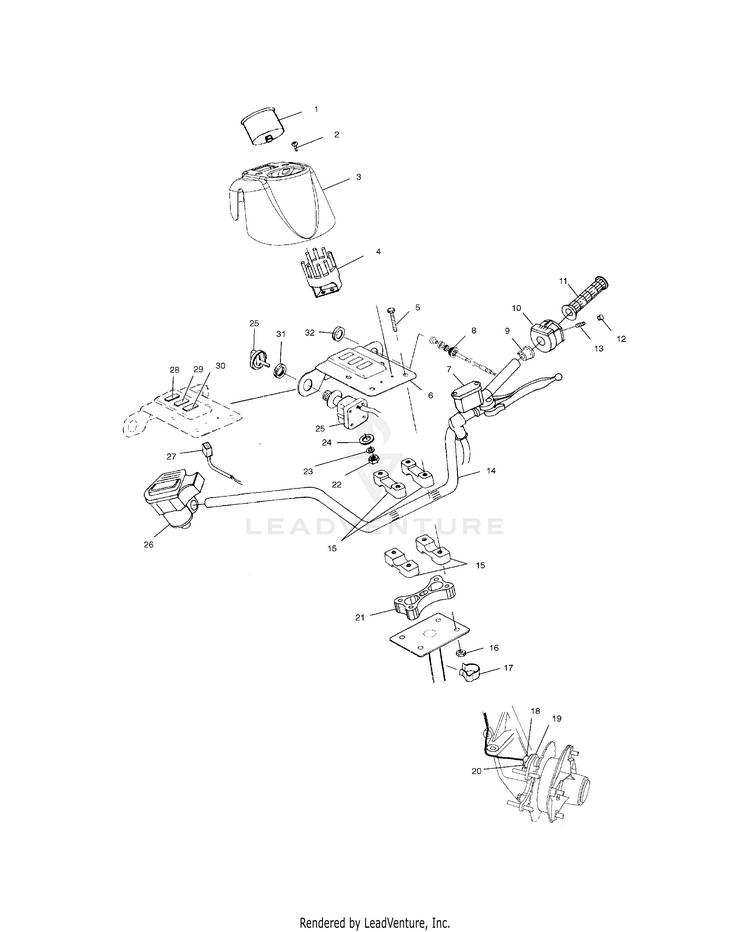

HANDLEBAR - A02CB50FC (4974857485B09)

I

INTAKE and EXHAUST - A02CB50FC (4974857485D06)

M

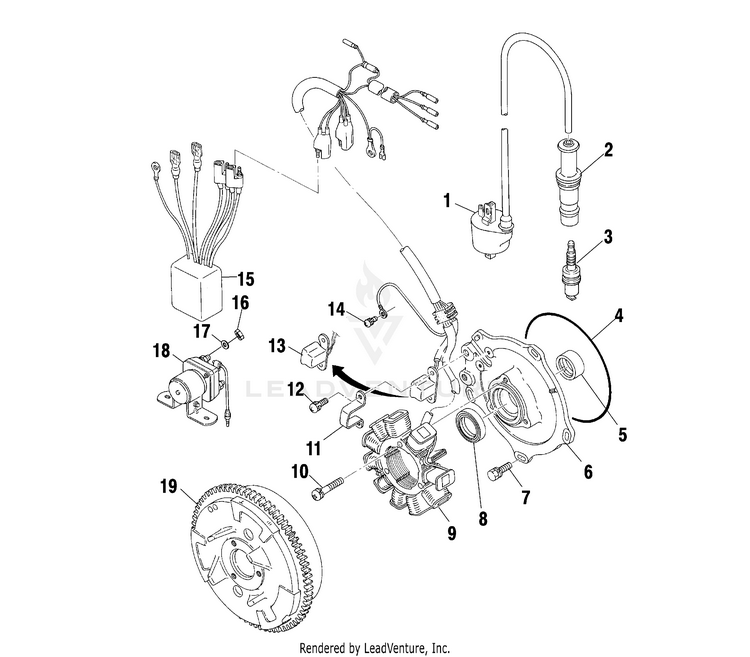

MAGNETO - A02CB50FC (4974857485D11)

O

OIL FILTER - A02CB50FC (4974857485D10)
OIL PUMP - A02CB50FC (4974857485D09)
OIL TANK (If Built After 1/02/02) - A02CB50FC (4974857485E01)
OIL TANK (If Built Before 1/02/02) - A02CB50FC (4974857485B11)

P

PROP SHAFT - A02CB50FC (4974857485B04)

R

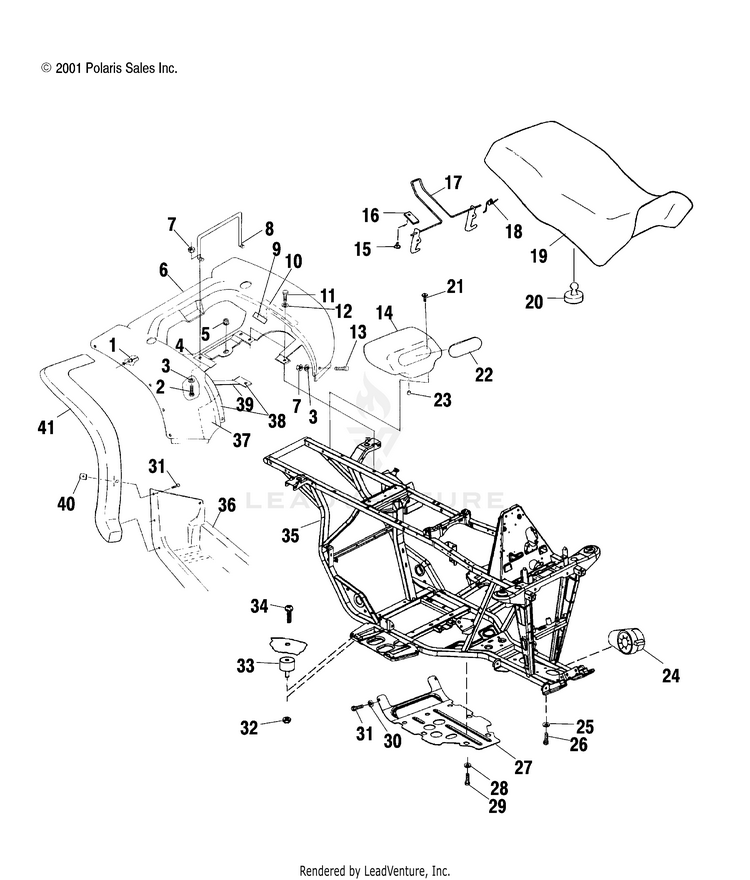

REAR CAB and SEAT - A02CB50FC (4974857485A03)
REAR HOUSING - A02CB50FC (4974857485C11)

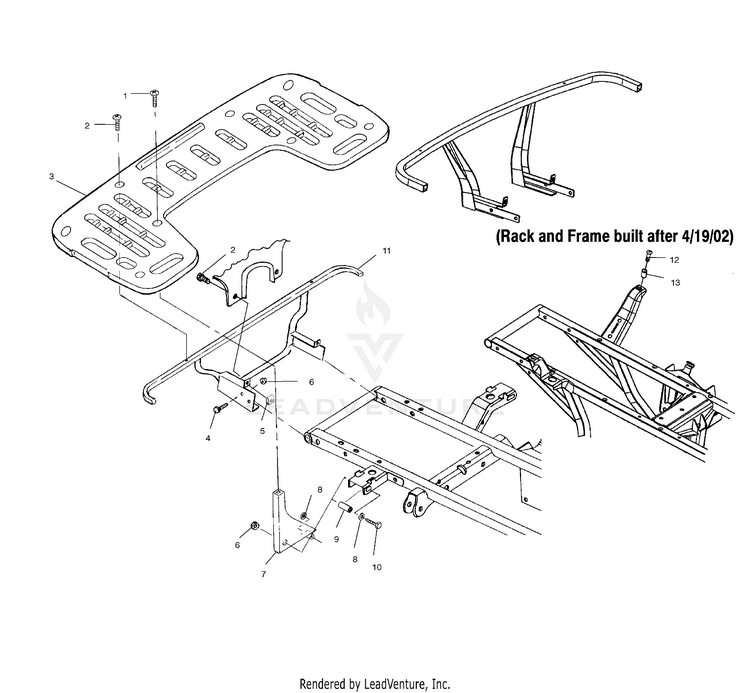

REAR RACK MOUNTING - A02CB50FC (4974857485A06)
REAR WHEEL DRIVE - A02CB50FC (4974857485C06)
RECOIL STARTER - A02CB50FC (4974857485D07)

S

SHOCK MOUNTING - A02CB50FC (4974857485C07)
STARTING MOTOR - A02CB50FC (4974857485D12)
STEERING POST - A02CB50FC (4974857485B08)
STRUT - A02CB50FC (4949354935B008)

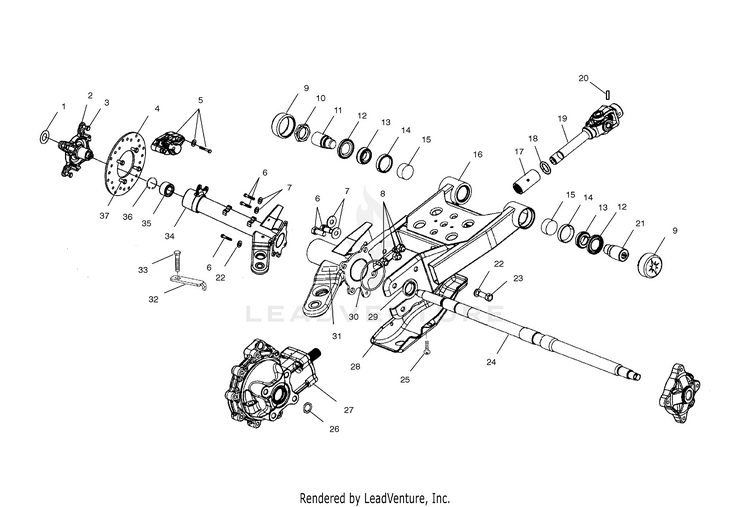

SWING ARM/REAR GEARCASE MOUNTING - A02CB50FC (4974857485C08)

T

TOOL KIT - A02CB50FC (4974857485D14)

W

WATER PUMP - A02CB50FC (4974857485D08)
WHEEL (FRONT) - A02CB50FC (4974857485B05)
