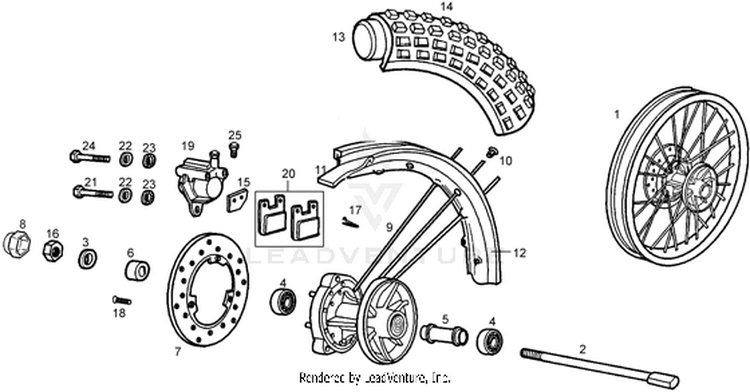

Historical catalogs 1998-2005 Piaggio 511 RCR Front wheel OEM Parts | Assembly Diagram OEM Parts Finder and Diagram (Microfiche) Inspector

Piaggio Choose parts...

Use scroll wheel, or pinch and drag to and .

1
MPN/SKU: ODN00H04713082
Wheel
Unavailable
$0.00
          Recommended Quantity: 1

          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

          Stock: TBD
          2
          MPN/SKU: ODN00H01203272
          Shaft
          Unavailable
          $0.00
                  Recommended Quantity: 1

                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                  Stock: TBD
                  3
                  MPN/SKU: ODN00003112320
                  Washer 12’25x20x2
                  Unavailable
                  $0.00
                          Recommended Quantity: 1

                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                          Stock: TBD
                          4
                          MPN/SKU: ODN00058120100
                          Ball bearing 12x32x10
                          Unavailable
                          $0.00
                                  Recommended Quantity: 1

                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                  Stock: TBD
                                  5
                                  MPN/SKU: ODN00D01300091
                                  Spacer
                                  Unavailable
                                  $0.00
                                          Recommended Quantity: 1

                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                          Stock: TBD
                                          6
                                          MPN/SKU: ODN00008213182
                                          Spacer
                                          Unavailable
                                          $0.00
                                                  Recommended Quantity: 1

                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                  Stock: TBD
                                                  7
                                                  MPN/SKU: ODN00H01209021
                                                  Brake disc
                                                  Unavailable
                                                  $0.00
                                                          Recommended Quantity: 1

                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                          Stock: TBD
                                                          8
                                                          MPN/SKU: ODN00H01202331
                                                          Cover
                                                          Unavailable
                                                          $0.00
                                                                  Recommended Quantity: 1

                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                  Stock: TBD
                                                                  9
                                                                  MPN/SKU: ODN00H01206061
                                                                  Spoke
                                                                  Unavailable
                                                                  $0.00
                                                                          Recommended Quantity: 1

                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                          Stock: TBD
                                                                          10
                                                                          MPN/SKU: ODN00002212070
                                                                          Nut
                                                                          Unavailable
                                                                          $0.00
                                                                                  Recommended Quantity: 1

                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                  Stock: TBD
                                                                                  11
                                                                                  MPN/SKU: ODN00D01201091
                                                                                  Guard
                                                                                  Unavailable
                                                                                  $0.00
                                                                                          Recommended Quantity: 1

                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                          Stock: TBD
                                                                                          12
                                                                                          MPN/SKU: ODN00H01212081
                                                                                          Wheel
                                                                                          Unavailable
                                                                                          $0.00
                                                                                                  Recommended Quantity: 1

                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                  Stock: TBD
                                                                                                  13
                                                                                                  MPN/SKU: ODN00H01206101
                                                                                                  Inner tube
                                                                                                  Unavailable
                                                                                                  $0.00
                                                                                                          Recommended Quantity: 1

                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                          Stock: TBD
                                                                                                          14
                                                                                                          MPN/SKU: ODN00H01208111
                                                                                                          Tyre
                                                                                                          Unavailable
                                                                                                          $0.00
                                                                                                                  Recommended Quantity: 1

                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                  Stock: TBD
                                                                                                                  15
                                                                                                                  MPN/SKU: ODN00G04700131
                                                                                                                  Plate
                                                                                                                  Unavailable
                                                                                                                  $0.00
                                                                                                                          Recommended Quantity: 1

                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                          Stock: TBD
                                                                                                                          16
                                                                                                                          MPN/SKU: ODN00232120032
                                                                                                                          Nut
                                                                                                                          Unavailable
                                                                                                                          $0.00
                                                                                                                                  Recommended Quantity: 1

                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                  Stock: TBD
                                                                                                                                  17
                                                                                                                                  MPN/SKU: ODN00H01301831
                                                                                                                                  Spring
                                                                                                                                  Unavailable
                                                                                                                                  $0.00
                                                                                                                                          Recommended Quantity: 1

                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                          Stock: TBD
                                                                                                                                          18
                                                                                                                                          MPN/SKU: ODN00H02402282
                                                                                                                                          screw
                                                                                                                                          Unavailable
                                                                                                                                          $0.00
                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                  Stock: TBD
                                                                                                                                                  19
                                                                                                                                                  MPN/SKU: ODN00H01202191
                                                                                                                                                  Brake caliper
                                                                                                                                                  Unavailable
                                                                                                                                                  $0.00
                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                          Stock: TBD
                                                                                                                                                          20
                                                                                                                                                          MPN/SKU: ODN00G04700141
                                                                                                                                                          Brake pads kit
                                                                                                                                                          Unavailable
                                                                                                                                                          $0.00
                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                  Stock: TBD
                                                                                                                                                                  21
                                                                                                                                                                  MPN/SKU: ODN00022083521
                                                                                                                                                                  screw
                                                                                                                                                                  Unavailable
                                                                                                                                                                  $0.00
                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                          Stock: TBD
                                                                                                                                                                          22
                                                                                                                                                                          MPN/SKU: ODN00402080001
                                                                                                                                                                          Washer
                                                                                                                                                                          Unavailable
                                                                                                                                                                          $0.00
                                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                  23
                                                                                                                                                                                  MPN/SKU: ODN00034000802
                                                                                                                                                                                  Washer
                                                                                                                                                                                  Unavailable
                                                                                                                                                                                  $0.00
                                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                          24
                                                                                                                                                                                          MPN/SKU: ODN00022086521
                                                                                                                                                                                          screw
                                                                                                                                                                                          Unavailable
                                                                                                                                                                                          $0.00
                                                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                  25
                                                                                                                                                                                                  MPN/SKU: ODN00H04701121
                                                                                                                                                                                                  Cover
                                                                                                                                                                                                  Unavailable
                                                                                                                                                                                                  $0.00
                                                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                          Stock: TBD
