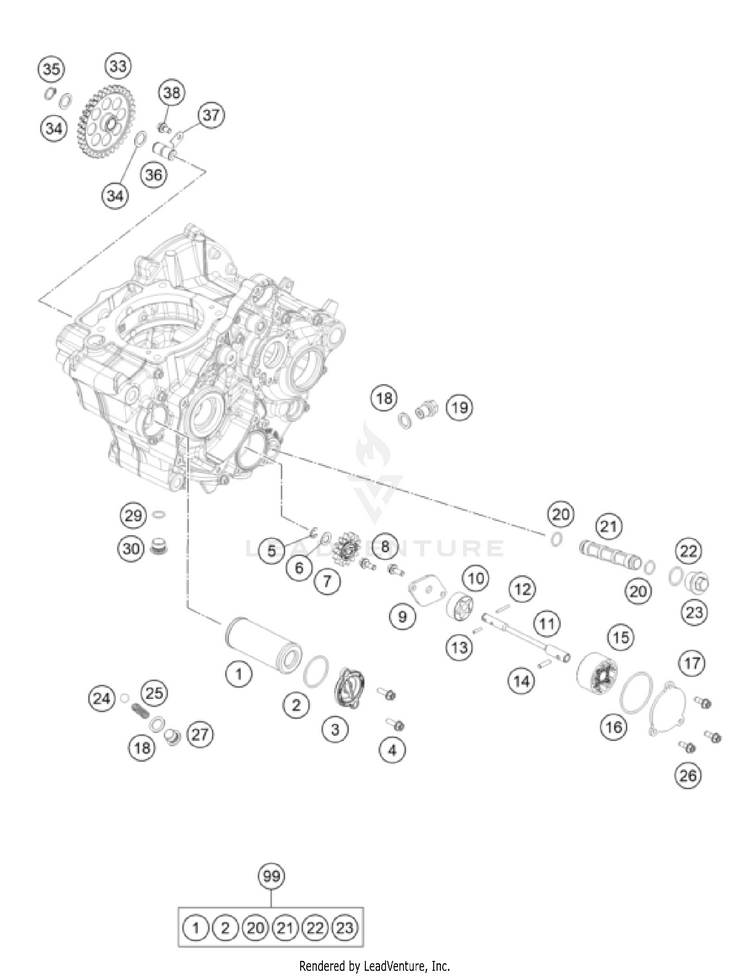

2023 KTM 250 SX-F Engine - 2023 LUBRICATING SYSTEM OEM Parts | Assembly Diagram OEM Parts Finder and Diagram (Microfiche) Inspector

KTM Choose parts...

Use scroll wheel, or pinch and drag to and .

1
Item # 1047164
KTM / GasGas / Husqvarna Oil Filter - 77338005100
Leaves Warehouse: Same Day
$13.19
          Recommended Quantity: 1

          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

          Stock: TBD
          2
          Item # 1034018
          KTM / GasGas / Husqvarna O-Ring 33.05x1.78 - 07703305178
          Leaves Warehouse: Same Day
          $4.34
                  Recommended Quantity: 1

                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                  Stock: TBD
                  3
                  Item # 1047176
                  KTM / GasGas / Husqvarna Oil Filter Cover 08 - 77338041200
                  Leaves Warehouse: Same Day
                  $16.49
                          Recommended Quantity: 1

                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                          Stock: TBD
                          4
                          Item # 1033149
                          KTM / GasGas / Husqvarna HH Collar Screw M6X16 TX30 - 0025060166
                          Leaves Warehouse: Same Day
                          $4.34
                                  Recommended Quantity: 2

                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                  Stock: TBD
                                  5
                                  Item # 1034070
                                  KTM / GasGas / Husqvarna TAB Washer DIN6799-RS 6.0 - 0799060000
                                  Leaves Warehouse: 2 to 3 days
                                  $2.89
                                          Recommended Quantity: 1

                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                          Stock: TBD
                                          6
                                          Item # 1079832
                                          KTM / GasGas / Husqvarna Stop Disk 8.1 X 15 X 0.5 - 58038007755
                                          Leaves Warehouse: Same Day
                                          $2.89
                                                  Recommended Quantity: 1

                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                  Stock: TBD
                                                  7
                                                  Item # 1046424
                                                  KTM / GasGas / Husqvarna Oil Pump Gear 14T 08 - 77038001100
                                                  Leaves Warehouse: Same Day
                                                  $10.94
                                                          Recommended Quantity: 1

                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                          Stock: TBD
                                                          8
                                                          Item # 1033135
                                                          KTM / GasGas / Husqvarna Hex Collar Screw M5X14 ISA30 Self-Locking - 0025050146S
                                                          Leaves Warehouse: 2 to 3 days
                                                          $1.67
                                                                  Recommended Quantity: 2

                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                  Stock: TBD
                                                                  9
                                                                  Item # 1054340
                                                                  KTM / GasGas / Husqvarna Oil Pump Cover - A48038003000
                                                                  Out of Stock
                                                                  $7.38
                                                                          Recommended Quantity: 1

                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                          Stock: TBD
                                                                          10
                                                                          Item # 1080701
                                                                          KTM / GasGas / Husqvarna Oilpump Rotor-Set 12 mm Complete - 59038011112
                                                                          Leaves Warehouse: 2 to 3 days
                                                                          $29.29
                                                                                  Recommended Quantity: 1

                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                  Stock: TBD
                                                                                  11
                                                                                  Item # 1049669
                                                                                  KTM / GasGas / Husqvarna Oil Pump Shaft - 79238002100
                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                  $49.88
                                                                                          Recommended Quantity: 1

                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                          Stock: TBD
                                                                                          12
                                                                                          Item # 1033450
                                                                                          KTM / GasGas / Husqvarna Needlerol.DIN5402 NRA 2.5x19.8 - 0402251980
                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                          $1.67
                                                                                                  Recommended Quantity: 1

                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                  Stock: TBD
                                                                                                  13
                                                                                                  Item # 1033449
                                                                                                  KTM / GasGas / Husqvarna Needle Roller DIN5402 2.5x11.8 - 0402251180
                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                  $1.67
                                                                                                          Recommended Quantity: 1

                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                          Stock: TBD
                                                                                                          14
                                                                                                          Item # 1033435
                                                                                                          KTM / GasGas / Husqvarna Needle Roller NRB 4x15.8 G2 - 0402041580
                                                                                                          Out of Stock
                                                                                                          $2.89
                                                                                                                  Recommended Quantity: 1

                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                  Stock: TBD
                                                                                                                  15
                                                                                                                  Item # 1040392
                                                                                                                  KTM / GasGas / Husqvarna Rotor Set 22 mm - 61238011100
                                                                                                                  Out of Stock
                                                                                                                  $23.48
                                                                                                                          Recommended Quantity: 1

                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                          Stock: TBD
                                                                                                                          16
                                                                                                                          Item # 1034030
                                                                                                                          KTM / GasGas / Husqvarna O-Ring 44.00x2.00 Viton - 0770440020
                                                                                                                          Leaves Warehouse: Same Day
                                                                                                                          $4.34
                                                                                                                                  Recommended Quantity: 1

                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                  Stock: TBD
                                                                                                                                  17
                                                                                                                                  Item # 1049671
                                                                                                                                  KTM / GasGas / Husqvarna Oil Pump Cover Left - 79238004000
                                                                                                                                  Out of Stock
                                                                                                                                  $19.92
                                                                                                                                          Recommended Quantity: 1

                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                          Stock: TBD
                                                                                                                                          18
                                                                                                                                          Item # 1079837
                                                                                                                                          KTM / GasGas / Husqvarna CU-Seal Ring DIN7603-12X18X1.5 - 58038022000
                                                                                                                                          Leaves Warehouse: Same Day
                                                                                                                                          $2.89
                                                                                                                                                  Recommended Quantity: 2

                                                                                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                  Stock: TBD
                                                                                                                                                  19
                                                                                                                                                  Item # 1079761
                                                                                                                                                  KTM / GasGas / Husqvarna Oildrain Plug with Magnet - 58030021100
                                                                                                                                                  Leaves Warehouse: Same Day
                                                                                                                                                  $15.96
                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                          Stock: TBD
                                                                                                                                                          20
                                                                                                                                                          Item # 1033960
                                                                                                                                                          KTM / GasGas / Husqvarna O-Ring 12.5x1.5 Viton V75 - 07701250151
                                                                                                                                                          Leaves Warehouse: Same Day
                                                                                                                                                          $5.80
                                                                                                                                                                  Recommended Quantity: 2

                                                                                                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                  Stock: TBD
                                                                                                                                                                  21
                                                                                                                                                                  Item # 1080708
                                                                                                                                                                  KTM / GasGas / Husqvarna Oil Screen - 59038016200
                                                                                                                                                                  Leaves Warehouse: Same Day
                                                                                                                                                                  $9.89
                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                          Stock: TBD
                                                                                                                                                                          22
                                                                                                                                                                          Item # 1033886
                                                                                                                                                                          KTM / GasGas / Husqvarna O-Ring 17.17x1.78 GLO - 0770020170
                                                                                                                                                                          Leaves Warehouse: Same Day
                                                                                                                                                                          $2.89
                                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                  23
                                                                                                                                                                                  Item # 1080710
                                                                                                                                                                                  KTM / GasGas / Husqvarna Plug M20X1.5 WS=13 - 59038017100
                                                                                                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                                                                                                  $11.08
                                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                          24
                                                                                                                                                                                          Item # 1033421
                                                                                                                                                                                          KTM / GasGas / Husqvarna Ball DIN5401-9 - 0401090003
                                                                                                                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                                                                                                                          $2.89
                                                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                  25
                                                                                                                                                                                                  Item # 1079842
                                                                                                                                                                                                  KTM / GasGas / Husqvarna Pressure Spring L=25 mm D=1 mm - 58038023300
                                                                                                                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                                                                                                                  $7.38
                                                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                                          26
                                                                                                                                                                                                          Item # 1033135
                                                                                                                                                                                                          KTM / GasGas / Husqvarna Hex Collar Screw M5X14 ISA30 Self-Locking - 0025050146S
                                                                                                                                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                                                                                                                                          $1.67
                                                                                                                                                                                                                  Recommended Quantity: 3

                                                                                                                                                                                                                  This part has 3 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                                  27
                                                                                                                                                                                                                  Item # 1048094
                                                                                                                                                                                                                  KTM / GasGas / Husqvarna Screw Plug M24x1.5 - 78036081100
                                                                                                                                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                                                                                                                                  $4.34
                                                                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                                                          29
                                                                                                                                                                                                                          Item # 1033951
                                                                                                                                                                                                                          KTM / GasGas / Husqvarna O-Ring 1.5x11 Silicon - 0770110015
                                                                                                                                                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                                                                                                                                                          $7.38
                                                                                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                                                  30
                                                                                                                                                                                                                                  Item # 1048094
                                                                                                                                                                                                                                  KTM / GasGas / Husqvarna Screw Plug M24x1.5 - 78036081100
                                                                                                                                                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                                                                                                                                                  $4.34
                                                                                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                                                                          33
                                                                                                                                                                                                                                          Item # 1049674
                                                                                                                                                                                                                                          KTM / GasGas / Husqvarna Oil Pump Intermediate Gear - 79238006300
                                                                                                                                                                                                                                          Out of Stock
                                                                                                                                                                                                                                          $29.82
                                                                                                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                                                                  34
                                                                                                                                                                                                                                                  Item # 1034351
                                                                                                                                                                                                                                                  KTM / GasGas / Husqvarna Shim Washer DIN0988-12X18x0.50 - 0988121805
                                                                                                                                                                                                                                                  Leaves Warehouse: Same Day
                                                                                                                                                                                                                                                  $2.89
                                                                                                                                                                                                                                                          Recommended Quantity: 2

                                                                                                                                                                                                                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                                                                                          35
                                                                                                                                                                                                                                                          Item # 1033513
                                                                                                                                                                                                                                                          KTM / GasGas / Husqvarna Retaining Ring DIN 471 12x1 - 0471120010
                                                                                                                                                                                                                                                          Out of Stock
                                                                                                                                                                                                                                                          $1.52
                                                                                                                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                                                                                  36
                                                                                                                                                                                                                                                                  Item # 1046434
                                                                                                                                                                                                                                                                  KTM / GasGas / Husqvarna Bushing Pin - 77038013100
                                                                                                                                                                                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                                                                                                                                                                                  $11.87
                                                                                                                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                                                                                                          37
                                                                                                                                                                                                                                                                          Item # 1046810
                                                                                                                                                                                                                                                                          KTM / GasGas / Husqvarna Axial-Circlip - 77238061050
                                                                                                                                                                                                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                                                                                                                                                                                                          $4.34
                                                                                                                                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                                                                                                  38
                                                                                                                                                                                                                                                                                  Item # 1033131
                                                                                                                                                                                                                                                                                  KTM / GasGas / Husqvarna Hex Collar Screw M5X10 ISA30 Self-Locking - 0025050106S
                                                                                                                                                                                                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                                                                                                                                                                                                  $1.67
                                                                                                                                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                                                                                                                          99
                                                                                                                                                                                                                                                                                          Item # 1050054
                                                                                                                                                                                                                                                                                          KTM / GasGas / Husqvarna Oil Filter Servicekit SX-F - 79438015010
                                                                                                                                                                                                                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                                                                                                                                                                                                                          $80.77
                                                                                                                                                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                                                                                                                  No results with applied page filter:

                                                                                                                                                                                                                                                                                                  All Assemblies

                                                                                                                                                                                                                                                                                                  For the current model: 250 SX-F Engine - 2023

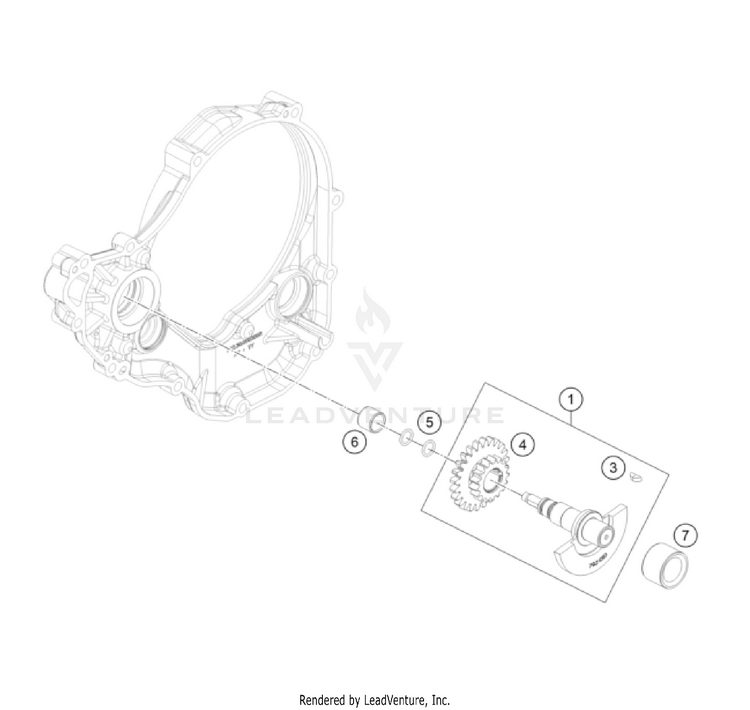

                                                                                                                                                                                                                                                                                                  BALANCER SHAFT

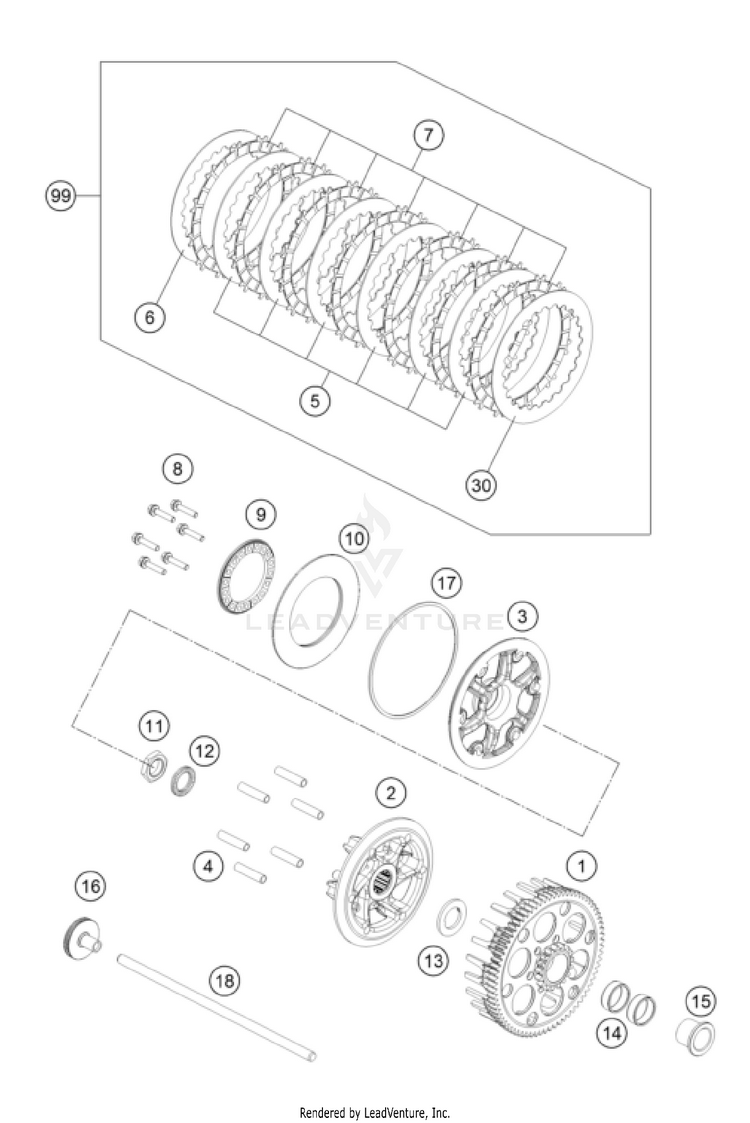

                                                                                                                                                                                                                                                                                                  CLUTCH

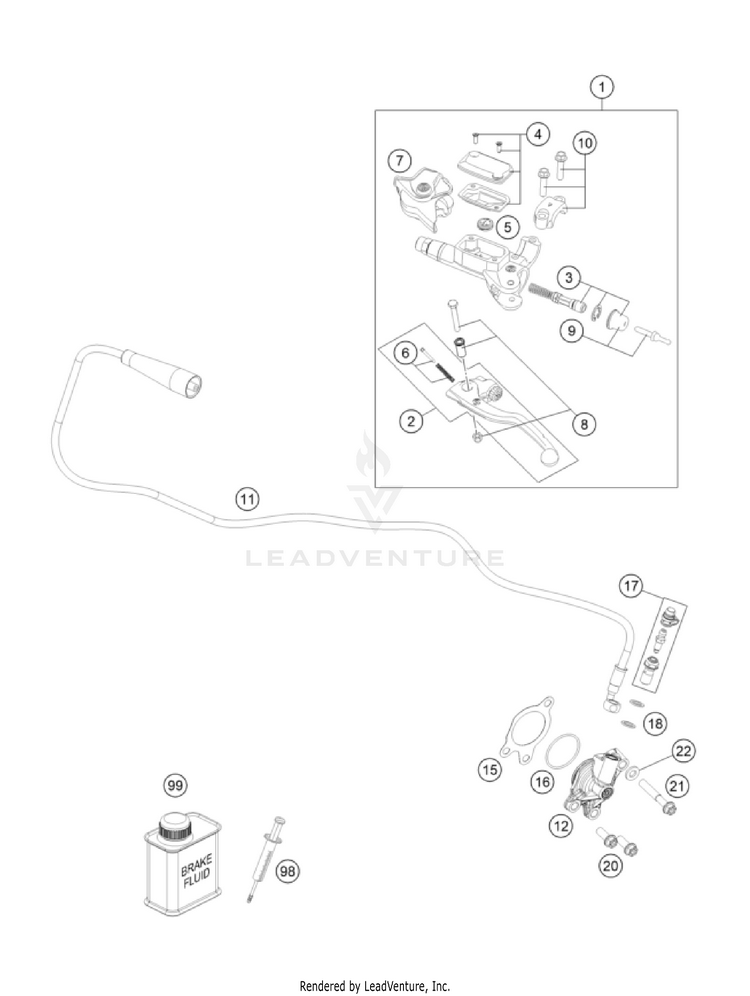

                                                                                                                                                                                                                                                                                                  CLUTCH CONTROL

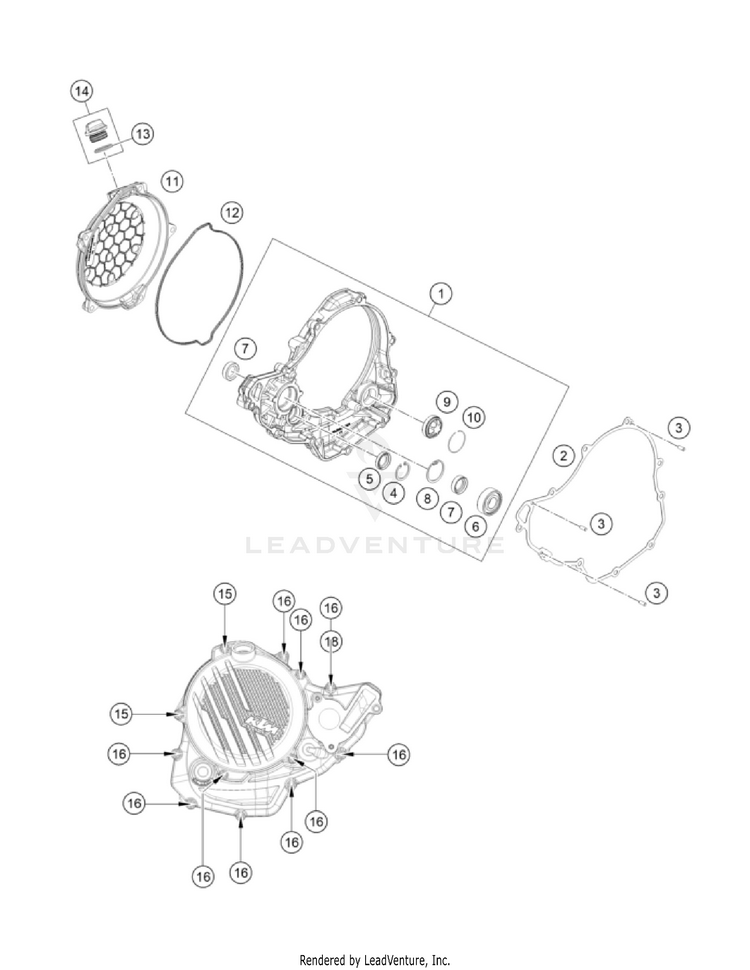

                                                                                                                                                                                                                                                                                                  CLUTCH COVER

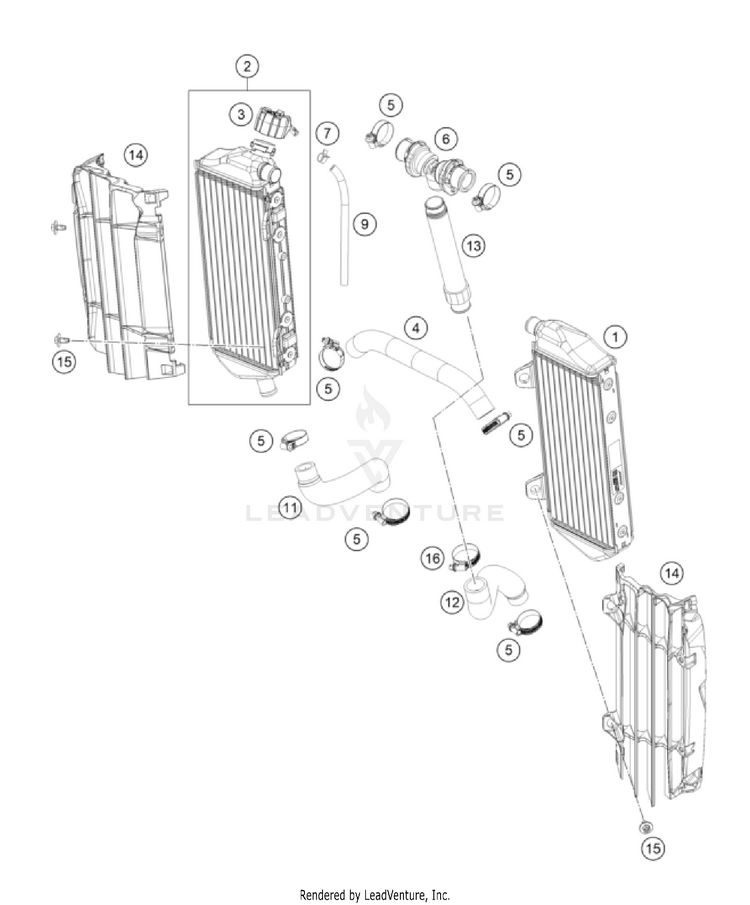

                                                                                                                                                                                                                                                                                                  COOLING SYSTEM

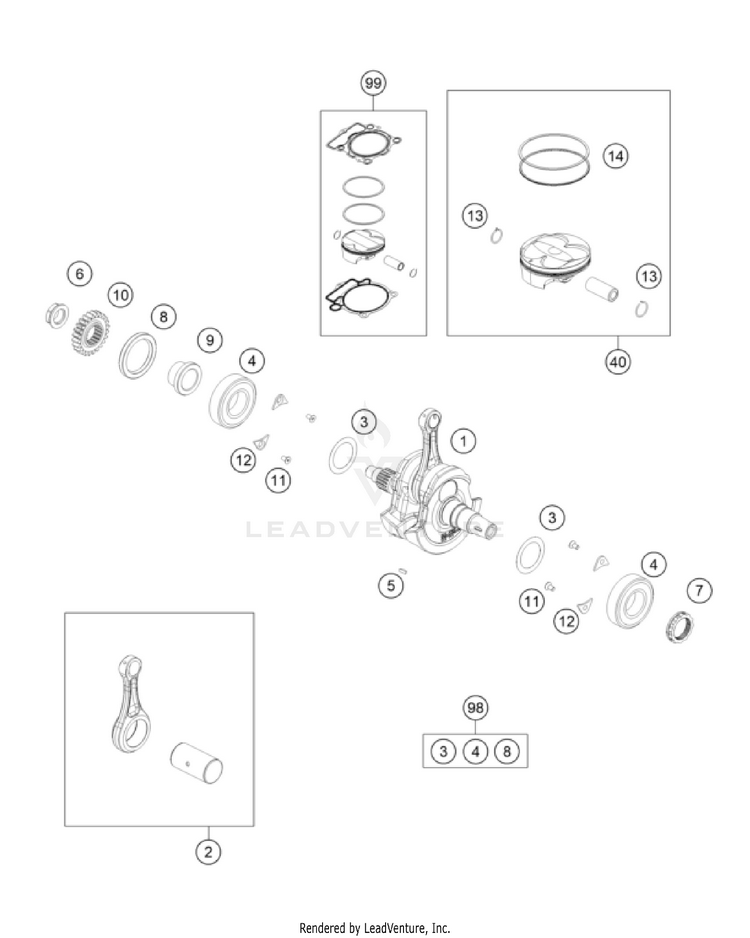

                                                                                                                                                                                                                                                                                                  CRANKSHAFT, PISTON

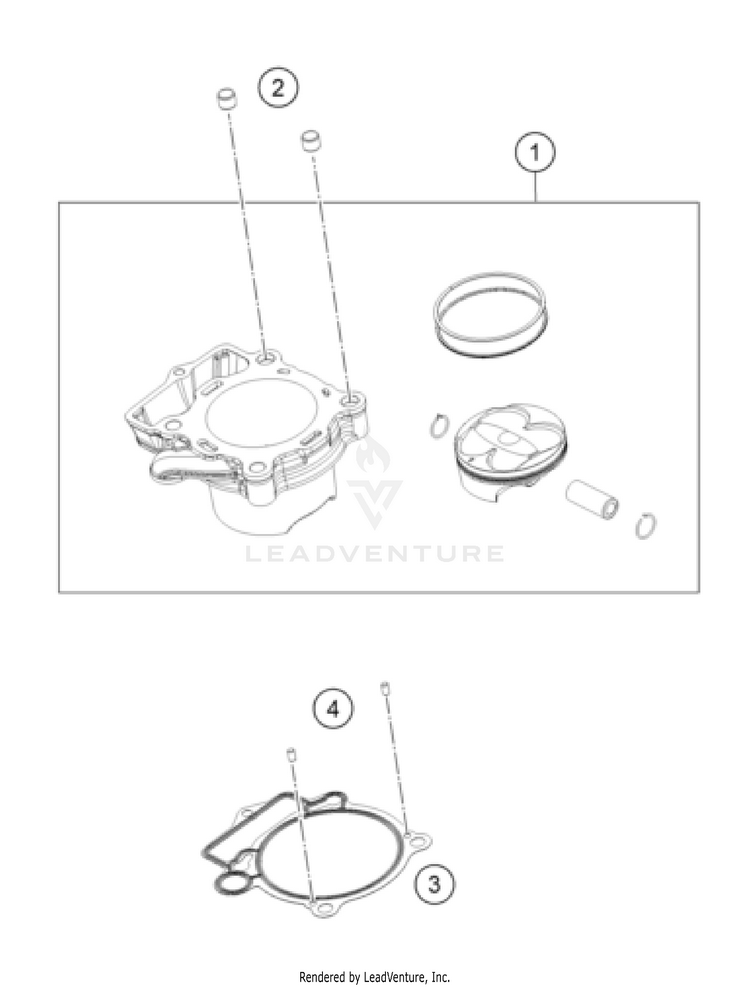

                                                                                                                                                                                                                                                                                                  CYLINDER

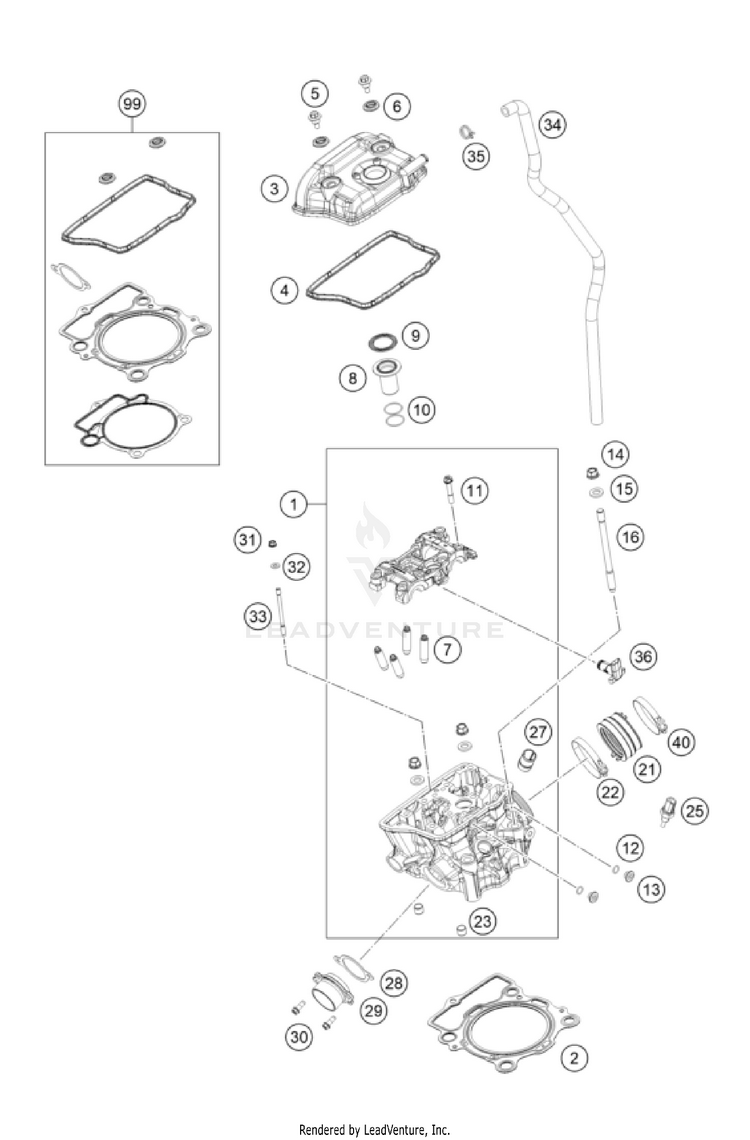

                                                                                                                                                                                                                                                                                                  CYLINDER HEAD

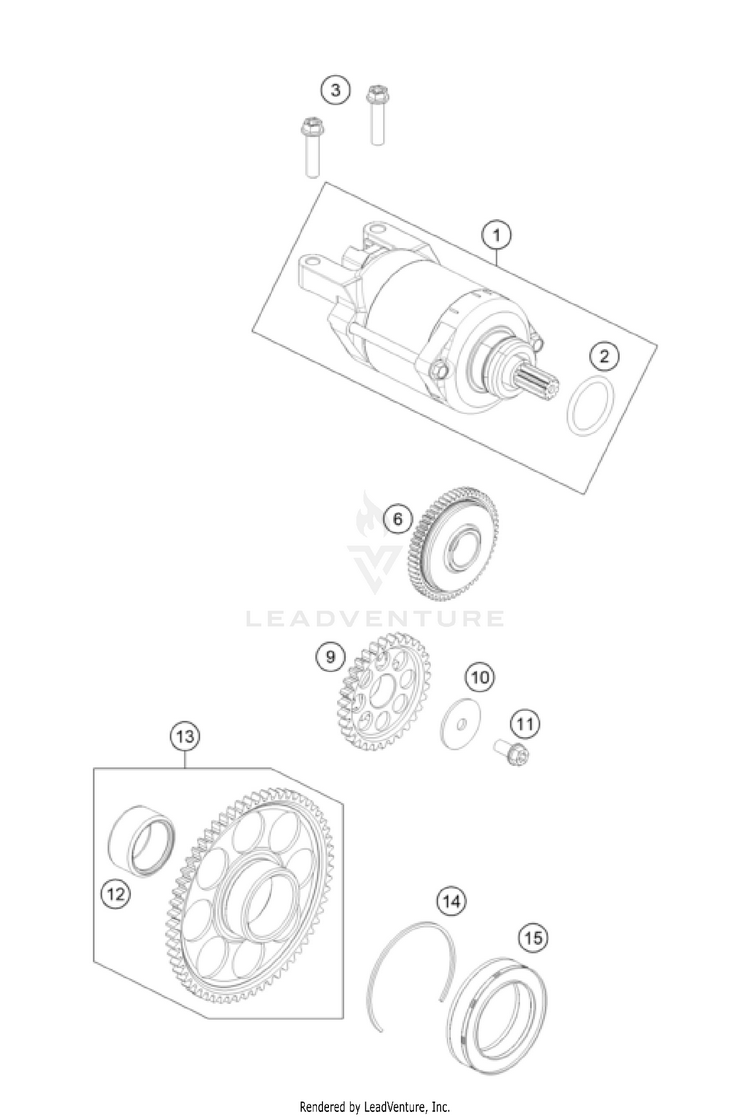

                                                                                                                                                                                                                                                                                                  ELECTRIC STARTER

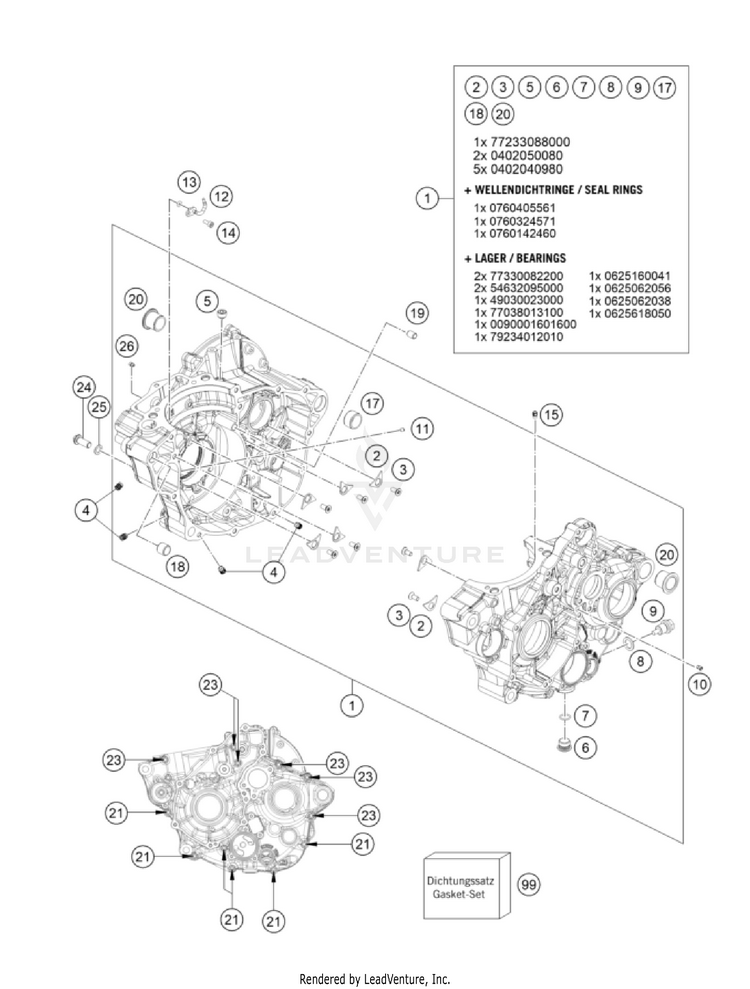

                                                                                                                                                                                                                                                                                                  ENGINE CASE

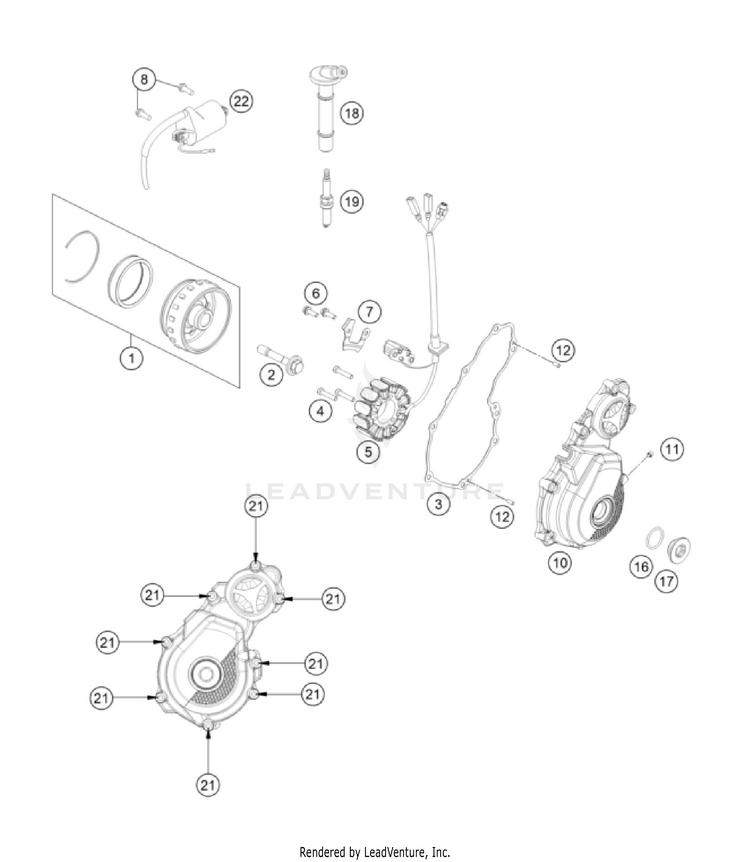

                                                                                                                                                                                                                                                                                                  IGNITION SYSTEM
                                                                                                                                                                                                                                                                                                  LUBRICATING SYSTEM

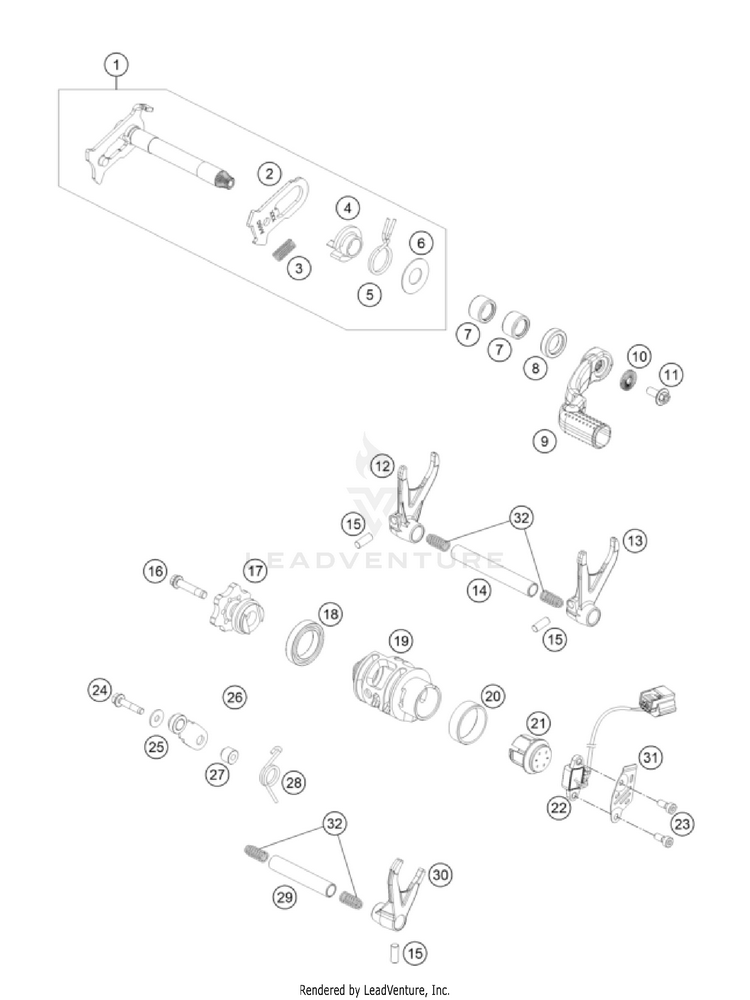

                                                                                                                                                                                                                                                                                                  SHIFTING MECHANISM

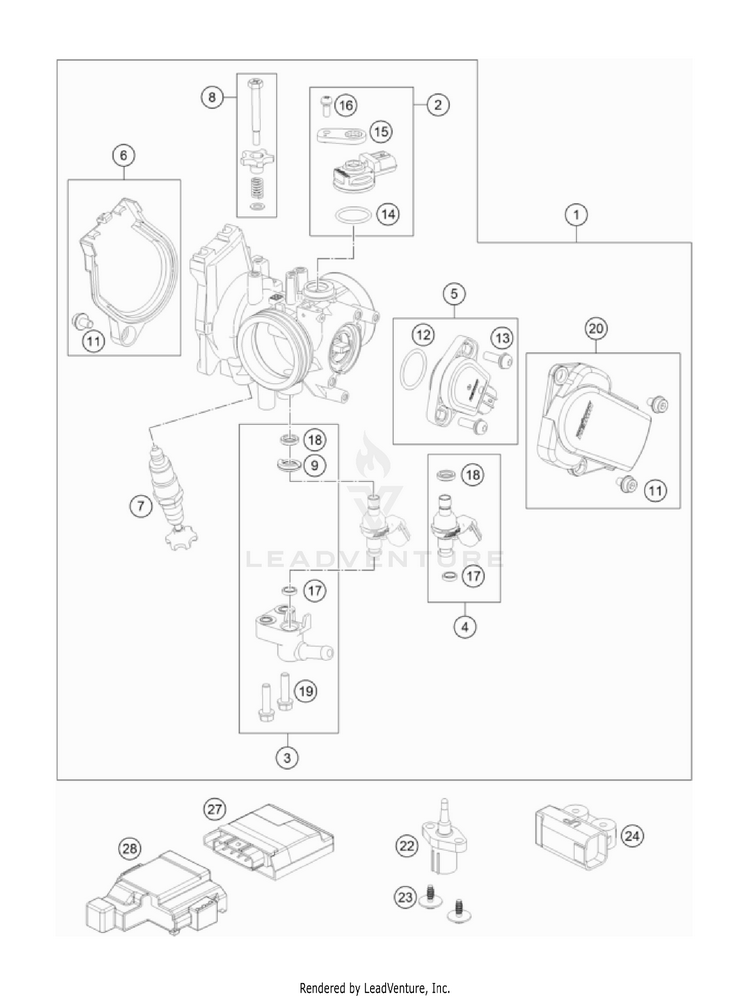

                                                                                                                                                                                                                                                                                                  THROTTLE BODY

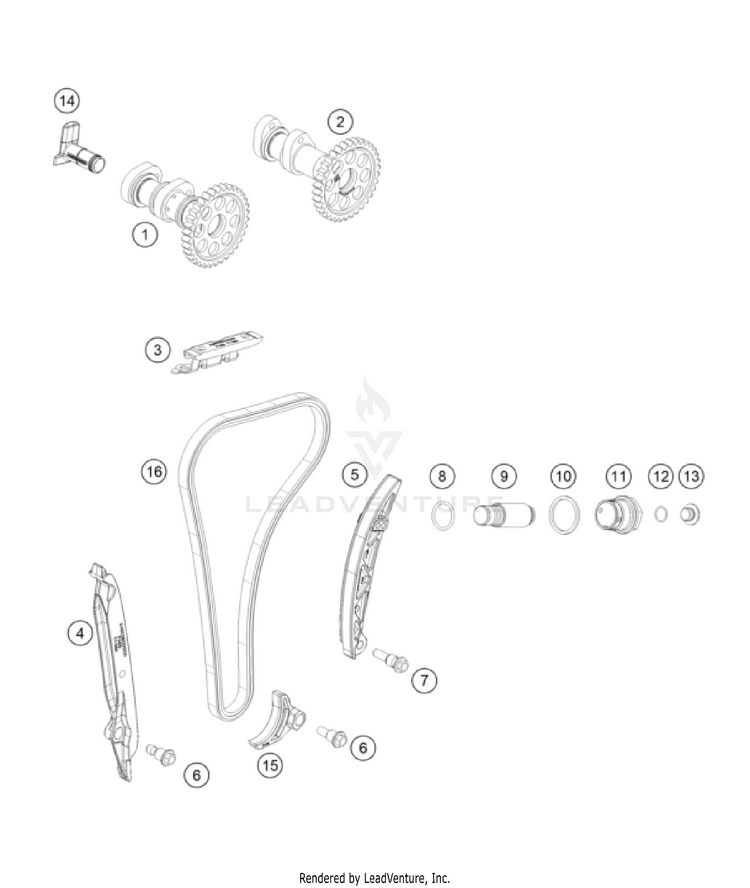

                                                                                                                                                                                                                                                                                                  TIMING DRIVE

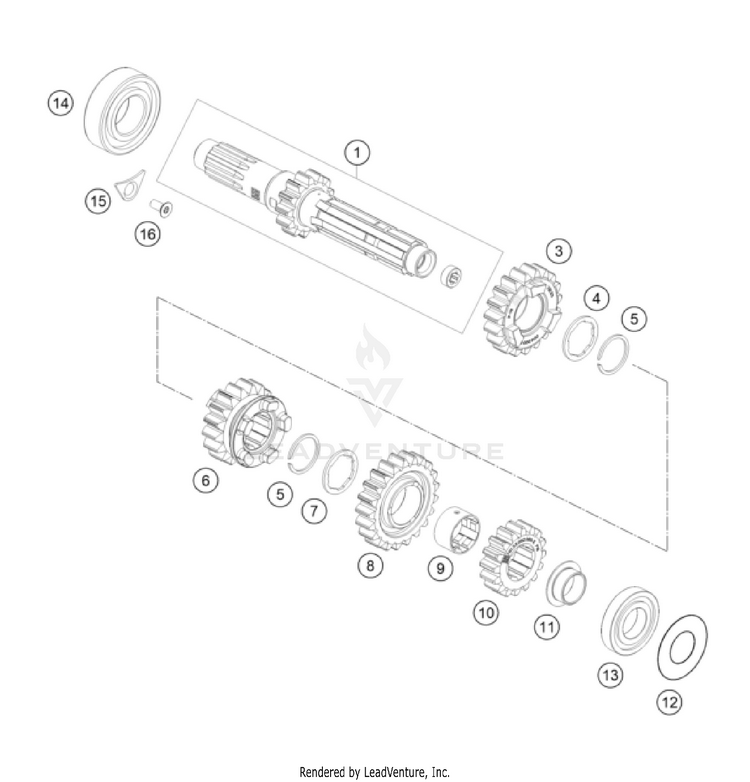

                                                                                                                                                                                                                                                                                                  TRANSMISSION I - MAIN SHAFT

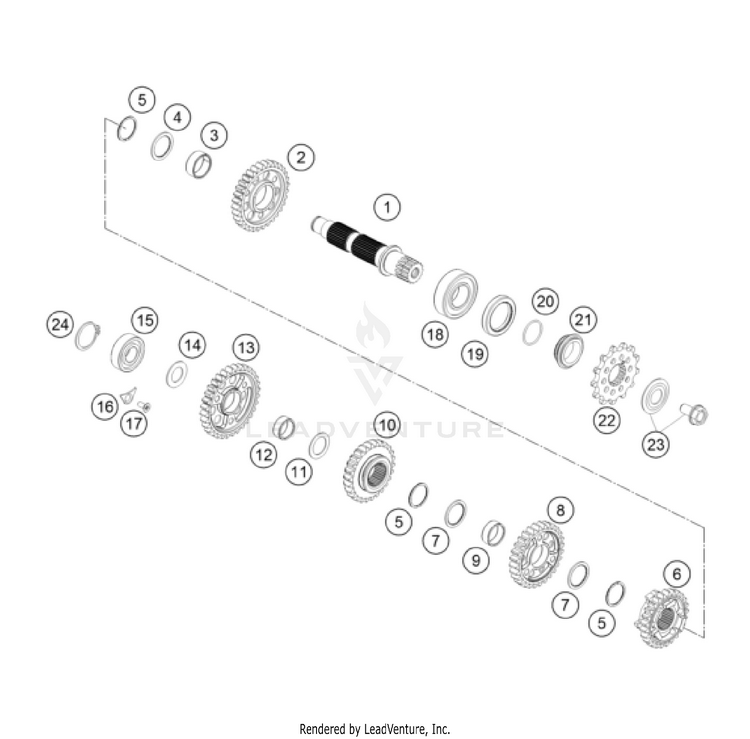

                                                                                                                                                                                                                                                                                                  TRANSMISSION II - COUNTERSHAFT

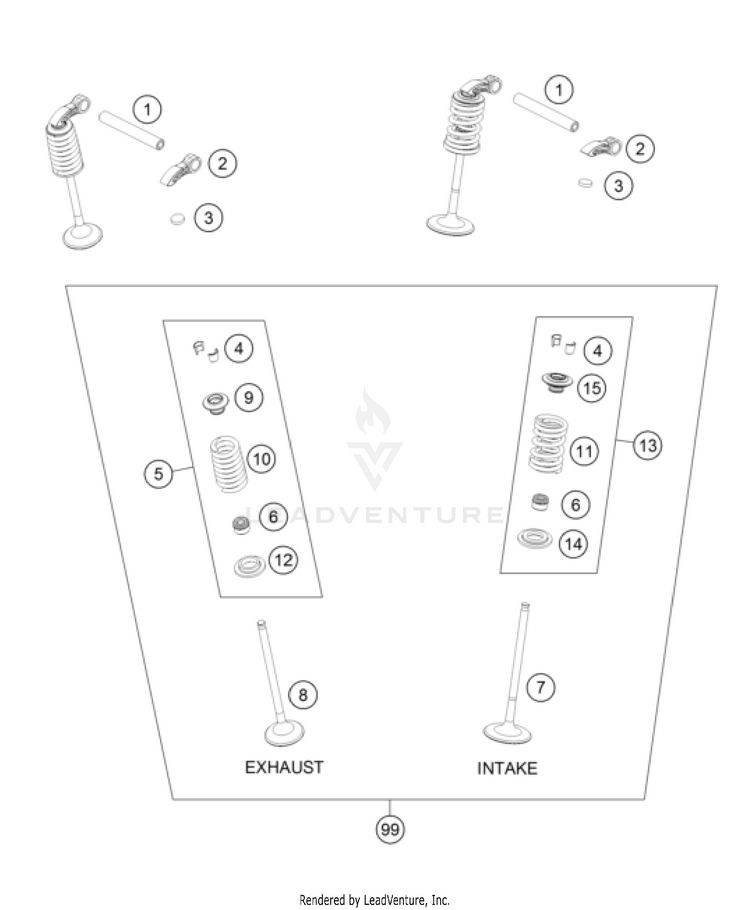

                                                                                                                                                                                                                                                                                                  VALVE DRIVE

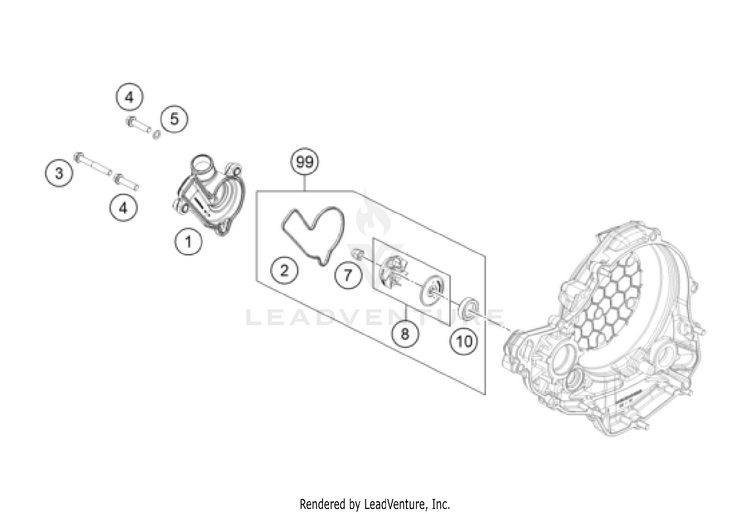

                                                                                                                                                                                                                                                                                                  WATER PUMP
