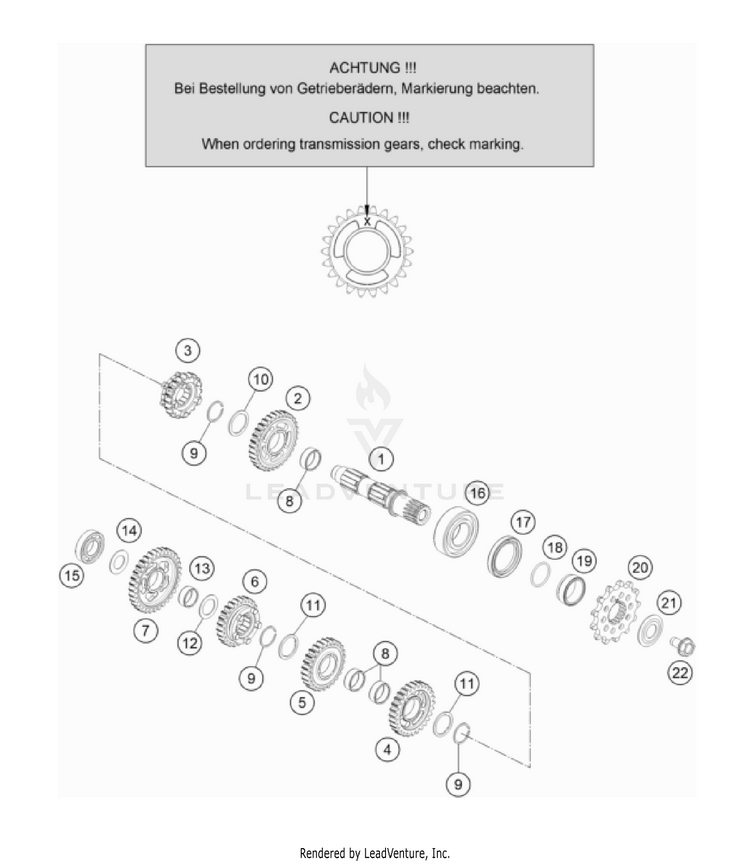

2023 KTM 150 / EXC / XC-W Engine - 2023 TRANSMISSION II - COUNTERSHAFT OEM Parts | Assembly Diagram OEM Parts Finder and Diagram (Microfiche) Inspector

KTM Choose parts...

Use scroll wheel, or pinch and drag to and .

1
Item # 1038885
KTM / GasGas / Husqvarna Pinion Shaft - 50533010100
Leaves Warehouse: 2 to 3 days
$298.70
          Recommended Quantity: 1

          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

          Stock: TBD
          2
          Item # 1038905
          KTM / Husqvarna Idler Gear 2nd Gear teeth=31 - 50533112000
          Leaves Warehouse: 2 to 3 days
          $190.60
                  Recommended Quantity: 1

                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                  Stock: TBD
                  3
                  Item # 1038908
                  KTM / Husqvarna Sliding Gear 6th Gear teeth=20 - 50533116000
                  Leaves Warehouse: 2 to 3 days
                  $173.96
                          Recommended Quantity: 1

                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                          Stock: TBD
                          4
                          Item # 1038889
                          KTM / GasGas / Husqvarna Idler Gear 3rd Gear not=28 - 50533013000
                          Leaves Warehouse: 2 to 3 days
                          $188.48
                                  Recommended Quantity: 1

                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                  Stock: TBD
                                  5
                                  Item # 1038906
                                  KTM / Husqvarna Idler Gear 4th Gear teeth=26 - 50533114000
                                  Leaves Warehouse: 2 to 3 days
                                  $184.39
                                          Recommended Quantity: 1

                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                          Stock: TBD
                                          6
                                          Item # 1038907
                                          KTM / Husqvarna Sliding Gear 5th Gear teeth=25 - 50533115000
                                          Leaves Warehouse: 2 to 3 days
                                          $174.76
                                                  Recommended Quantity: 1

                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                  Stock: TBD
                                                  7
                                                  Item # 1038904
                                                  KTM / Husqvarna Idler Gear 1st Gear teeth=33 - 50533111000
                                                  Leaves Warehouse: 2 to 3 days
                                                  $164.33
                                                          Recommended Quantity: 1

                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                          Stock: TBD
                                                          8
                                                          Item # 1033468
                                                          KTM / GasGas / Husqvarna Needle Bearing K 22X26X10 Divided - 0405222611
                                                          Leaves Warehouse: 2 to 3 days
                                                          $16.49
                                                                  Recommended Quantity: 3

                                                                  This part has 3 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                  Stock: TBD
                                                                  9
                                                                  Item # 1033487
                                                                  KTM / GasGas / Husqvarna Circlip WS24 - 0417024000
                                                                  Leaves Warehouse: Same Day
                                                                  $2.89
                                                                          Recommended Quantity: 3

                                                                          This part has 3 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                          Stock: TBD
                                                                          10
                                                                          Item # 1047626
                                                                          KTM / GasGas / Husqvarna Stop Disc 24X32x1.5 - 77733044000
                                                                          Leaves Warehouse: 2 to 3 days
                                                                          $5.80
                                                                                  Recommended Quantity: 1

                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                  Stock: TBD
                                                                                  11
                                                                                  Item # 1047625
                                                                                  KTM / GasGas / Husqvarna Stop Disc 23.4x31x1.5 - 77733043000
                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                  $4.34
                                                                                          Recommended Quantity: 2

                                                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                          Stock: TBD
                                                                                          12
                                                                                          Item # 1078955
                                                                                          KTM / GasGas / Husqvarna Stop Disc 20.2X30X1 - 54833080000
                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                          $4.34
                                                                                                  Recommended Quantity: 1

                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                  Stock: TBD
                                                                                                  13
                                                                                                  Item # 1033463
                                                                                                  KTM / GasGas / Husqvarna Needle Bearing K20X24X10 - 0405202410
                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                  $16.22
                                                                                                          Recommended Quantity: 1

                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                          Stock: TBD
                                                                                                          14
                                                                                                          Item # 1079567
                                                                                                          KTM / GasGas / Husqvarna Stop Disc 17.2X30X1 - 56033030000
                                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                                          $5.80
                                                                                                                  Recommended Quantity: 1

                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                  Stock: TBD
                                                                                                                  15
                                                                                                                  Item # 1033695
                                                                                                                  KTM / GasGas / Husqvarna Grooved Ball B. 16003 C4 J1 - 0625160031
                                                                                                                  Leaves Warehouse: Same Day
                                                                                                                  $29.03
                                                                                                                          Recommended Quantity: 1

                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                          Stock: TBD
                                                                                                                          16
                                                                                                                          Item # 1033663
                                                                                                                          KTM / GasGas / Husqvarna Ball Bearing 6205 C3 NTN - 0625062054
                                                                                                                          Leaves Warehouse: Same Day
                                                                                                                          $29.16
                                                                                                                                  Recommended Quantity: 1

                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                  Stock: TBD
                                                                                                                                  17
                                                                                                                                  Item # 1033851
                                                                                                                                  KTM / GasGas / Husqvarna Shaft Seal Ring 32X45X7 Bslnbr - 0760324571
                                                                                                                                  Leaves Warehouse: Same Day
                                                                                                                                  $7.38
                                                                                                                                          Recommended Quantity: 1

                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                          Stock: TBD
                                                                                                                                          18
                                                                                                                                          Item # 1033988
                                                                                                                                          KTM / GasGas / Husqvarna O-Ring 23.00x2.00 NBR70 - 0770230020
                                                                                                                                          Leaves Warehouse: Same Day
                                                                                                                                          $2.89
                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                  Stock: TBD
                                                                                                                                                  19
                                                                                                                                                  Item # 1038734
                                                                                                                                                  KTM / GasGas / Husqvarna Spacer Bushing 12.4 mm - 50433030000
                                                                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                                                                  $29.42
                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                          Stock: TBD
                                                                                                                                                          20
                                                                                                                                                          MPN/SKU: A46033029013
                                                                                                                                                          Front sprocket 13áteeth
                                                                                                                                                          Unavailable
                                                                                                                                                          $36.40
                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                  Stock: TBD
                                                                                                                                                                  21
                                                                                                                                                                  Item # 1080604
                                                                                                                                                                  KTM / GasGas / Husqvarna Screw 10.9+SPRING Washer - 59033034044
                                                                                                                                                                  Leaves Warehouse: Same Day
                                                                                                                                                                  $11.08
                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                          Stock: TBD
                                                                                                                                                                          22
                                                                                                                                                                          Item # 1080604
                                                                                                                                                                          KTM / GasGas / Husqvarna Screw 10.9+SPRING Washer - 59033034044
                                                                                                                                                                          Leaves Warehouse: Same Day
                                                                                                                                                                          $11.08
                                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                  Stock: TBD
