2022 KTM 1290 Superduke Engine - 2022 OEM Parts | Assembly Diagrams Lookup OEM Parts Finder and Diagram (Microfiche) Inspector

KTM Choose an assembly...

Assemblies List (20)

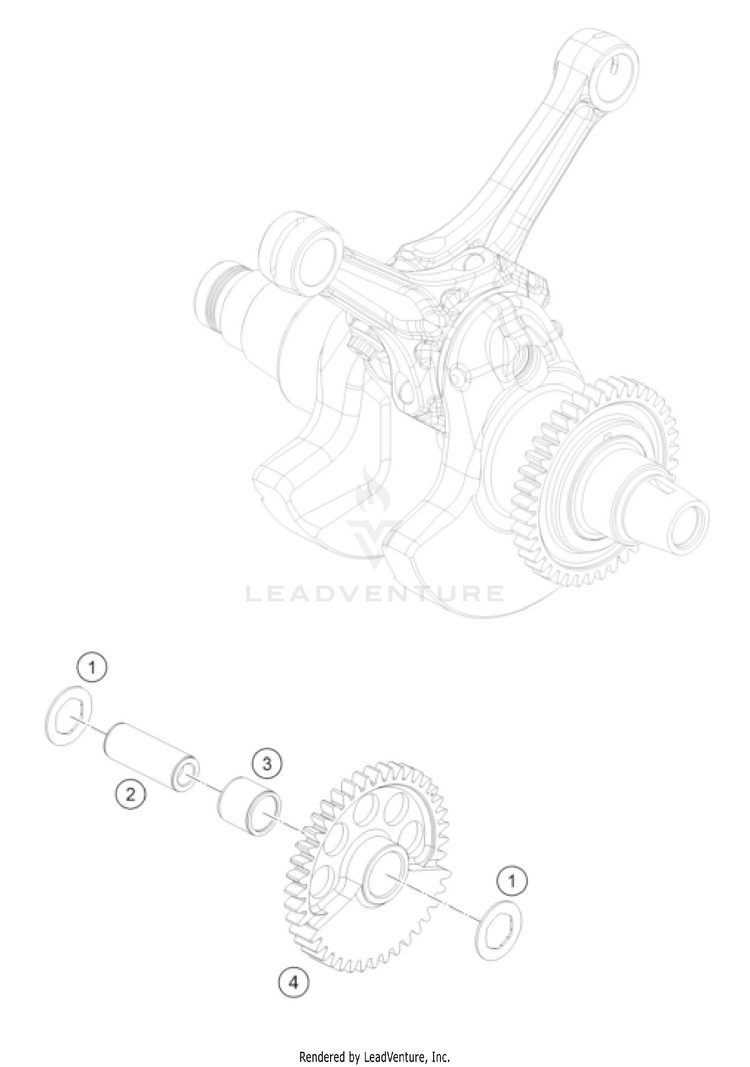

BALANCER SHAFT

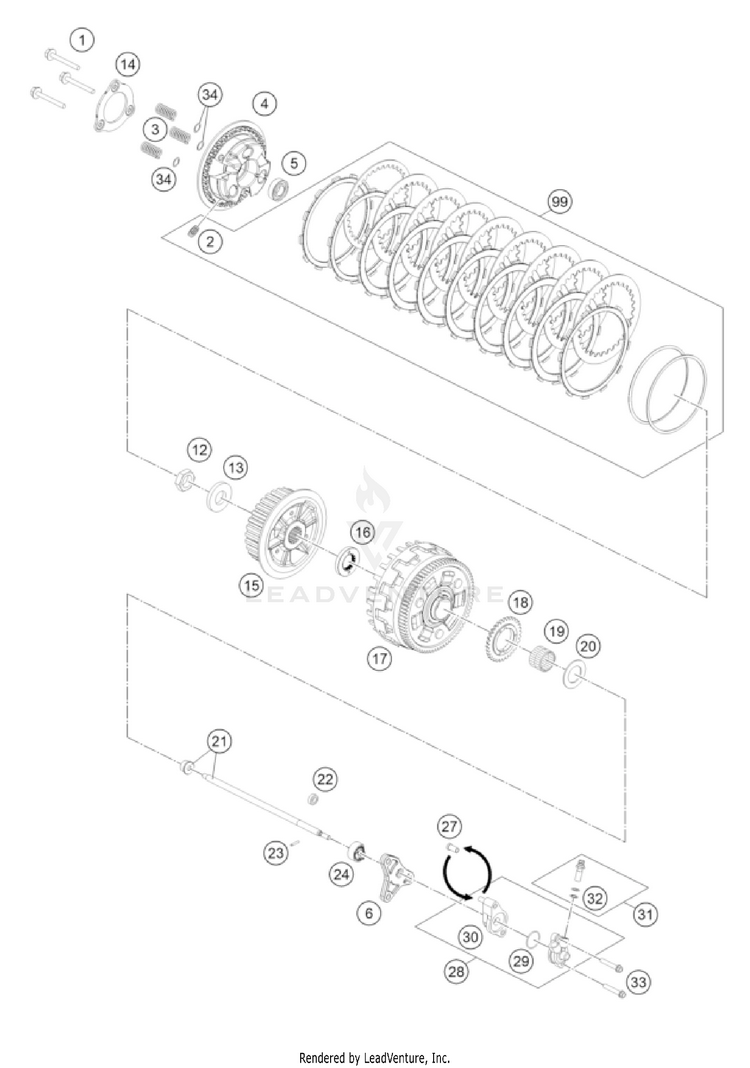

CLUTCH
CLUTCH COVER

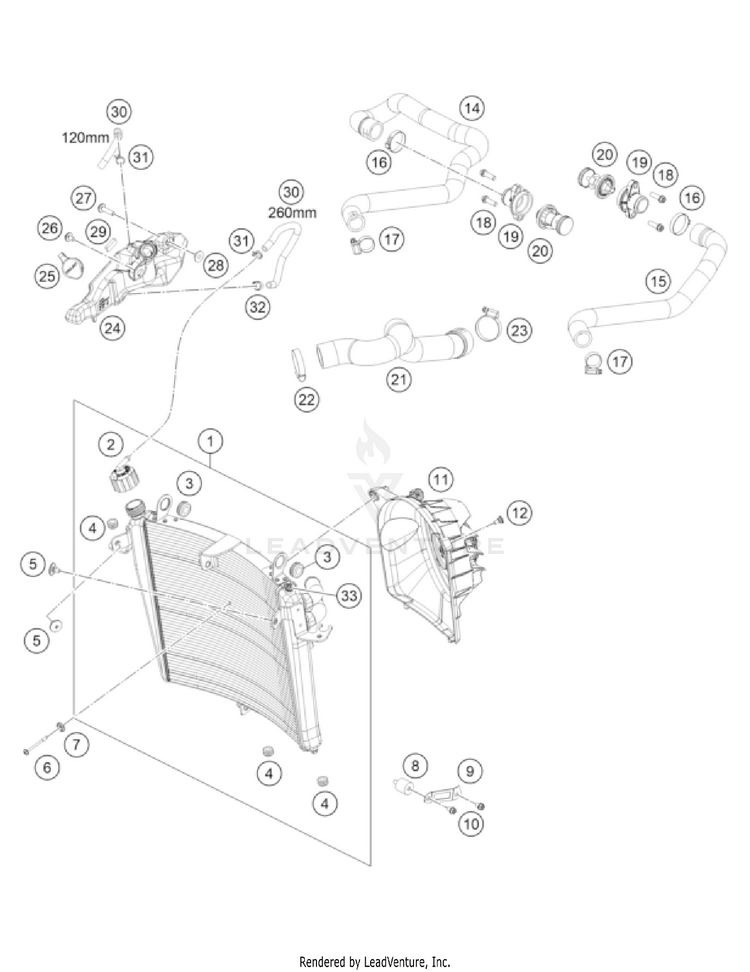

COOLING SYSTEM

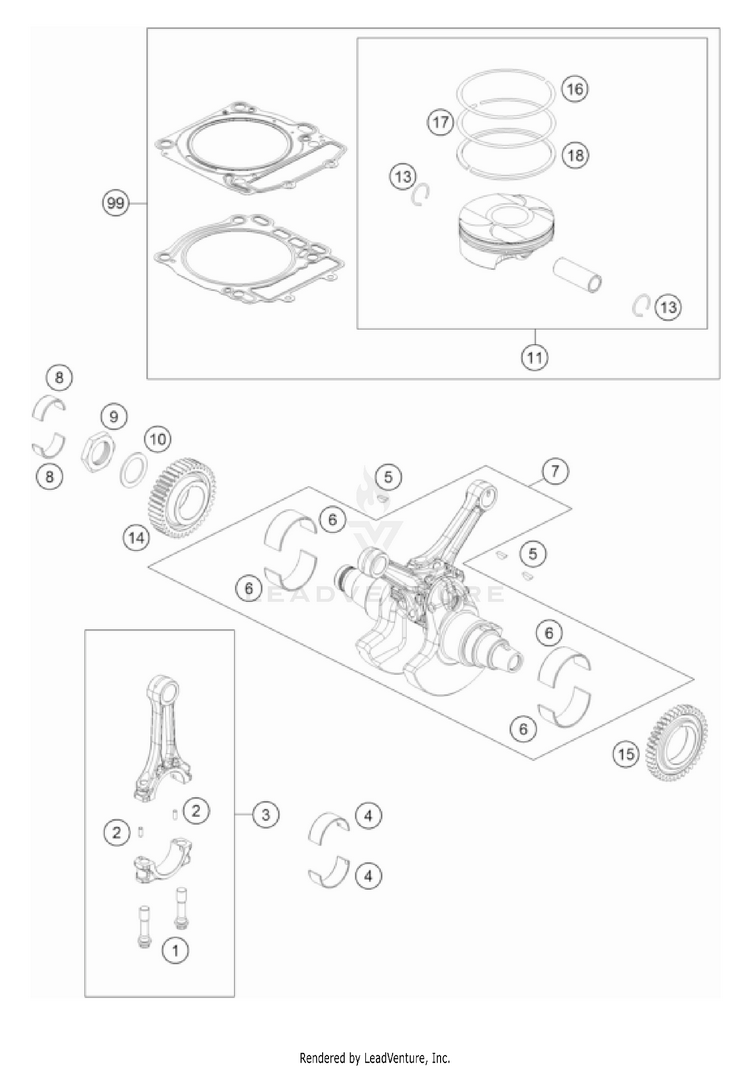

CRANKSHAFT, PISTON

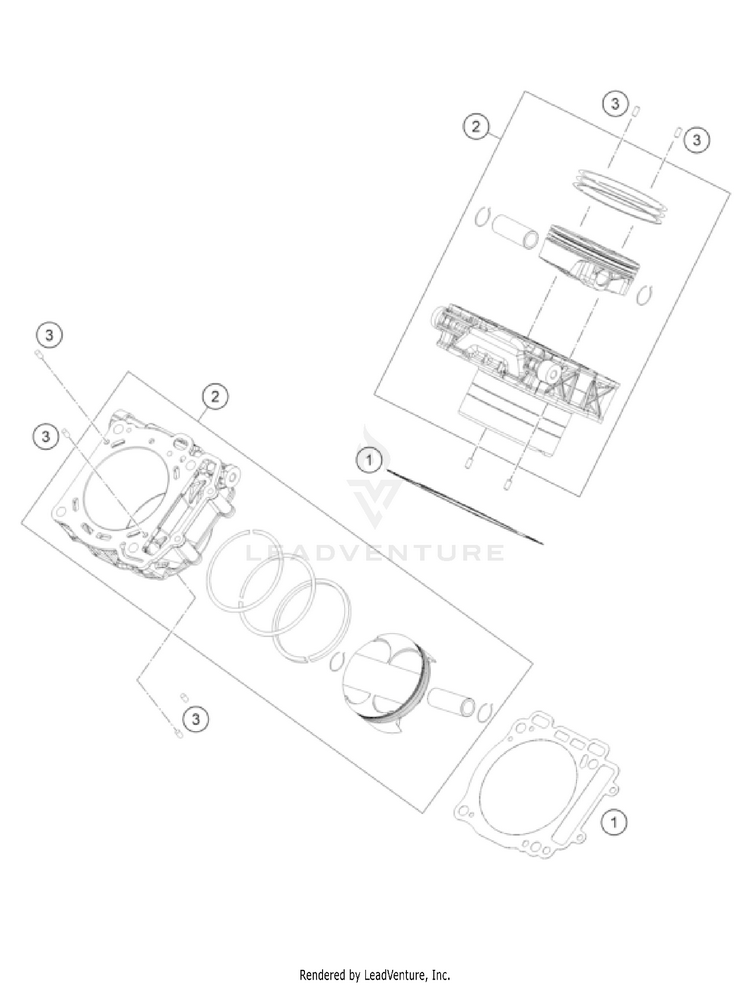

CYLINDER

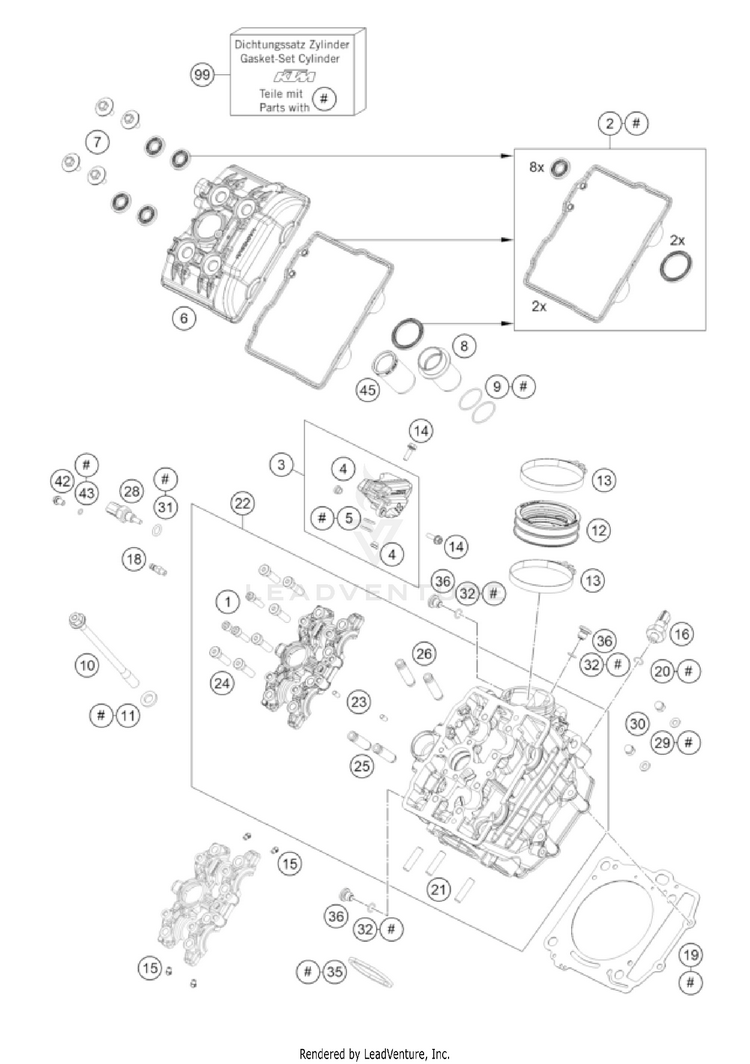

CYLINDER HEAD FRONT

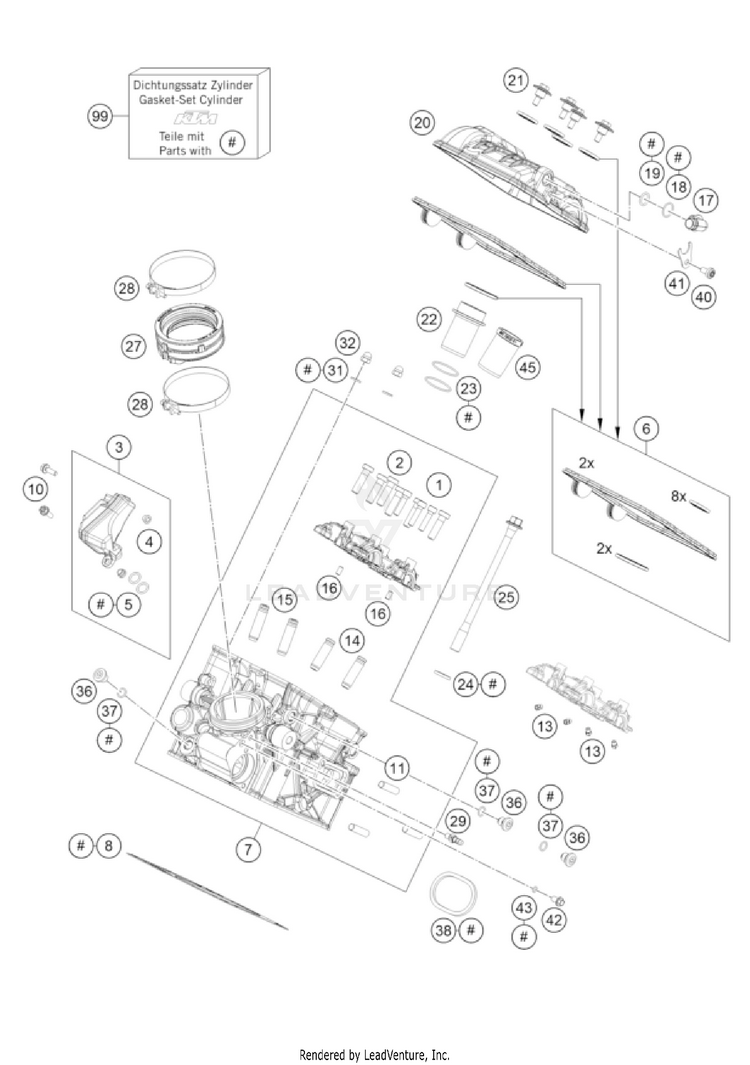

CYLINDER HEAD REAR

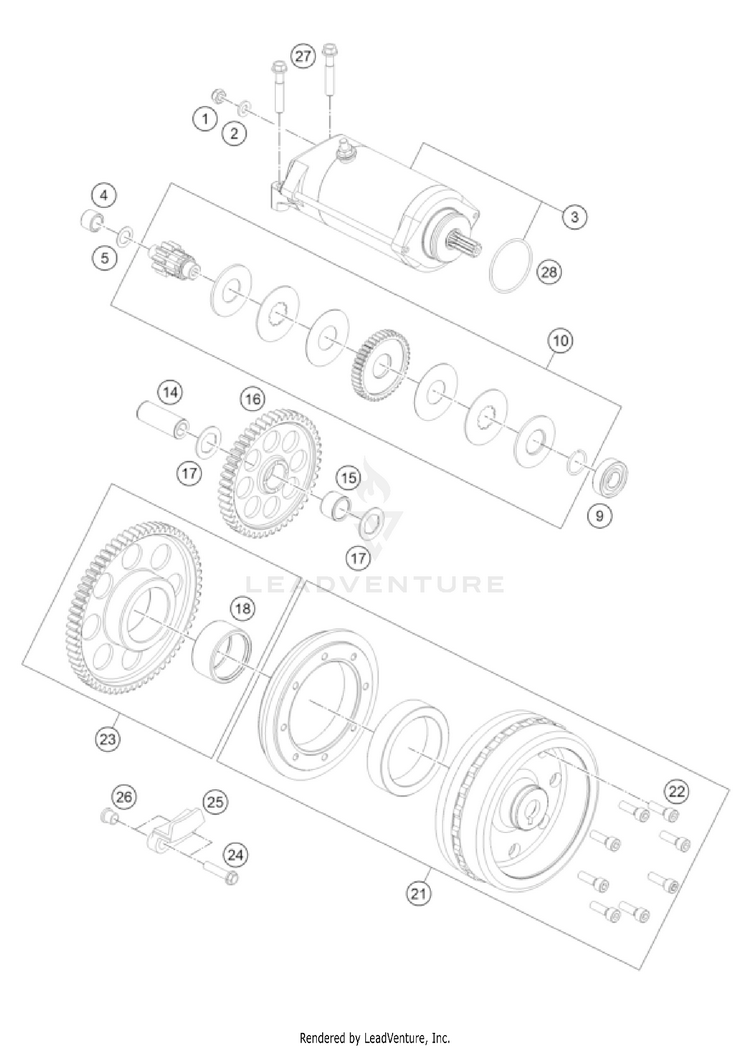

ELECTRIC STARTER

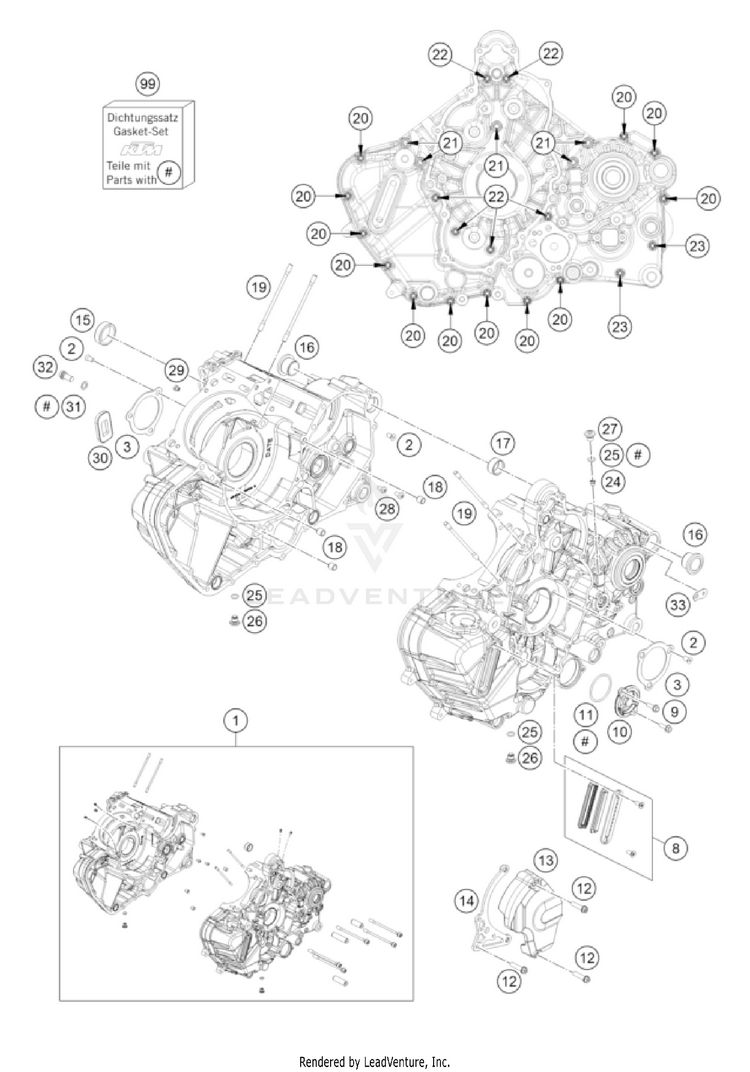

ENGINE CASE

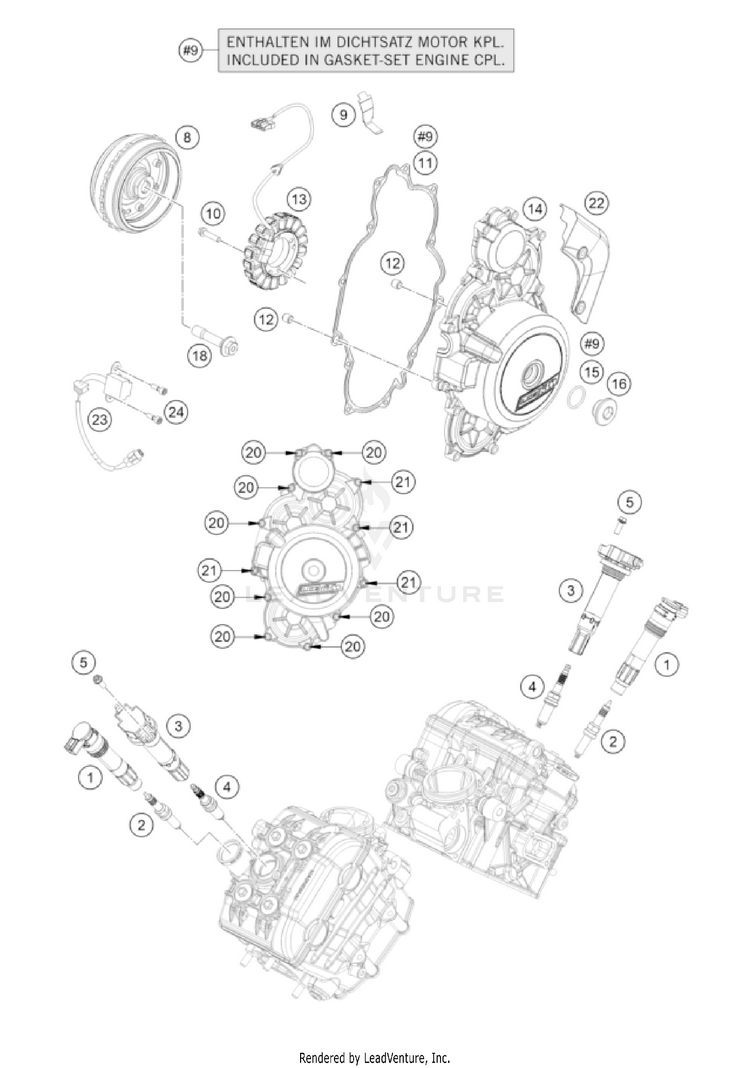

IGNITION SYSTEM

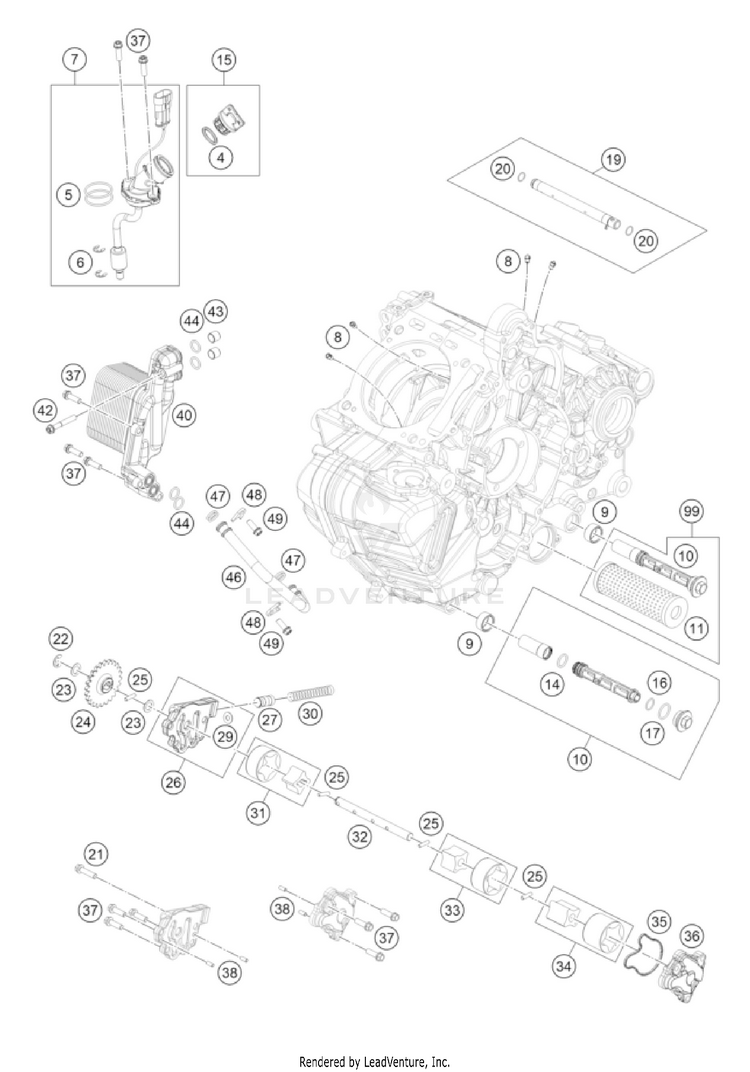

LUBRICATING SYSTEM

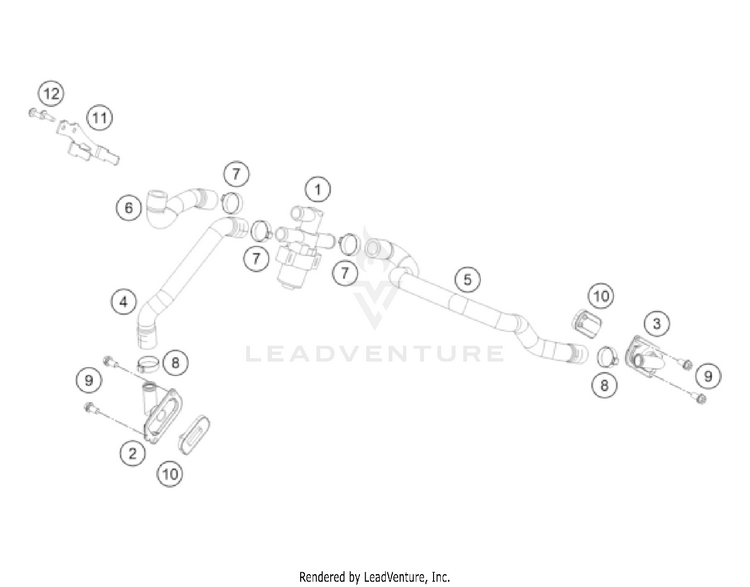

SECONDARY AIR SYSTEM SAS

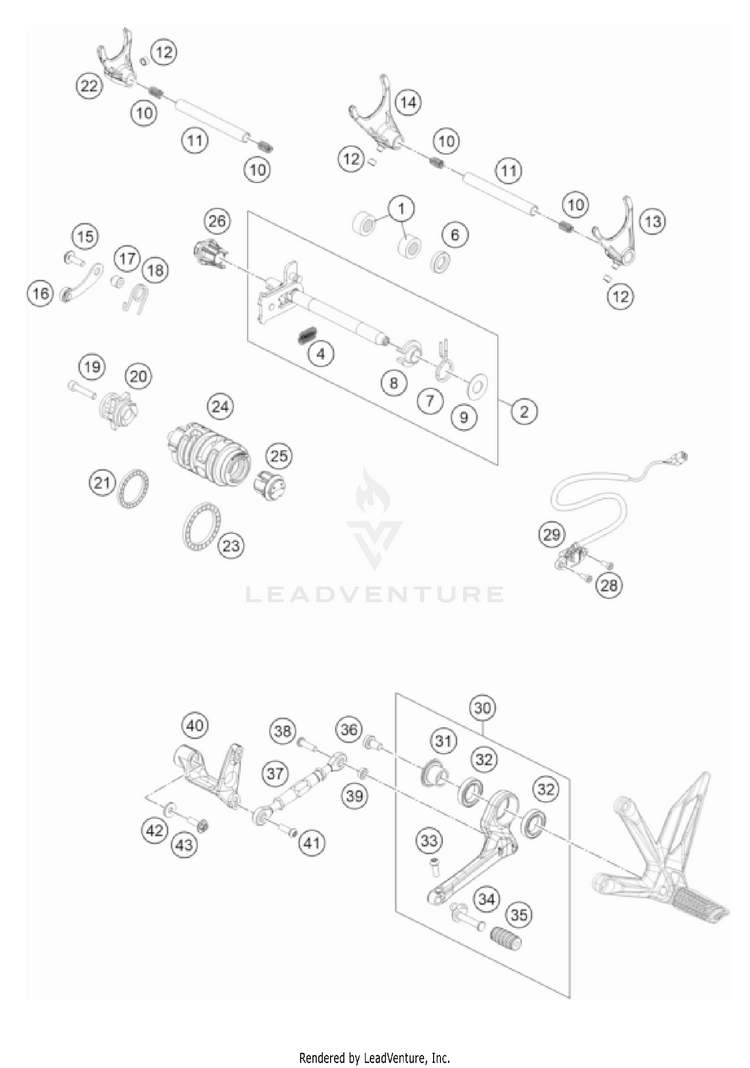

SHIFTING MECHANISM

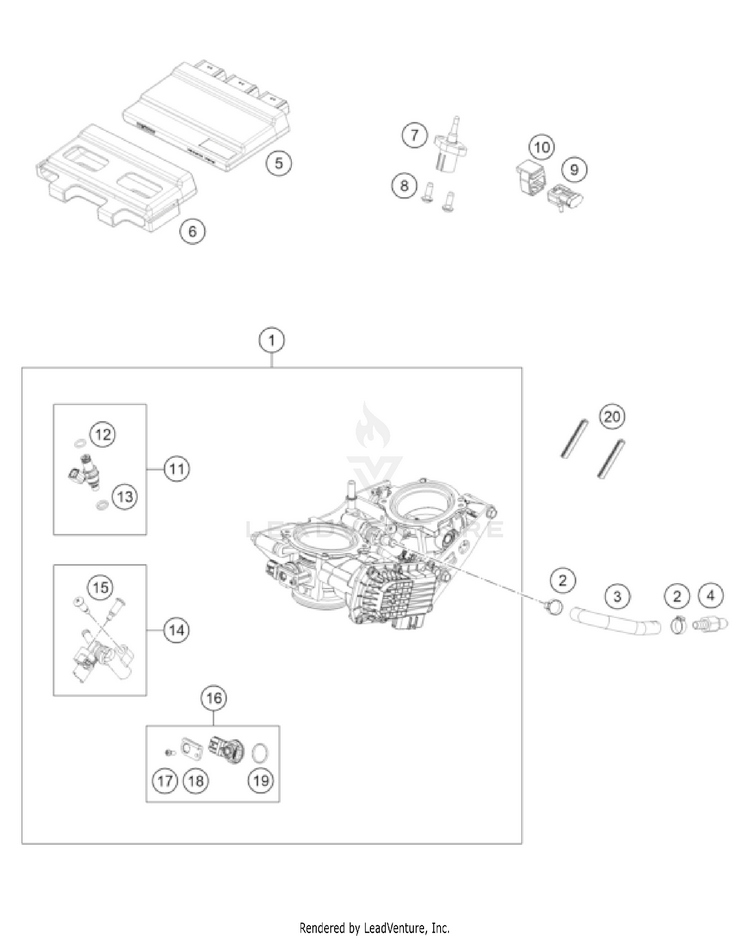

THROTTLE BODY

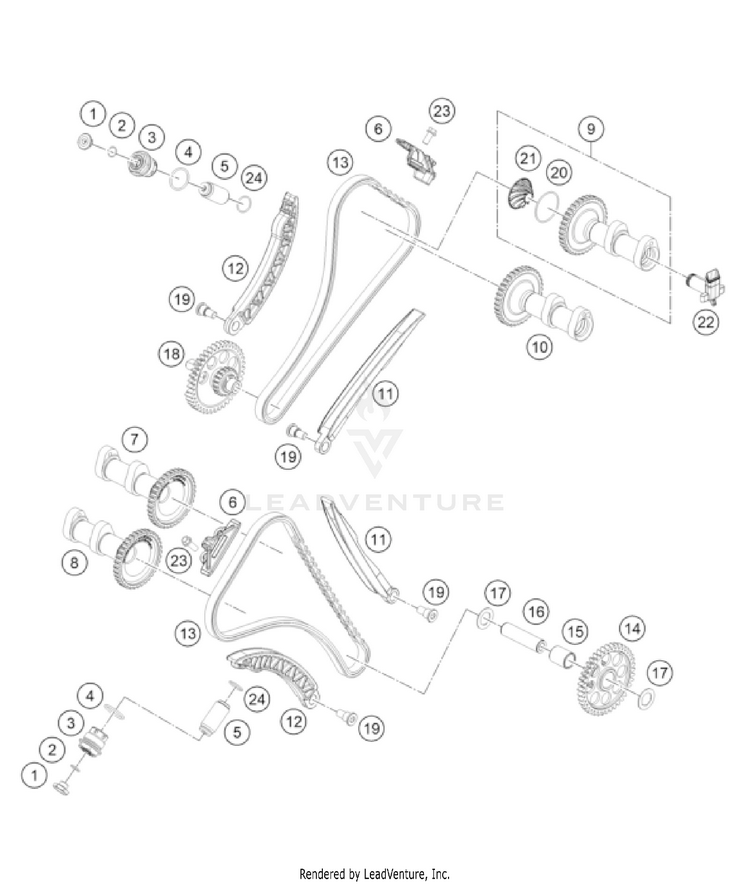

TIMING DRIVE

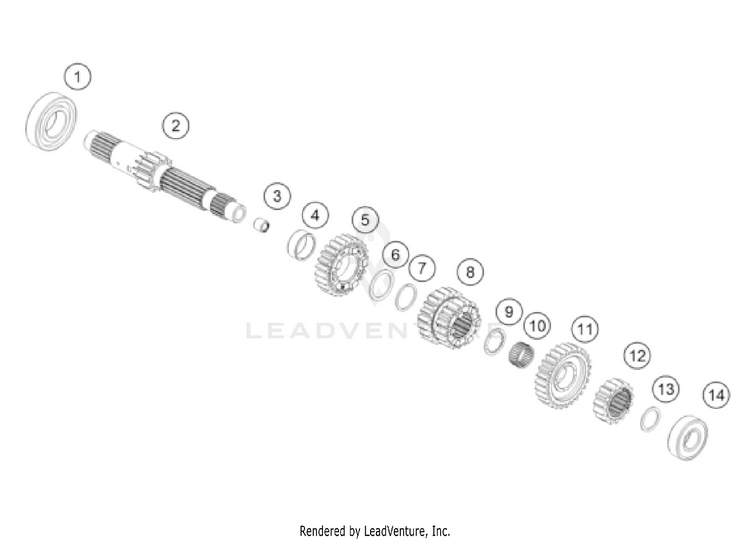

TRANSMISSION I - MAIN SHAFT
TRANSMISSION II - COUNTERSHAFT

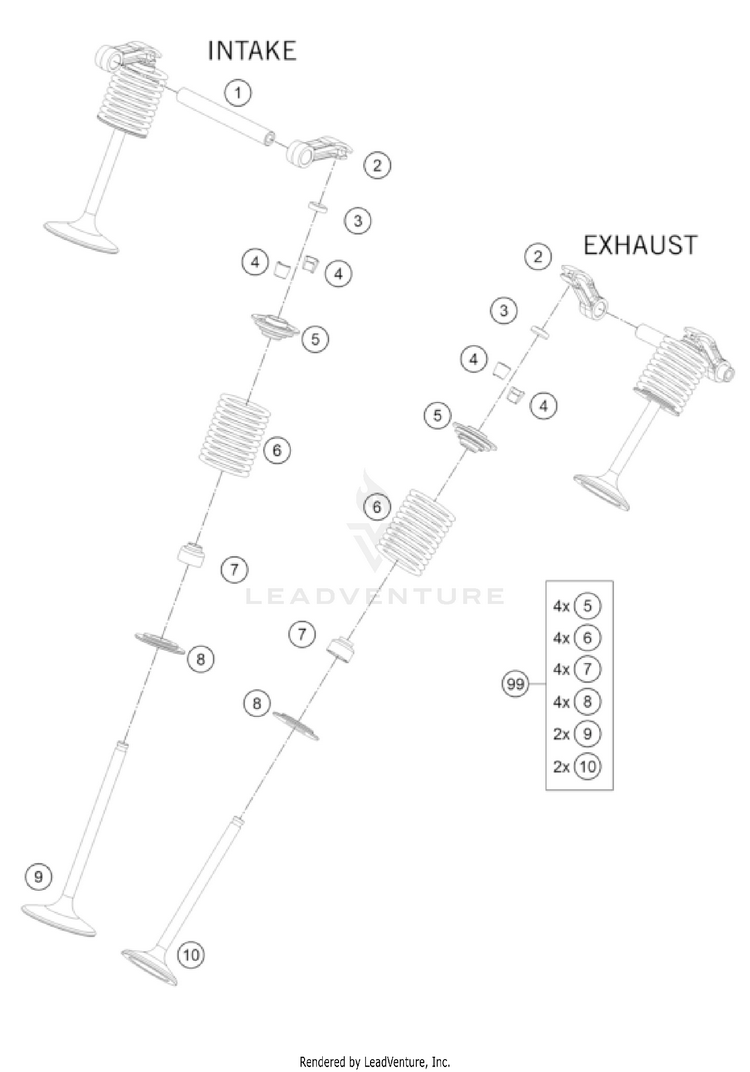

VALVE DRIVE

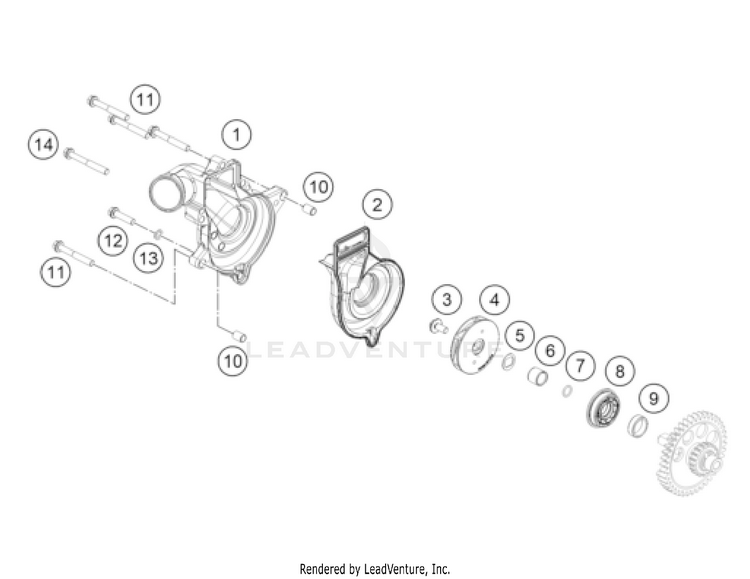

WATER PUMP

B

BALANCER SHAFT

C

CLUTCH
CLUTCH COVER
COOLING SYSTEM
CRANKSHAFT, PISTON
CYLINDER
CYLINDER HEAD FRONT
CYLINDER HEAD REAR

E

ELECTRIC STARTER
ENGINE CASE

I

IGNITION SYSTEM

L

LUBRICATING SYSTEM

S

SECONDARY AIR SYSTEM SAS
SHIFTING MECHANISM

T

THROTTLE BODY
TIMING DRIVE

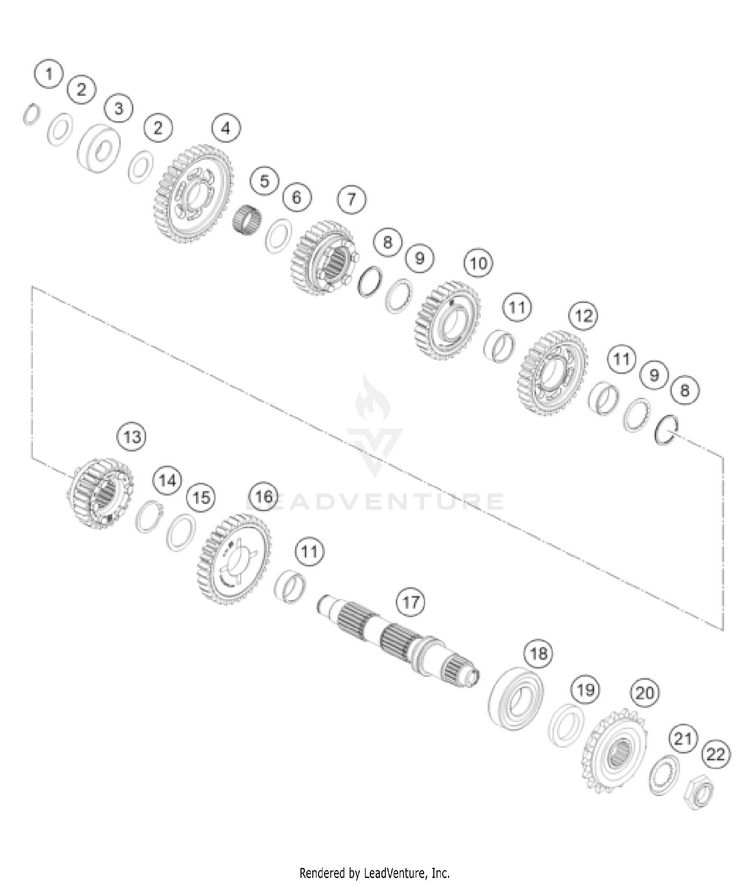

TRANSMISSION I - MAIN SHAFT
