2019 KTM 250 XC-W TPI ENGINE - 2019 OEM Parts | Assembly Diagrams Lookup OEM Parts Finder and Diagram (Microfiche) Inspector

KTM Choose an assembly...

Assemblies List (18)

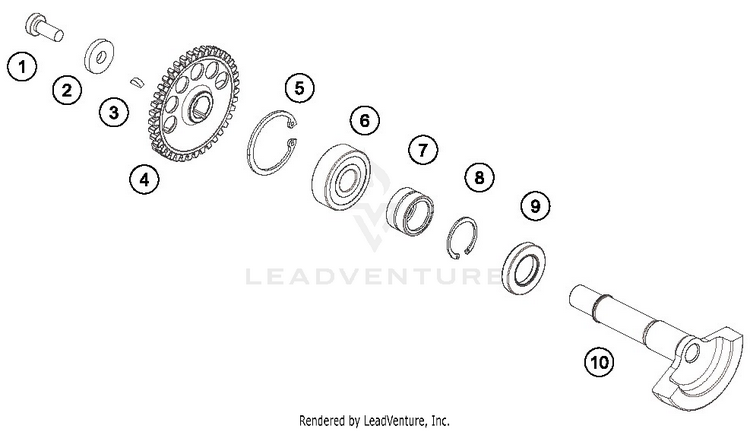

BALANCER SHAFT

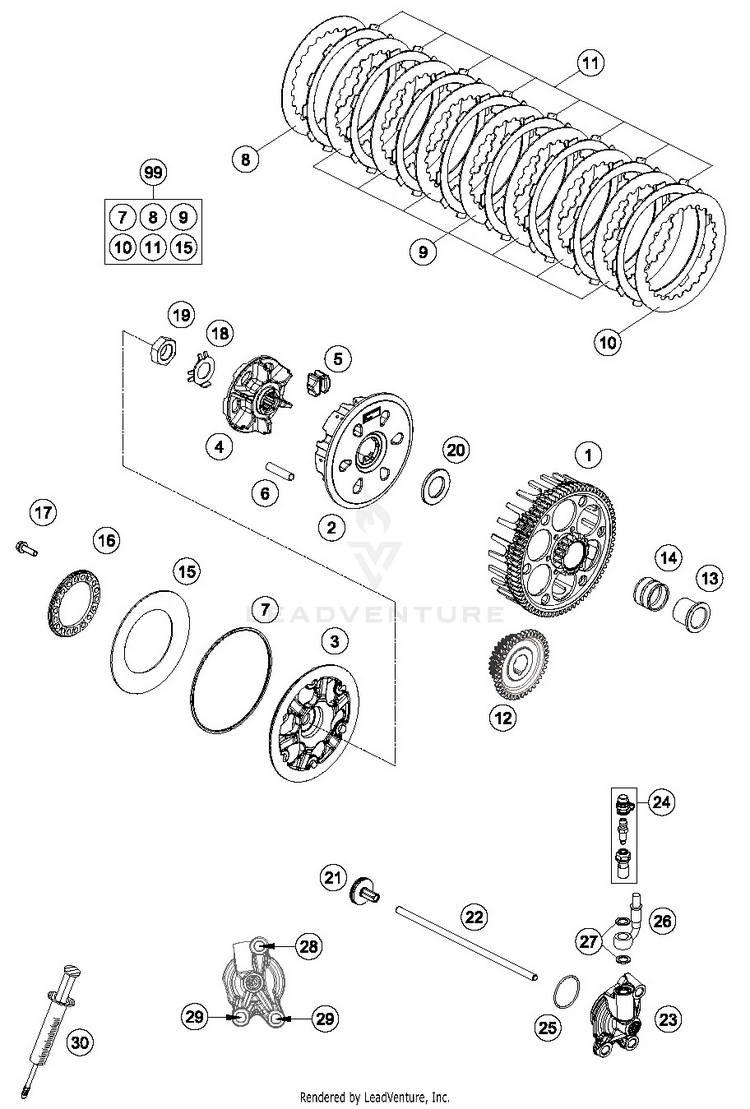

CLUTCH

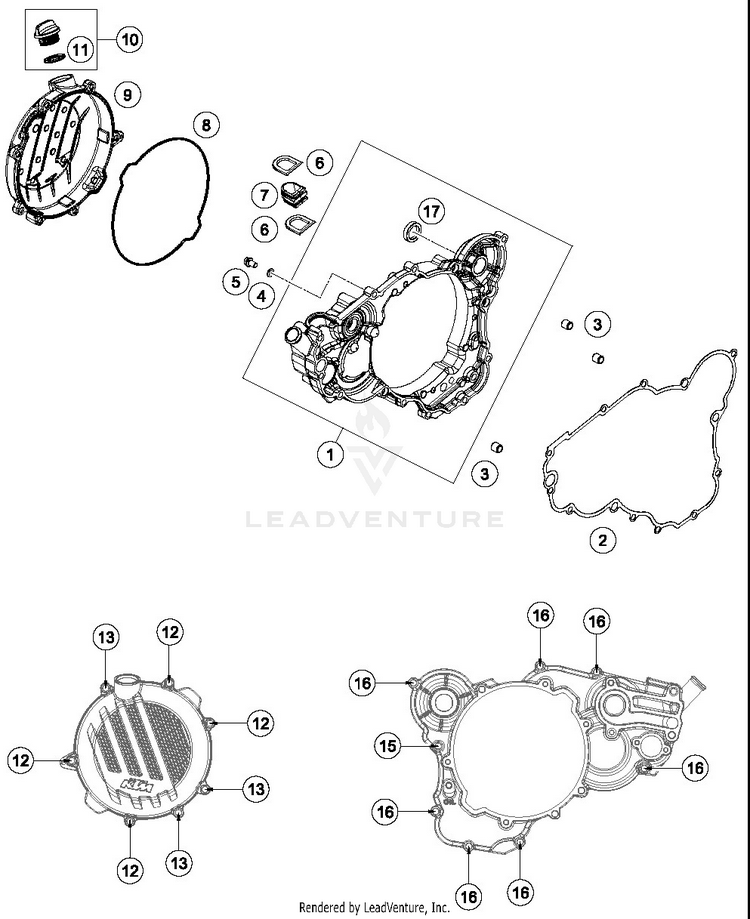

CLUTCH COVER
COOLING SYSTEM

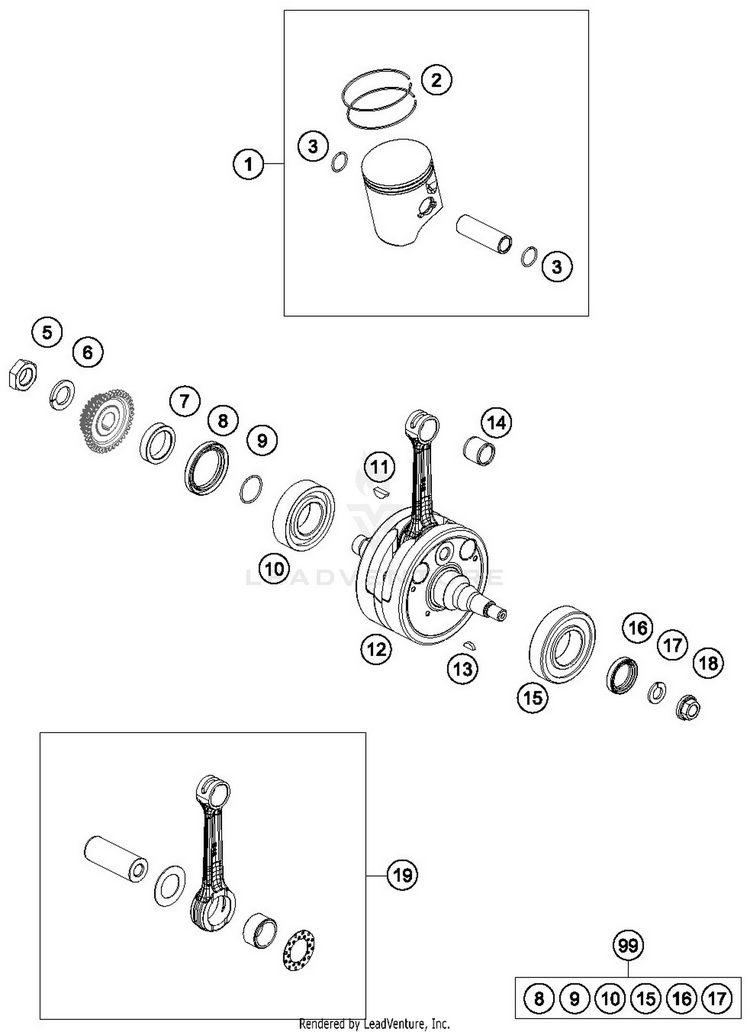

CRANKSHAFT, PISTON

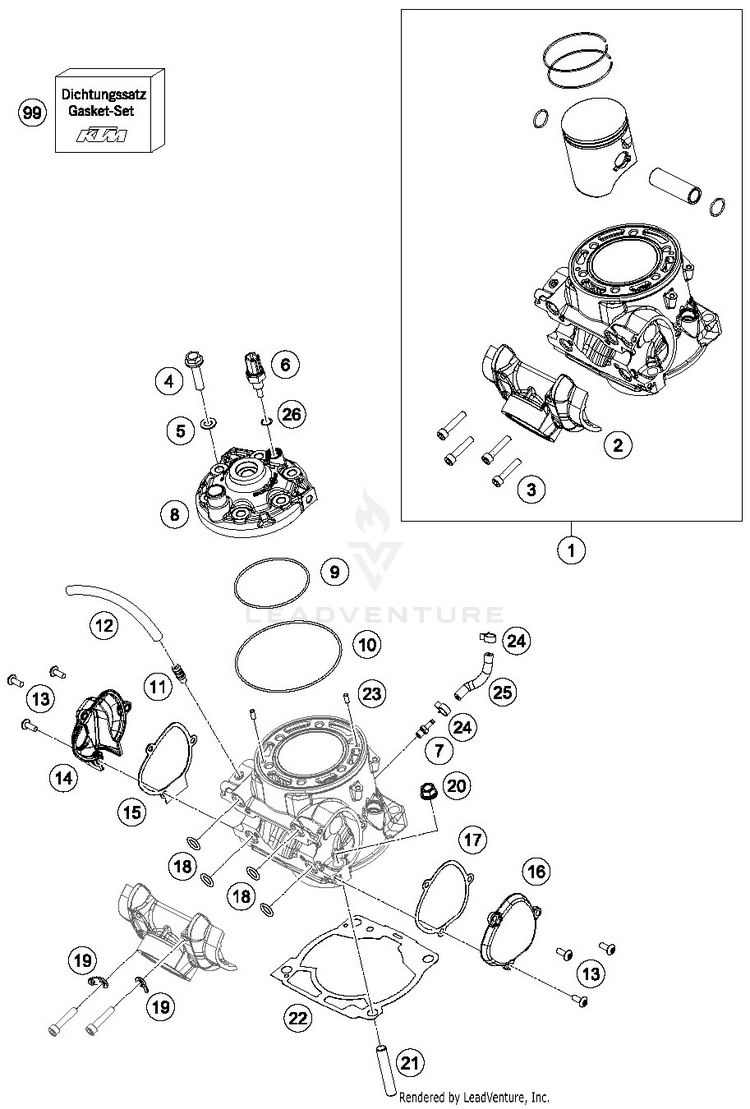

CYLINDER, CYLINDER HEAD

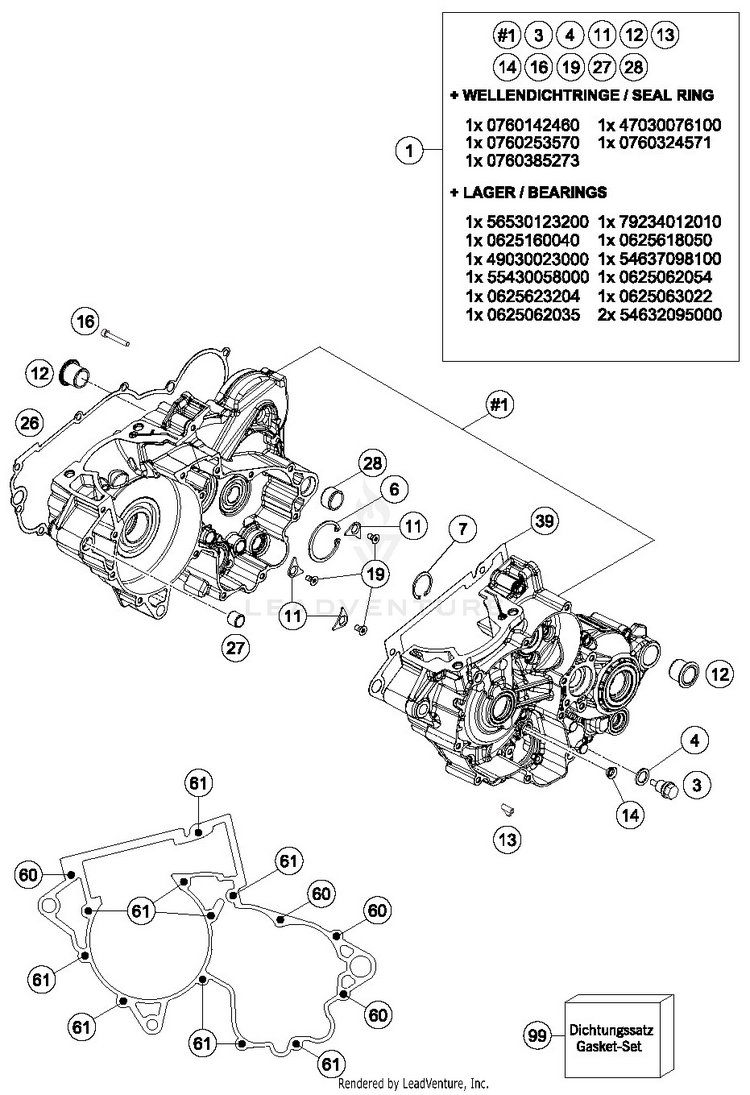

ENGINE CASE
EXHAUST CONTROL

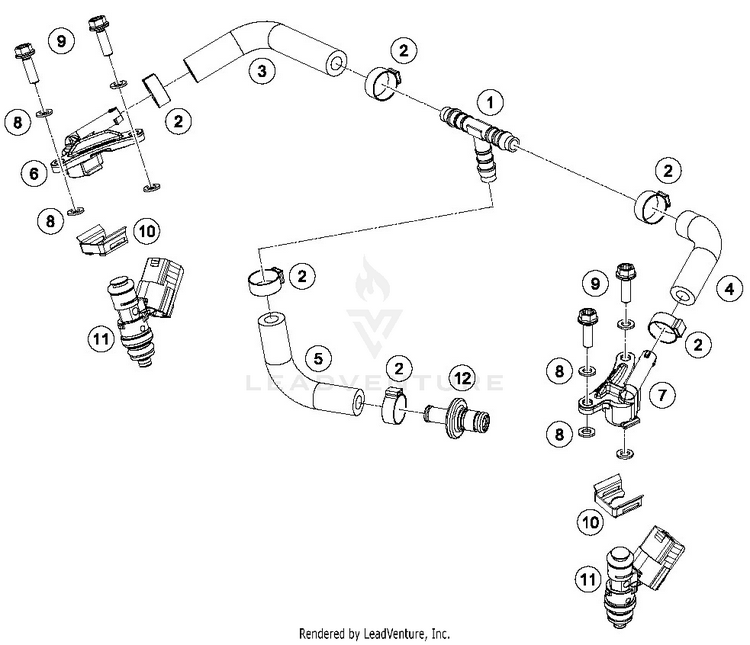

FUEL DISTRIBUTOR

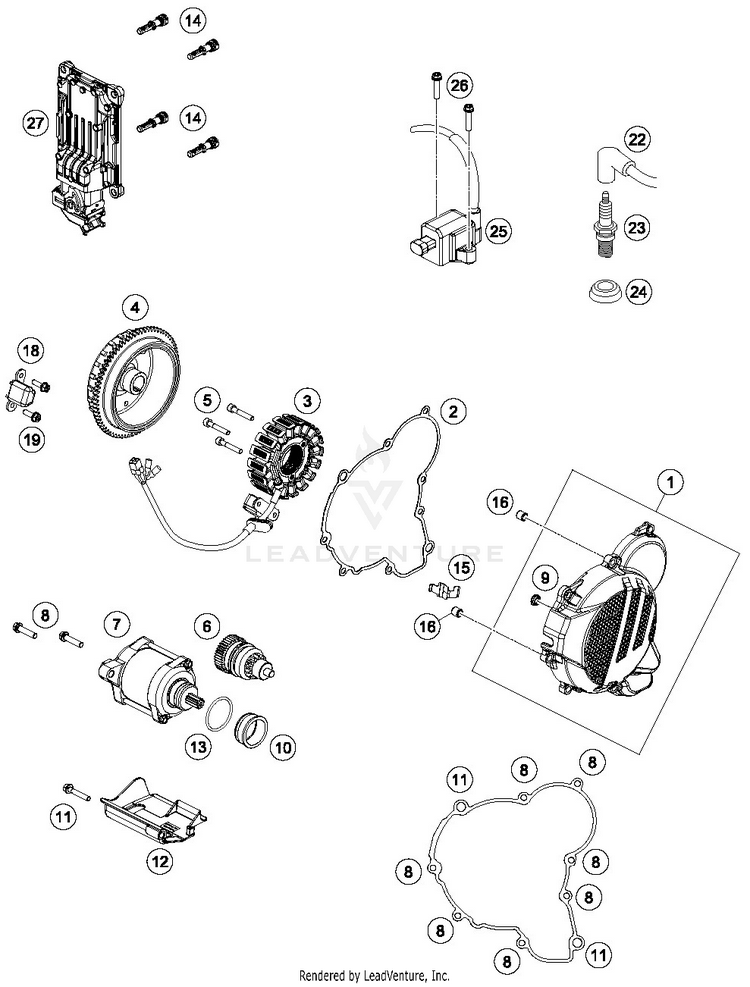

IGNITION SYSTEM

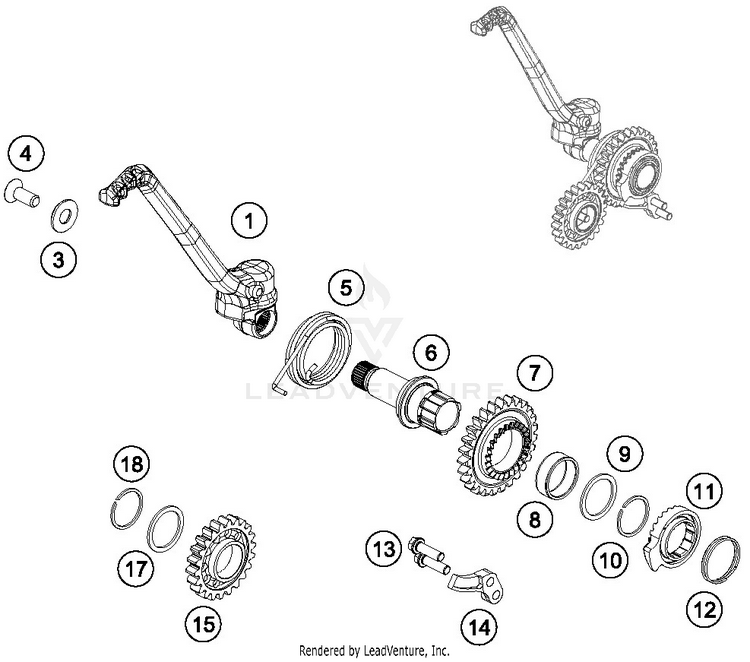

KICK STARTER

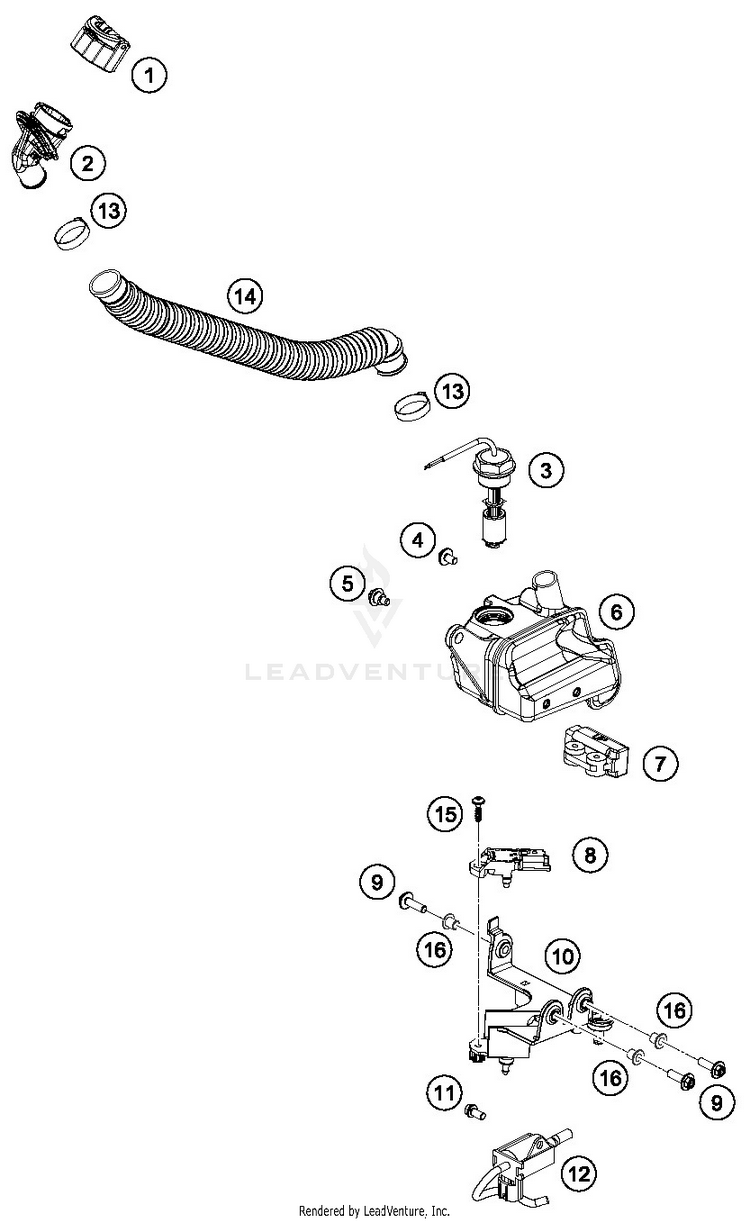

LUBRICATING SYSTEM
REED VALVE CASE

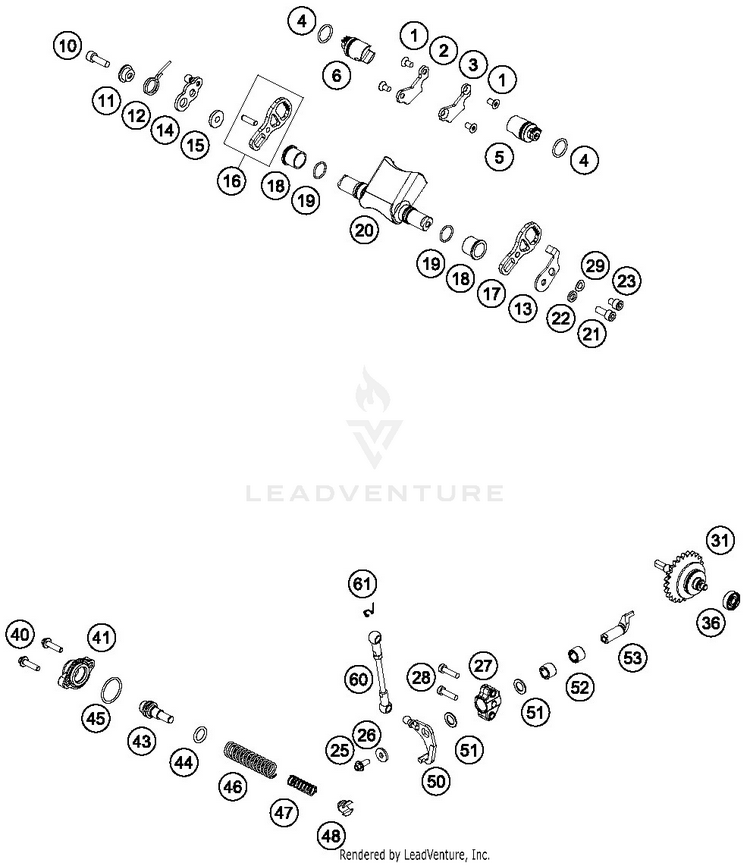

SHIFTING MECHANISM

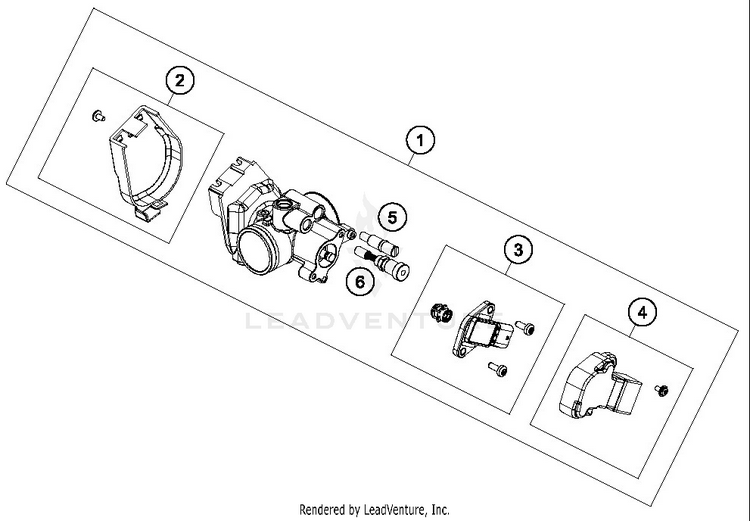

THROTTLE BODY

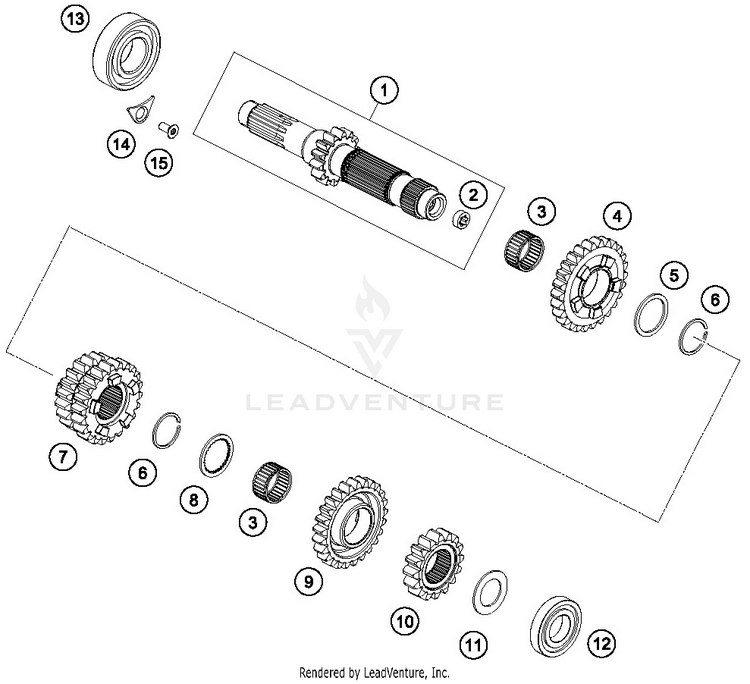

TRANSMISSION I - MAIN SHAFT

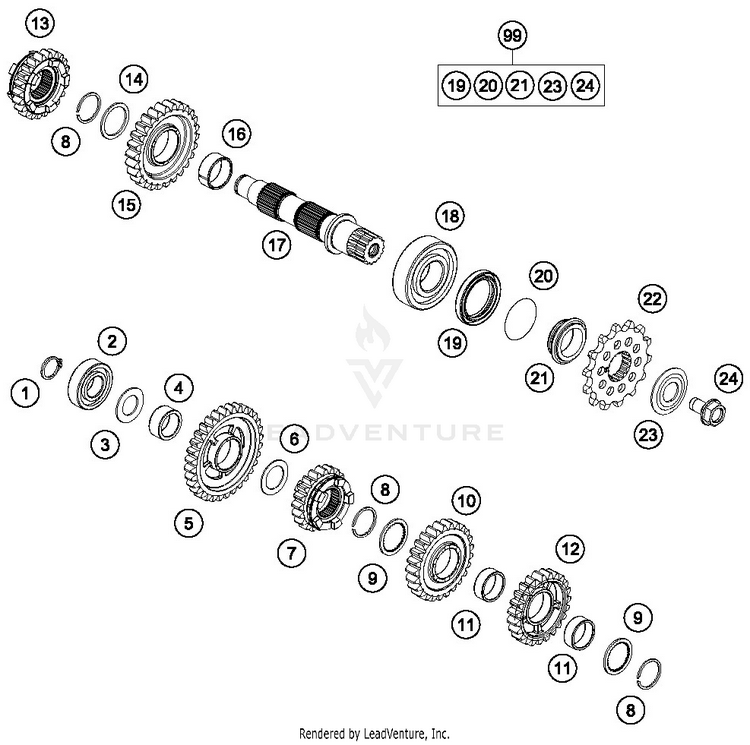

TRANSMISSION II - COUNTERSHAFT

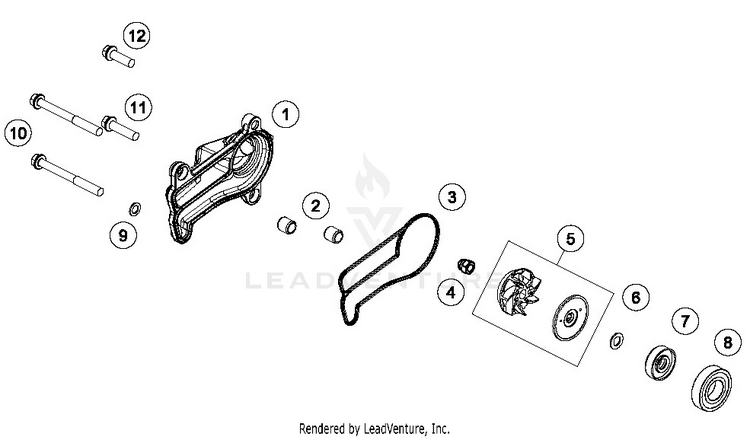

WATER PUMP

B

BALANCER SHAFT

C

CLUTCH
CLUTCH COVER
COOLING SYSTEM
CRANKSHAFT, PISTON
CYLINDER, CYLINDER HEAD

E

ENGINE CASE
EXHAUST CONTROL

F

FUEL DISTRIBUTOR

I

IGNITION SYSTEM

K

KICK STARTER

L

LUBRICATING SYSTEM

R

REED VALVE CASE

S

SHIFTING MECHANISM

T

THROTTLE BODY
TRANSMISSION I - MAIN SHAFT
TRANSMISSION II - COUNTERSHAFT

W

WATER PUMP
