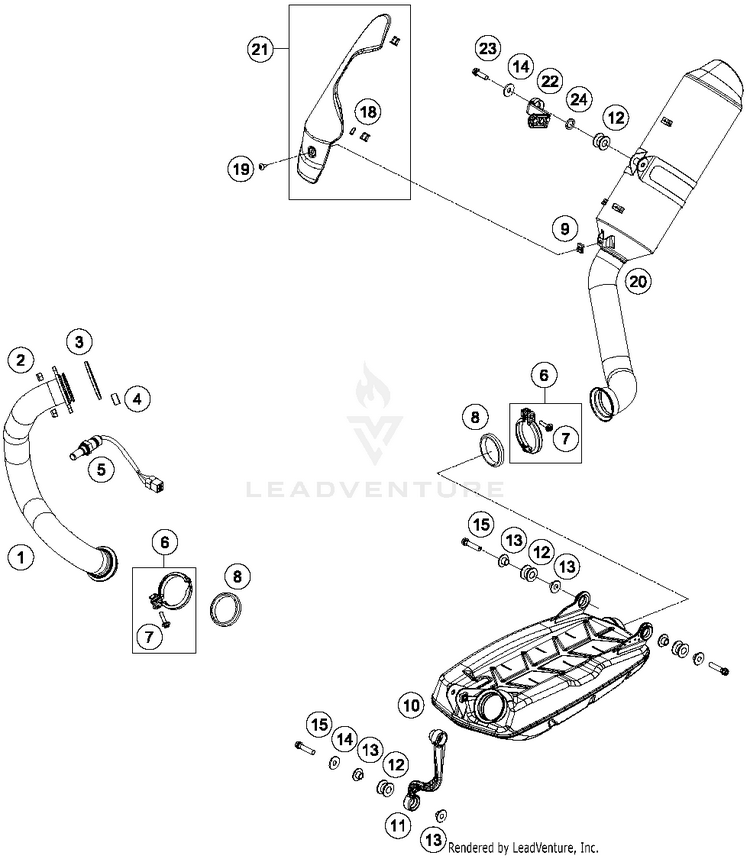

2015 KTM 690 DUKE BLACK Chassis - 2015 Exhaust System OEM Parts | Assembly Diagram OEM Parts Finder and Diagram (Microfiche) Inspector

KTM Choose parts...

Use scroll wheel, or pinch and drag to and .

1
Item # 1045137
KTM Exhaust Manifold - 76005007000
Leaves Warehouse: 2 to 3 days
$434.80
          Recommended Quantity: 1

          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

          Stock: TBD
          2
          Item # 1038941
          KTM / GasGas / Husqvarna Self-Locking Nut M8 Cu - 51010086100
          Leaves Warehouse: Same Day
          $4.34
                  Recommended Quantity: 2

                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                  Stock: TBD
                  3
                  Item # 1039787
                  KTM / GasGas / Husqvarna Exhaust Gasket 05 - 61005005000
                  Out of Stock
                  $14.11
                          Recommended Quantity: 1

                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                          Stock: TBD
                          4
                          Item # 1039789
                          KTM / GasGas / Husqvarna Spacer Bushing 8.5x15x7.5 05 - 61005009000
                          Leaves Warehouse: 2 to 3 days
                          $7.38
                                  Recommended Quantity: 1

                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                  Stock: TBD
                                  5
                                  Item # 1044996
                                  KTM / GasGas / Husqvarna Lambda Sensor - 75041090100
                                  Leaves Warehouse: 2 to 3 days
                                  $241.68
                                          Recommended Quantity: 1

                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                          Stock: TBD
                                          6
                                          Item # 1043757
                                          KTM / Husqvarna Clamp Complete - 69005050000
                                          Leaves Warehouse: 2 to 3 days
                                          $34.70
                                                  Recommended Quantity: 2

                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                  Stock: TBD
                                                  7
                                                  Item # 1033128
                                                  KTM / GasGas / Husqvarna HH Collar Screw M6X25 TX30 - 0024060256
                                                  Leaves Warehouse: 2 to 3 days
                                                  $4.34
                                                          Recommended Quantity: 2

                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                          Stock: TBD
                                                          8
                                                          Item # 1043747
                                                          KTM / GasGas / Husqvarna Manifold Gasket - 69005005005
                                                          Leaves Warehouse: 2 to 3 days
                                                          $23.75
                                                                  Recommended Quantity: 2

                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                  Stock: TBD
                                                                  10
                                                                  Item # 1045144
                                                                  KTM PRE-Silencer - 76005050100
                                                                  Out of Stock
                                                                  $896.38
                                                                          Recommended Quantity: 1

                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                          Stock: TBD
                                                                          11
                                                                          Item # 1045042
                                                                          KTM / Husqvarna Bracket for Silencer - 7560501410001
                                                                          Out of Stock
                                                                          $74.30
                                                                                  Recommended Quantity: 1

                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                  Stock: TBD
                                                                                  12
                                                                                  Item # 1039275
                                                                                  KTM / GasGas / Husqvarna Damp. Component Silicone Grey - 54305068100
                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                  $11.74
                                                                                          Recommended Quantity: 4

                                                                                          This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                          Stock: TBD
                                                                                          13
                                                                                          Item # 1080078
                                                                                          KTM / GasGas / Husqvarna Collar Bushing 8.5x12x23.5x10 - 58405050065
                                                                                          Leaves Warehouse: Same Day
                                                                                          $7.38
                                                                                                  Recommended Quantity: 6

                                                                                                  This part has 6 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                  Stock: TBD
                                                                                                  14
                                                                                                  Item # 1033114
                                                                                                  KTM / GasGas / Husqvarna Washer DIN9021-A 8.4 - 0021080003
                                                                                                  Leaves Warehouse: Same Day
                                                                                                  $1.67
                                                                                                          Recommended Quantity: 2

                                                                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                          Stock: TBD
                                                                                                          15
                                                                                                          Item # 1033190
                                                                                                          KTM / GasGas / Husqvarna HH Collar Screw M8X35 TX40 - 0025080356S
                                                                                                          Leaves Warehouse: Same Day
                                                                                                          $4.34
                                                                                                                  Recommended Quantity: 3

                                                                                                                  This part has 3 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                  Stock: TBD
                                                                                                                  18
                                                                                                                  Item # 1039800
                                                                                                                  KTM Damp. Compon. Silicone Grey 05 - 61005091000
                                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                                  $11.74
                                                                                                                          Recommended Quantity: 3

                                                                                                                          This part has 3 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                          Stock: TBD
                                                                                                                          19
                                                                                                                          Item # 1048182
                                                                                                                          KTM / GasGas / Husqvarna Screw Torx M5X10 - 78105081010
                                                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                                                          $2.89
                                                                                                                                  Recommended Quantity: 1

                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                  Stock: TBD
                                                                                                                                  20
                                                                                                                                  Item # 1045146
                                                                                                                                  KTM Silencer USA - 76005082000
                                                                                                                                  Out of Stock
                                                                                                                                  $874.04
                                                                                                                                          Recommended Quantity: 1

                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                          Stock: TBD
                                                                                                                                          21
                                                                                                                                          Item # 1045139
                                                                                                                                          KTM Heat Shield Complete - 76005011000
                                                                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                                                                          $159.31
                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                  Stock: TBD
                                                                                                                                                  22
                                                                                                                                                  Item # 1045147
                                                                                                                                                  KTM Bracket for Silencer - 7600508400001S
                                                                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                                                                  $79.85
                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                          Stock: TBD
                                                                                                                                                          23
                                                                                                                                                          Item # 1033220
                                                                                                                                                          KTM / GasGas / Husqvarna AH-Collar Screw M8X25 ISA45 - 0035080256
                                                                                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                                                                                          $5.80
                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                  Stock: TBD
                                                                                                                                                                  24
                                                                                                                                                                  Item # 1045148
                                                                                                                                                                  KTM Shim 12X8.5X1.5 mm - 76005085000
                                                                                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                                                                                  $7.38
                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                          Stock: TBD
