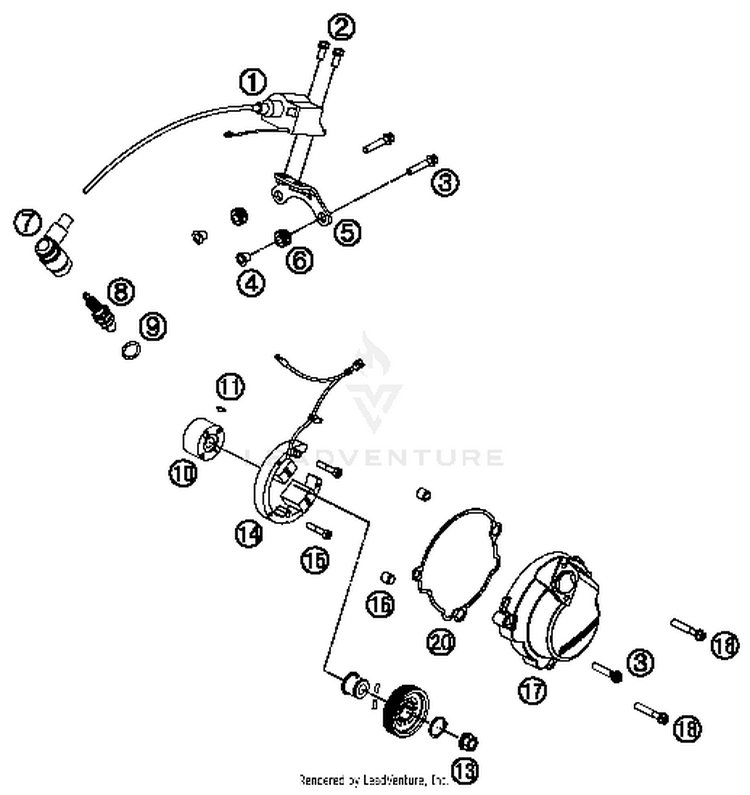

2015 KTM 50 SX MINI Engine - 2015 Ignition System OEM Parts | Assembly Diagram OEM Parts Finder and Diagram (Microfiche) Inspector

KTM Choose parts...

Use scroll wheel, or pinch and drag to and .

1
Item # 1035755
KTM / GasGas / Husqvarna Ignition Coil 50CCM LC 2001 - 45139006000
Leaves Warehouse: 2 to 3 days
$191.65
          Recommended Quantity: 1

          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

          Stock: TBD
          2
          Item # 1033147
          KTM / GasGas / Husqvarna HH Collar Screw M6X12 TX30 - 0025060126
          Leaves Warehouse: Same Day
          $4.34
                  Recommended Quantity: 2

                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                  Stock: TBD
                  3
                  Item # 1033157
                  KTM / GasGas / Husqvarna HH Collar Screw M6X30 TX30 - 0025060306
                  Leaves Warehouse: Same Day
                  $4.34
                          Recommended Quantity: 3

                          This part has 3 locations on the diagram. It is the recommended quantity, but not a requirement.

                          Stock: TBD
                          4
                          Item # 1035955
                          KTM / GasGas / Husqvarna Collar Bushing 6.3x8X13x9.5 - 45239060050
                          Leaves Warehouse: 2 to 3 days
                          $7.38
                                  Recommended Quantity: 2

                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                  Stock: TBD
                                  5
                                  Item # 1035952
                                  KTM / GasGas / Husqvarna Ignition Coil Retainer Plate Complete - 45239010000
                                  Out of Stock
                                  $28.50
                                          Recommended Quantity: 1

                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                          Stock: TBD
                                          6
                                          Item # 1034854
                                          KTM / GasGas / Husqvarna Rubber Grommet D=8 mm Open - 31008060000
                                          Leaves Warehouse: 2 to 3 days
                                          $2.89
                                                  Recommended Quantity: 2

                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                  Stock: TBD
                                                  7
                                                  Item # 1078119
                                                  KTM / GasGas / Husqvarna Spark Plug Connector - 46239190000
                                                  Leaves Warehouse: 2 to 3 days
                                                  $48.17
                                                          Recommended Quantity: 1

                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                          Stock: TBD
                                                          8
                                                          Item # 1035956
                                                          KTM / GasGas / Husqvarna Spark Plug LR8B - 45239093000
                                                          Leaves Warehouse: Same Day
                                                          $9.89
                                                                  Recommended Quantity: 1

                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                  Stock: TBD
                                                                  9
                                                                  Item # 1033880
                                                                  KTM / GasGas / Husqvarna O-Ring 12.00x3.0 Viton 75 - 0770012030
                                                                  Leaves Warehouse: 2 to 3 days
                                                                  $4.34
                                                                          Recommended Quantity: 1

                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                          Stock: TBD
                                                                          10
                                                                          Item # 1035754
                                                                          KTM / GasGas / Husqvarna Flyweel Rotor 50 2004 - 45139005100
                                                                          Leaves Warehouse: 2 to 3 days
                                                                          $95.95
                                                                                  Recommended Quantity: 1

                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                  Stock: TBD
                                                                                  11
                                                                                  Item # 1034117
                                                                                  KTM / GasGas / Husqvarna Woodruff KEY DIN6888-2.5x3 - 0888025030
                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                  $5.80
                                                                                          Recommended Quantity: 1

                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                          Stock: TBD
                                                                                          13
                                                                                          Item # 1080171
                                                                                          KTM / GasGas / Husqvarna HH Collar Nut M10X1.25 WS=13 - 58414030000
                                                                                          Leaves Warehouse: Same Day
                                                                                          $2.89
                                                                                                  Recommended Quantity: 1

                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                  Stock: TBD
                                                                                                  14
                                                                                                  Item # 1031793
                                                                                                  KTM / GasGas / Husqvarna Flywheel Stator 50CCM LC 2001 - 45139004000
                                                                                                  Leaves Warehouse: Same Day
                                                                                                  $194.82
                                                                                                          Recommended Quantity: 1

                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                          Stock: TBD
                                                                                                          15
                                                                                                          Item # 1032990
                                                                                                          KTM / GasGas / Husqvarna Bolt DIN 6912 - M5X25 SS - 0012050253S
                                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                                          $1.67
                                                                                                                  Recommended Quantity: 2

                                                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                  Stock: TBD
                                                                                                                  16
                                                                                                                  Item # 1037760
                                                                                                                  KTM / GasGas / Husqvarna Dowel 9.8 X7X10 - 49030090100
                                                                                                                  Leaves Warehouse: Same Day
                                                                                                                  $2.89
                                                                                                                          Recommended Quantity: 2

                                                                                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                          Stock: TBD
                                                                                                                          17
                                                                                                                          Item # 1035850
                                                                                                                          KTM / GasGas / Husqvarna Ignition Cover - 45230002100
                                                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                                                          $74.70
                                                                                                                                  Recommended Quantity: 1

                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                  Stock: TBD
                                                                                                                                  18
                                                                                                                                  Item # 1033159
                                                                                                                                  KTM / GasGas / Husqvarna HH Collar Screw M6X35 TX30 - 0025060356
                                                                                                                                  Leaves Warehouse: Same Day
                                                                                                                                  $4.34
                                                                                                                                          Recommended Quantity: 2

                                                                                                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                          Stock: TBD
                                                                                                                                          20
                                                                                                                                          Item # 1035867
                                                                                                                                          KTM / GasGas / Husqvarna Gasket - Ignition Cover - 45230040000
                                                                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                                                                          $12.26
                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                  Stock: TBD
