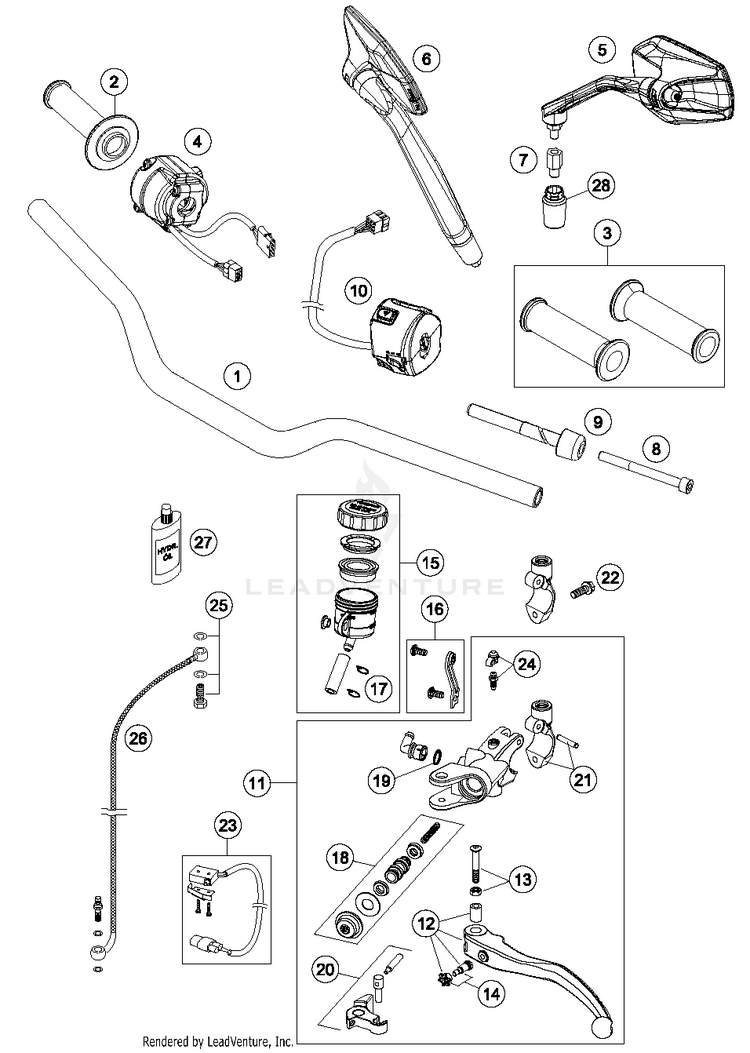

2015 KTM 1290 SUPERDUKE R BLACK Chassis - 2015 Handlebar, Controls OEM Parts | Assembly Diagram OEM Parts Finder and Diagram (Microfiche) Inspector

KTM Choose parts...

Use scroll wheel, or pinch and drag to and .

1
Item # 1040439
KTM Handlebar L=743 mm D=28.5 mm - 6130200100017
Leaves Warehouse: 2 to 3 days
$225.05
          Recommended Quantity: 1

          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

          Stock: TBD
          2
          Item # 1045098
          KTM Throttle Grip - 76002010000
          Leaves Warehouse: 2 to 3 days
          $42.23
                  Recommended Quantity: 1

                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                  Stock: TBD
                  3
                  Item # 1045099
                  KTM Grip Set Open End - 76002021000
                  Leaves Warehouse: 2 to 3 days
                  $65.33
                          Recommended Quantity: 1

                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                          Stock: TBD
                          4
                          Item # 1045303
                          KTM / GasGas / Husqvarna Start-STOP/E-GAS - 76011073100
                          Leaves Warehouse: 2 to 3 days
                          $490.37
                                  Recommended Quantity: 1

                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                  Stock: TBD
                                  5
                                  Item # 1040716
                                  KTM / GasGas / Husqvarna Mirror Left - 61312040300
                                  Leaves Warehouse: 2 to 3 days
                                  $92.26
                                          Recommended Quantity: 1

                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                          Stock: TBD
                                          6
                                          Item # 1040720
                                          KTM Mirror Right - 61312041300
                                          Leaves Warehouse: 2 to 3 days
                                          $131.72
                                                  Recommended Quantity: 1

                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                  Stock: TBD
                                                  7
                                                  Item # 1040713
                                                  KTM Adaptor for Mirror - 61312040050
                                                  Leaves Warehouse: 2 to 3 days
                                                  $21.37
                                                          Recommended Quantity: 2

                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                          Stock: TBD
                                                          8
                                                          Item # 1034209
                                                          KTM / Husqvarna Shcs DIN 912 M6X65 - 0912060653
                                                          Leaves Warehouse: Same Day
                                                          $2.89
                                                                  Recommended Quantity: 2

                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                  Stock: TBD
                                                                  9
                                                                  Item # 1039729
                                                                  KTM / Husqvarna Handlebar Weight - 61002004000
                                                                  Leaves Warehouse: Same Day
                                                                  $50.15
                                                                          Recommended Quantity: 2

                                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                          Stock: TBD
                                                                          10
                                                                          Item # 1082163
                                                                          KTM / Husqvarna Handlebar Switch - 60311070100
                                                                          Leaves Warehouse: 2 to 3 days
                                                                          $737.21
                                                                                  Recommended Quantity: 1

                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                  Stock: TBD
                                                                                  11
                                                                                  Item # 1040440
                                                                                  KTM Master Cylinder Complete - 6130203000030
                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                  $737.60
                                                                                          Recommended Quantity: 1

                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                          Stock: TBD
                                                                                          12
                                                                                          Item # 1040442
                                                                                          KTM Clutch Lever Complete - 6130203100030
                                                                                          Out of Stock
                                                                                          $125.65
                                                                                                  Recommended Quantity: 1

                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                  Stock: TBD
                                                                                                  13
                                                                                                  Item # 1040444
                                                                                                  KTM Lever Screw Complete - 61302038000
                                                                                                  Out of Stock
                                                                                                  $30.08
                                                                                                          Recommended Quantity: 1

                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                          Stock: TBD
                                                                                                          14
                                                                                                          Item # 1039739
                                                                                                          KTM / Husqvarna Adjusting Screw Complete - 61002043000
                                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                                          $27.84
                                                                                                                  Recommended Quantity: 1

                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                  Stock: TBD
                                                                                                                  15
                                                                                                                  Item # 1039745
                                                                                                                  KTM Reservoir Complete 05 - 61002055000
                                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                                  $95.03
                                                                                                                          Recommended Quantity: 1

                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                          Stock: TBD
                                                                                                                          16
                                                                                                                          Item # 1040446
                                                                                                                          KTM / Husqvarna Retaining Plate Reservoir - 61302055050
                                                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                                                          $70.21
                                                                                                                                  Recommended Quantity: 1

                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                  Stock: TBD
                                                                                                                                  17
                                                                                                                                  Item # 1079726
                                                                                                                                  KTM / GasGas / Husqvarna Ydnac-Clamp 10107 10 mm - 58007117000
                                                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                                                  $4.34
                                                                                                                                          Recommended Quantity: 2

                                                                                                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                          Stock: TBD
                                                                                                                                          18
                                                                                                                                          Item # 1040443
                                                                                                                                          KTM Repair Kit Piston D=12 mm - 61302032000
                                                                                                                                          Leaves Warehouse: Same Day
                                                                                                                                          $127.63
                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                  Stock: TBD
                                                                                                                                                  19
                                                                                                                                                  Item # 1039741
                                                                                                                                                  KTM O-Ring Angle Piece - 61002051000
                                                                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                                                                  $2.89
                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                          Stock: TBD
                                                                                                                                                          20
                                                                                                                                                          Item # 1039749
                                                                                                                                                          KTM / Husqvarna Rocker Complete 05 - 61002056000
                                                                                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                                                                                          $62.03
                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                  Stock: TBD
                                                                                                                                                                  21
                                                                                                                                                                  Item # 1040445
                                                                                                                                                                  KTM / Husqvarna Clamp Mirror with Tension Pin - 6130204400030
                                                                                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                                                                                  $63.61
                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                          Stock: TBD
                                                                                                                                                                          22
                                                                                                                                                                          Item # 1033147
                                                                                                                                                                          KTM / GasGas / Husqvarna HH Collar Screw M6X12 TX30 - 0025060126
                                                                                                                                                                          Leaves Warehouse: Same Day
                                                                                                                                                                          $4.34
                                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                  23
                                                                                                                                                                                  Item # 1039891
                                                                                                                                                                                  KTM Clutch Switch 05 - 61011049000
                                                                                                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                                                                                                  $108.36
                                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                          24
                                                                                                                                                                                          Item # 1039744
                                                                                                                                                                                          KTM / Husqvarna Bleeder Screw with Cap - 61002054000
                                                                                                                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                                                                                                                          $33.25
                                                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                  25
                                                                                                                                                                                                  Item # 1080587
                                                                                                                                                                                                  KTM / GasGas / Husqvarna Hollow Screw + Copper Gasket - 59032062000
                                                                                                                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                                                                                                                  $35.36
                                                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                                          26
                                                                                                                                                                                                          Item # 1039992
                                                                                                                                                                                                          KTM Clutch Pipe - 61032063100
                                                                                                                                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                                                                                                                                          $124.73
                                                                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                                  27
                                                                                                                                                                                                                  Item # 1038143
                                                                                                                                                                                                                  KTM / GasGas / Husqvarna Oil for HYD. Clutch 100 ML - 50302036200
                                                                                                                                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                                                                                                                                  $28.10
                                                                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                                                          28
                                                                                                                                                                                                                          Item # 1040712
                                                                                                                                                                                                                          KTM Rubber Sleeve - 61312040030
                                                                                                                                                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                                                                                                                                                          $11.08
                                                                                                                                                                                                                                  Recommended Quantity: 2

                                                                                                                                                                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                  Stock: TBD
