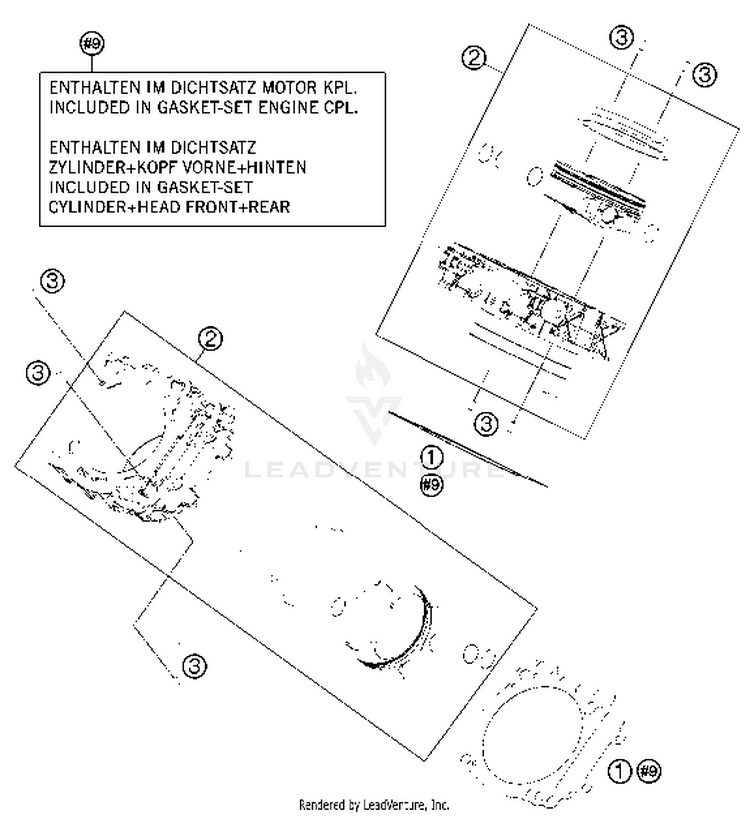

2015 KTM 1190 ADV ORANGE Engine - 2015 Cylinder OEM Parts | Assembly Diagram OEM Parts Finder and Diagram (Microfiche) Inspector

KTM Choose parts...

Use scroll wheel, or pinch and drag to and .

1
Item # 1040224
KTM Cylinder Base Gasket 08 - 61230035000
Out of Stock
$22.43
          Recommended Quantity: 2

          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

          Stock: TBD
          2
          Item # 1044113
          KTM Cylinder + Piston Complete - 6913003830024
          Out of Stock
          $1,353.60
                  Recommended Quantity: 2

                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                  Stock: TBD
                  3
                  Item # 1033554
                  KTM / GasGas / Husqvarna Grooved Pin DIN1474 5X10 - 0474050100
                  Leaves Warehouse: Same Day
                  $2.89
                          Recommended Quantity: 8

                          This part has 8 locations on the diagram. It is the recommended quantity, but not a requirement.

                          Stock: TBD
