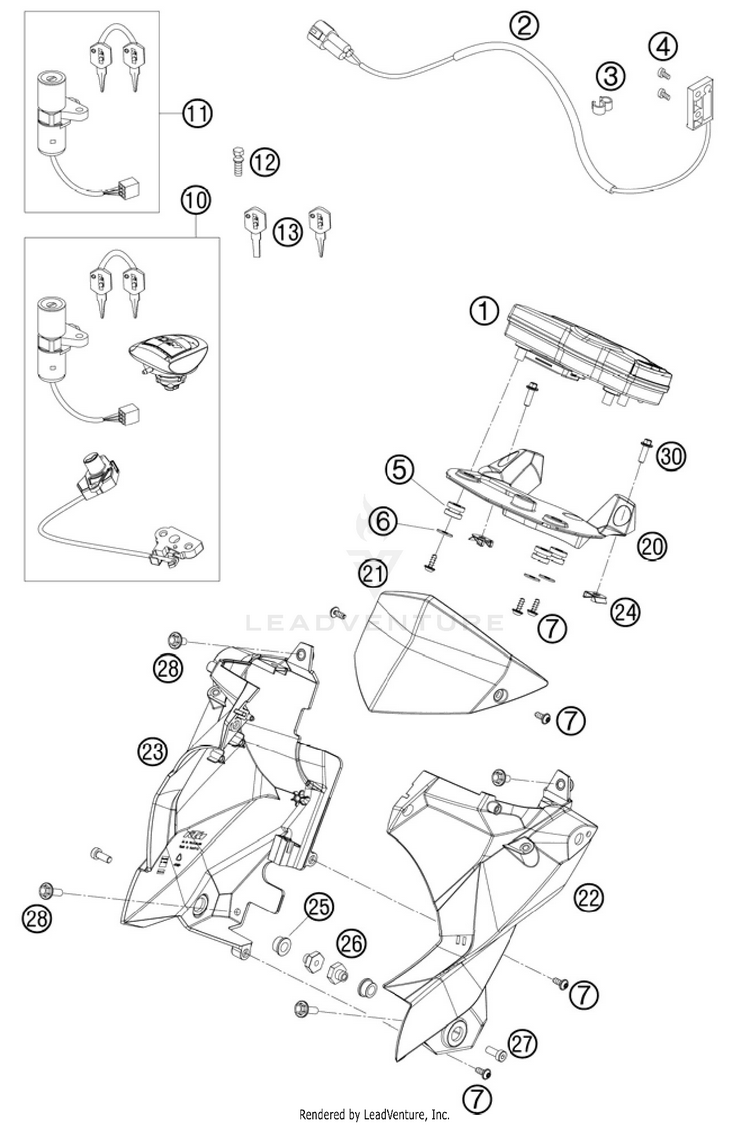

2010 KTM 690 Duke Chassis Black - 2010 Instruments/Lock System OEM Parts | Assembly Diagram OEM Parts Finder and Diagram (Microfiche) Inspector

KTM Choose parts...

Use scroll wheel, or pinch and drag to and .

1
Item # 1044735
KTM / Husqvarna Speedometer KM/H 17" 10 - 75014069100
Leaves Warehouse: 2 to 3 days
$780.37
          Recommended Quantity: 1

          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

          Stock: TBD
          2
          Item # 1042322
          KTM Speedometer Sensor 10 - 62514068200
          Leaves Warehouse: 2 to 3 days
          $133.44
                  Recommended Quantity: 1

                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                  Stock: TBD
                  3
                  Item # 1081684
                  KTM / GasGas / Husqvarna Clip 5/7 mm 06 - 60111094000
                  Leaves Warehouse: 2 to 3 days
                  $4.34
                          Recommended Quantity: 2

                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                          Stock: TBD
                          4
                          Item # 1033289
                          KTM / Husqvarna Cylinder Head Screw DIN0084-M 4X8 A - 0084040083
                          Leaves Warehouse: 2 to 3 days
                          $1.67
                                  Recommended Quantity: 2

                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                  Stock: TBD
                                  5
                                  Item # 1079885
                                  KTM / GasGas / Husqvarna Rubber Grommet 16x10.8x3 - 58214069051
                                  Leaves Warehouse: 2 to 3 days
                                  $7.38
                                          Recommended Quantity: 3

                                          This part has 3 locations on the diagram. It is the recommended quantity, but not a requirement.

                                          Stock: TBD
                                          6
                                          Item # 1033112
                                          KTM / GasGas / Husqvarna Washer DIN 9021 A - 5.3 - 0021050003
                                          Leaves Warehouse: Same Day
                                          $1.67
                                                  Recommended Quantity: 3

                                                  This part has 3 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                  Stock: TBD
                                                  7
                                                  Item # 1033275
                                                  KTM / GasGas / Husqvarna Ejot PT Screw K50x12 - 0081050121
                                                  Leaves Warehouse: Same Day
                                                  $2.89
                                                          Recommended Quantity: 7

                                                          This part has 7 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                          Stock: TBD
                                                          10
                                                          Item # 1044696
                                                          KTM KEY-Set 07 - 75011066144
                                                          Leaves Warehouse: 2 to 3 days
                                                          $463.18
                                                                  Recommended Quantity: 1

                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                  Stock: TBD
                                                                  11
                                                                  Item # 1044708
                                                                  KTM / GasGas / Husqvarna Ignition Lock - 75011166000
                                                                  Out of Stock
                                                                  $242.74
                                                                          Recommended Quantity: 1

                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                          Stock: TBD
                                                                          12
                                                                          Item # 1081057
                                                                          KTM Tamperproof Screw for Ignition Lock - 60011064000
                                                                          Leaves Warehouse: 2 to 3 days
                                                                          $7.38
                                                                                  Recommended Quantity: 2

                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                  Stock: TBD
                                                                                  13
                                                                                  Item # 1046091
                                                                                  KTM Ignition Lock - 76911067010
                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                  $22.69
                                                                                          Recommended Quantity: 1

                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                          Stock: TBD
                                                                                          13
                                                                                          MPN/SKU: 40011166150
                                                                                          KEY MILLED
                                                                                          Unavailable
                                                                                          $0.00
                                                                                                  Recommended Quantity: 1

                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                  Stock: TBD
                                                                                                  20
                                                                                                  Item # 1045081
                                                                                                  KTM Speedometer Bracket - 75614060000
                                                                                                  Out of Stock
                                                                                                  $12.79
                                                                                                          Recommended Quantity: 1

                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                          Stock: TBD
                                                                                                          21
                                                                                                          MPN/SKU: 75608065000
                                                                                                          WINDSHIELD 08
                                                                                                          Unavailable
                                                                                                          $32.59
                                                                                                                  Recommended Quantity: 1

                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                  Stock: TBD
                                                                                                                  22
                                                                                                                  Item # 1045082
                                                                                                                  KTM Mask Bracket L/S - 75614062000
                                                                                                                  Out of Stock
                                                                                                                  $19.18
                                                                                                                          Recommended Quantity: 1

                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                          Stock: TBD
                                                                                                                          23
                                                                                                                          Item # 1045083
                                                                                                                          KTM Mask Bracket R/S - 75614063000
                                                                                                                          Out of Stock
                                                                                                                          $18.71
                                                                                                                                  Recommended Quantity: 1

                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                  Stock: TBD
                                                                                                                                  24
                                                                                                                                  Item # 1078272
                                                                                                                                  KTM / GasGas / Husqvarna Range Change Metal Nut M5 - 54603048200
                                                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                                                  $7.38
                                                                                                                                          Recommended Quantity: 2

                                                                                                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                          Stock: TBD
                                                                                                                                          25
                                                                                                                                          Item # 1045050
                                                                                                                                          KTM Rubber Bushing 9X17x8.5 - 75608006000
                                                                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                                                                          $5.80
                                                                                                                                                  Recommended Quantity: 2

                                                                                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                  Stock: TBD
                                                                                                                                                  26
                                                                                                                                                  Item # 1045051
                                                                                                                                                  KTM Threaded Bushing M6 SW17 - 75608006050
                                                                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                                                                  $7.38
                                                                                                                                                          Recommended Quantity: 2

                                                                                                                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                          Stock: TBD
                                                                                                                                                          27
                                                                                                                                                          Item # 1032993
                                                                                                                                                          KTM / Husqvarna AH Screw DIN6912 M6X16 SL - 0012060164
                                                                                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                                                                                          $2.89
                                                                                                                                                                  Recommended Quantity: 2

                                                                                                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                  Stock: TBD
                                                                                                                                                                  28
                                                                                                                                                                  Item # 1033126
                                                                                                                                                                  KTM / GasGas / Husqvarna HH Collar Screw M6X20 TX30 - 0024060206
                                                                                                                                                                  Leaves Warehouse: Same Day
                                                                                                                                                                  $4.34
                                                                                                                                                                          Recommended Quantity: 4

                                                                                                                                                                          This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                          Stock: TBD
                                                                                                                                                                          30
                                                                                                                                                                          Item # 1033136
                                                                                                                                                                          KTM / GasGas / Husqvarna HH Collar Screw M5X16 TX30 - 0025050166
                                                                                                                                                                          Leaves Warehouse: Same Day
                                                                                                                                                                          $2.89
                                                                                                                                                                                  Recommended Quantity: 2

                                                                                                                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                  Stock: TBD
