2009 KTM 125 SX Chassis - 2009 OEM Parts | Assembly Diagrams Lookup OEM Parts Finder and Diagram (Microfiche) Inspector

KTM Choose an assembly...

Assemblies List (19)

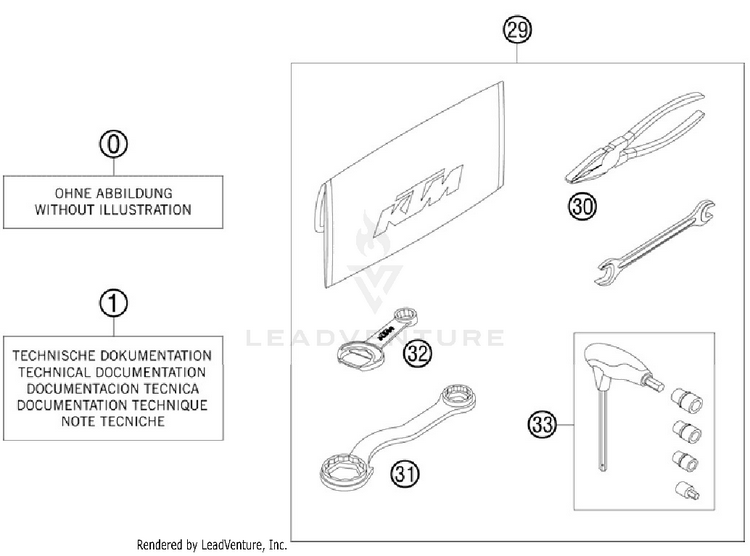

Accessories Kit

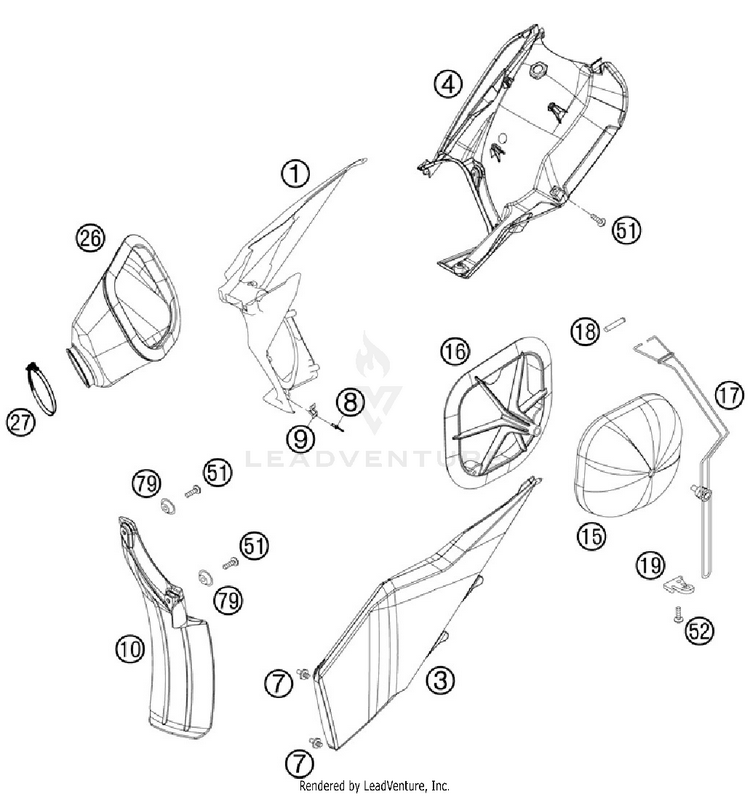

Air Filter

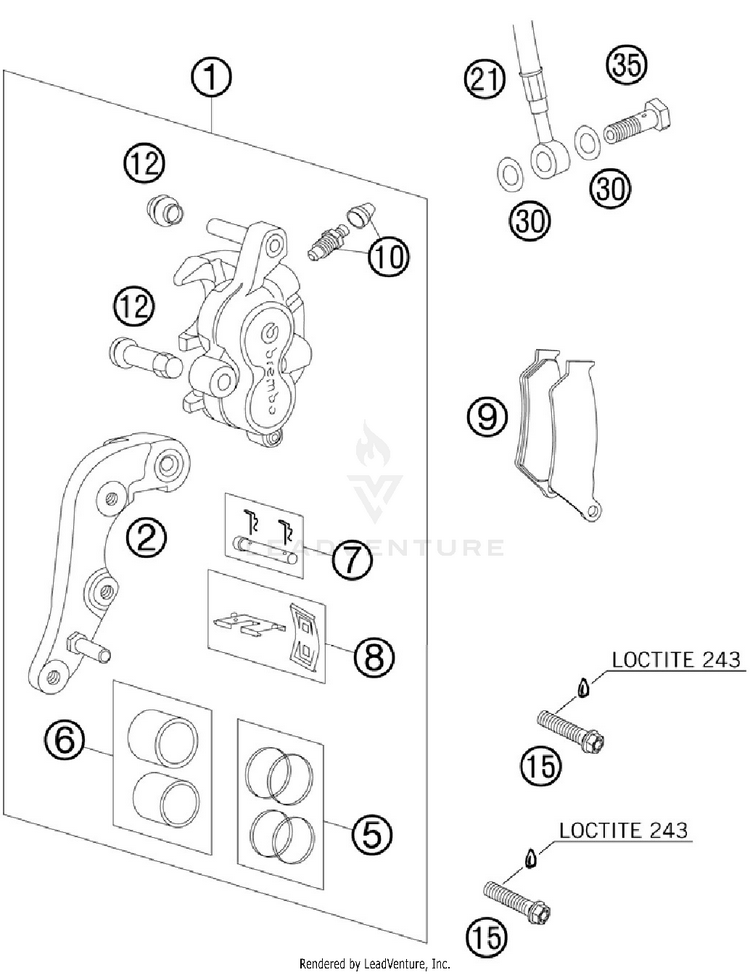

Brake Caliper Front

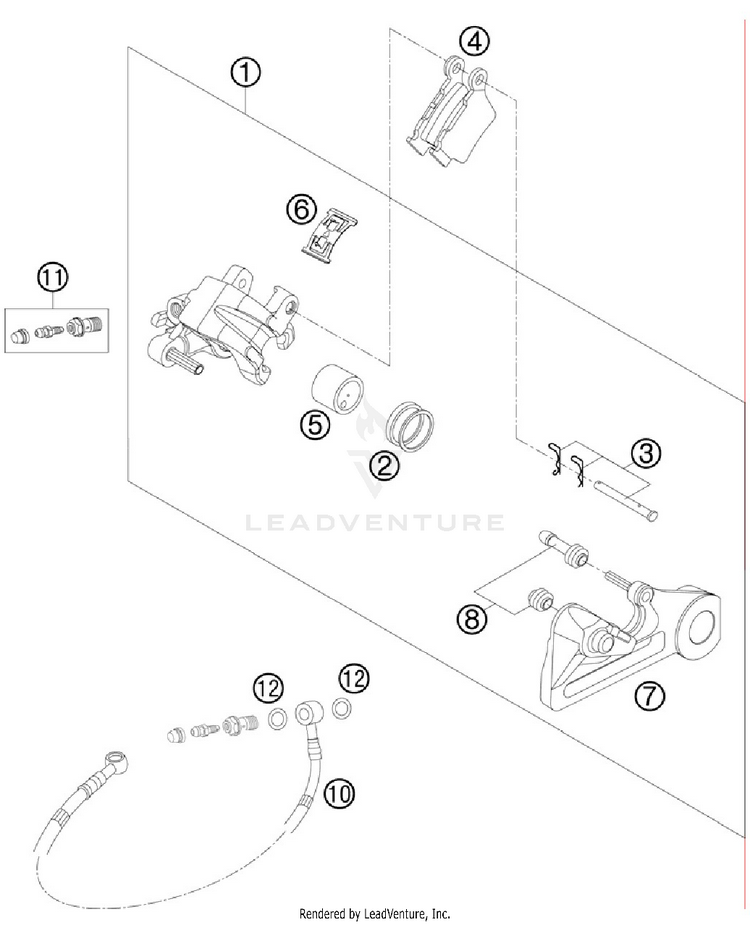

Brake Caliper Rear

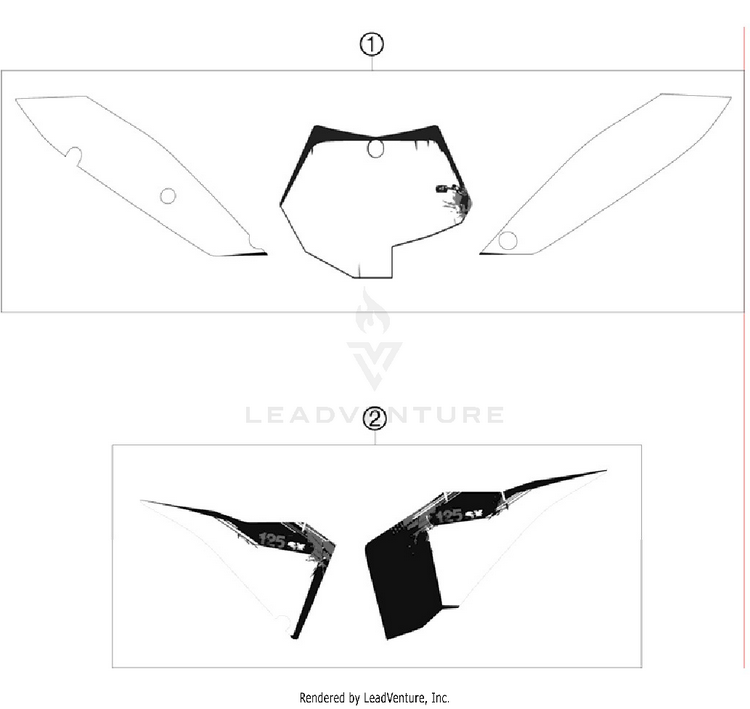

Decal

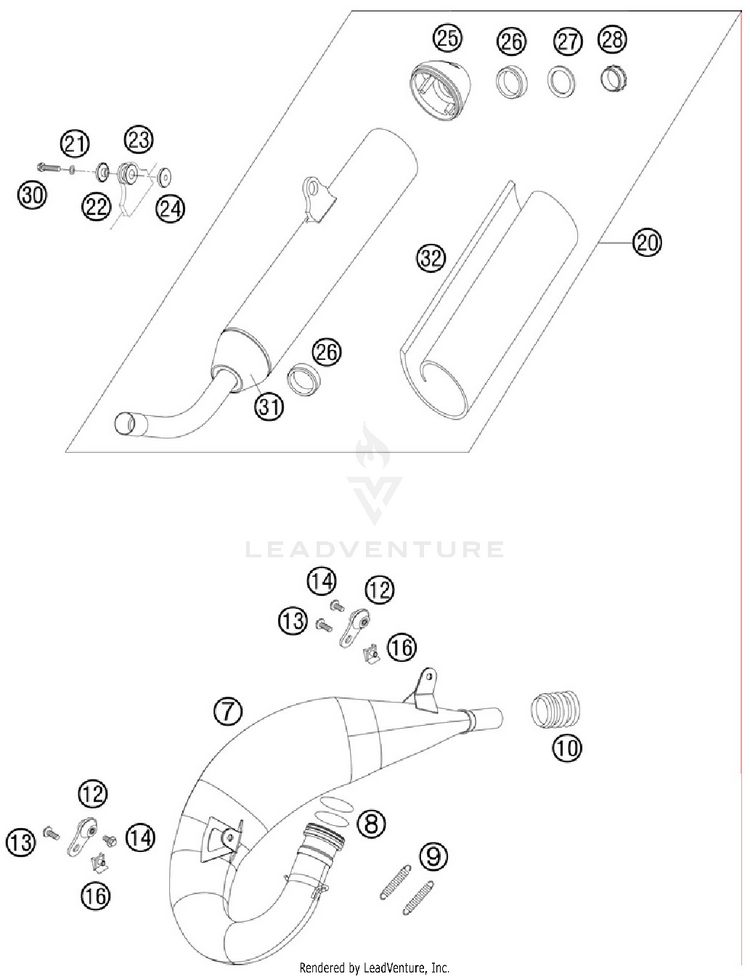

Exhaust System
Frame
Front Fork, Disassembled
Front Fork, Triple Clamp

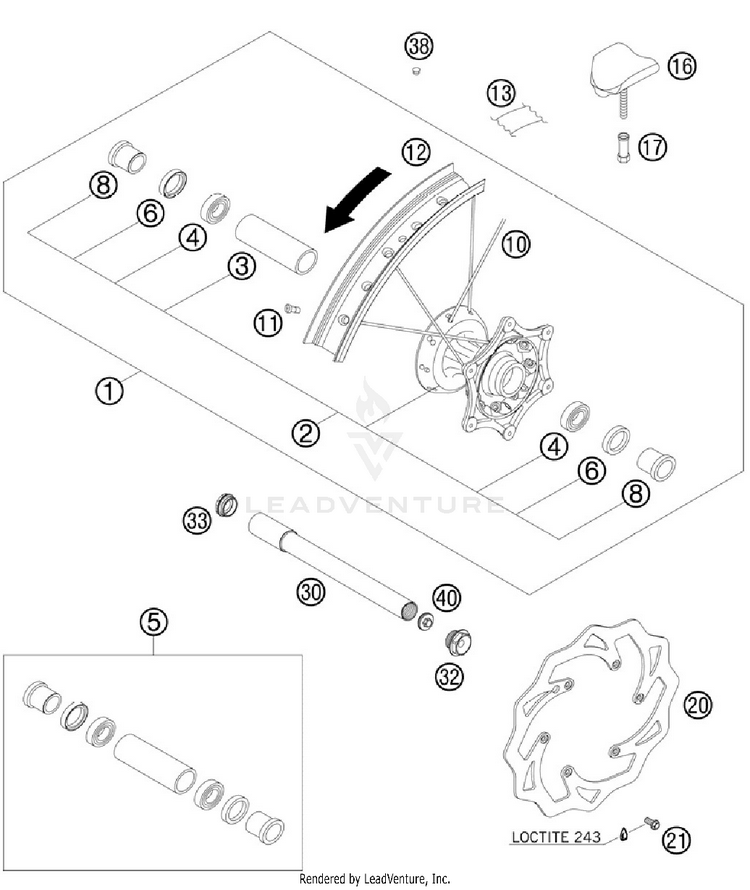

Front Wheel
Hand Brake Cylinder

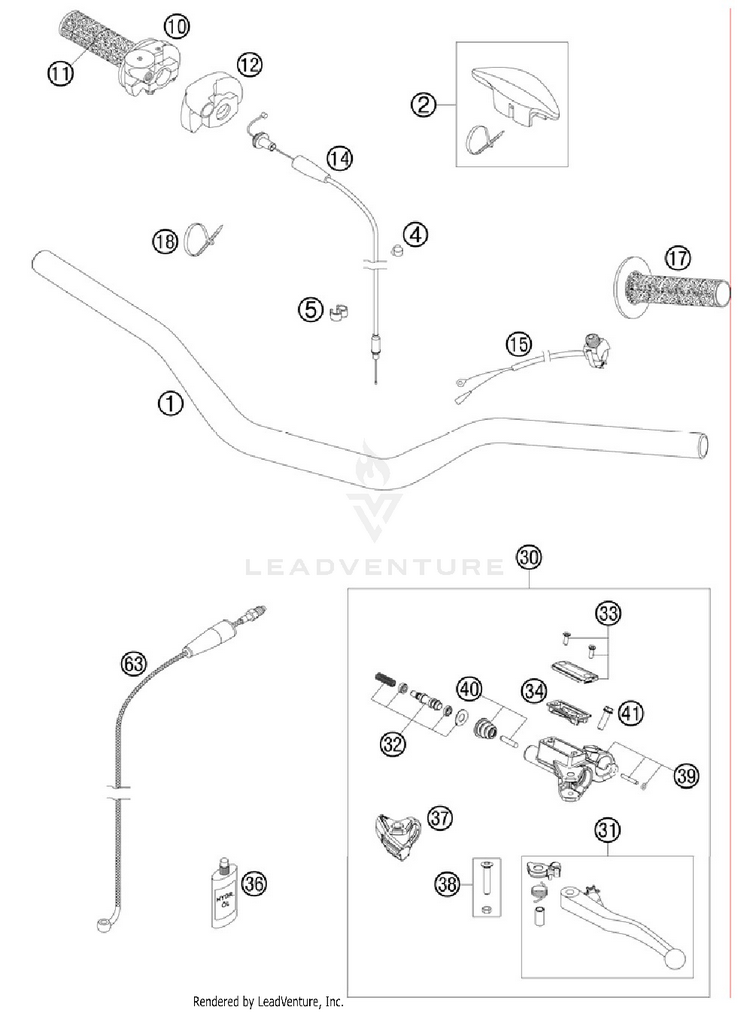

Handlebar, Controls

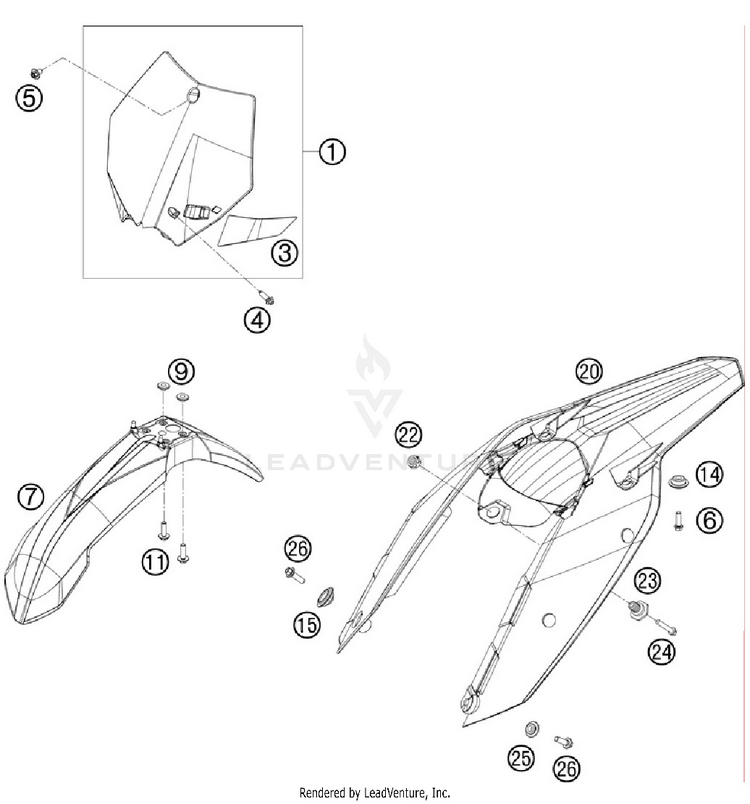

Mask, Fenders

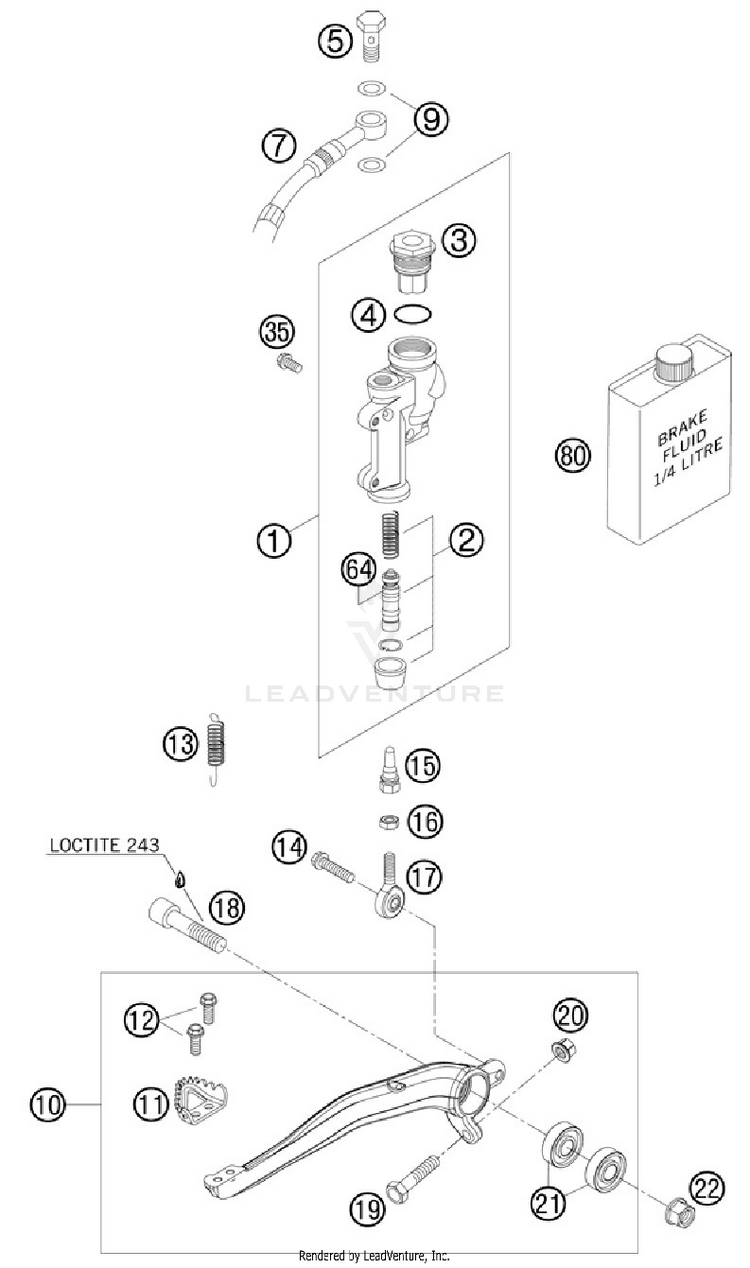

Rear Brake Control

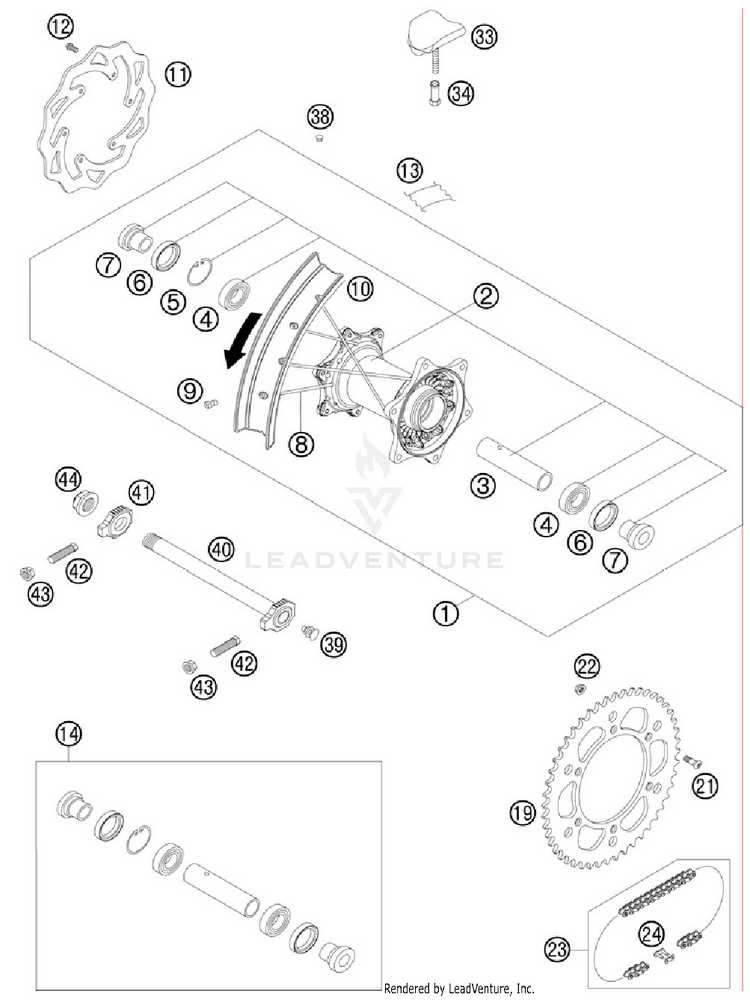

Rear Wheel

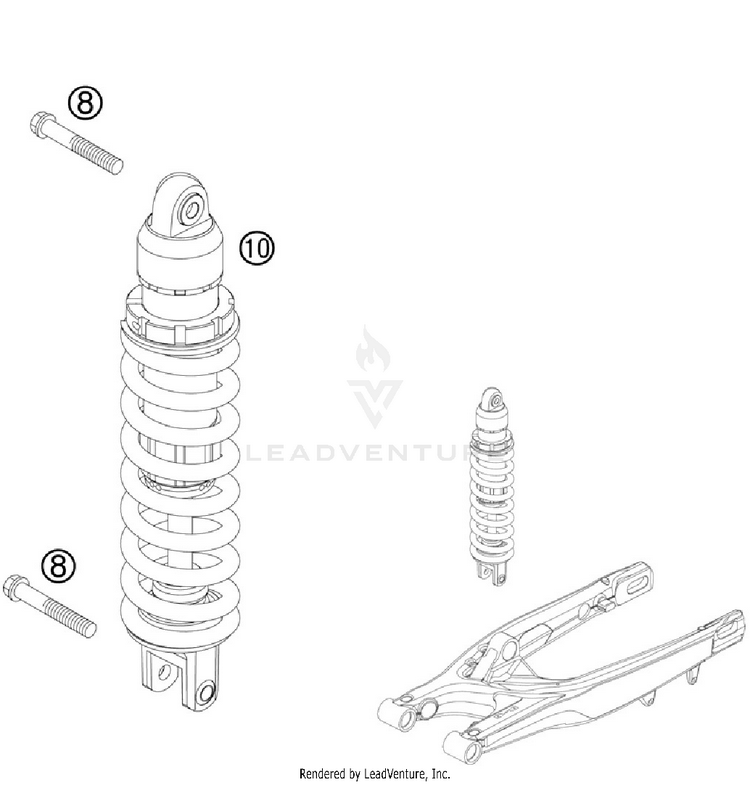

Shock Absorber

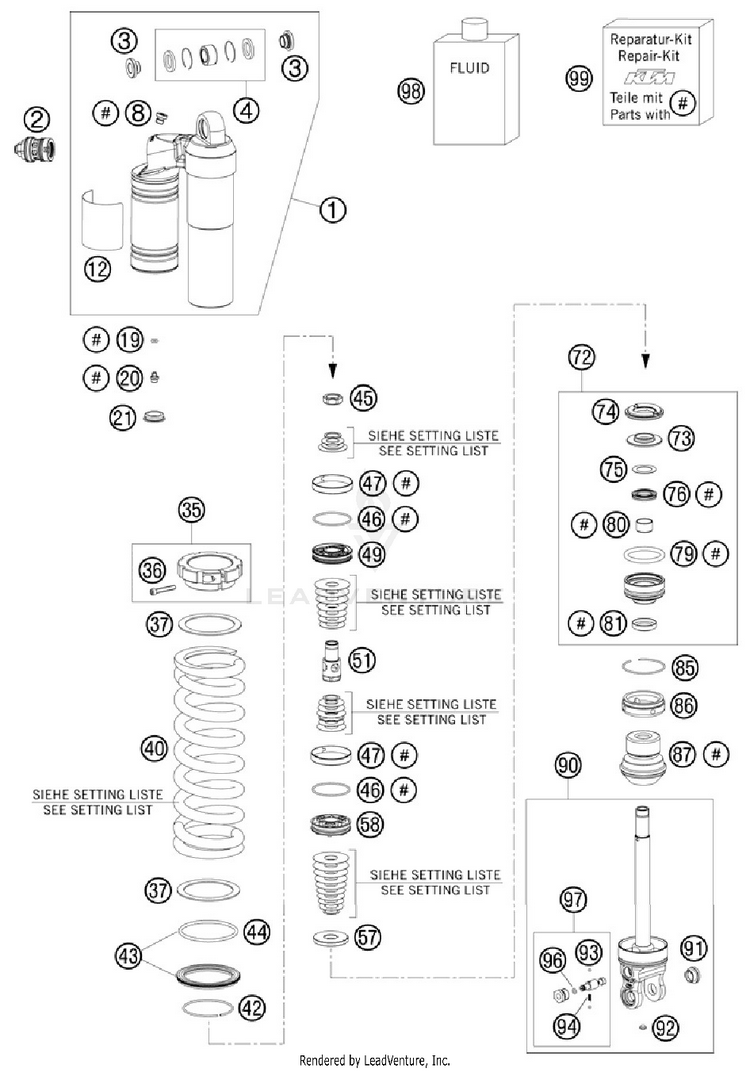

Shock Absorber Disassembled

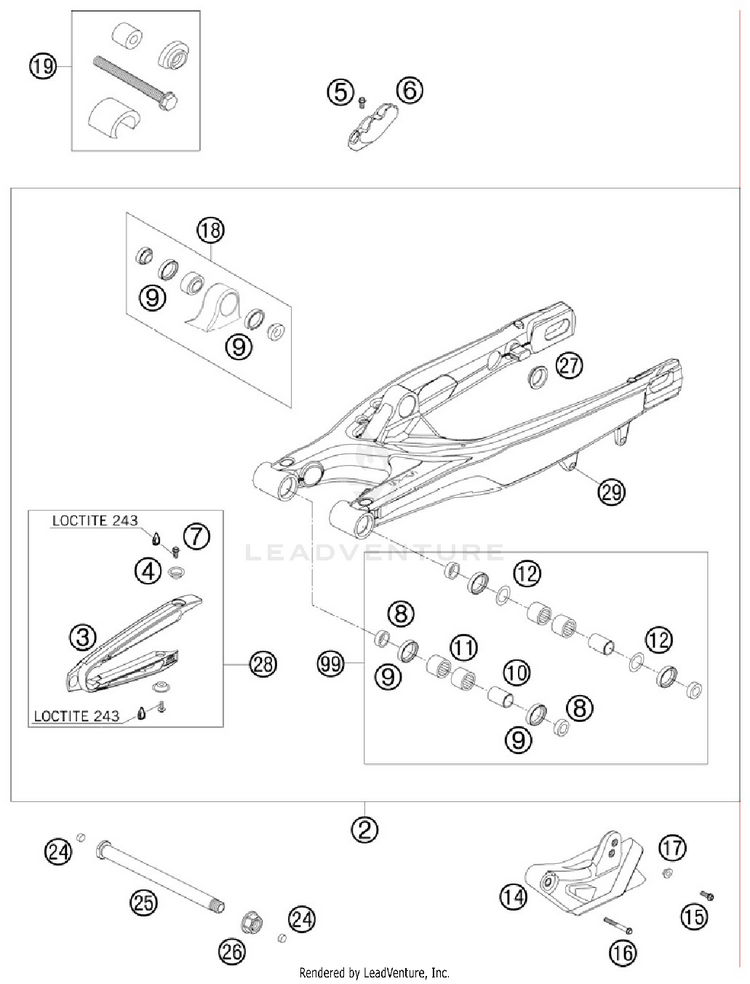

Swing Arm
Tank, Seat, Cover

A

Accessories Kit
Air Filter

B

Brake Caliper Front
Brake Caliper Rear

D

Decal

E

Exhaust System

F

Frame

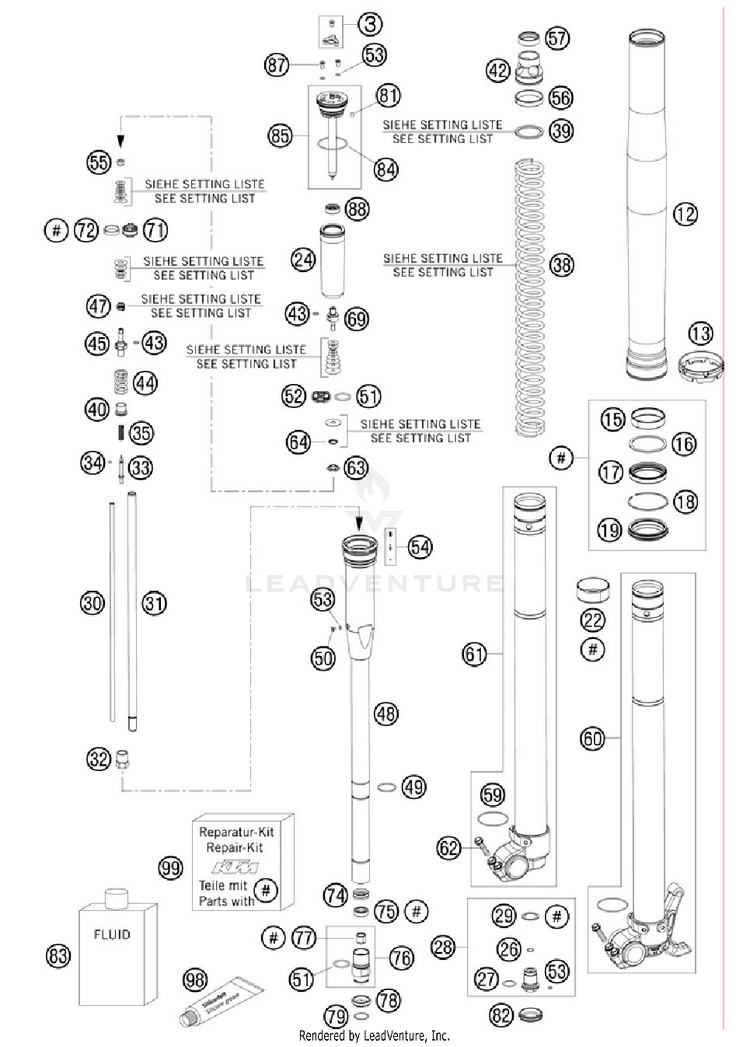

Front Fork, Disassembled

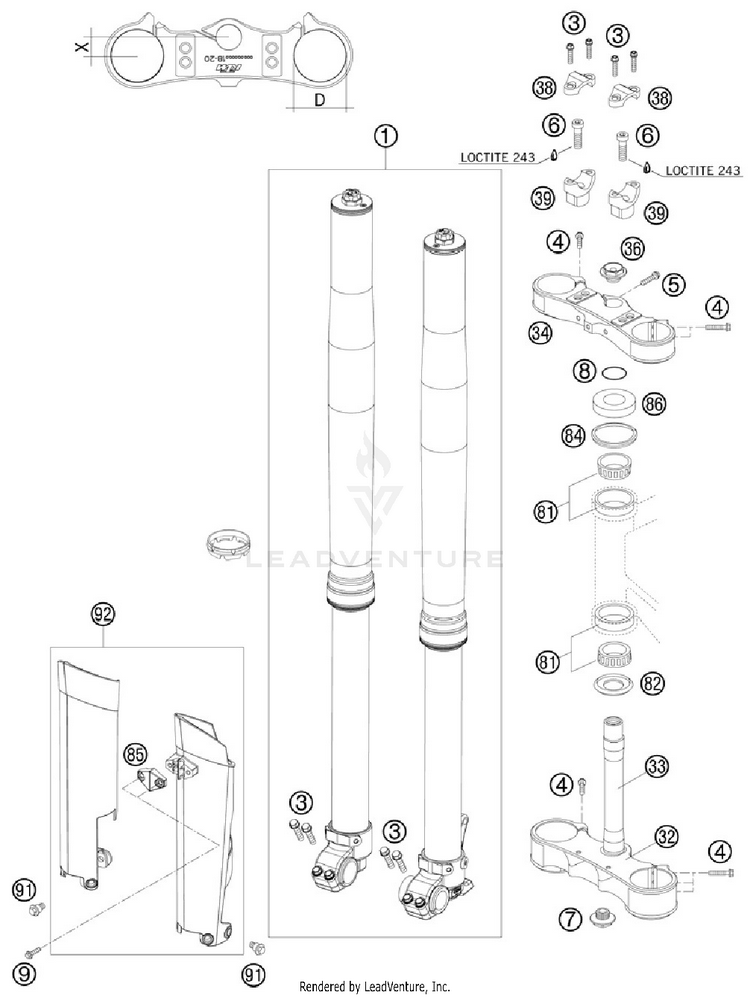

Front Fork, Triple Clamp
Front Wheel

H

Hand Brake Cylinder
Handlebar, Controls

M

Mask, Fenders

R

Rear Brake Control
Rear Wheel

S

Shock Absorber
Shock Absorber Disassembled
Swing Arm

T

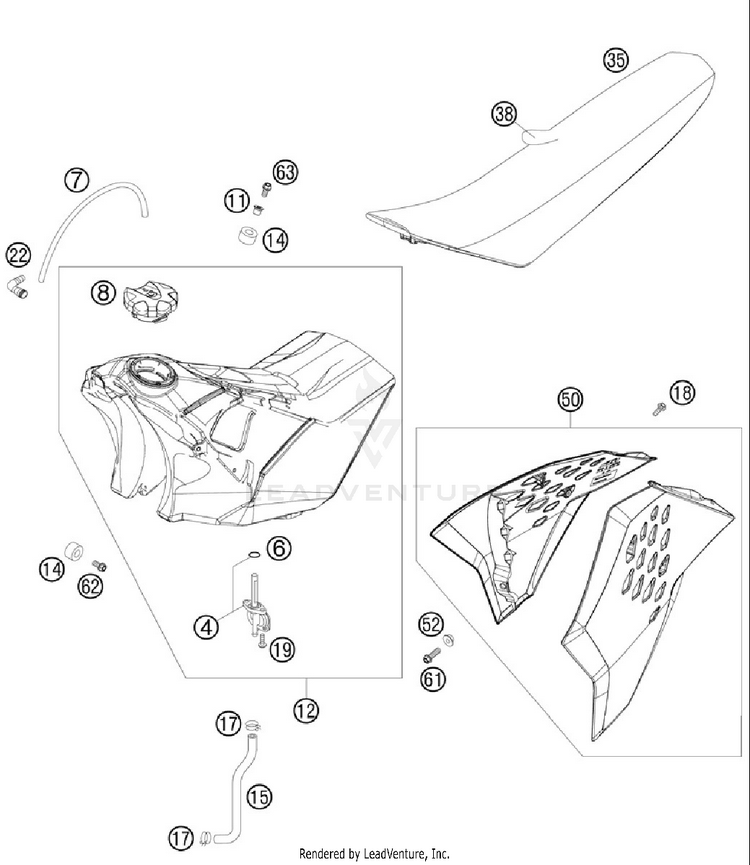

Tank, Seat, Cover
