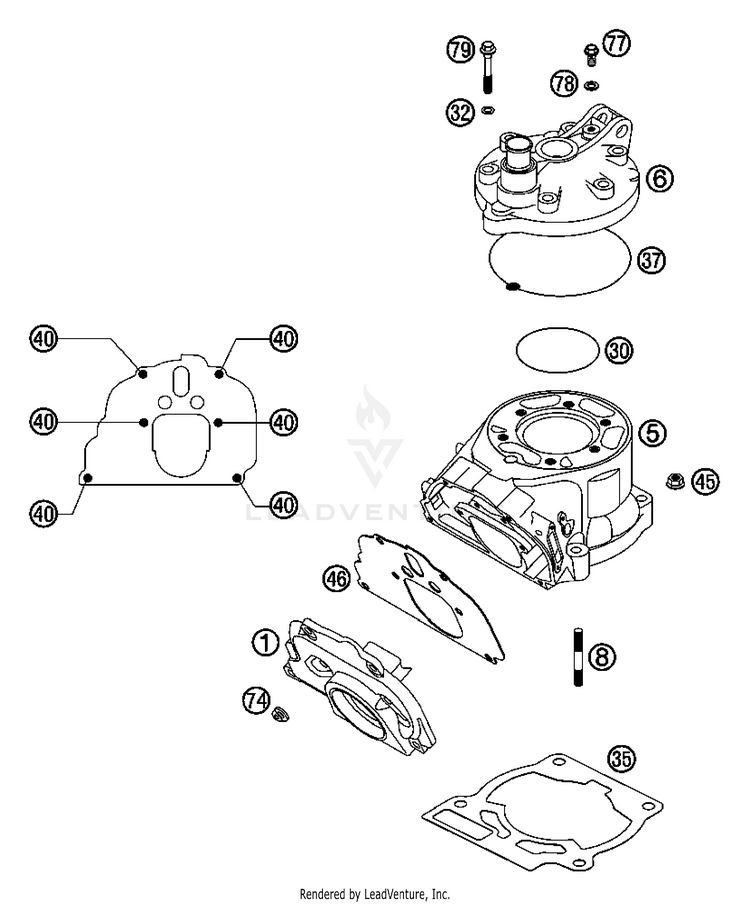

2006 KTM 125 SX Engine - 2006 Cylinder, Cylinderhead OEM Parts | Assembly Diagram OEM Parts Finder and Diagram (Microfiche) Inspector

KTM Choose parts...

Use scroll wheel, or pinch and drag to and .

1
Item # 1038553
KTM / GasGas / Husqvarna Intermediate Flange 125 06 - 50337001200
Leaves Warehouse: 2 to 3 days
$64.43
          Recommended Quantity: 1

          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

          Stock: TBD
          5
          MPN/SKU: 50330005400
          CYLINDER 125 06
          Unavailable
          $509.32
                  Recommended Quantity: 1

                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                  Stock: TBD
                  6
                  MPN/SKU: 50330006400
                  CYLINDER HEAD 125 SX/EXC 2002
                  Unavailable
                  $142.79
                          Recommended Quantity: 1

                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                          Stock: TBD
                          8
                          Item # 1034099
                          KTM / Husqvarna Stud DIN0835-M 8X27 - 0835080276
                          Leaves Warehouse: 2 to 3 days
                          $3.95
                                  Recommended Quantity: 4

                                  This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

                                  Stock: TBD
                                  30
                                  Item # 1033931
                                  KTM / GasGas / Husqvarna O-Ring 62.00x2.00 Viton - 0770062020
                                  Leaves Warehouse: 2 to 3 days
                                  $11.99
                                          Recommended Quantity: 1

                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                          Stock: TBD
                                          32
                                          Item # 1033581
                                          KTM / GasGas / Husqvarna CU-Seal Ring DIN7603- 7.3x12X1 - 0603070121
                                          Leaves Warehouse: Same Day
                                          $1.52
                                                  Recommended Quantity: 6

                                                  This part has 6 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                  Stock: TBD
                                                  35
                                                  Item # 1038372
                                                  KTM / Husqvarna Cylinder Base Gasket 0.20 mm - 50330035020
                                                  Leaves Warehouse: 2 to 3 days
                                                  $7.19
                                                          Recommended Quantity: 1

                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                          Stock: TBD
                                                          35
                                                          Item # 1038373
                                                          KTM / Husqvarna Cylinder Base Gasket 0.25 mm - 50330035025
                                                          Leaves Warehouse: 2 to 3 days
                                                          $7.19
                                                                  Recommended Quantity: 1

                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                  Stock: TBD
                                                                  35
                                                                  Item # 1038374
                                                                  KTM / Husqvarna Cylinder Base Gasket 0.40 mm - 50330035040
                                                                  Leaves Warehouse: 2 to 3 days
                                                                  $6.71
                                                                          Recommended Quantity: 1

                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                          Stock: TBD
                                                                          35
                                                                          Item # 1038375
                                                                          KTM / Husqvarna Cylinder Base Gasket 0.50 mm - 50330035050
                                                                          Leaves Warehouse: 2 to 3 days
                                                                          $6.71
                                                                                  Recommended Quantity: 1

                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                  Stock: TBD
                                                                                  35
                                                                                  Item # 1038376
                                                                                  KTM / Husqvarna Cylinder Base Gasket 0.75 mm - 50330035075
                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                  $9.83
                                                                                          Recommended Quantity: 1

                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                          Stock: TBD
                                                                                          37
                                                                                          Item # 1038404
                                                                                          KTM / Husqvarna Cylinder Head Seal Ring 125 2002 - 50330137000
                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                          $15.95
                                                                                                  Recommended Quantity: 1

                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                  Stock: TBD
                                                                                                  40
                                                                                                  Item # 1033138
                                                                                                  KTM / GasGas / Husqvarna HH Collar Screw M5X20 TX30 - 0025050206
                                                                                                  Leaves Warehouse: Same Day
                                                                                                  $2.63
                                                                                                          Recommended Quantity: 6

                                                                                                          This part has 6 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                          Stock: TBD
                                                                                                          45
                                                                                                          Item # 1038383
                                                                                                          KTM / GasGas / Husqvarna HH Collar Nut M 8 WS=12 - 50330045000
                                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                                          $2.63
                                                                                                                  Recommended Quantity: 4

                                                                                                                  This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                  Stock: TBD
                                                                                                                  46
                                                                                                                  Item # 1038576
                                                                                                                  KTM / Husqvarna Intermediate Flange Gasket - 50337046300
                                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                                  $10.31
                                                                                                                          Recommended Quantity: 1

                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                          Stock: TBD
                                                                                                                          74
                                                                                                                          Item # 1038935
                                                                                                                          KTM / GasGas / Husqvarna Retaining Plate - 51005074000
                                                                                                                          Leaves Warehouse: Same Day
                                                                                                                          $3.95
                                                                                                                                  Recommended Quantity: 2

                                                                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                  Stock: TBD
                                                                                                                                  77
                                                                                                                                  Item # 1033145
                                                                                                                                  KTM / GasGas / Husqvarna HH Collar Screw M6X10 TX30 - 0025060106
                                                                                                                                  Leaves Warehouse: Same Day
                                                                                                                                  $3.95
                                                                                                                                          Recommended Quantity: 1

                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                          Stock: TBD
                                                                                                                                          78
                                                                                                                                          Item # 1033579
                                                                                                                                          KTM / GasGas / Husqvarna CU-Seal Ring DIN7603-6X10X1 - 0603061001
                                                                                                                                          Leaves Warehouse: Same Day
                                                                                                                                          $2.63
                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                  Stock: TBD
                                                                                                                                                  79
                                                                                                                                                  Item # 1037784
                                                                                                                                                  KTM / Husqvarna Cylinder Head Bolt M 7X40 WS=10 - 50030079000
                                                                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                                                                  $12.71
                                                                                                                                                          Recommended Quantity: 6

                                                                                                                                                          This part has 6 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                          Stock: TBD
