2004 KTM 660 SMC Chassis - 2004 Frame, Sub Frame OEM Parts | Assembly Diagram OEM Parts Finder and Diagram (Microfiche) Inspector

OEM Parts
KTM
All
2004
660 SMC Chassis - 2004
Frame, Sub Frame

1 2 4 7 9 10 11 12 13 14 16 17 18 19 21 30 32 33 34 35 36 37 38 40 40 41 42 43 44 45 45 46 47 53 55 59 60 61 68 70 71 72 76 79

Use scroll wheel, or pinch and drag to and .

MPN/SKU: 5830310164490

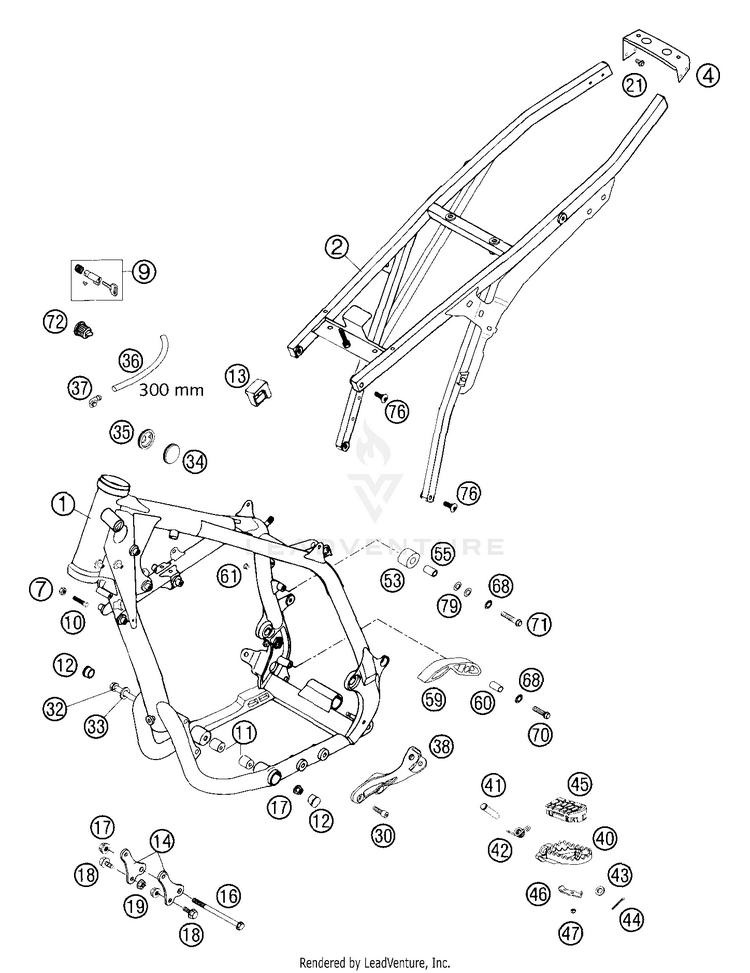

FRAME CPL. "I4" 04

Unavailable

$0.00

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

MPN/SKU: 58303102544

SUB FRAME CPL.ALU 400/620SC 99

Unavailable

$0.00

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

MPN/SKU: 58403002152

OVERLAP METAL SHEET S.FRAME'99

Unavailable

$0.00

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1034285

KTM / GasGas / Husqvarna Hexagon Nut DIN0934-M 8 - 0934080003

Leaves Warehouse: Same Day

$2.89

Recommended Quantity: 2

This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1044385

KTM Steering Head Lock Complete Zadi - 71003007000

Leaves Warehouse: 2 to 3 days

$45.26

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1080372

KTM / GasGas / Husqvarna Special Screw M8X26 WS=10 - 59001037000

Leaves Warehouse: Same Day

$4.34

Recommended Quantity: 2

This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

MPN/SKU: 58003012000

SPACER ROLLER 10,3X20X22

Unavailable

$10.28

Recommended Quantity: 2

This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1044384

KTM / Husqvarna PVC Cap D=22 mm - 71001012100

Leaves Warehouse: 2 to 3 days

$4.34

Recommended Quantity: 2

This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

MPN/SKU: 58307015000

TANK SUPPORT '93

Unavailable

$6.59

Recommended Quantity: 2

This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

MPN/SKU: 58303055000

ENGINE SUPPORT AGW '94

Unavailable

$12.60

Recommended Quantity: 2

This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1080059

KTM Engine Brac.Screw M10X110 WS13 - 58403013000

Out of Stock

$17.12

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1079416

KTM / GasGas / Husqvarna Collar Nut M10-SW13 ZnNi - 55530044000

Leaves Warehouse: Same Day

$1.67

Recommended Quantity: 2

This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1037776

KTM / GasGas / Husqvarna HH Collar Screw M 8X16 WS=13 - 49109481052

Leaves Warehouse: 2 to 3 days

$4.34

Recommended Quantity: 4

This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1039280

KTM / GasGas / Husqvarna Self Locking Nut M8 10.9 - 54310086200

Leaves Warehouse: Same Day

$4.34

Recommended Quantity: 4

This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1033145

KTM / GasGas / Husqvarna HH Collar Screw M6X10 TX30 - 0025060106

Leaves Warehouse: Same Day

$4.34

Recommended Quantity: 4

This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1033213

KTM / GasGas / Husqvarna AH-Collar Screw M10X25 ISA45 - 0032100256S

Leaves Warehouse: 2 to 3 days

$5.80

Recommended Quantity: 2

This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1080060

KTM / Husqvarna Engine Brac.Screw M10X160 WS13 - 58403014000

Leaves Warehouse: 2 to 3 days

$25.73

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1034848

KTM / Husqvarna Washer 10.5 X 21 X 3 - 31004001100

Leaves Warehouse: 2 to 3 days

$2.89

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1078299

KTM / Husqvarna Plug 37 mm - 54606004000

Leaves Warehouse: 2 to 3 days

$2.89

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

MPN/SKU: 54606004100

PLUG 37MM PERFORATED 04

Unavailable

$1.79

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1079099

KTM / GasGas / Husqvarna PVC-Hose 7X10 PER Meter - 55007016001

Leaves Warehouse: Same Day

$8.57

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1038165

KTM / GasGas / Husqvarna Angle Piece '97 - 50303089000

Leaves Warehouse: 2 to 3 days

$7.38

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1080063

KTM / Husqvarna Footrest Bracket Left Aluminum 05 - 58403038100

Leaves Warehouse: 2 to 3 days

$130.01

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1047795

KTM / GasGas / Husqvarna Footrest Left Side 08 - 78003040050

Leaves Warehouse: 2 to 3 days

$61.63

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1047796

KTM / GasGas / Husqvarna Footrest Right Side 08 - 78003041050

Leaves Warehouse: 2 to 3 days

$61.63

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1078536

KTM / GasGas / Husqvarna Pin for Foot PED 51.5X9.8 mm - 54803044000

Leaves Warehouse: 2 to 3 days

$17.54

Recommended Quantity: 2

This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1078268

KTM / GasGas / Husqvarna Footrest Spring Left Side & Right Side - 54603041000

Leaves Warehouse: 2 to 3 days

$7.38

Recommended Quantity: 2

This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1033325

KTM / GasGas / Husqvarna Washer DIN 125 A 10.5 - 0125100003

Leaves Warehouse: Same Day

$2.89

Recommended Quantity: 2

This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1033306

KTM / GasGas / Husqvarna Pin DIN 0094-3.2X25 Niro - 0094032250

Leaves Warehouse: Same Day

$1.52

Recommended Quantity: 2

This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1080843

KTM / GasGas / Husqvarna Footrest Rubber Front Left Side 03 - 60003040010

Leaves Warehouse: 2 to 3 days

$31.27

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1080846

KTM / GasGas / Husqvarna Footrest Rubber Front Right Side 03 - 60003041010

Leaves Warehouse: 2 to 3 days

$31.27

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1080848

KTM / GasGas / Husqvarna Closing Panel Front Left Side Right Side 03 - 60003044010

Leaves Warehouse: 2 to 3 days

$8.57

Recommended Quantity: 2

This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1034336

KTM / GasGas / Husqvarna Self Locking Nut DIN0985-M 5 - 0985050003

Leaves Warehouse: Same Day

$2.89

Recommended Quantity: 2

This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1080065

KTM / Husqvarna Chain Roll 12X29X22.5 '98 - 58403060000

Leaves Warehouse: 2 to 3 days

$8.57

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1080067

KTM Bushing Chain Roll 8X12X23 '98 - 58403060065

Leaves Warehouse: 2 to 3 days

$4.34

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1038959

KTM / Husqvarna Chain Sliding Piece Below '97 - 51103053000

Leaves Warehouse: 2 to 3 days

$12.92

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1038961

KTM / Husqvarna Bushing 8.2x10X20 - 51103053051

Leaves Warehouse: Same Day

$5.80

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1039298

KTM / GasGas / Husqvarna Plastic Cap SFL10 - 54403135000

Leaves Warehouse: 2 to 3 days

$2.89

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1035209

KTM / GasGas / Husqvarna Lock Washer 8 mm - 36003014000

Leaves Warehouse: Same Day

$2.89

Recommended Quantity: 2

This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1033186

KTM / GasGas / Husqvarna HH Collar Screw M8X30 - 0025080306

Leaves Warehouse: Same Day

$4.34

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1033052

KTM / GasGas / Husqvarna HH Collar Screw M 8X45 WS=10 - 0015080453

Leaves Warehouse: 2 to 3 days

$2.89

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

MPN/SKU: 42007049000

PLASTIC CAP

Unavailable

$1.29

Recommended Quantity: 1

This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1033099

KTM / GasGas / Husqvarna Counter Sunk Screw ISA45 M8X26 - 0019080266S

Leaves Warehouse: Same Day

$4.34

Recommended Quantity: 4

This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD

Item # 1033324

KTM / GasGas / Husqvarna Washer DIN 125 A -8.4 - 0125080003

Leaves Warehouse: Same Day

$1.67

Recommended Quantity: 2

This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

Stock: TBD
