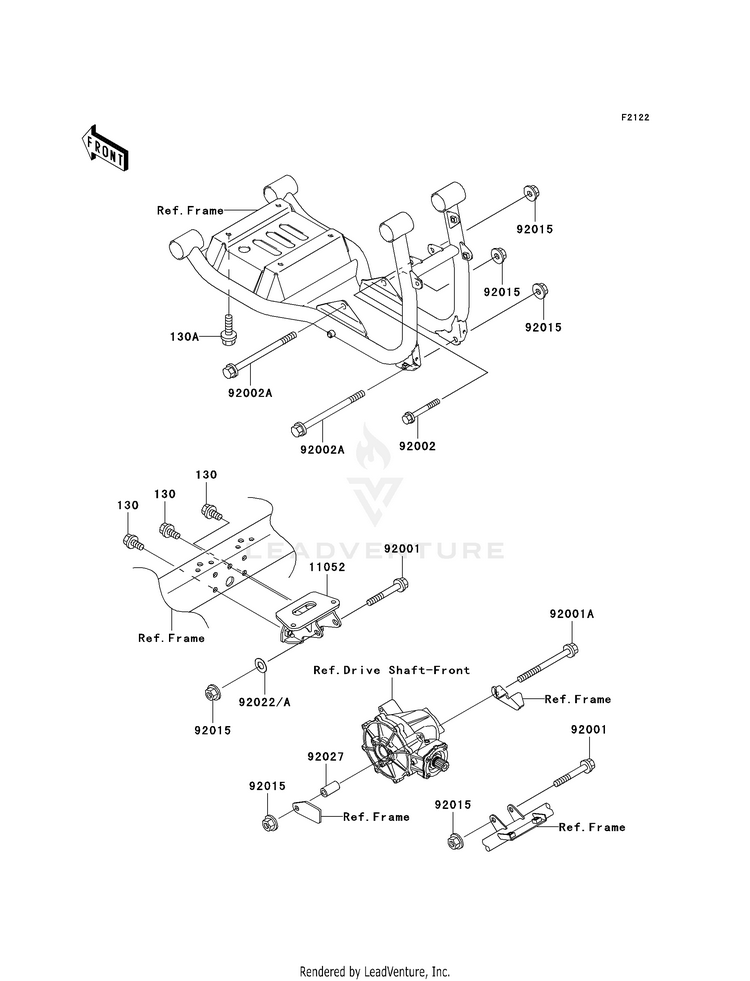

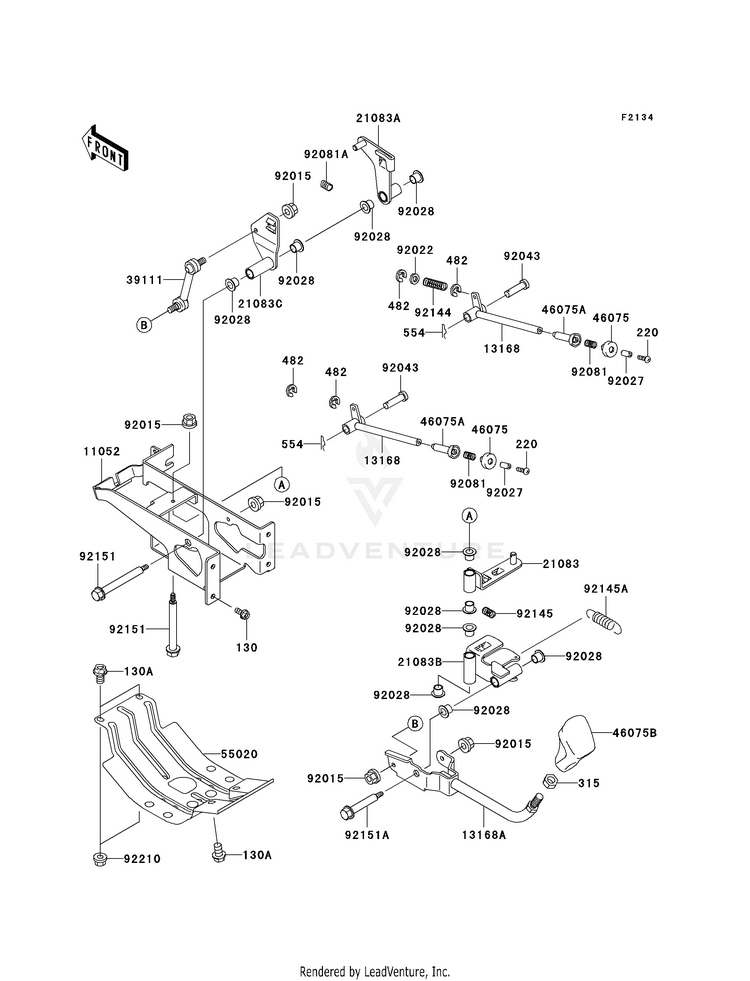

130
Item # 1167618
Kawasaki Bolt-Flanged 10X20 - 130CA1020
Leaves Warehouse: 1 to 2 days
$5.65
          Recommended Quantity: 3

          This part has 3 locations on the diagram. It is the recommended quantity, but not a requirement.

          Stock: TBD
          130A
          Item # 1167504
          Kawasaki Bolt-Flanged 8X20 - 130BA0820
          Leaves Warehouse: 1 to 2 days
          $3.58
                  Recommended Quantity: 4

                  This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

                  Stock: TBD
                  11052
                  MPN/SKU: 11052-1575
                  BRACKET,FRONT GEAR CA
                  Unavailable
                  $40.78
                          Recommended Quantity: 1

                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                          Stock: TBD
                          92001
                          Item # 1153976
                          Kawasaki Bolt Flanged, 10X70 - 92001-1618
                          Leaves Warehouse: 1 to 2 days
                          $10.91
                                  Recommended Quantity: 2

                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                  Stock: TBD
                                  92001A
                                  Item # 1153971
                                  Kawasaki Bolt Flanged, 10X115 - 92001-1603
                                  Leaves Warehouse: 1 to 2 days
                                  $11.67
                                          Recommended Quantity: 1

                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                          Stock: TBD
                                          92002
                                          Item # 1288986
                                          Kawasaki Flange Bolt 10X80 - 92002-1764
                                          Leaves Warehouse: 1 to 2 days
                                          $7.58
                                                  Recommended Quantity: 1

                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                  Stock: TBD
                                                  92002A
                                                  Item # 1154177
                                                  Kawasaki Bolt Flanged, 10X145 - 92002-1765
                                                  Leaves Warehouse: 1 to 2 days
                                                  $12.83
                                                          Recommended Quantity: 2

                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                          Stock: TBD
                                                          92015
                                                          Item # 1154733
                                                          Kawasaki Nut Lock, 10 mm - 92015-1597
                                                          Leaves Warehouse: 1 to 2 days
                                                          $5.51
                                                                  Recommended Quantity: 6

                                                                  This part has 6 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                  Stock: TBD
                                                                  92022
                                                                  Item # 1154920
                                                                  Kawasaki Washer 10.2X20X0.5 - 92022-1649
                                                                  Leaves Warehouse: Same Day
                                                                  $4.20
                                                                          Recommended Quantity: 1

                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                          Stock: TBD
                                                                          92022A
                                                                          Item # 1303454
                                                                          Kawasaki Washer 10.5X20X1 - 92022-239
                                                                          Leaves Warehouse: 1 to 2 days
                                                                          $3.69
                                                                                  Recommended Quantity: 1

                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                  Stock: TBD
                                                                                  92027
                                                                                  Item # 1155318
                                                                                  Kawasaki Collar 11X20X39 - 92027-1518
                                                                                  Leaves Warehouse: 1 to 2 days
                                                                                  $16.50
                                                                                          Recommended Quantity: 1

                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                          Stock: TBD
                                                                                          No results with applied page filter:

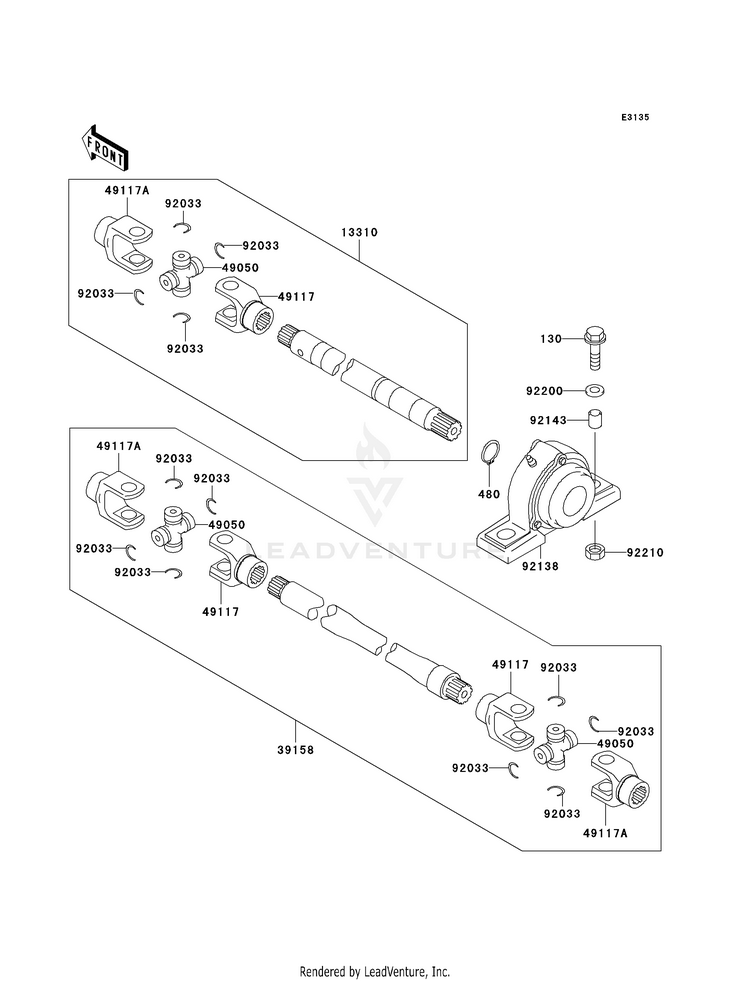

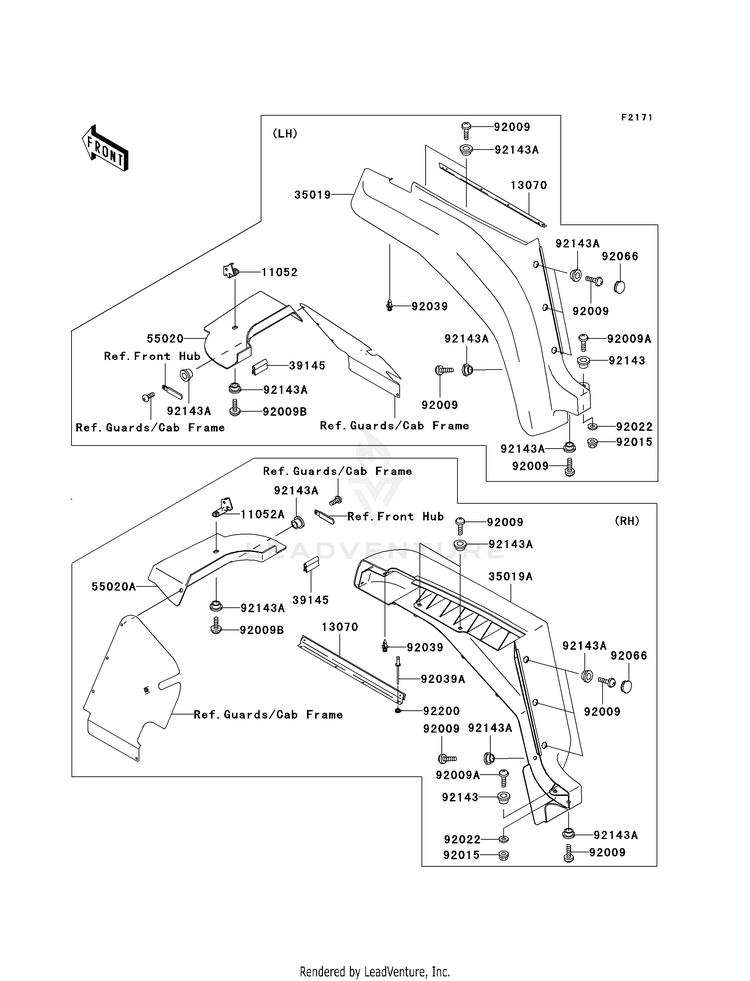

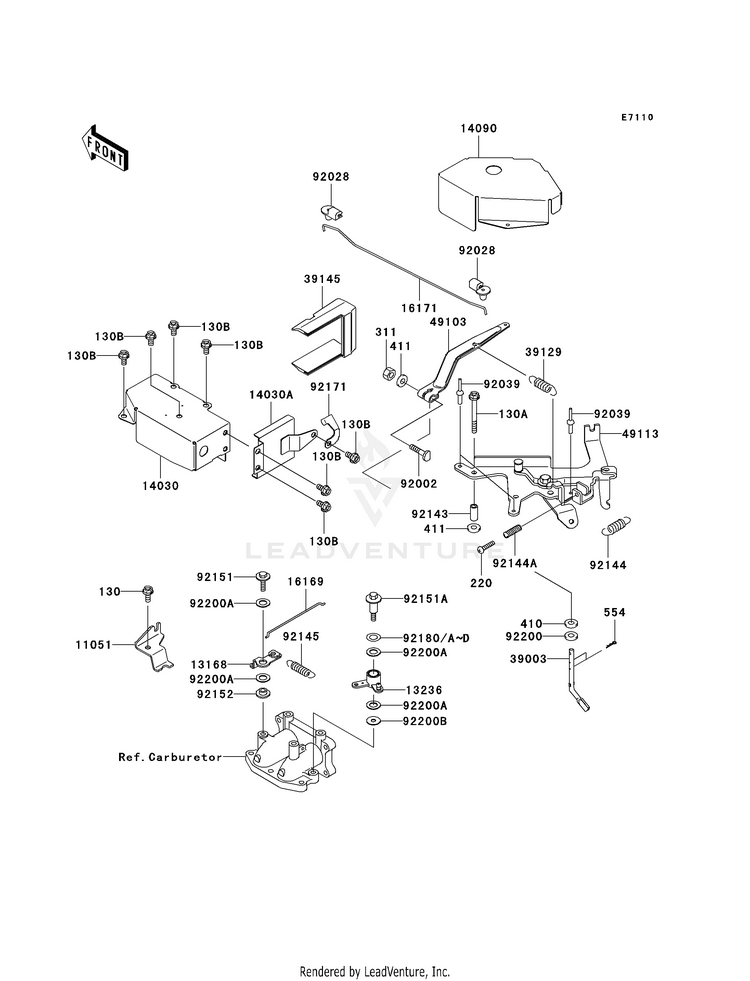

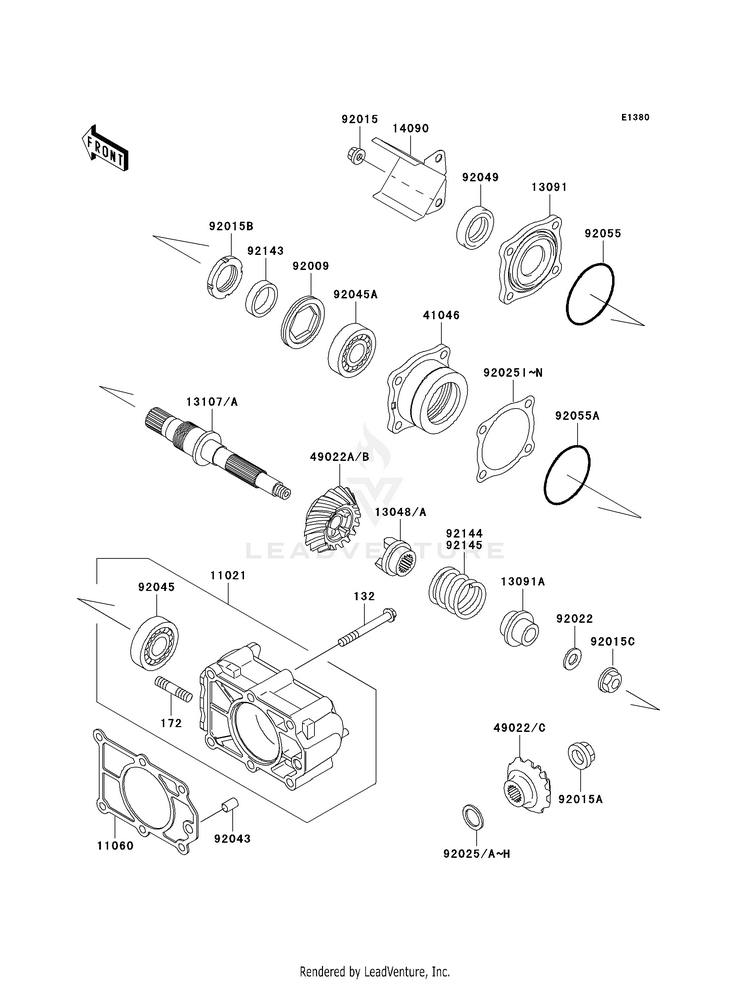

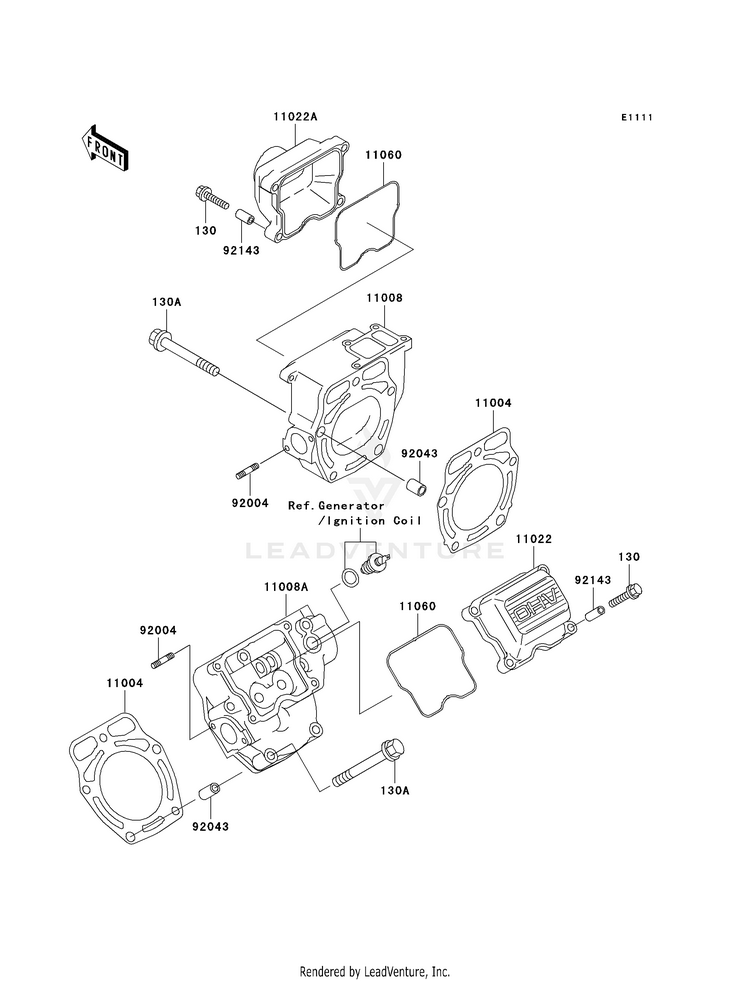

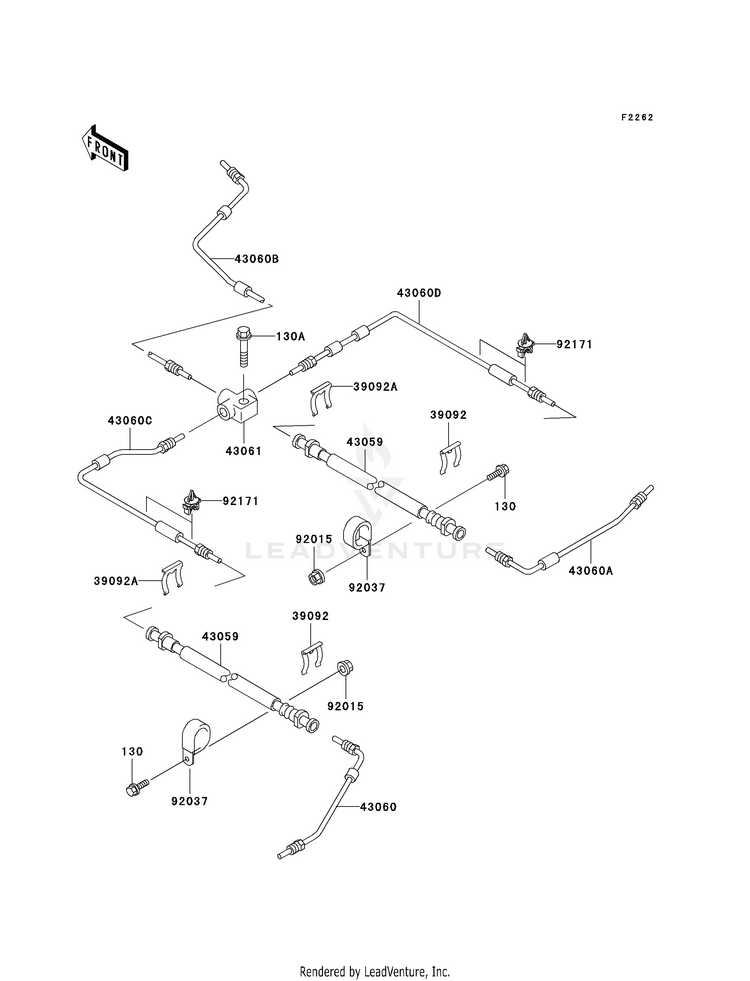

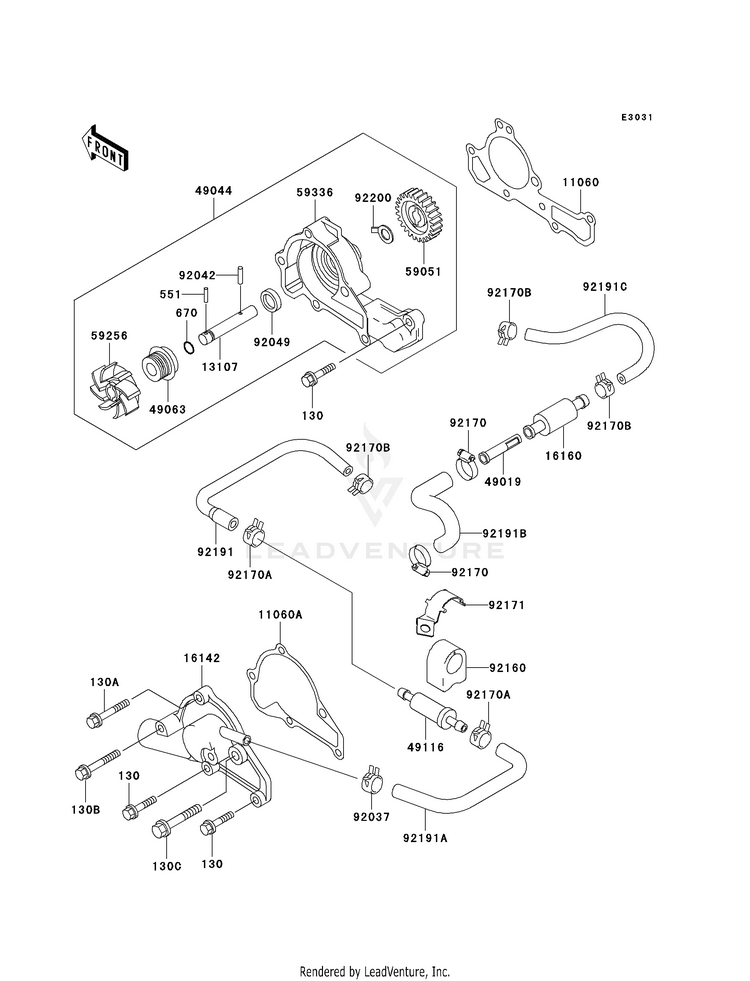

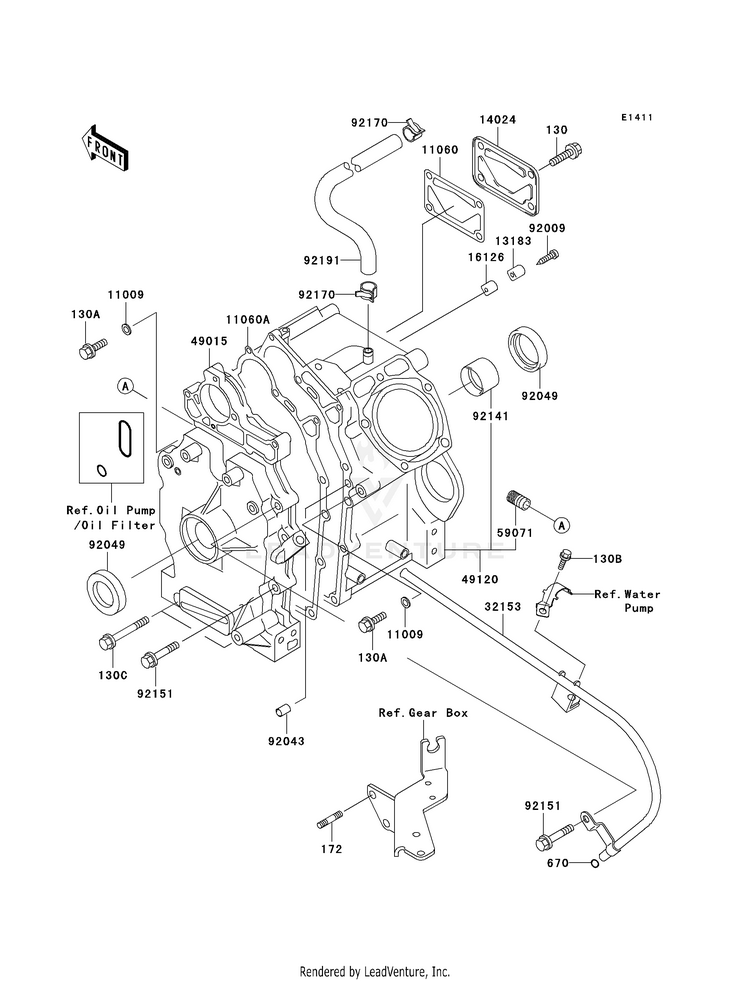

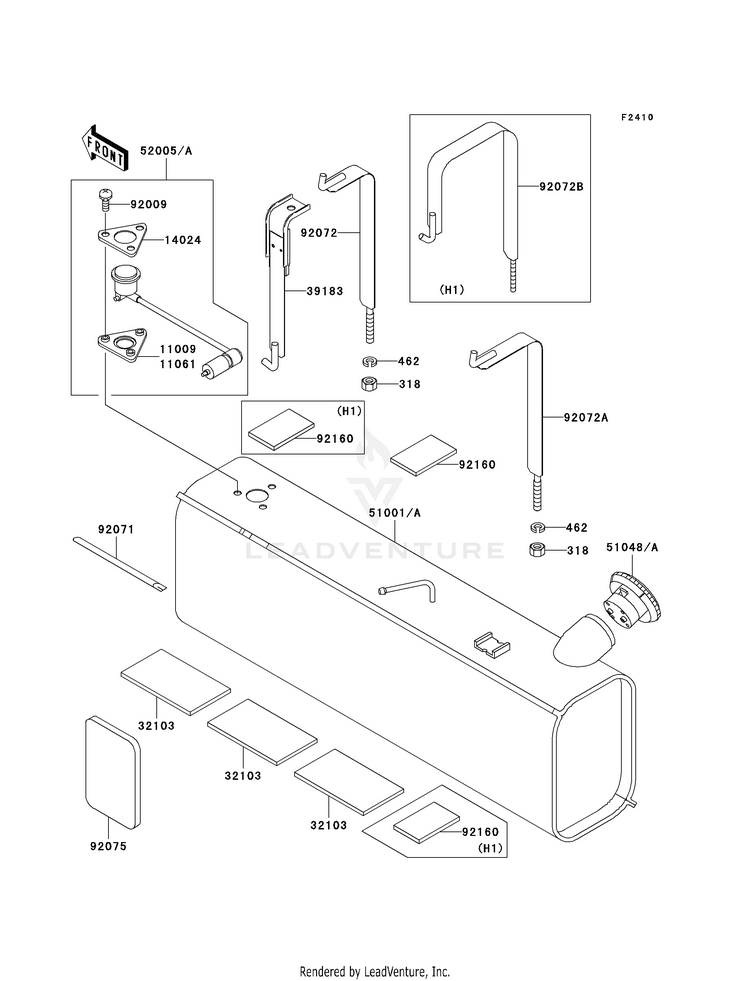

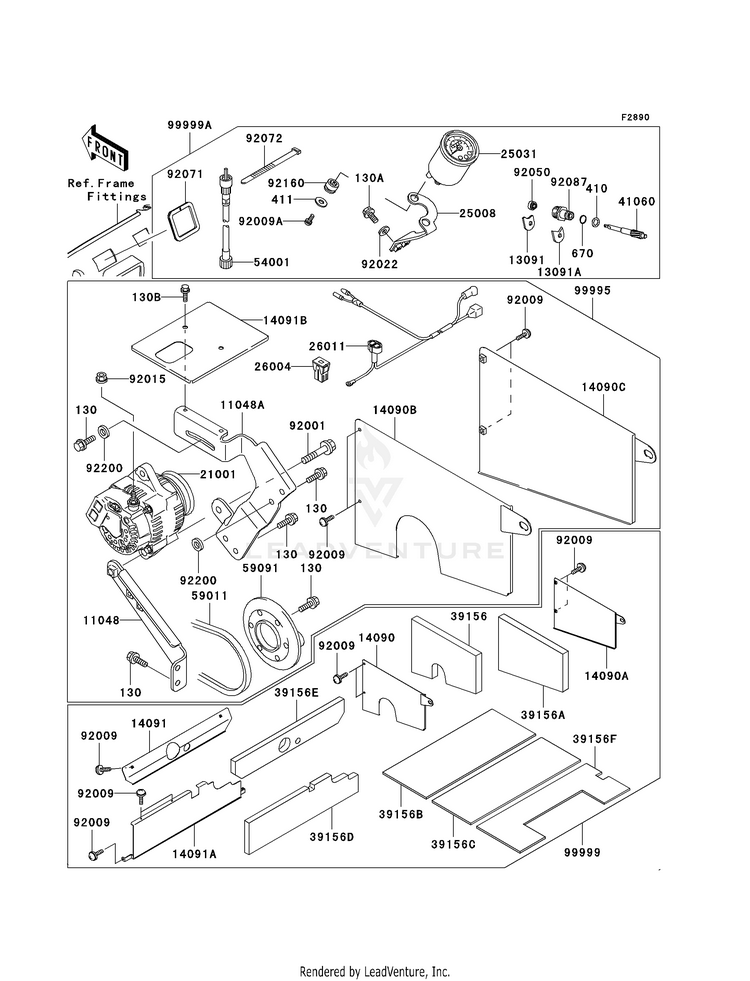

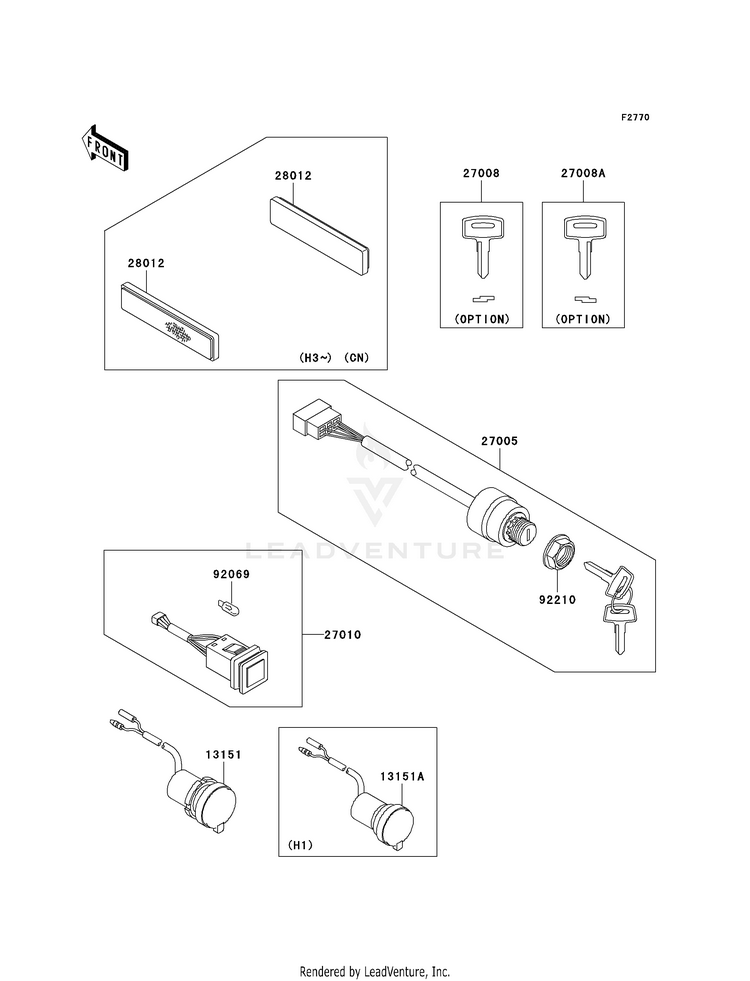

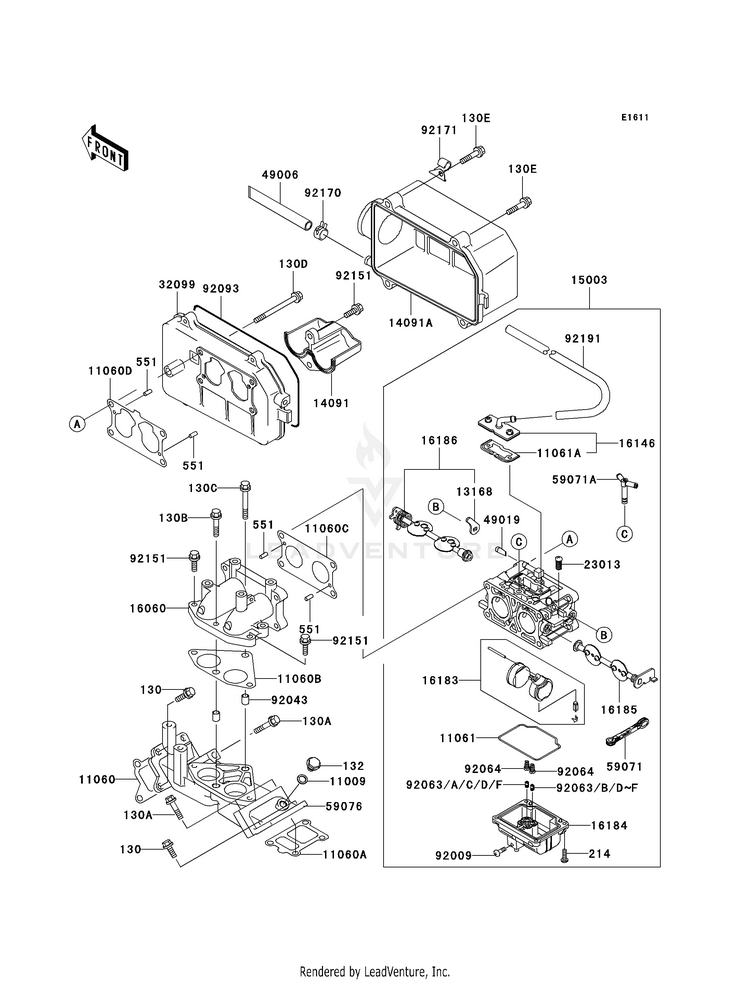

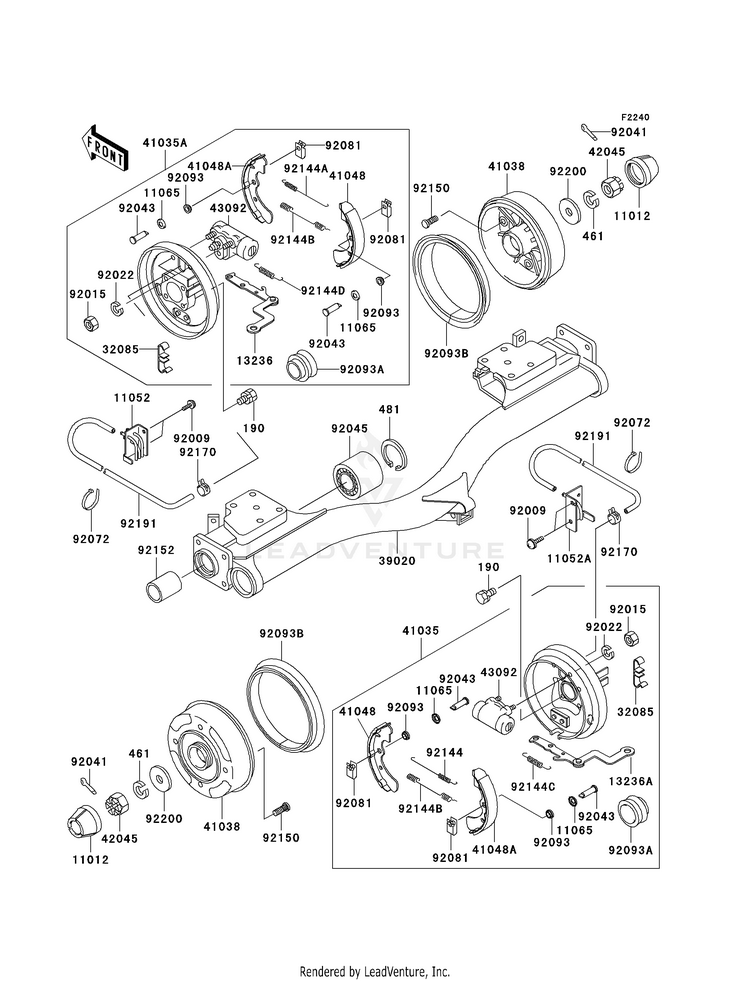

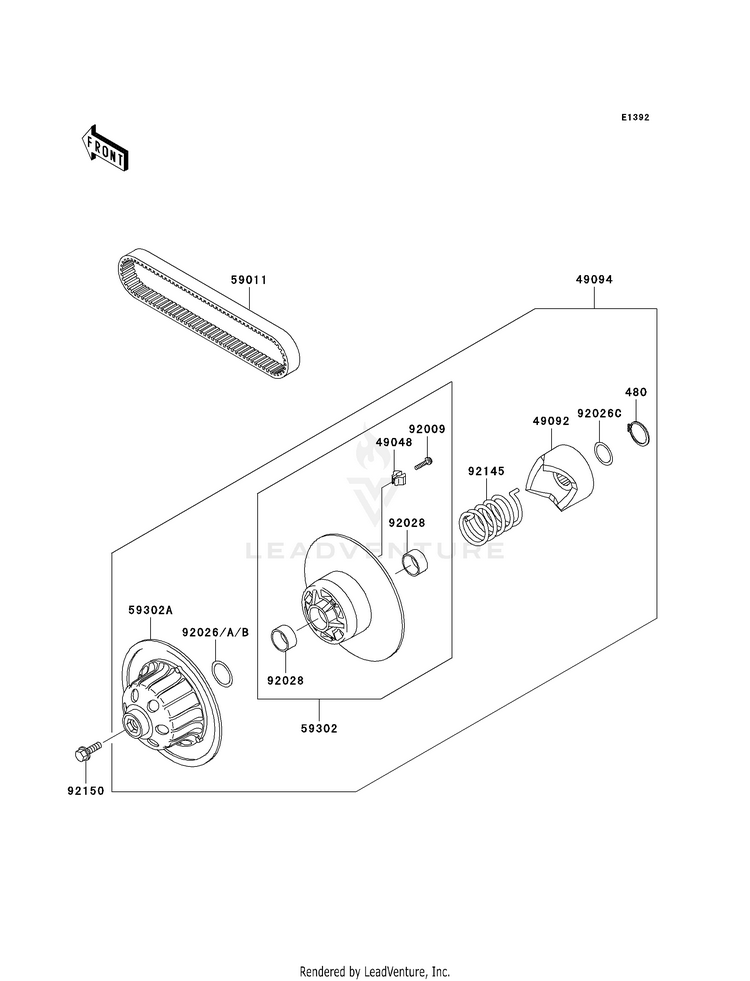

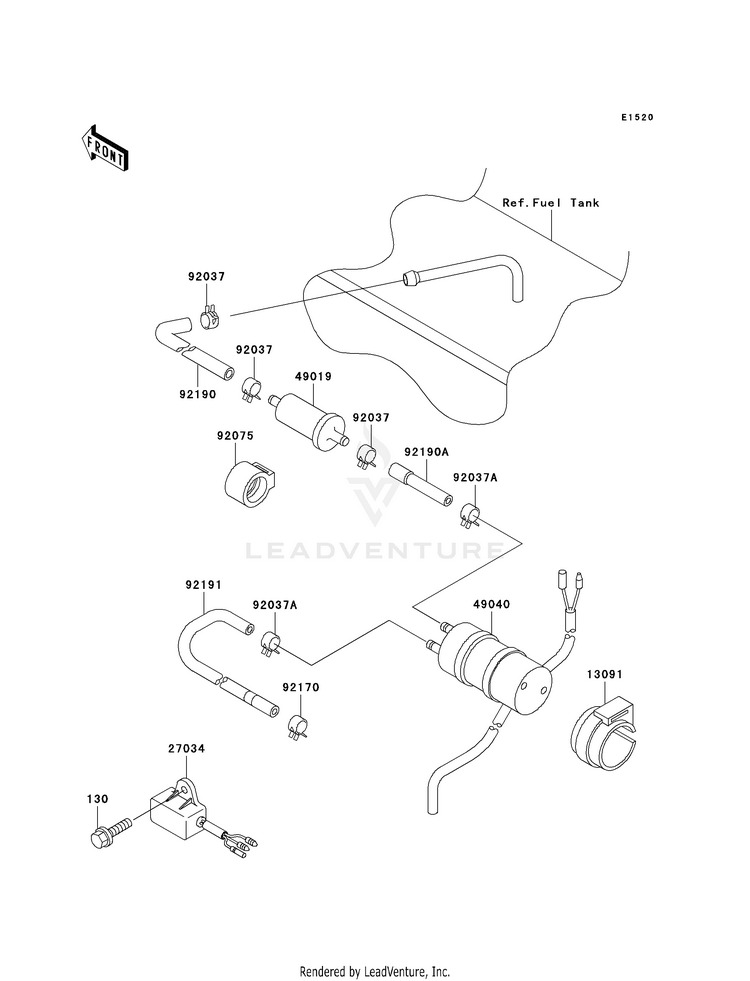

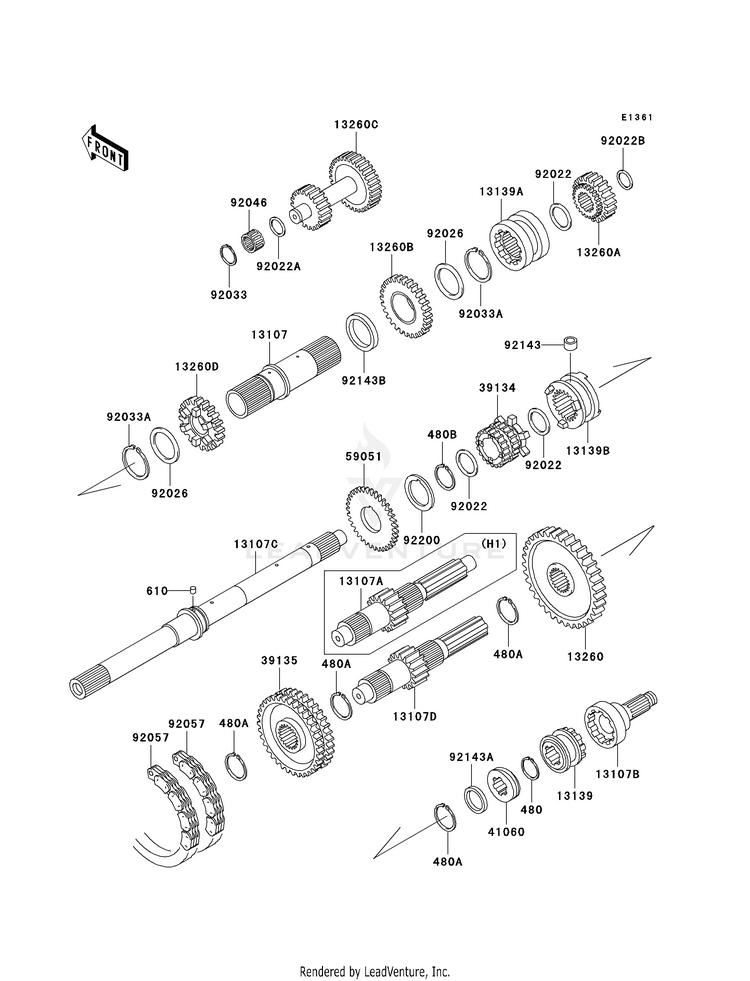

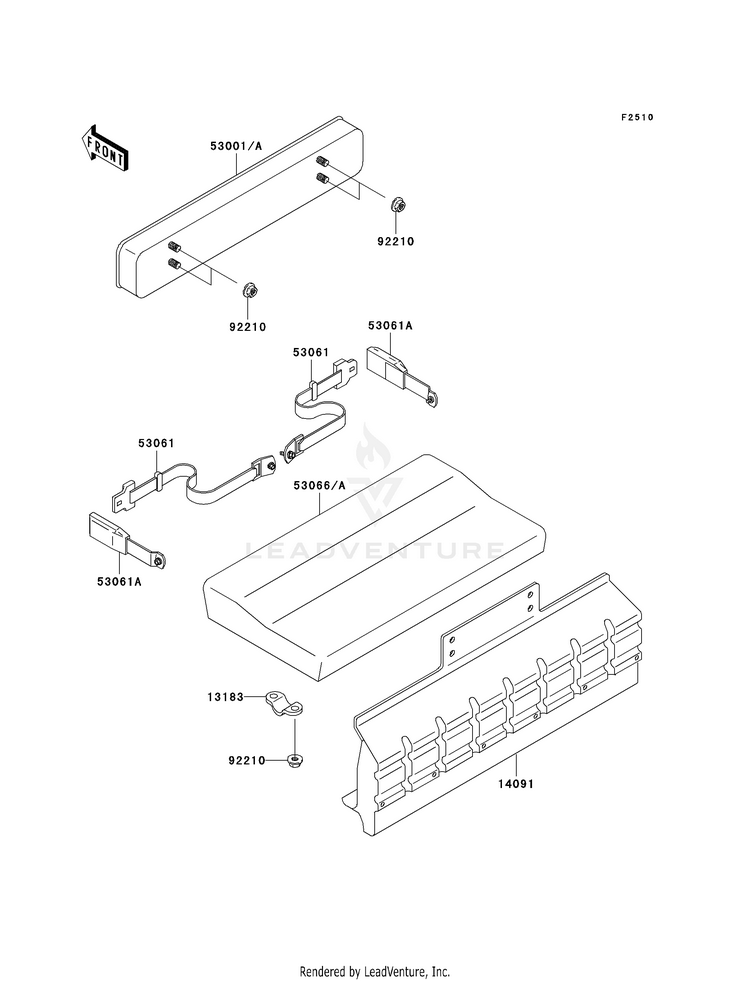

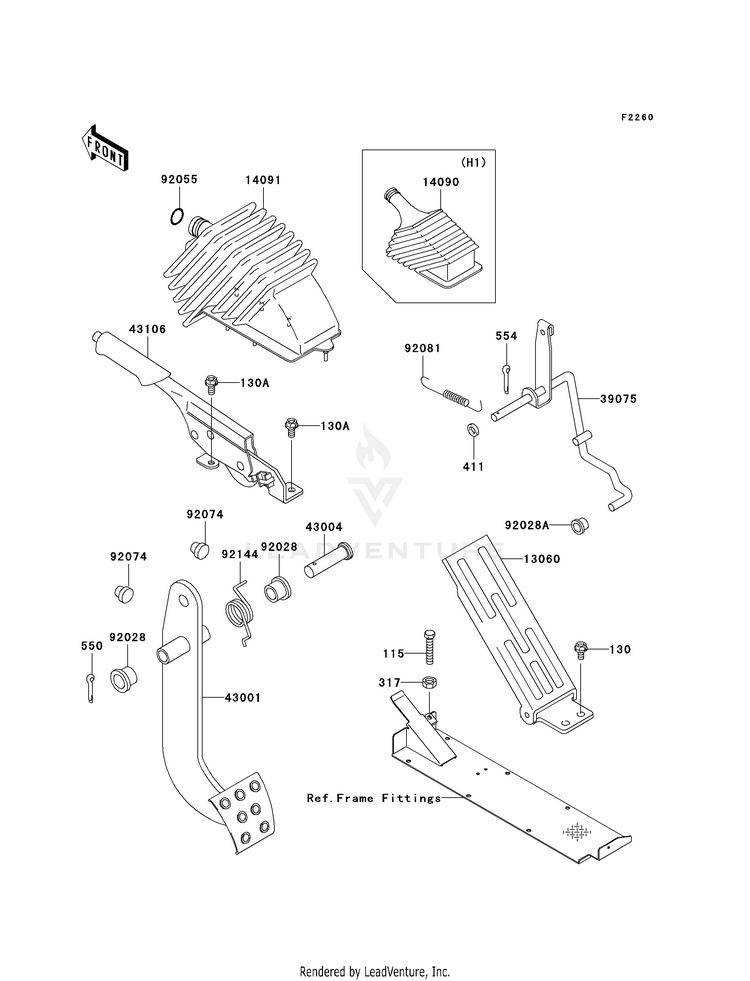

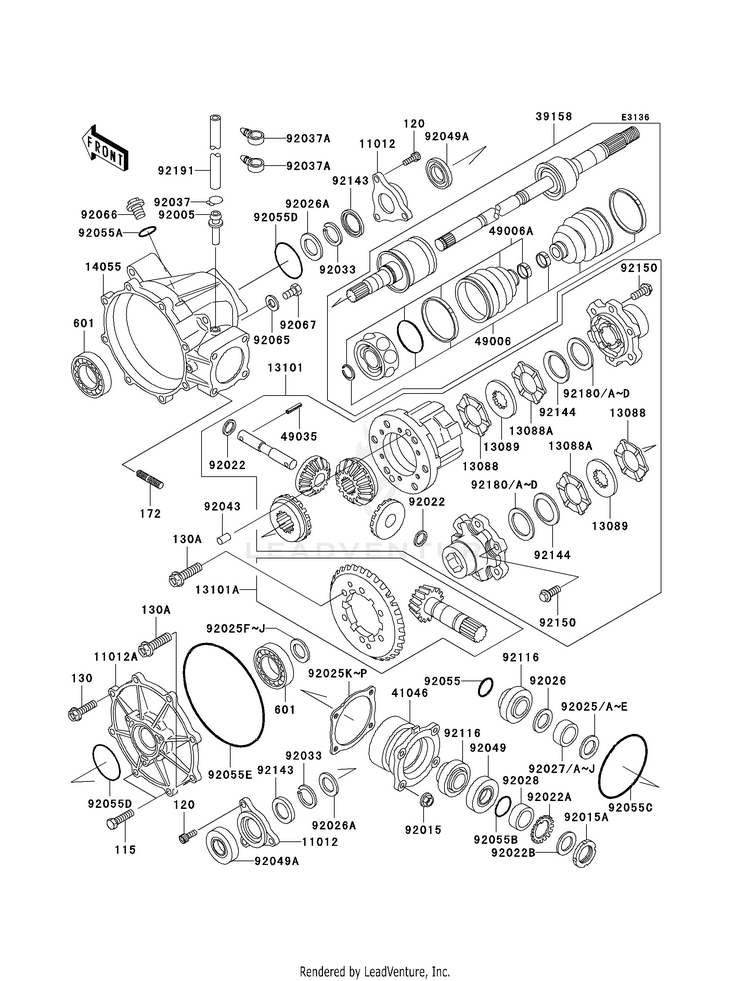

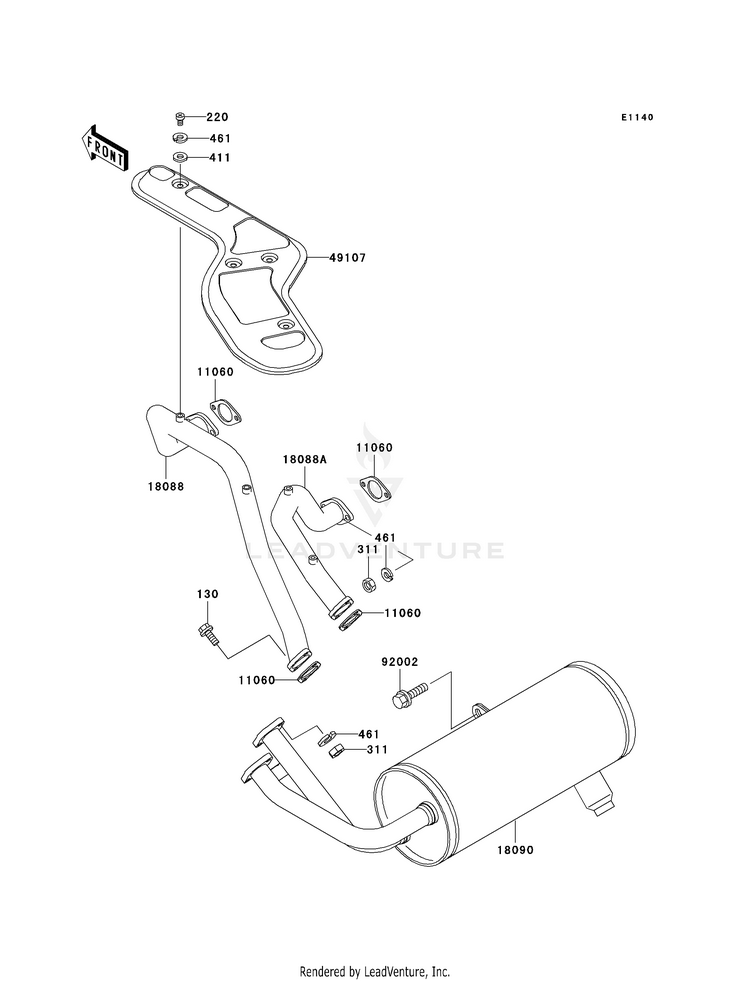

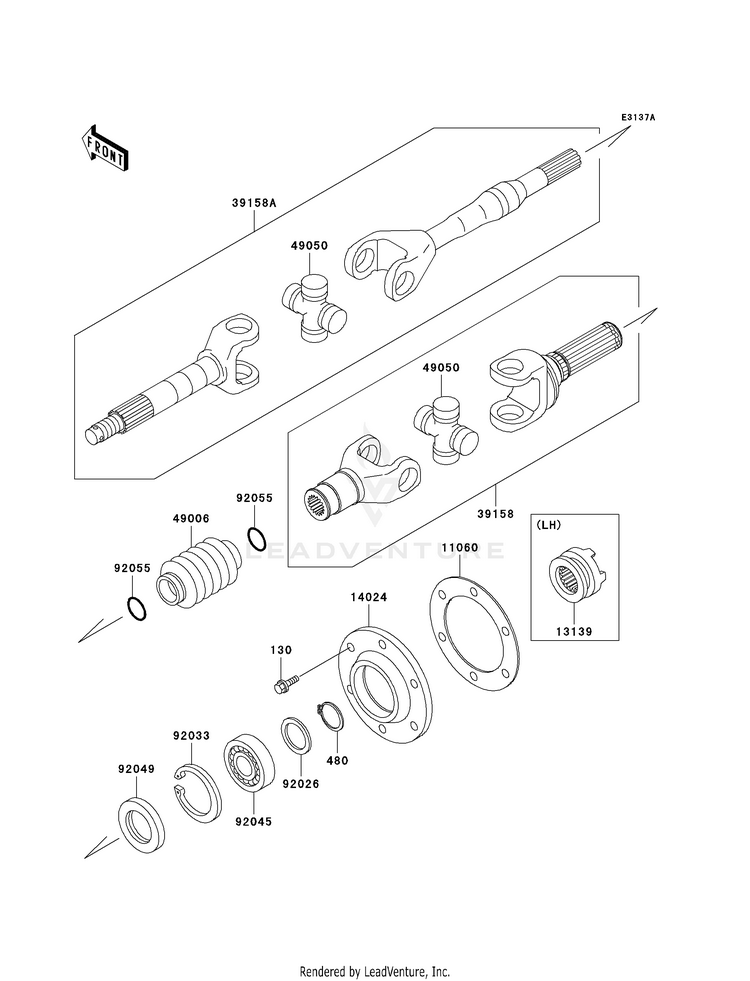

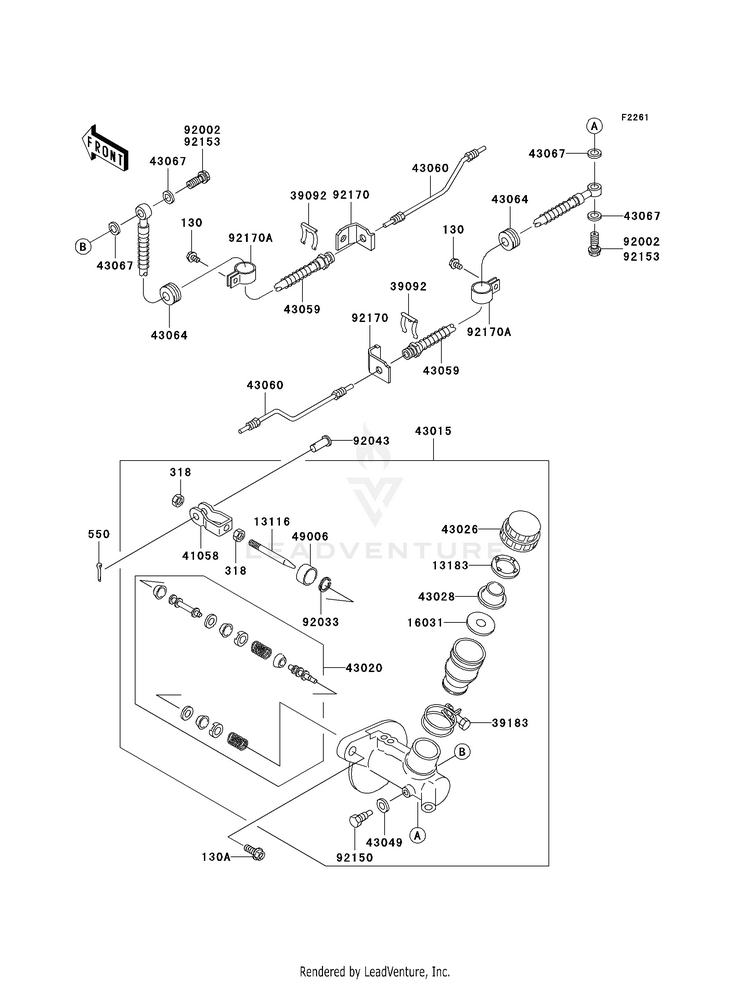

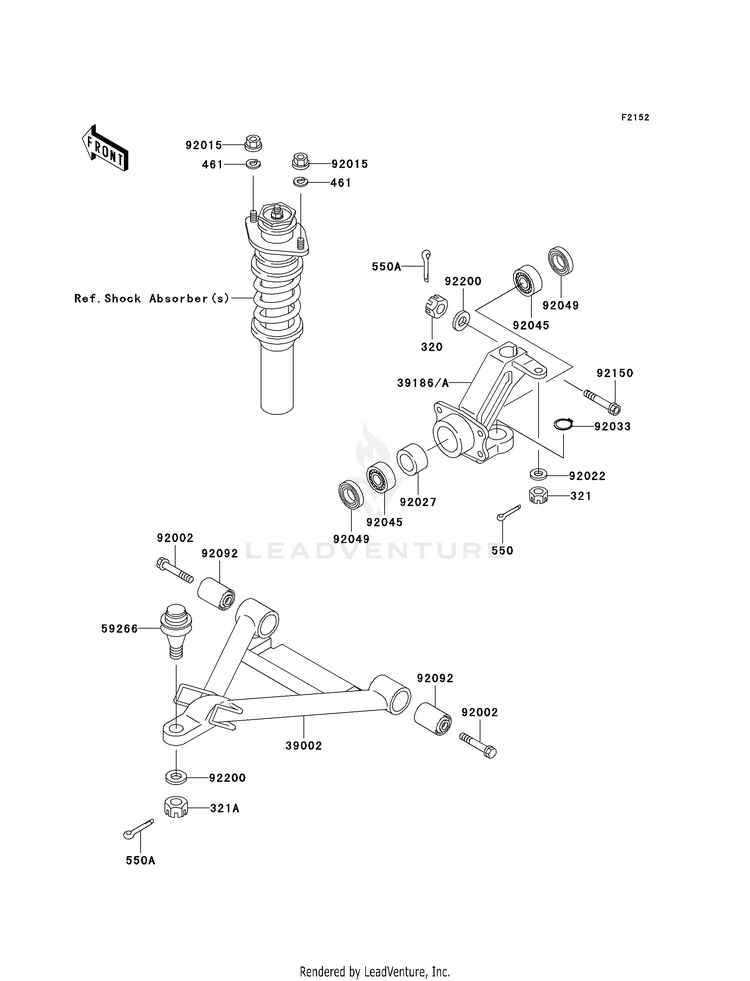

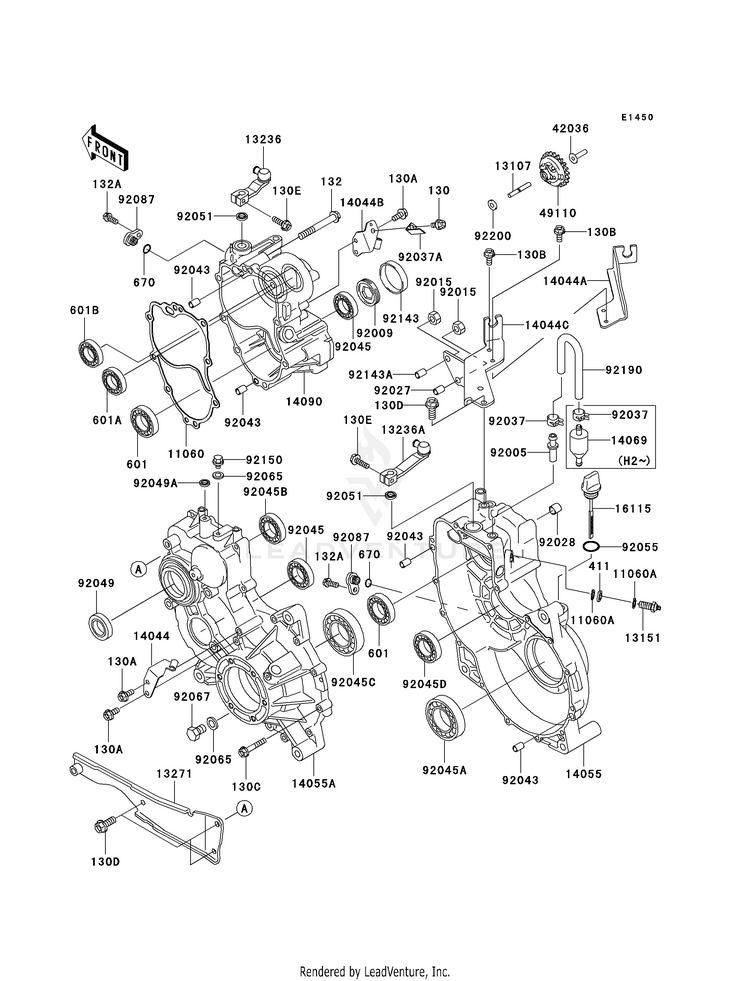

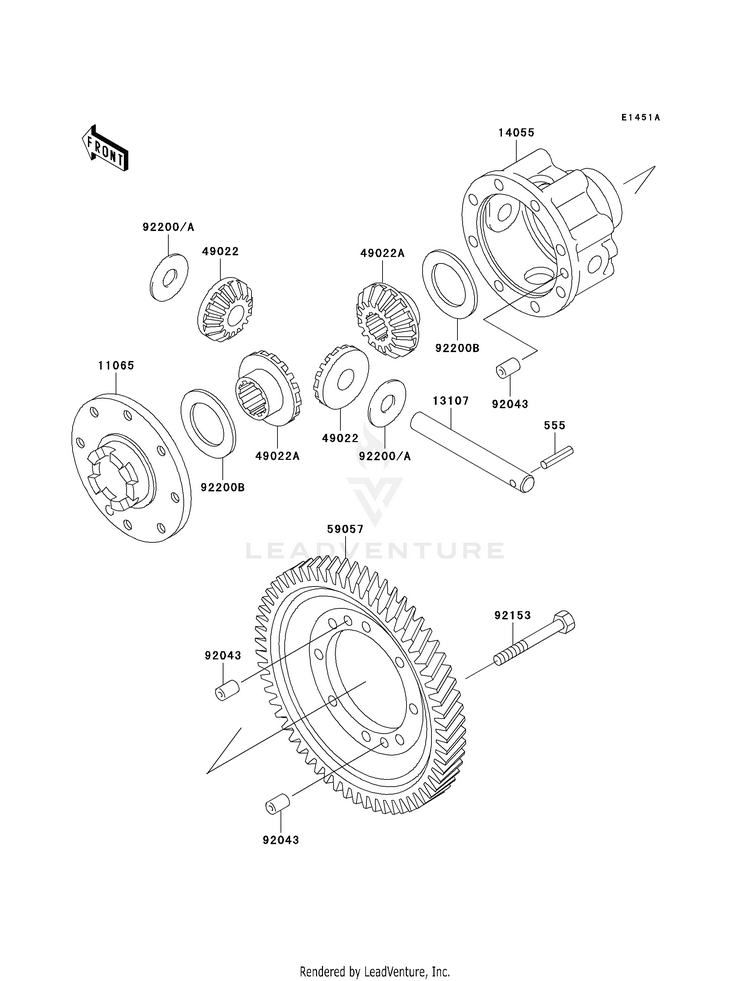

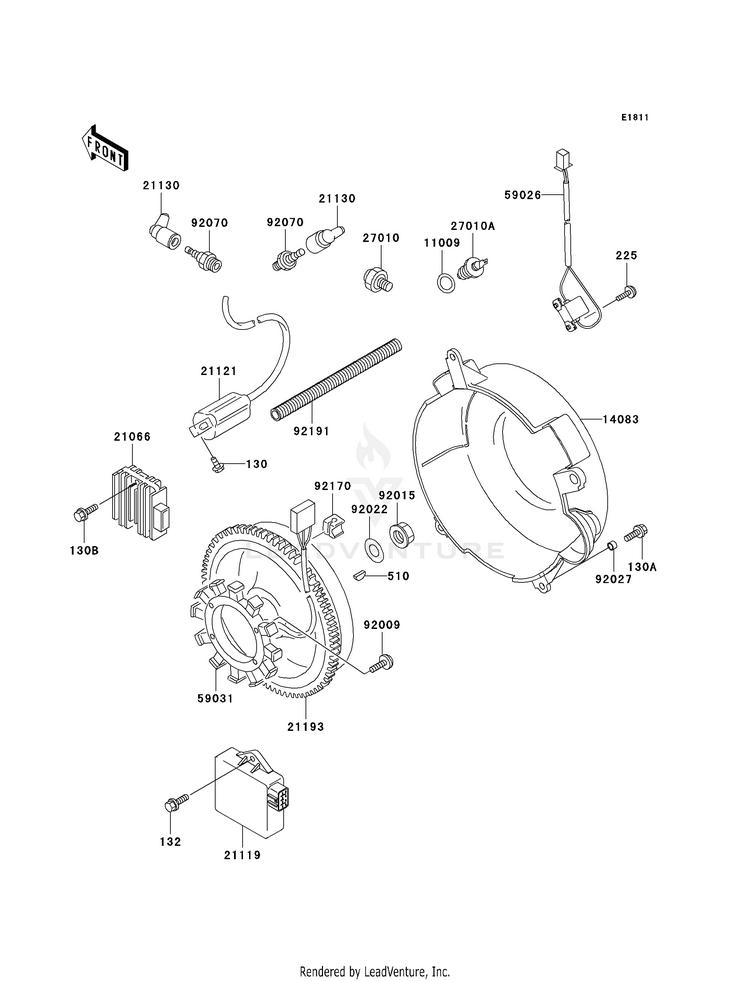

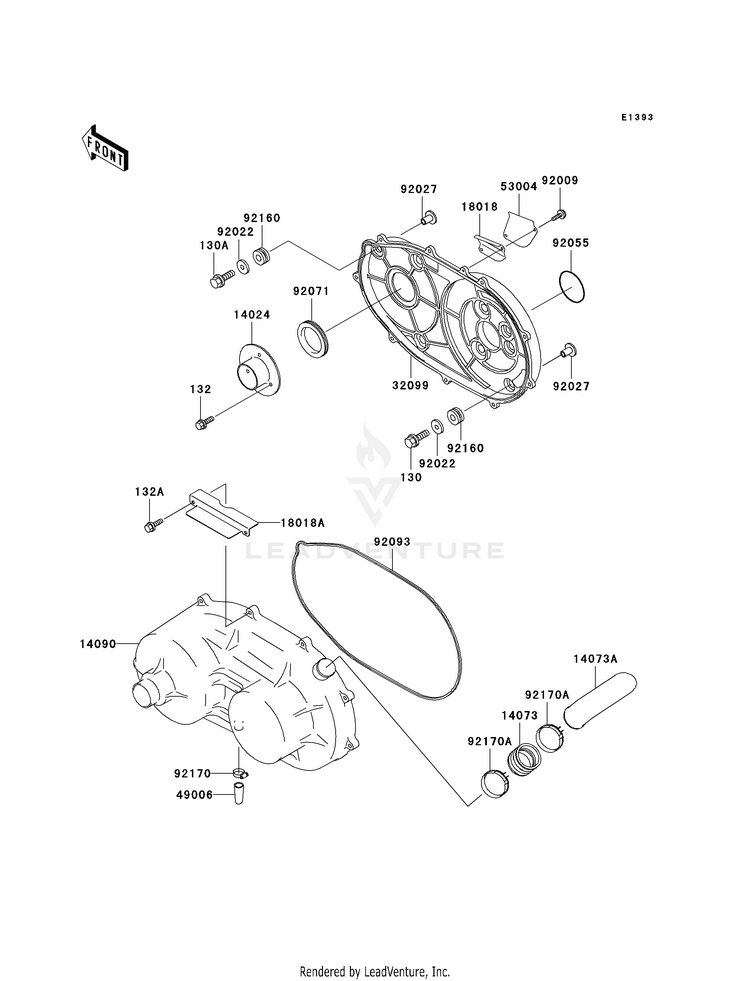

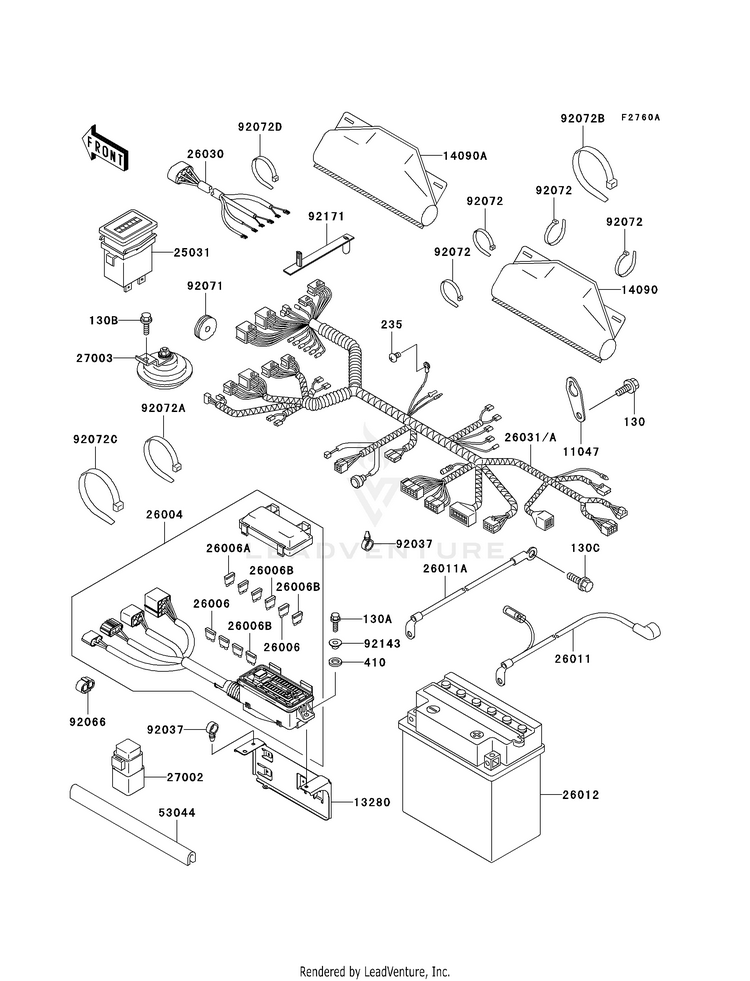

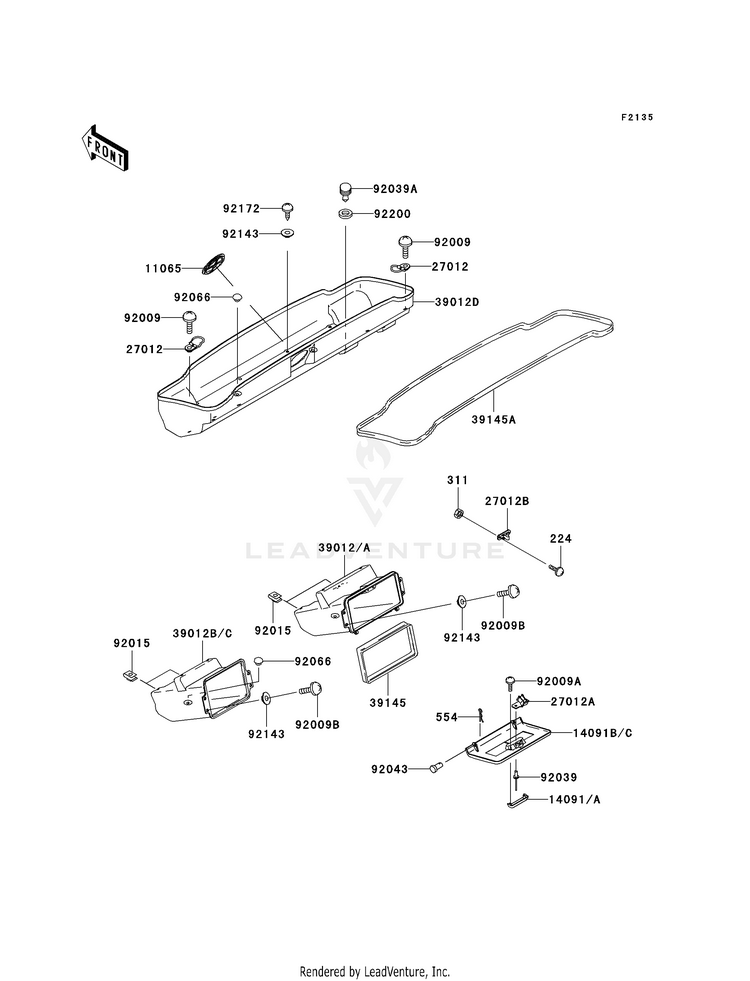

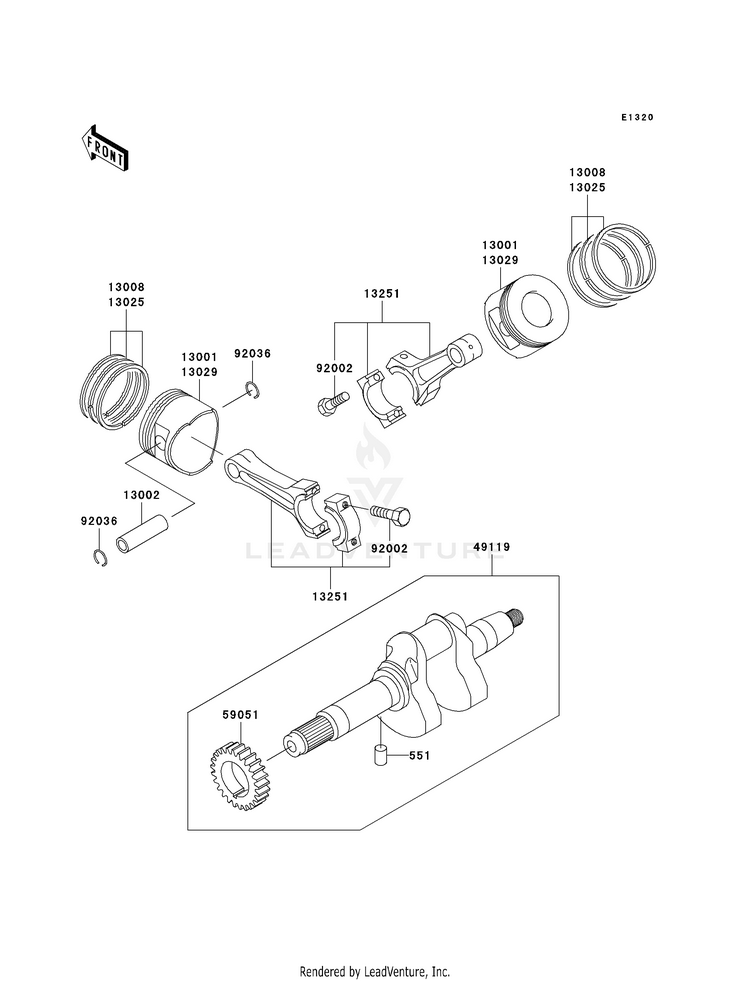

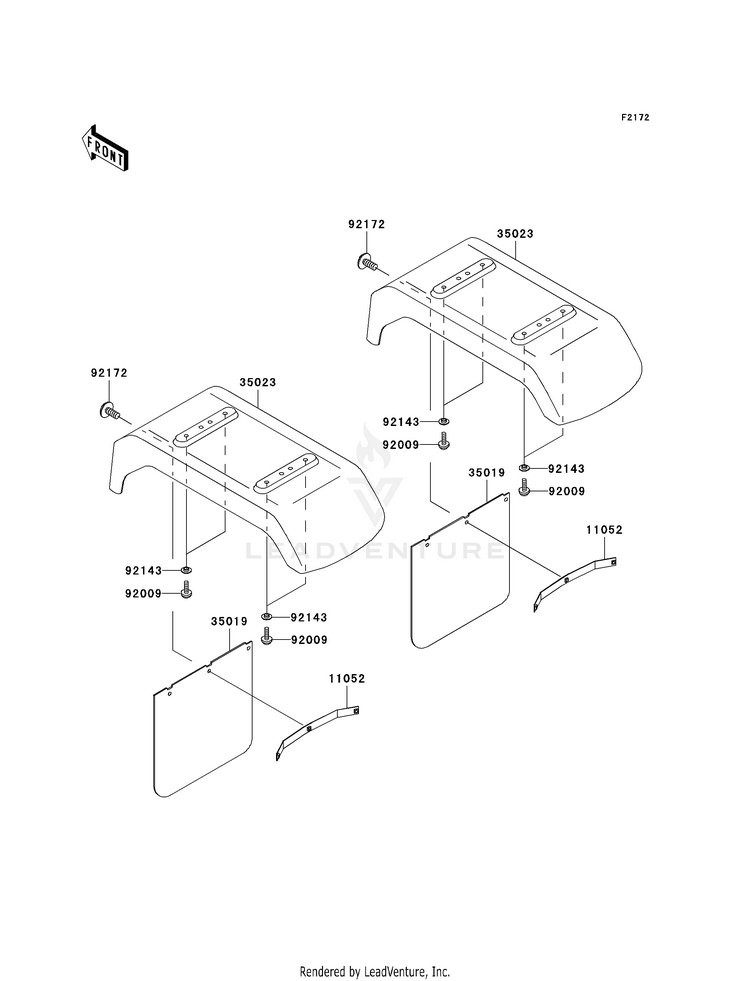

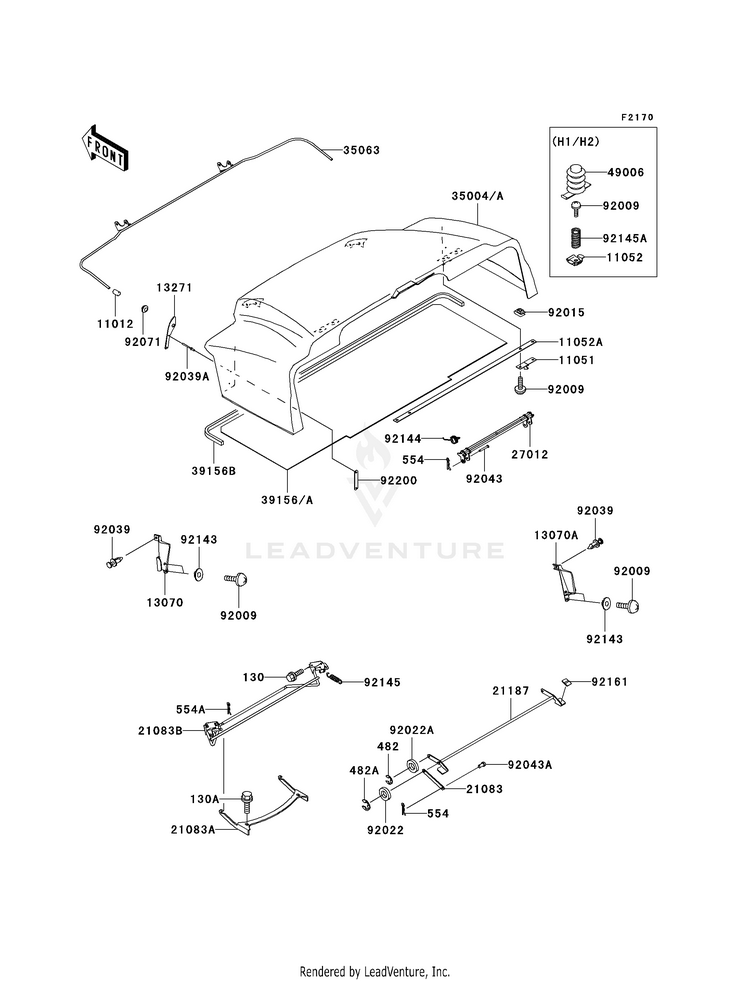

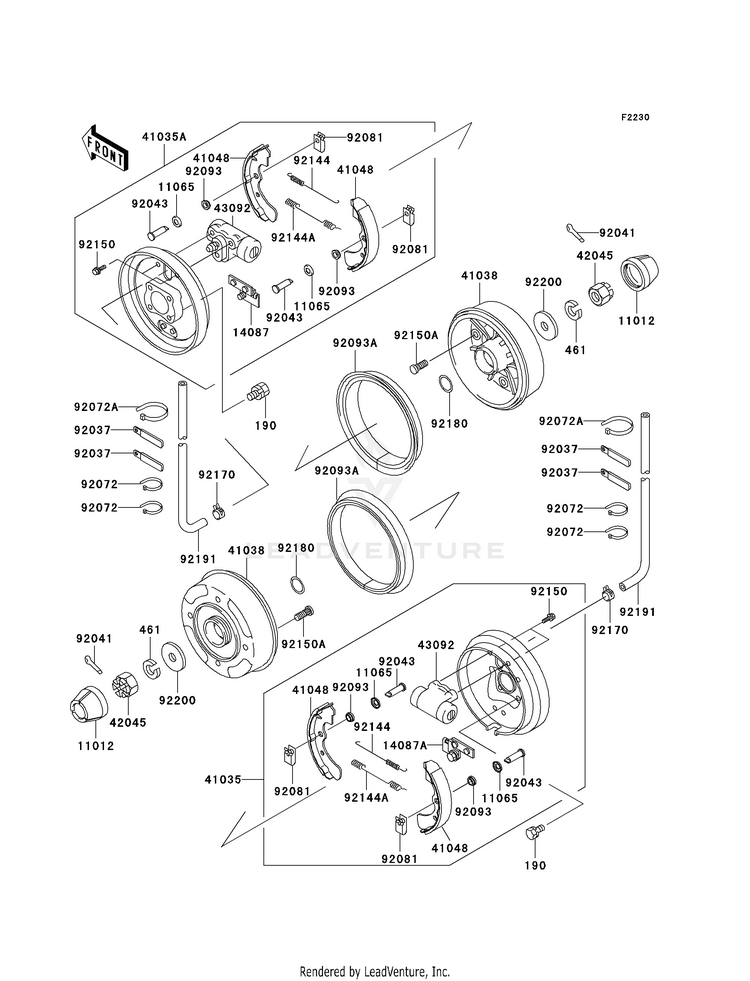

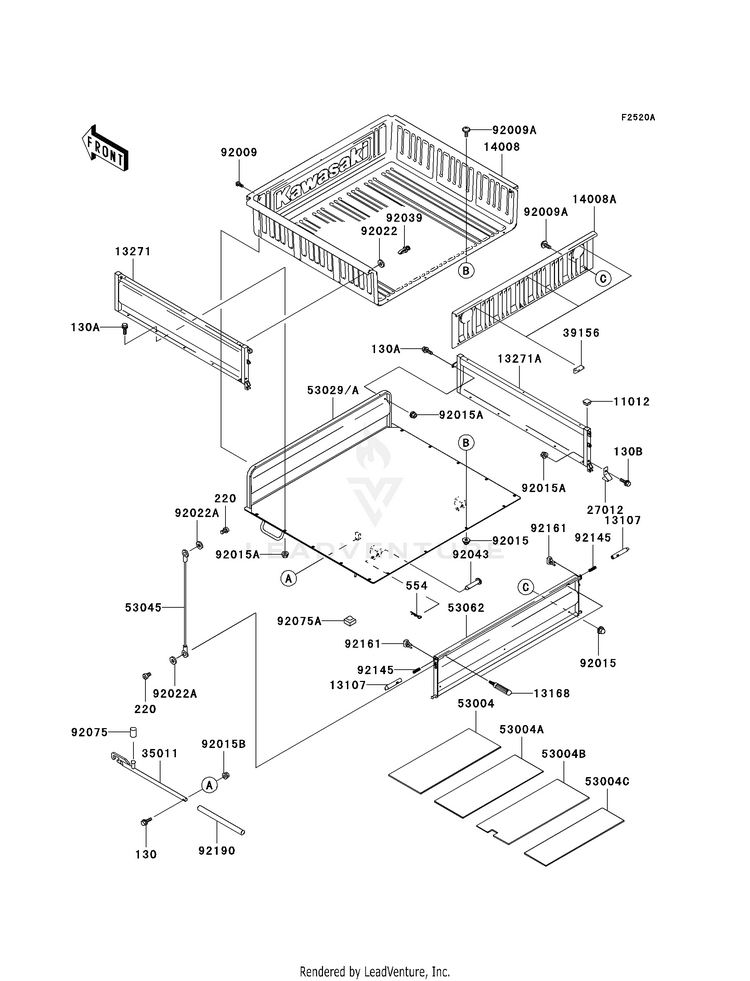

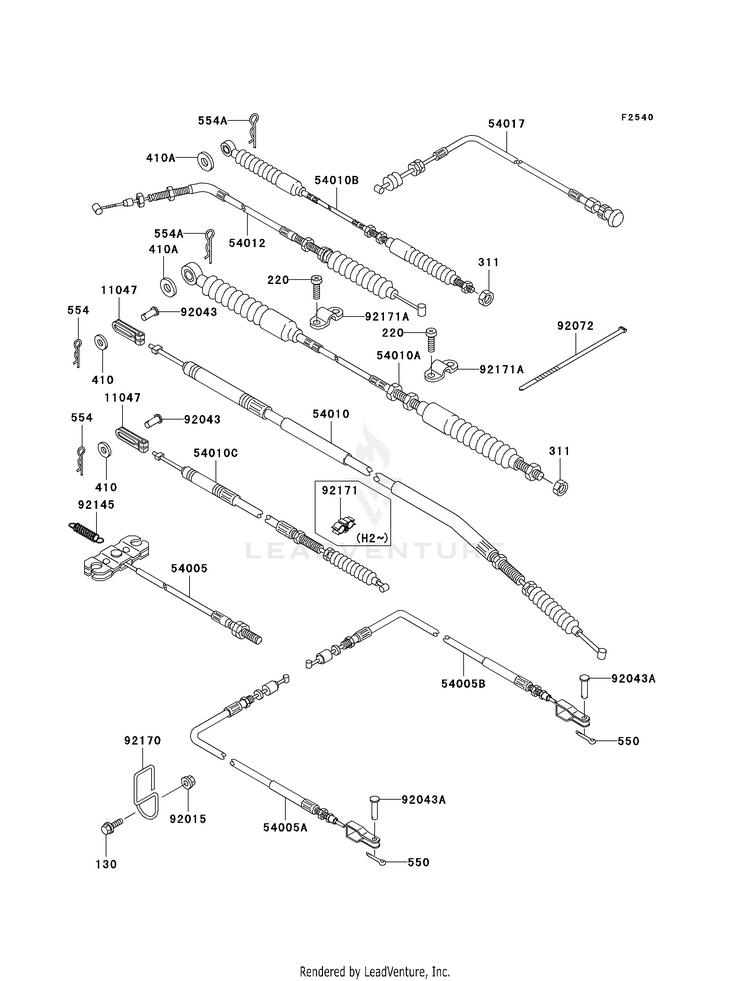

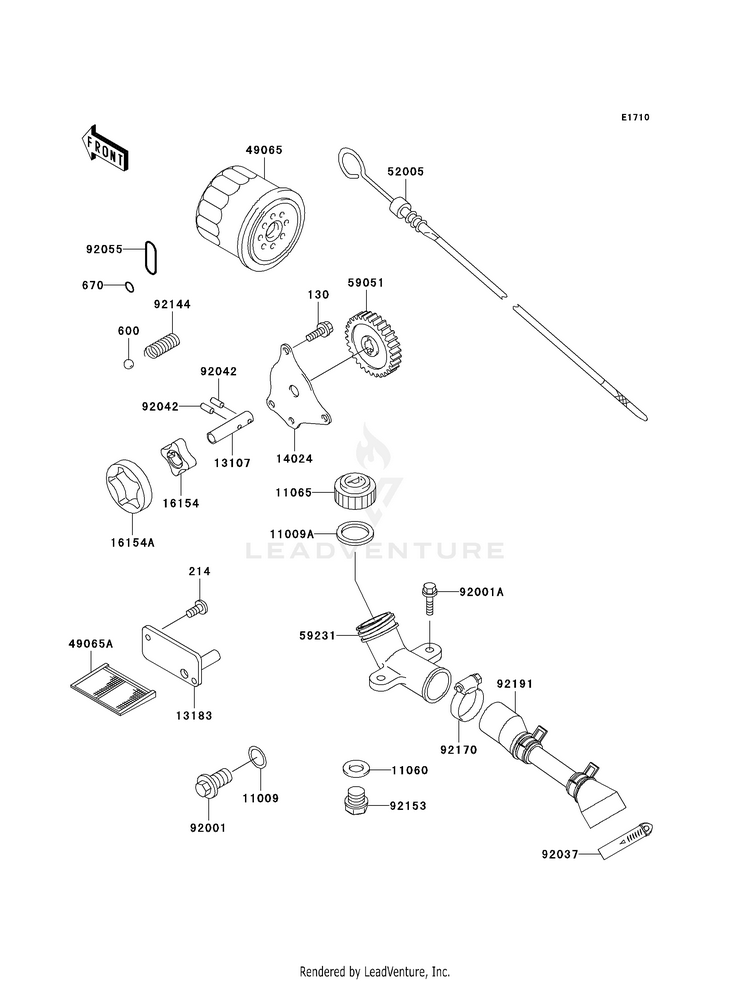

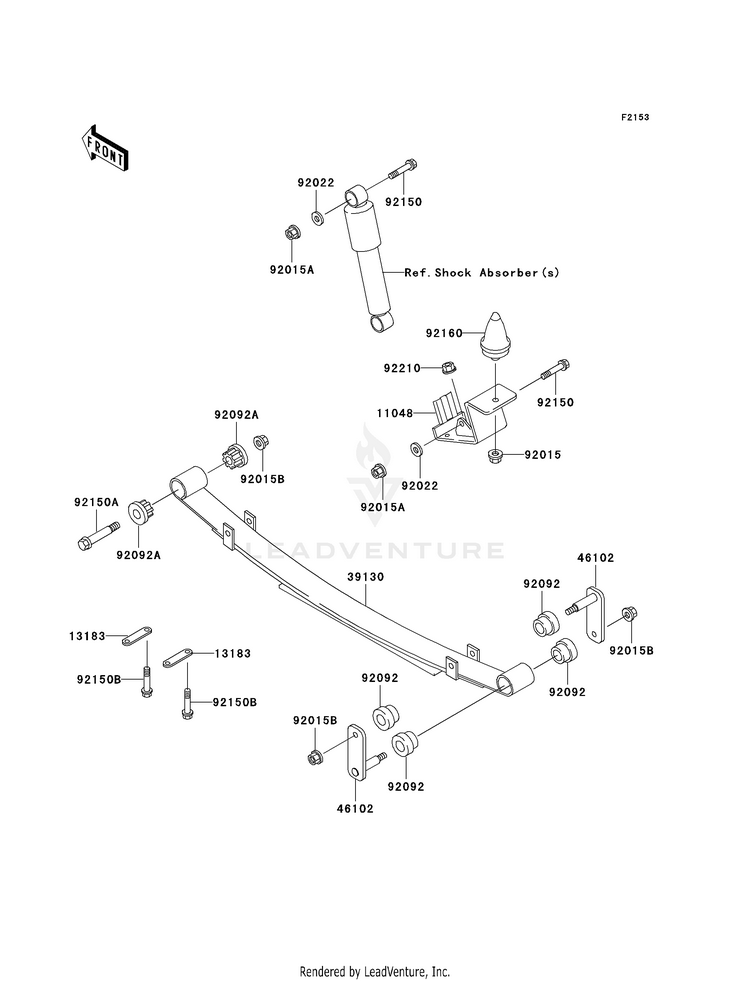

                                                                                          All Assemblies

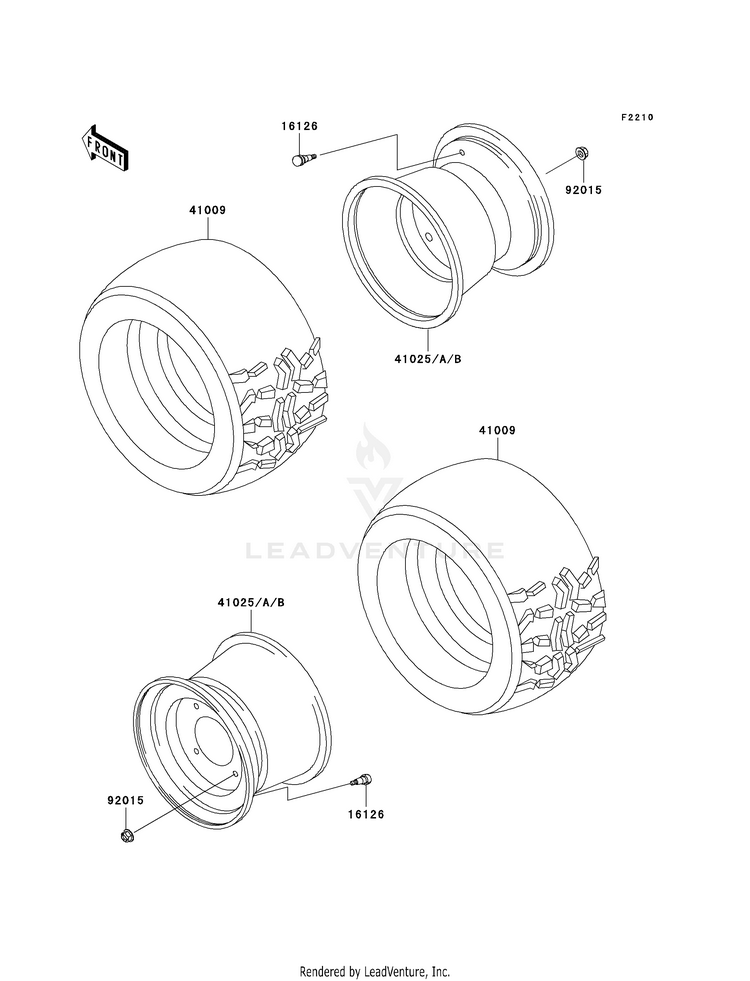

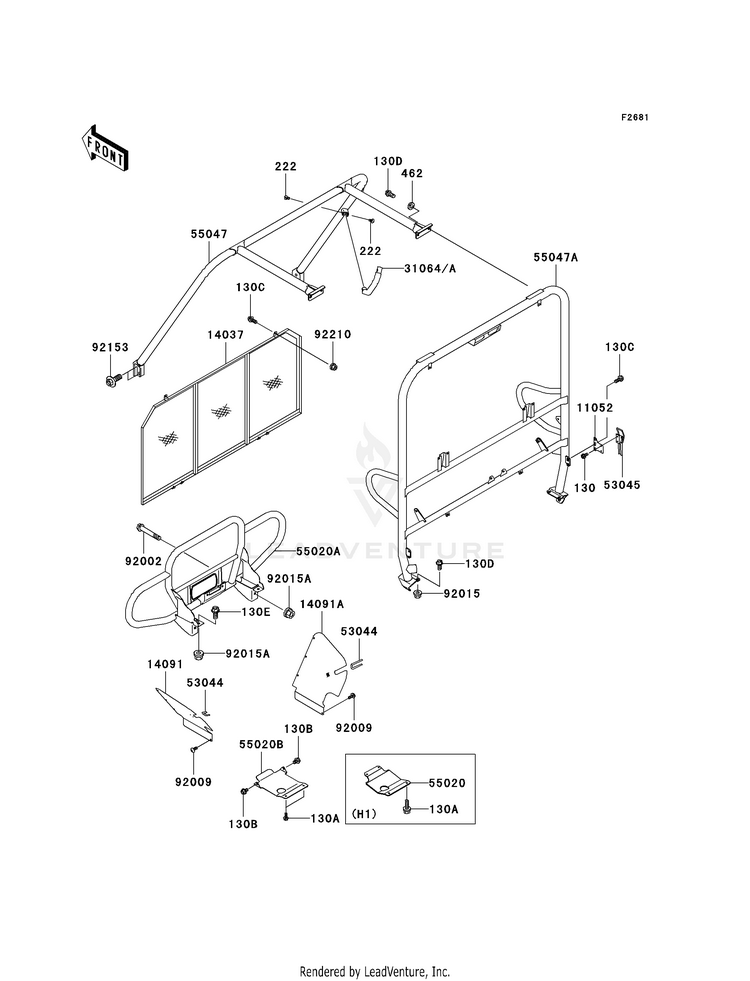

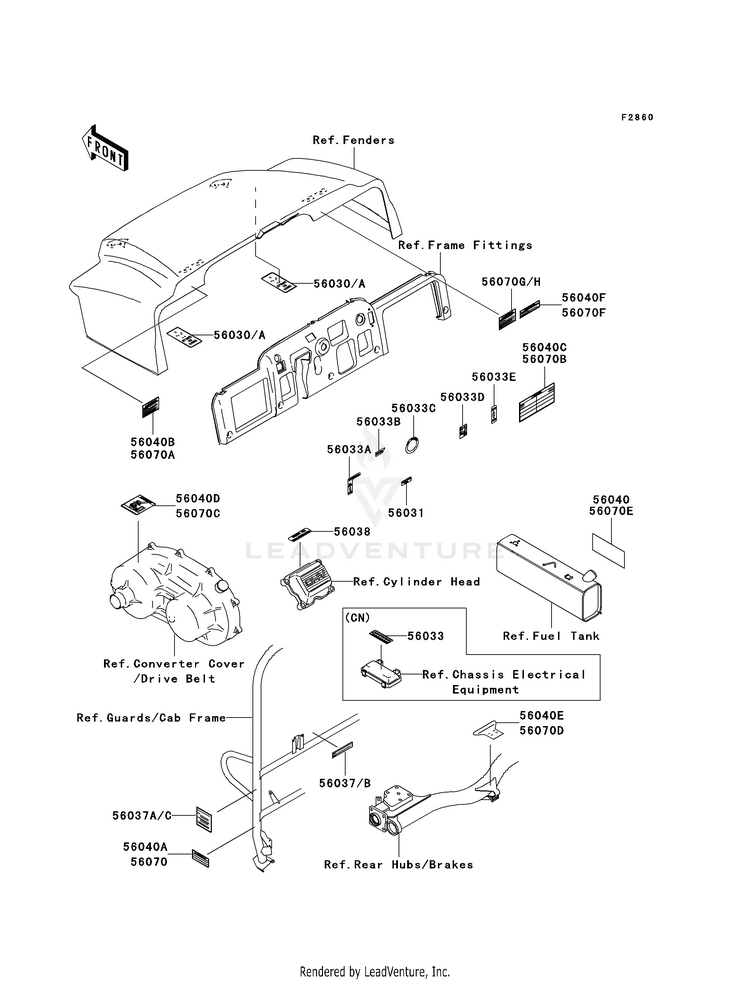

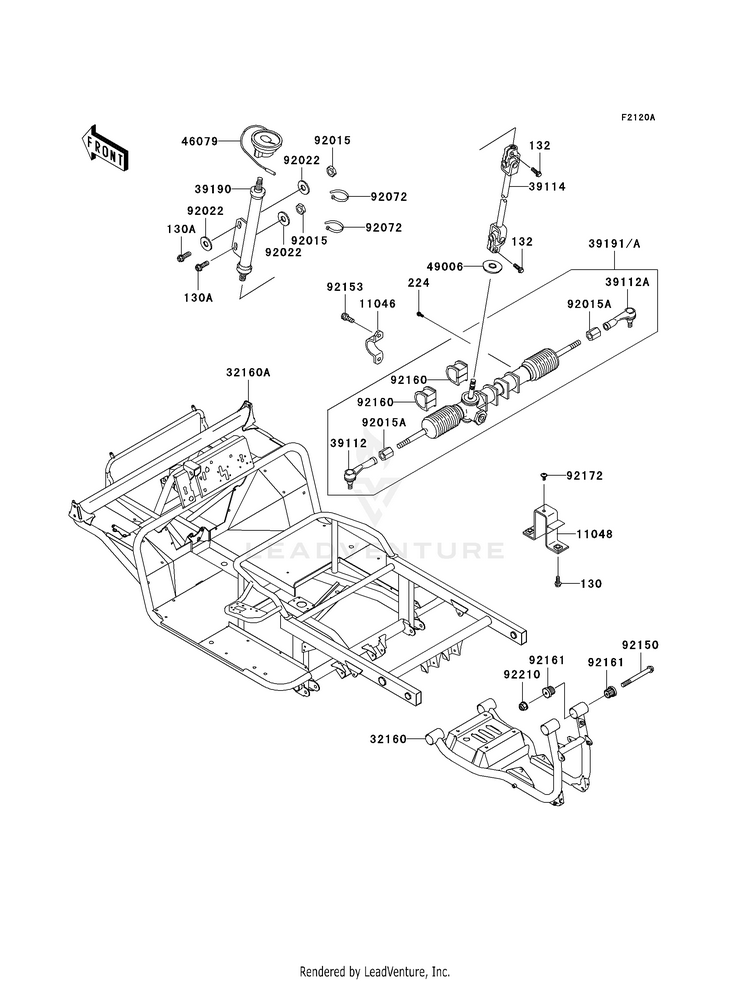

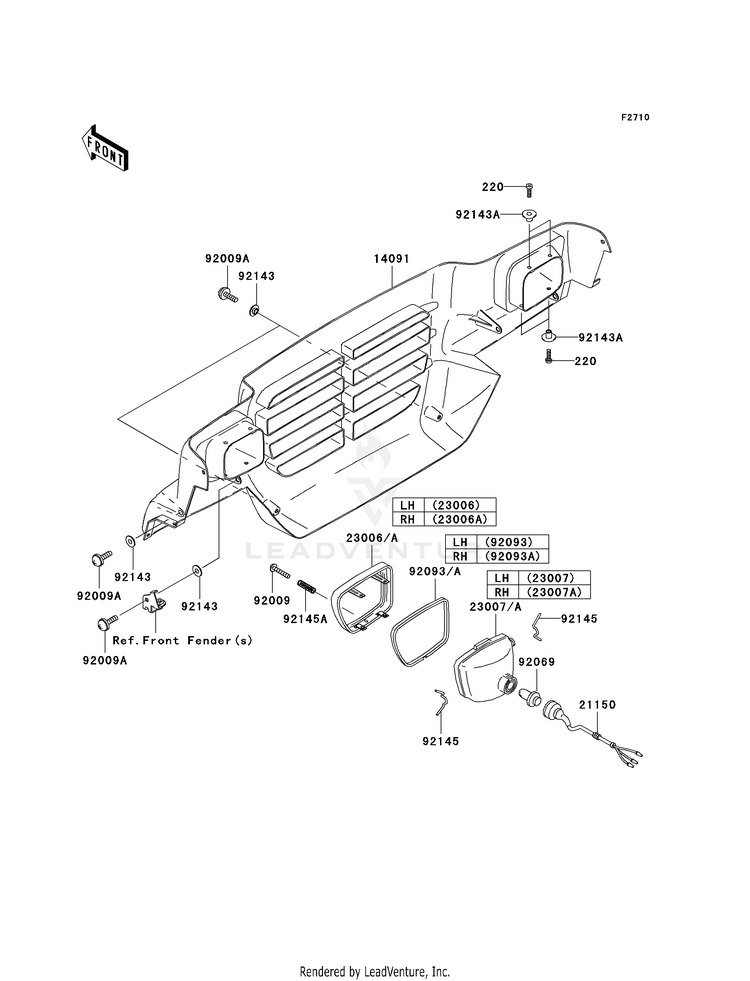

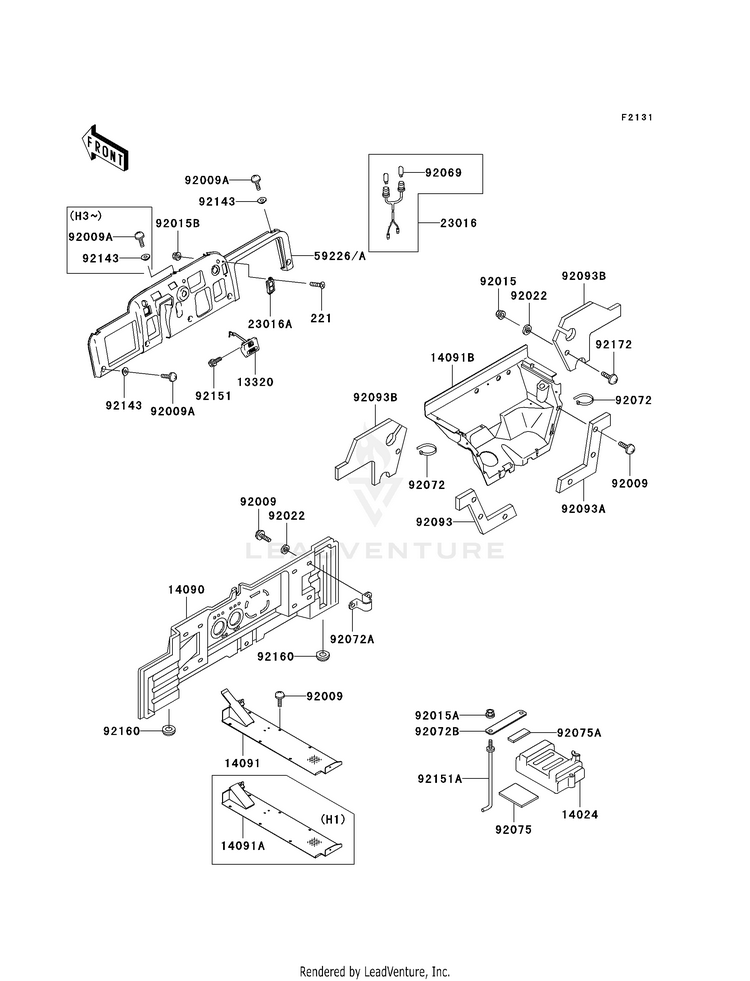

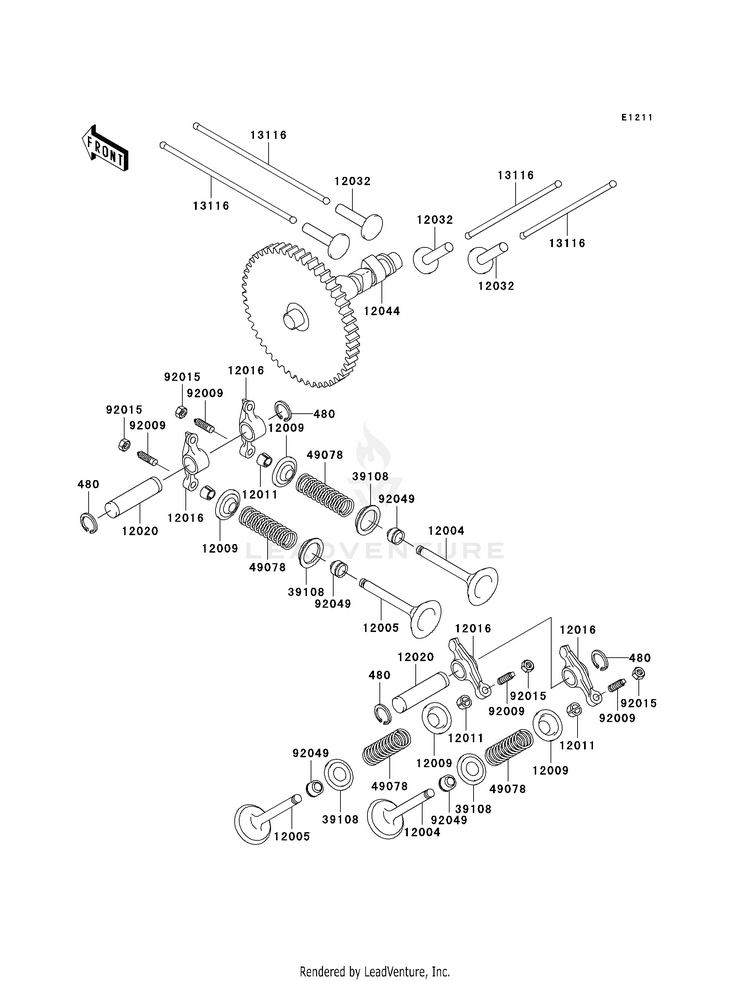

                                                                                          For the current model: KAF620-H3 Mule 3010 4x4 Hardwoods Green HD

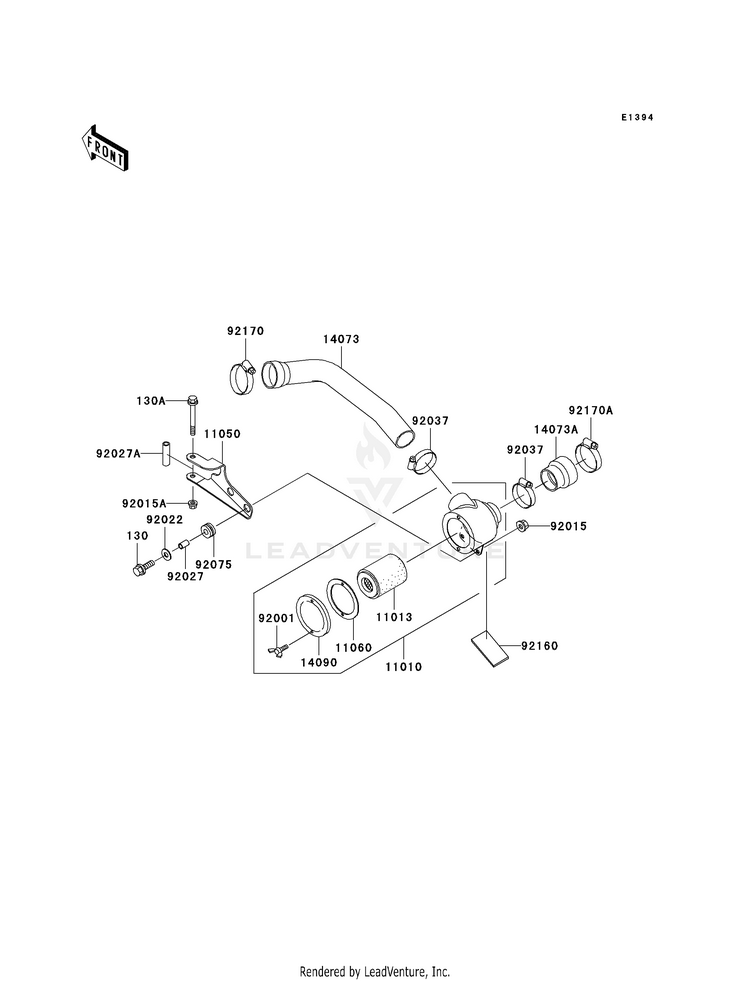

                                                                                          AIR CLEANER
