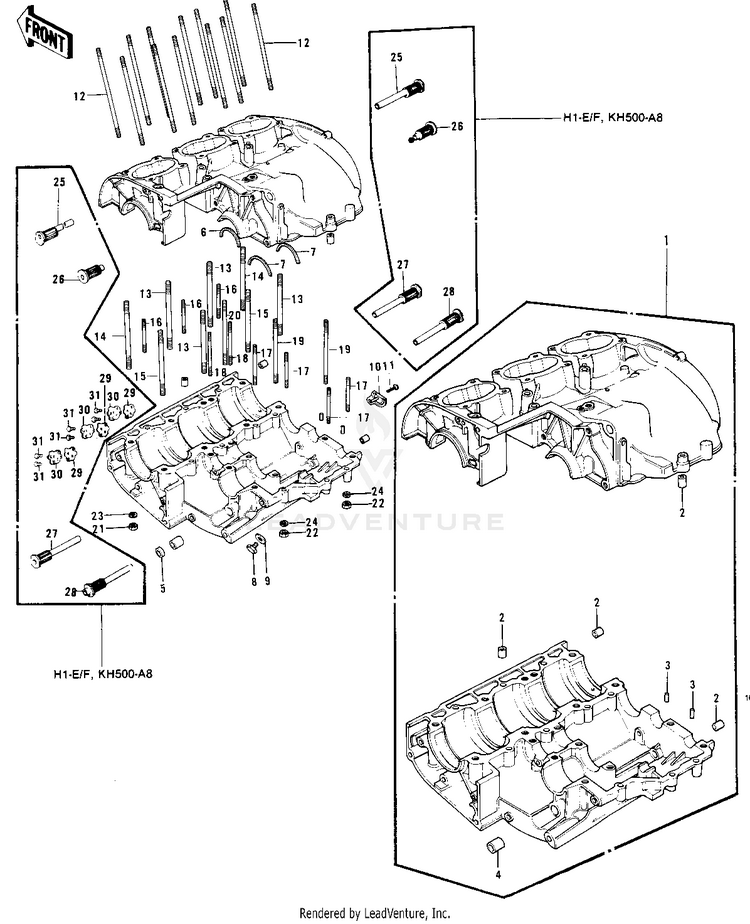

1969 Kawasaki Motorcycle H1 Mach III (1969) CRANKCASE ('69-'72 H1/A/B/C) OEM Parts | Assembly Diagram OEM Parts Finder and Diagram (Microfiche) Inspector

Kawasaki Motorcycle Choose parts...

Use scroll wheel, or pinch and drag to and .

1
MPN/SKU: 14001-030
CRANKCASE SET
Unavailable
$928.14
          Recommended Quantity: 1

          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

          Stock: TBD
          2
          Item # 1170809
          Kawasaki Washer-Spring 6 mm - 461DA0600
          Leaves Warehouse: 1 to 2 days
          $0.90
                  Recommended Quantity: 15

                  This part has 15 locations on the diagram. It is the recommended quantity, but not a requirement.

                  Stock: TBD
                  3
                  Item # 1155957
                  Kawasaki Pin Dowel, 10X14 - 92043-1037
                  Leaves Warehouse: 1 to 2 days
                  $2.52
                          Recommended Quantity: 4

                          This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

                          Stock: TBD
                          4
                          Item # 1156052
                          Kawasaki Pin 6X16 - 92043-1690
                          Leaves Warehouse: 1 to 2 days
                          $5.15
                                  Recommended Quantity: 4

                                  This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

                                  Stock: TBD
                                  5
                                  MPN/SKU: 92028-071
                                  BUSH CHANGE PEDAL SHT
                                  Unavailable
                                  $96.38
                                          Recommended Quantity: 1

                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                          Stock: TBD
                                          6
                                          Item # 1146060
                                          Kawasaki Seal-Oil SB12205 - 92049-004
                                          Leaves Warehouse: Same Day
                                          $8.84
                                                  Recommended Quantity: 1

                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                  Stock: TBD
                                                  7
                                                  Item # 1152086
                                                  Kawasaki Ring-Position T=1.98 - 14013-1004
                                                  Leaves Warehouse: 1 to 2 days
                                                  $4.89
                                                          Recommended Quantity: 1

                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                          Stock: TBD
                                                          8
                                                          Item # 1145767
                                                          Kawasaki Ring-Position - 14013-004
                                                          Leaves Warehouse: 1 to 2 days
                                                          $10.91
                                                                  Recommended Quantity: 2

                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                  Stock: TBD
                                                                  9
                                                                  Item # 1146120
                                                                  Kawasaki Plug Drain, 10X12 - 92067-001
                                                                  Leaves Warehouse: 1 to 2 days
                                                                  $4.53
                                                                          Recommended Quantity: 1

                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                          Stock: TBD
                                                                          10
                                                                          Item # 1294750
                                                                          Kawasaki Gasket 10.5X16X1 - 92065-058
                                                                          Leaves Warehouse: Same Day
                                                                          $3.64
                                                                                  Recommended Quantity: 1

                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                  Stock: TBD
                                                                                  11
                                                                                  MPN/SKU: 14015-001
                                                                                  RECEIVER OIL
                                                                                  Unavailable
                                                                                  $7.42
                                                                                          Recommended Quantity: 1

                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                          Stock: TBD
                                                                                          12
                                                                                          Item # 1168673
                                                                                          Kawasaki Screw-CSK-Cros 6X16 - 221AA0616
                                                                                          Leaves Warehouse: 1 to 2 days
                                                                                          $3.22
                                                                                                  Recommended Quantity: 1

                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                  Stock: TBD
                                                                                                  13
                                                                                                  MPN/SKU: 172G0875
                                                                                                  STUD 8X75
                                                                                                  Unavailable
                                                                                                  $10.67
                                                                                                          Recommended Quantity: 12

                                                                                                          This part has 12 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                          Stock: TBD
                                                                                                          14
                                                                                                          MPN/SKU: 172G1060
                                                                                                          STUD 10X60
                                                                                                          Unavailable
                                                                                                          $5.80
                                                                                                                  Recommended Quantity: 8

                                                                                                                  This part has 8 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                  Stock: TBD
                                                                                                                  15
                                                                                                                  MPN/SKU: 172G1075
                                                                                                                  STUD 10X75
                                                                                                                  Unavailable
                                                                                                                  $13.49
                                                                                                                          Recommended Quantity: 2

                                                                                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                          Stock: TBD
                                                                                                                          16
                                                                                                                          MPN/SKU: 172G1090
                                                                                                                          STUD 10X90
                                                                                                                          Unavailable
                                                                                                                          $8.48
                                                                                                                                  Recommended Quantity: 2

                                                                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                  Stock: TBD
                                                                                                                                  17
                                                                                                                                  Item # 1321303
                                                                                                                                  Kawasaki Bolt-Stud 6X20 - 172BA0620
                                                                                                                                  Leaves Warehouse: 1 to 2 days
                                                                                                                                  $4.69
                                                                                                                                          Recommended Quantity: 1

                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                          Stock: TBD
                                                                                                                                          17
                                                                                                                                          MPN/SKU: 172BA0622
                                                                                                                                          STUD,6X22
                                                                                                                                          Unavailable
                                                                                                                                          $1.44
                                                                                                                                                  Recommended Quantity: 3

                                                                                                                                                  This part has 3 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                  Stock: TBD
                                                                                                                                                  18
                                                                                                                                                  MPN/SKU: 172G0635
                                                                                                                                                  STUD 6X35
                                                                                                                                                  Unavailable
                                                                                                                                                  $4.56
                                                                                                                                                          Recommended Quantity: 4

                                                                                                                                                          This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                          Stock: TBD
                                                                                                                                                          19
                                                                                                                                                          MPN/SKU: 172G0650
                                                                                                                                                          STUD 6X50
                                                                                                                                                          Unavailable
                                                                                                                                                          $6.45
                                                                                                                                                                  Recommended Quantity: 3

                                                                                                                                                                  This part has 3 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                  Stock: TBD
                                                                                                                                                                  20
                                                                                                                                                                  MPN/SKU: 172BA0675
                                                                                                                                                                  BOLT-STUD
                                                                                                                                                                  Unavailable
                                                                                                                                                                  $3.18
                                                                                                                                                                          Recommended Quantity: 4

                                                                                                                                                                          This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                          Stock: TBD
                                                                                                                                                                          21
                                                                                                                                                                          MPN/SKU: 172BA0685
                                                                                                                                                                          BOLT-STUD
                                                                                                                                                                          Unavailable
                                                                                                                                                                          $3.00
                                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                  22
                                                                                                                                                                                  Item # 1295674
                                                                                                                                                                                  Kawasaki HEX Small Nut 10 mm - 317AA1000
                                                                                                                                                                                  Leaves Warehouse: 1 to 2 days
                                                                                                                                                                                  $5.71
                                                                                                                                                                                          Recommended Quantity: 12

                                                                                                                                                                                          This part has 12 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                          23
                                                                                                                                                                                          Item # 1168849
                                                                                                                                                                                          Kawasaki Nut-Hex 6 mm - 311AA0600
                                                                                                                                                                                          Leaves Warehouse: 1 to 2 days
                                                                                                                                                                                          $1.38
                                                                                                                                                                                                  Recommended Quantity: 15

                                                                                                                                                                                                  This part has 15 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                  24
                                                                                                                                                                                                  Item # 1170811
                                                                                                                                                                                                  Kawasaki Washer-Spring 10 mm - 461DA1000
                                                                                                                                                                                                  Leaves Warehouse: 1 to 2 days
                                                                                                                                                                                                  $2.30
                                                                                                                                                                                                          Recommended Quantity: 12

                                                                                                                                                                                                          This part has 12 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                          Stock: TBD
