2013 Arctic Cat 2013 M 800 SNO PRO LTD 162 WHITE [S2013M8HPEUSW] OEM Parts | Assembly Diagrams Lookup OEM Parts Finder and Diagram (Microfiche) Inspector

Arctic Cat Choose an assembly...

Assemblies List (45)

A-ARM ASSEMBLY [96828]
BELT GUARD ASSEMBLY [96868]
CHAIN CASE ASSEMBLY [96857]
CONSOLE ASSEMBLY [95188]
COOLING ASSEMBLY [96933]
CRANKCASE ASSEMBLY [91585]
CYLINDER AND HEAD ASSEMBLY [95146]
DRIVE CLUTCH [95144]
DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES [96920]
DRIVEN CLUTCH [96874]
ELECTRICAL [98857]
ENGINE AND RELATED PARTS [96872]
EXHAUST ASSEMBLY [96873]
FRONT BUMPER AND FRAME ASSEMBLY [98110]
FRONT SUSPENSION SHOCK ABSORBER [96830]
FUEL PUMP ASSEMBLY [101505]
GAS TANK ASSEMBLY [96869]
HANDLEBAR AND CONTROLS [98106]
HEADLIGHT AND WIRING ASSEMBLIES [98131]
HOOD AND AIR INTAKE ASSEMBLY [98112]
HYDRAULIC BRAKE CONTROL ASSEMBLY [96592]
IDLER WHEEL ASSEMBLY [98798]
MAGNETO [89829]
OIL PUMP [93329]
OIL TANK ASSEMBLY [96858]
PISTON AND CRANKSHAFT [91586]
REAR SUSPENSION FRONT ARM ASSEMBLY [98108]
REAR SUSPENSION FRONT ARM SHOCK ABSORBER [95126]
REAR SUSPENSION REAR ARM ASSEMBLY [96633]
REAR SUSPENSION REAR ARM SHOCK ABSORBER [98802]
RECOIL STARTER [89828]
REED VALVE ASSEMBLY [96875]

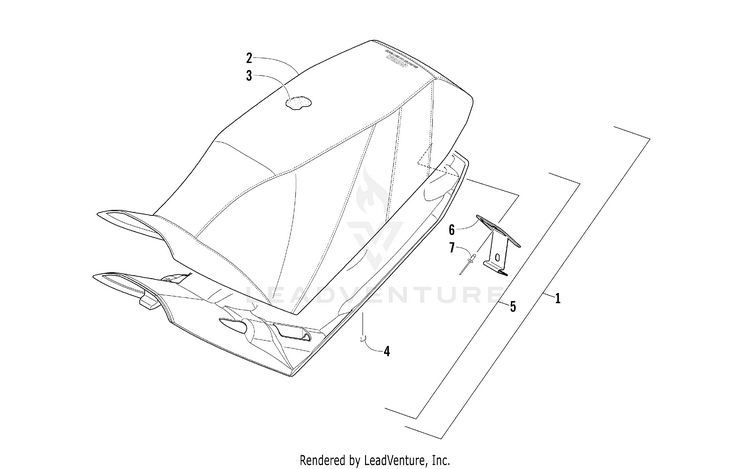

SEAT ASSEMBLY [98116]
SERVOMOTOR ASSEMBLY [91541]
SHOCK ABSORBER ASSEMBLY [96829]
SKI AND SPINDLE ASSEMBLY [98105]
SKID PLATE AND SIDE PANEL ASSEMBLY [98115]
SLIDE RAIL AND TRACK ASSEMBLY [98129]
STEERING POST ASSEMBLY [96854]
STEERING SUPPORT ASSEMBLY [98109]
THROTTLE BODY ASSEMBLY [91588]
TIE ROD ASSEMBLY [96831]
TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [98130]
WATER PUMP AND THERMOSTAT [93330]
WINDSHIELD AND INSTRUMENTS ASSEMBLIES [98113]

A

A-ARM ASSEMBLY [96828]

B

BELT GUARD ASSEMBLY [96868]

C

CHAIN CASE ASSEMBLY [96857]
CONSOLE ASSEMBLY [95188]
COOLING ASSEMBLY [96933]
CRANKCASE ASSEMBLY [91585]
CYLINDER AND HEAD ASSEMBLY [95146]

D

DRIVE CLUTCH [95144]
DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES [96920]
DRIVEN CLUTCH [96874]

E

ELECTRICAL [98857]
ENGINE AND RELATED PARTS [96872]
EXHAUST ASSEMBLY [96873]

F

FRONT BUMPER AND FRAME ASSEMBLY [98110]
FRONT SUSPENSION SHOCK ABSORBER [96830]
FUEL PUMP ASSEMBLY [101505]

G

GAS TANK ASSEMBLY [96869]

H

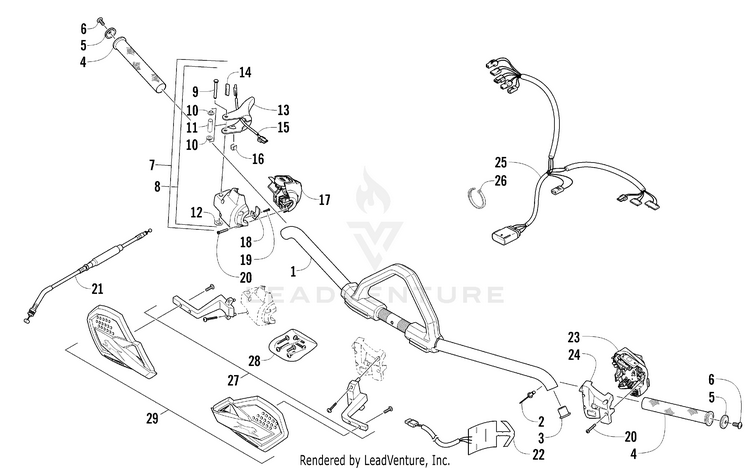

HANDLEBAR AND CONTROLS [98106]
HEADLIGHT AND WIRING ASSEMBLIES [98131]
HOOD AND AIR INTAKE ASSEMBLY [98112]
HYDRAULIC BRAKE CONTROL ASSEMBLY [96592]

I

IDLER WHEEL ASSEMBLY [98798]

M

MAGNETO [89829]

O

OIL PUMP [93329]
OIL TANK ASSEMBLY [96858]

P

PISTON AND CRANKSHAFT [91586]

R

REAR SUSPENSION FRONT ARM ASSEMBLY [98108]
REAR SUSPENSION FRONT ARM SHOCK ABSORBER [95126]
REAR SUSPENSION REAR ARM ASSEMBLY [96633]
REAR SUSPENSION REAR ARM SHOCK ABSORBER [98802]
RECOIL STARTER [89828]
REED VALVE ASSEMBLY [96875]

S

SEAT ASSEMBLY [98116]
SERVOMOTOR ASSEMBLY [91541]
SHOCK ABSORBER ASSEMBLY [96829]
SKI AND SPINDLE ASSEMBLY [98105]
SKID PLATE AND SIDE PANEL ASSEMBLY [98115]

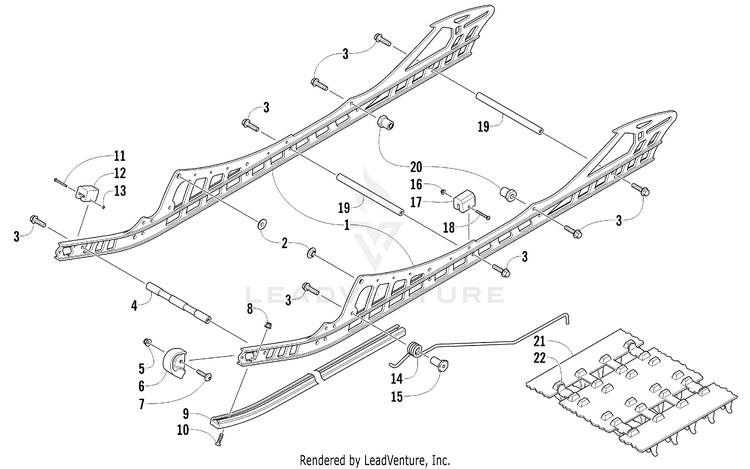

SLIDE RAIL AND TRACK ASSEMBLY [98129]
STEERING POST ASSEMBLY [96854]
STEERING SUPPORT ASSEMBLY [98109]

T

THROTTLE BODY ASSEMBLY [91588]
TIE ROD ASSEMBLY [96831]

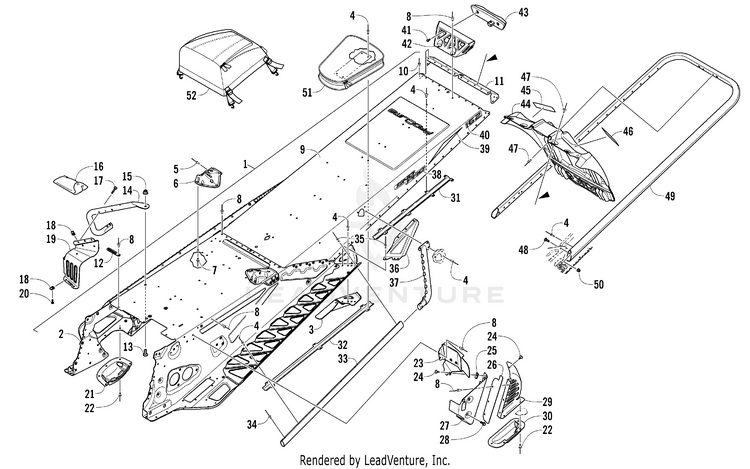

TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [98130]
