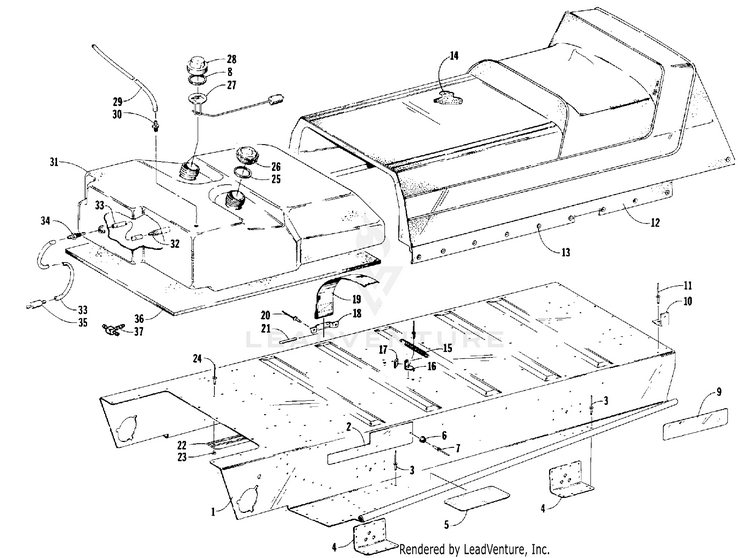

1988 Arctic Cat 1988 PANTHER (F/C) [0650-033-1988-13-04] BODY, SEAT, AND GAS TANK [55121] OEM Parts | Assembly Diagram OEM Parts Finder and Diagram (Microfiche) Inspector

Arctic Cat Choose parts...

Use scroll wheel, or pinch and drag to and .

1
MPN/SKU: 0606-109
BODY, FORMED
Unavailable
$243.24
          Recommended Quantity: 1

          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

          Stock: TBD
          2
          MPN/SKU: 0611-331
          DECAL,TUNEL FRONT LH
          Unavailable
          $4.95
                  Recommended Quantity: 1

                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                  Stock: TBD
                  2
                  MPN/SKU: 0611-332
                  DECAL,TUNEL FRONT RH
                  Unavailable
                  $8.95
                          Recommended Quantity: 1

                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                          Stock: TBD
                          3
                          Item # 1544881
                          Arctic Cat Rivet Blind DH SS52 Zinc - 8060-482
                          Leaves Warehouse: 2 to 3 days
                          $0.68
                                  Recommended Quantity: 50

                                  This part has 50 locations on the diagram. It is the recommended quantity, but not a requirement.

                                  Stock: TBD
                                  4
                                  MPN/SKU: 0106-930
                                  Plate, Mounting
                                  Unavailable
                                  $8.95
                                          Recommended Quantity: 4

                                          This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

                                          Stock: TBD
                                          5
                                          MPN/SKU: 0116-924
                                          Pad, Safety
                                          Unavailable
                                          $6.95
                                                  Recommended Quantity: 2

                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                  Stock: TBD
                                                  6
                                                  Item # 1548721
                                                  Arctic Cat Snap Body Cushion 61-0393-1183 - 0116-074
                                                  Leaves Warehouse: 2 to 3 days
                                                  $2.95
                                                          Recommended Quantity: 20

                                                          This part has 20 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                          Stock: TBD
                                                          7
                                                          MPN/SKU: 8060-244
                                                          RIVET,BLIND-DH AS43 PL
                                                          Unavailable
                                                          $0.19
                                                                  Recommended Quantity: 20

                                                                  This part has 20 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                  Stock: TBD
                                                                  8
                                                                  MPN/SKU: 0115-514
                                                                  SEAL, GAUGE CAP
                                                                  Unavailable
                                                                  $3.19
                                                                          Recommended Quantity: 1

                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                          Stock: TBD
                                                                          9
                                                                          MPN/SKU: 0611-142
                                                                          DECAL, REAR
                                                                          Unavailable
                                                                          $14.95
                                                                                  Recommended Quantity: 2

                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                  Stock: TBD
                                                                                  10
                                                                                  MPN/SKU: 0115-322
                                                                                  Bracket, Seal
                                                                                  Unavailable
                                                                                  $2.95
                                                                                          Recommended Quantity: 2

                                                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                          Stock: TBD
                                                                                          11
                                                                                          Item # 1544884
                                                                                          Arctic Cat Rivet Blind DH SS53 Zinc - 8060-484
                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                          $0.68
                                                                                                  Recommended Quantity: 4

                                                                                                  This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                  Stock: TBD
                                                                                                  12
                                                                                                  MPN/SKU: 0706-141
                                                                                                  COVER, SEAT (INC. 13)
                                                                                                  Unavailable
                                                                                                  $460.95
                                                                                                          Recommended Quantity: 1

                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                          Stock: TBD
                                                                                                          13
                                                                                                          MPN/SKU: 0116-378
                                                                                                          Snap, Cushion - Assembly - Black
                                                                                                          Unavailable
                                                                                                          $1.45
                                                                                                                  Recommended Quantity: 20

                                                                                                                  This part has 20 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                  Stock: TBD
                                                                                                                  14
                                                                                                                  MPN/SKU: 0706-142
                                                                                                                  FOAM
                                                                                                                  Unavailable
                                                                                                                  $119.95
                                                                                                                          Recommended Quantity: 1

                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                          Stock: TBD
                                                                                                                          15
                                                                                                                          MPN/SKU: 0123-808
                                                                                                                          Spring, Retaining
                                                                                                                          Unavailable
                                                                                                                          $1.99
                                                                                                                                  Recommended Quantity: 1

                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                  Stock: TBD
                                                                                                                                  16
                                                                                                                                  MPN/SKU: 0116-949
                                                                                                                                  Bracket, Gas Tank
                                                                                                                                  Unavailable
                                                                                                                                  $3.09
                                                                                                                                          Recommended Quantity: 2

                                                                                                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                          Stock: TBD
                                                                                                                                          17
                                                                                                                                          MPN/SKU: 0706-707
                                                                                                                                          TAPE, FOAM - 5FT ROLL
                                                                                                                                          Unavailable
                                                                                                                                          $10.95
                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                  Stock: TBD
                                                                                                                                                  18
                                                                                                                                                  MPN/SKU: 0106-728
                                                                                                                                                  Bracket, Strap
                                                                                                                                                  Unavailable
                                                                                                                                                  $5.95
                                                                                                                                                          Recommended Quantity: 2

                                                                                                                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                          Stock: TBD
                                                                                                                                                          19
                                                                                                                                                          MPN/SKU: 0606-225
                                                                                                                                                          STRAP, PASSENGER
                                                                                                                                                          Unavailable
                                                                                                                                                          $9.95
                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                  Stock: TBD
                                                                                                                                                                  20
                                                                                                                                                                  Item # 1544893
                                                                                                                                                                  Arctic Cat Rivet Blind DH SS64 Black - 8060-706
                                                                                                                                                                  Leaves Warehouse: Same Day
                                                                                                                                                                  $0.68
                                                                                                                                                                          Recommended Quantity: 4

                                                                                                                                                                          This part has 4 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                          Stock: TBD
                                                                                                                                                                          21
                                                                                                                                                                          MPN/SKU: 0117-427
                                                                                                                                                                          Pin
                                                                                                                                                                          Unavailable
                                                                                                                                                                          $3.36
                                                                                                                                                                                  Recommended Quantity: 2

                                                                                                                                                                                  This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                  22
                                                                                                                                                                                  MPN/SKU: 0106-223
                                                                                                                                                                                  Wearstrip, Body
                                                                                                                                                                                  Unavailable
                                                                                                                                                                                  $26.95
                                                                                                                                                                                          Recommended Quantity: 2

                                                                                                                                                                                          This part has 2 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                          23
                                                                                                                                                                                          Item # 1553469
                                                                                                                                                                                          Arctic Cat Washer Flat 11/64 X 3/8 X .030Th Z&Y - 0123-149
                                                                                                                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                                                                                                                          $3.95
                                                                                                                                                                                                  Recommended Quantity: 20

                                                                                                                                                                                                  This part has 20 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                  24
                                                                                                                                                                                                  Item # 1544888
                                                                                                                                                                                                  Arctic Cat Rivet Blind DH SS56 Zinc - 8060-488
                                                                                                                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                                                                                                                  $0.68
                                                                                                                                                                                                          Recommended Quantity: 20

                                                                                                                                                                                                          This part has 20 locations on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                                          25
                                                                                                                                                                                                          Item # 1546381
                                                                                                                                                                                                          Arctic Cat Seal Gas Cap - 0109-733
                                                                                                                                                                                                          Leaves Warehouse: Same Day
                                                                                                                                                                                                          $4.95
                                                                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                                  26
                                                                                                                                                                                                                  Item # 1517335
                                                                                                                                                                                                                  Arctic Cat Cap Gas without Gauge - 0109-628
                                                                                                                                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                                                                                                                                  $9.95
                                                                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                                                          27
                                                                                                                                                                                                                          Item # 2037192
                                                                                                                                                                                                                          Arctic Cat Assembly Gas Gauge - 0117-613
                                                                                                                                                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                                                                                                                                                          $109.95
                                                                                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                                                  28
                                                                                                                                                                                                                                  MPN/SKU: 0115-881
                                                                                                                                                                                                                                  CAP, GAUGE
                                                                                                                                                                                                                                  Unavailable
                                                                                                                                                                                                                                  $22.95
                                                                                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                                                                          29
                                                                                                                                                                                                                                          Item # 1535693
                                                                                                                                                                                                                                          Arctic Cat Hose Vent 25' - 0610-010
                                                                                                                                                                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                                                                                                                                                                          $23.95
                                                                                                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                                                                  30
                                                                                                                                                                                                                                                  MPN/SKU: 0115-135
                                                                                                                                                                                                                                                  Vent
                                                                                                                                                                                                                                                  Unavailable
                                                                                                                                                                                                                                                  $0.79
                                                                                                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                                                                                          31
                                                                                                                                                                                                                                                          MPN/SKU: 0770-024
                                                                                                                                                                                                                                                          TANK, GAS (INC. 32-34)
                                                                                                                                                                                                                                                          Unavailable
                                                                                                                                                                                                                                                          $79.95
                                                                                                                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                                                                                  32
                                                                                                                                                                                                                                                                  Item # 1550779
                                                                                                                                                                                                                                                                  Arctic Cat Strainer Gas Tank - 0510-358
                                                                                                                                                                                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                                                                                                                                                                                  $9.95
                                                                                                                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                                                                                                          33
                                                                                                                                                                                                                                                                          Item # 1535559
                                                                                                                                                                                                                                                                          Arctic Cat Hose Gas 3/16 X100' - 0610-017
                                                                                                                                                                                                                                                                          Leaves Warehouse: 2 to 3 days
                                                                                                                                                                                                                                                                          $321.95
                                                                                                                                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                                                                                                  33
                                                                                                                                                                                                                                                                                  Item # 1535560
                                                                                                                                                                                                                                                                                  Arctic Cat Hose Gas Line 3/16X25' - 0610-008
                                                                                                                                                                                                                                                                                  Leaves Warehouse: 2 to 3 days
                                                                                                                                                                                                                                                                                  $132.95
                                                                                                                                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                                                                                                                          34
                                                                                                                                                                                                                                                                                          Item # 1540956
                                                                                                                                                                                                                                                                                          Arctic Cat Outlet Gas Tank - 0670-042
                                                                                                                                                                                                                                                                                          Leaves Warehouse: Same Day
                                                                                                                                                                                                                                                                                          $27.95
                                                                                                                                                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                                                                                                                  35
                                                                                                                                                                                                                                                                                                  Item # 1531848
                                                                                                                                                                                                                                                                                                  Arctic Cat Fuel Filter Inline - 0470-988
                                                                                                                                                                                                                                                                                                  Out of Stock
                                                                                                                                                                                                                                                                                                  $26.95
                                                                                                                                                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                                                                                          Stock: TBD
                                                                                                                                                                                                                                                                                                          36
                                                                                                                                                                                                                                                                                                          MPN/SKU: 0116-996
                                                                                                                                                                                                                                                                                                          PAD, GAS TANK
                                                                                                                                                                                                                                                                                                          Unavailable
                                                                                                                                                                                                                                                                                                          $5.95
                                                                                                                                                                                                                                                                                                                  Recommended Quantity: 1

                                                                                                                                                                                                                                                                                                                  This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                                                                                                  Stock: TBD
                                                                                                                                                                                                                                                                                                                  37
                                                                                                                                                                                                                                                                                                                  MPN/SKU: 0670-007
                                                                                                                                                                                                                                                                                                                  Tee, Gasline
                                                                                                                                                                                                                                                                                                                  Unavailable
                                                                                                                                                                                                                                                                                                                  $0.89
                                                                                                                                                                                                                                                                                                                          Recommended Quantity: 1

                                                                                                                                                                                                                                                                                                                          This part has 1 location on the diagram. It is the recommended quantity, but not a requirement.

                                                                                                                                                                                                                                                                                                                          Stock: TBD
