2023 Arctic Cat 2023 ALTERRA 300 COYOTE TAN [A2023KAF2BU1C] OEM Parts | Assembly Diagrams Lookup OEM Parts Finder and Diagram (Microfiche) Inspector

Arctic Cat Choose an assembly...

Assemblies List (32)

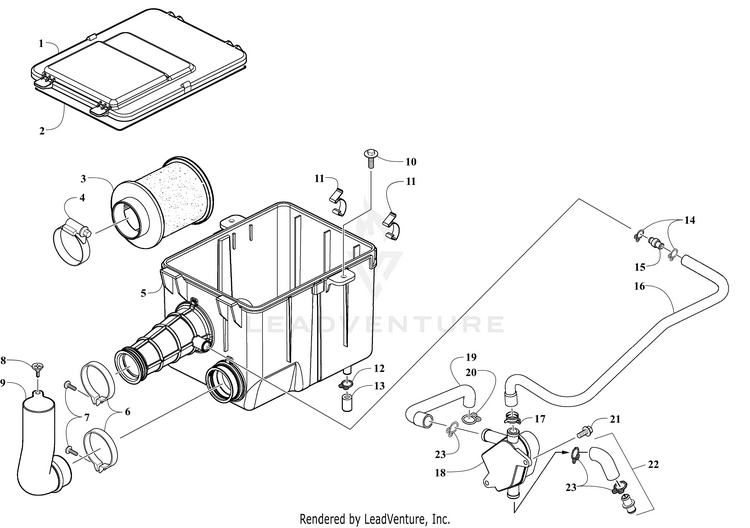

AIR INTAKE ASSEMBLY [303374]

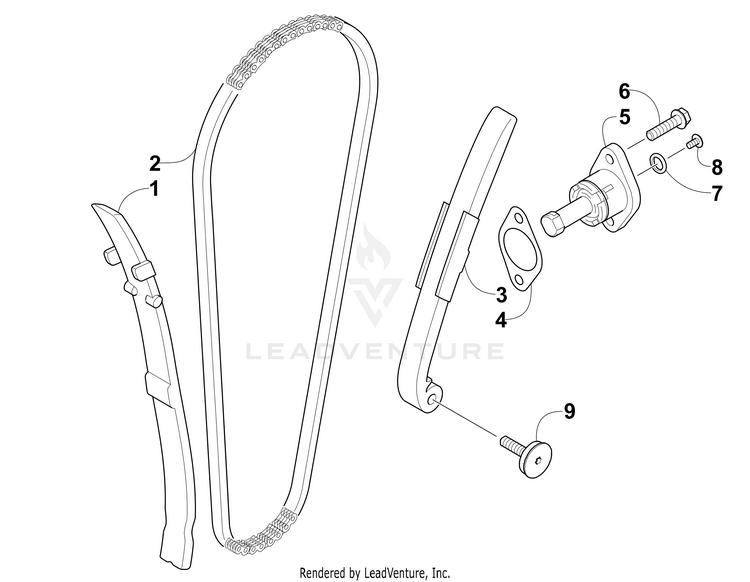

CAM CHAIN ASSEMBLY [300501]

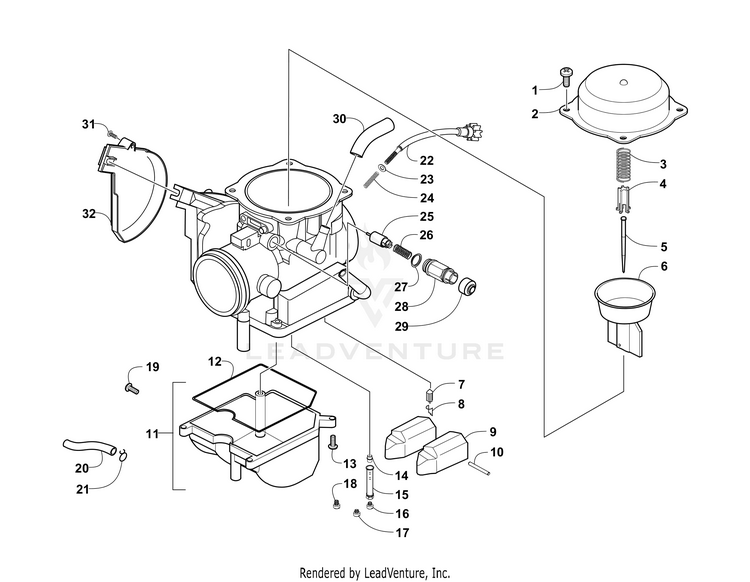

CARBURETOR ASSEMBLY [300500]

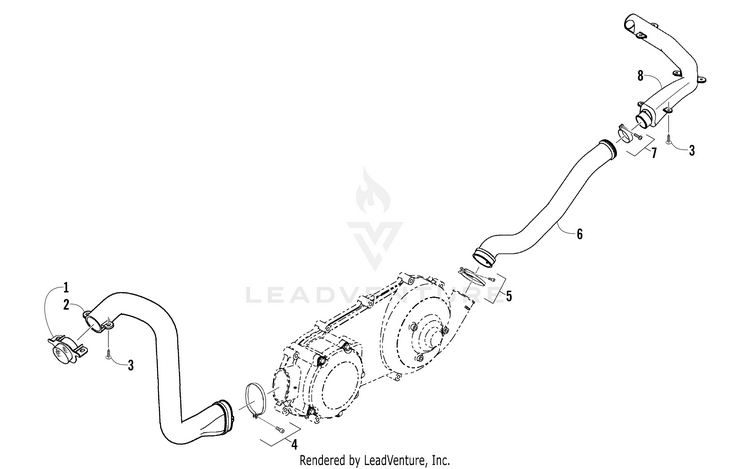

CASE/BELT COOLING ASSEMBLY [302189]

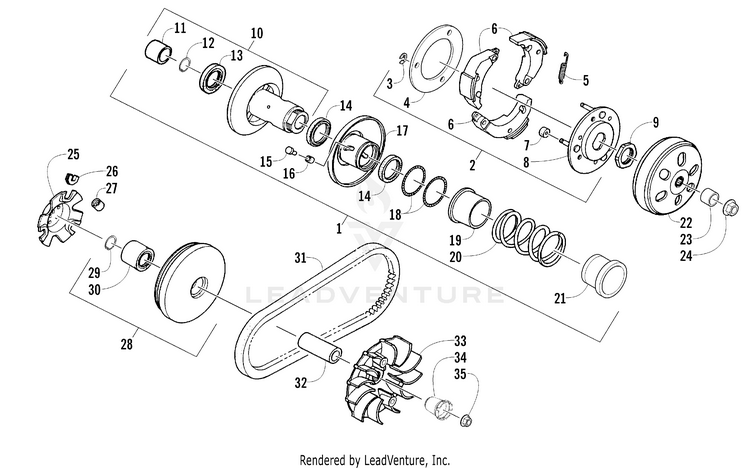

CLUTCH ASSEMBLY [94283]

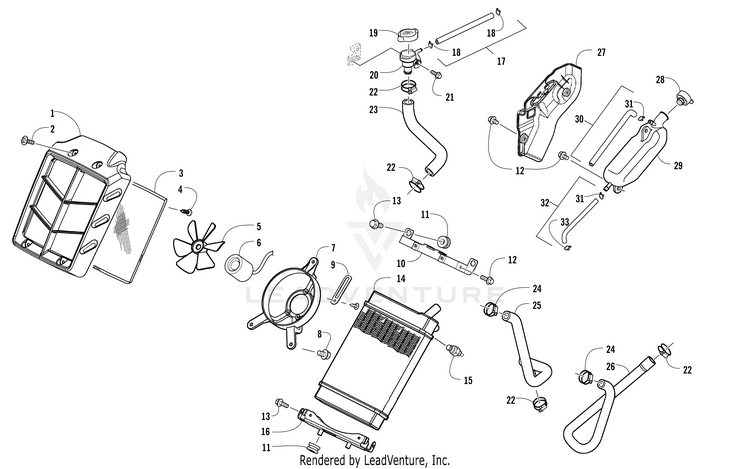

COOLING ASSEMBLY [302188]

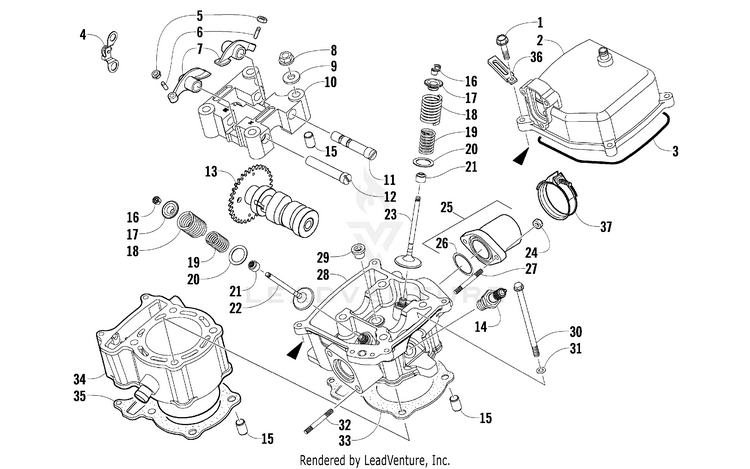

CYLINDER HEAD AND CAMSHAFT/VALVE ASSEMBLY [303971]

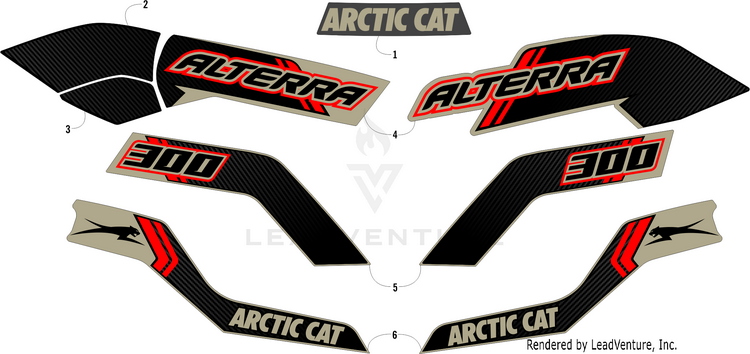

DECALS [305528]

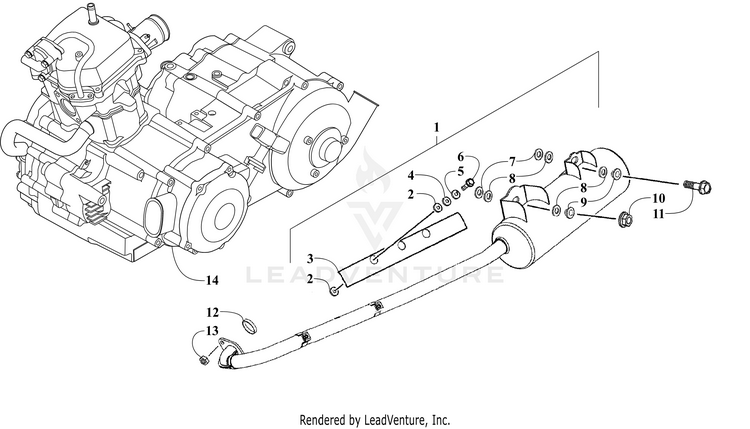

ENGINE AND EXHAUST ASSEMBLY [301260]

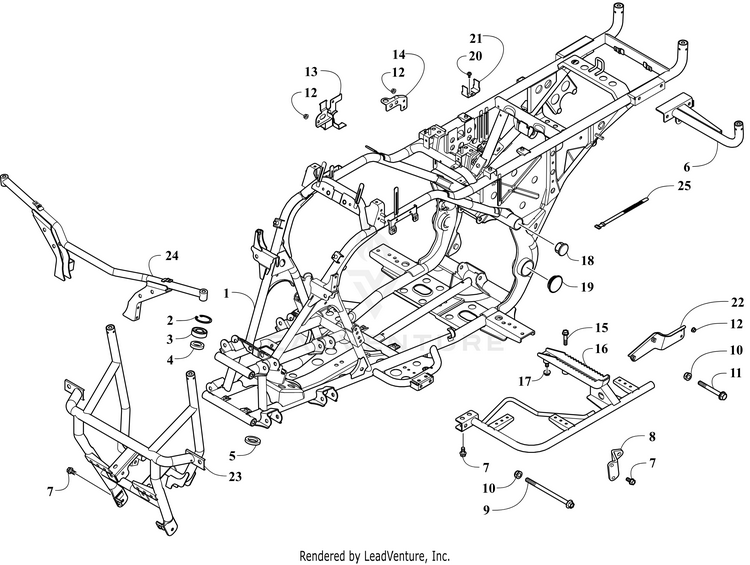

FRAME AND RELATED PARTS [302180]

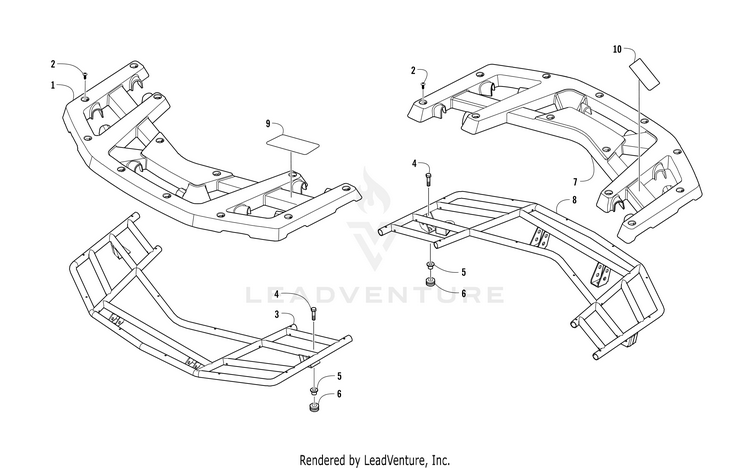

FRONT AND REAR RACK ASSEMBLY [302200]

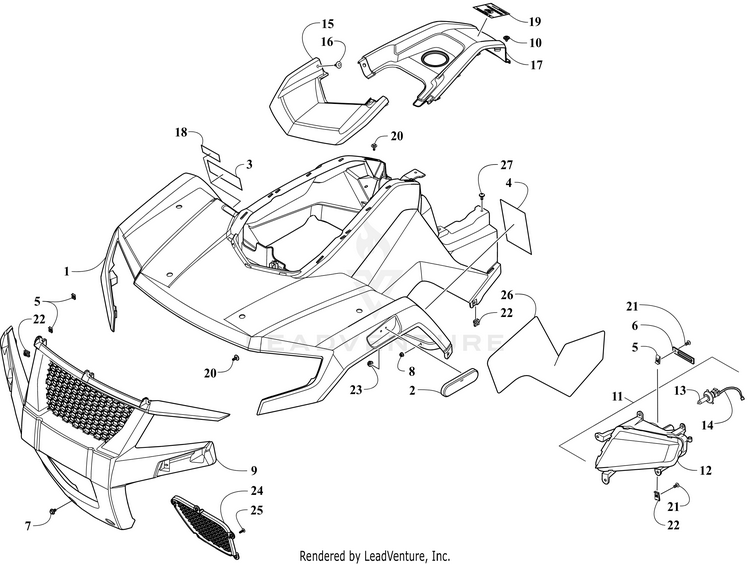

FRONT BODY AND HEADLIGHT ASSEMBLY [304246]

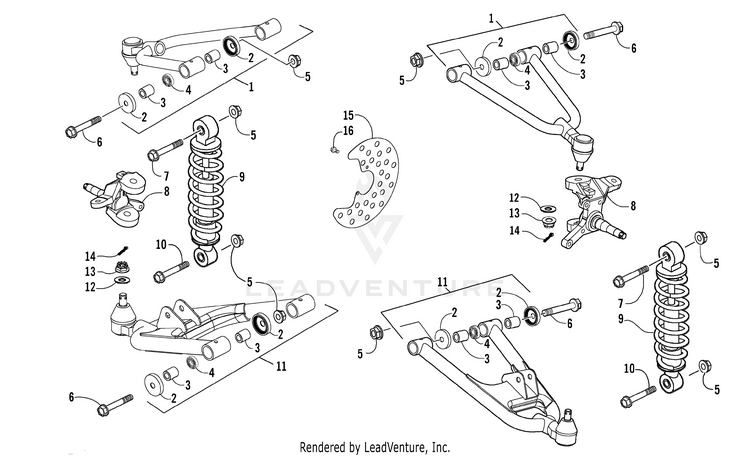

FRONT SUSPENSION ASSEMBLY [303370]
FRONT WHEELS AND BRAKE ASSEMBLY [303775]

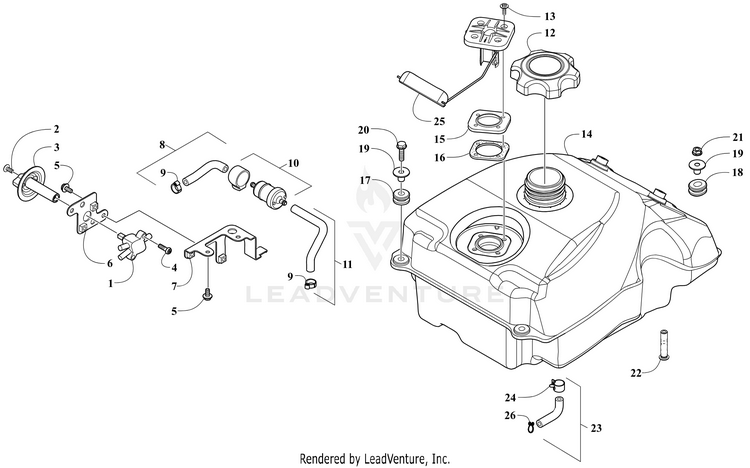

GAS TANK ASSEMBLY [302643]

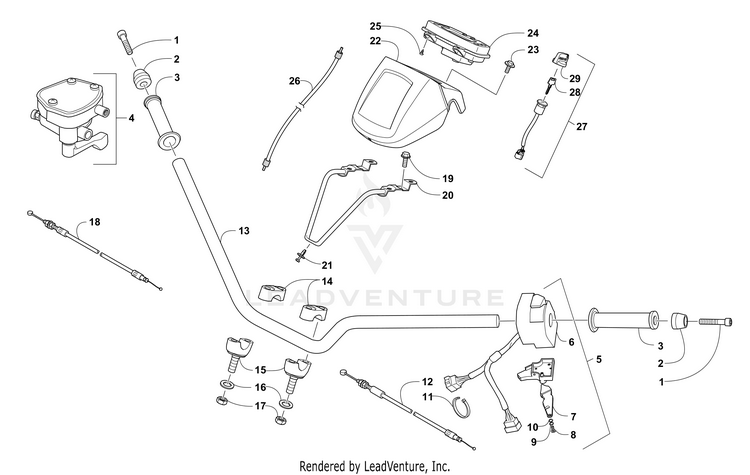

HANDLEBAR, INSTRUMENT POD, AND CONTROL ASSEMBLIES [303554]

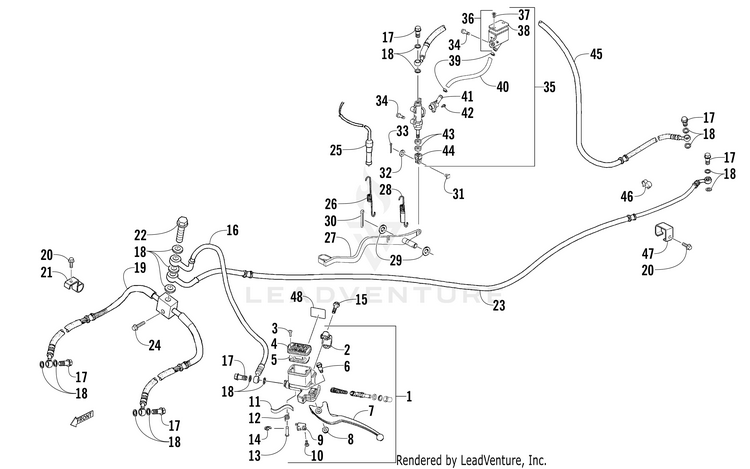

HYDRAULIC BRAKE ASSEMBLY [302850]

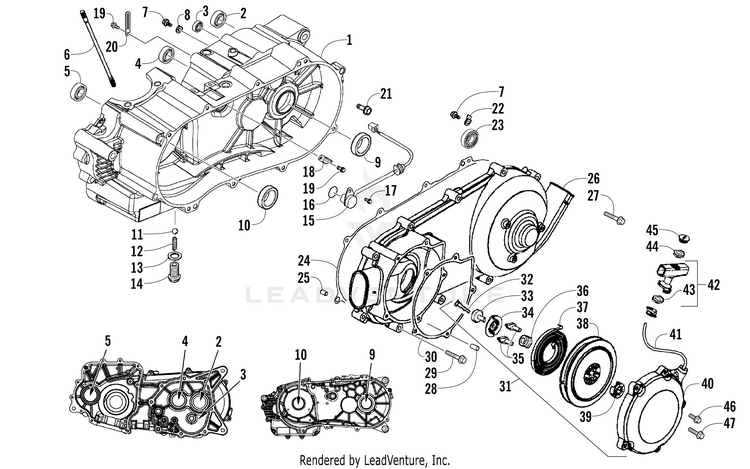

LEFT CRANKCASE, COVER, AND RECOIL ASSEMBLY [304242]

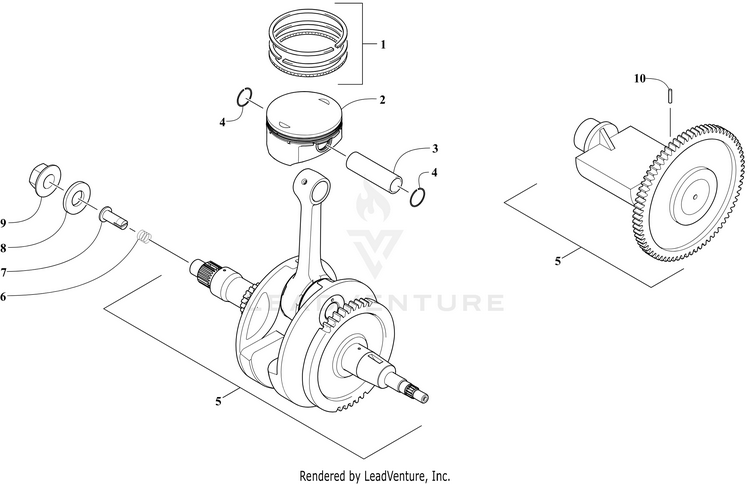

PISTON AND CRANKSHAFT ASSEMBLY [305624]

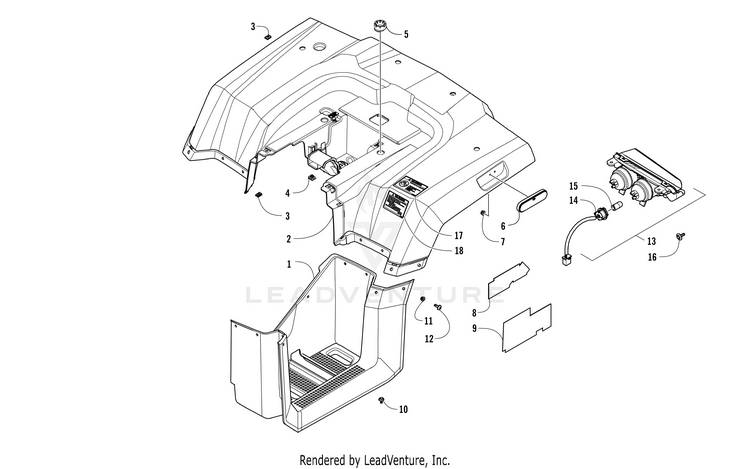

REAR BODY AND TAILLIGHT ASSEMBLY [304247]

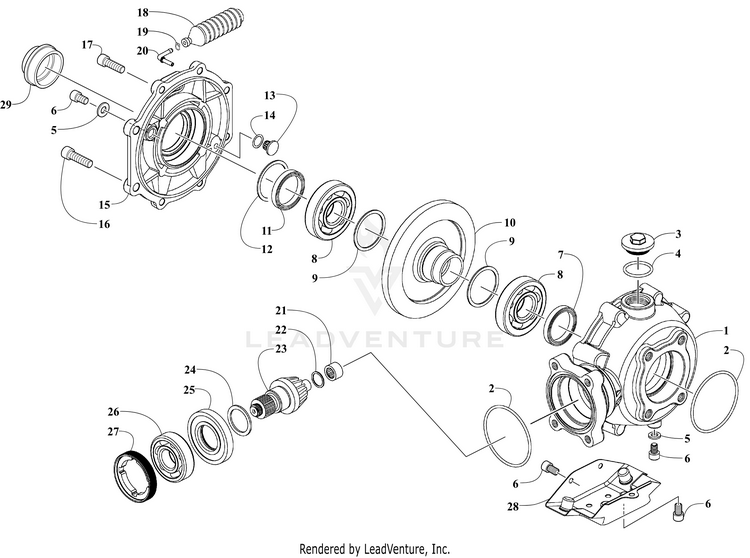

REAR DRIVE GEARCASE ASSEMBLY [301262]

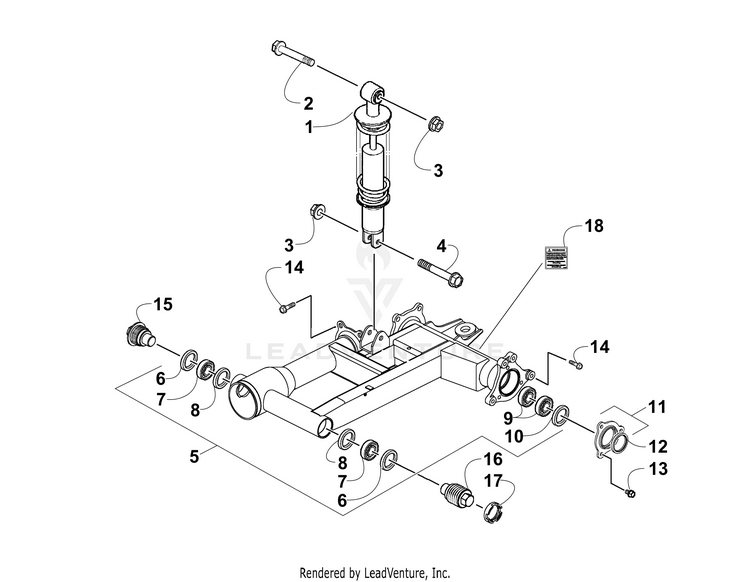

REAR SUSPENSION ASSEMBLY [303970]

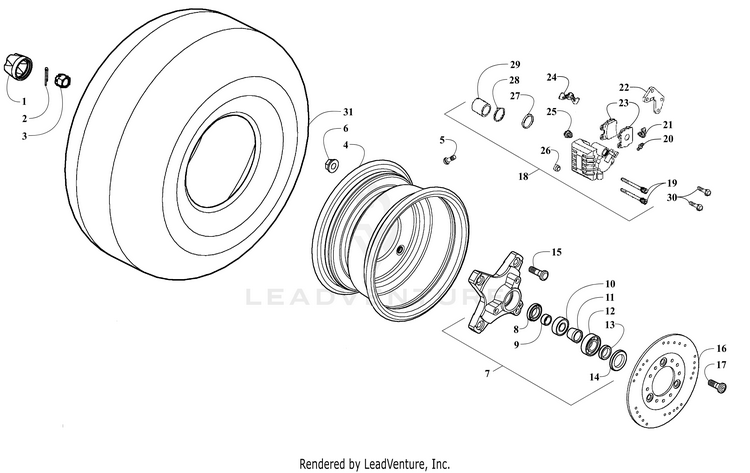

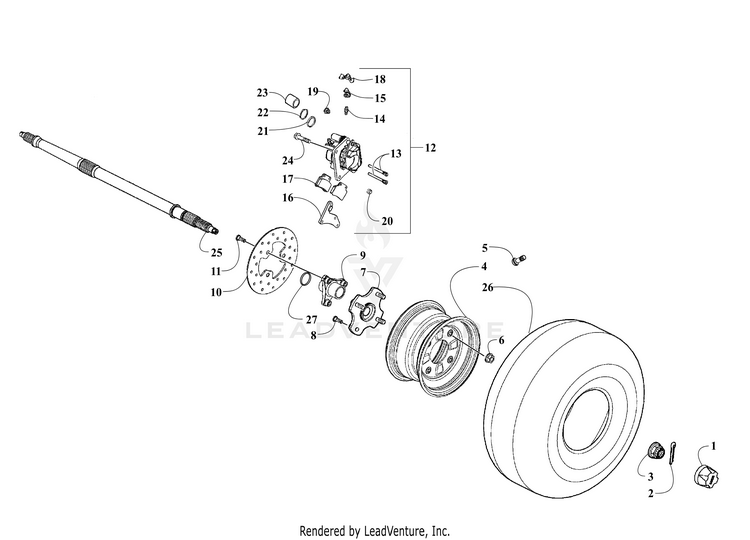

REAR WHEELS, AXLE, AND BRAKE ASSEMBLY [303774]

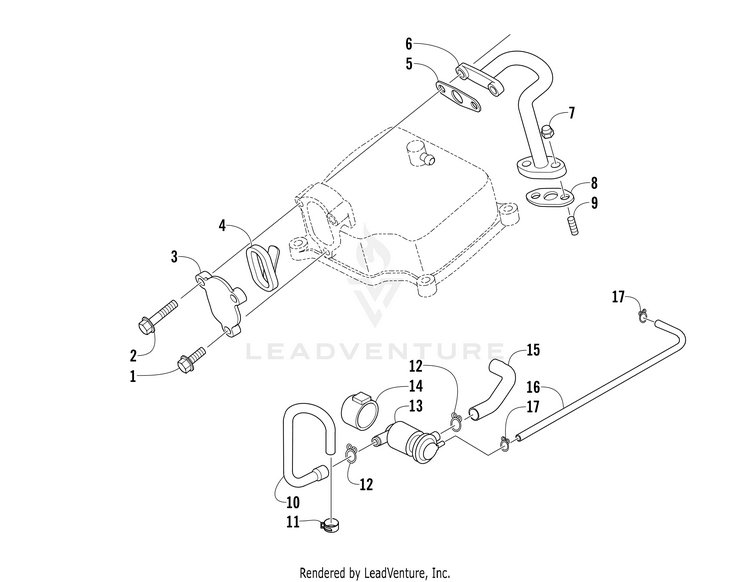

REED VALVE ASSEMBLY [302192]

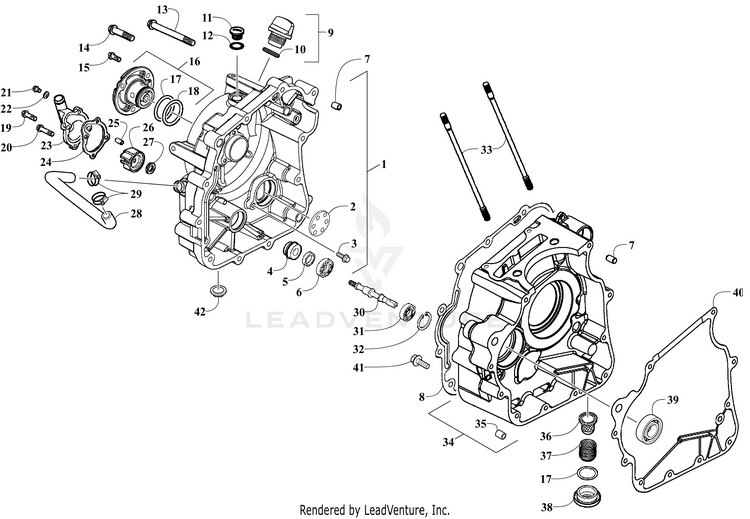

RIGHT CRANKCASE AND COVER ASSEMBLY [303972]

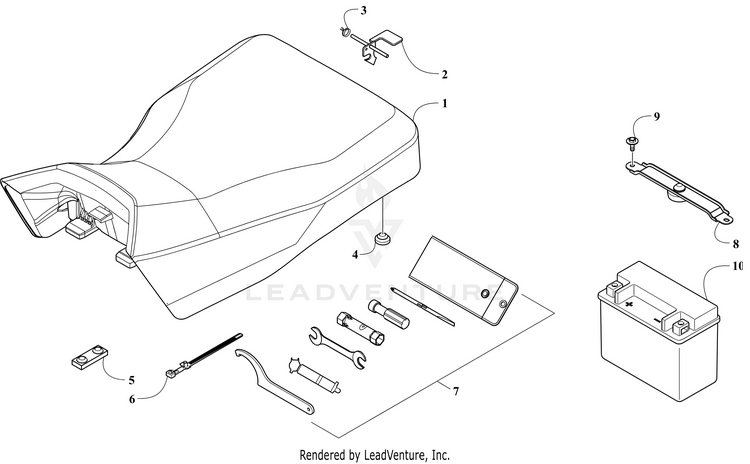

SEAT, BATTERY, AND TOOL KIT ASSEMBLIES [302191]

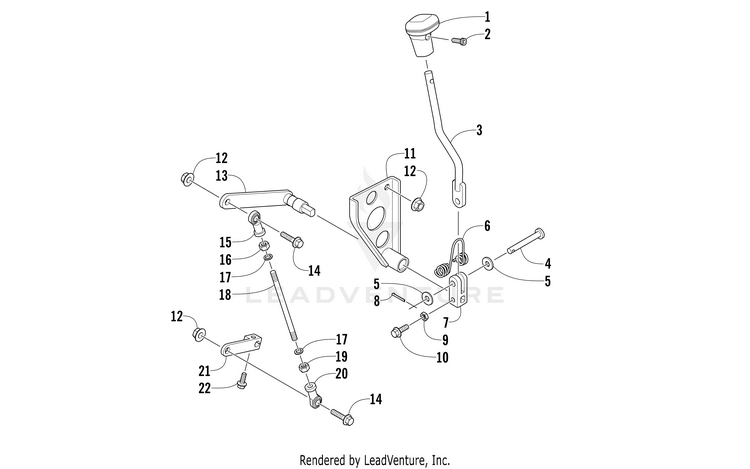

SHIFT LEVER ASSEMBLY [302187]

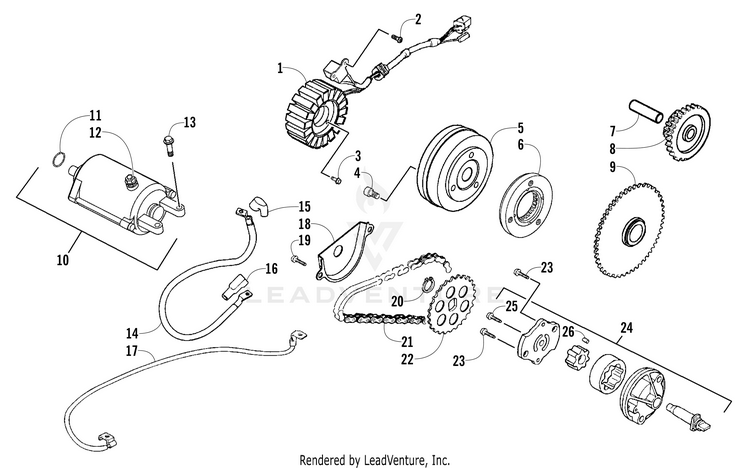

STARTER MOTOR, MAGNETO, AND OIL PUMP ASSEMBLY [302196]

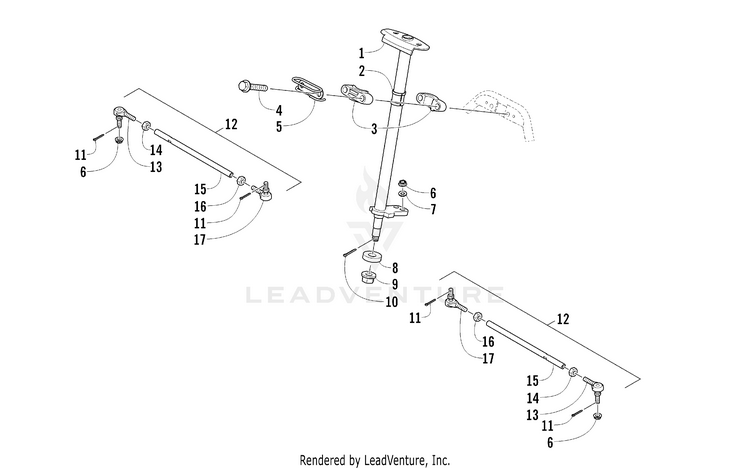

STEERING ASSEMBLY [92436]

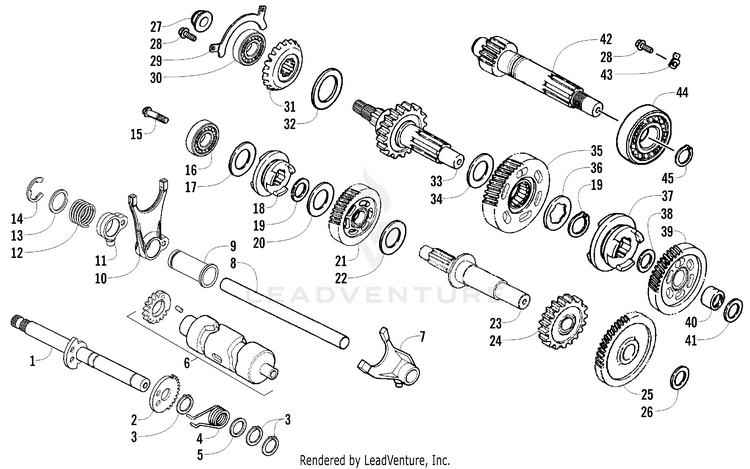

TRANSMISSION ASSEMBLY [304244]

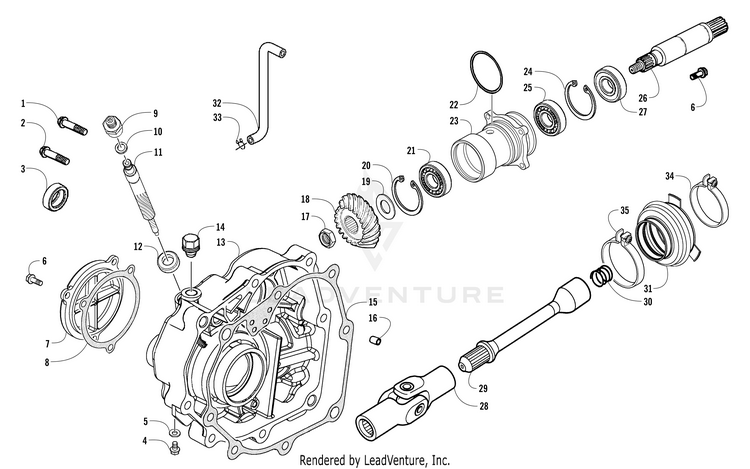

TRANSMISSION CASE ASSEMBLY [304243]

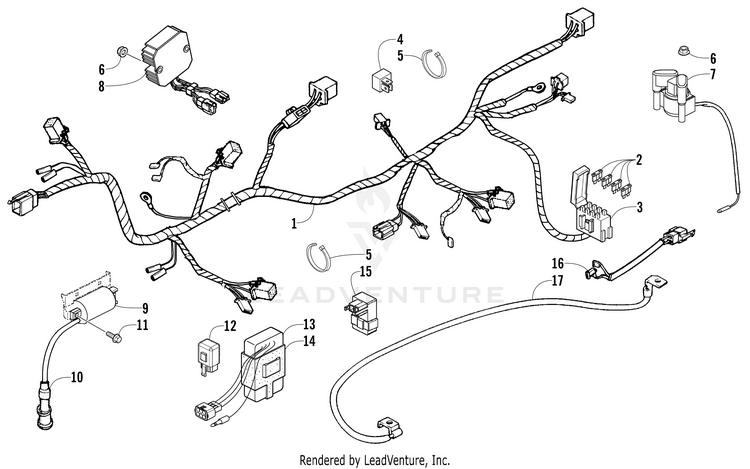

WIRING HARNESS ASSEMBLY [304241]
