2015 Arctic Cat 2015 ATV 300 2X4 UTILITY RED [A2015KUF2BUSR] OEM Parts | Assembly Diagrams Lookup OEM Parts Finder and Diagram (Microfiche) Inspector

Arctic Cat Choose an assembly...

Assemblies List (31)

AIR INTAKE ASSEMBLY [92559]
CAM CHAIN ASSEMBLY [300501]
CARBURETOR ASSEMBLY [300500]
CASE/BELT COOLING ASSEMBLY [92446]
CLUTCH ASSEMBLY [94283]

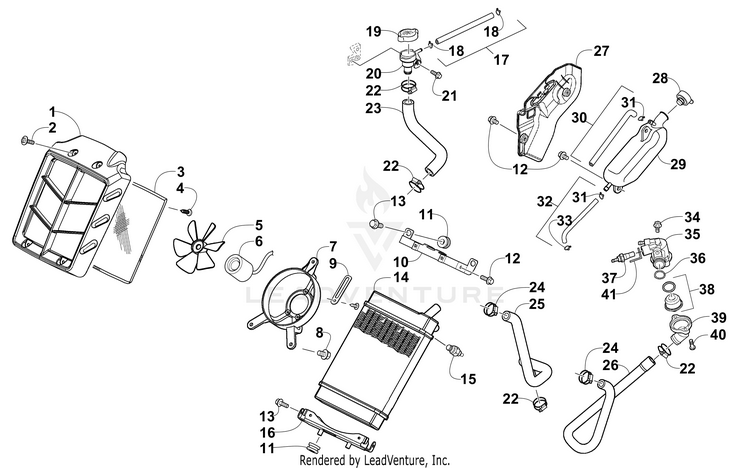

COOLING ASSEMBLY [300499]
CYLINDER HEAD AND CAMSHAFT/VALVE ASSEMBLY [100476]
EXHAUST ASSEMBLY [100473]

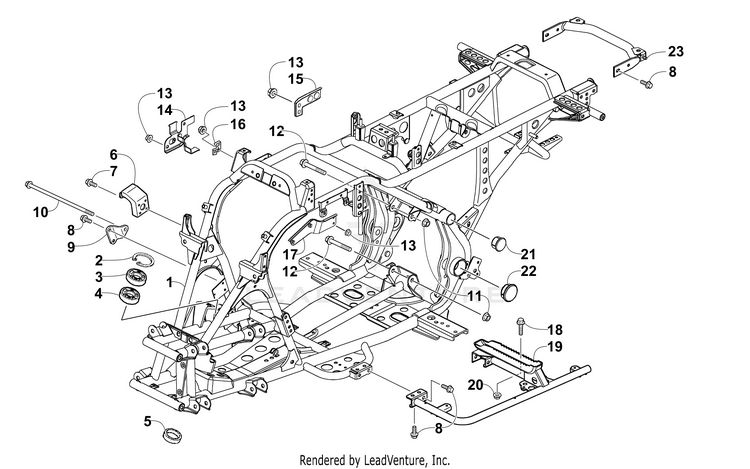

FRAME AND RELATED PARTS [300497]

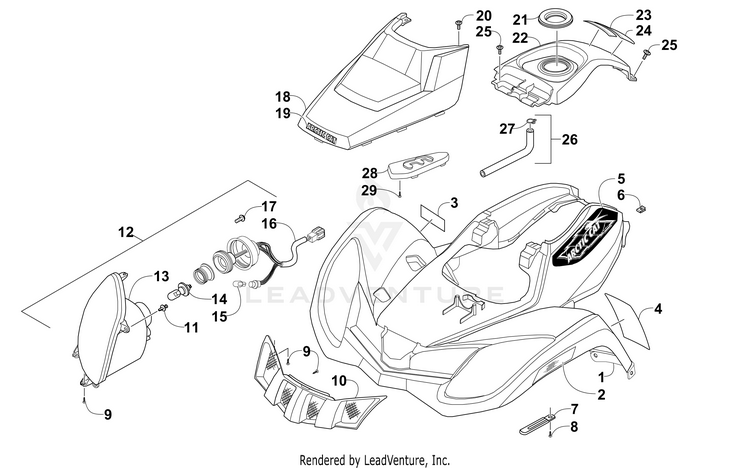

FRONT BODY AND HEADLIGHT ASSEMBLY [300495]
FRONT BUMPER, FRONT RACK, AND REAR RACK ASSEMBLY [94267]
FRONT SUSPENSION ASSEMBLY [100468]
FRONT WHEELS AND BRAKE ASSEMBLY [100469]
GAS TANK ASSEMBLY [100472]
HANDLEBAR, INSTRUMENT POD, AND CONTROL ASSEMBLIES [300498]
HYDRAULIC BRAKE ASSEMBLY [94271]
LEFT CRANKCASE, COVER, AND RECOIL ASSEMBLY [94279]
PISTON AND CRANKSHAFT ASSEMBLY [94280]

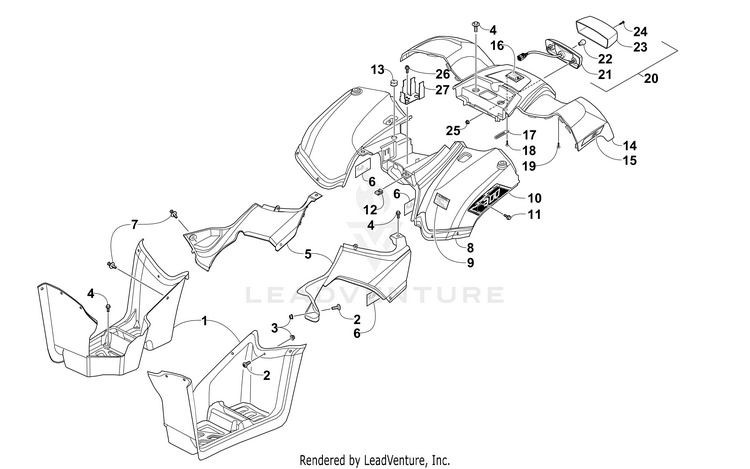

REAR BODY AND TAILLIGHT ASSEMBLY [300496]
REAR DRIVE GEARCASE ASSEMBLY [94273]
REAR SUSPENSION ASSEMBLY [100470]
REAR WHEELS, AXLE, AND BRAKE ASSEMBLY [100471]
REED VALVE ASSEMBLY [100477]
RIGHT CRANKCASE AND COVER ASSEMBLY [94278]
SEAT, BATTERY, AND TOOL KIT ASSEMBLIES [96347]
SHIFT LEVER ASSEMBLY [92443]
STARTER MOTOR, MAGNETO, AND OIL PUMP ASSEMBLY [92456]
STEERING ASSEMBLY [92436]
TRANSMISSION ASSEMBLY [96349]
TRANSMISSION CASE ASSEMBLY [100478]
WIRING HARNESS ASSEMBLY [100474]

A

AIR INTAKE ASSEMBLY [92559]

C

CAM CHAIN ASSEMBLY [300501]
CARBURETOR ASSEMBLY [300500]
CASE/BELT COOLING ASSEMBLY [92446]
CLUTCH ASSEMBLY [94283]
COOLING ASSEMBLY [300499]
CYLINDER HEAD AND CAMSHAFT/VALVE ASSEMBLY [100476]

E

EXHAUST ASSEMBLY [100473]

F

FRAME AND RELATED PARTS [300497]
FRONT BODY AND HEADLIGHT ASSEMBLY [300495]
FRONT BUMPER, FRONT RACK, AND REAR RACK ASSEMBLY [94267]
FRONT SUSPENSION ASSEMBLY [100468]
FRONT WHEELS AND BRAKE ASSEMBLY [100469]

G

GAS TANK ASSEMBLY [100472]

H

HANDLEBAR, INSTRUMENT POD, AND CONTROL ASSEMBLIES [300498]
HYDRAULIC BRAKE ASSEMBLY [94271]

L

LEFT CRANKCASE, COVER, AND RECOIL ASSEMBLY [94279]

P

PISTON AND CRANKSHAFT ASSEMBLY [94280]

R

REAR BODY AND TAILLIGHT ASSEMBLY [300496]
REAR DRIVE GEARCASE ASSEMBLY [94273]
REAR SUSPENSION ASSEMBLY [100470]
REAR WHEELS, AXLE, AND BRAKE ASSEMBLY [100471]
REED VALVE ASSEMBLY [100477]
RIGHT CRANKCASE AND COVER ASSEMBLY [94278]

S

SEAT, BATTERY, AND TOOL KIT ASSEMBLIES [96347]
SHIFT LEVER ASSEMBLY [92443]
STARTER MOTOR, MAGNETO, AND OIL PUMP ASSEMBLY [92456]
STEERING ASSEMBLY [92436]

T

TRANSMISSION ASSEMBLY [96349]
TRANSMISSION CASE ASSEMBLY [100478]

W

WIRING HARNESS ASSEMBLY [100474]
